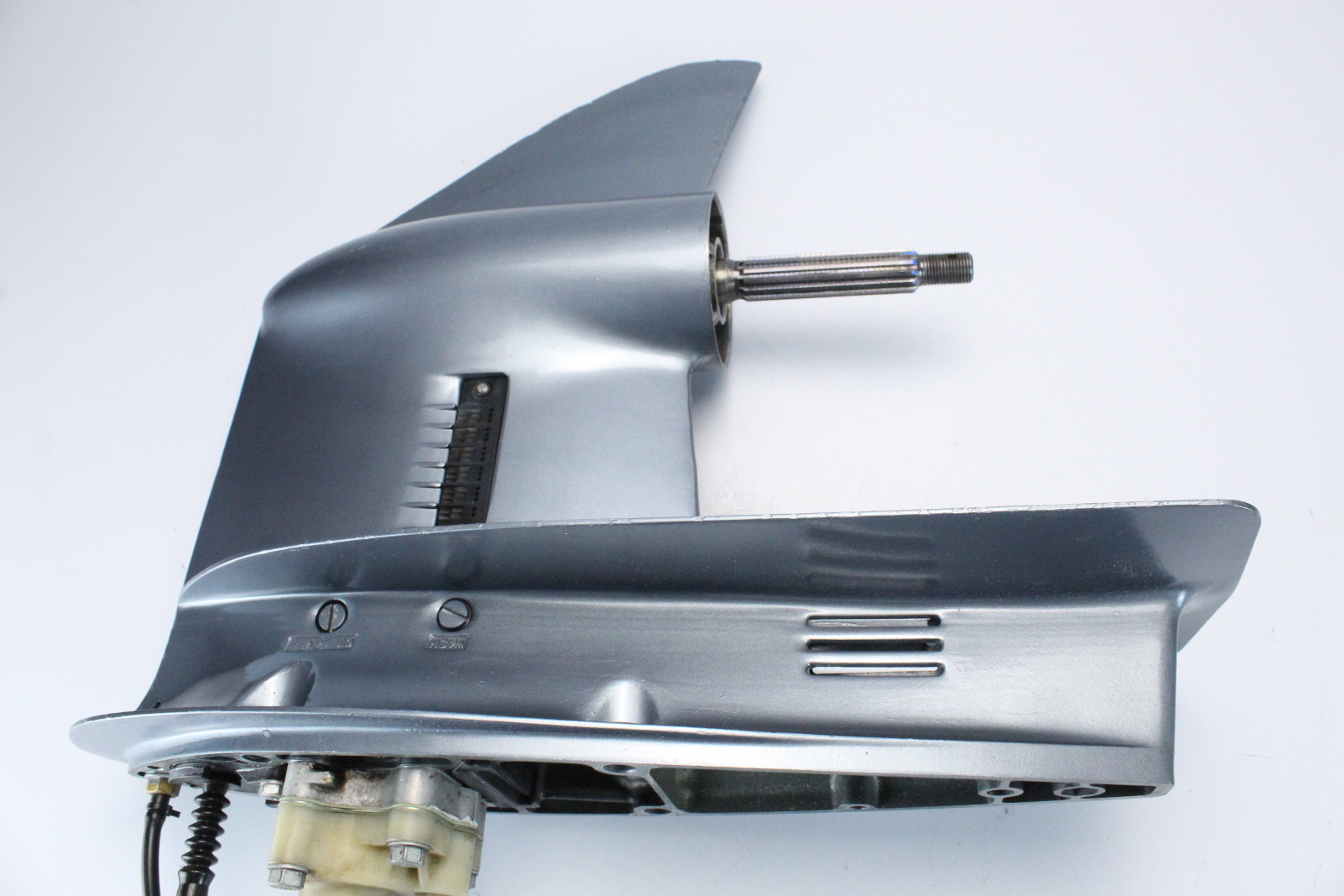

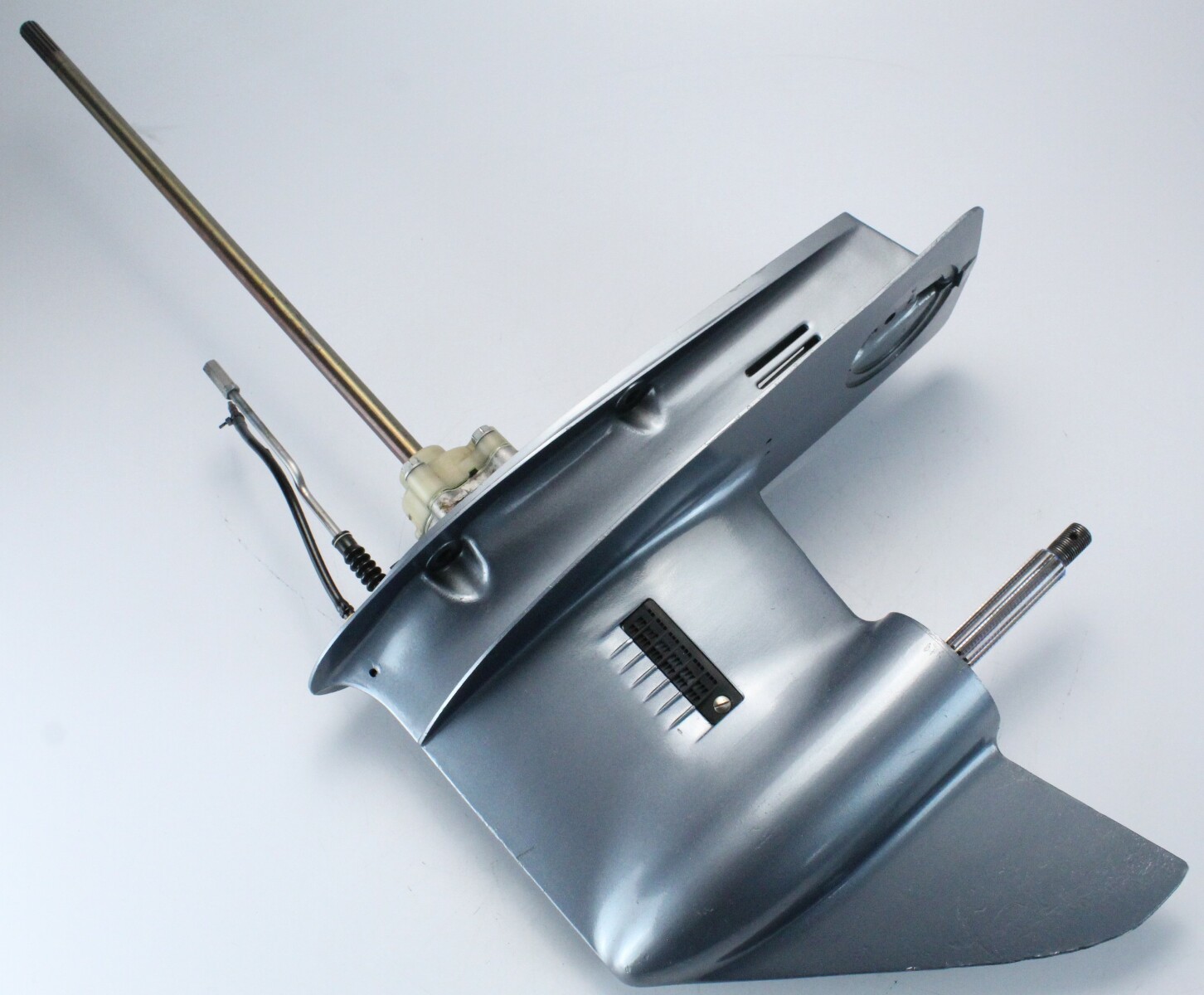

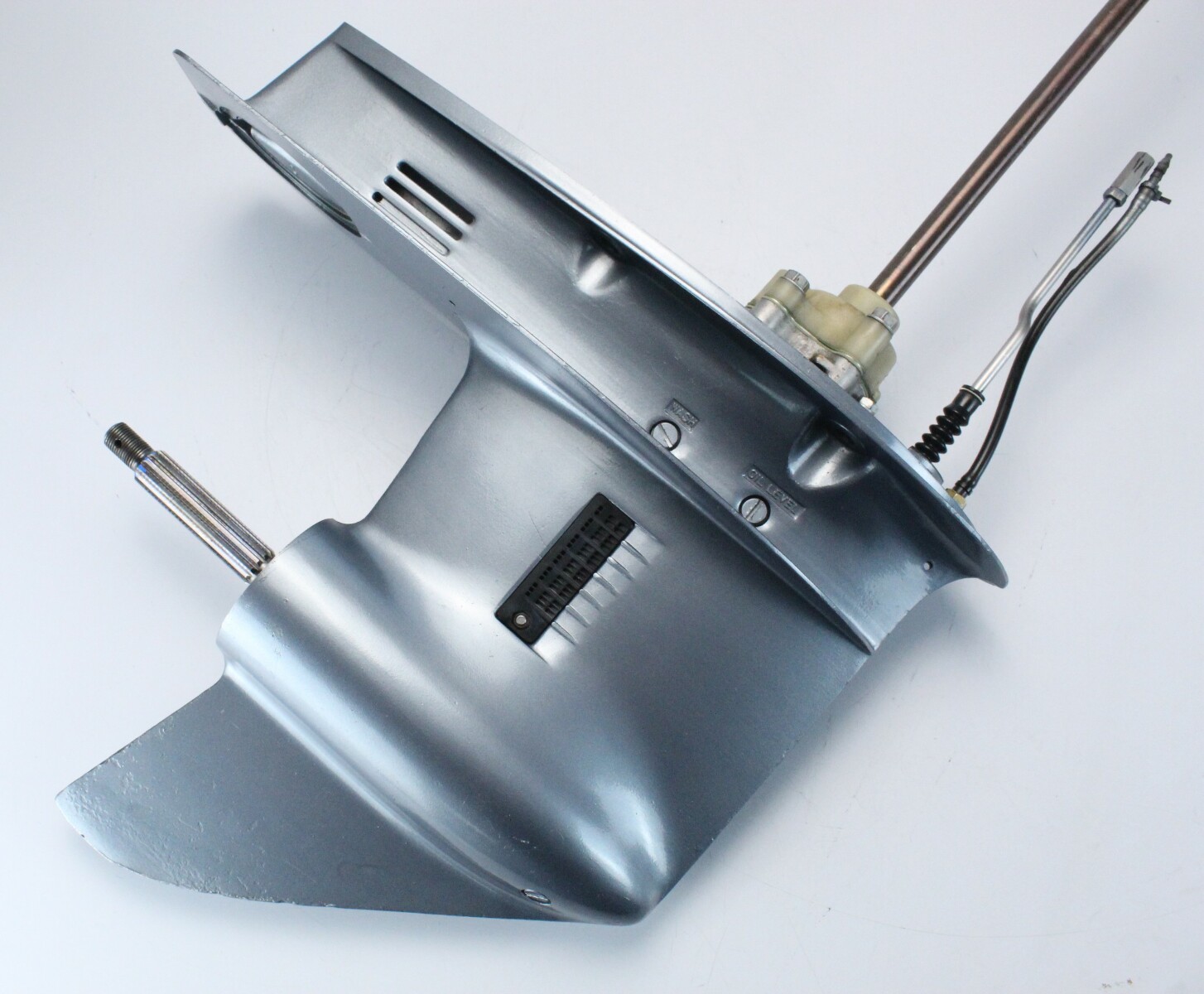

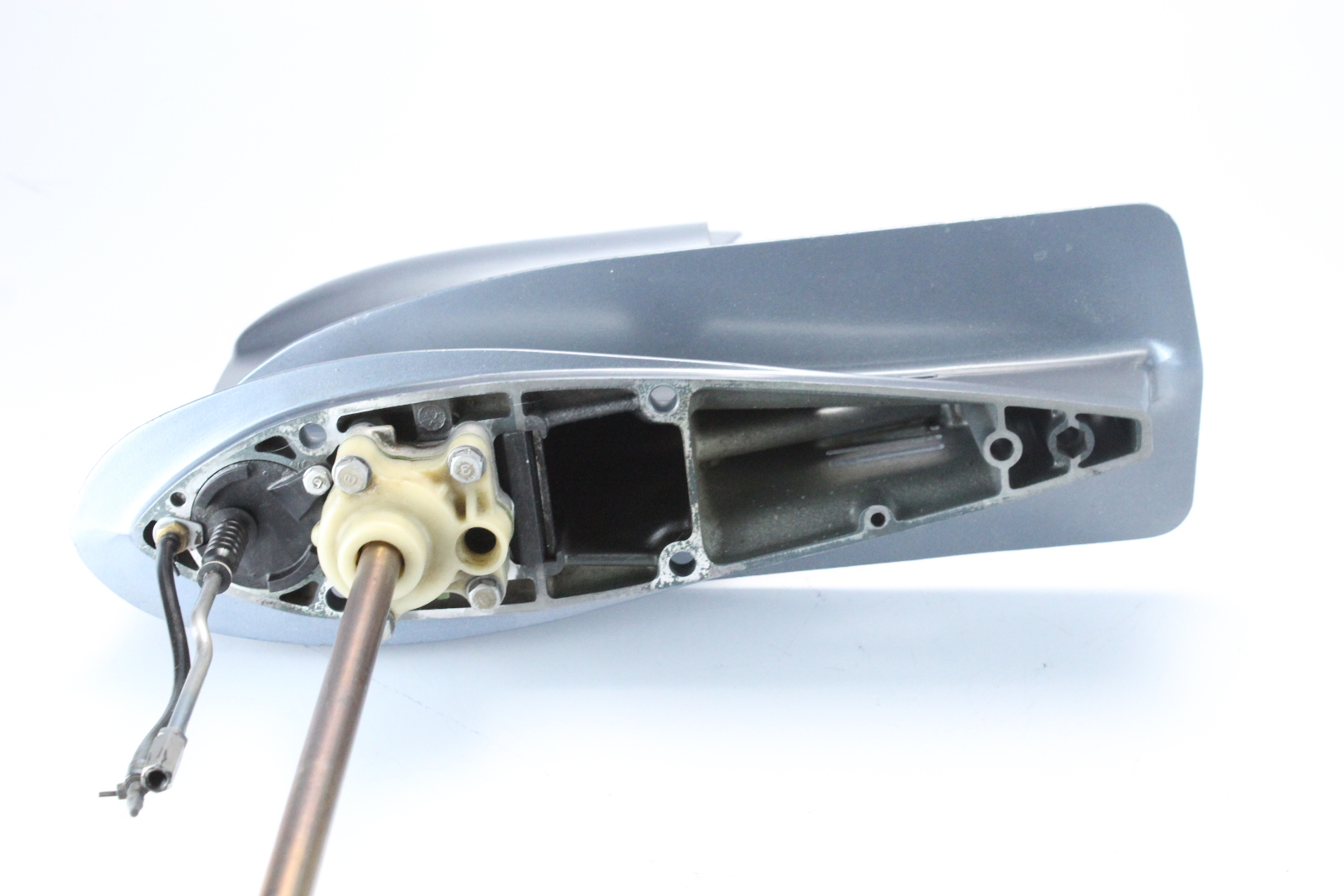

1984 1985 1986 - 1993 Yamaha 20" Lower Unit 40 50 HP 2 Stroke 1 YEAR WARRANTY

• 19 1/4 Inch Driveshaft
• Resealed and pressure checked with a new impeller installed
• Extended Warranty with exchange of a spinning core/ Will need resealed (see below for more info)

• Shifts and spins smoothly without binding
• Shafts checked for straightness
• Driveshaft splines show little to no wear
• Gears & clutch are in good condition with light wear
• Freshwater Condition
• New Impeller
• Fully Resealed & Pressure checked to 12 PSI

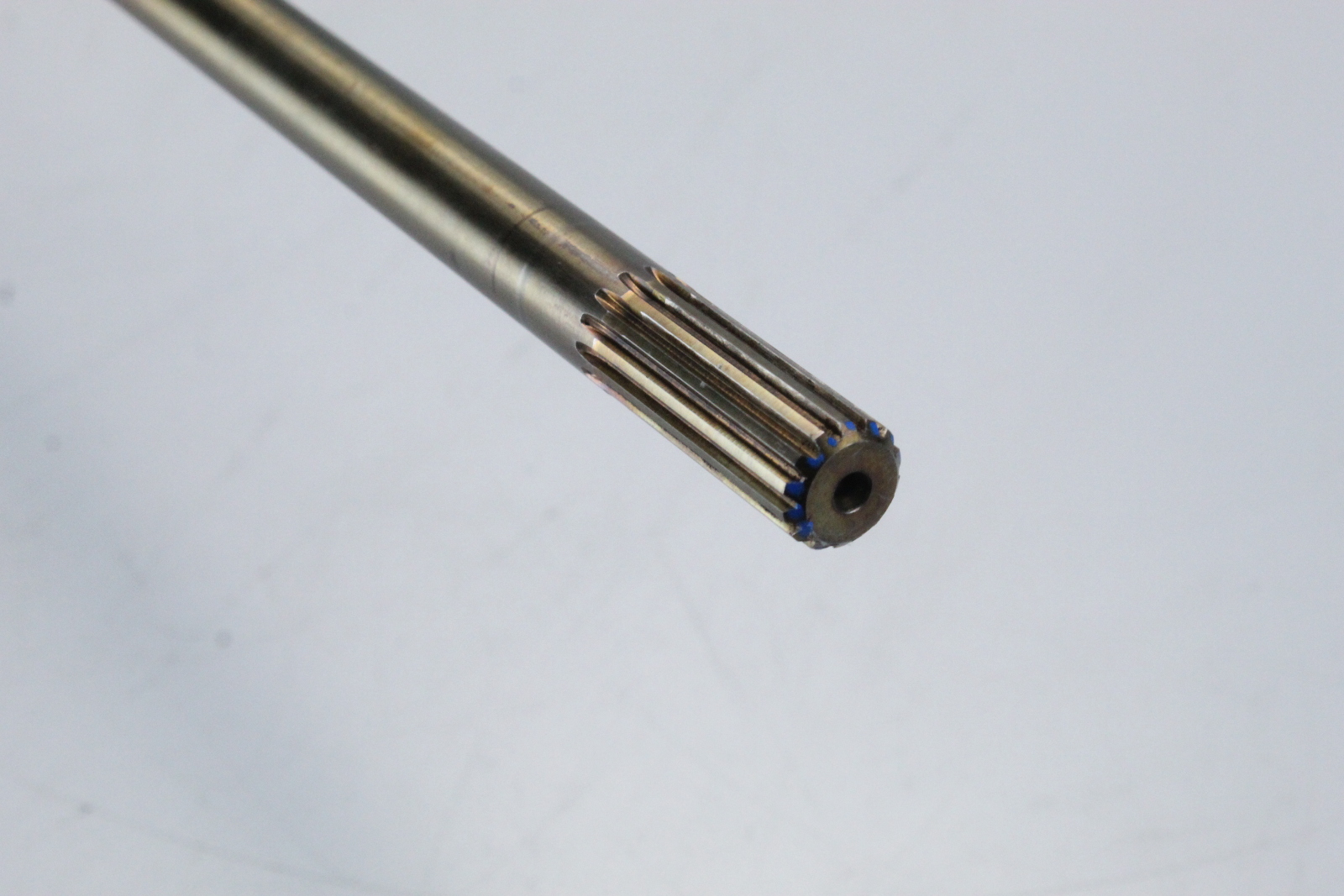

Driveshaft splines: 14

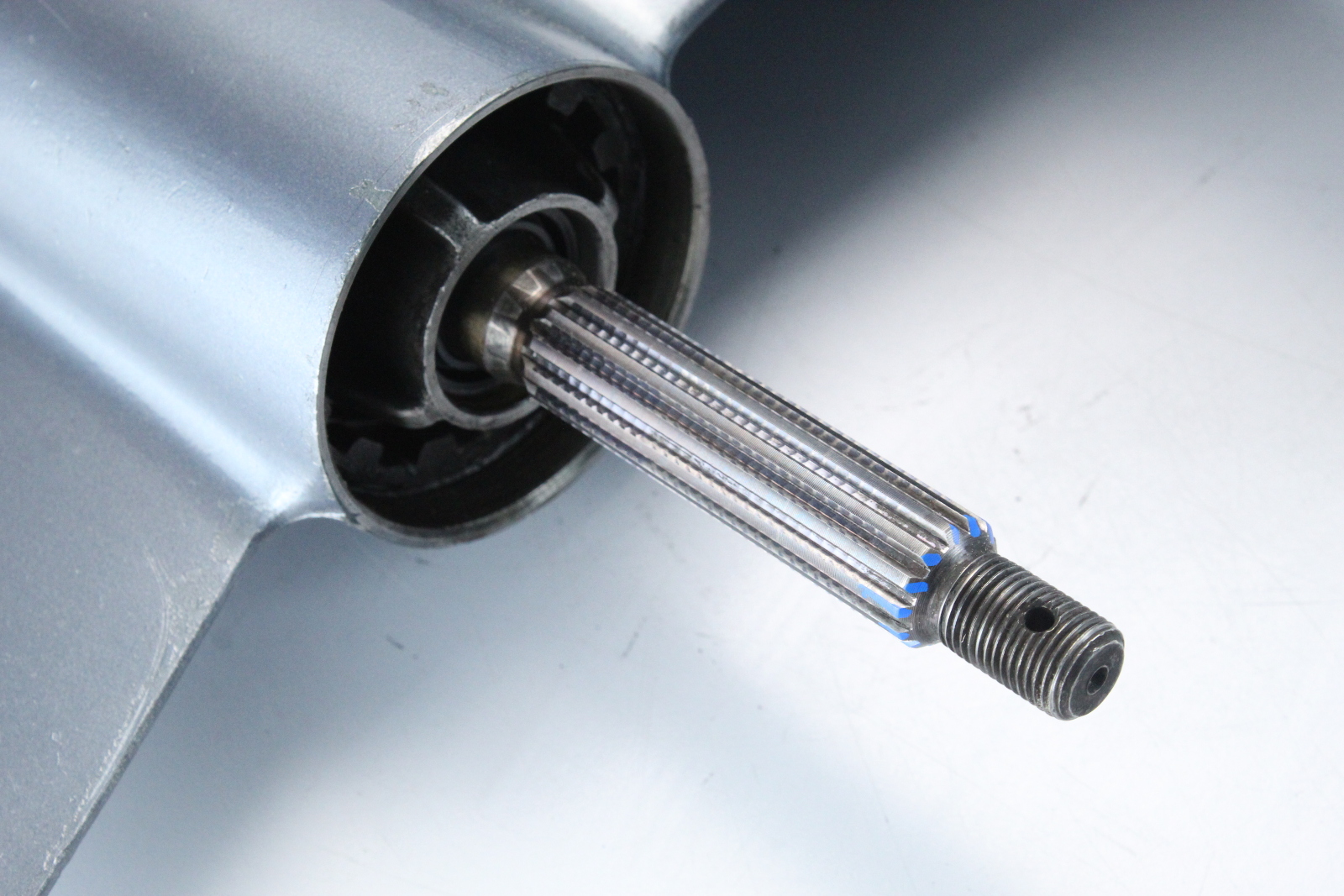

Propeller shaft splines: 13

Driveshaft length from the top of the water pump to top of the shaft: 19 1/4

This unit has a skinny drive shaft. Please verify the diameter of your shaft prior to ordering.

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
