$2,000.00
- Brand: BRP
- Size: 150 175 200 225 250 300 HP
- Style: E-TEC G2 - DPS Steering
- Condition: Used
- SKU: 26-60427 PTP-C
- Manufacturer Part Number: 5011668 5011660 5009808 5011775 5011777
- Motor & Engine Type: BRP
- Part Type: Motors, Engines & Components
- Other Part Number: 356442 363151 181455
- Warranty: 1 Year
- Inventory Number: 26-60427 PTP-C
- Website Category: Midsection
- Website Sub Category: Power Trim and Lift Assist
- UPC: N/A
- Shipping: $175.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

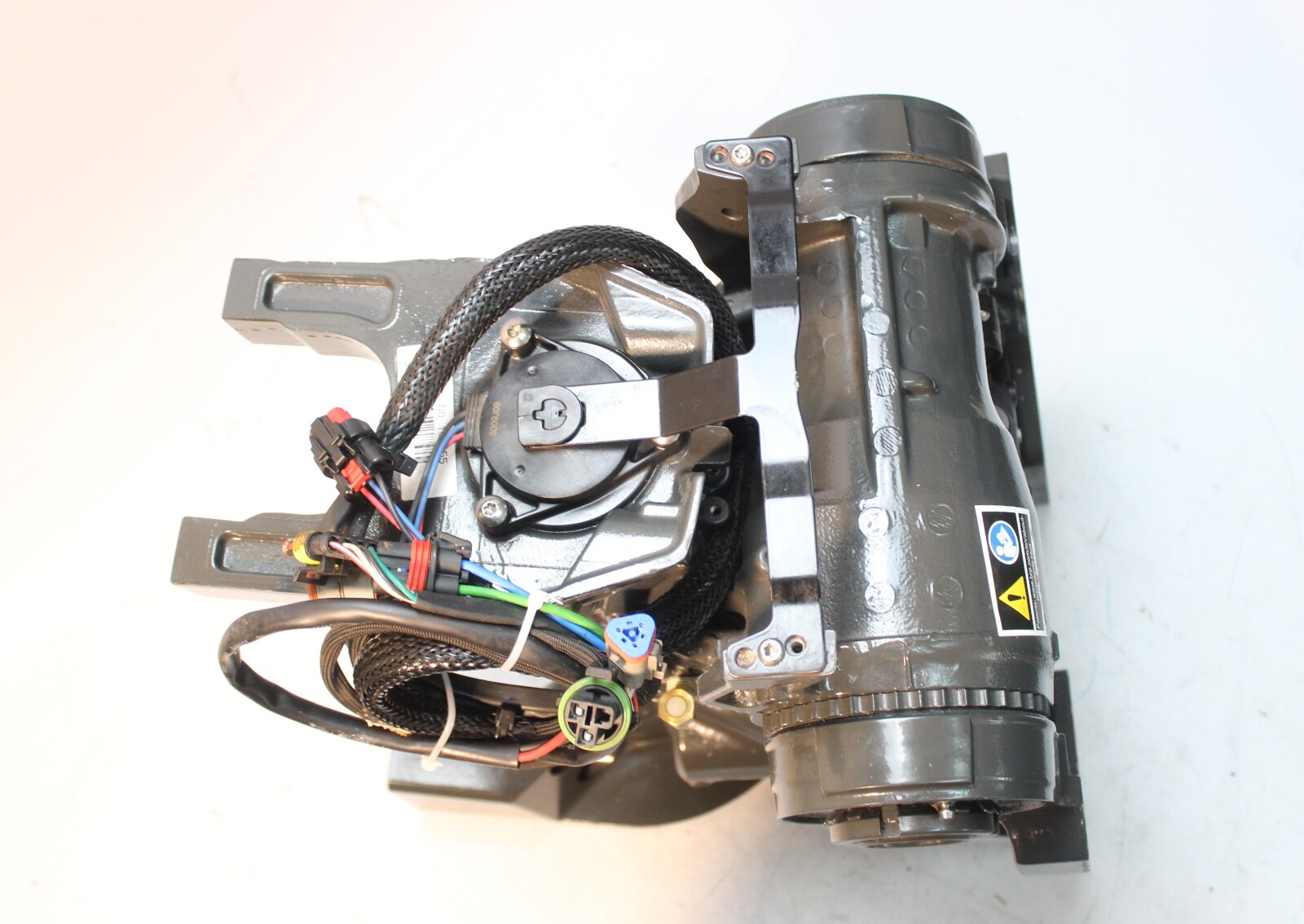

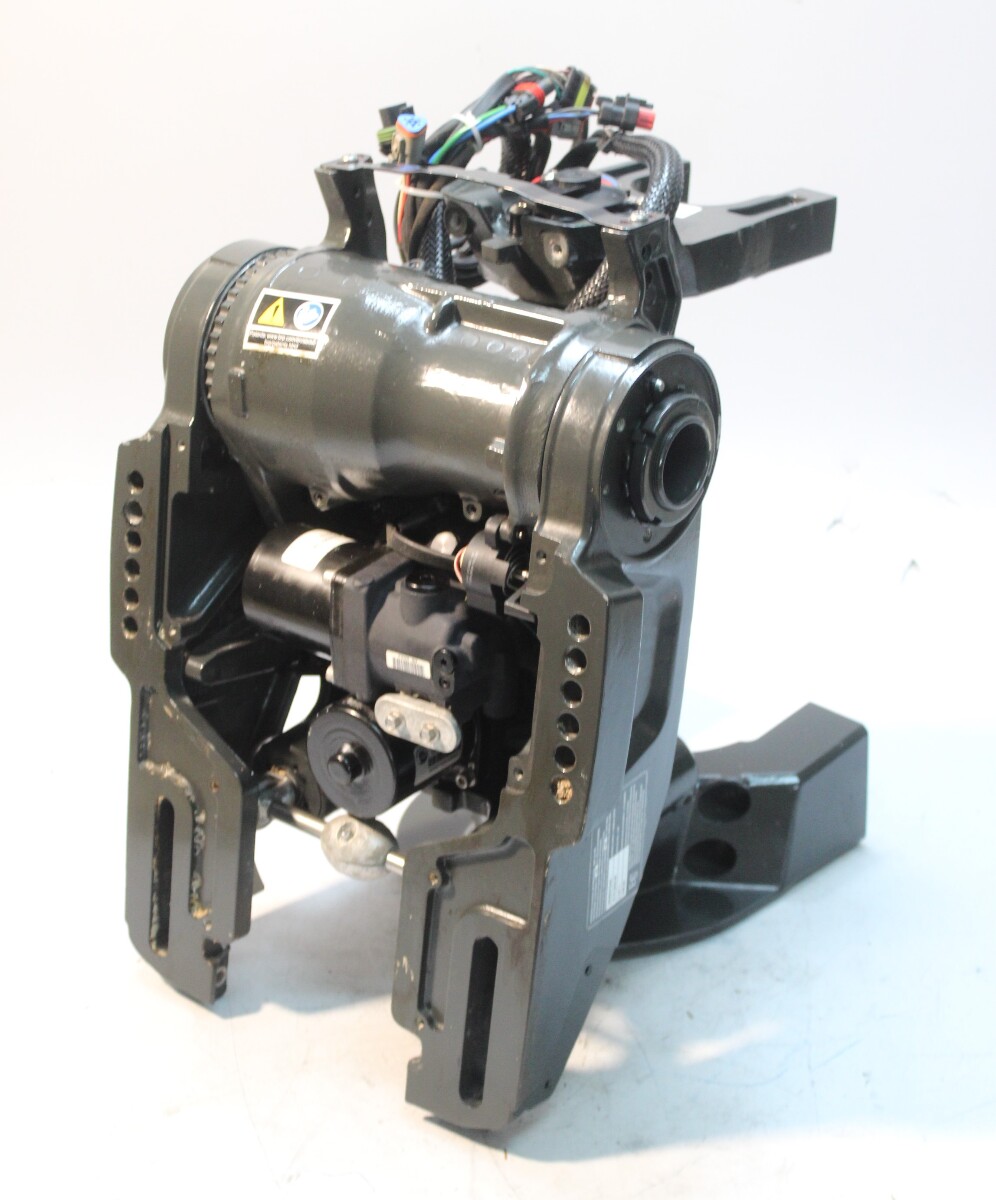

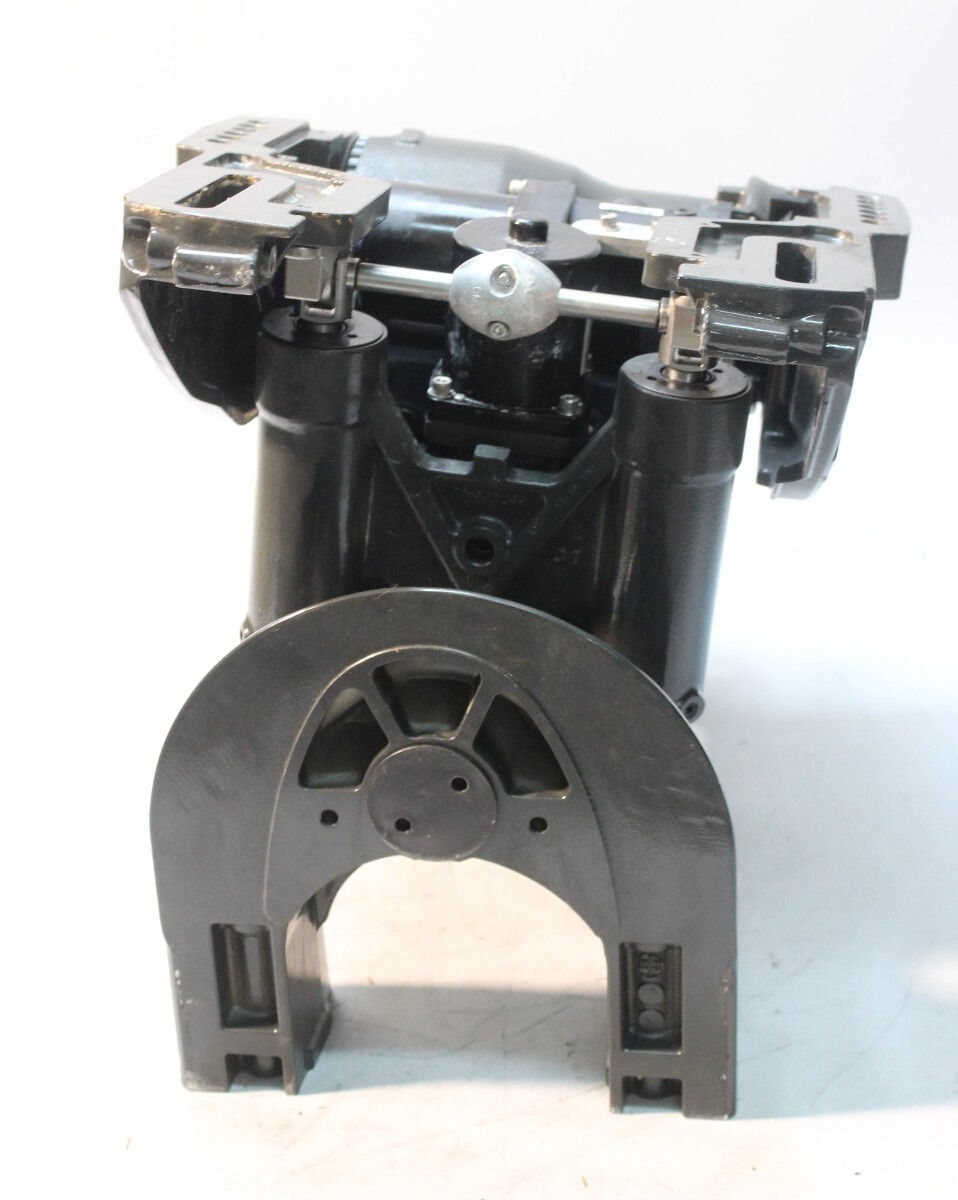

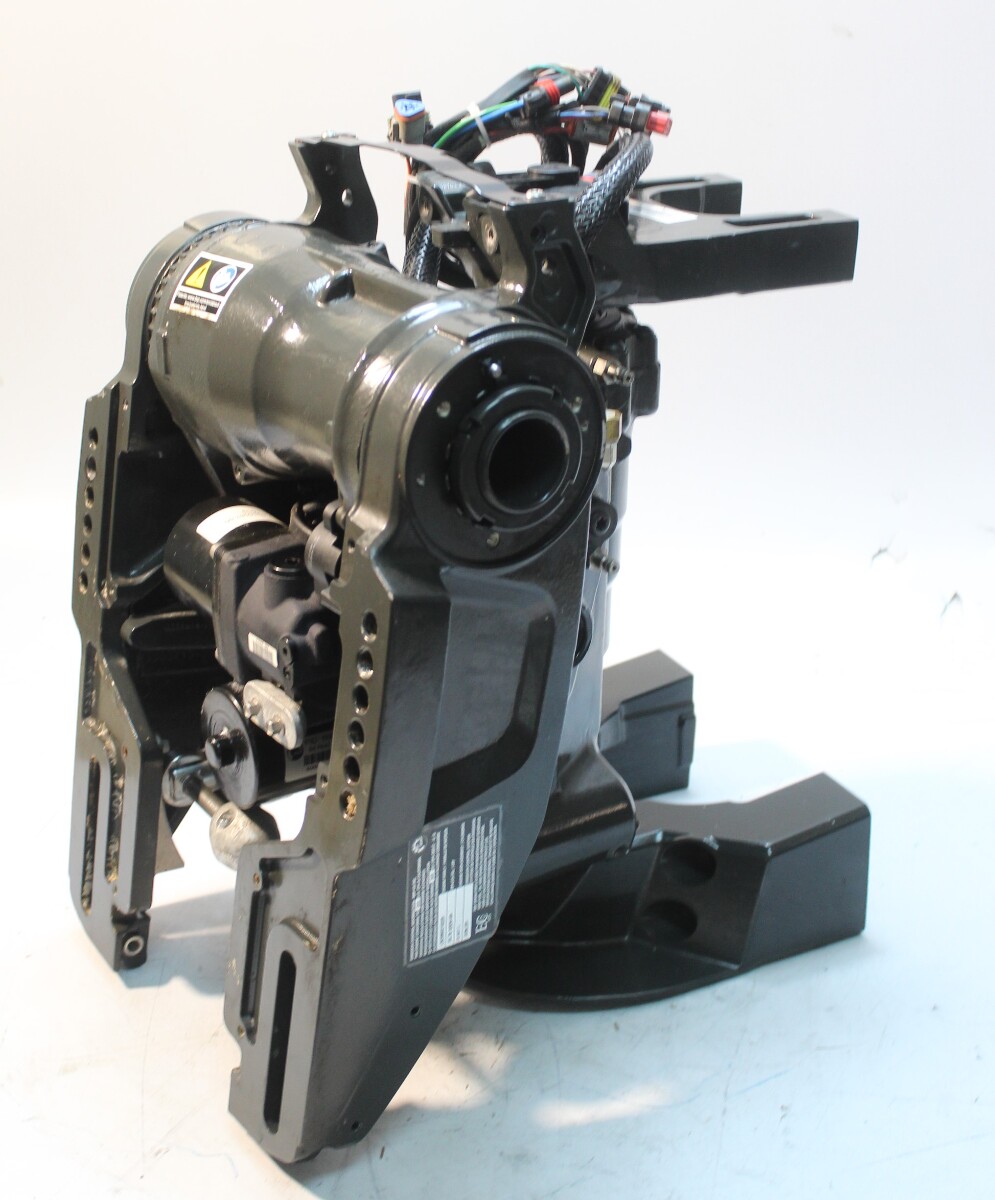

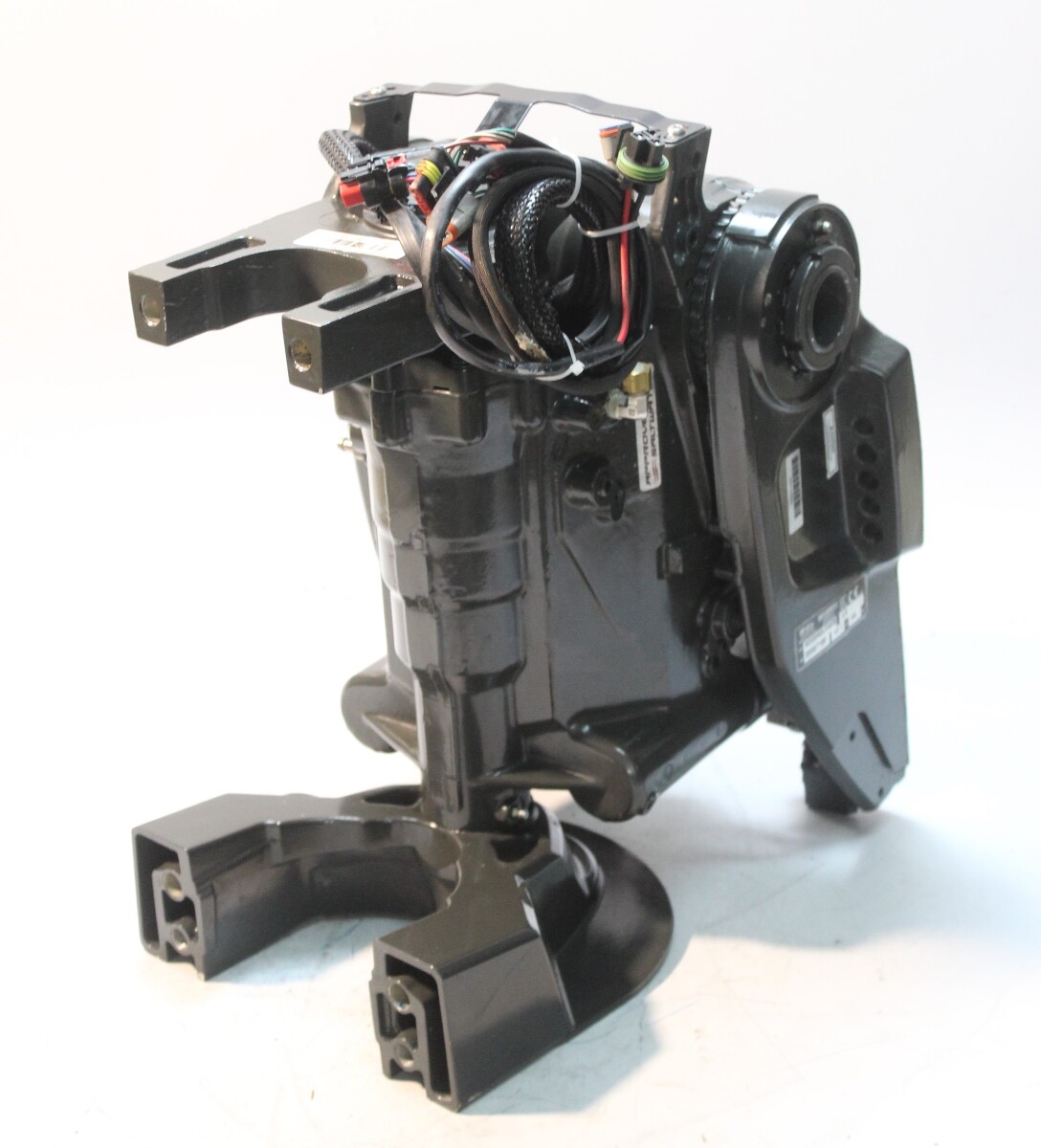

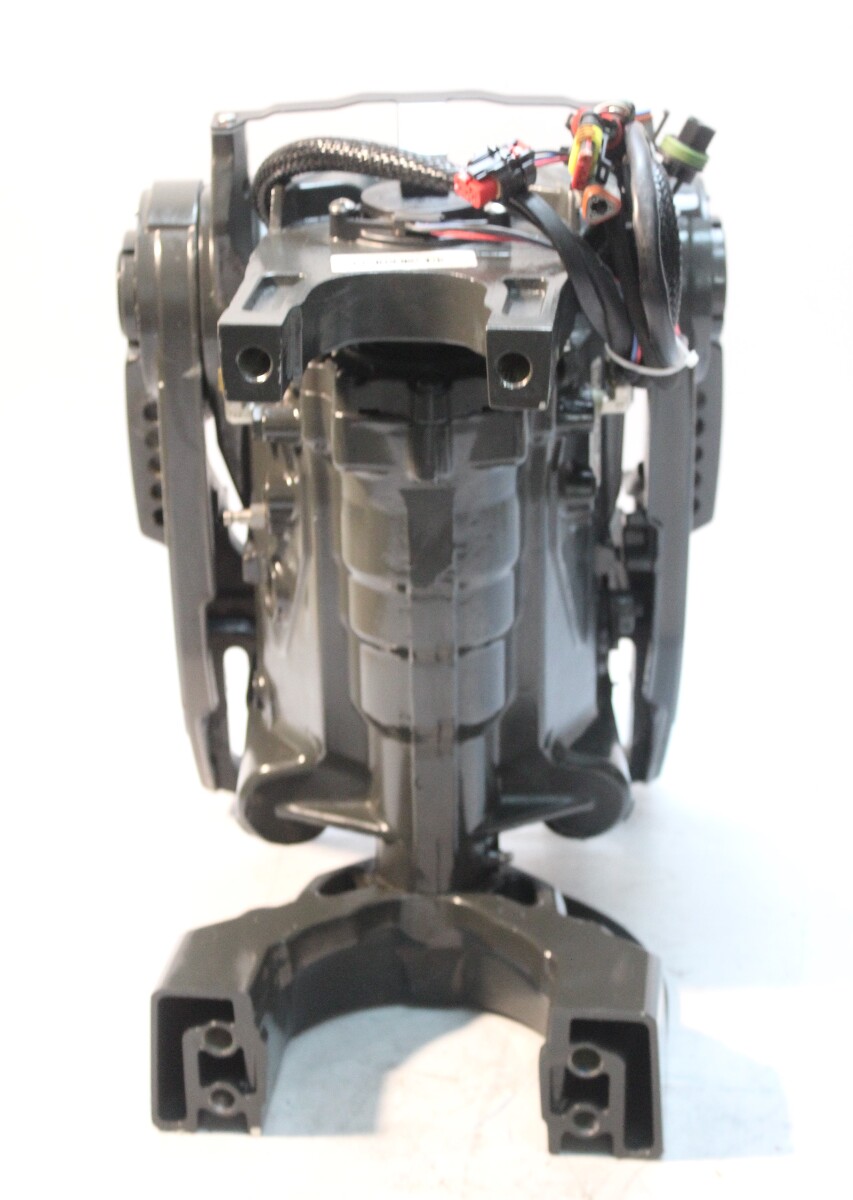

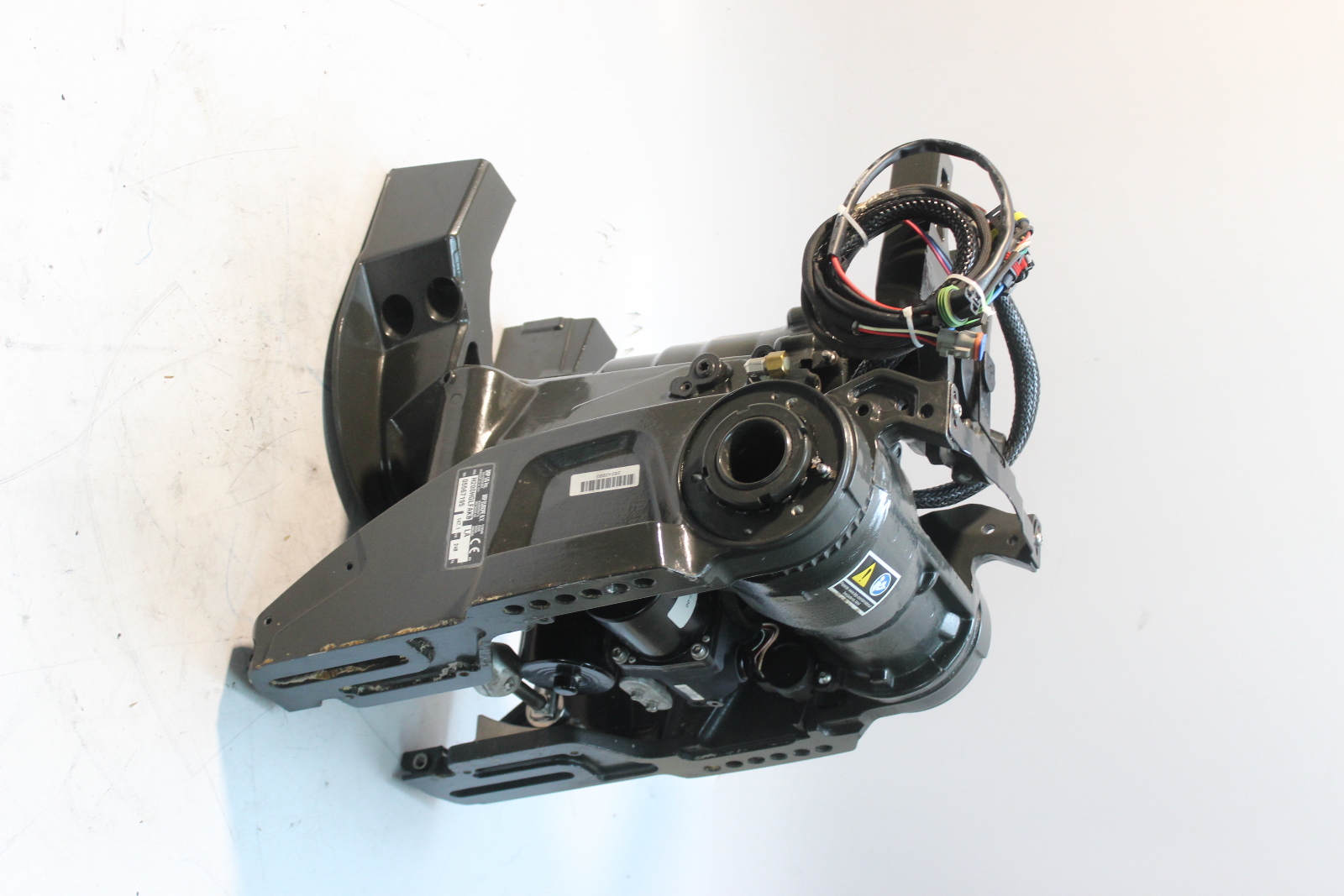

Evinrude G2 Swivel Bracket and Trim
◆ 1 YEAR WARRANTY◆ LOAD TESTED◆ GENUINE EVINRUDE OEM
Part Numbers
◆ Complete Assembly: 5011668 — Dynamic Power Steering (DPS), slate gray
◆ Same assembly, white: 5011660

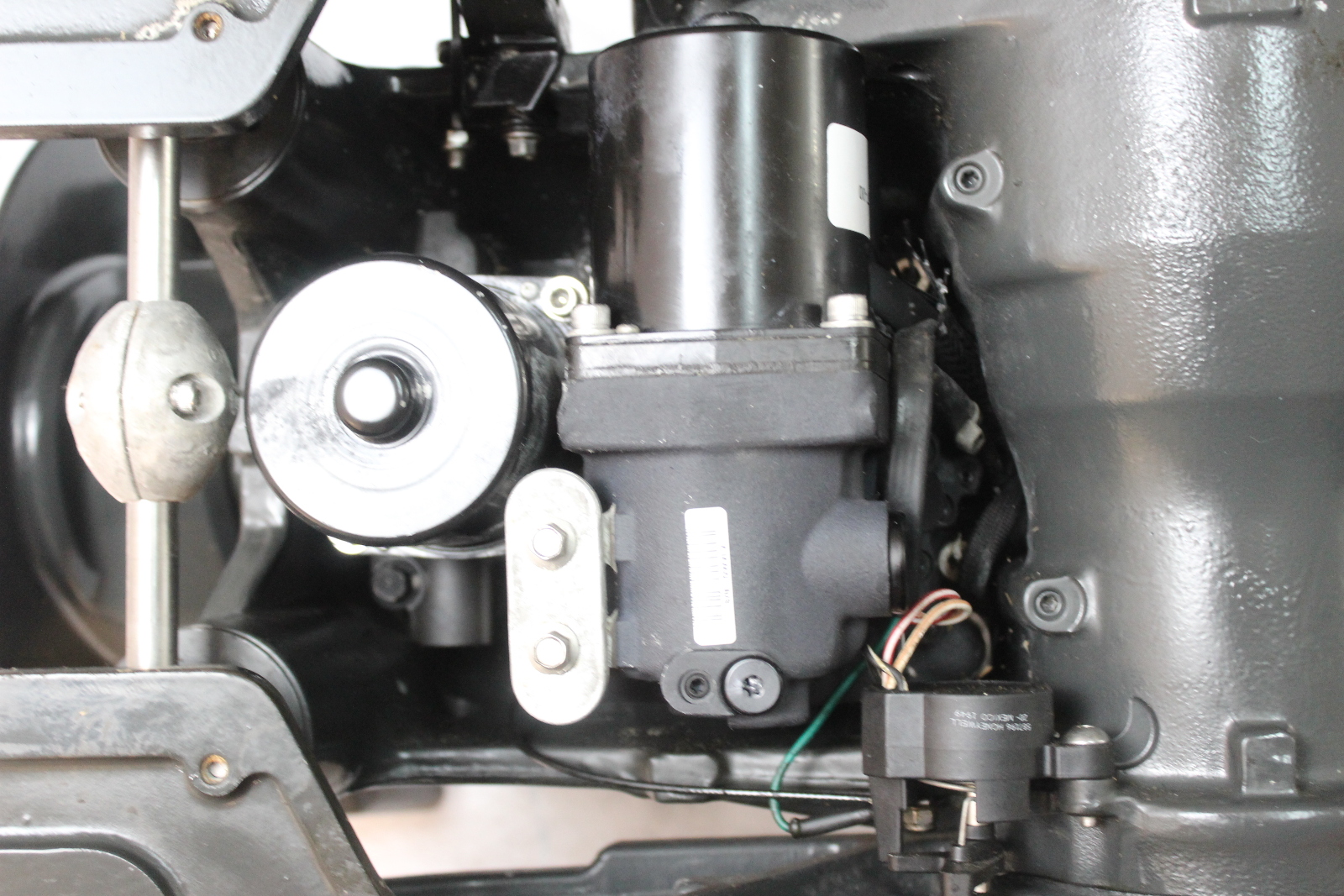

◆ Trim Pump and Manifold: 5009808 ◆ Stern Brackets: 5011775 (port) ◆ 5011777 (starboard)

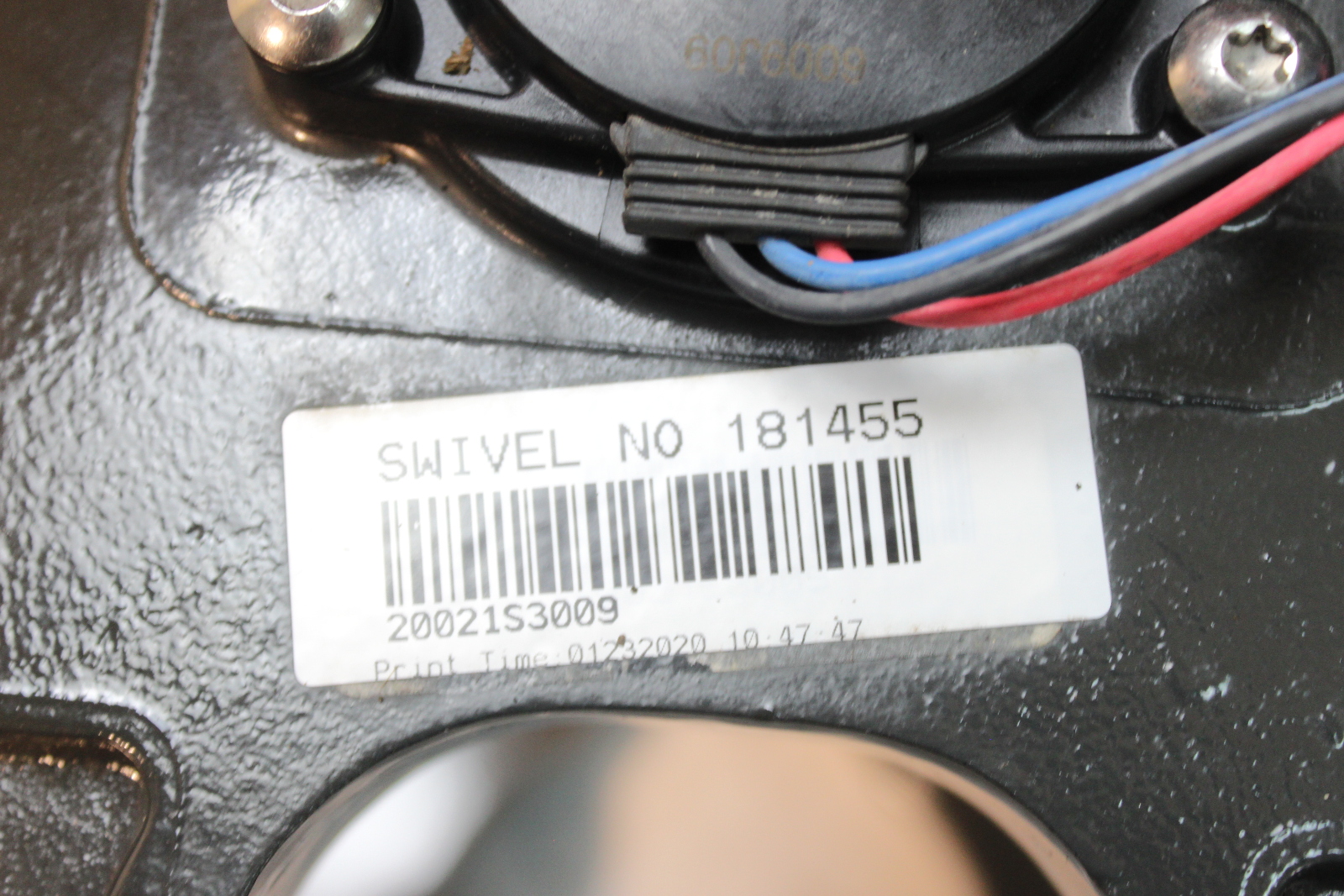

◆ Steering Brackets: 356442 (lower) ◆ 363151 (upper) ◆ Sticker: 181455
Condition
◆ Tested under load on the motor — holds, does not leak

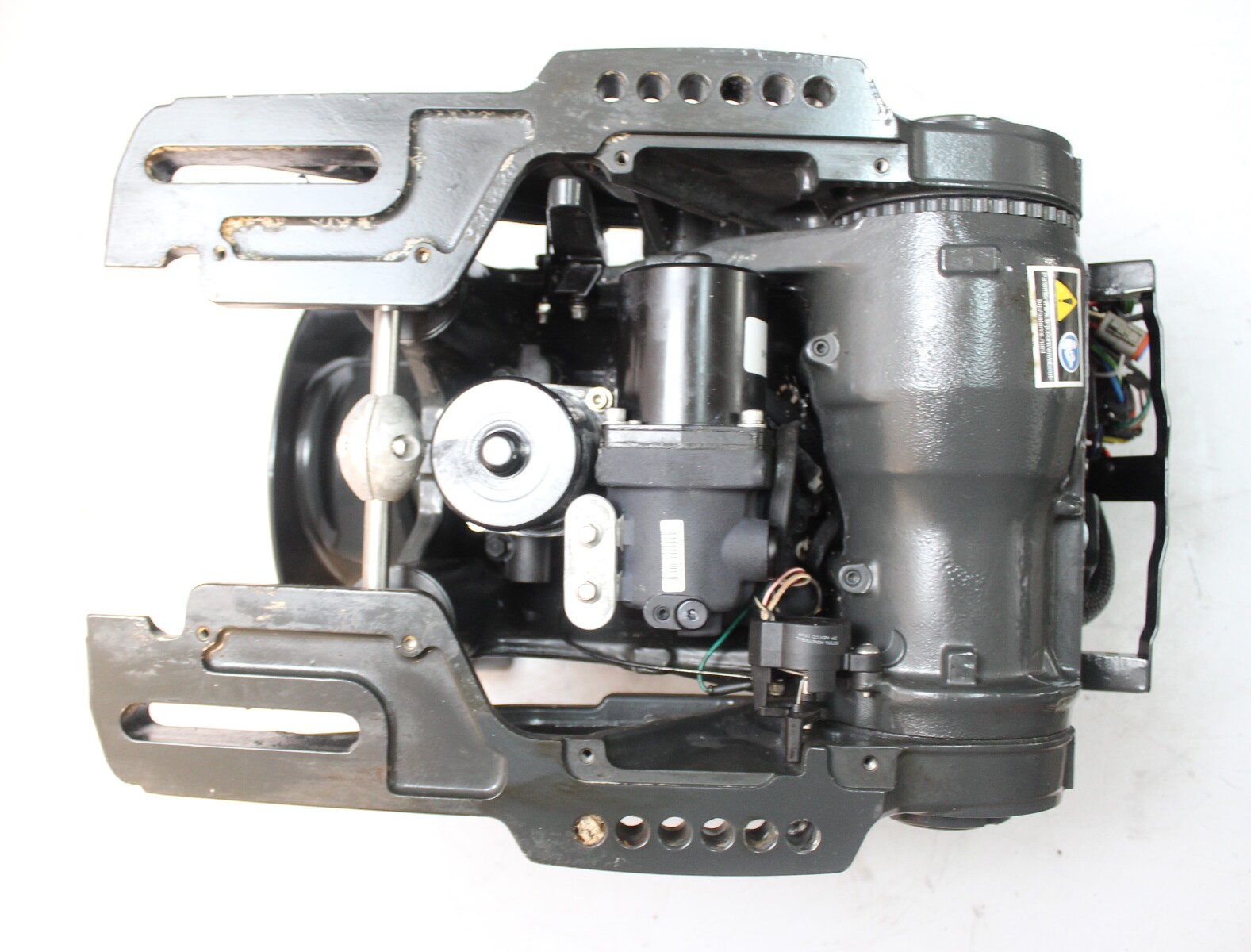

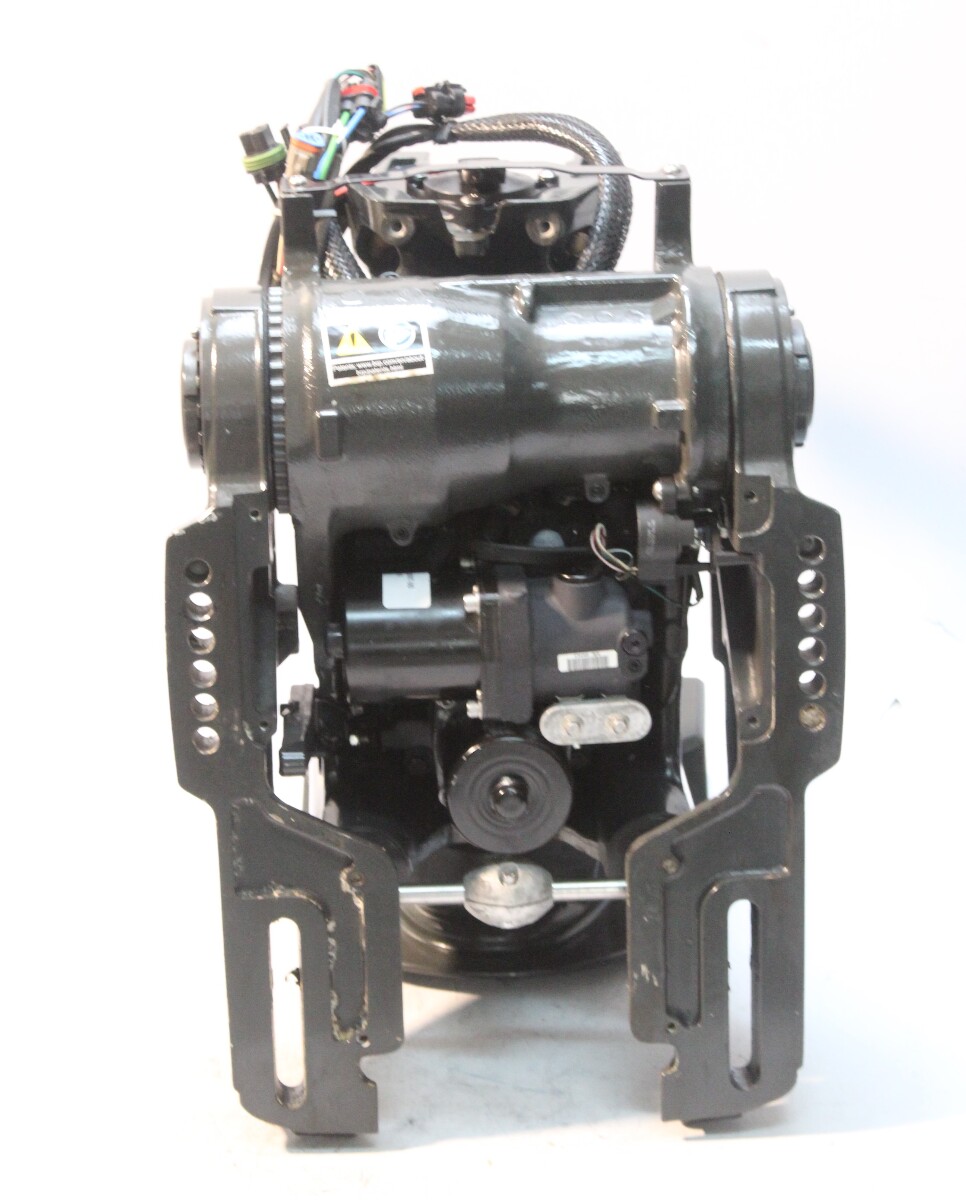

◆ Complete assembly: trim pump and manifold, both stern brackets, upper and lower steering brackets
◆ Full range of motion — pivot tube straight, tilt tube in good condition

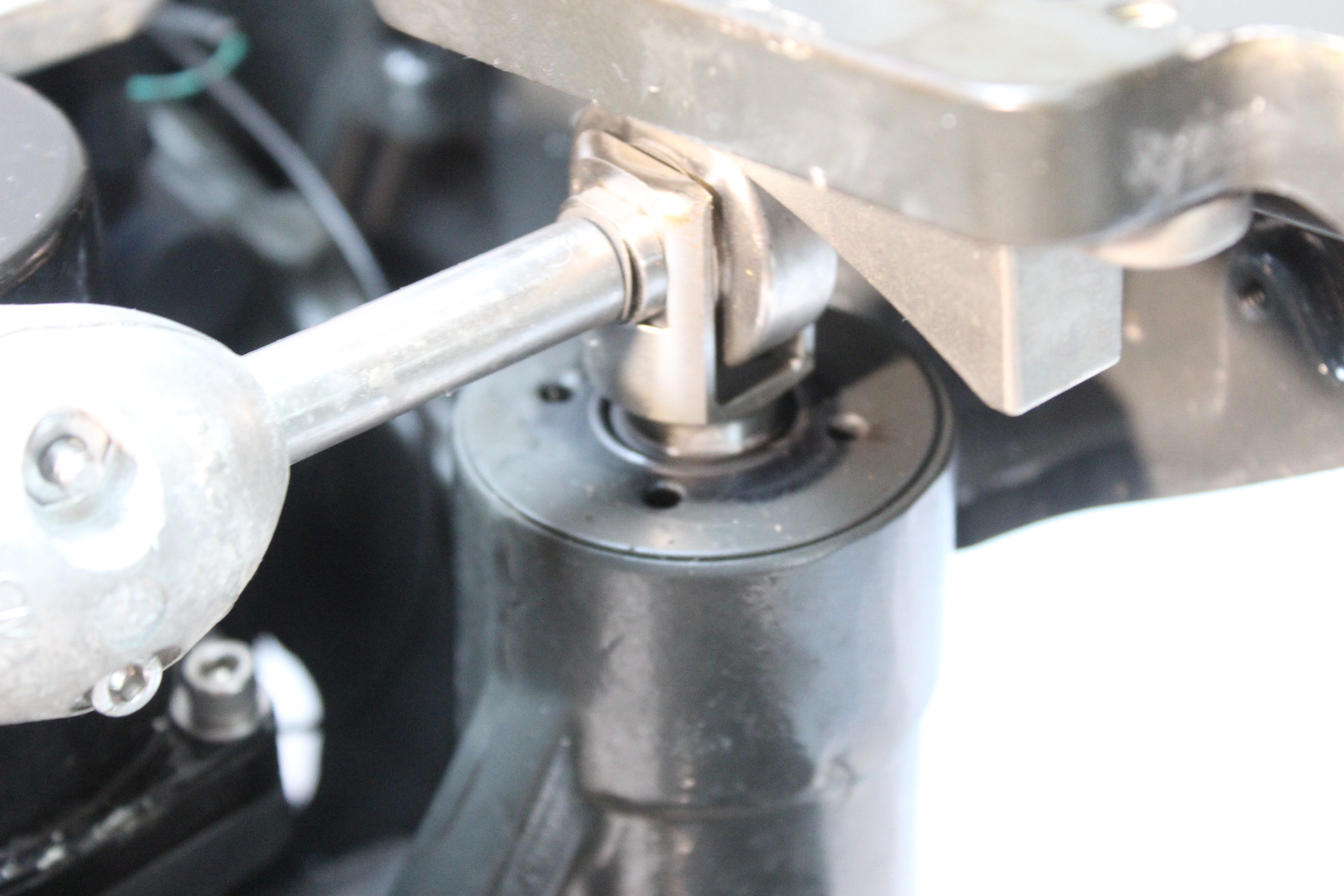

◆ Pins and bushings checked — bushings present
◆ Freshwater unit — no corrosion, no cracks at the stress points
Fitment
Years: 2016-2020
Models: Evinrude E-TEC G2 150 175 200 225 250 300 HP — both the 2.7L and 3.4L V6, 20 25 and 30 inch shaft models
Note: This is the Dynamic Power Steering (DPS) version. The iDock and IHS steering versions use different assemblies (5011662 / 5011672 iDock starboard, 5011664 / 5011674 iDock port, 5011666 / 5011670 IHS). The same assembly number is listed on every G2 from 150 to 300 HP — the shaft length lives in the midsection, not in this bracket.

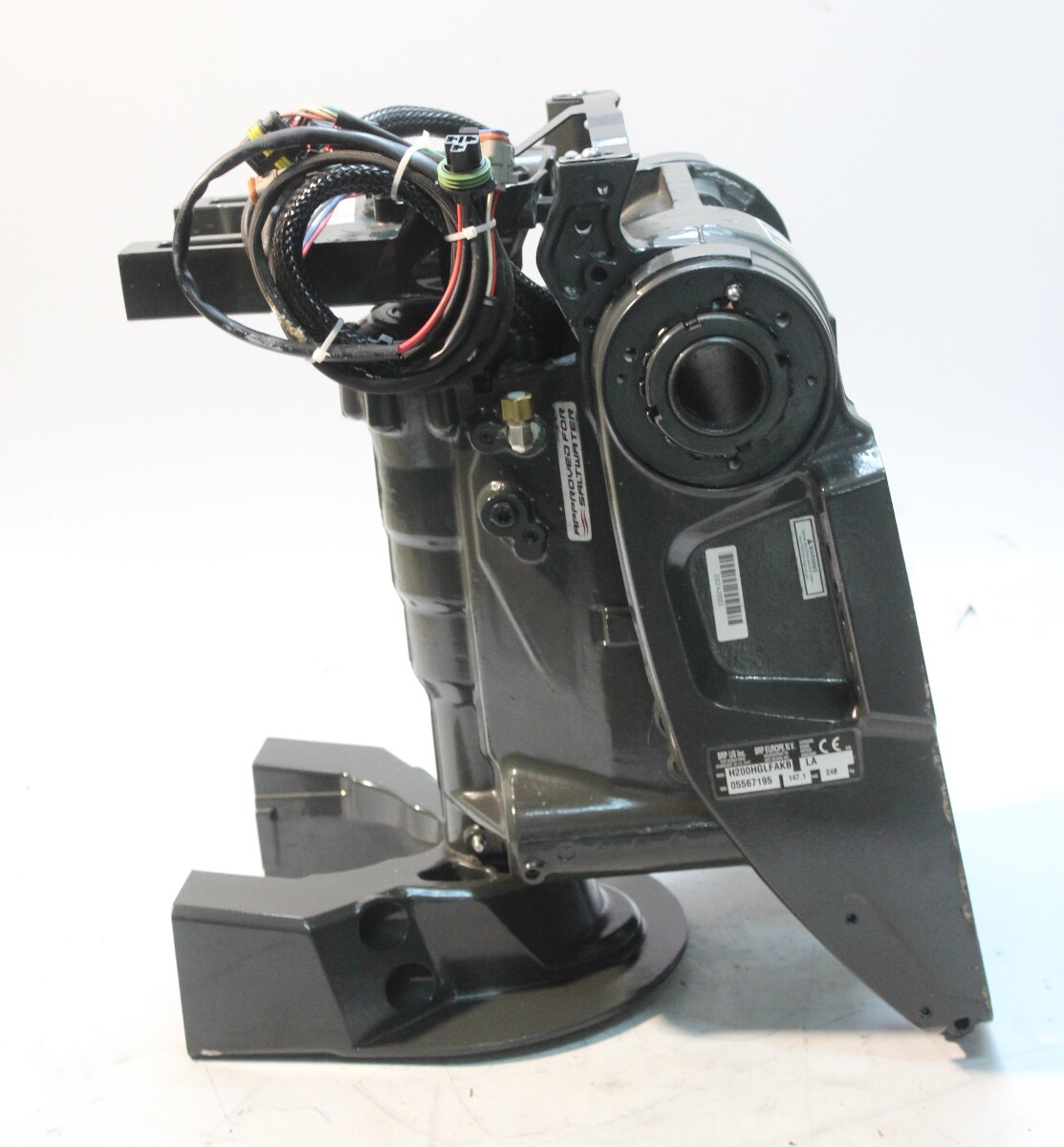

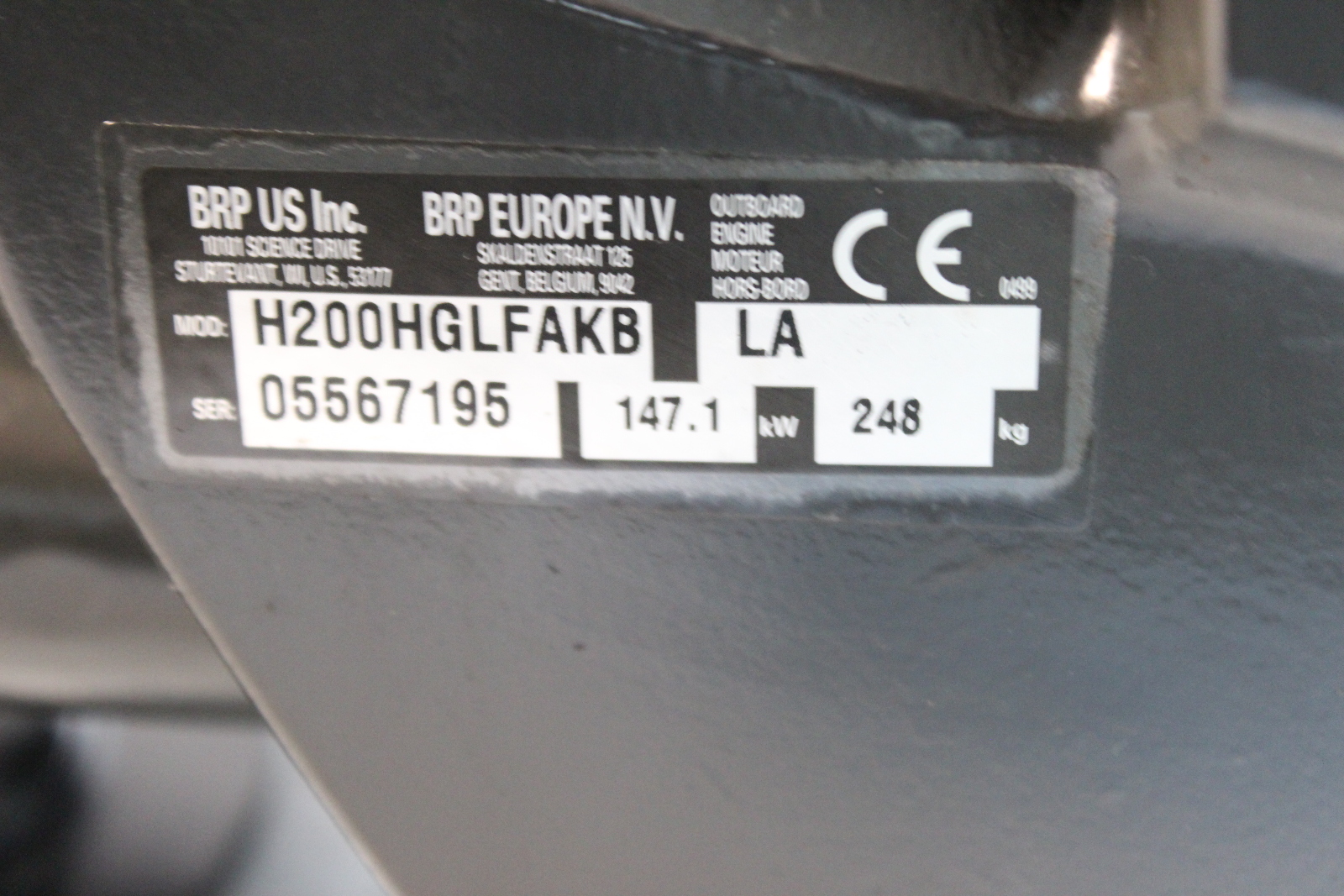

Donor: 2016 Evinrude E-TEC G2 200 HP — H200HGLFAKB, Serial 05567195
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer’s responsibility — match the part number to your motor before purchasing and contact us if you need help.
