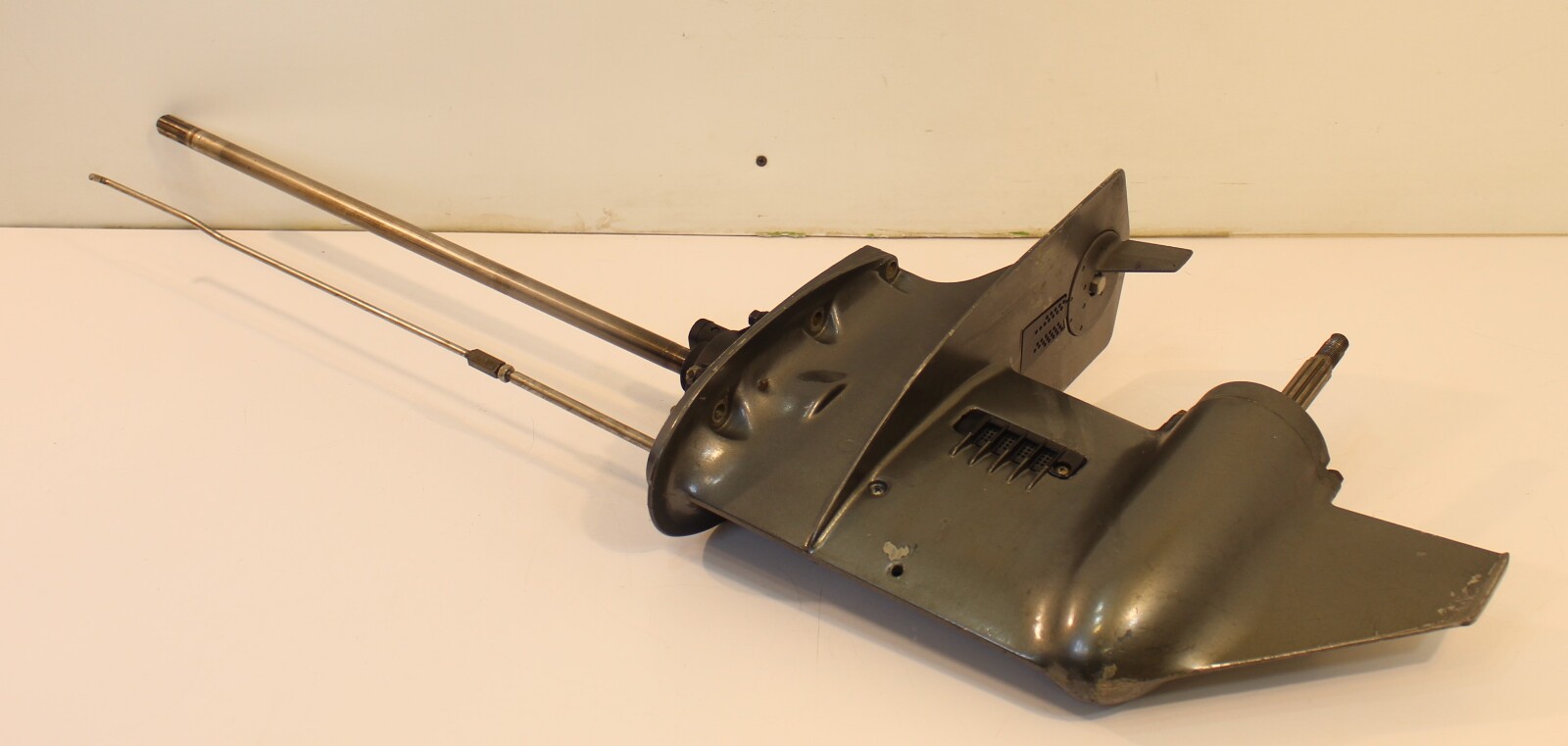

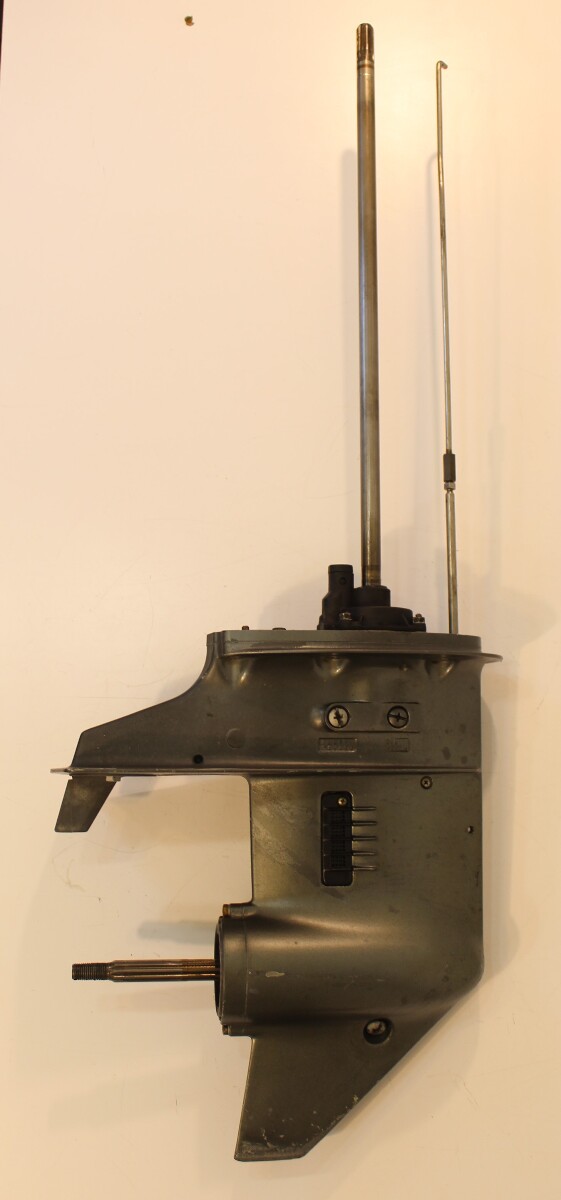

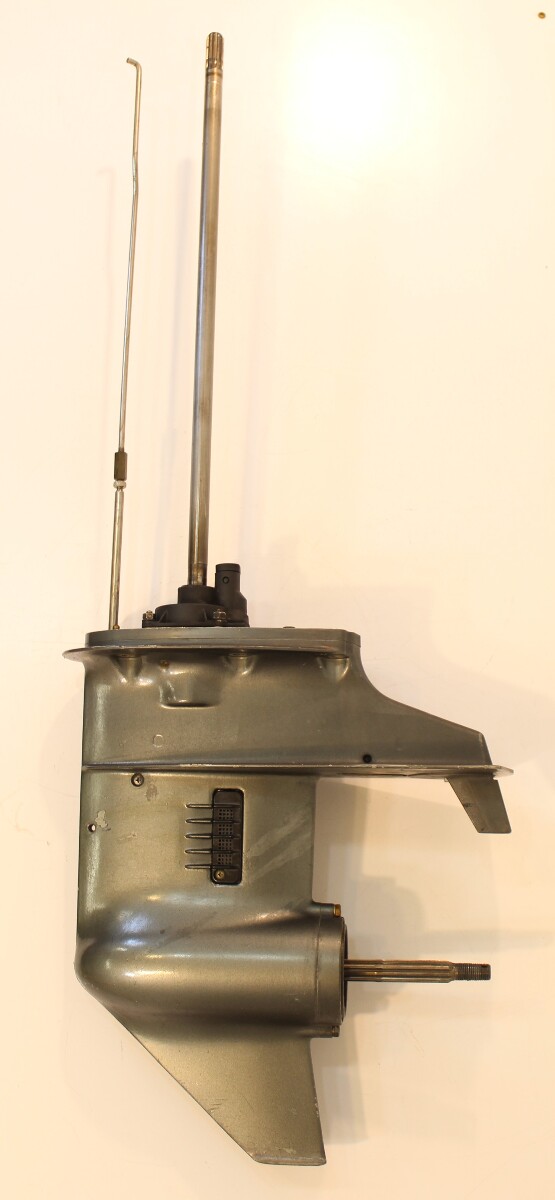

Suzuki 1983 - 1997 20” Long Lower Unit DT 20 25 30 HP 2-Stroke 6 MONTH WARRANTY


$600.00
International Shipping Quote
  • Brand: Suzuki
  • Size: 20 25 30 HP
  • Style: 2-Stroke - Long - 20"
  • Condition: Used
  • Notes: PRESSURE CHECKED!
  • SKU: 70600 LRU
  • Manufacturer Part Number: 55100-91L20-0ED 55100-91L00-0ED 55100-89J01-0ED
  • Country of Manufacture: Japan
  • Motor & Engine Type: Suzuki
  • Part Type: Motors, Engines & Components
  • Other Part Number: 55100-96322-0ED 55100-96321-0ED 55100-96320-0ED
  • Inventory Number: 70600 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $50.00

Part Number

55100-91L20-0ED
Additional Info:
  • Shifts and spins smoothly without binding

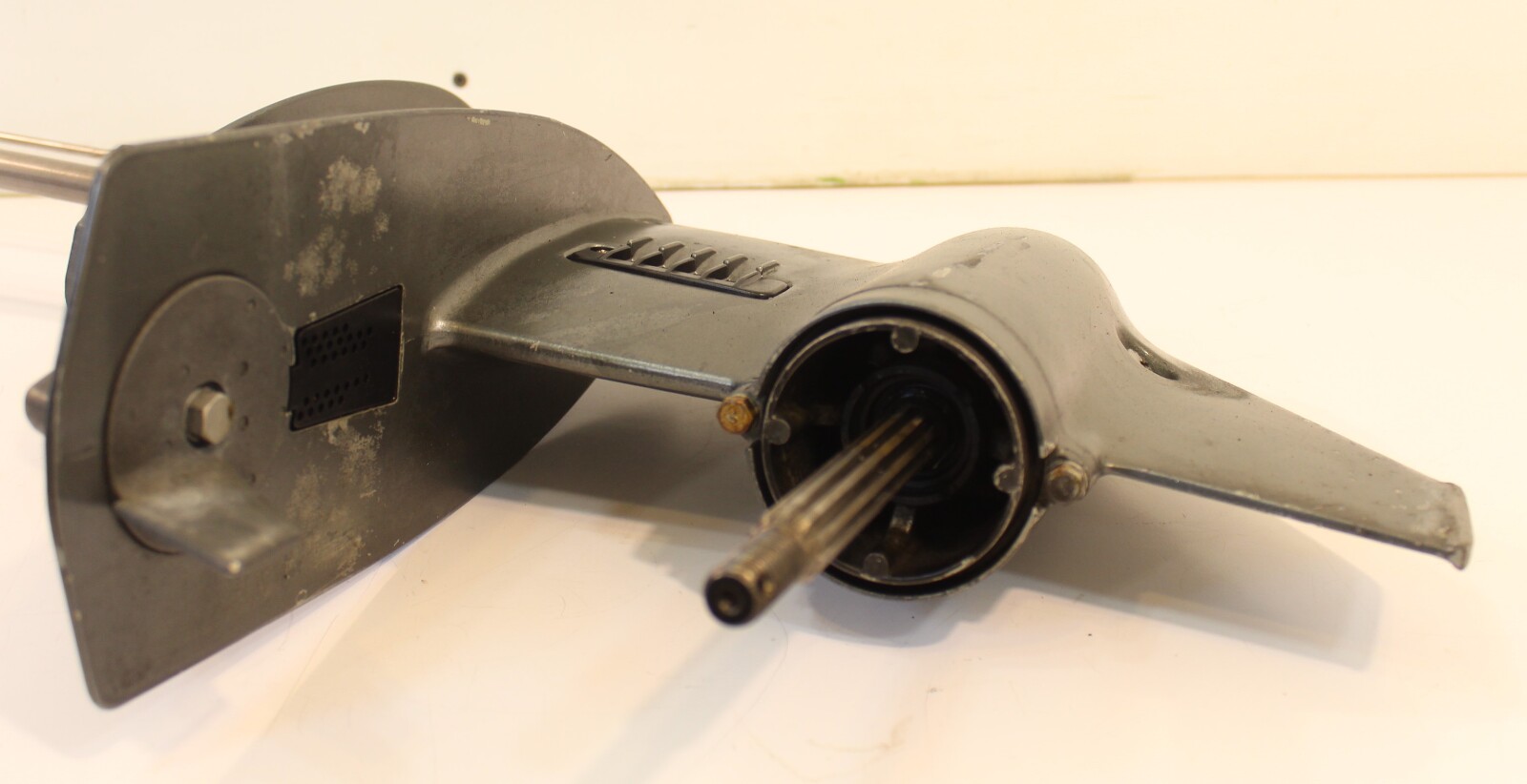

  • Propeller shaft is straight

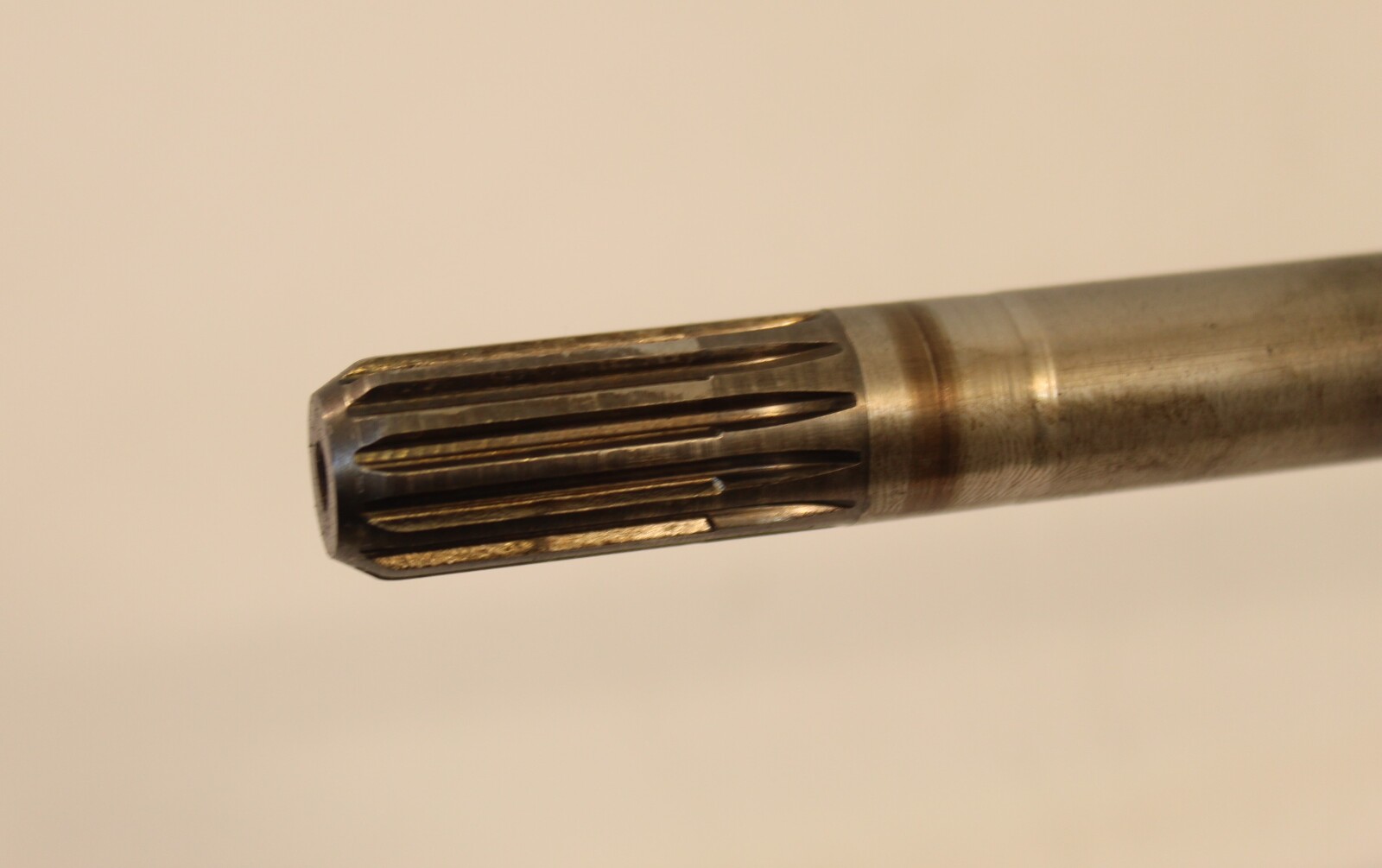

  • Driveshaft splines show light wear
  • Pressure checked to 12 PSI

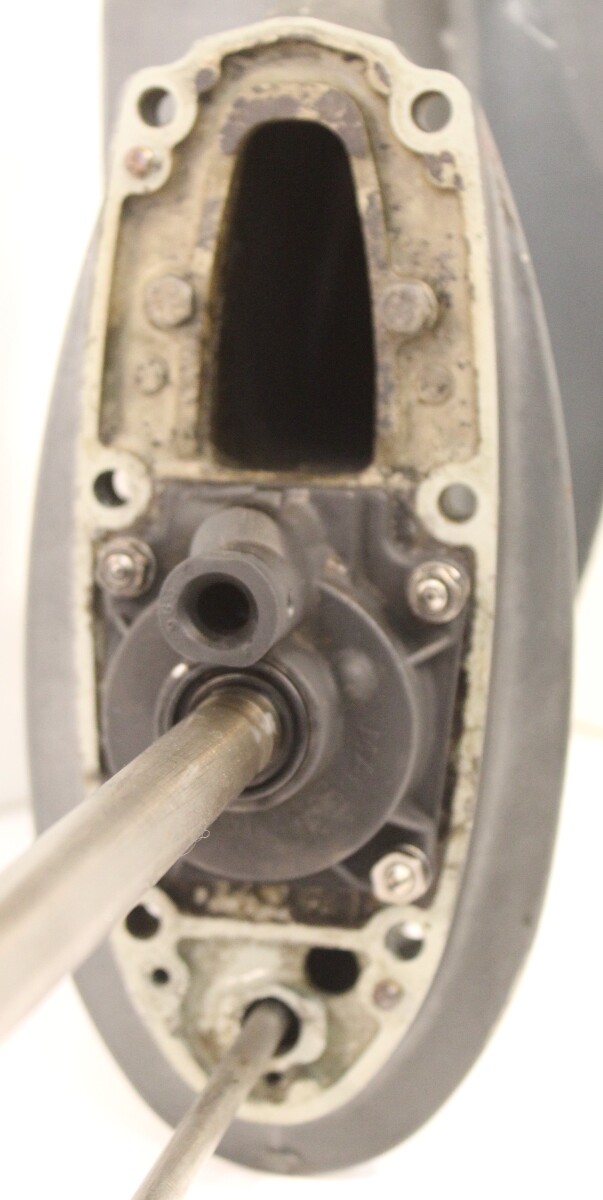

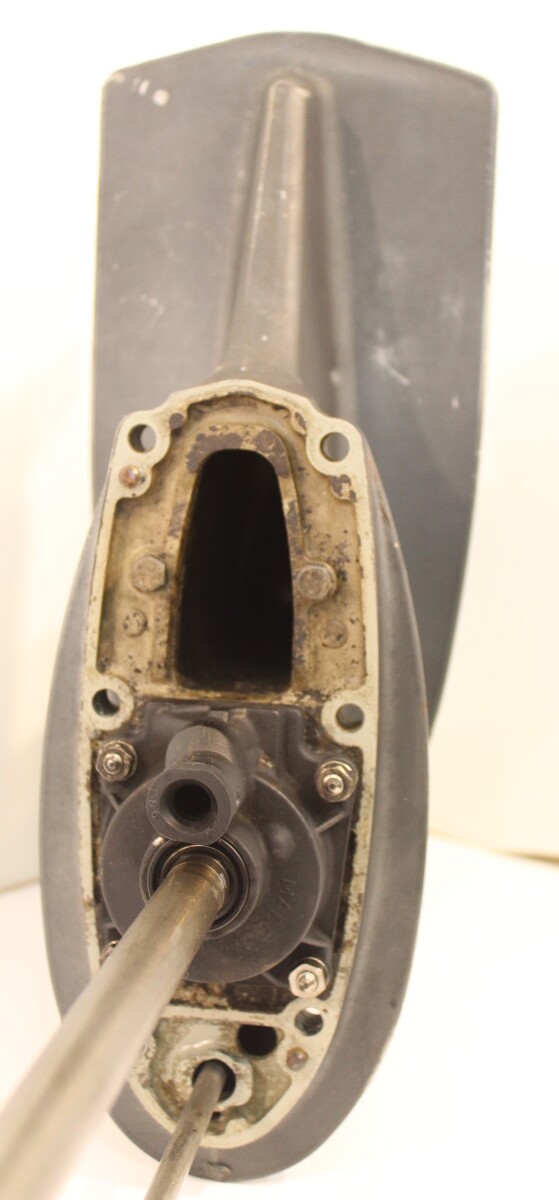

  • New Impeller installed

Driveshaft splines: 10

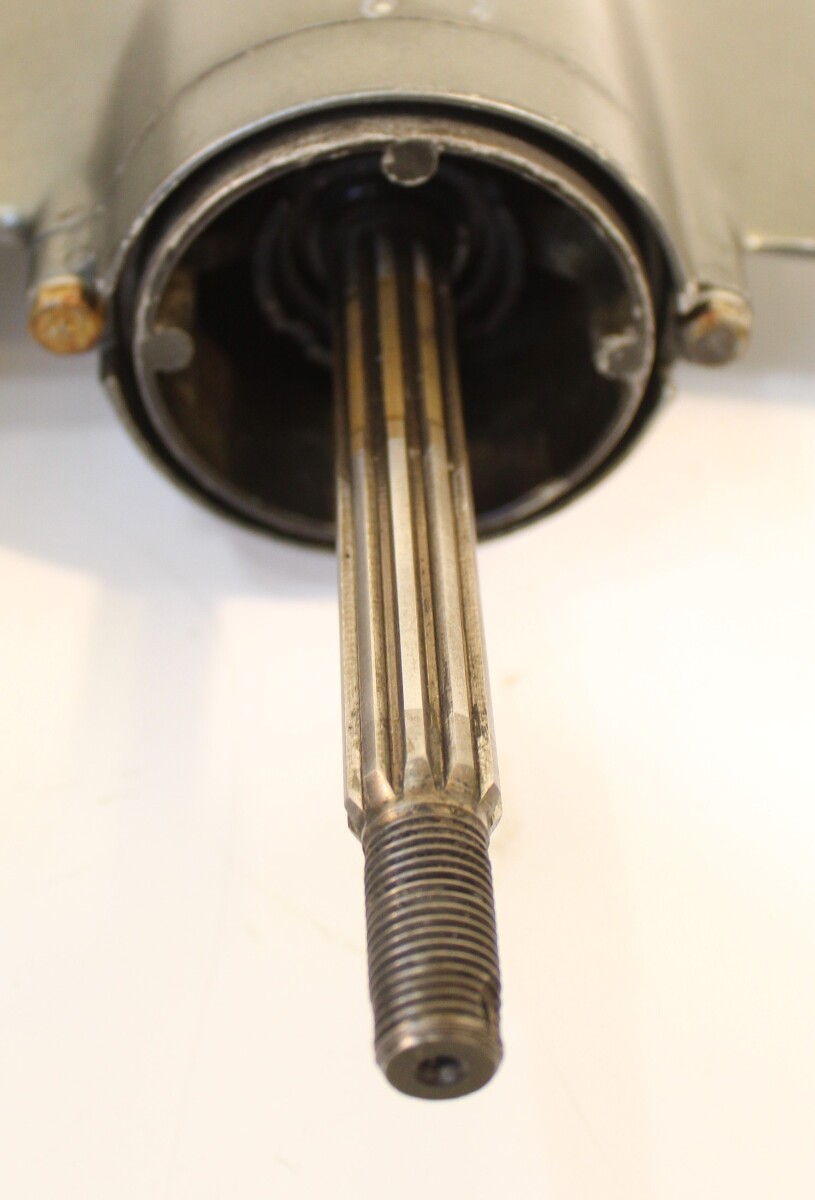

Propeller shaft splines: 10

Driveshaft length from the top of the water pump to top of the shaft: 20-1/2"

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 6 month warranty. This unit is being sold with a 6 month working warranty that covers the gears, bearings, and shafts.  This does NOT cover seals. This warranty is upheld by Southcentral Outboards. If you need to use, or have any questions regarding this warranty, you must contact us directly.

Location: Southcentral Outboards, Altamont, Illinois


Fits:

1983-1997 - DT 20 25 30 HP 2-Stroke

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
