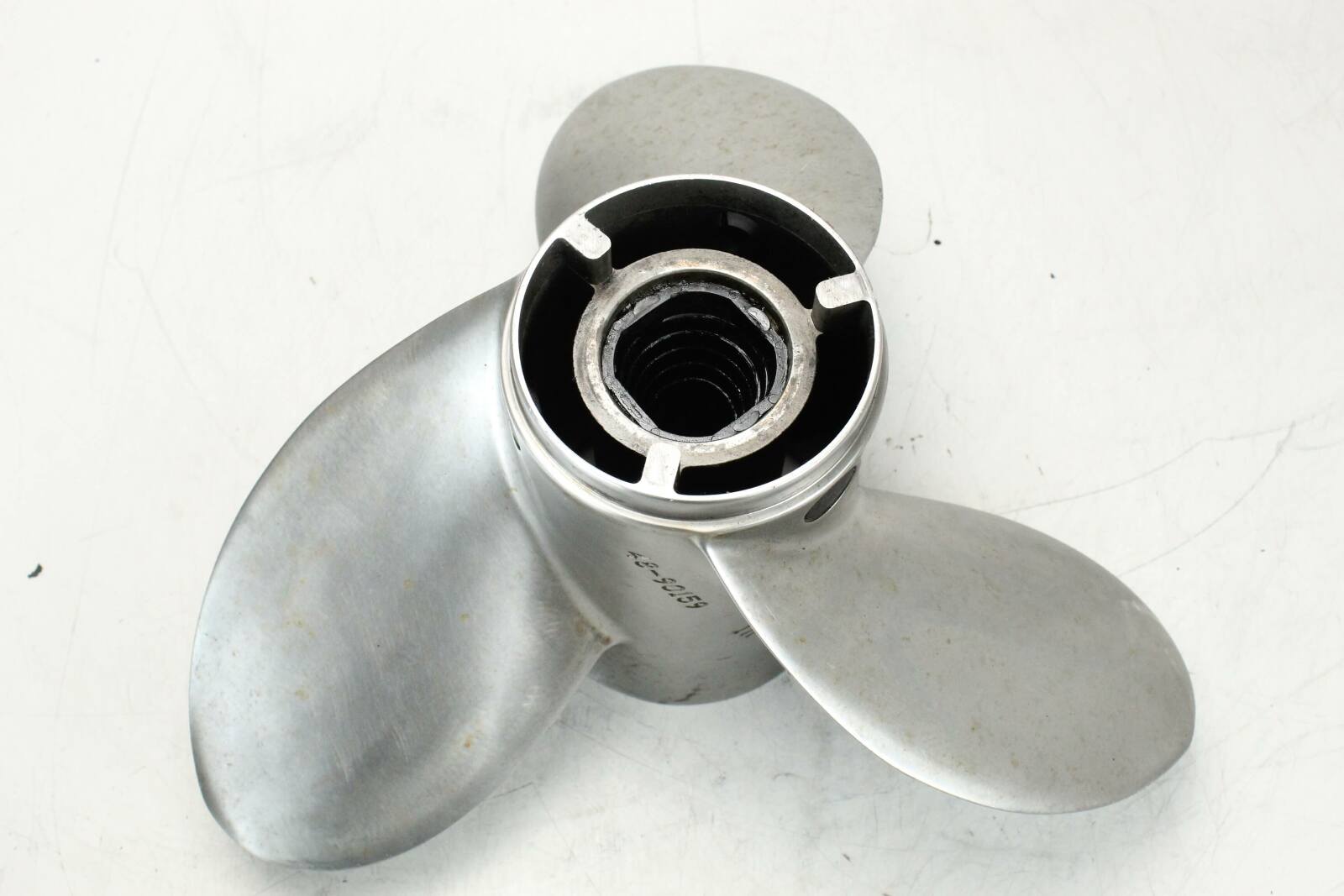

48-90159A46 Mercury Mirage Plus 1978 &Up STT LH 15-1/2 X 17 Propeller 115-300 HP

$325.00

Details

MSRP: $636.00
You Save: $311.00 (49%)

Brand: Mercury
Size: 115 135 150 175 200 225 250 275 300 HP

Color: Stainless Steel
Style: COUNTER Rotation- Stainless Steel - 15 Spline - V6 Gearcase
Condition: Used
Notes: Freshwater Good Condition

SKU: 24100 PRP

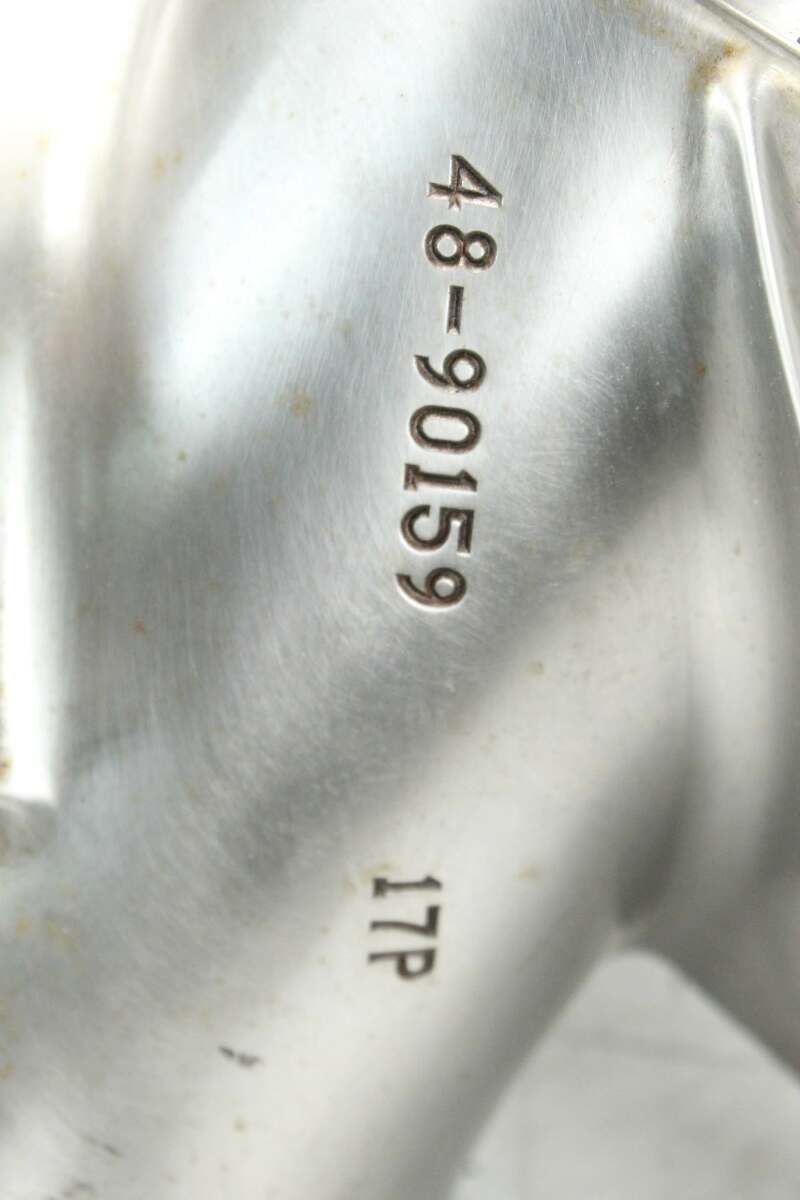

Manufacturer Part Number: 48-90159A46
Country of Manufacture: United States
Motor & Engine Type: Mercury
Part Type: Motors, Engines & Components
Other Part Number: 48-90159A45
Surface Finish: N/A
Inventory Number: 24100 PRP
Website Category: Lower Units
Website Sub Category: Propellers and Hardware
UPC: N/A

Part Number

48-90159A46

Additional Info

Removed from a freshwater engine
Mirage Plus

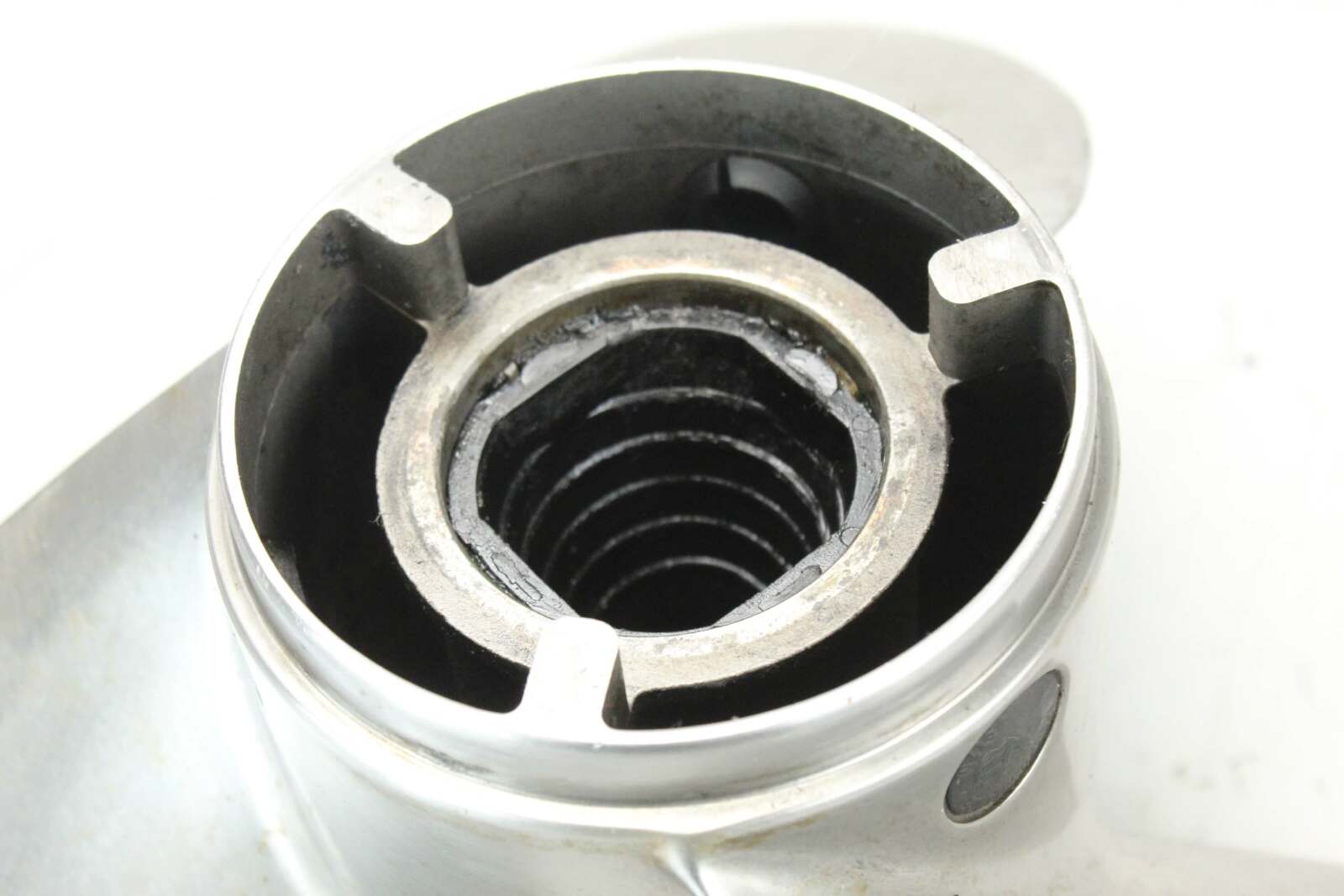

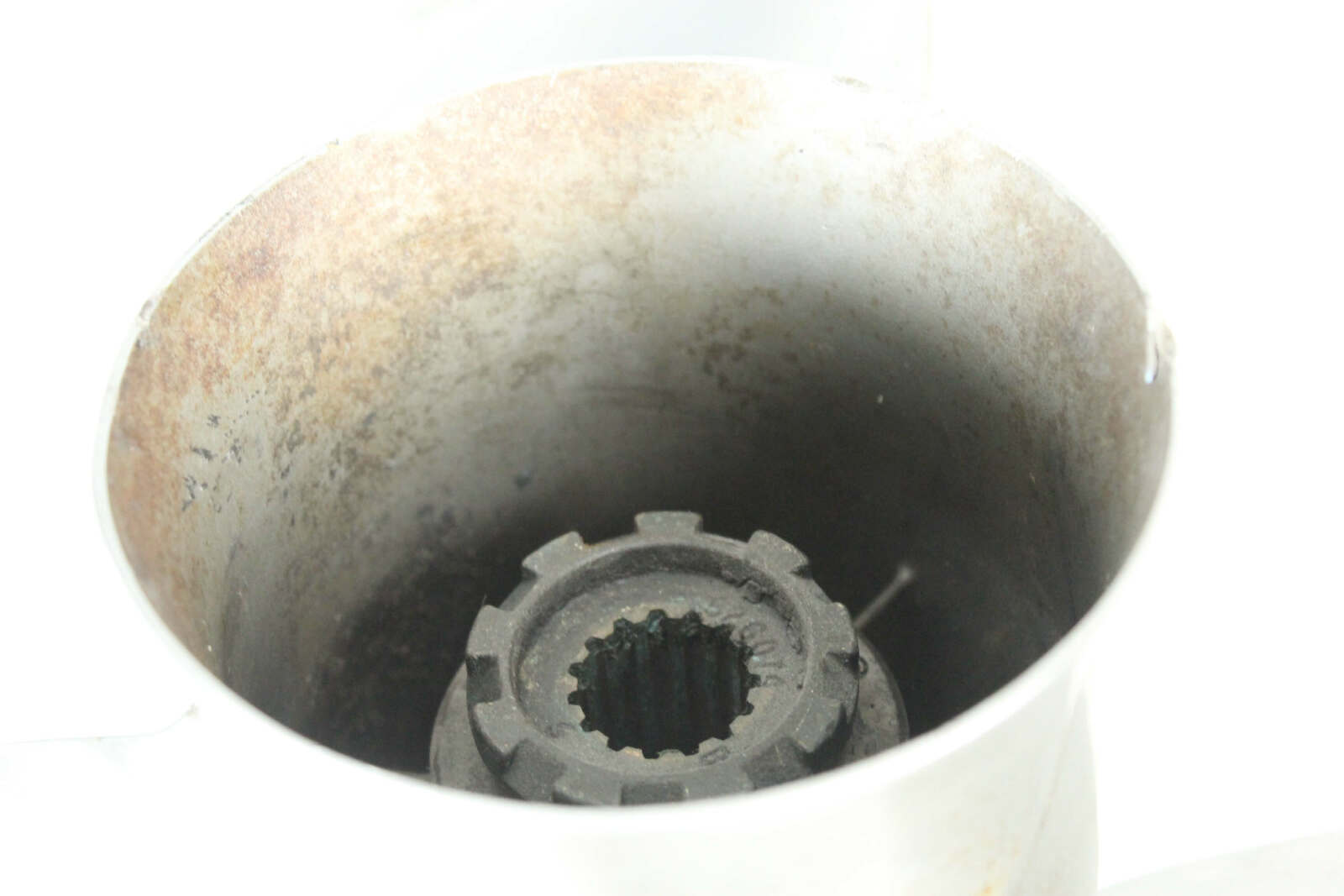

15 Splines – in good condition

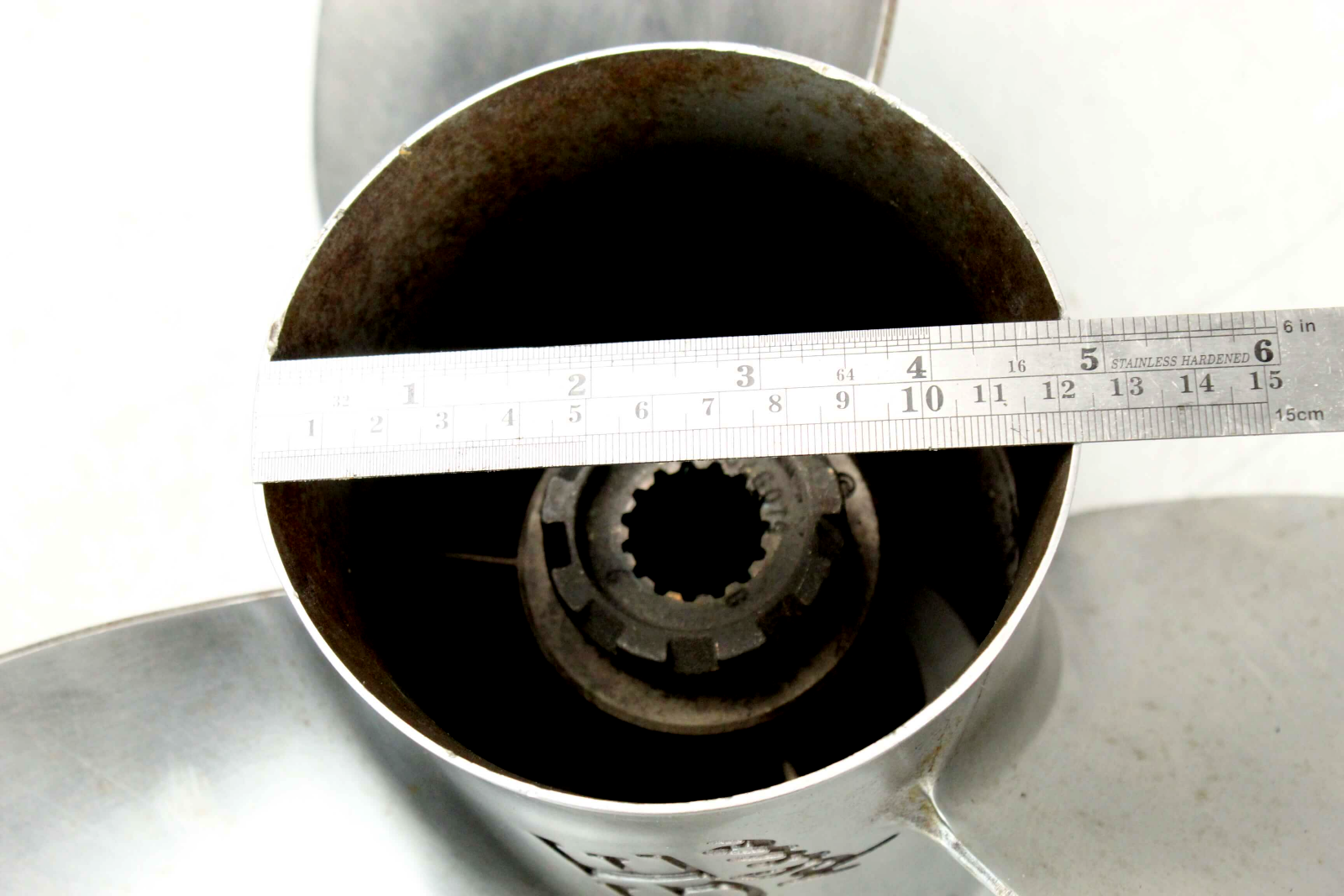

15-1/2 Diameter
19 Pitch
Stainless Steel

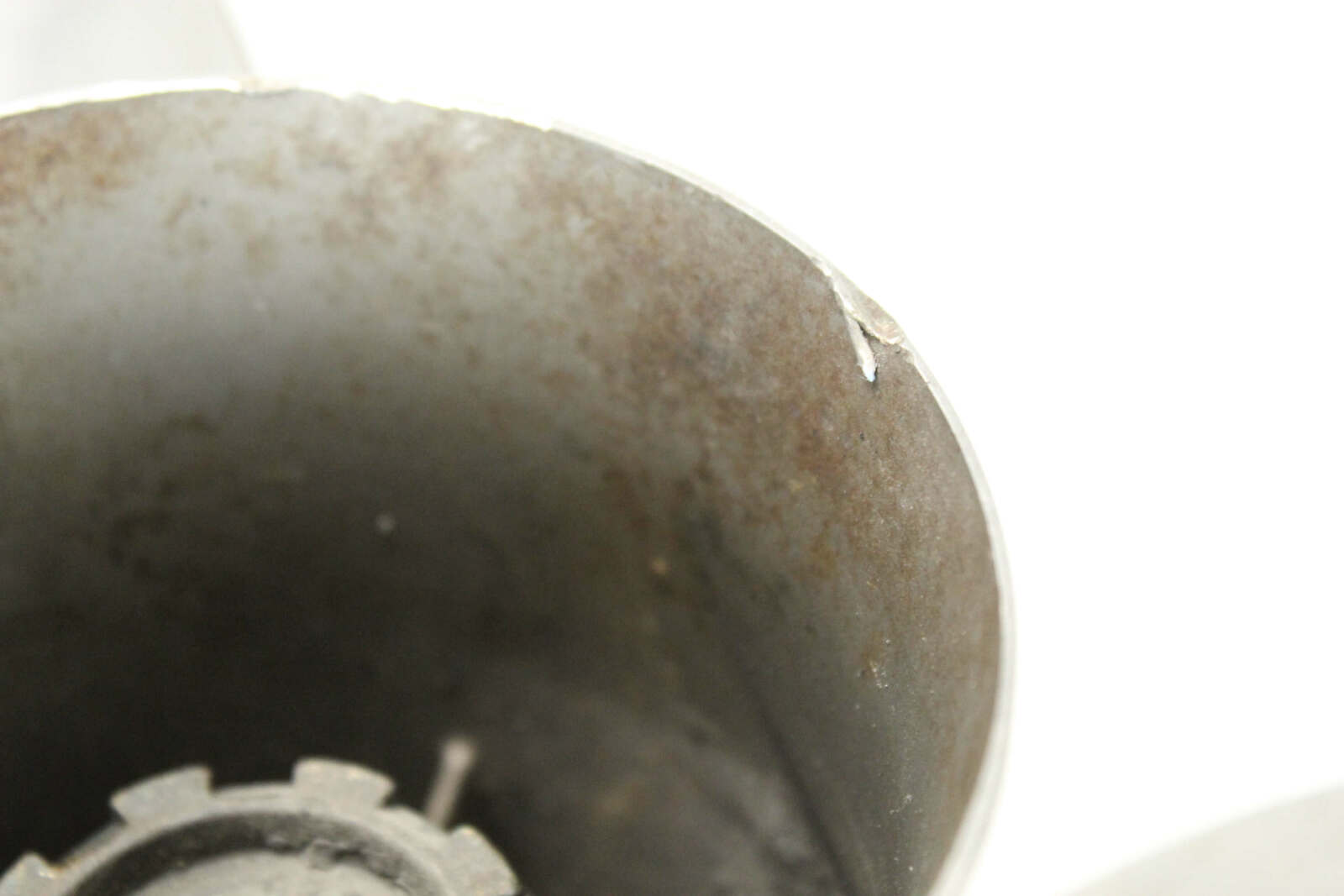

Minor defects – scuffs, scratches
Smooth Blades with only minor dings
COUNTER Rotation

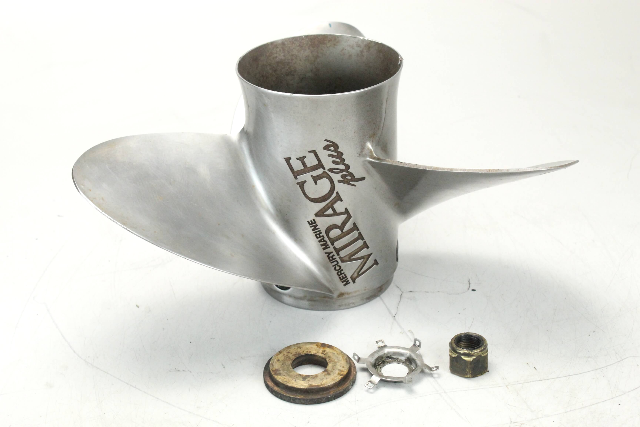

Does come with the hardware pictured

This propeller is for a COUNTER ROTATION LOWER UNIT.

There is no way to tell if a propeller is spun until it is installed. If there are any mechanical issues we will refund or replace the item.

Note that we DO NOT accept returns for our propeller if ordered incorrectly. Please verify by pictures AND part number that this is the correct propeller for your motor prior to purchasing.

Location: Southcentral Outboards, Altamont, Illinois

Fits

MercuryOutboard
115 HP Command Thrust(Thru Hub Exhaust & 15 Tooth Spline)	2014 - 9000
135 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1987 & Newer
150 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1978 & Newer
150 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1979 - 1983
175 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1978 & Newer
175 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1978 - 1979
200 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1978 & Newer
220 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1987 - 1988
225 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1980 & Newer
225 HP, Sea Pro/Marathon(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1977 & Newer
250 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1994 & Newer
275 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1990 - 1994
3.4 Litre(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1984 - 1986
300 HP (15 Tooth Spline, Thru-Hub Exaust, 4-3/4	1999 & Newer
300 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1999 & Newer
300 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	1983
90 HP Command Thrust(Thru Hub Exhaust & 15 Tooth Spline)	2014 - 9000
Verado 135-150 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	2006 & Newer
Verado 200-275 HP(Thru Hub Exhaust & 15 Tooth Spline, V-6 Gearcase)	2004 & Newer
MercruiserSterndrive
Alpha One 2.5L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 262 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 3.0L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 3.7L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 320 EFI(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 350 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 4.3L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 454 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 5.0L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 5.7L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One 6.2L MPI(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One Diesel, D2.8L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One Diesel, D3.0L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One Diesel, D3.6L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One Diesel, D4.2L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Alpha One Diesel, D7.3L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 320 EFI(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 350 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 377(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 450 HP(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1995
Bravo One 454 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1995 & Newer
Bravo One 465 HP(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1991
Bravo One 465 HP(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1994
Bravo One 496 Magnum H.O.(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 496 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 5.0L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 5.7L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 500 HP(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1996 & Newer
Bravo One 502 Magnum(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1990 & Newer
Bravo One 525 HP, SC, 490-500(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1992 & Newer
Bravo One 7.4L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1988 & Newer
Bravo One 7.4L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Bravo One 8.1L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	2001 & Newer
Bravo One 8.2L(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1990 & Newer
I, 120-190 HP(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1983 - 1985
Mercruiser, 200-260 HP(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	1983 - 1985
Models 120, 140, 145DTS(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Models 165, 228, 470, 485, 888, 898(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Models 1A, 1B, 1C(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Models 225S, 233, 255TRS(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years
Models 260, 280TRS, 330TRS(Thru Hub Exhaust & 15 Tooth Spline, 4-3/4 Gearcase)	All Years

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
