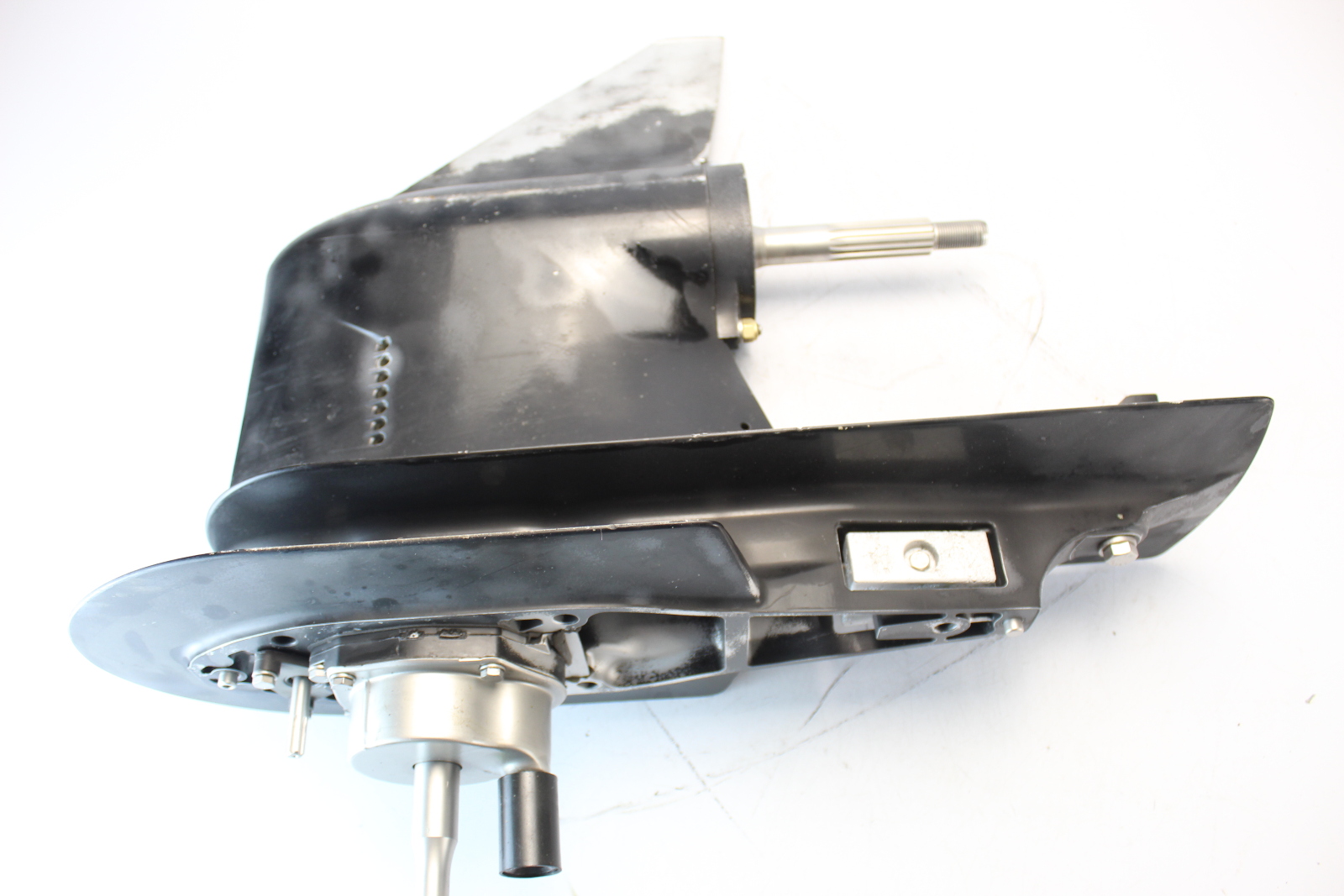

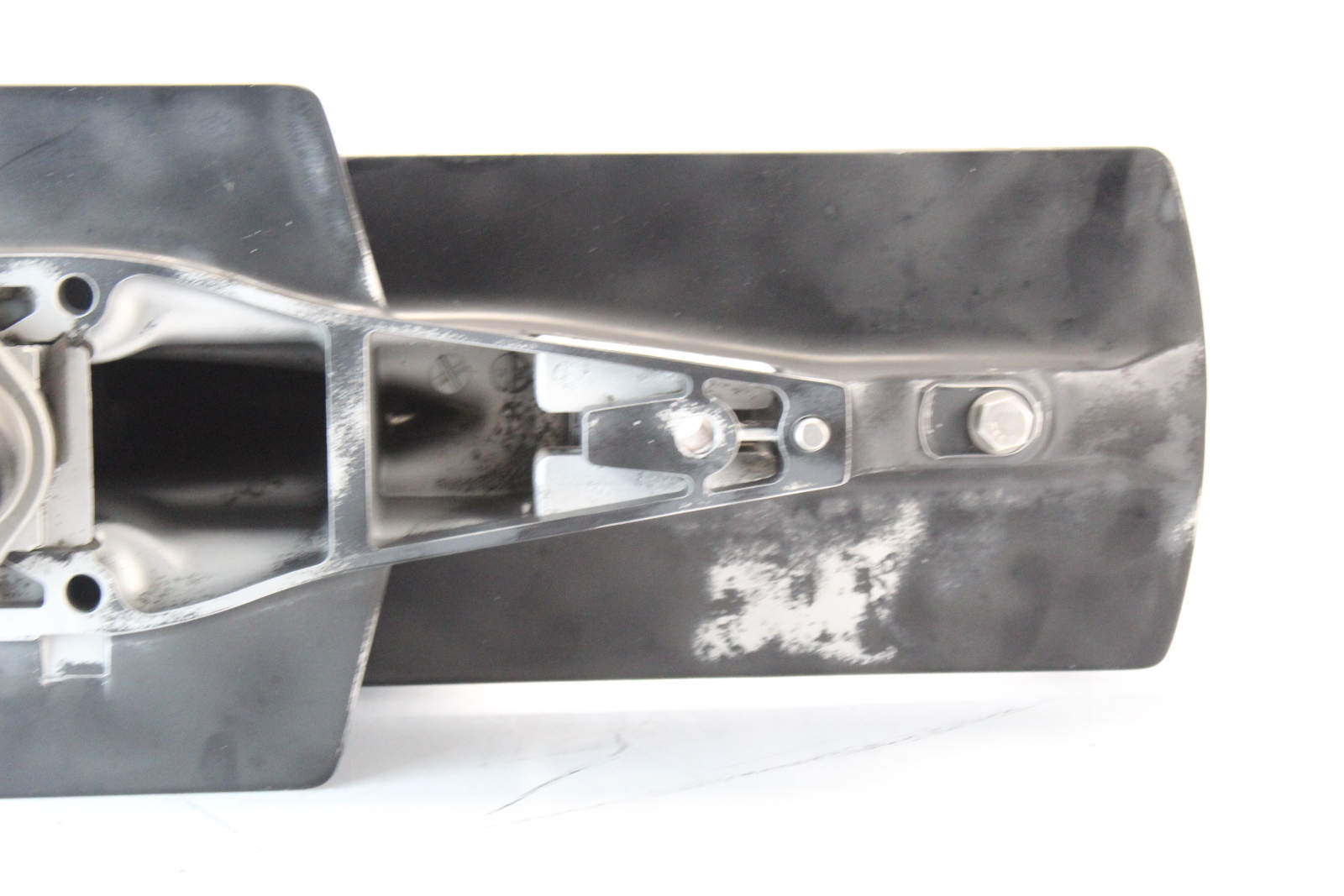

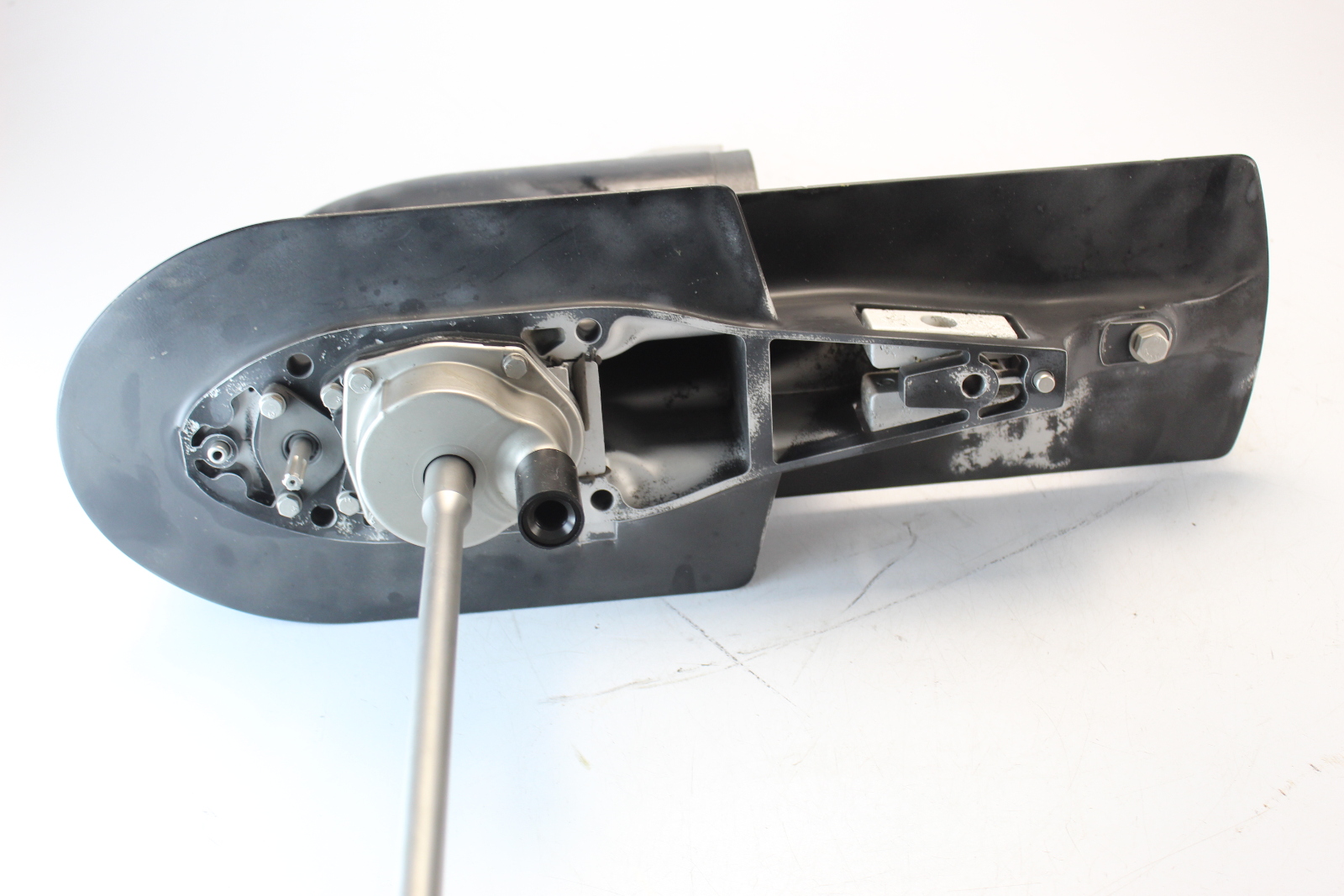

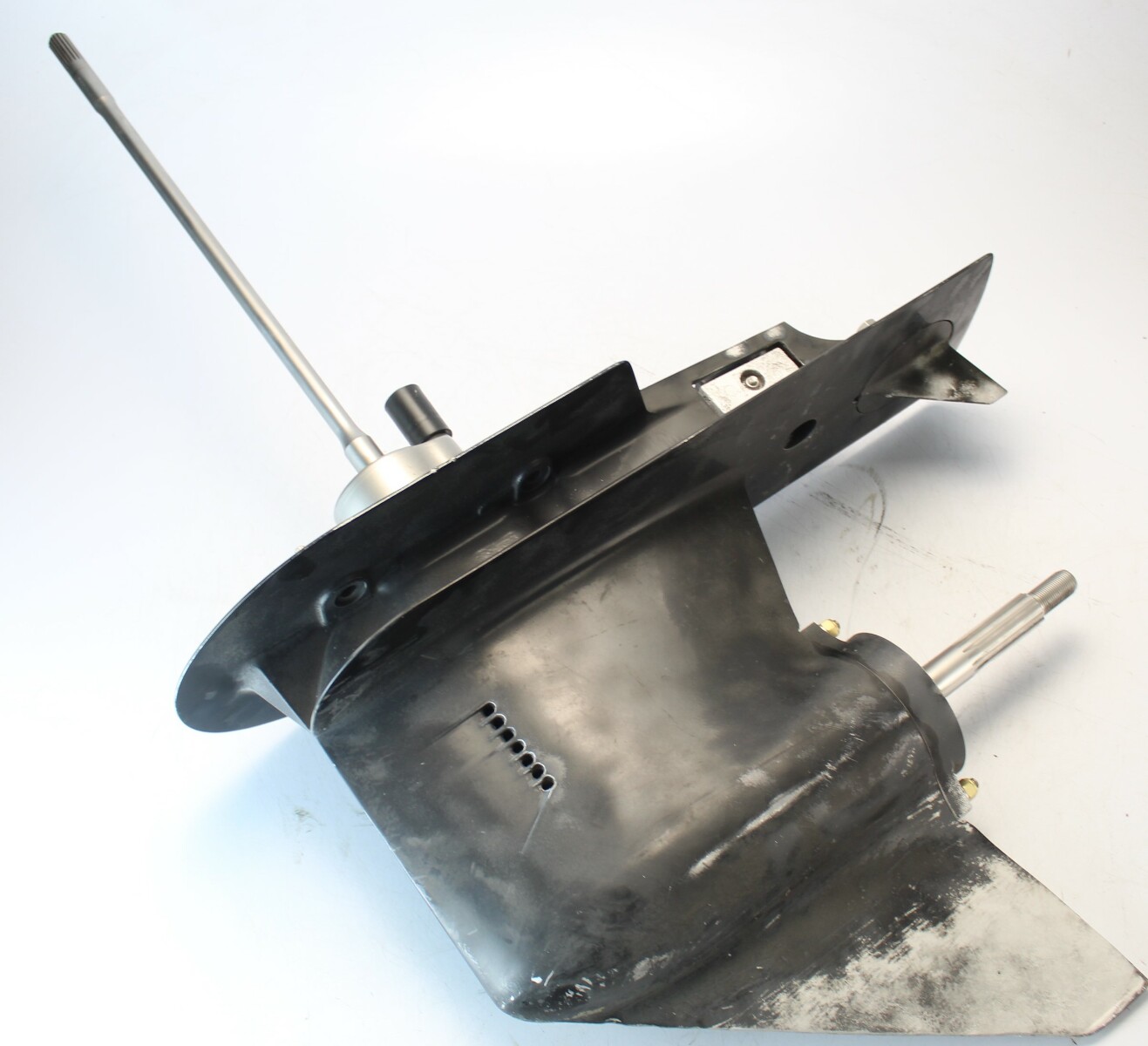

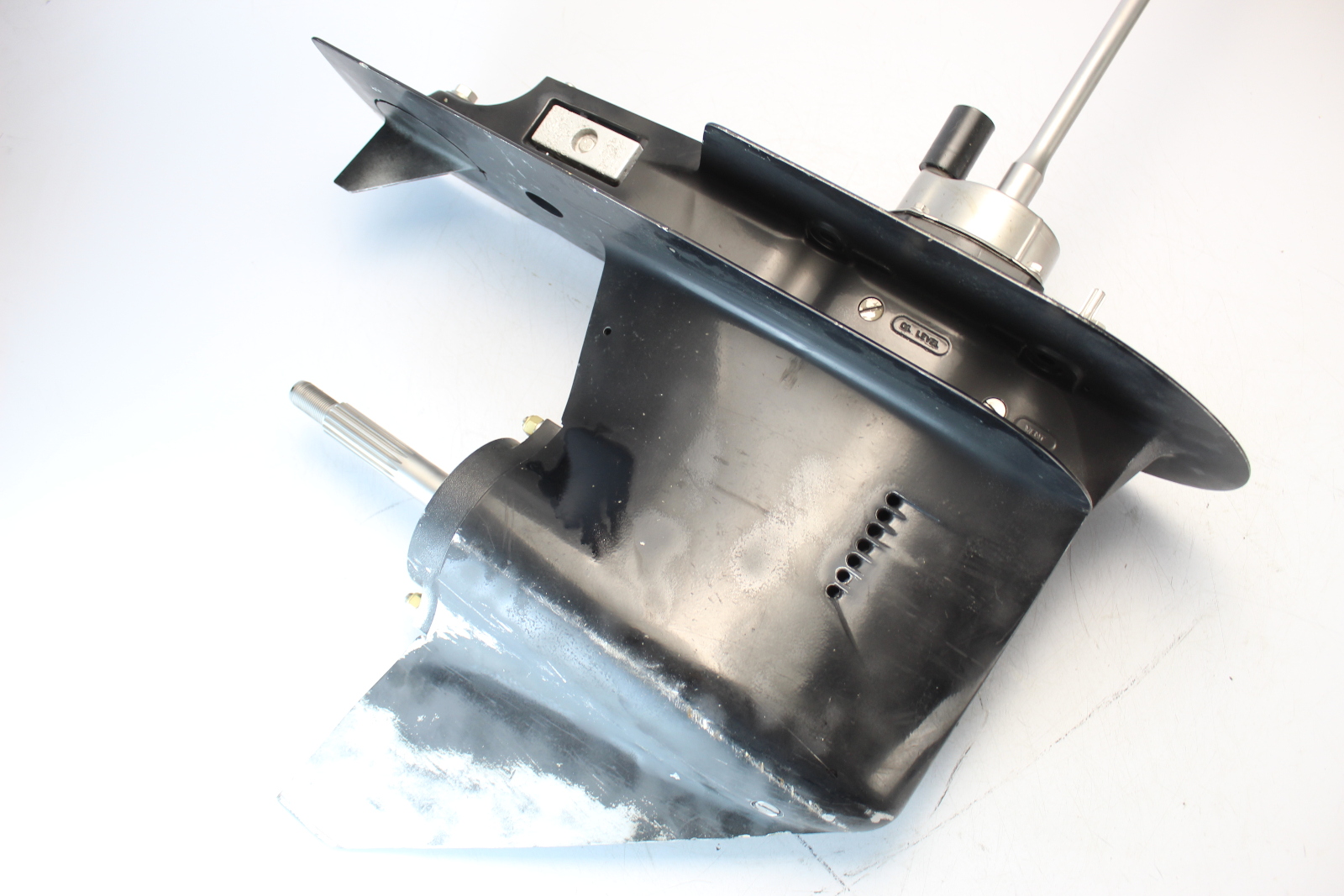

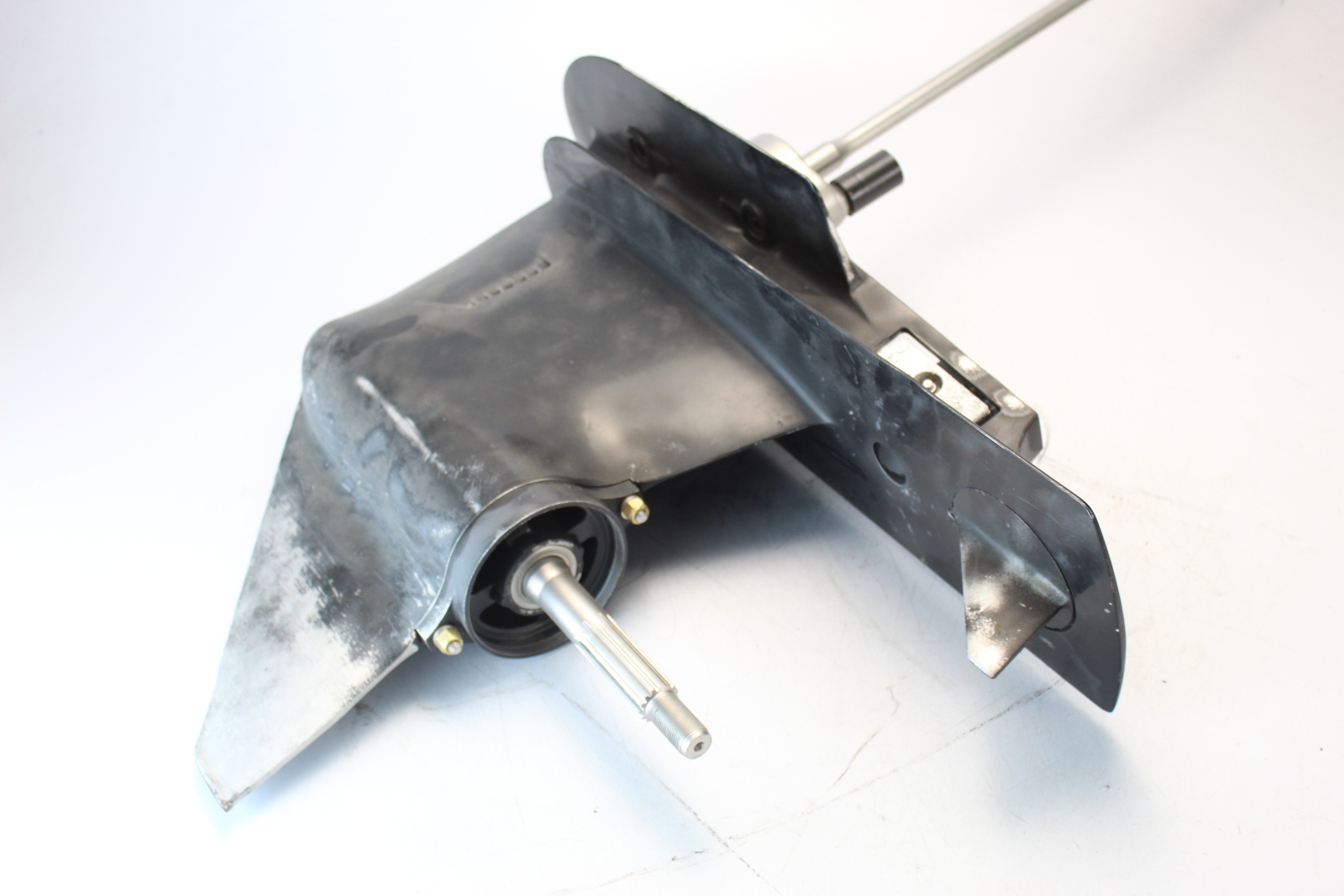

Mercury BIGFOOT 20" 2006 & UP Lower Unit 4S 2.33:1 EFI 40 50 60 HP 1 YEAR WTY


$1,400.00
International Shipping Quote
  • Brand: Mercury
  • Size: 40 50 60 HP
  • Color: Black
  • Style: EFI - 4-Stroke - 4 Cyl - BIGFOOT - 2.33:1
  • Condition: Used
  • Notes: 1 YEAR WARRANTY
  • SKU: 50425 LRU
  • Manufacturer Part Number: 9011G90 9011G70 893508T01
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Black
  • Inventory Number: 50425 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00

KEY POINTS:

  • 1 YEAR WARRANTY
  • NEW IMPELLER
  • FULLY RESEALED
  • 2.33 to 1 Ratio
  • Skeg has been ground down a little shorter than it should be
Additional Info

Driveshaft measures - 21 -1/4" from top of water pump housing to top of driveshaft
Driveshaft spline count - 17

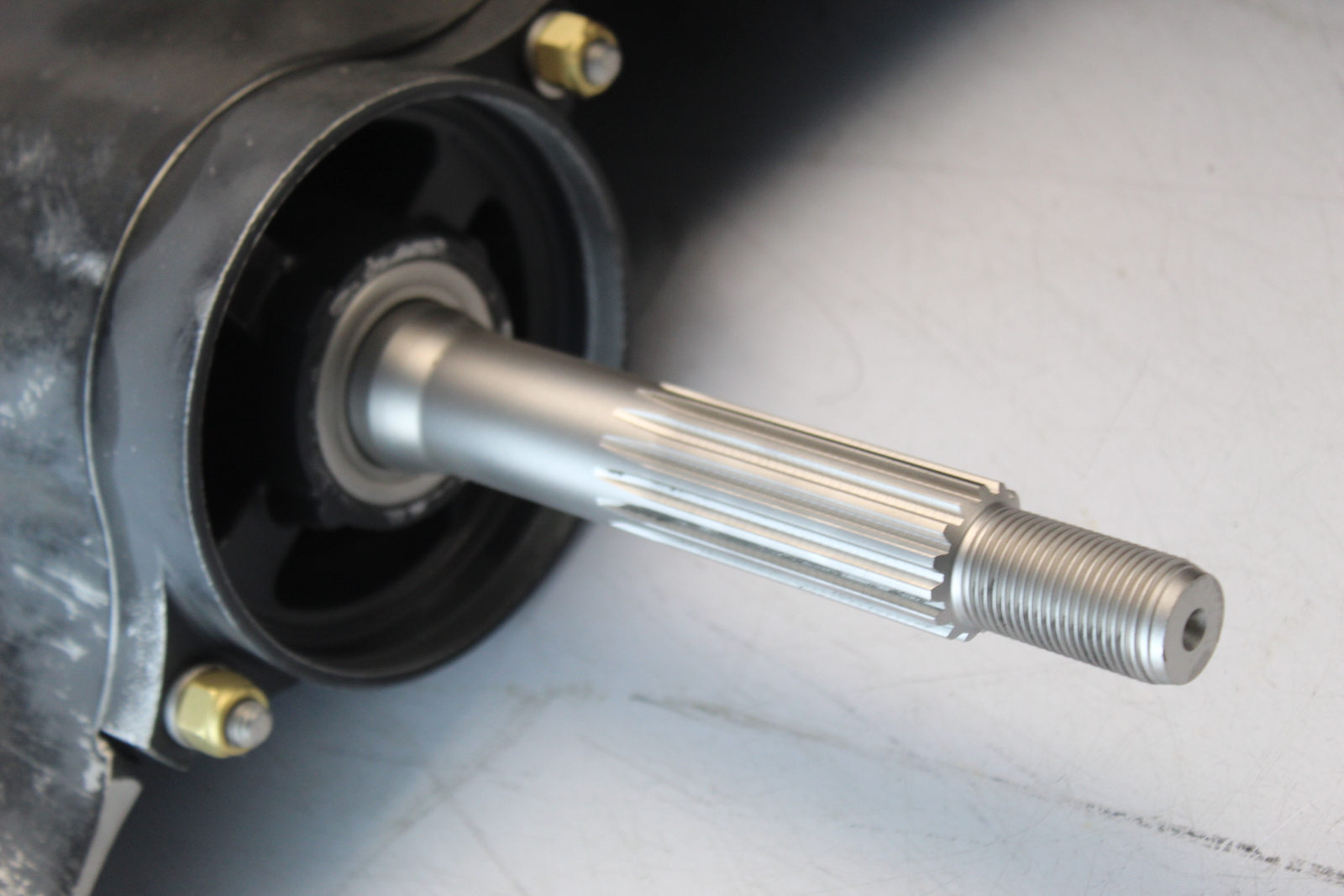

Propeller shaft spline count - 15
Shift Rod Length:1-1/2" from the base

This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

Fits:
2006 & Later - 40 50 60 HP 4-Stroke 4 Cyl EFI

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
