$206.00
- Brand: Mercury
- Size: 25 30 HP
- Style: 2 & 3 cylinder - 2 & 4 stroke - 14/12 Splines
- Condition: Seller Refurbished
- Notes: Professionally Cleaned, Inspected, and Polished!
- SKU: 70663 DRS
- Manufacturer Part Number: 16136T02 161362
- Country of Manufacture: United States
- Motor & Engine Type: Mercury
- Part Type: Motors, Engines & Components
- Inventory Number: 70663 DRS
- Website Category: Lower Units
- Website Sub Category: Drive shafts
- UPC: 745061611351
- Shipping: $16.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS
Mercury Driveshaft & Pinion Gear
◆ 6 MONTH WARRANTY◆ CHECKED FOR STRAIGHTNESS◆ OEM MERCURY
Part Numbers
◆ Driveshaft: 16136T02 · 161362
Condition

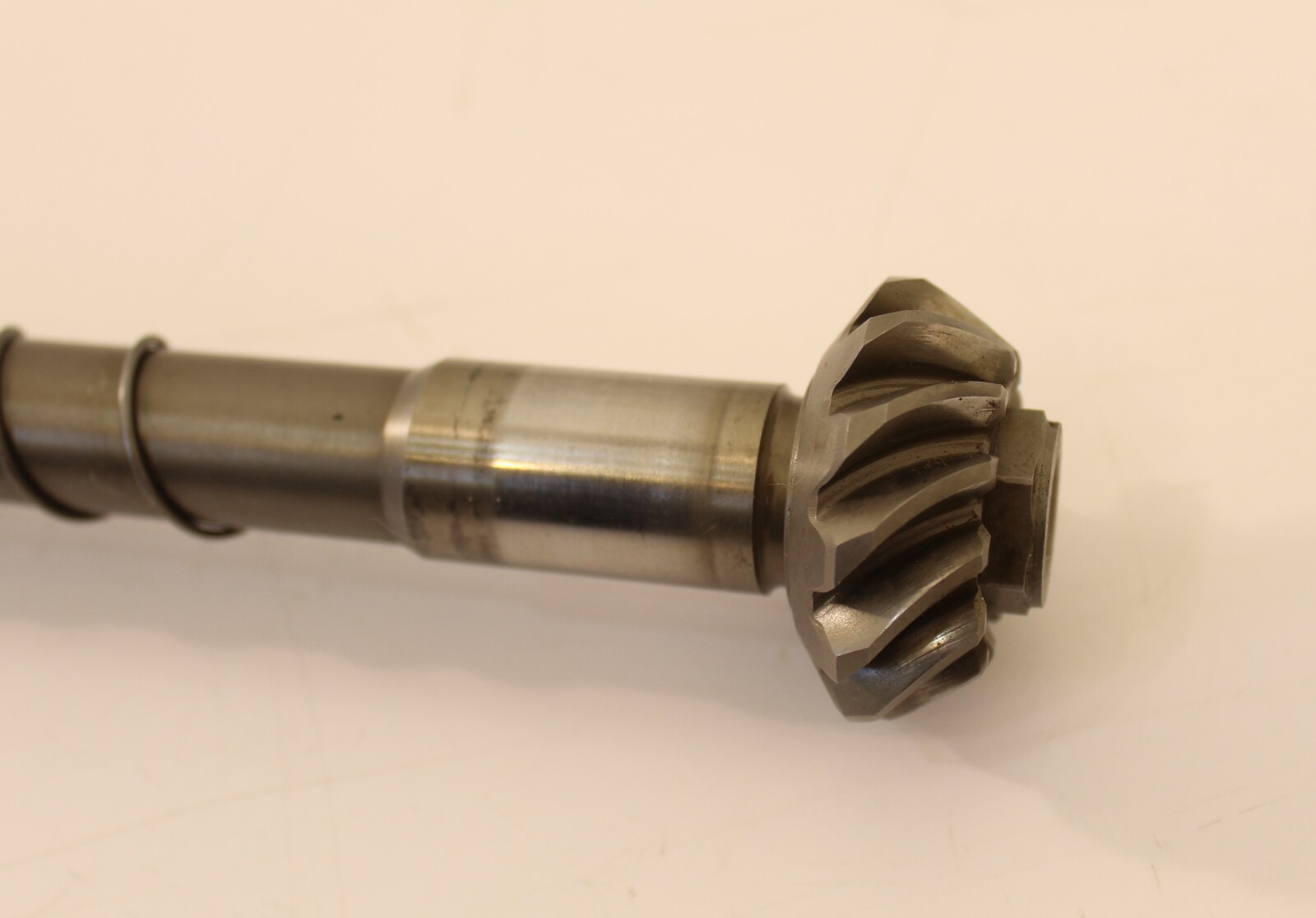

◆ Driveshaft, bearing, and pinion gear included
◆ Checked for straightness — straight

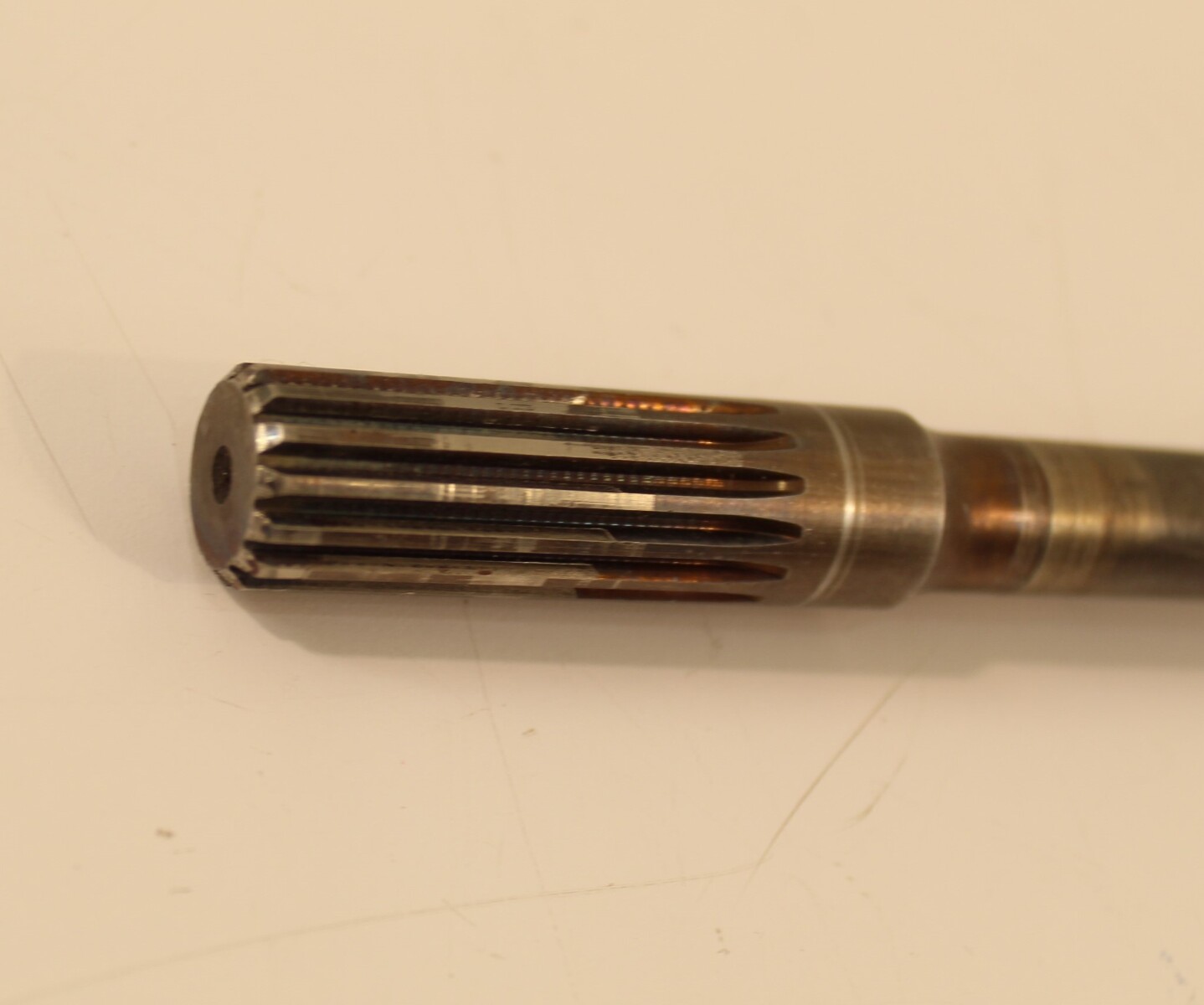

◆ Spline count: 14/12

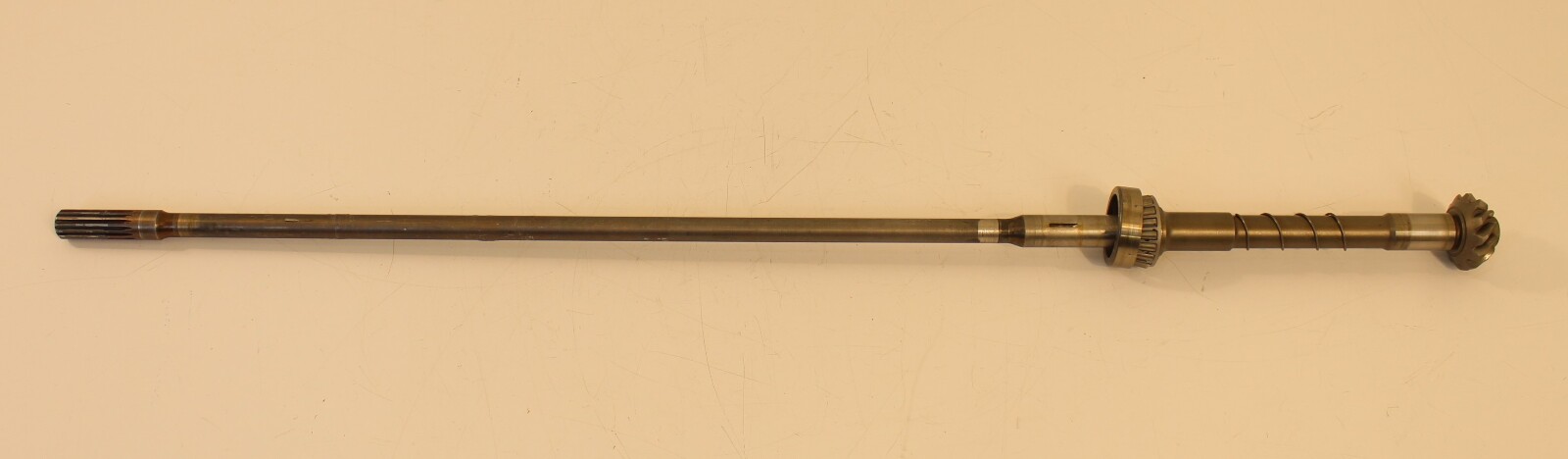

◆ Overall length: approximately 29-7/8" · keyway to top of shaft approximately 20-1/2"

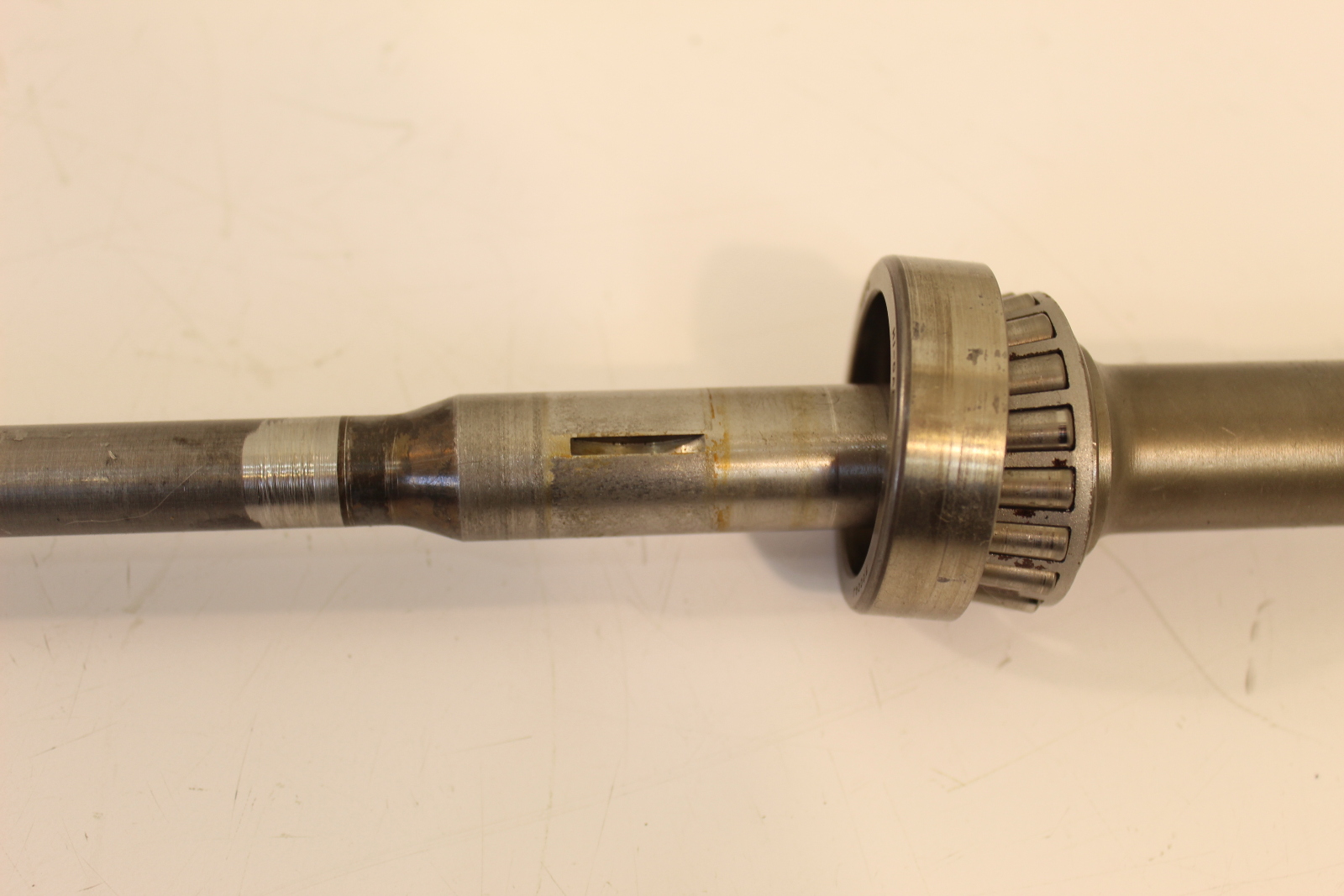

◆ Bearing surfaces in good condition — no pitting

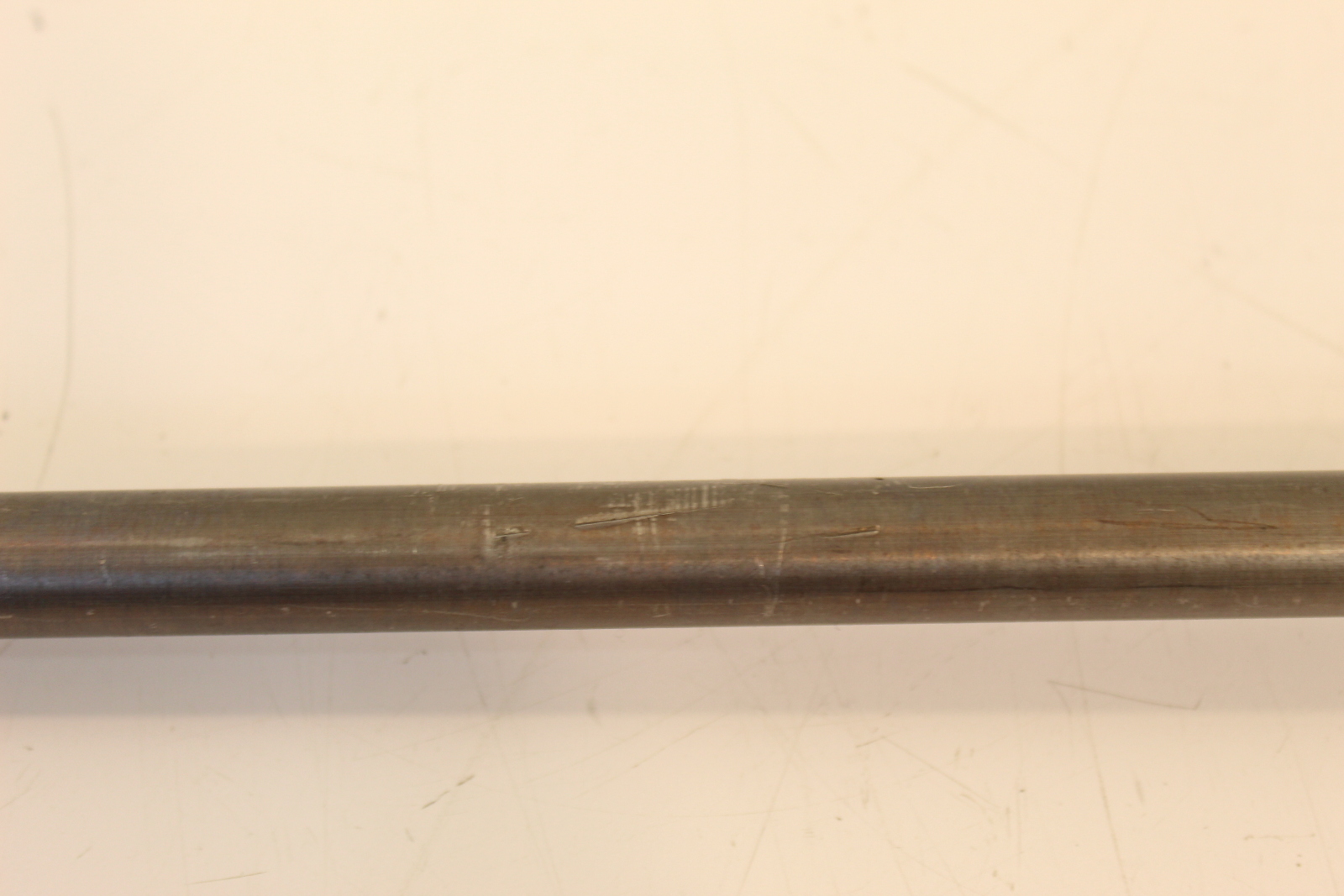

◆ Minor tooling marks — see photos
Fitment
Years: 2001-2006 · 2010
Models: Mercury 25 30 HP 2 & 3 Cylinder · 2-Stroke & 4-Stroke · 20" shaft
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer's responsibility — match the part number, spline count, and length to your motor before purchasing and contact us if you need help.
30 DAY FREE RETURNS IF LISTED INCORRECTLY | 60 DAYS TO RETURN AT YOUR COST — ANY REASON | 180 DAY WORKING WARRANTY IF IT FAILS, WE COVER IT |
Six month working warranty — if it fails in normal use, we replace it, or refund if we cannot.
✦✦✦✦
The real sale is the responsibility we have to each customer to list, clean, sell, and ship a part correctly. If we miss that mark, please tell us and we will make it right.
— The SCO Team
