Mercury 1994 1995 1996 1997 1998 - 2006 20" Lower Unit 100 115 125 HP L4 2.07:1


$1,000.00
International Shipping Quote
  • Brand: Mercury
  • Size: 100 115 125 HP
  • Color: Black
  • Style: 20" Shaft -L4 - 6 jaw clutch - 13/15 splines - 2.07:1
  • Condition: Used
  • Notes: Professionally Cleaned & Inspected!
  • SKU: 52759 LRU
  • Manufacturer Part Number: 1667-9011J6 9011J6 9011G51 9011G10
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Black
  • Inventory Number: 52759 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00


KEY POINTS:

 - FULLY RESEALED
- PRESSURE CHECKED
- NEW IMPELLER INSTALLED
-1 YEAR WARRANTY W/ RETURN OF CORE (SEE DETAILS BELOW)
Additional Info
  • We have professionally cleaned, opened, resealed, and inspected this unit
  • Unit shifts and spins smoothly without binding
  • This unit has the 6 jaw clutch.
  • The gear ratio is 2.07:1.
  • Please note that this does not come with the propeller or the propeller hardware, but it does come with the trim tab and anode.
  • Short skeg and holes in cavitation plate
  • Oil was dirty with no signs of heavy metal or water

    Driveshaft measures - 20-1/4" from top of water pump housing to top of driveshaft.

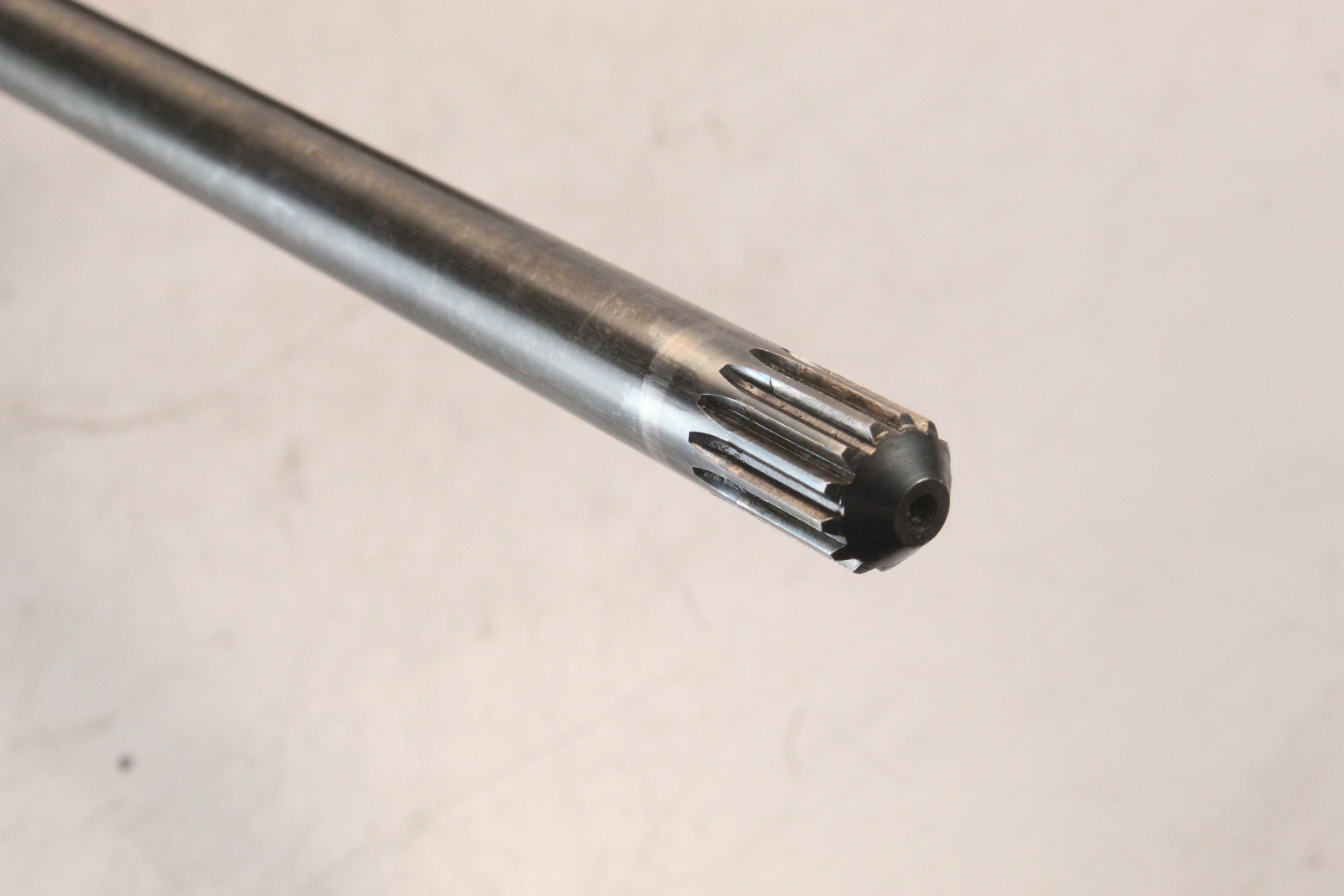

    Driveshaft spline count - 13

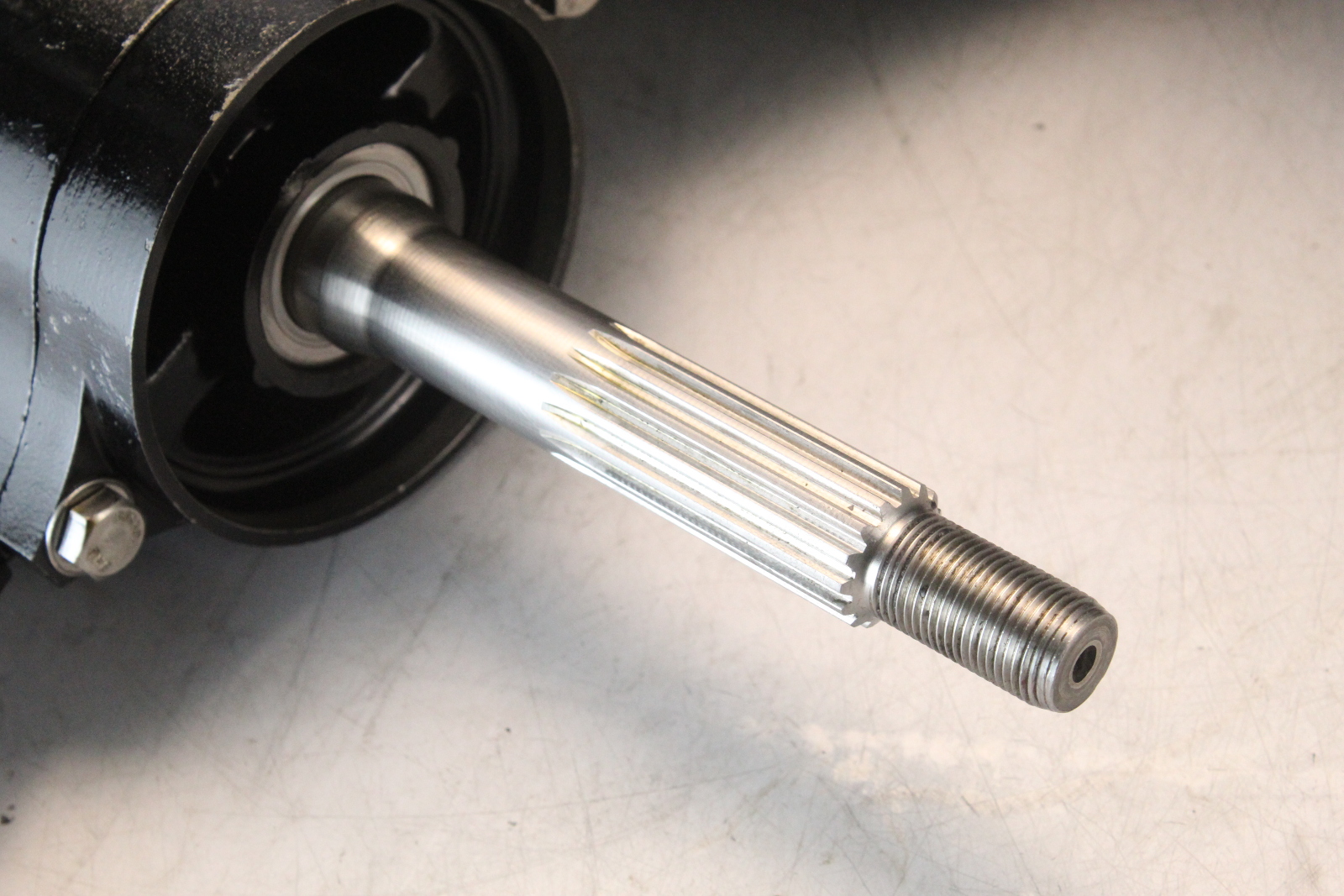

    Prop shaft spline count - 15

    This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

    Location: Southcentral Outboards, Altamont, Illinois
Fits:
1998 & UP  - 100 115 125 HP - L4.  Carburetor 100-125 HP 4 cylinder motors ONLY.  This will not fit a 4 stroke or an Optimax.

**Please note that this will also fit a Force 120 HP Lower unit from 1990-1997 with a 6 jaw clutch.***

Please note that this lower unit will also fit the 75 80 90 HP Mercury motors but this will require a propeller change as well as they have different gear ratios.

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
