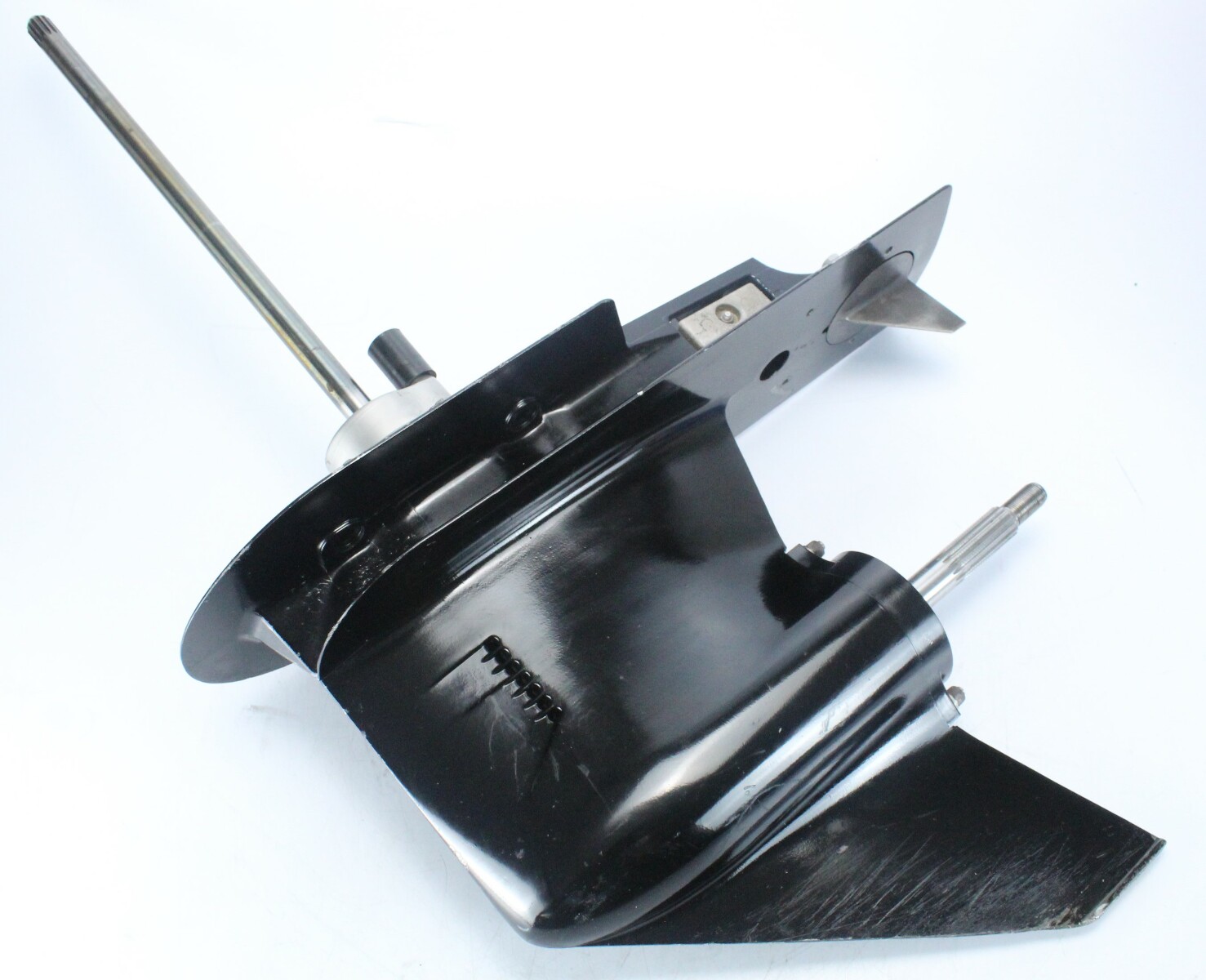

Mercury 1994 1995 1996 1997 1998 - 2006 20" Lower Unit 100 115 125 HP L4 2.07:1

$1,000.00

DetailsShipping

Brand: Mercury
Size: 100 115 125 HP

Color: Black
Style: 20" Shaft -L4 - 6 jaw clutch - 13/15 splines - 2.07:1
Condition: Used
Notes: Professionally Cleaned & Inspected!

SKU: 54763 LRU
Manufacturer Part Number: 1667-9011J6 9011J6 9011G51 9011G10
Country of Manufacture: United States
Motor & Engine Type: Mercury
Part Type: Motors, Engines & Components
Other Part Number: N/A
Surface Finish: Painted, Black
Inventory Number: 54763 LRU
Website Category: Lower Units
Website Sub Category: Complete Lower Units
UPC: N/A

Shipping: $75.00

KEY POINTS:

20 Inch Driveshaft
Fully resealed with a new impeller
Extended Warranty with exchange of a spinning core (see below for more info)

Additional Info

Shifts and spins smoothly without binding
Shafts checked for straightness
Driveshaft splines show little to no wear
Gears & clutch are in good condition
Freshwater Condition
New Impeller
Fully Resealed & Pressure checked to 12 PSI

Gear Ratio: 2.07:1

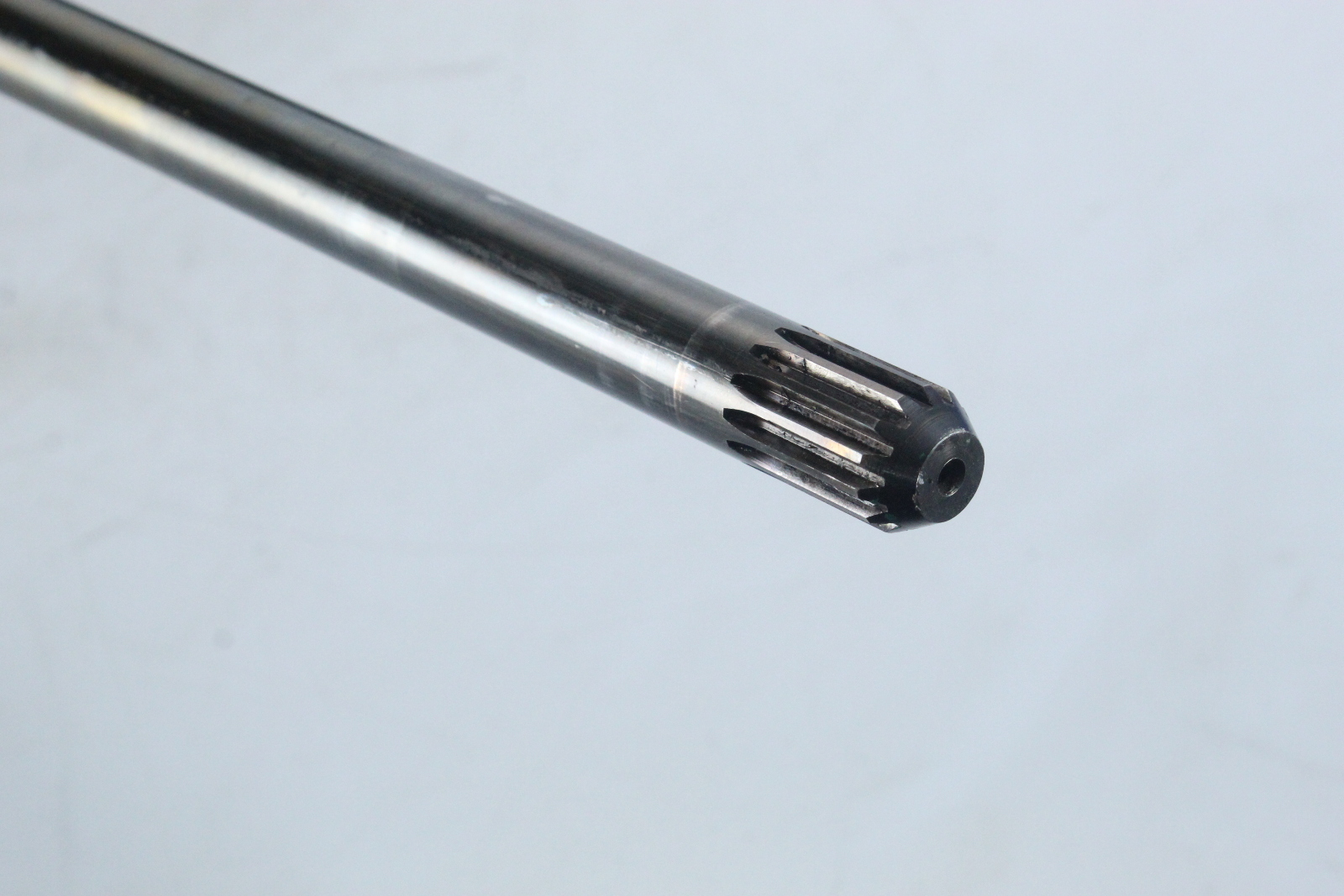

Driveshaft splines: 13

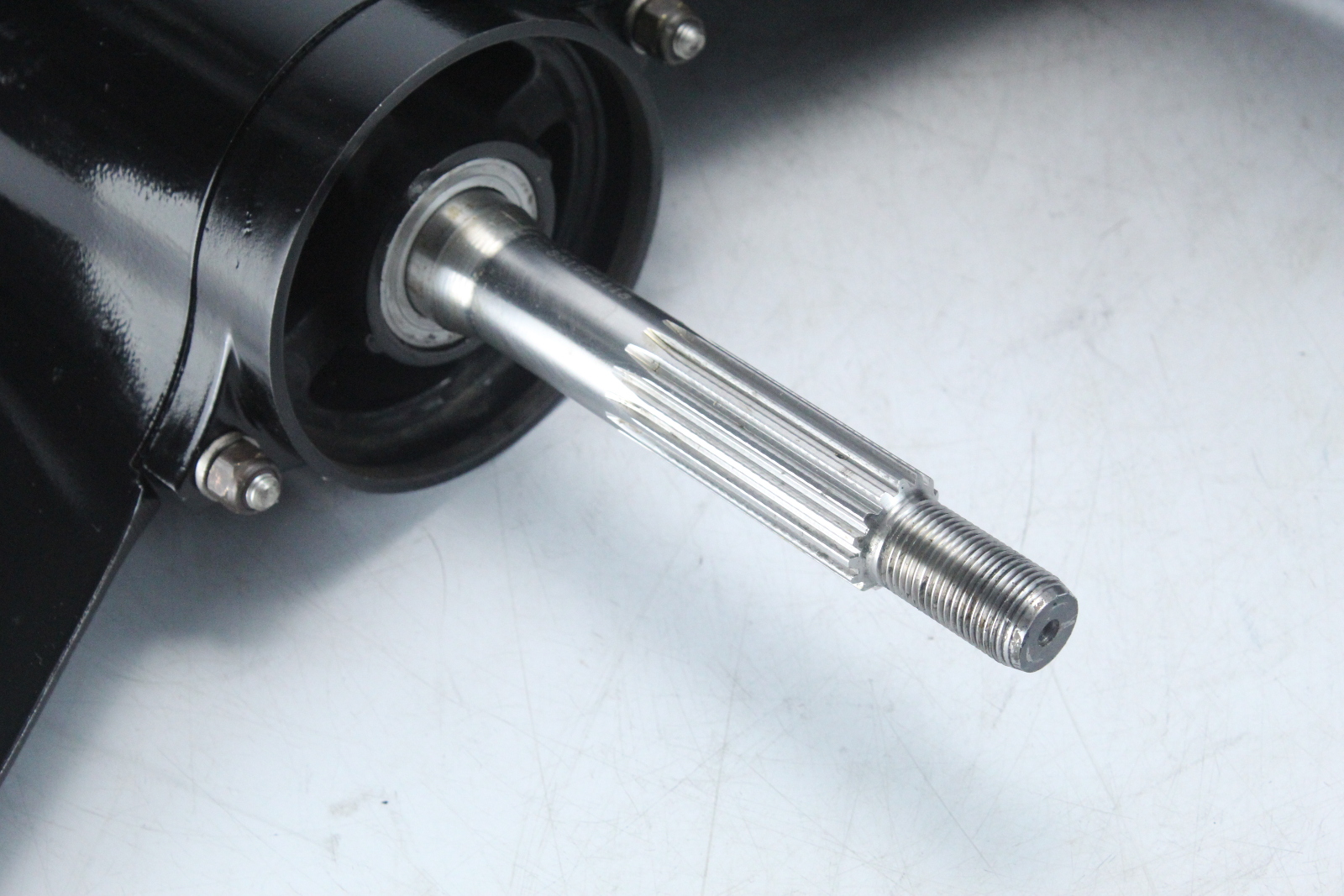

Propeller shaft splines: 15

Driveshaft length from the top of the water pump to top of the shaft: 20-1/4"

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 1 year warranty. The warranty is validated by your core. In order to qualify for this, you must send in that core. Both shafts must spin and it must be complete. We will send a label for you to return your core in our box after receipt of the unit you’ve purchased. If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price. If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

Fits:

1998 & UP - 100 115 125 HP - L4. Carburetor 100-125 HP 4 cylinder motors ONLY. This will not fit a 4 stroke or an Optimax.

**Please note that this will also fit a Force 120 HP Lower unit from 1990-1997 with a 6 jaw clutch.***

Please note that this lower unit will also fit the 75 80 90 HP Mercury motors but this will require a propeller change as well as they have different gear ratios.

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
