1 YEAR WARRANTY Mercury 1976 & UP XL 25" Lower Unit 135 150 HP 2:1 Ratio V6


$1,100.00
International Shipping Quote
  • Brand: Mercury
  • Size: 2.0L 135/150 V6
  • Color: Black
  • Style: V6 - 2:1 - 25"
  • Condition: Seller Refurbished
  • Notes: Freshwater
  • SKU: 43859 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Black
  • Inventory Number: 43859 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00
Part Number
N/A

Additional Info

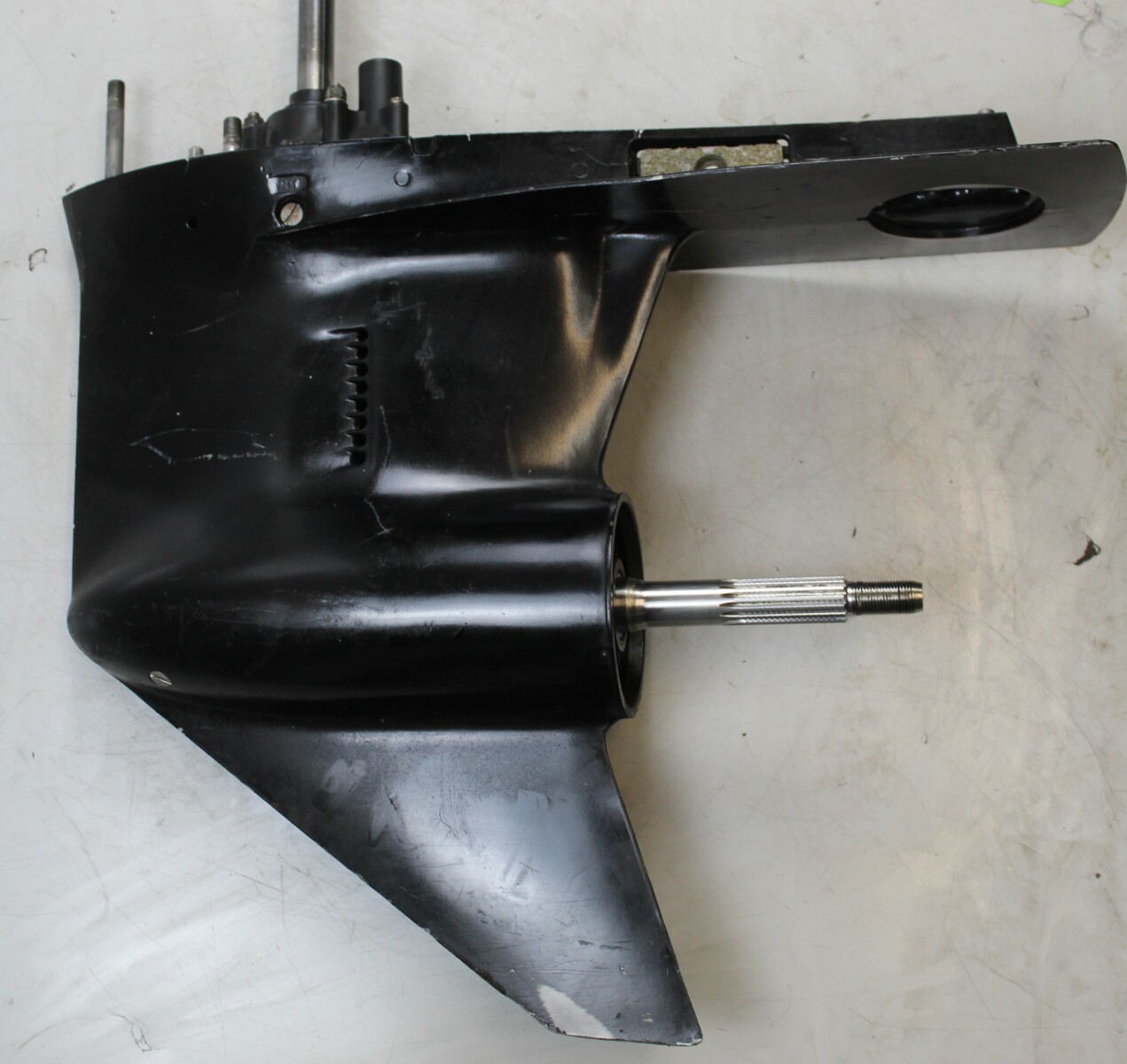

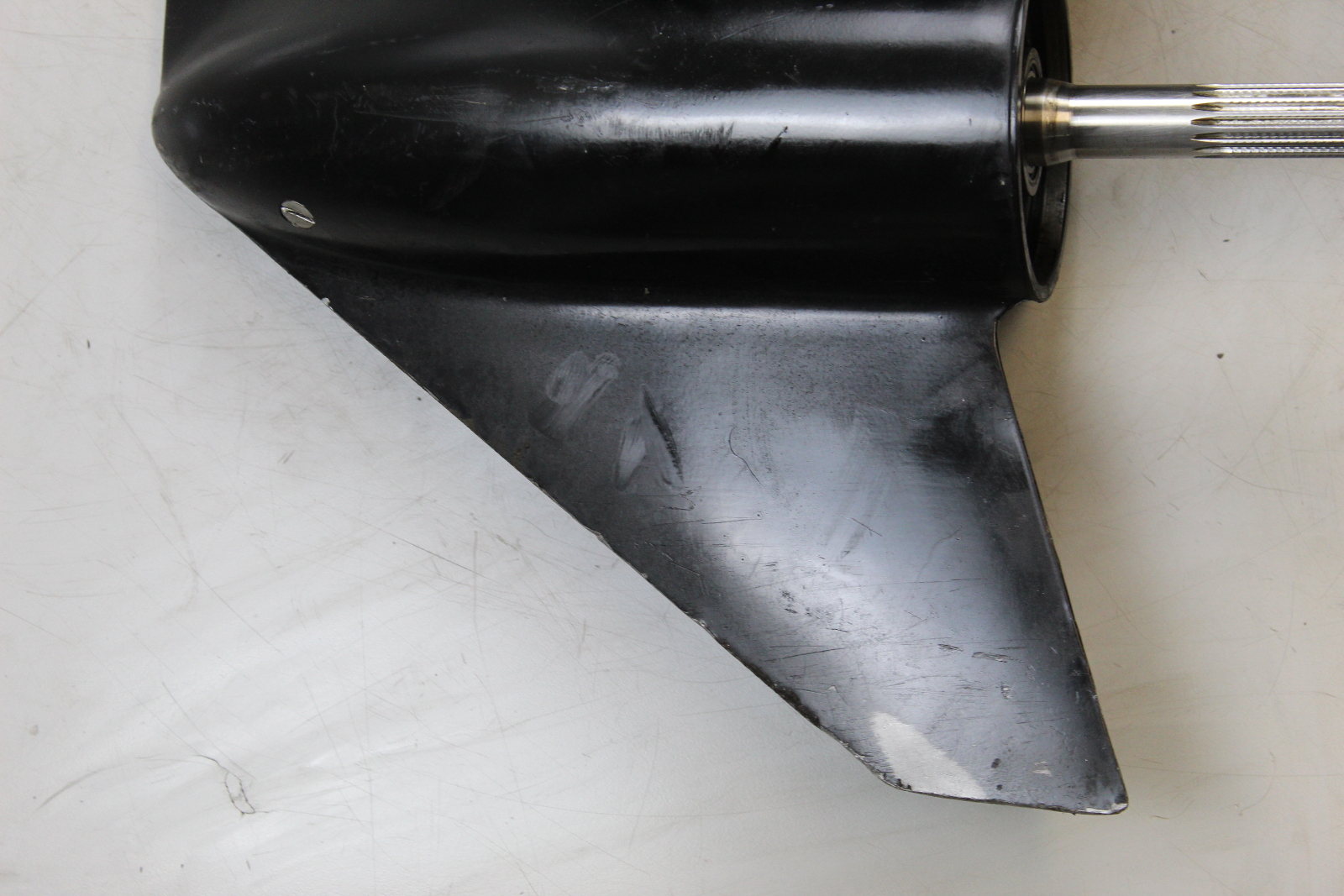

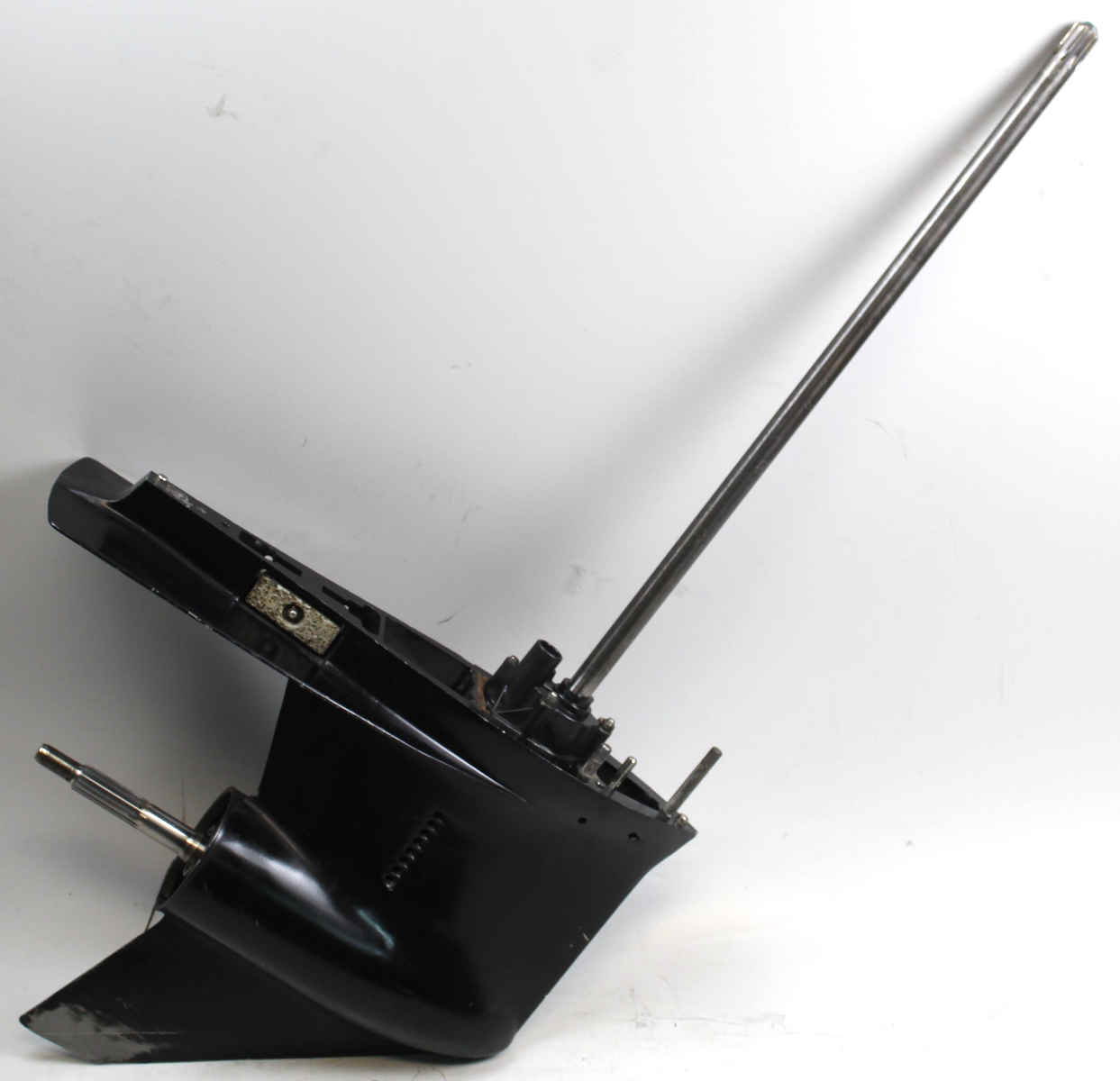

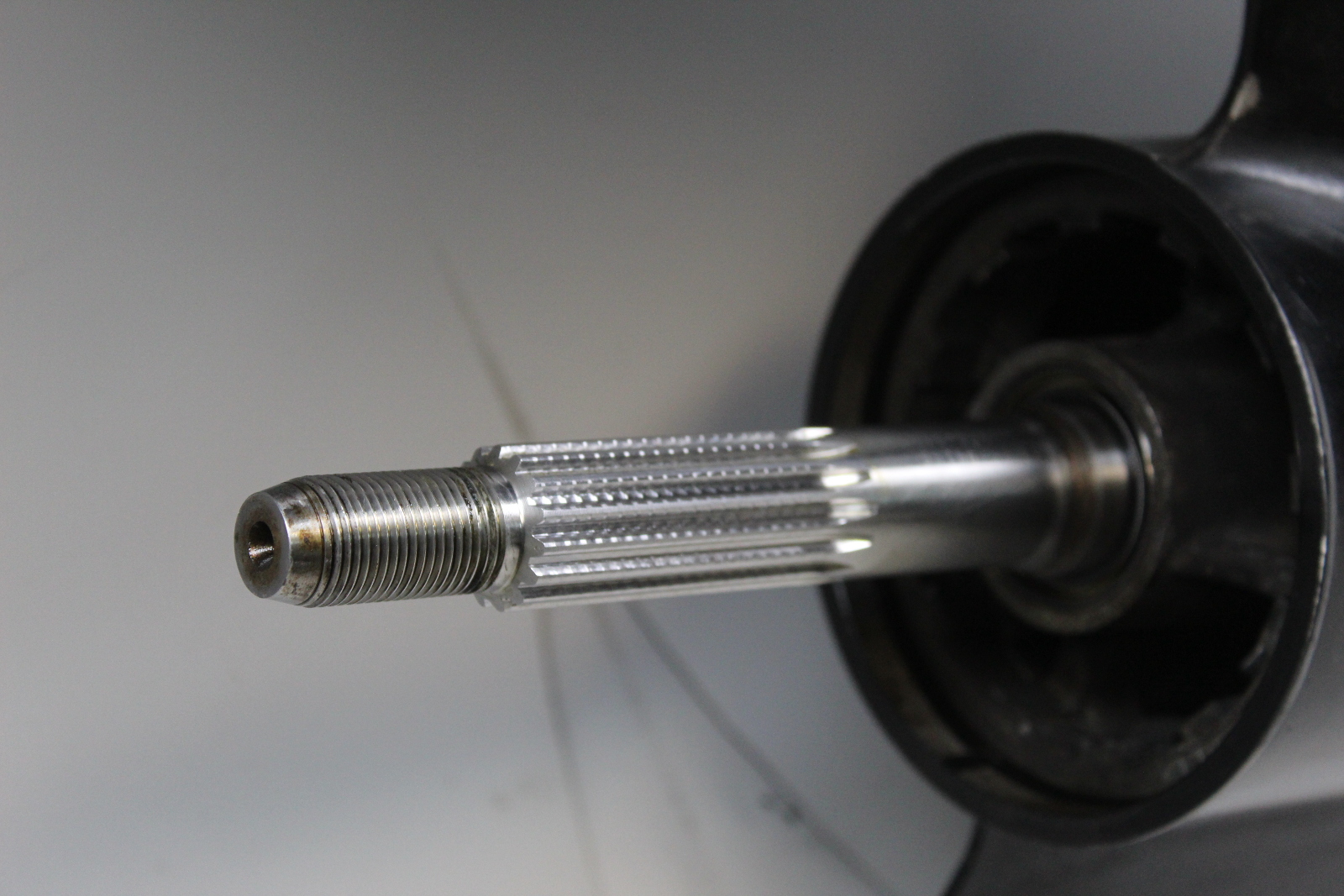

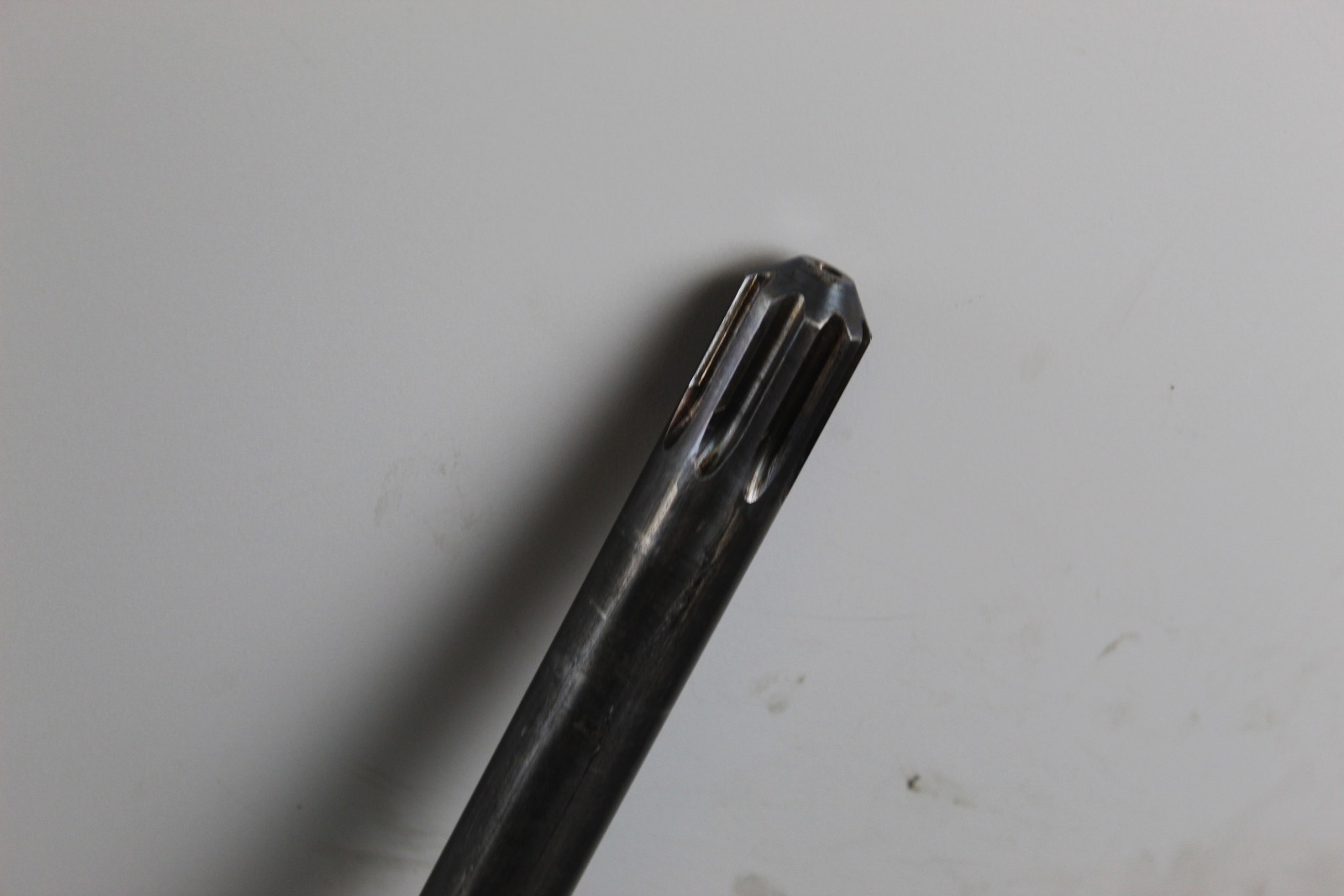

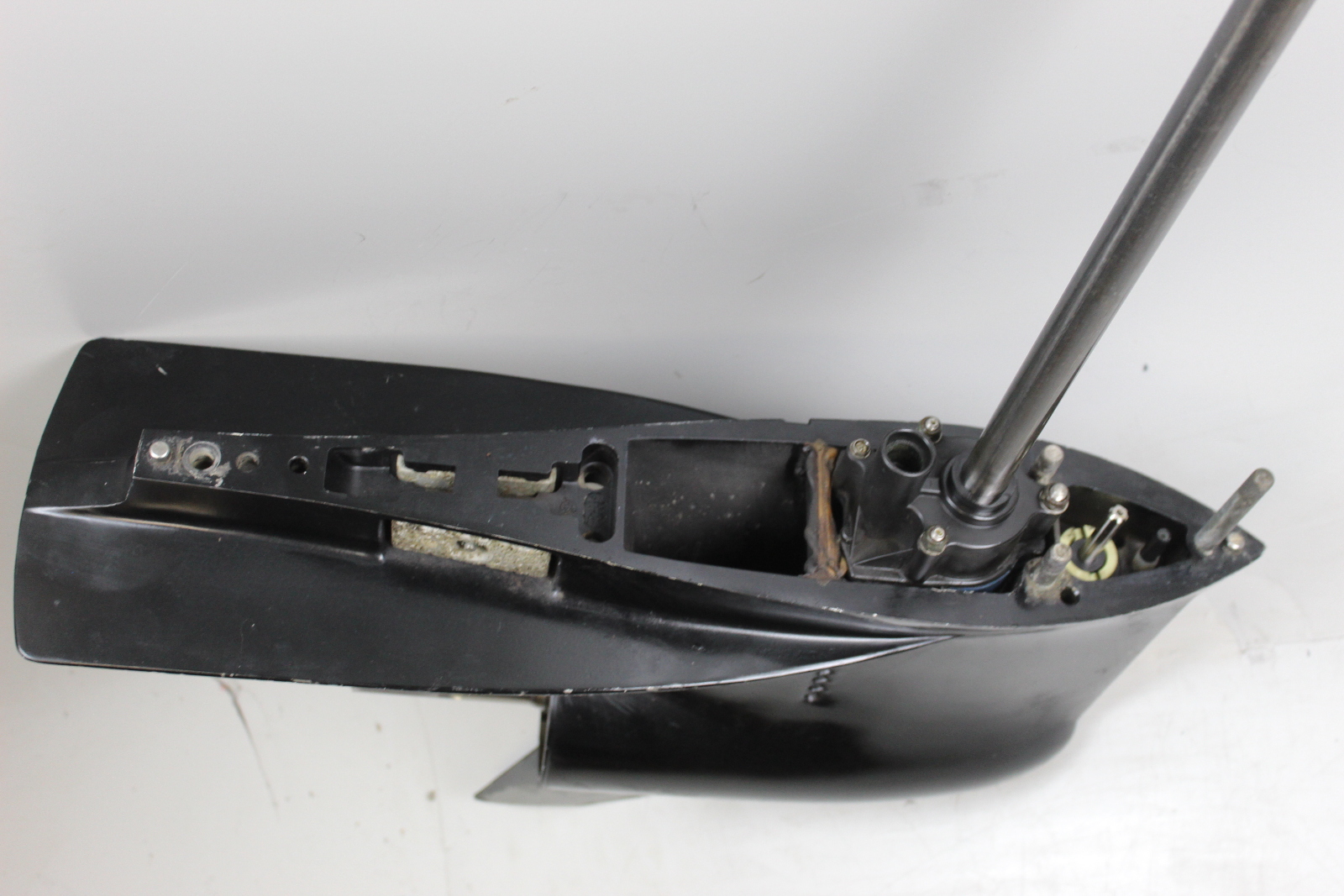

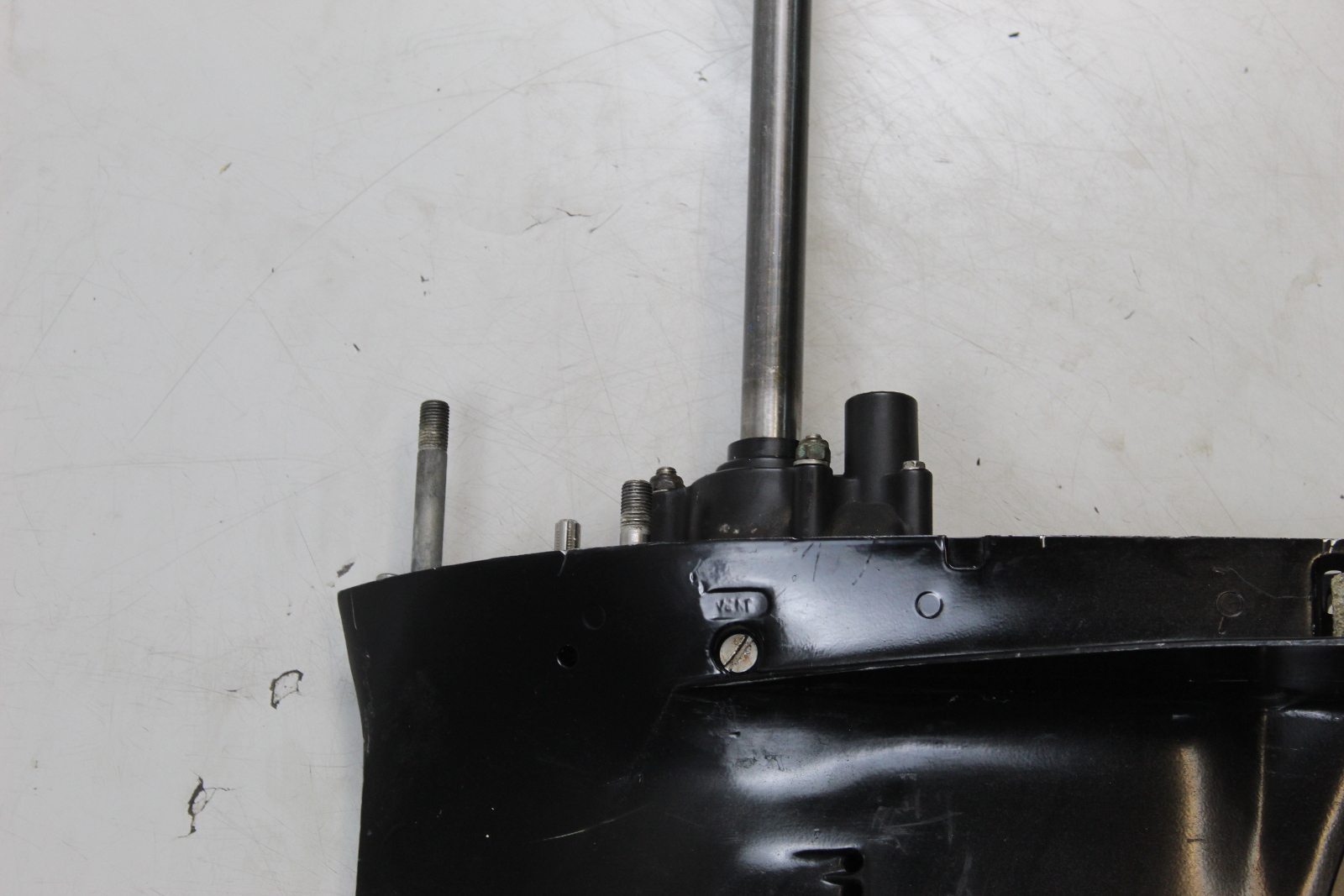

This lower unit is in great condition and ready for install. From the base of the water pump to the end of the driveshaft, it measures approximately 26 1/2" long.  There are 8 splines on the driveshaft and 15 on the propeller shaft. All the splines are in perfect shape and are not damaged in any way.

 We have drained the unit of oil and this will need to be added prior to installation.

  • Freshwater condition
  • New Impeller
  • Fully resealed
  • Pressure checked to 12 PSI minimum
  • Shafts checked for straightness
  • Shifts and spins smoothly
  • 2 to 1 Gear Ratio
  • 4-3/4" diameter bullet

This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

Fits:
This fits XL model 2.0L and some 2.5L Mercury V6's with a 2 to 1 Gear ratio.  That was primarily the 135 and 150 HP models.  It will replace Carb, EFI, and optimax models after 1976.

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
