Mercury 1976 & Newer 25" XL Lower Unit 135 150 HP 2.0L V6 2:1 Ratio 1 YEAR WTY

Please add oil before use

Driveshaft measures - 26 3/4" from top of water pump housing to top of driveshaft.

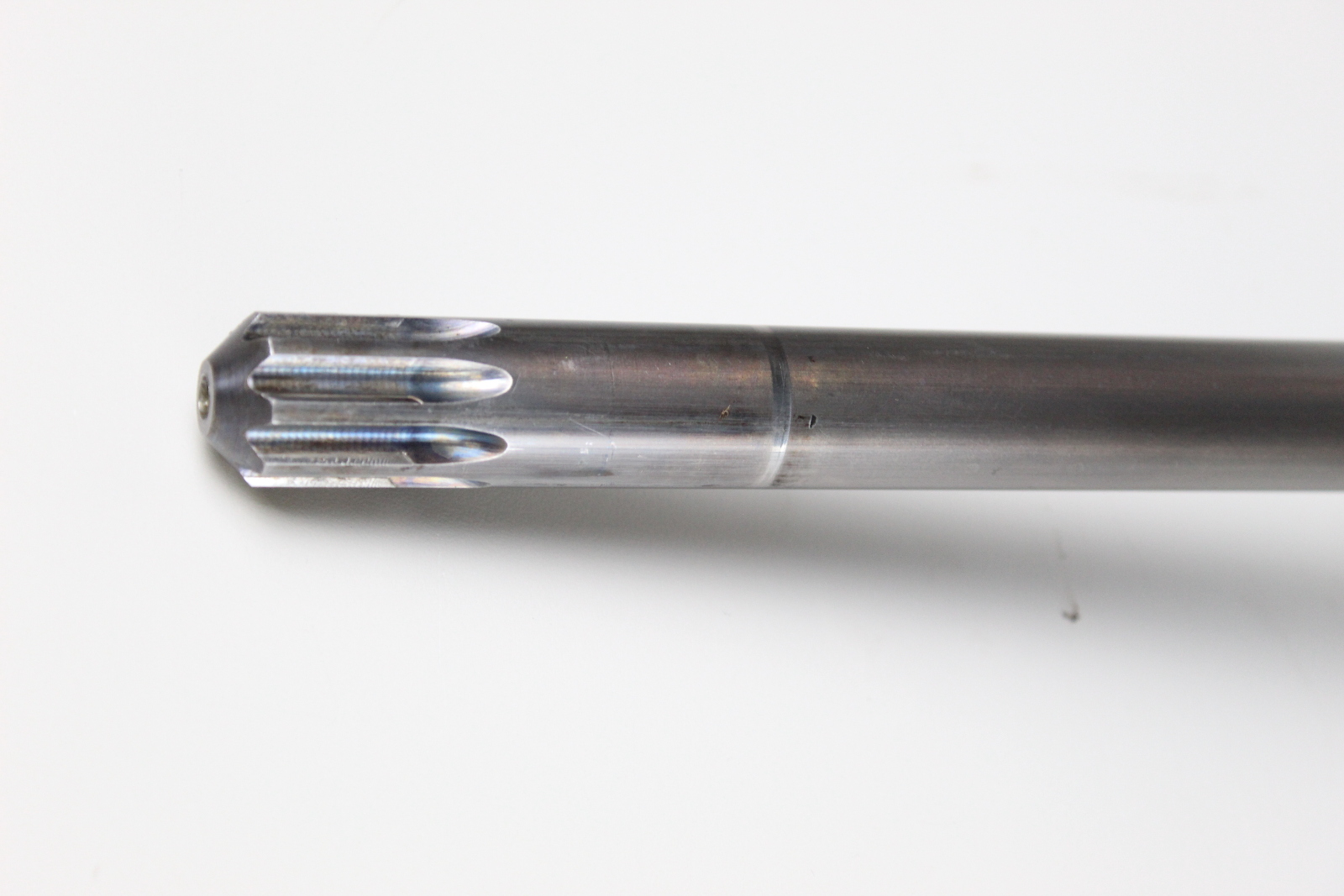

Driveshaft spline count - 8

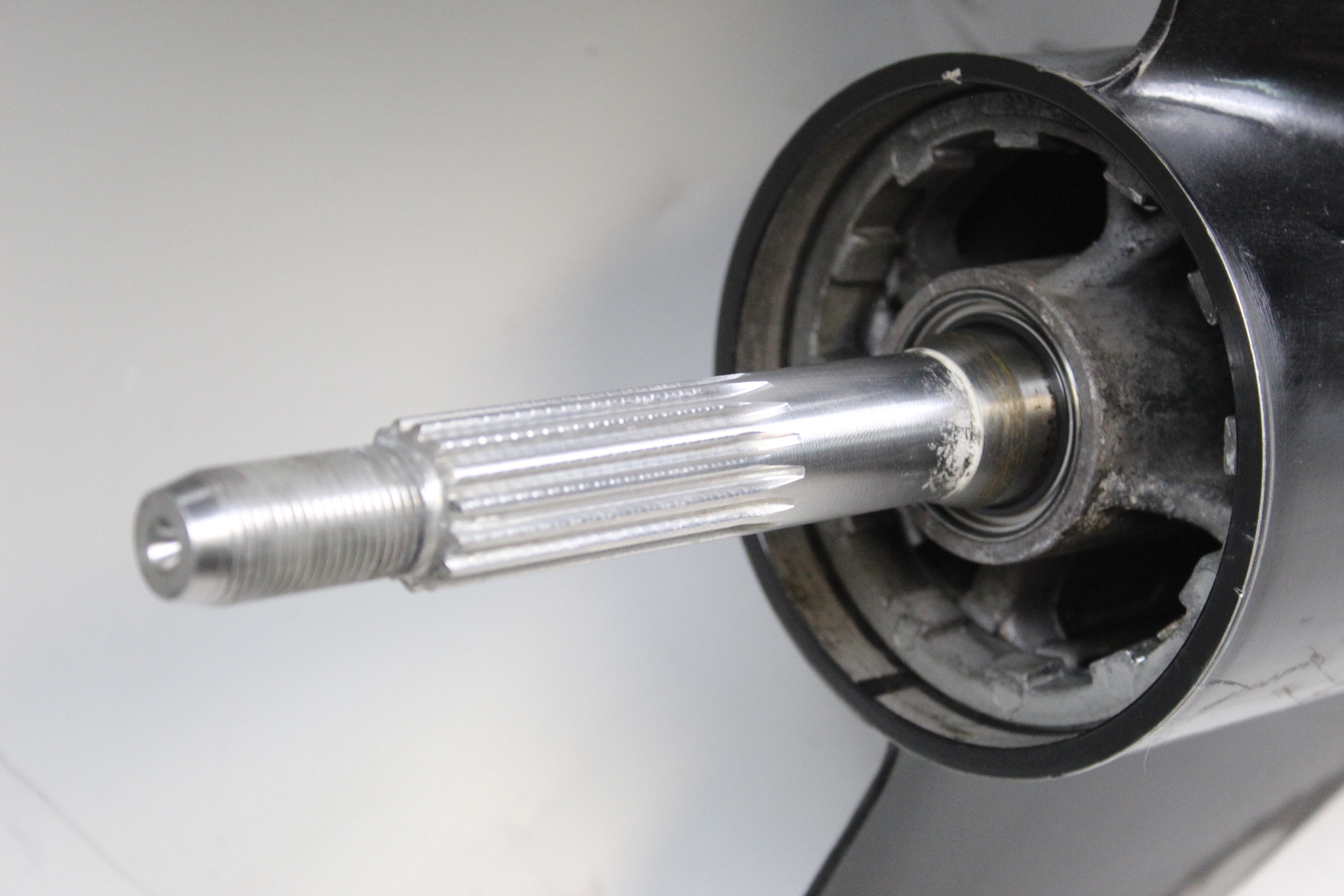

Propeller shaft spline count - 15

• Freshwater condition
• Opened & Inspected

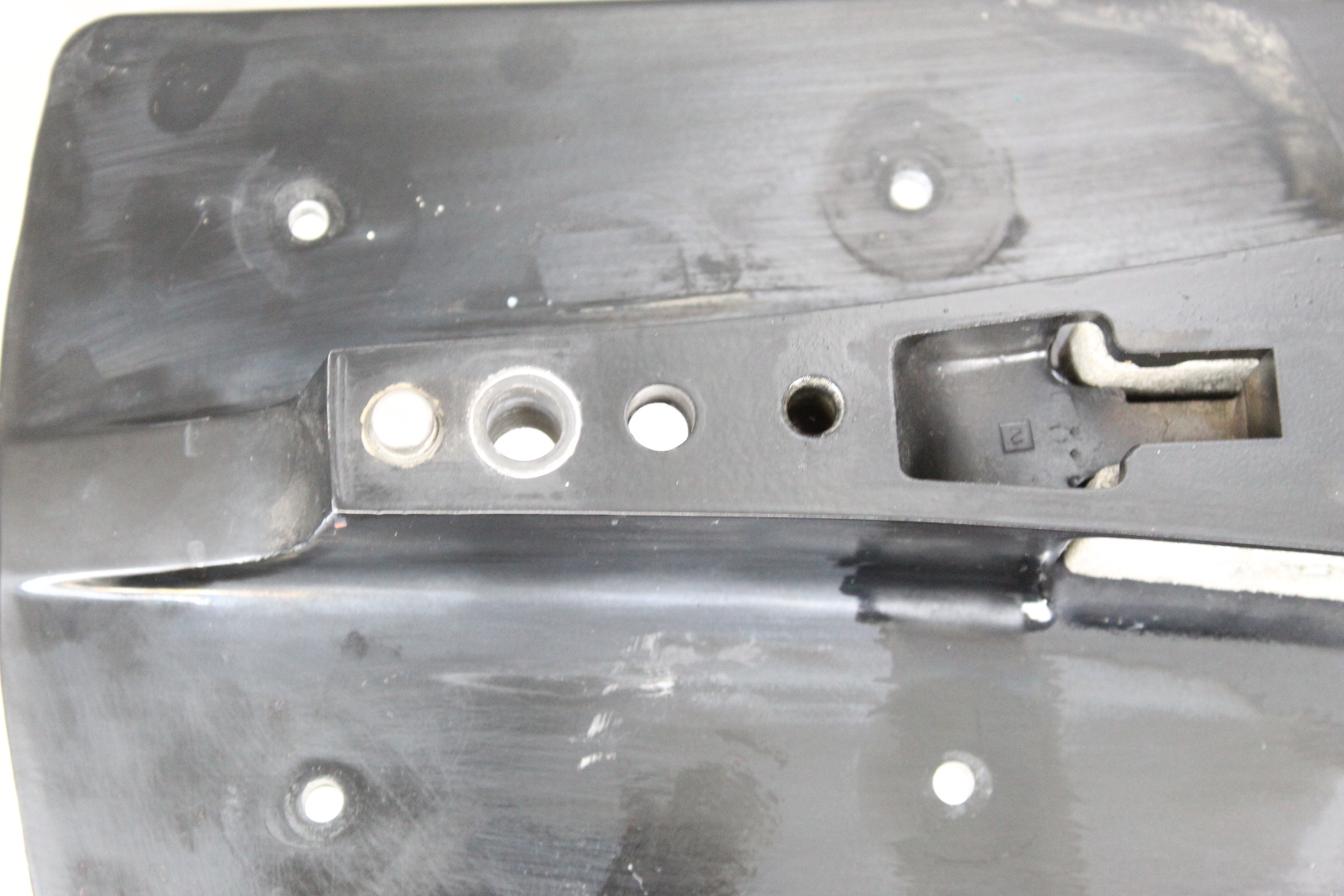

• Holes in cavitation plate for planing fin
• Professionally Cleaned
• New impeller installed
• Gear Ratio: 2:1
• Pressure checked to 12 PSI minimum
• Fully Resealed
• Shafts checked for straightness
• This has a 25" XL driveshaft

This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
