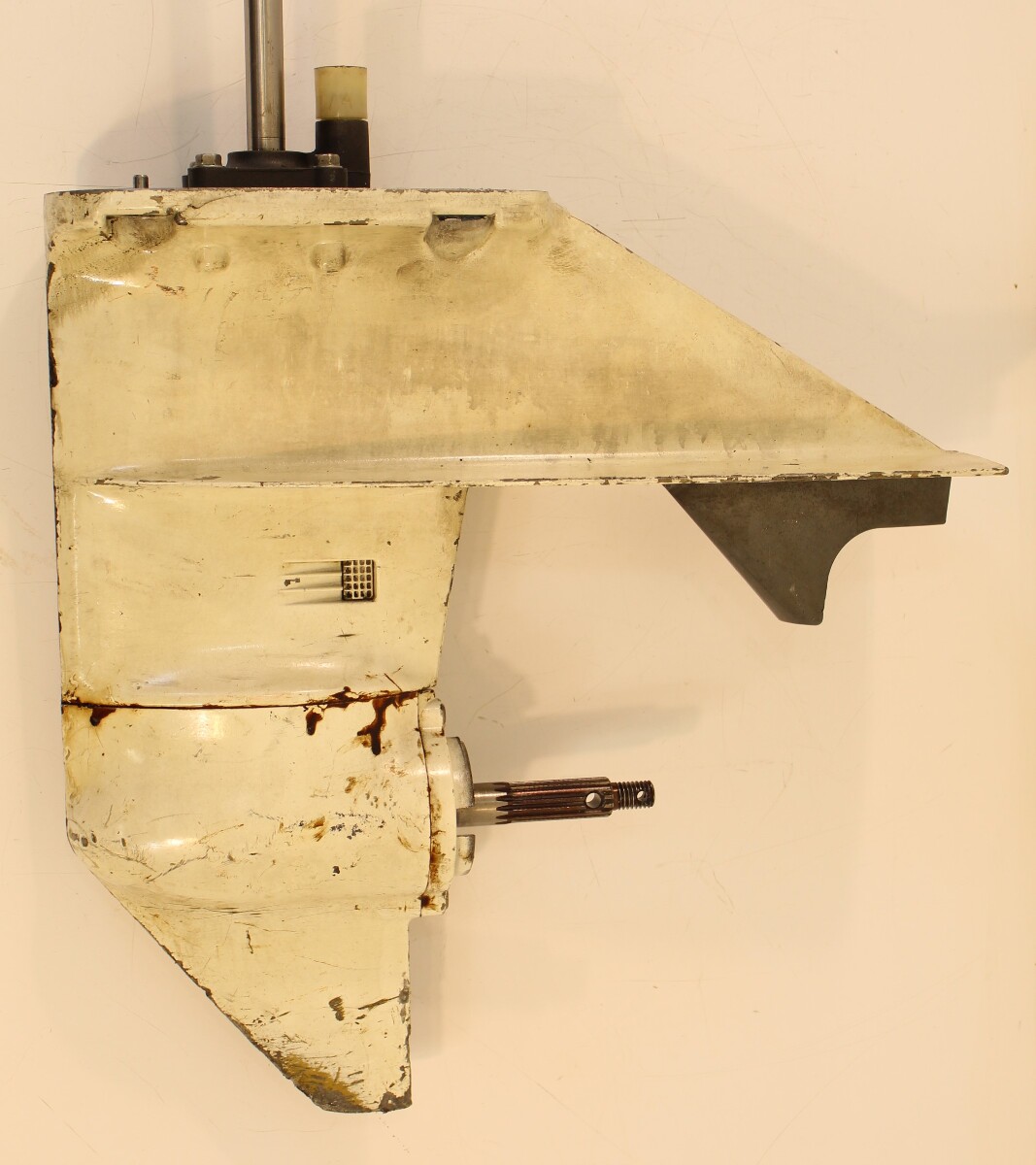

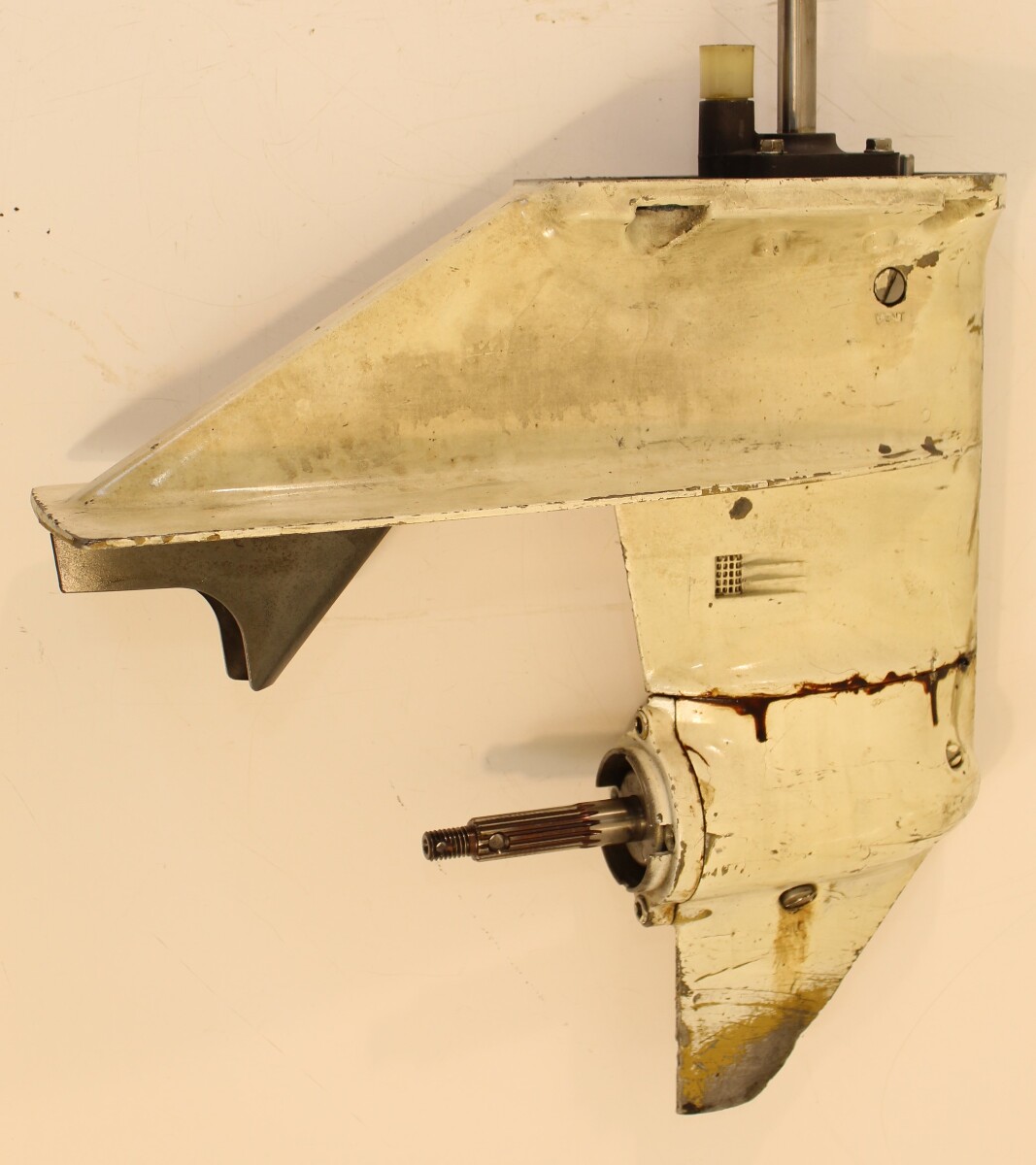

1974 1975 1976 - 1988 Chrysler Force Split Gearcase 20" Lower Unit 35 40 50 HP


$350.00
International Shipping Quote
  • Brand: Force
  • Size: 35 40 50 HP
  • Style: 20" Long - 2 Cylinder - Split Case
  • Condition: Used
  • Notes: In Stock & Ready To Ship!
  • SKU: 26-70826 LRU
  • Manufacturer Part Number: 819516A2 819516A1 817902A2 817902A1 FC433054
  • Other Part Number: FC435054 FC486054 FFF000556 FFF001207
  • Inventory Number: 26-70826 LRU
  • Shipping: $50.00

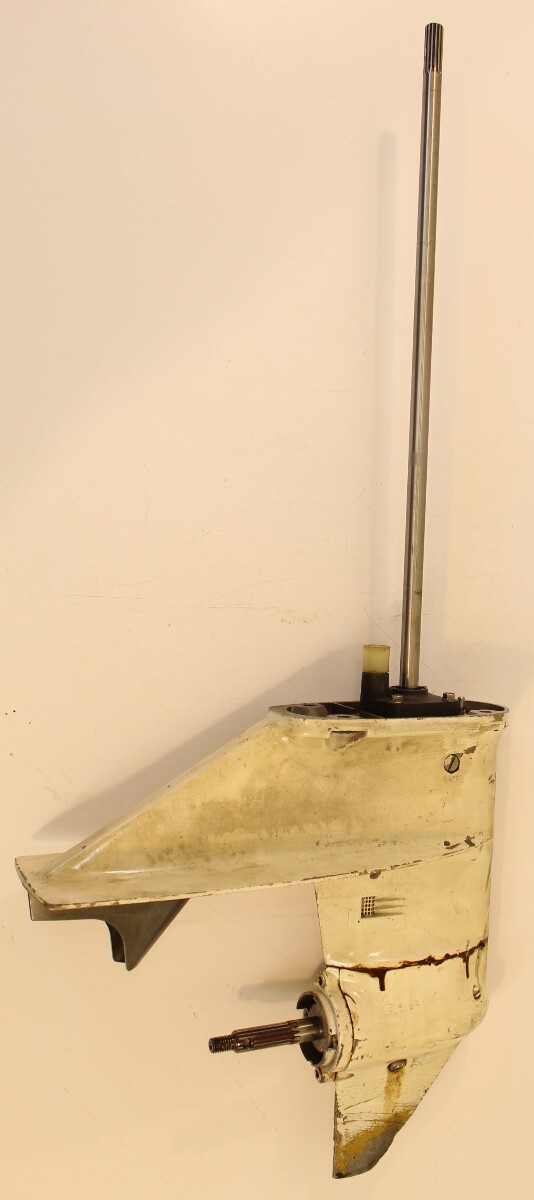

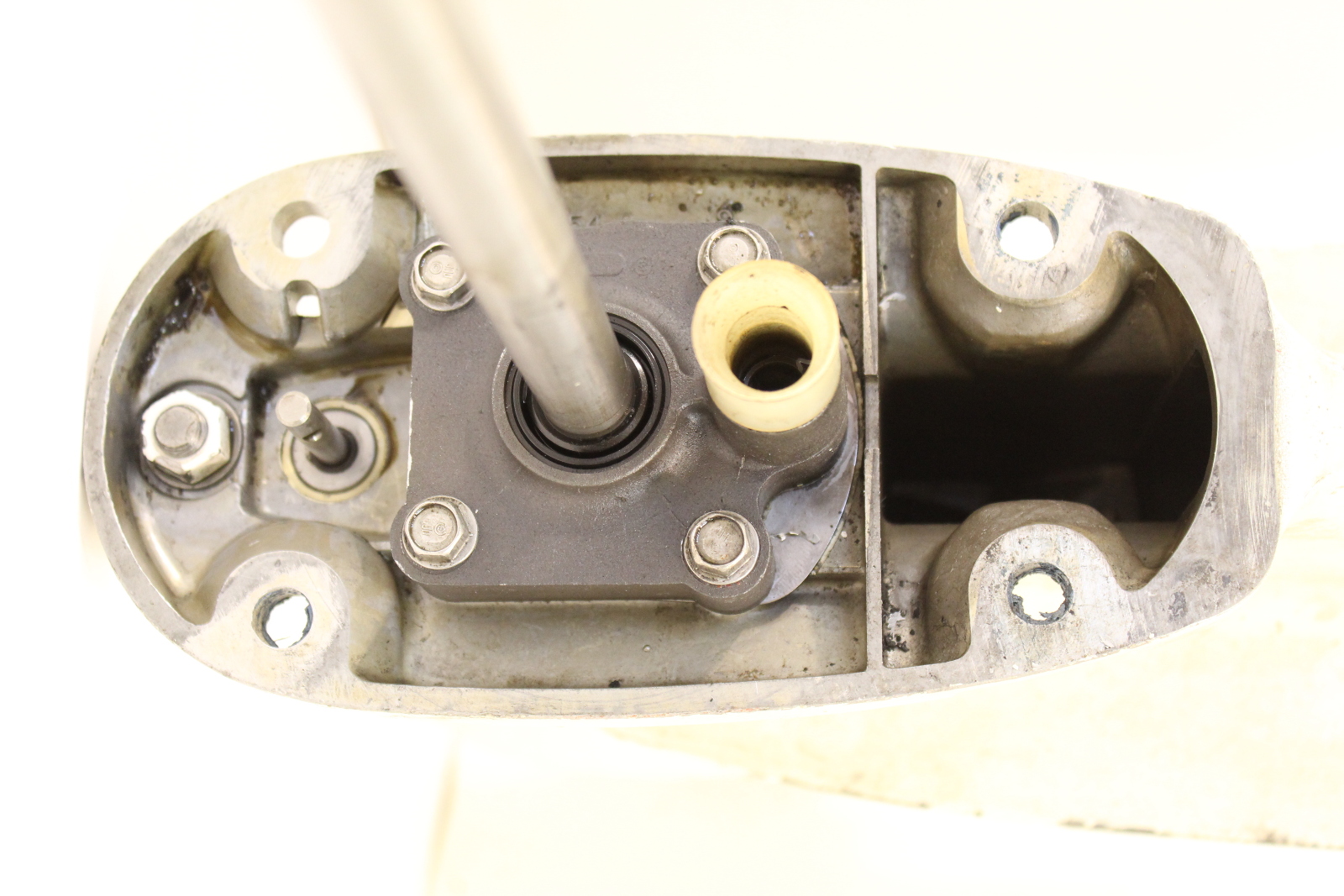

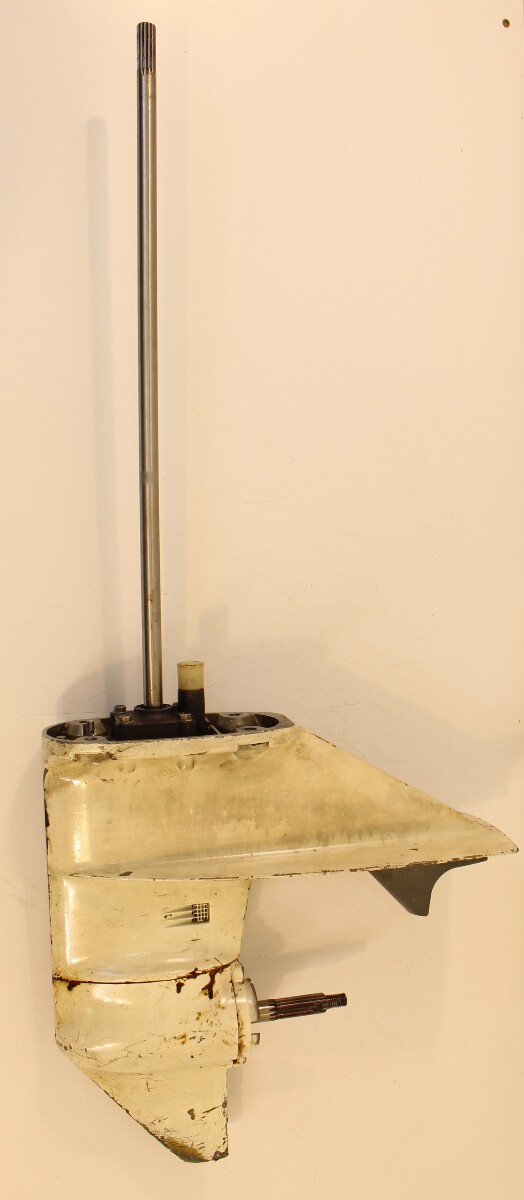

- 20 Inch Driveshaft , measures 21-5/8" Driveshaft length from the top of the water pump to top of the shaft
Shifts and spins smoothly without binding
- Shafts checked for straightness
- Driveshaft splines show light wear
- Freshwater Condition
- Unit did not pressure check and is leaking from the splitcase

Driveshaft splines: 14

Propeller shaft splines: 14

Please add oil before use. This unit is shipped empty.

This is listed As-Is.  We will NOT accept returns on this item for any reason. Please read the description carefully to see the issues this part has.

Location: Southcentral Outboards, Altamont, Illinois

FITS

1974-1988 -  35 40 50 HP 2 Cylinder - Split Case

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
