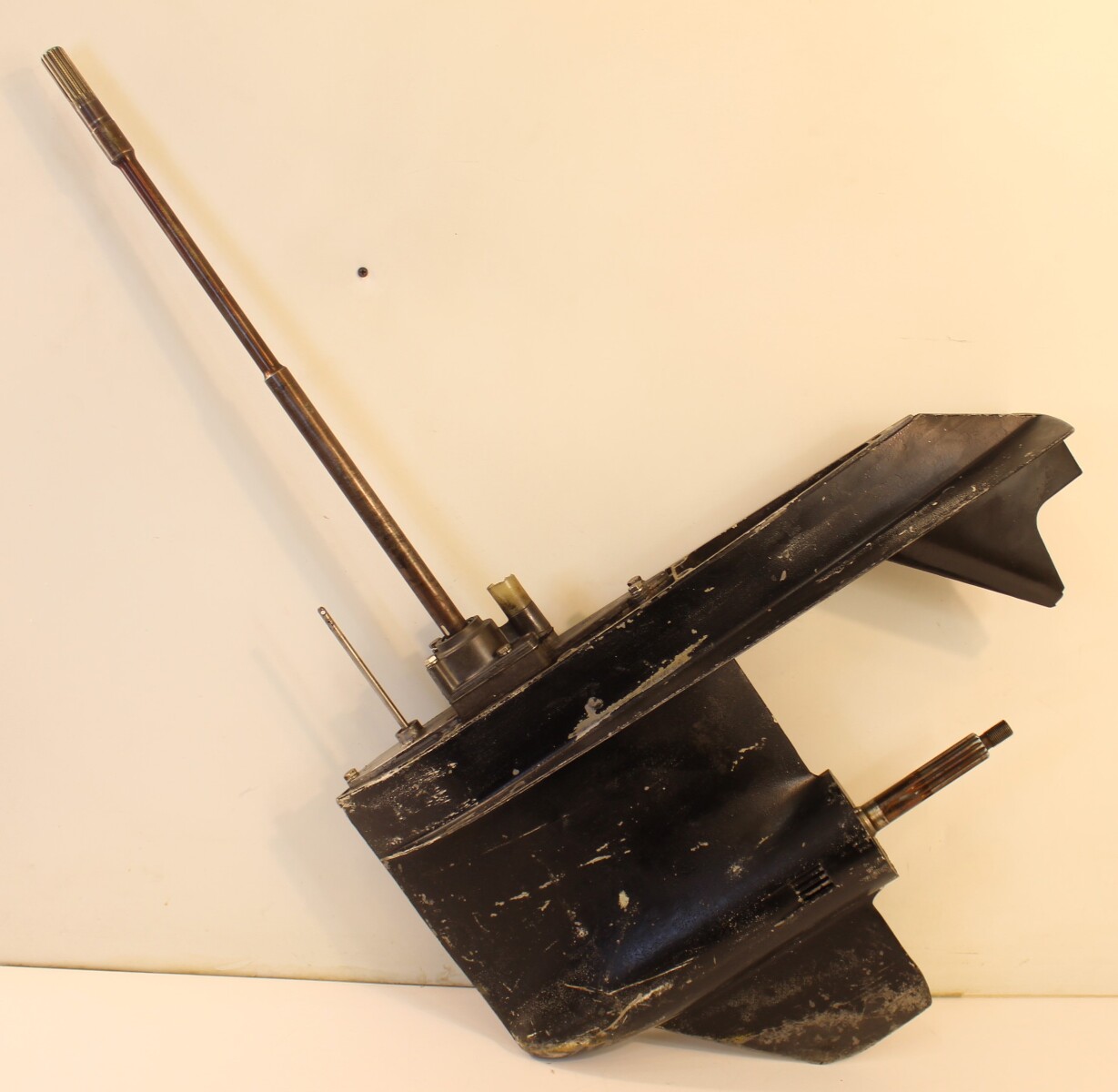

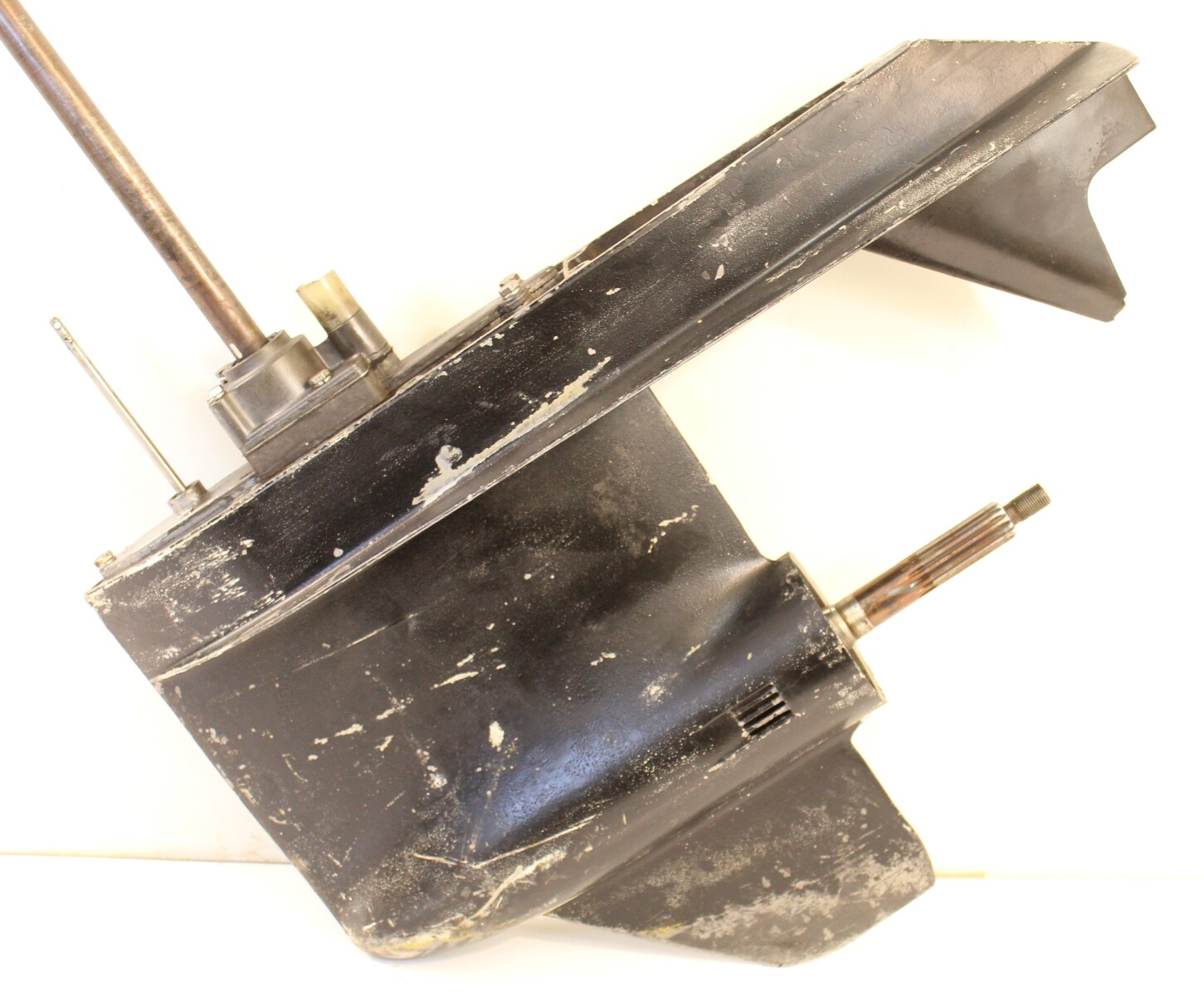

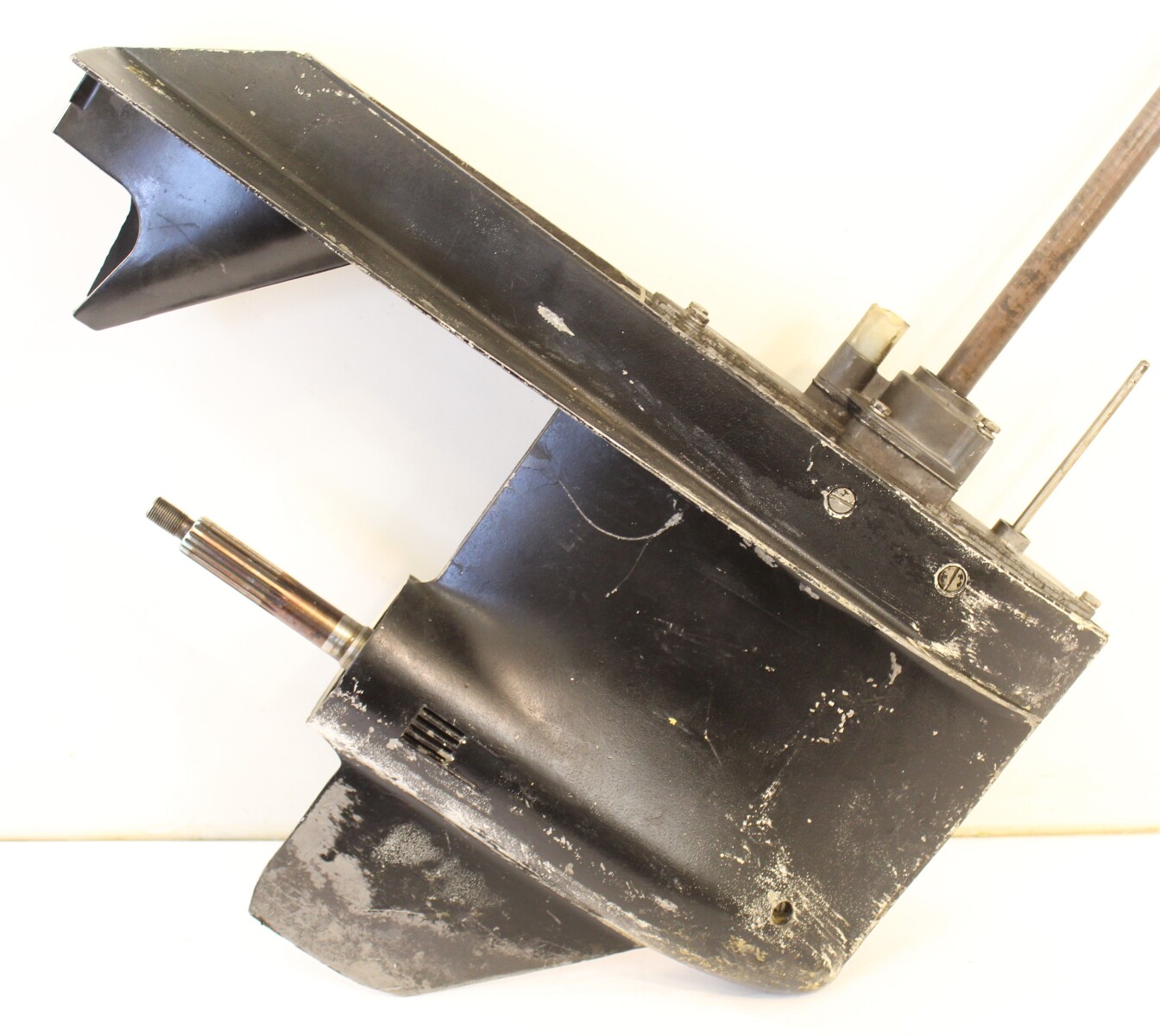

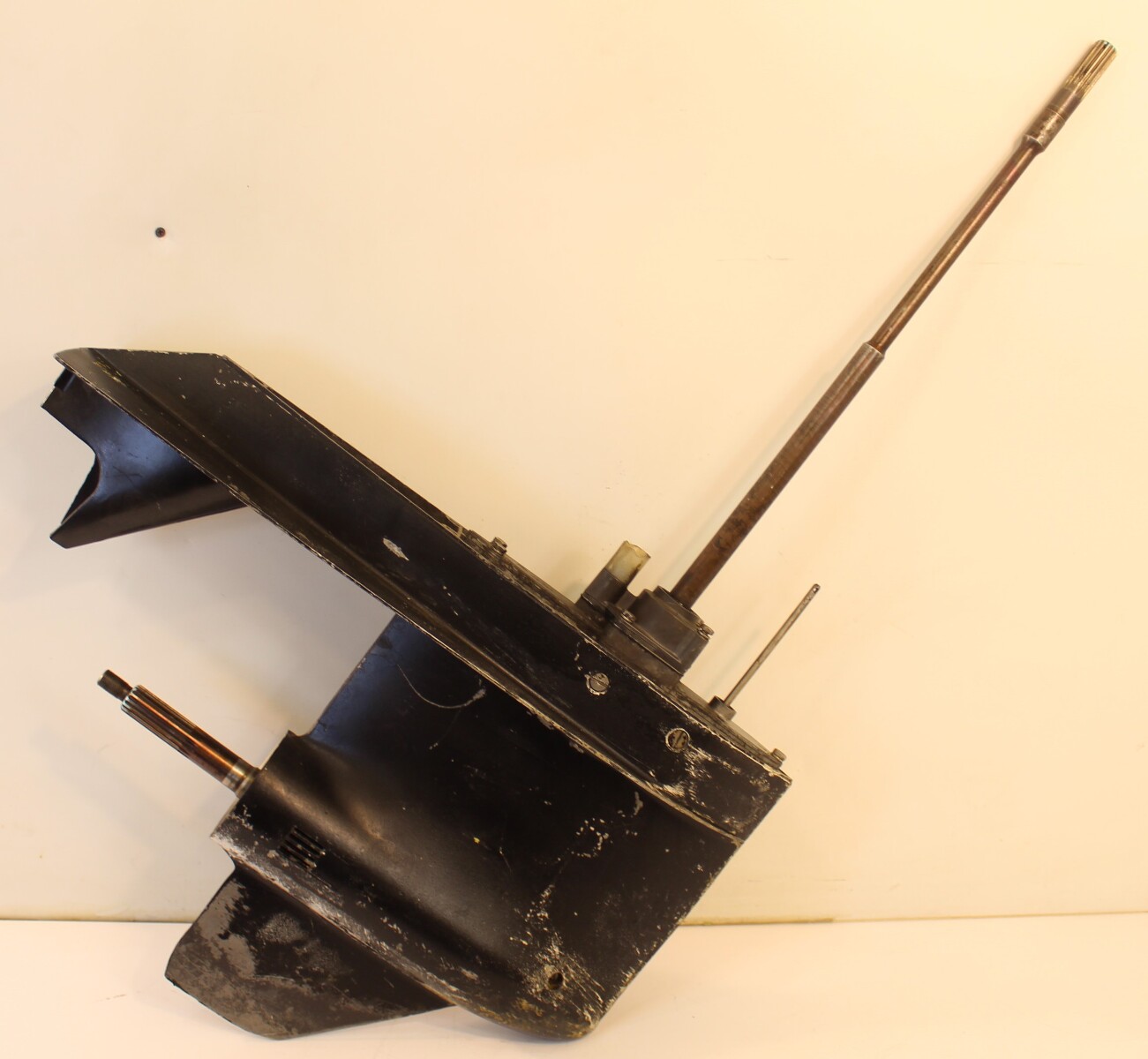

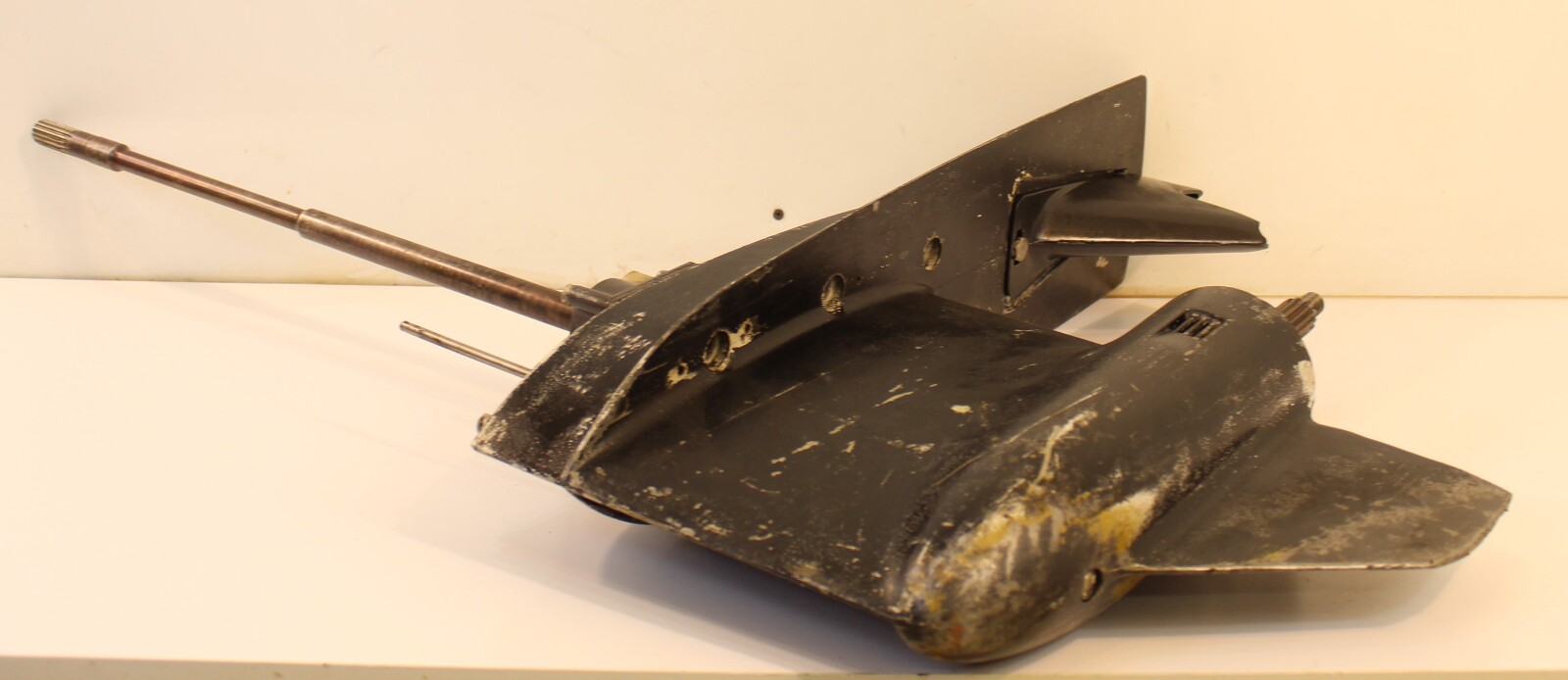

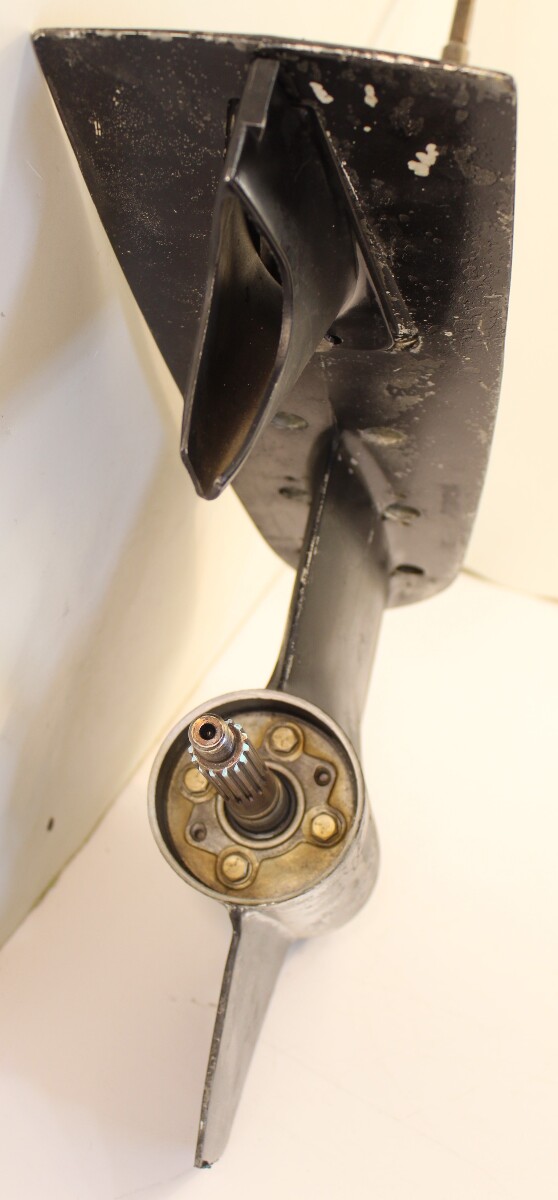

1982 - 1988 Chrysler Force 20" Driveshaft Lower Unit 85 90 100 105 115 125 HP


$450.00
International Shipping Quote
  • Brand: Chrysler
  • Size: 85 90 100 105 115 125 HP
  • Style: 20" Long - 2 Stroke
  • Condition: Used
  • Notes: In Stock & Ready To Ship!
  • SKU: 26-70815 LRU
  • Manufacturer Part Number: 819196A3 819196A2 819196A1 FC498054 FC523054
  • Other Part Number: FC550054 FC555054 FC615054 FC616054 FC630054
  • Inventory Number: 26-70815 LRU
  • Shipping: $175.00
- 20 Inch Driveshaft , measures 21-1/2" Driveshaft length from the top of the water pump to top of the shaft
- Shifts and spins smoothly without binding
- Shafts checked for straightness

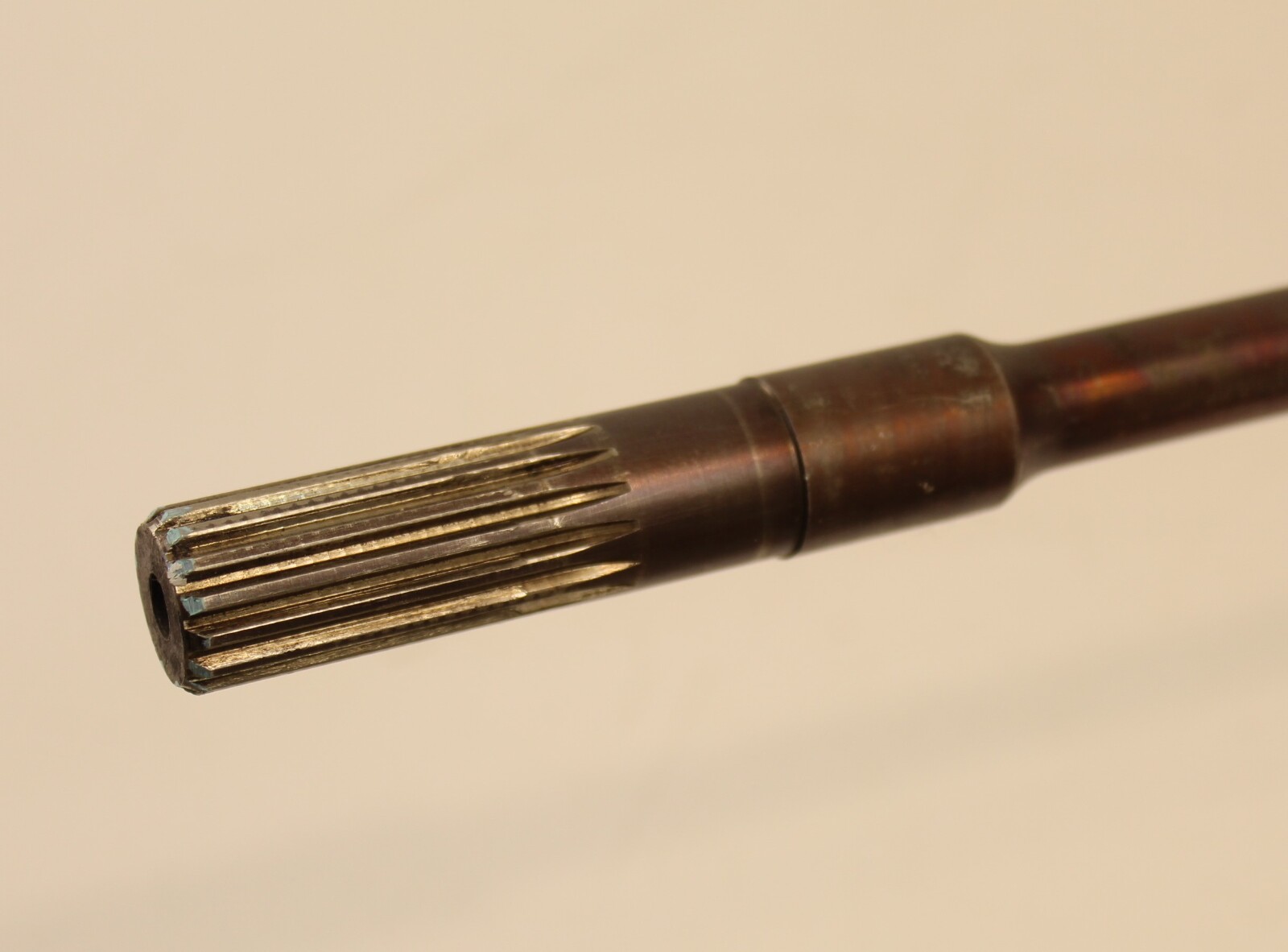

- Driveshaft splines show light wear
- Freshwater Condition
- Unit did not pressure check and is leaking from the shift rod seal

Driveshaft splines: 15

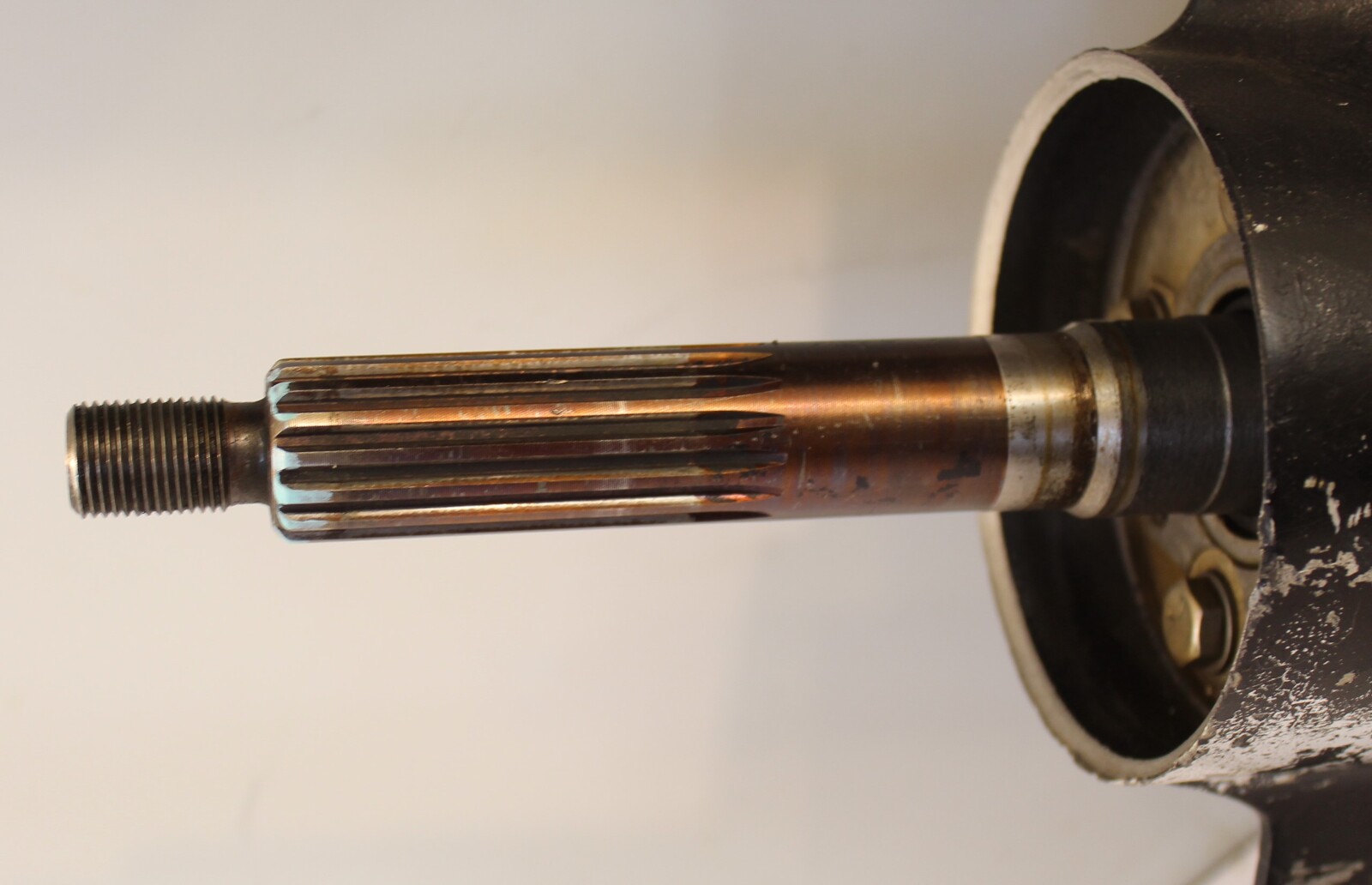

Propeller shaft splines: 15

Please add oil before use. This unit is shipped empty.

This is listed As-Is.  We will NOT accept returns on this item for any reason. Please read the description carefully to see the issues this part has.

Location: Southcentral Outboards, Altamont, Illinois



FITS

1982-1988 - 85 90 100 105 115 125 HP

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
