$185.00
- Brand: Johnson Evinrude
- Size: 88 90 100 115 120 125 130 140 185 200 225 250 300 HP 20"
- Style: 20" - V6
- Condition: Used
- SKU: 26-26136 SWB
- Manufacturer Part Number: 435005 434164 433466 339305 336733 335489 335416
- Country of Manufacture: United States
- Motor & Engine Type: Johnson Evinrude
- Part Type: Motors, Engines & Components
- Other Part Number: C# 337583 C# 336427
- Warranty: 1 Year
- Inventory Number: 26-26136 SWB
- Website Category: Midsection
- Website Sub Category: Swivel Brackets
- UPC: 745419041793
- Shipping: $40.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

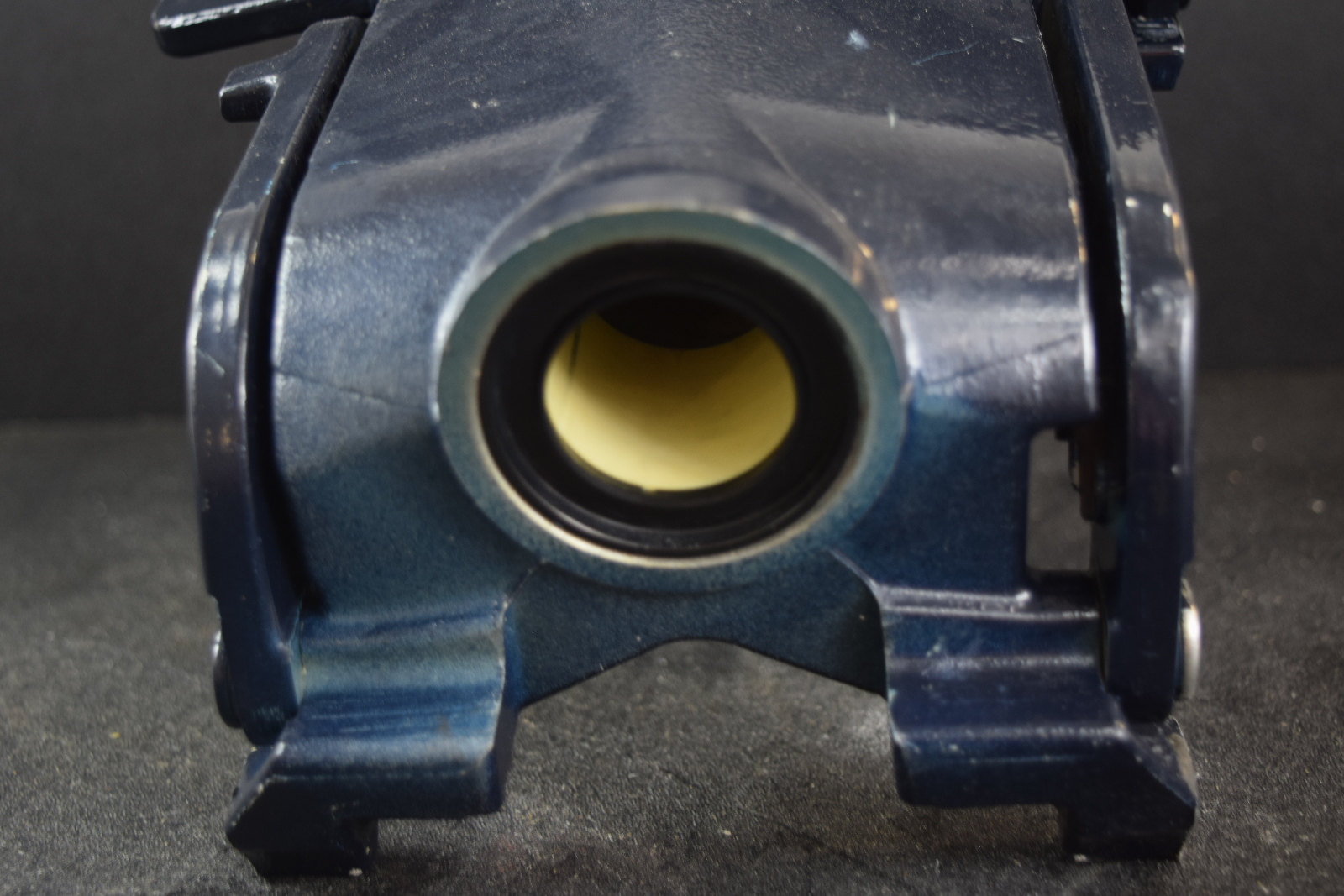

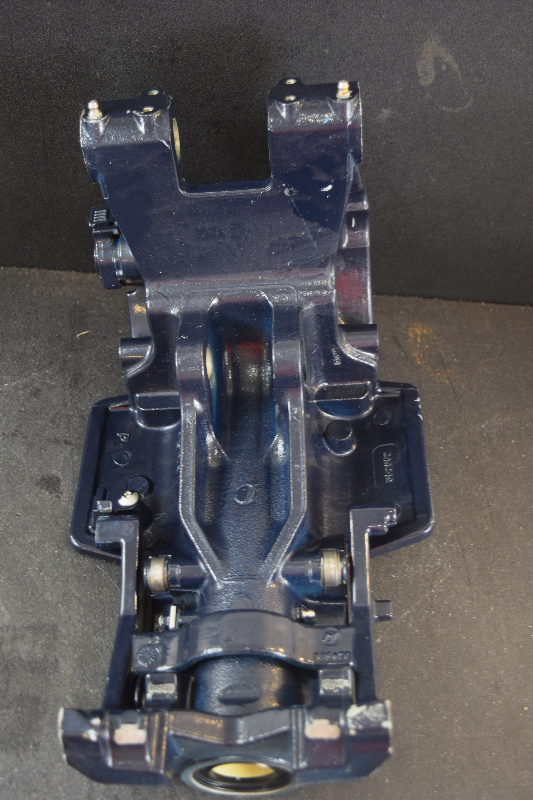

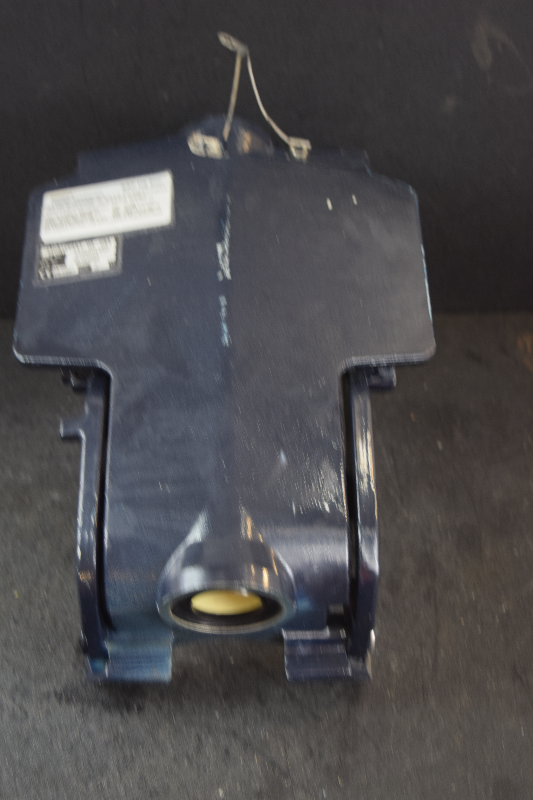

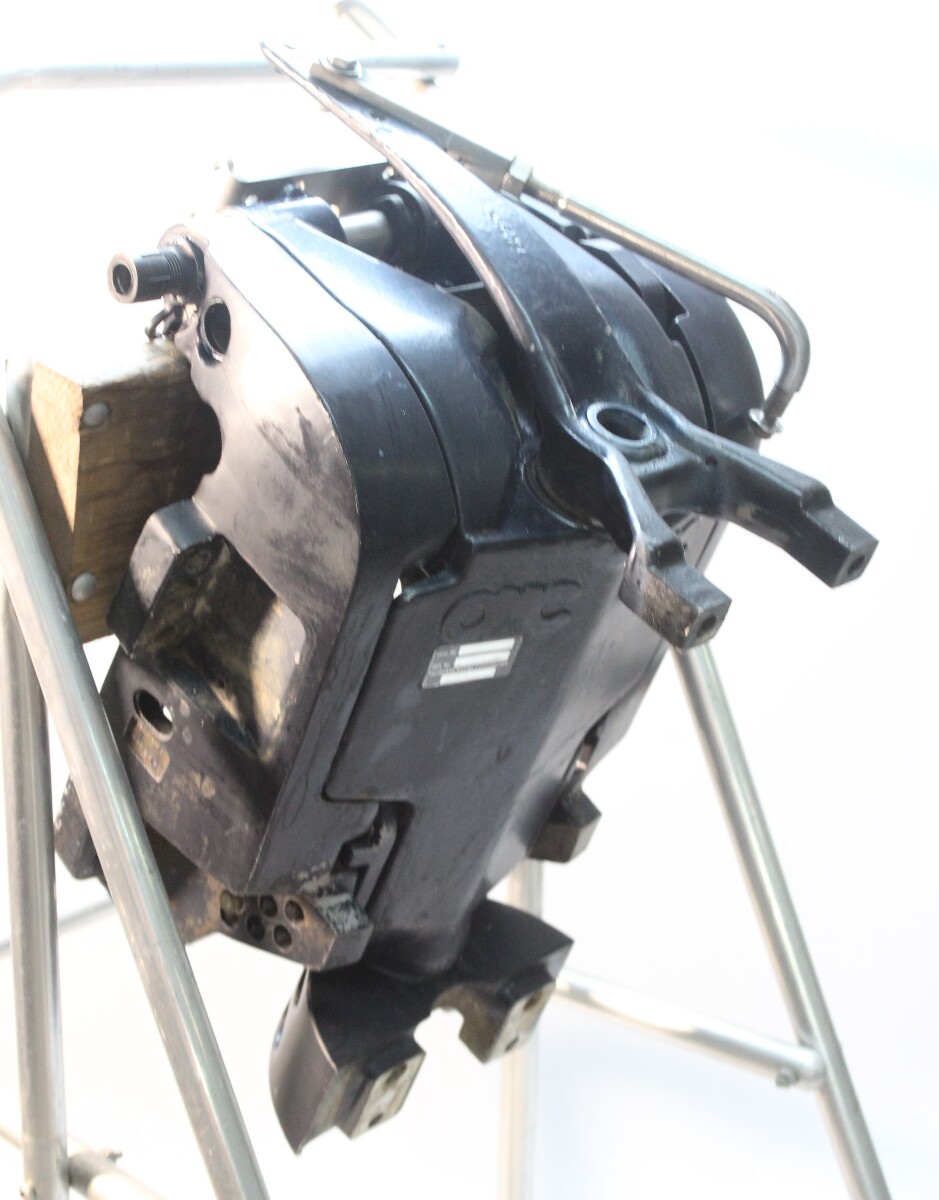

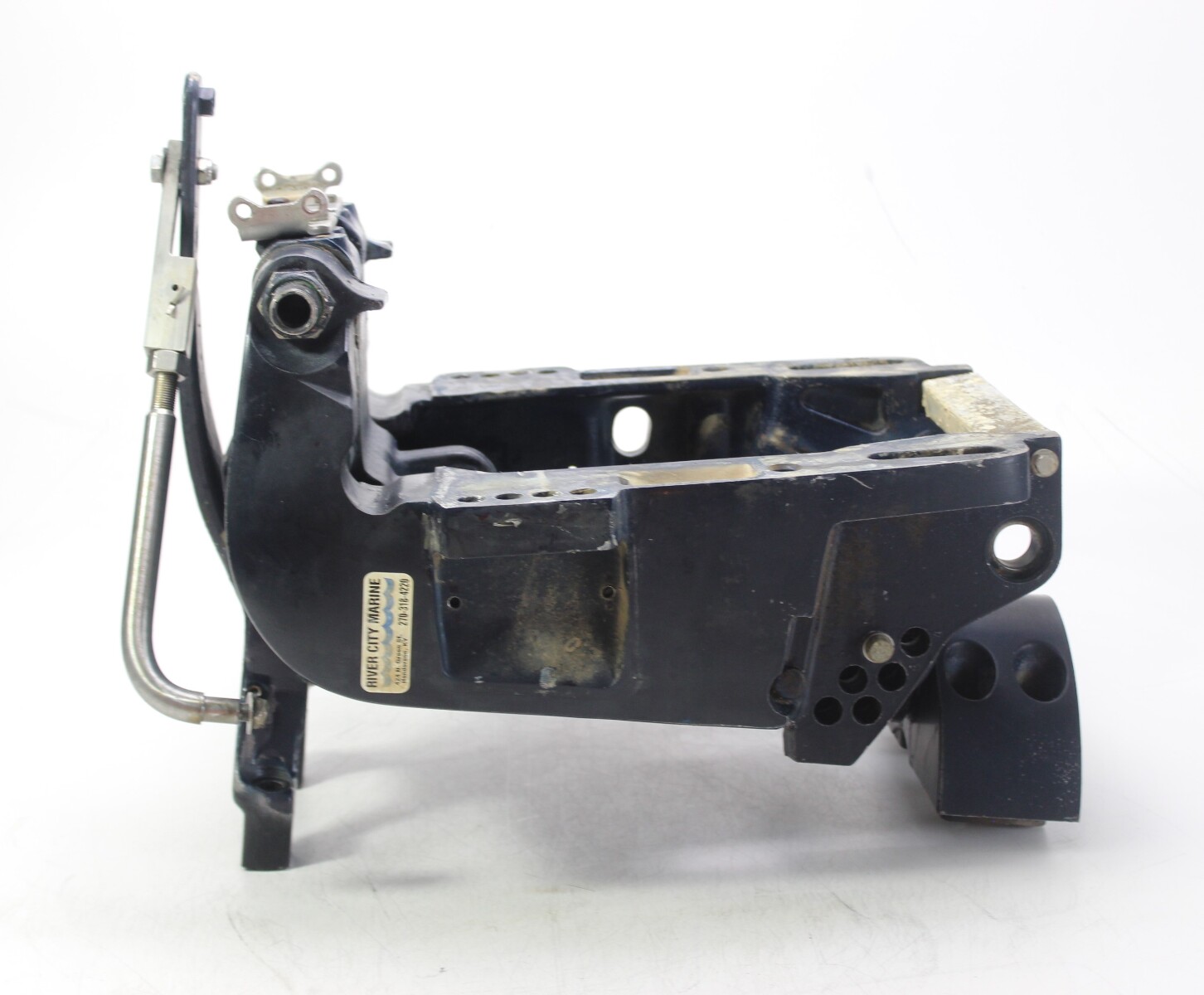

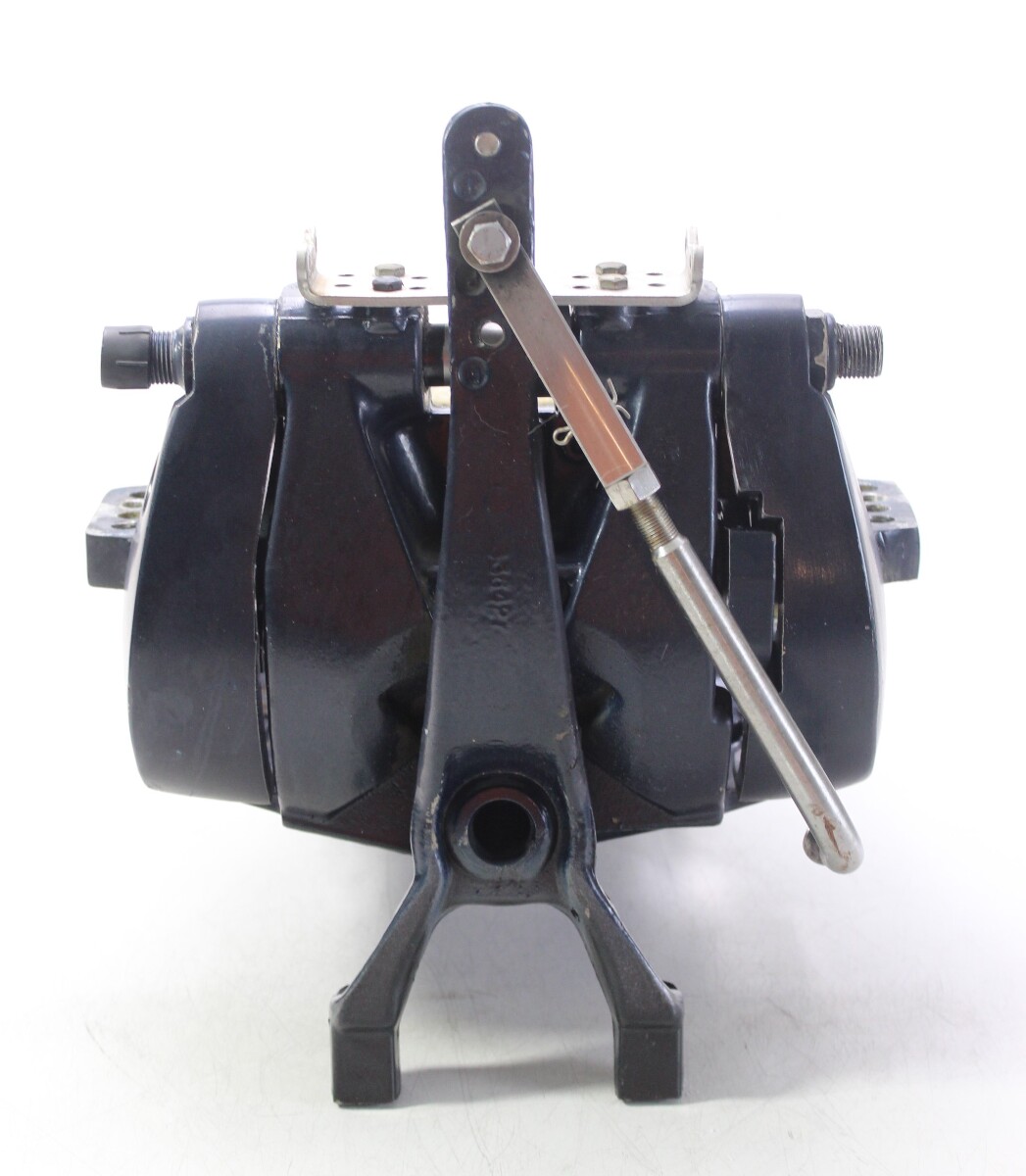

Johnson Evinrude Swivel Bracket & Stern Bracket Set — 20″
◆ 1 YEAR WARRANTY◆ COMPLETE BRACKET SET◆ FRESHWATER ENGINE
Part Numbers
◆ Swivel Bracket: 435005
◆ Also Replaces: 434691 ◆ Stern Port 336505 ◆ 351921 ◆ Stern Stbd 336506 ◆ 351922 ◆ Steering Arm 434164 ◆ 5009615 ◆ Mount 339305 ◆ 340006

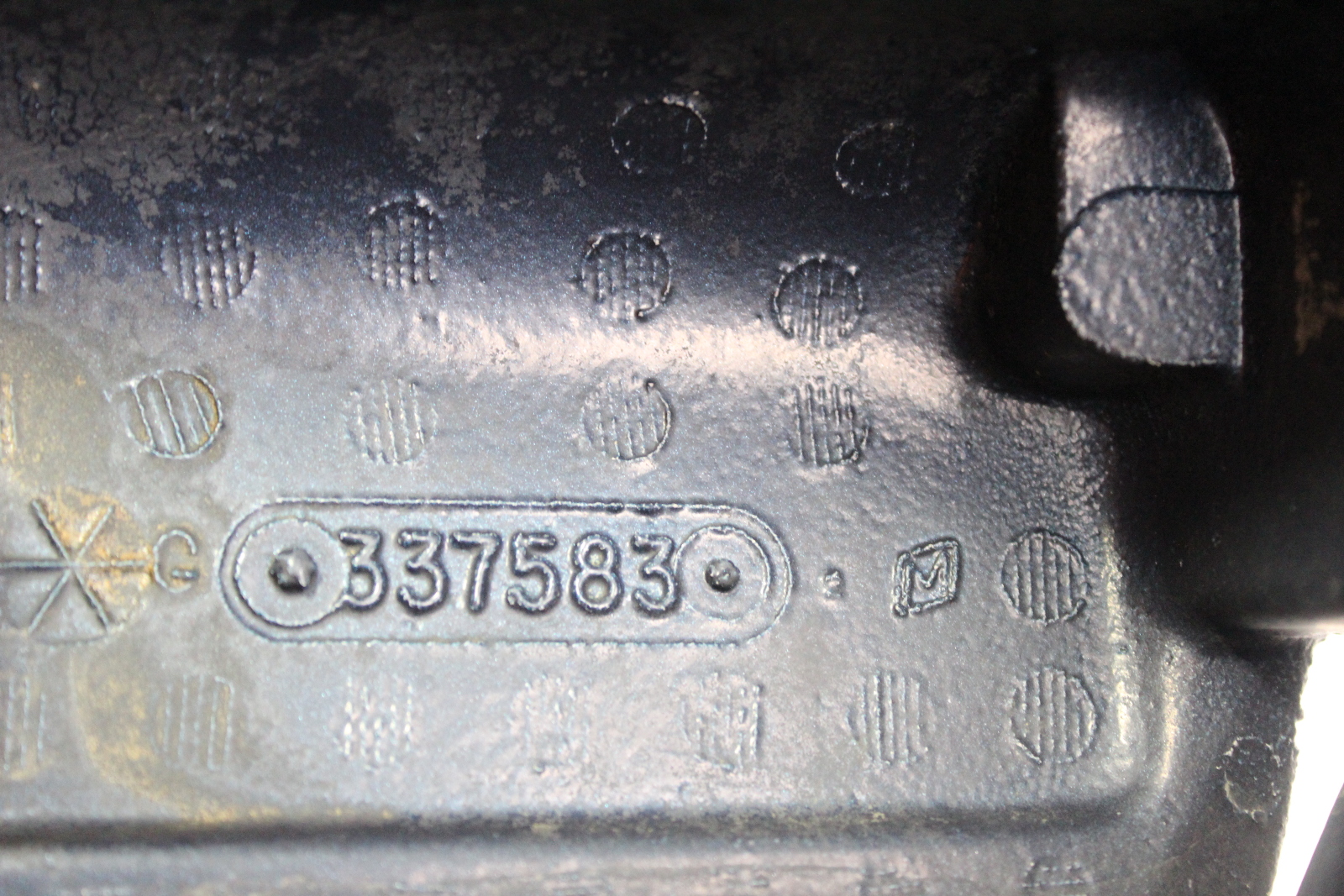

◆ Casting: C# 337583 ◆ C# 336427
Condition

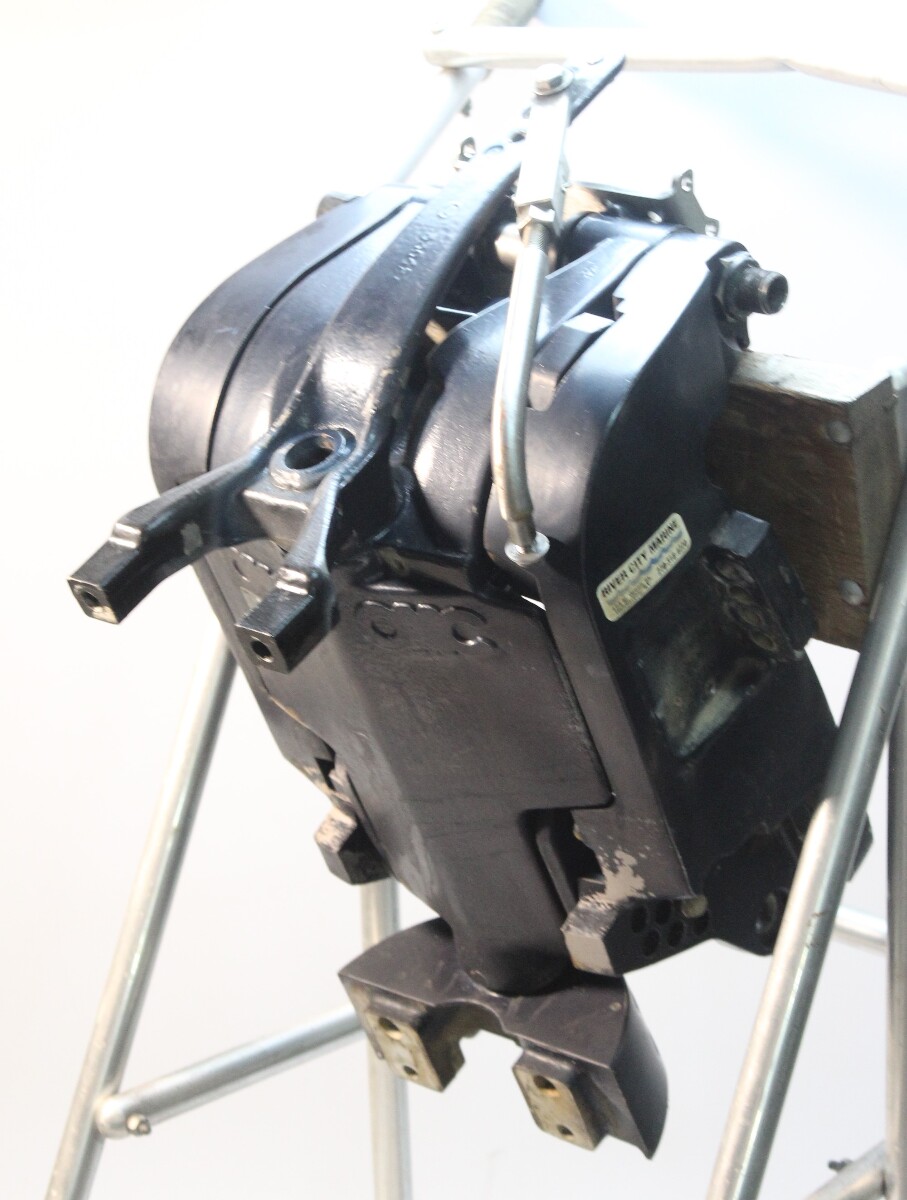

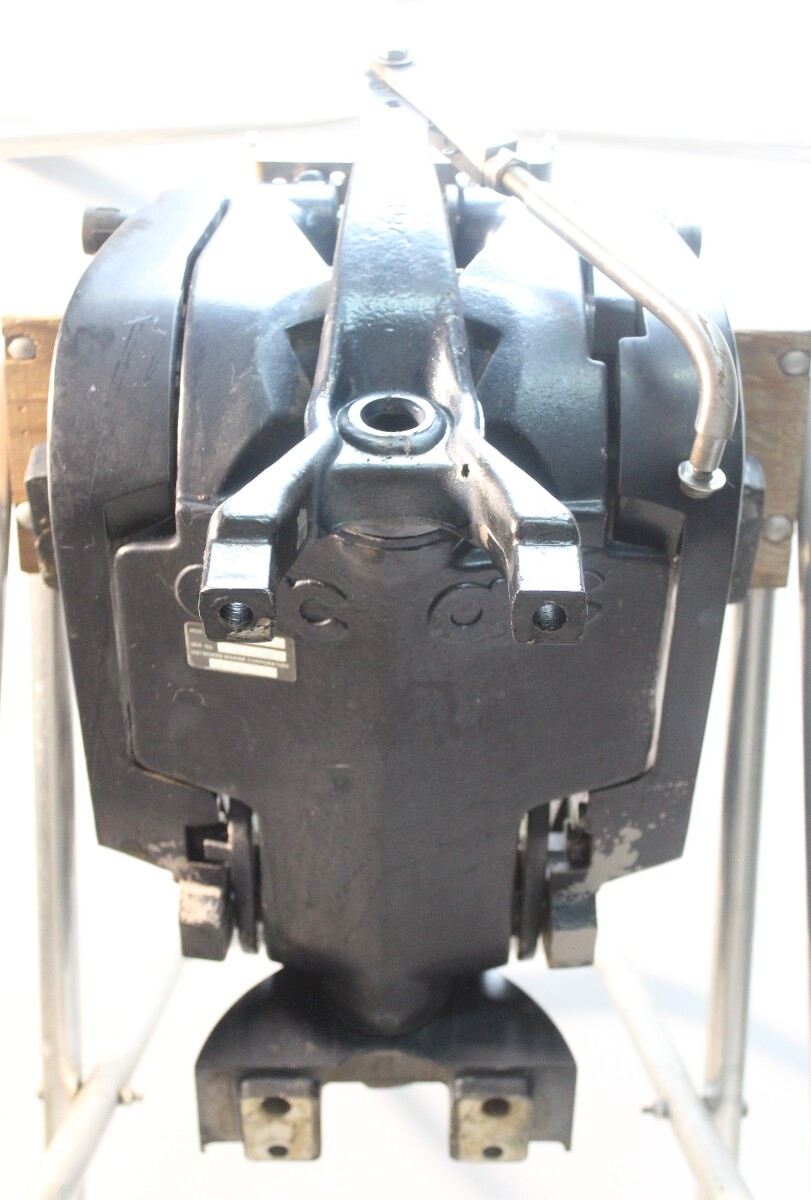

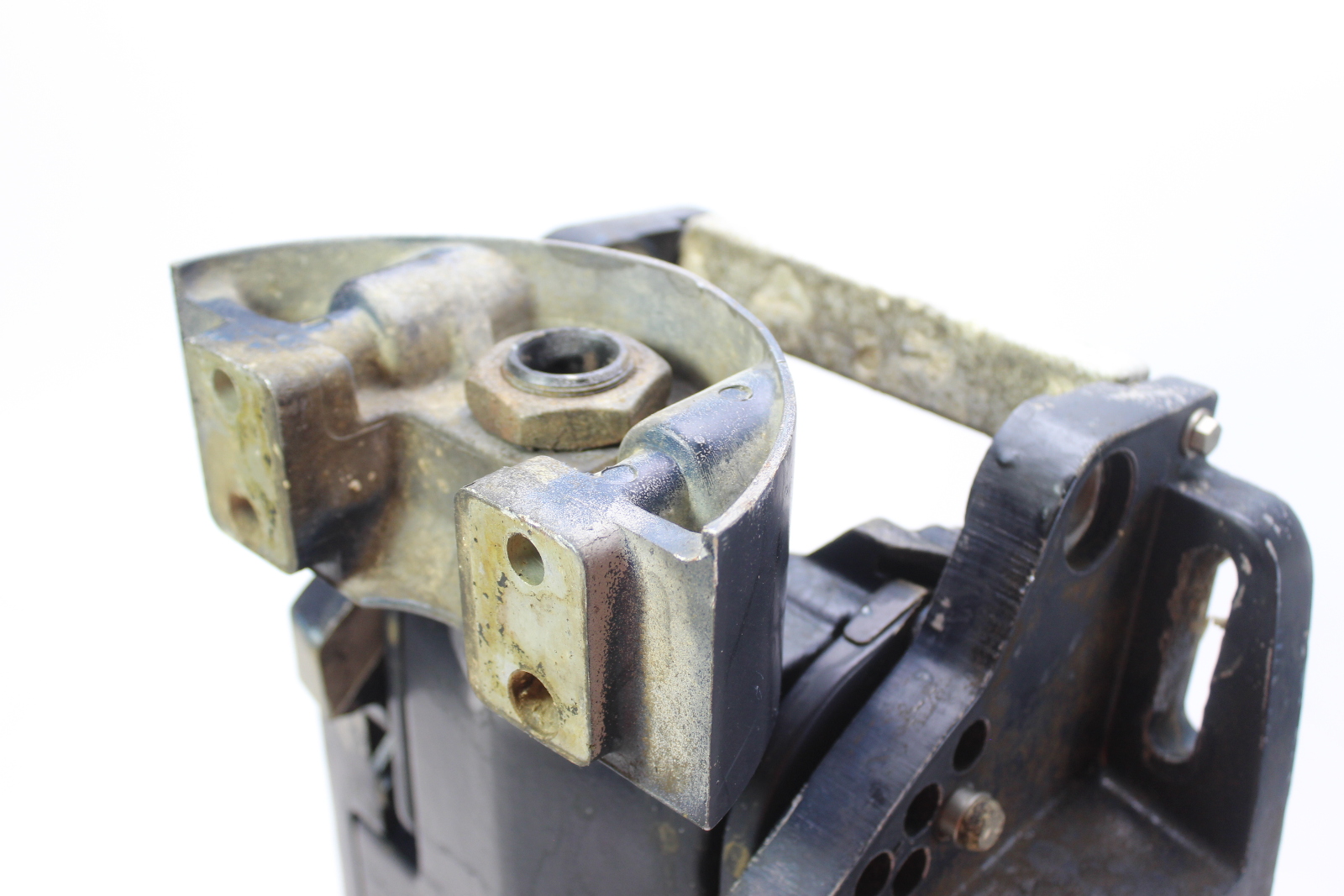

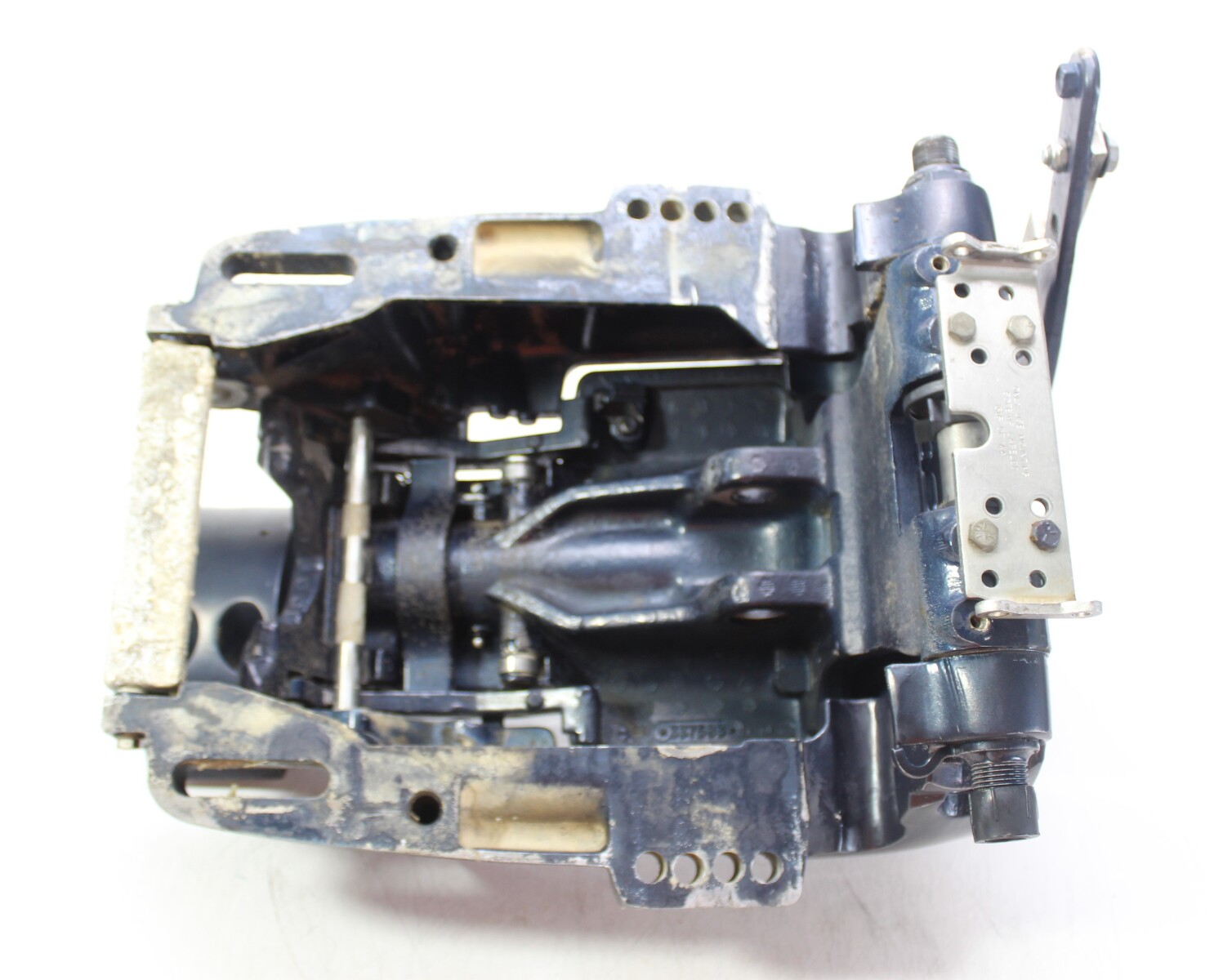

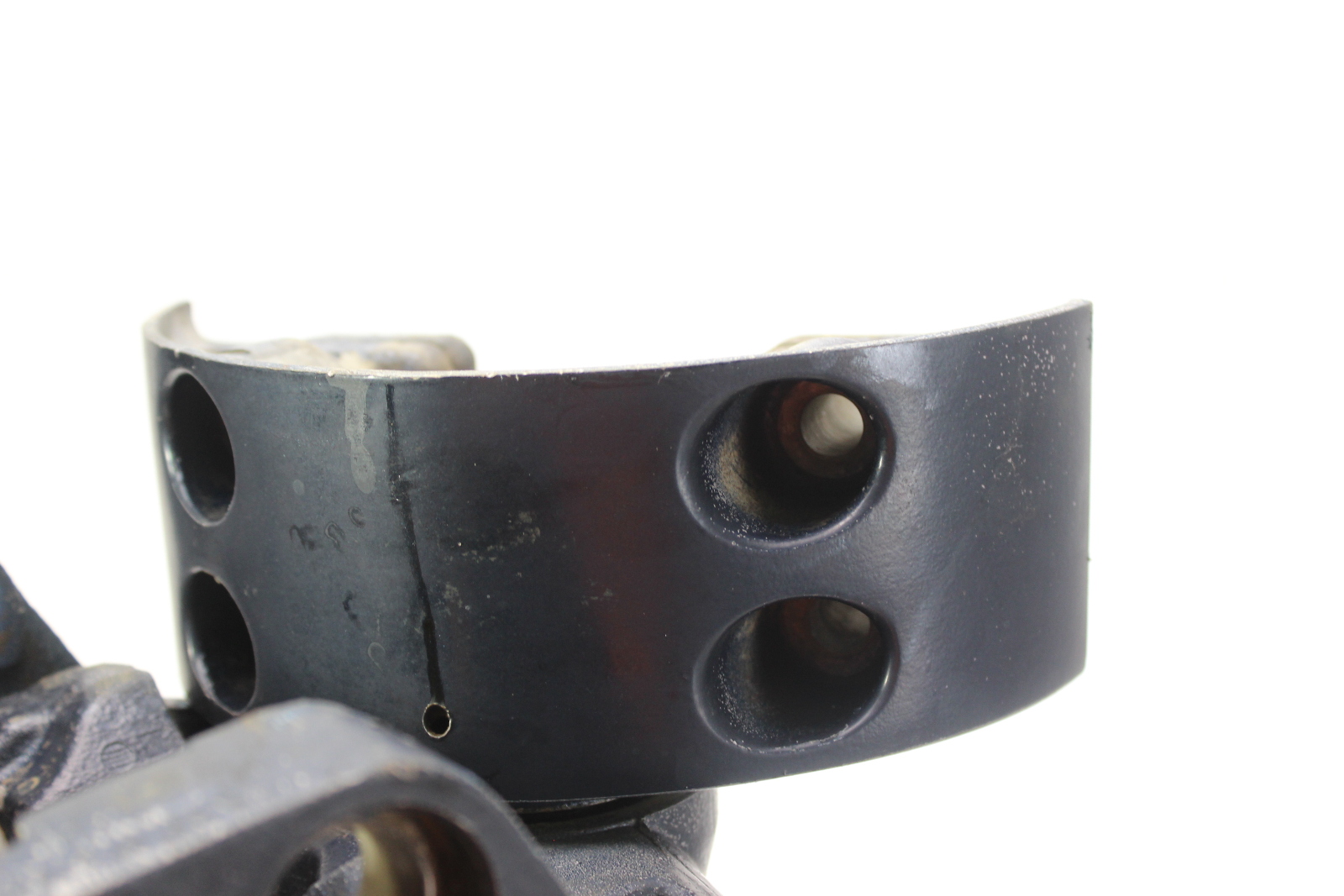

◆ Complete set — swivel bracket, port and starboard stern brackets, steering arm, and mount bracket
◆ Tilt tube in good condition, pins and bushings present with good wear
◆ No corrosion, full range of motion, no cracks at stress points
◆ 20″ (long) shaft
◆ Freshwater engine take-off — no play
Fitment
Years: 1991-2012
Models: 1991-2000 Johnson Evinrude 120 125 130 140 HP — 90° V4, 20" transom
Models: 1991-2012 Johnson Evinrude 185 200 225 250 300 HP — 90° V6, 20" transom
Models: 1991-1996 Johnson Evinrude 88 90 100 115 HP — crossflow V4, 20" transom (some of these still used the older arm 392518 — match your arm number)
Will not fit: 60° V4 90 115 HP or 60° V6 150 175 HP — those use steering arm 433282 or 436982
Note: This is the carbon-steel arm. Evinrude Ficht 20" models from 2000-2003 and later saltwater-edition models came with stainless arm 439471 — this arm fits in its place, but it is steel, not stainless

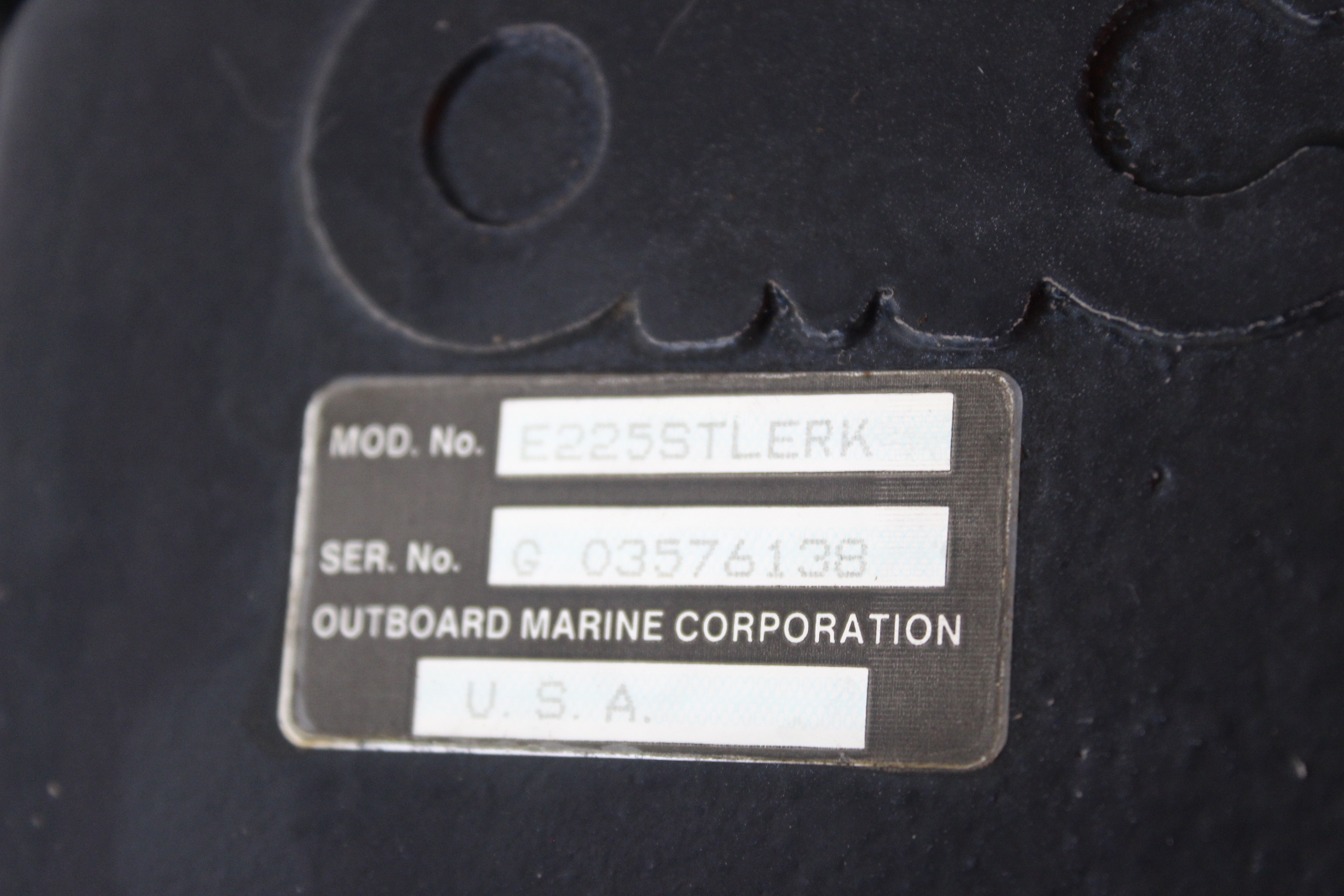

Donor: 1994 Johnson Evinrude 225 HP
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer’s responsibility — match the part number to your motor before purchasing and contact us if you need help.
|
