- Brand: Johnson Evinrude
- Size: 25 28 HP
- Color: N/A
- Style: Split Case - 13 Spline Driveshaft
- Condition: Used
- Notes: 20" long driveshaft- crack in cavitation plate by hole- needs resealed
- SKU: 45971 LRU
- Manufacturer Part Number: 0434810 0341649 434810 341649
- Country of Manufacture: United States
- Motor & Engine Type: Johnson Evinrude
- Part Type: Motors, Engines & Components
- Other Part Number: N/A
- Surface Finish: N/A
- Inventory Number: 45971 LRU
- Website Category: Lower Units
- Website Sub Category: Complete Lower Units
- UPC: N/A
- Shipping: $50.00
| Part Number | 0434810 supersedes 0341649 434810 341649 |
| Key Points |
|
| Additional Info |

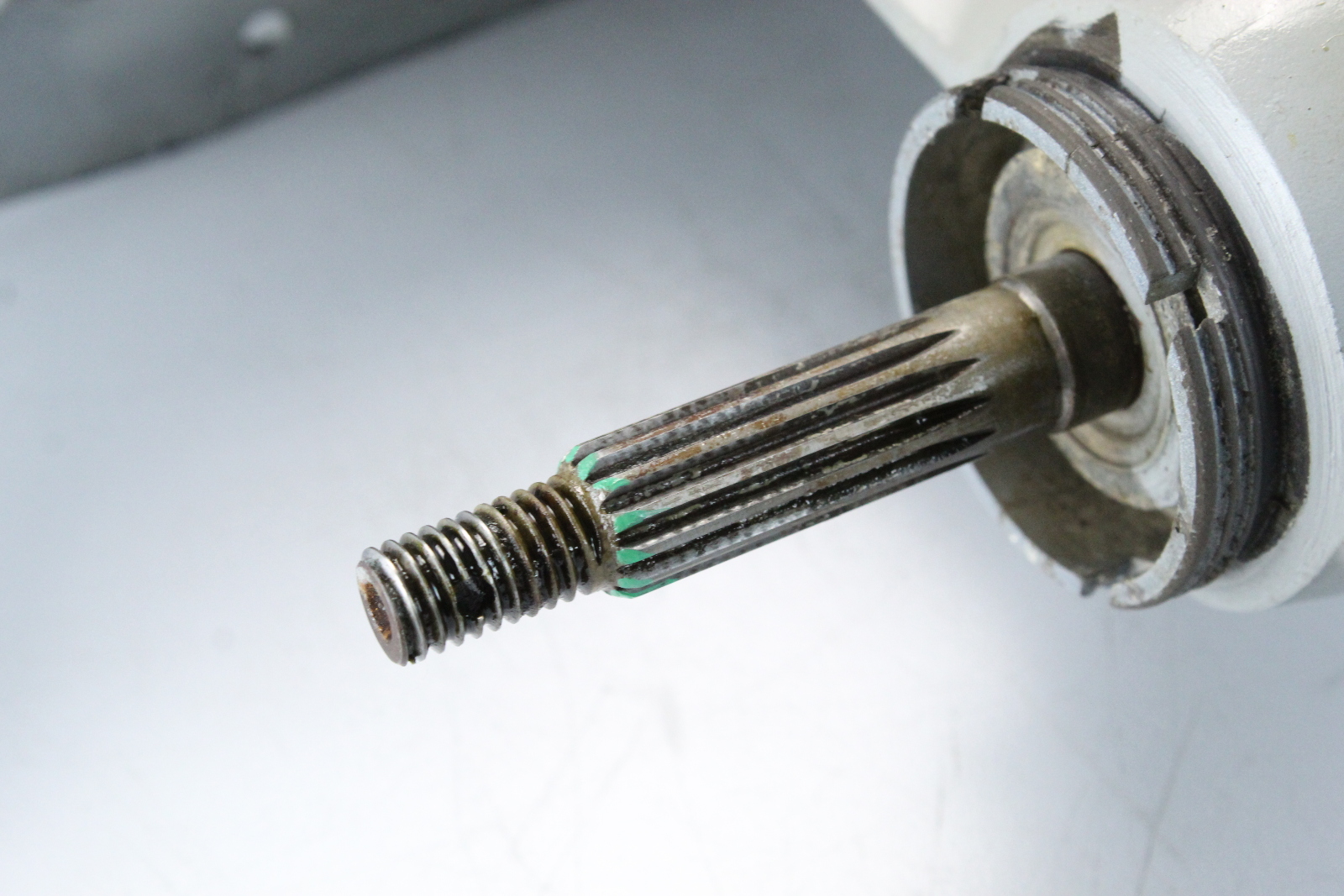

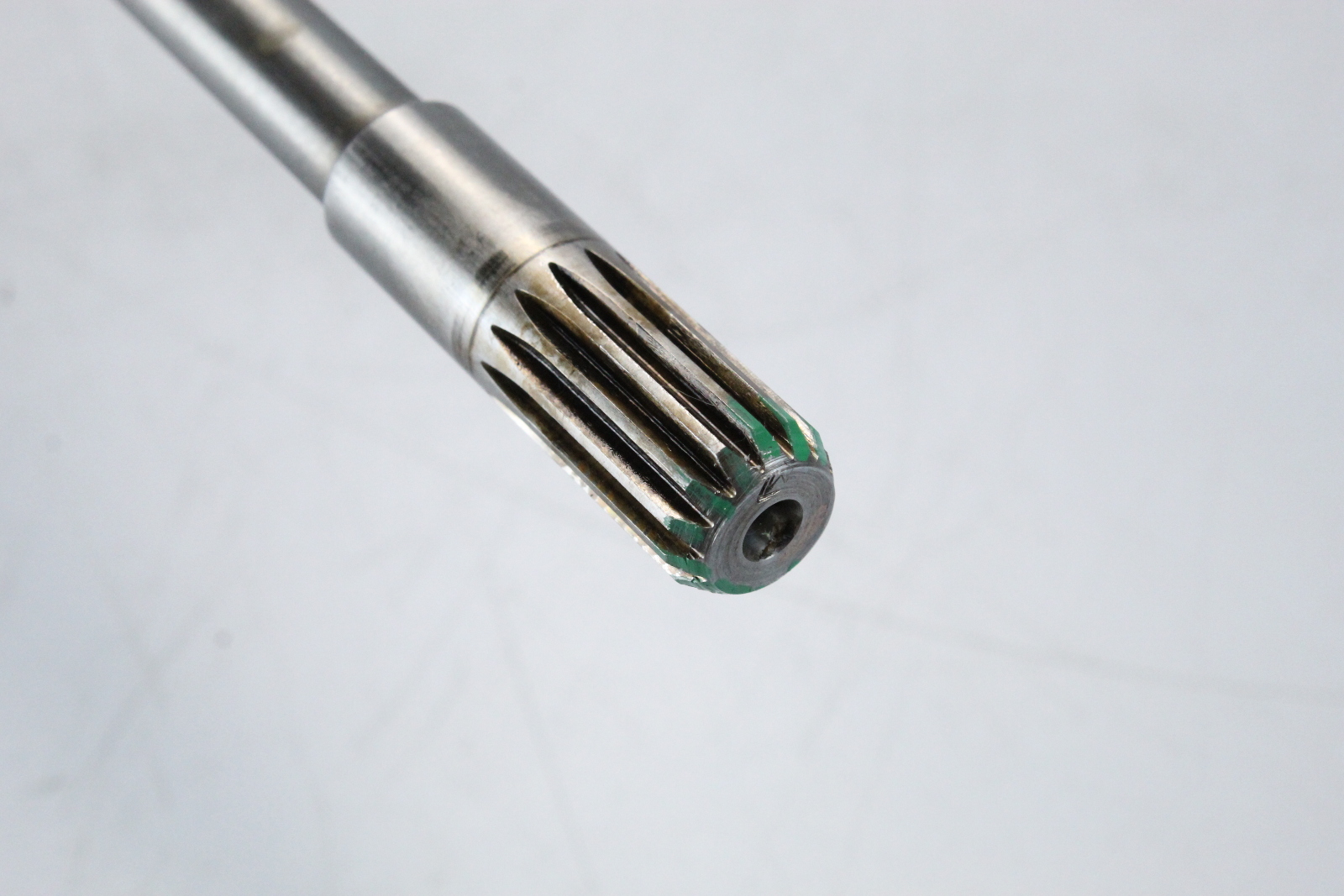

Driveshaft splines: 14 Propeller shaft splines: 13 Driveshaft length from the top of the water pump to top of the shaft:21 3/4" Please add oil before use. This unit is shipped empty. Location: Southcentral Outboards, Altamont, Illinois |
| Fits: | 1978-1997 - 25 28 HP Please note that this lower unit is for split cases ONLY! The later 25 HP motors joined with the 35 HP having a single-piece unit and this will not fit on those engines. Depending on the year of your motor, there was a simple break down for the split case units.... 1978 - 4 spline driveshaft - 13 spline propeller shaft 1979-1983 - Fine splined driveshaft - 13 spline propeller shaft 1984-1997 - 14 spline driveshaft - 13 spline propeller shaft We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help! |
