1993-2005 Johnson Evinrude Long 20" Lower Unit 40 48 50 HP 2 Cyl 1 YEAR WARRANTY


$1,315.00
International Shipping Quote
  • Brand: Johnson Evinrude
  • Size: 40 48 50 HP
  • Color: White
  • Style: 20" 13/17 splines
  • Condition: Seller Refurbished
  • Notes: Fully Resealed
  • SKU: 46514 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: United States
  • Motor & Engine Type: Johnson Evinrude
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, White
  • Inventory Number: 46514 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00
Part Number N/A
Additional Info

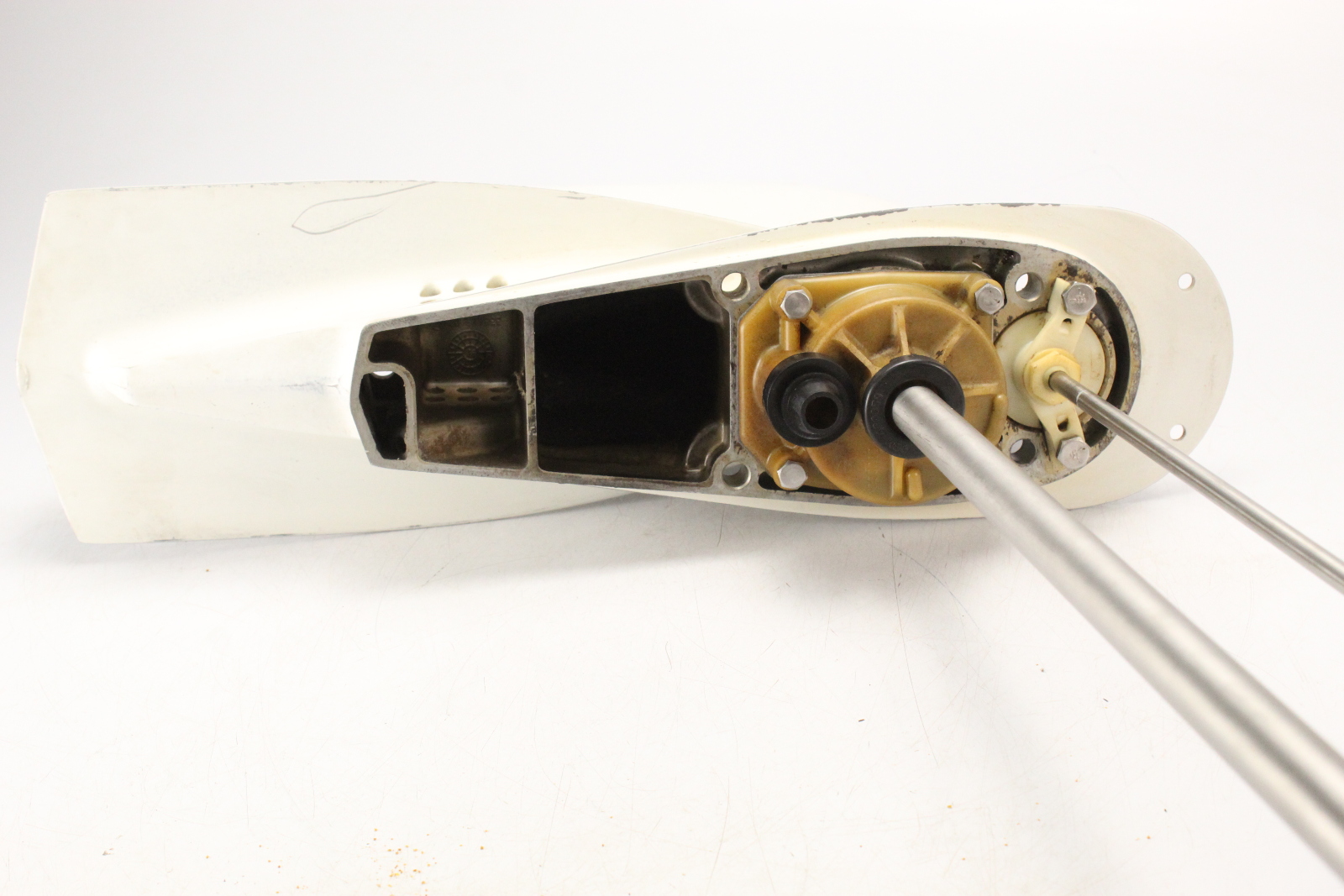

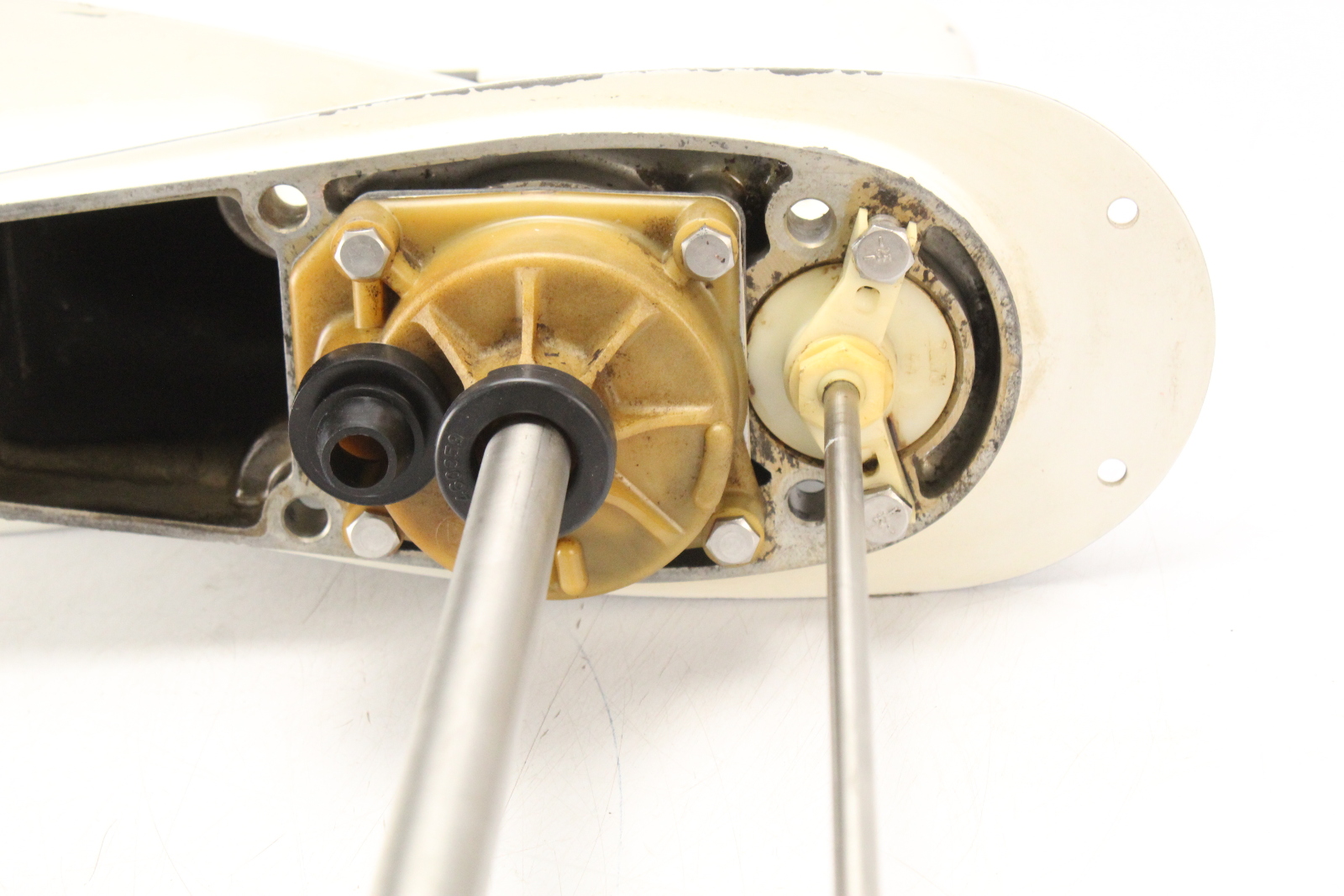

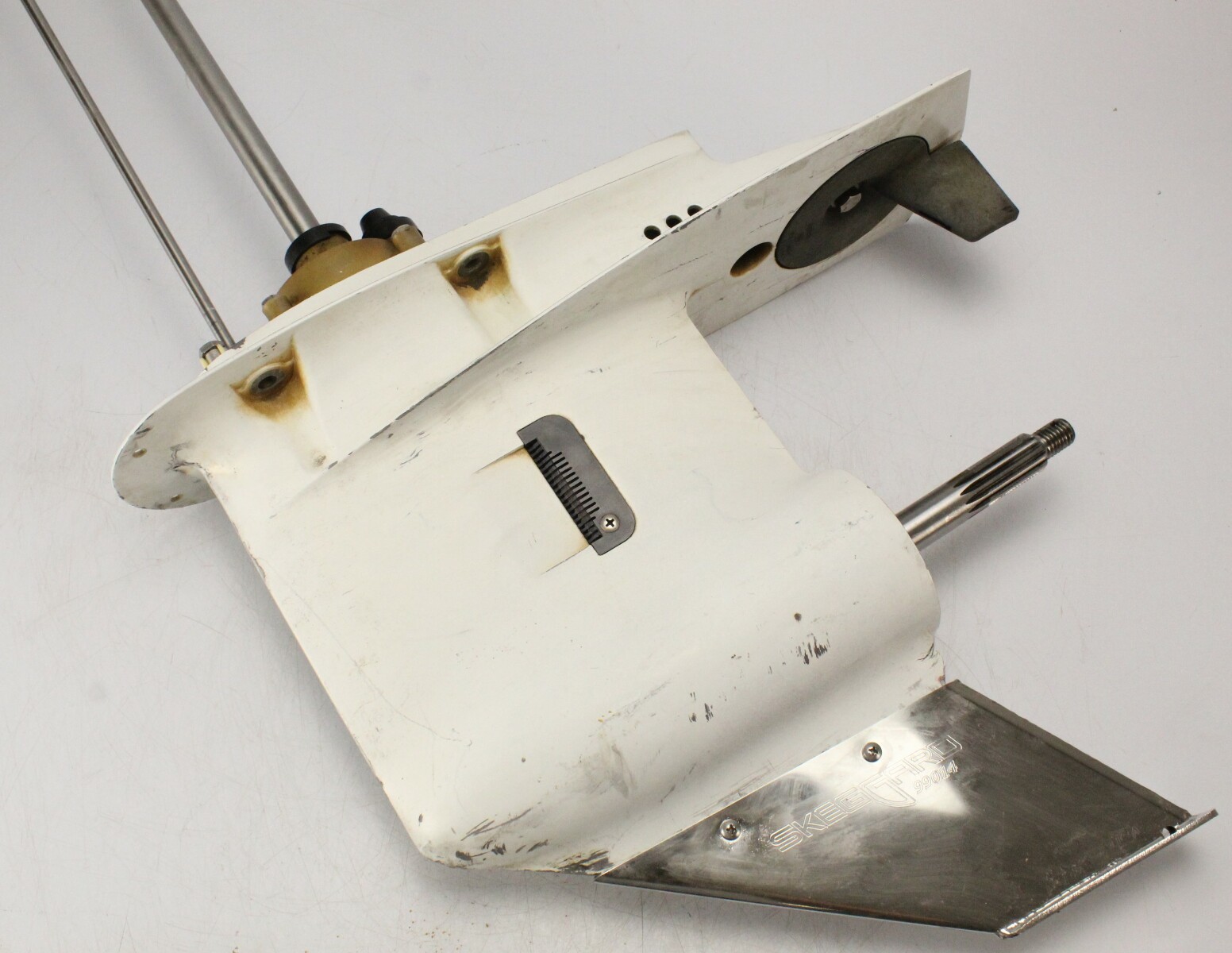

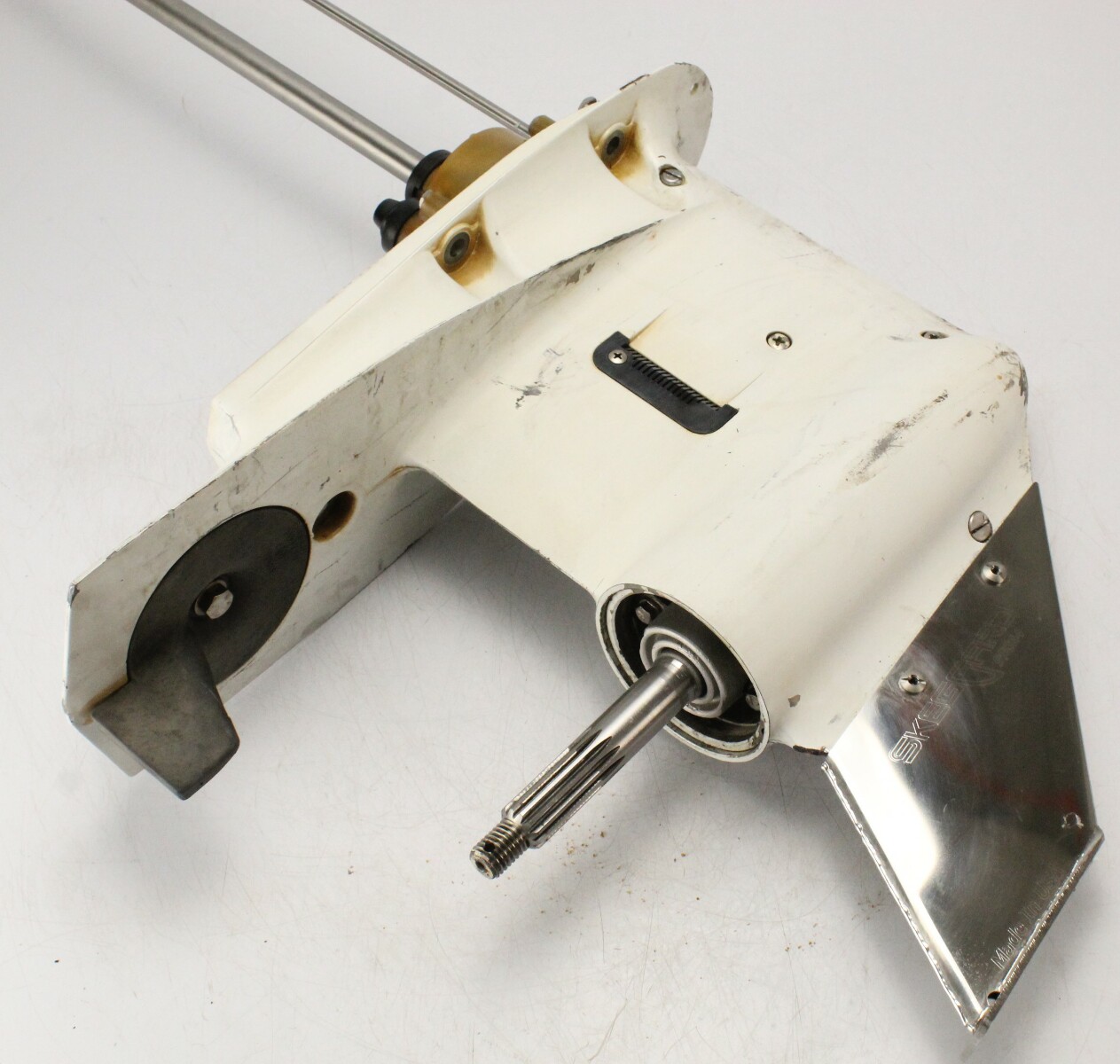

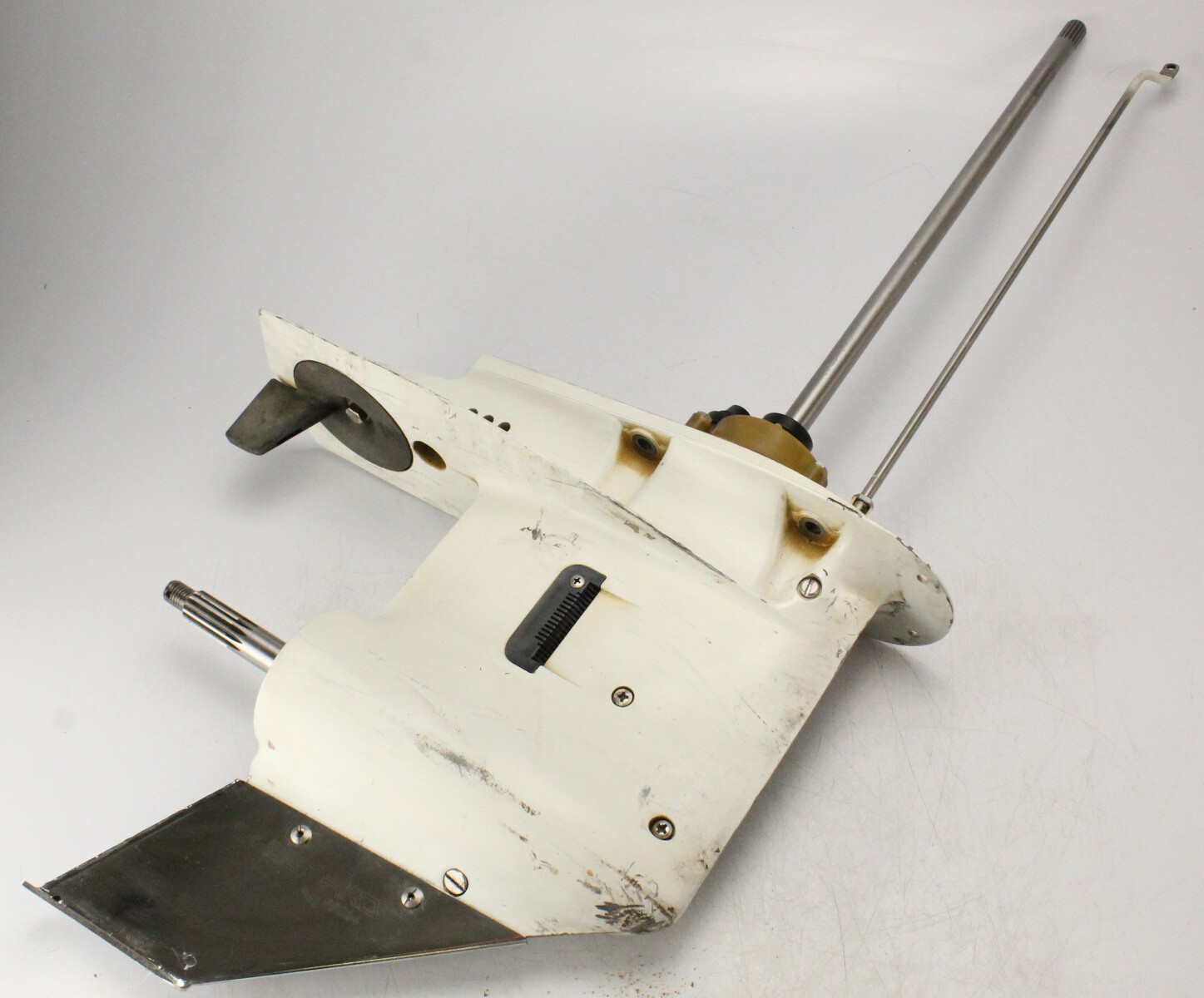

This lower unit is in great condition. We have inspected this unit to guarantee it to be in great, working condition. It has been fully resealed with a new impeller, we found the gears and clutch to be in good condition with very light wear on the clutch and clutch surfaces on gears. The unit shifts and spins smoothly. A used driveshaft has been installed from a 1993-2005. The paint is a little chipped which does not affect performance or integrity.  The intake screens are in great shape.  Please see pictures for more exact detail as to what is included in this listing and to insure that you order the correct part.  This unit has been fully resealed and pressure checked with a new impeller and comes with a 1 year warranty.

Please add oil before installation.

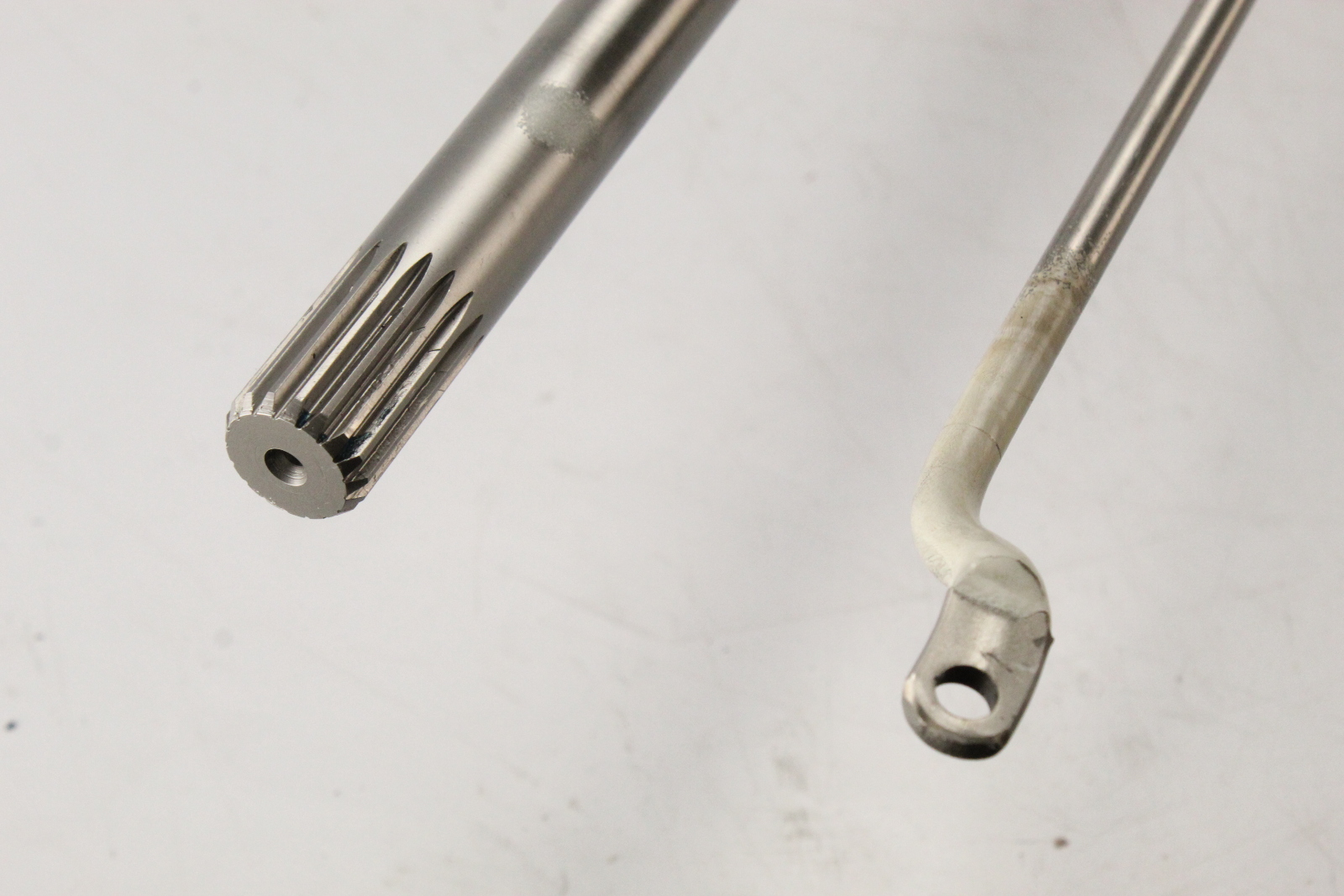

Driveshaft measures - 19-1/2" from top of water pump housing to top of driveshaft.
Driveshaft spline count - 17

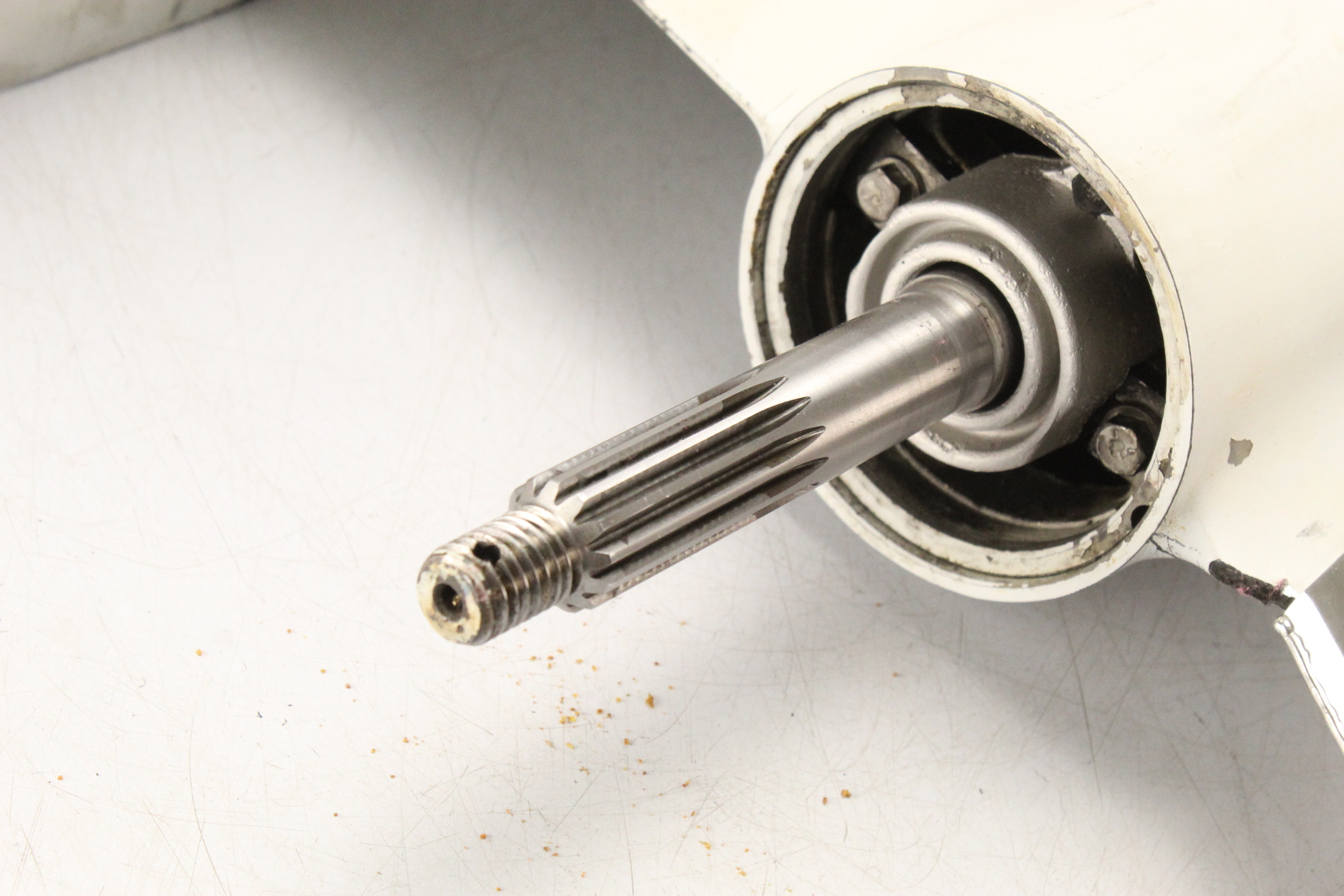

Prop shaft spline count - 13

General Information

  • Excellent freshwater condition
  • Gears and clutch in good condition
  • Pressure checked to 12 PSI minimum
  • New impeller
  • Fully Resealed
  • Shafts checked for straightness

Criteria to validate your 1 year warranty:

  • Core must be of equal or greater value
  • Cannot be locked up - driveshaft must spin
  • Up to 30 days from the date of purchase to send in your core
  • Covers mechanical aspects ONLY
  • Warranty begins from date of purchase

You will receive two copies of the terms and conditions for the lower unit one year warranty. One copy MUST be signed and returned with your core. Without a returned signed copy, the one year warranty will not be valid.

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 1 year warranty. We reserve the right to accept or reject any core at our discretion. If you have any questions or concerns, please do not hesitate to contact us and we would be happy to help!

Please note that we will not accept returns for this item if it is ordered incorrectly. Please be absolutely sure this is the correct one for your motor prior to purchasing.

Location: Southcentral Outboards, Altamont, Illinois
Fits:
1993-2005 - 40 48 50 HP - 2 Cylinder

*This will fit the 1989-1992 verision, but the driveshaft will need to be changed.

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
