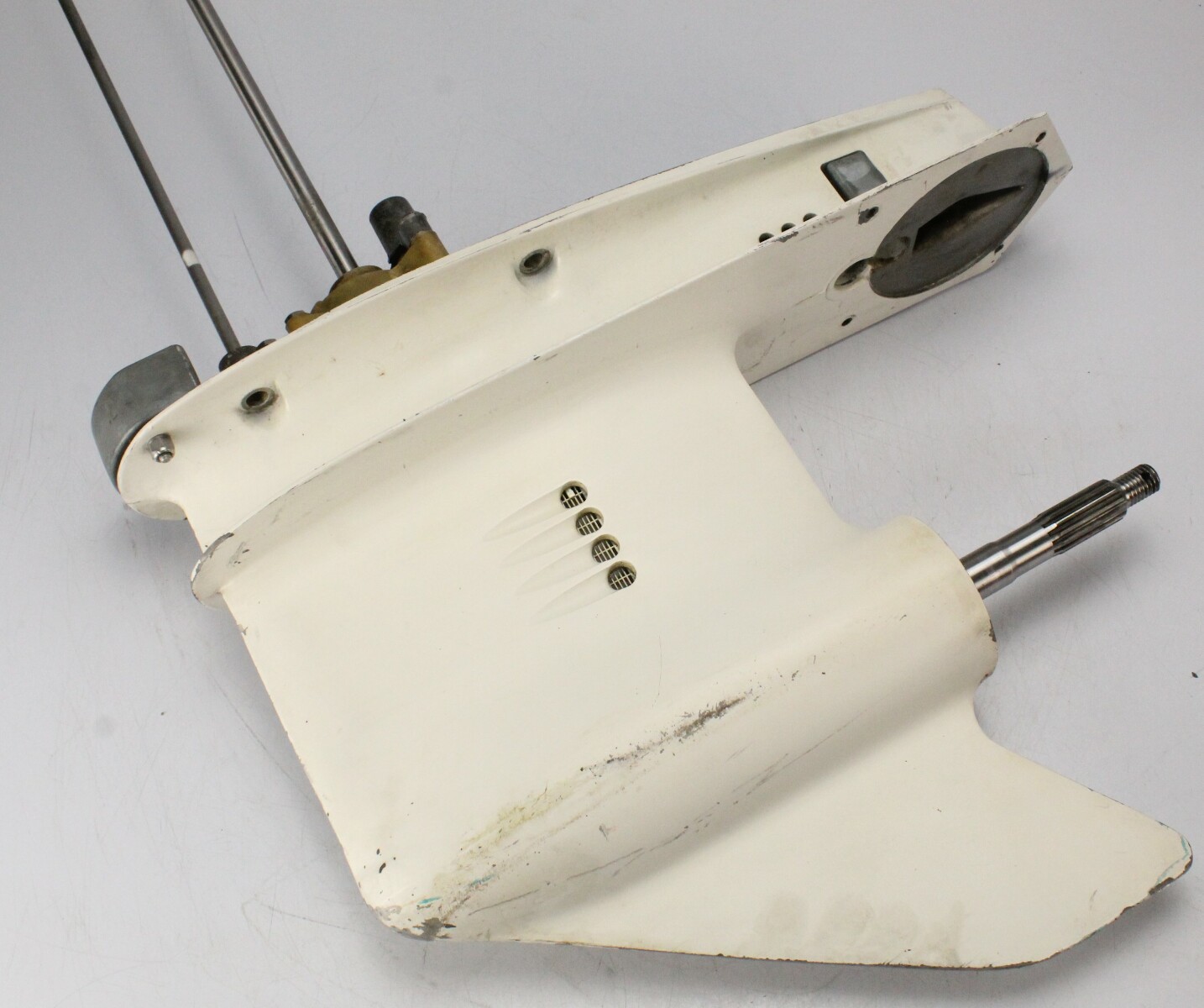

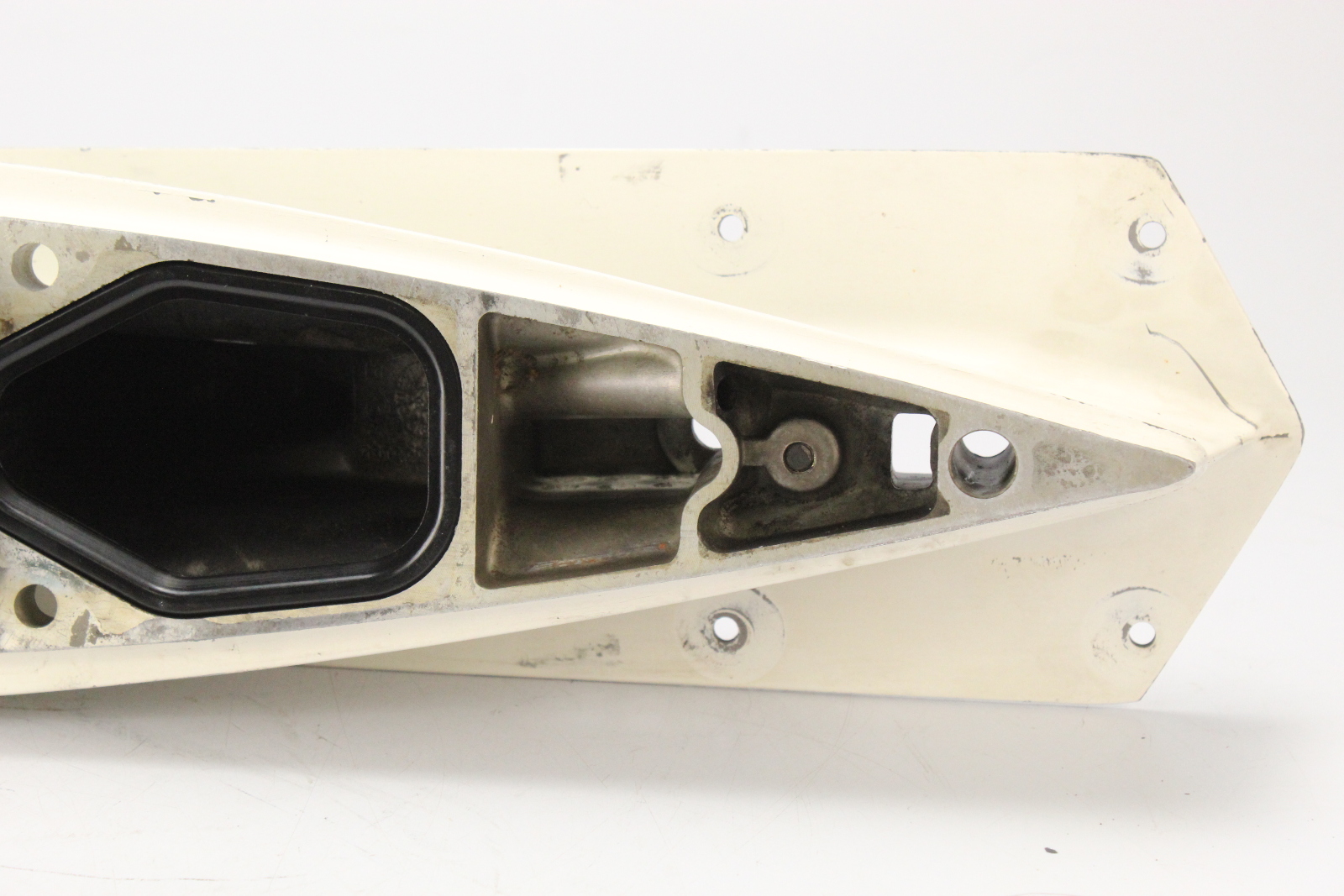

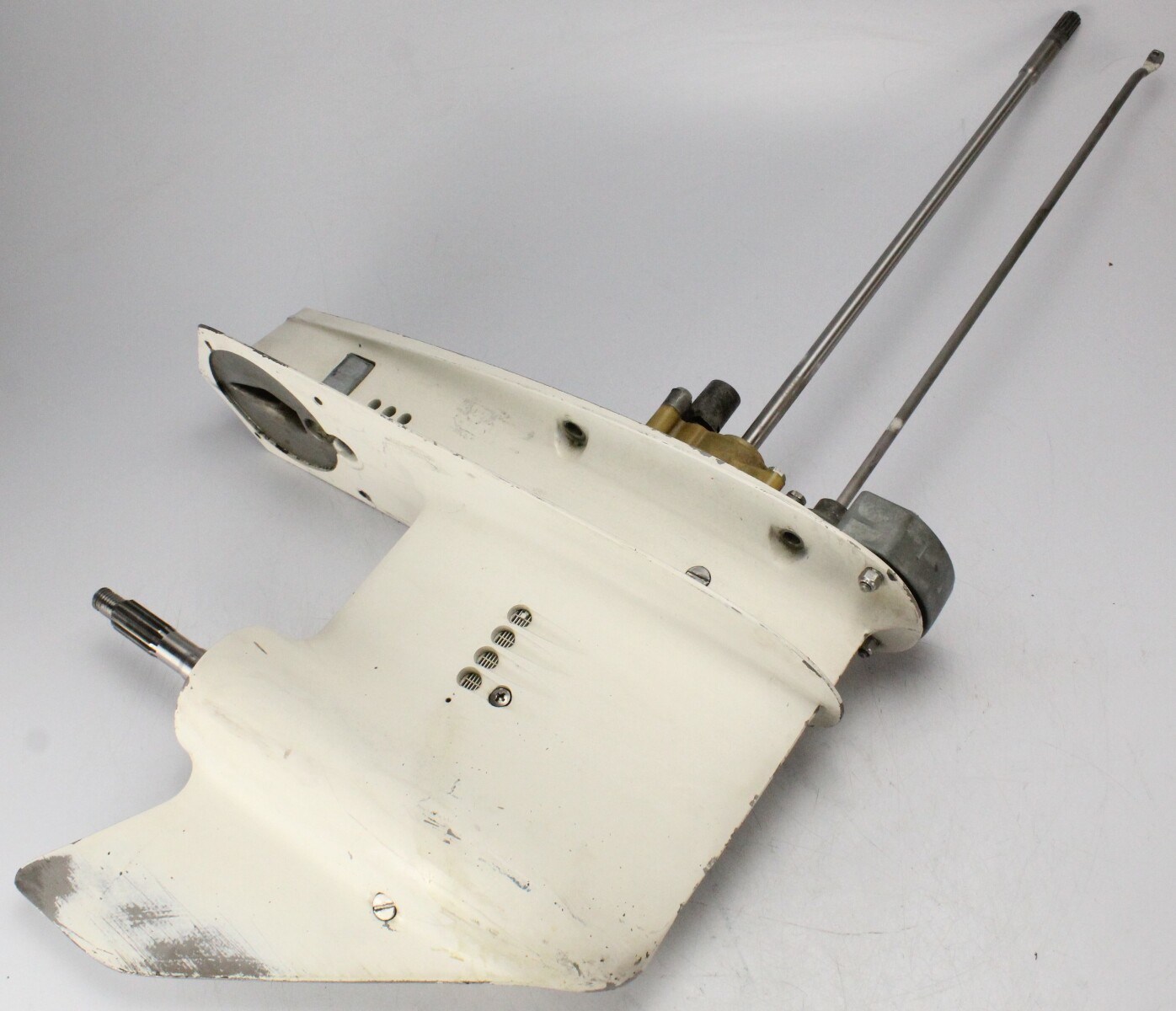

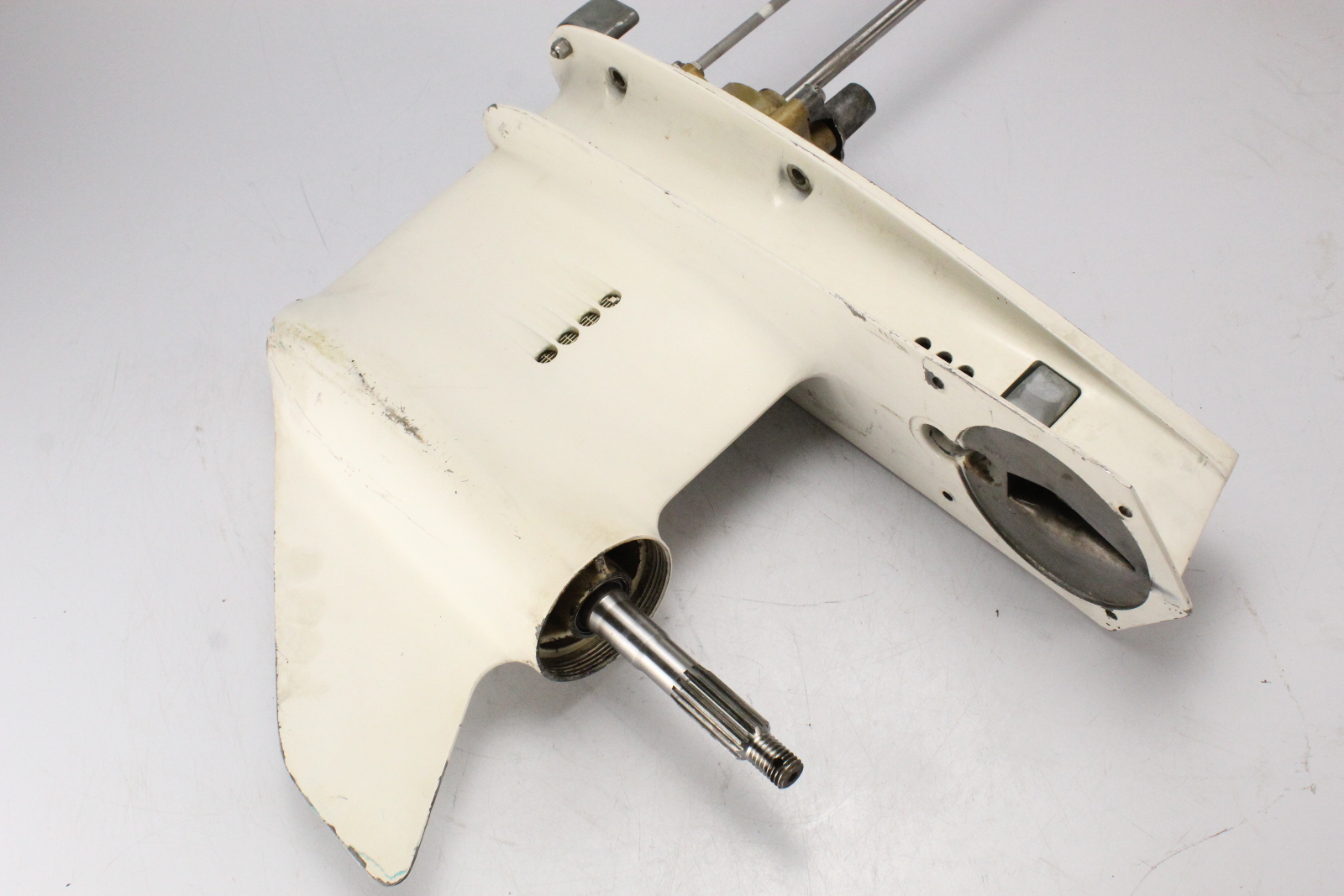

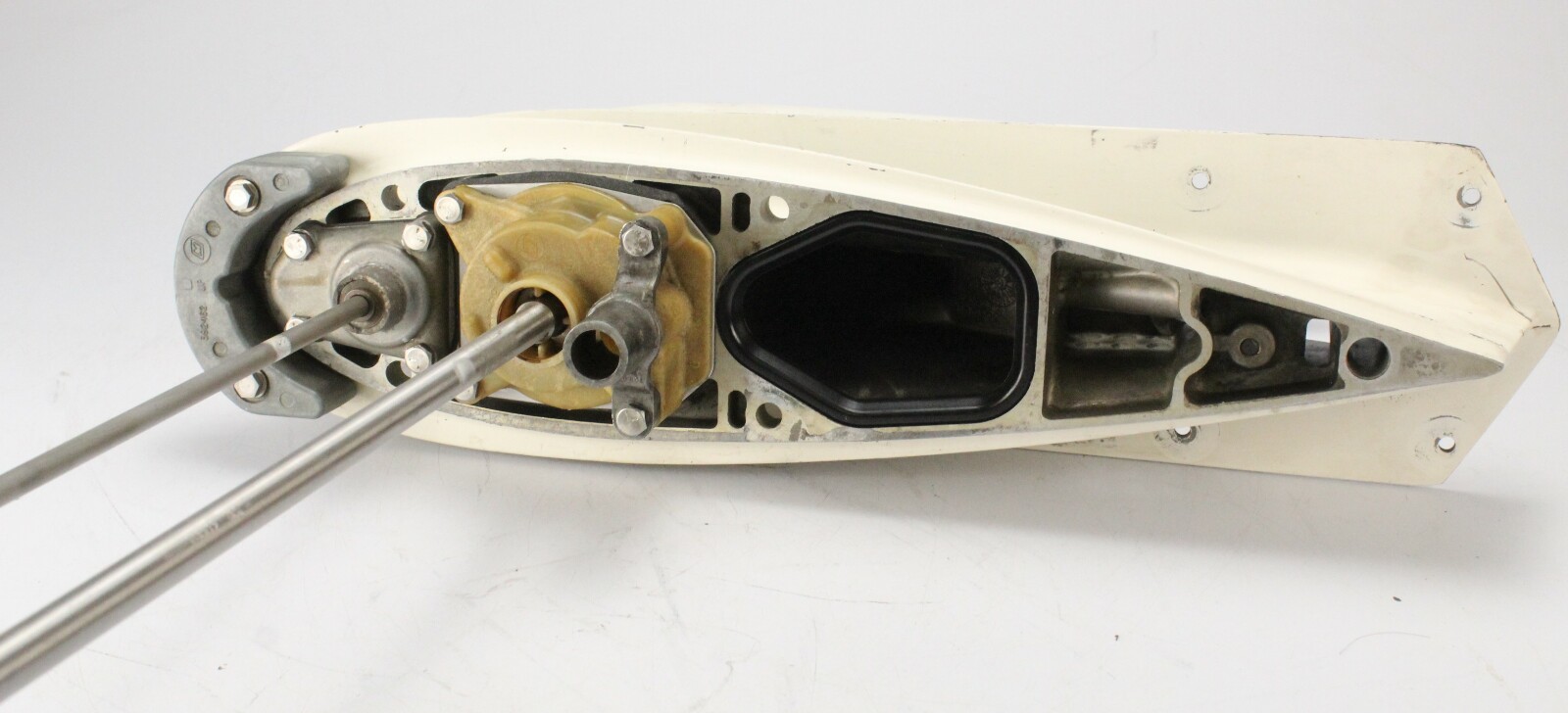

1976-88 Johnson Evinrude 20" Long Lower Unit 40 45 48 50 55 60 HP 2 Cyl 1 YR WTY


$915.00
International Shipping Quote
  • Brand: Johnson Evinrude
  • Size: 40 45 48 50 55 60 HP
  • Color: White
  • Style: 2 cylinder - 14/13 splines - Long
  • Condition: Seller Refurbished
  • Notes: Opened, Inspected & Tested!
  • SKU: 46841 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: United States
  • Motor & Engine Type: Johnson Evinrude
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, White
  • Inventory Number: 46841 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $50.00

Part Number

N/A

Additional Info

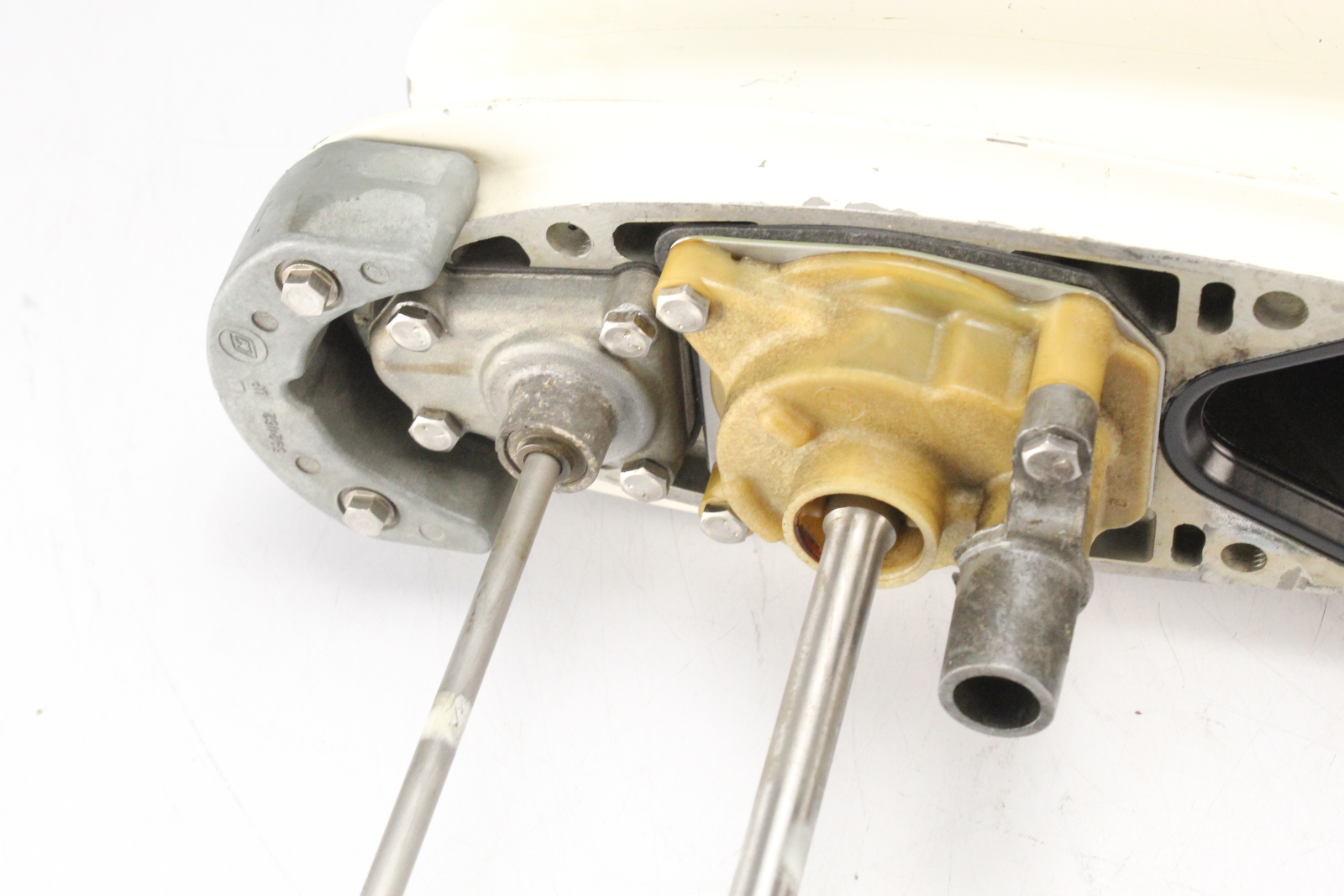

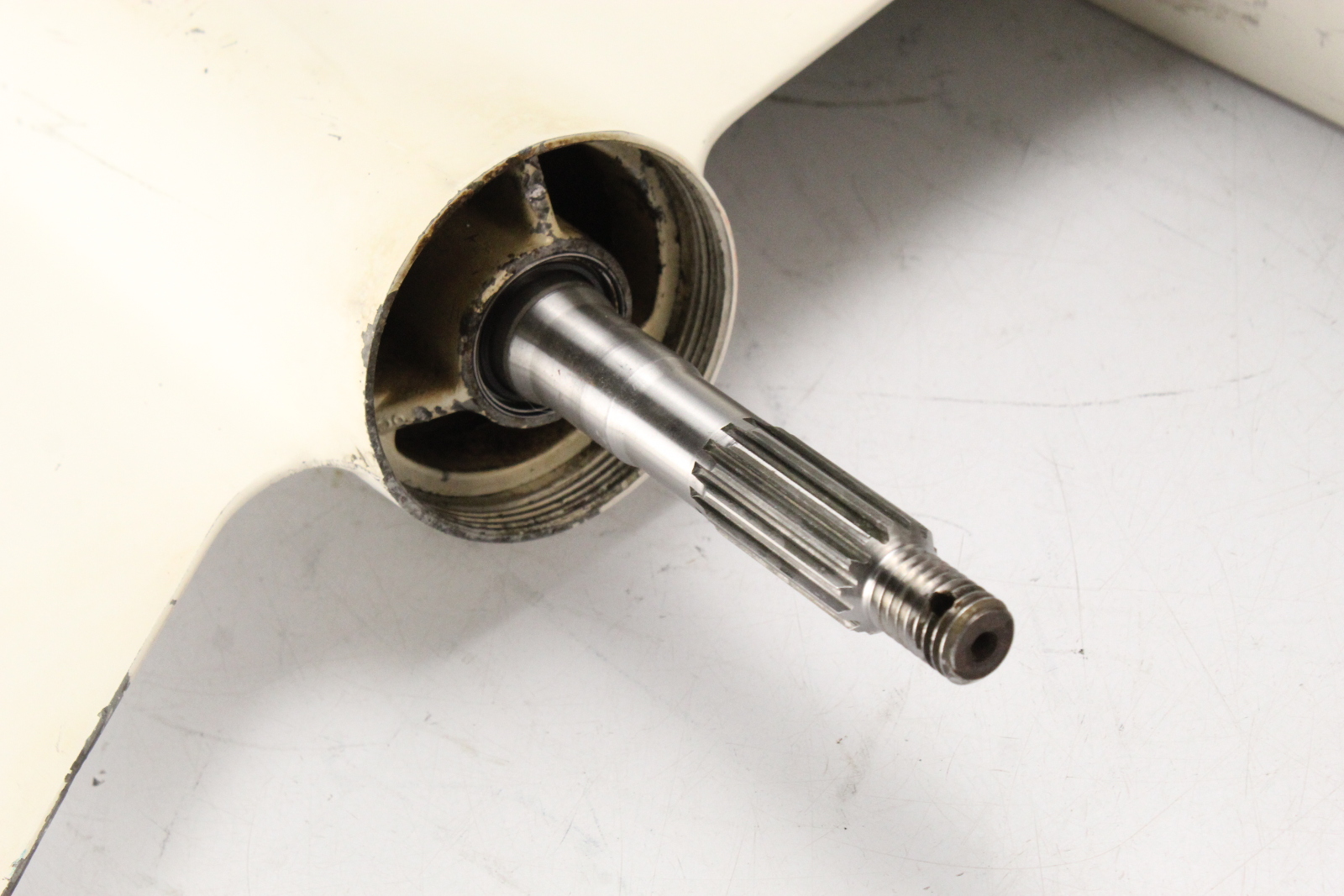

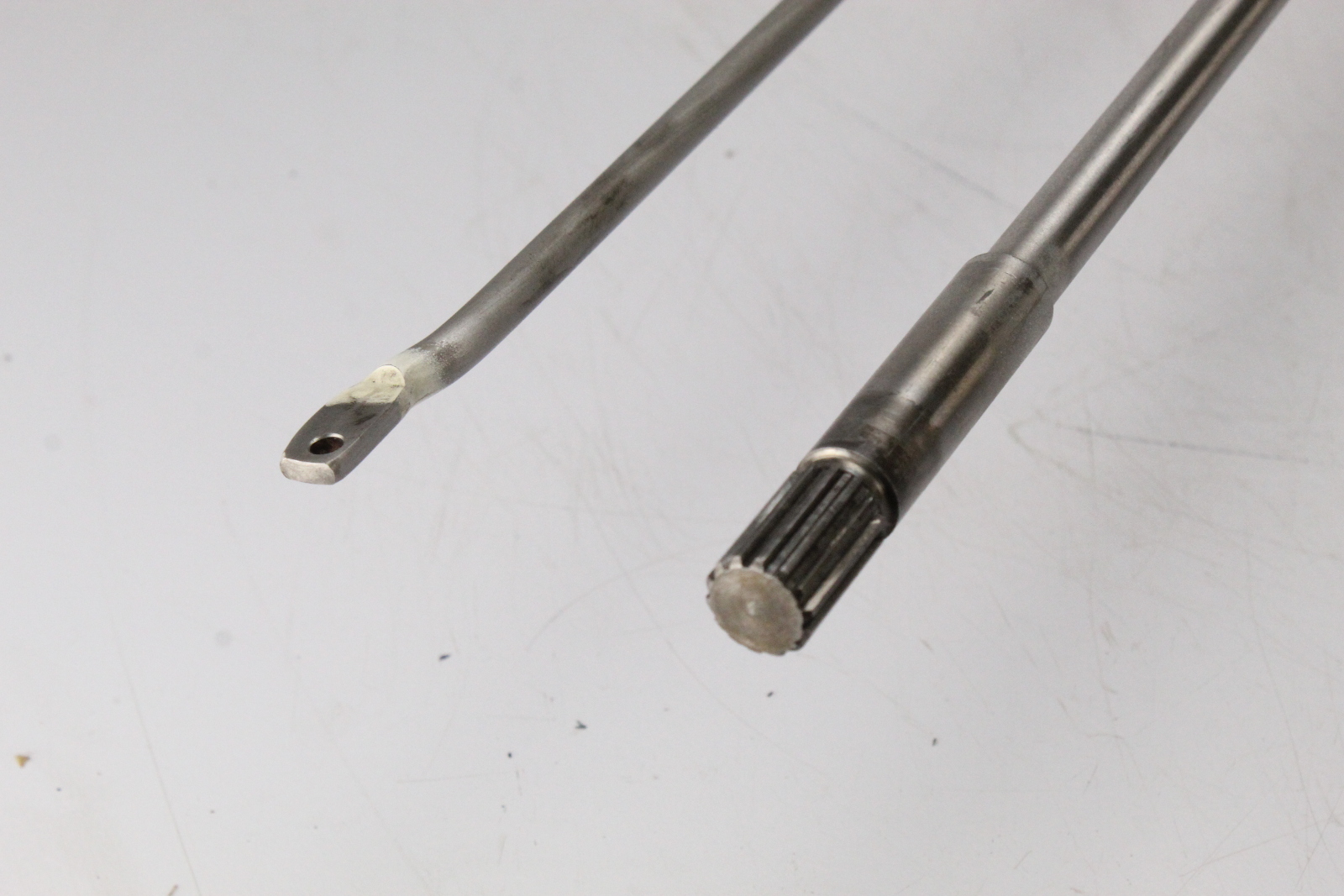

This unit spins and shifts smooth with no binding, the gears and clutch are in good condition with slight wear on the clutch.  The prop shaft is straight, and the driveshaft splines are in good condition with slight wear. The paint is in decent condition - it does have holes drilled in the cavitation plate, this should not affect the performance. The unit has been fully resealed and pressure checked with a new impeller installed. The driveshaft measures 19-3/4" from the top of the waterpump and has 14 splines. The prop shaft has 13 splines.
Please add oil before use!

General Information
  • Freshwater condition
  • Opened & Inspected
  • New Impeller
  • Pressure checked to 12 PSI minimum
  • Full Seal Kit Installed
  • Shafts checked for straightness
  • 1 year mechanical warranty
Criteria to validate your 1 year warranty:
  • YOU MUST RETURN A CORE, AT OUR COST, IN ORDER TO RECEIVE A 1 YEAR WARRANTY.
  • Cannot be locked up - driveshaft must spin
  • Up to 30 days from the date of purchase to send in your core
  • Covers mechanical aspects ONLY
  • Warranty begins from date of purchase

Core must be complete and cannot be missing parts

You will receive two copies of the terms and conditions for the lower unit one year warranty. One copy MUST be signed and returned with your core. Without a returned signed copy, the one year warranty will not be valid. Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 1 Year warranty. We reserve the right to accept or reject any core at our discretion.

Please note that we will not accept returns for this item if ordered incorrectly. Please be absolutely sure this is the correct one for your motor prior to purchasing.

Location: Southcentral Outboards, Altamont, Illinois

Fits:

1976-1988 - 40 45 48 50 55 60 HP - 2 CYLINDER

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
