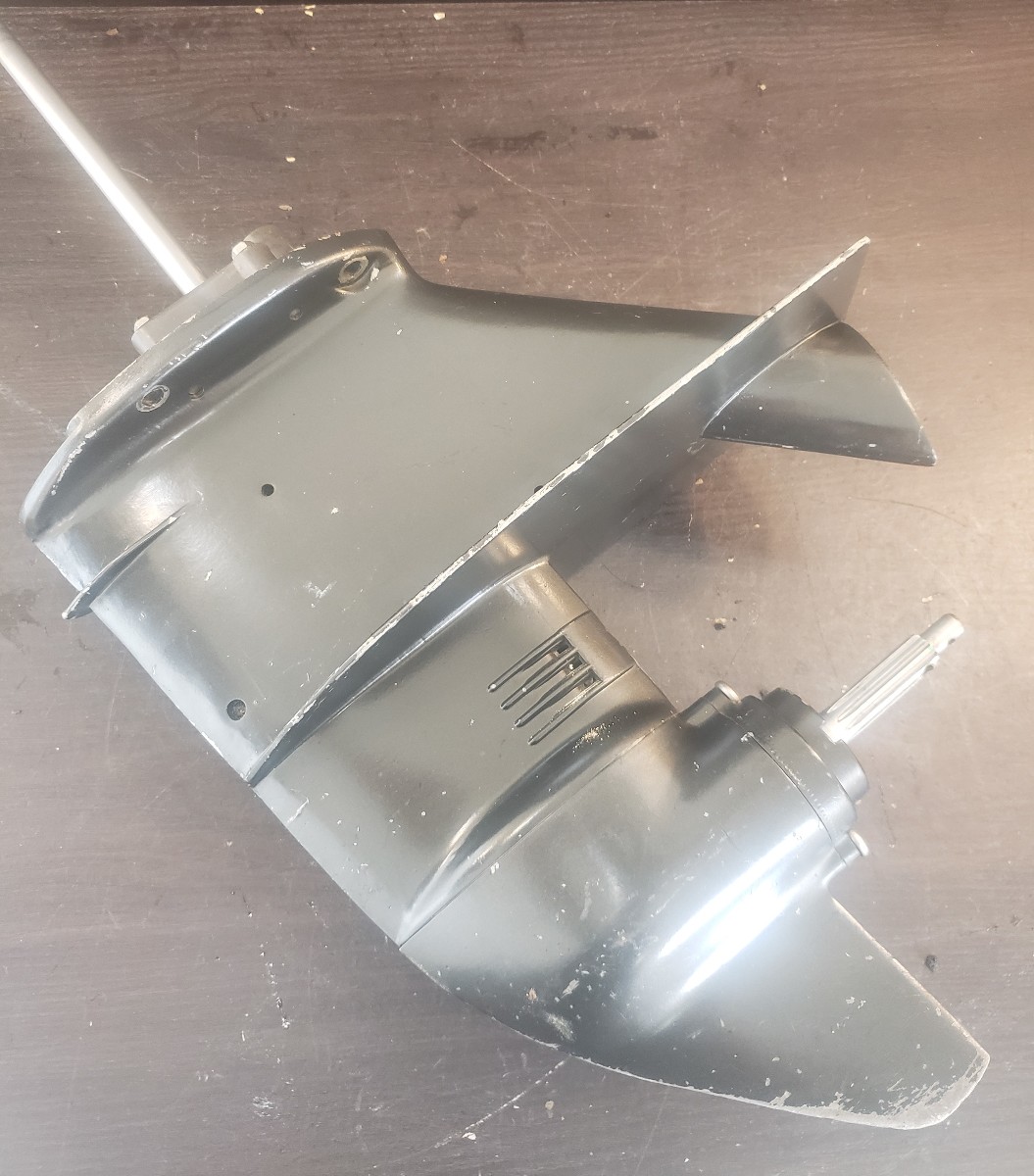

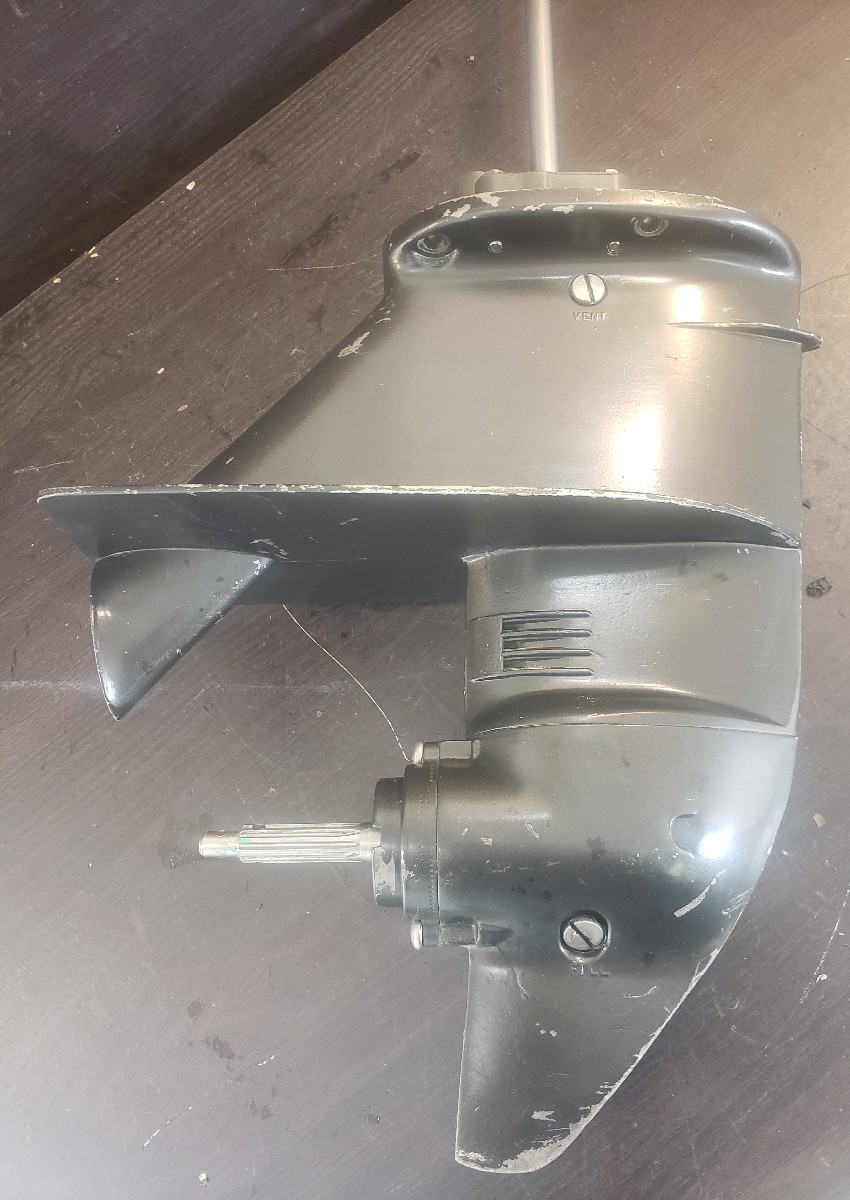

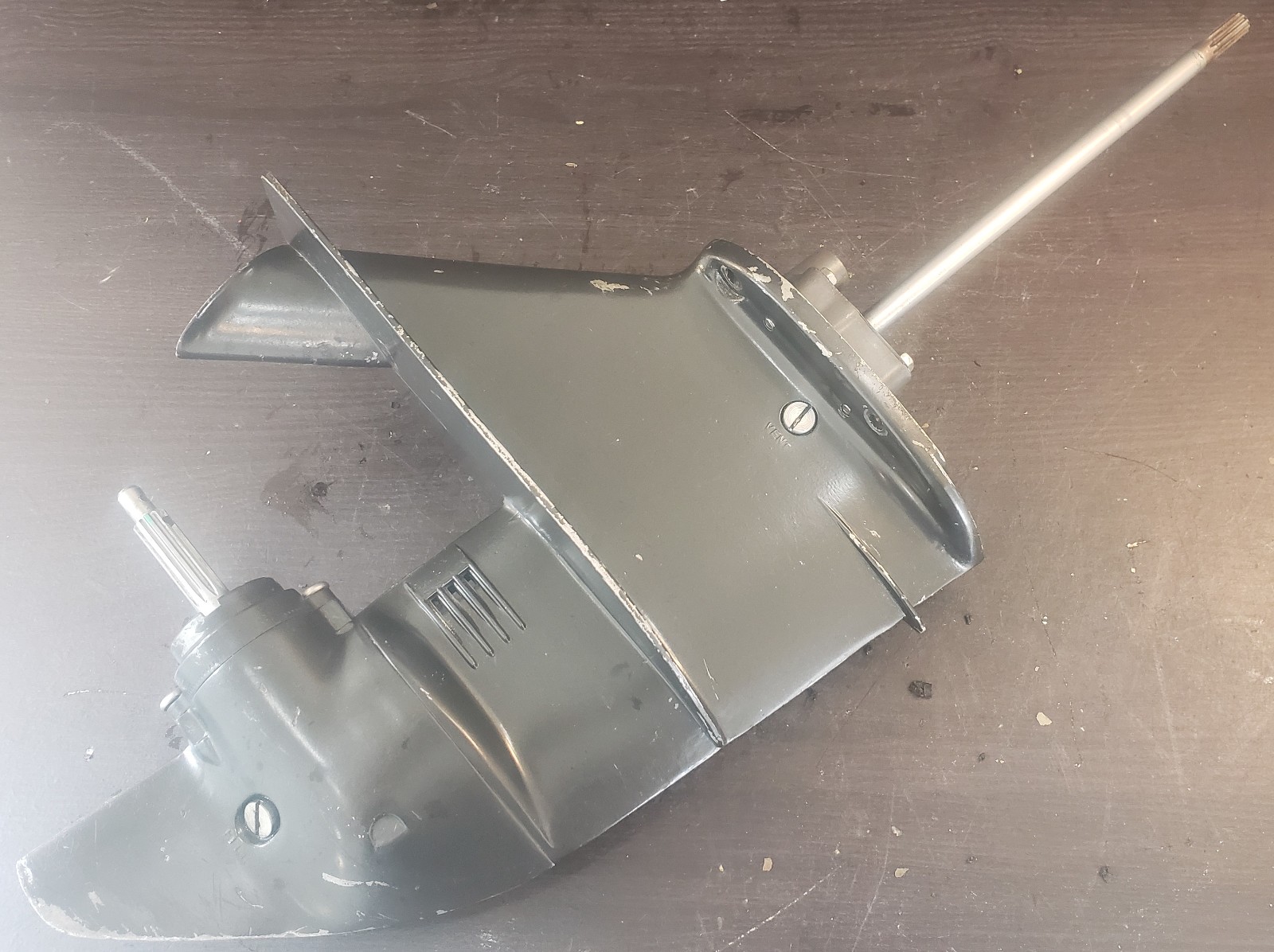

Chrysler Force 1976-97 15" Split Lower Unit 7.5 9.9 12 15 HP FOR PARTS OR REPAIR


$200.00
International Shipping Quote
Details
  • Brand: Chrysler
  • Size: 7.5 9.9 12 15 HP
  • Color: Black
  • Style: Short - 11/10 splines
  • Condition: For Parts or Not Working
  • Notes: FOR PARTS OR REPAIR
  • SKU: 30628 LRU
  • Manufacturer Part Number: FA286554
  • Country of Manufacture: United States
  • Motor & Engine Type: Chrysler
  • Part Type: Motors, Engines & Components
  • Other Part Number: FA2715554
  • Surface Finish: Painted, White
  • Warranty: 30 days
  • Inventory Number: 3191 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
Part Number FA456554

C# 456554

The original Chrysler part number cross-references to the following part numbers:
  • FA715554
  • FA715554T
  • 824196A1
  • FA286554
  • FFF000089
  • FFF000090
  • FFF000275
Additional Info

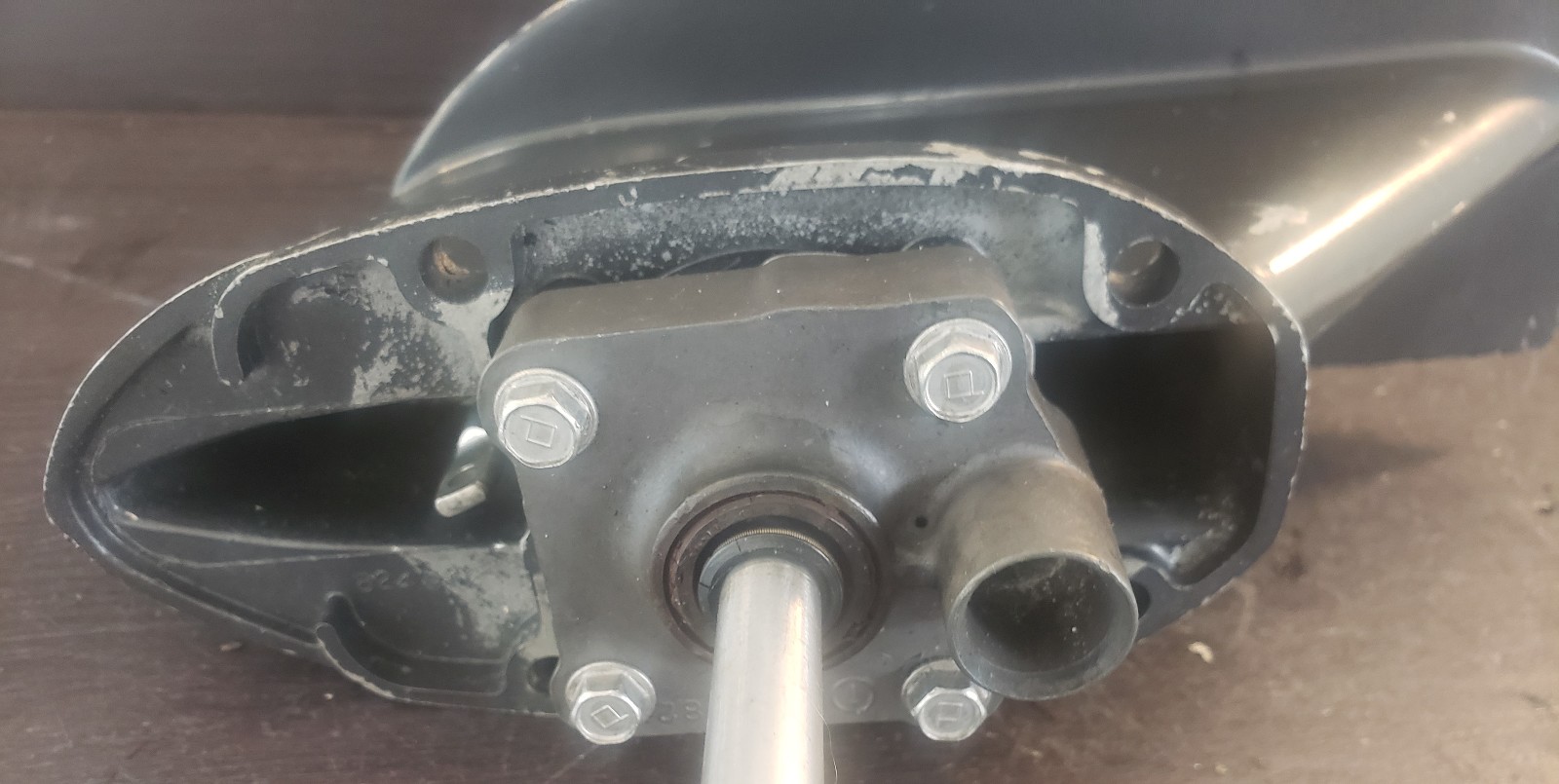

This is a very good gearcase. We drained it and the lower unit oil was in great shape, with no signs of metal or water. The skeg is in great shape. This has been pressure-tested. It needs a new impeller and oil, and then you can be in the water. There are some scuffs and scratches in the paint, but nothing that will affect the overall performance. Due to the age of the lower unit, we do recommend a new seal kit.

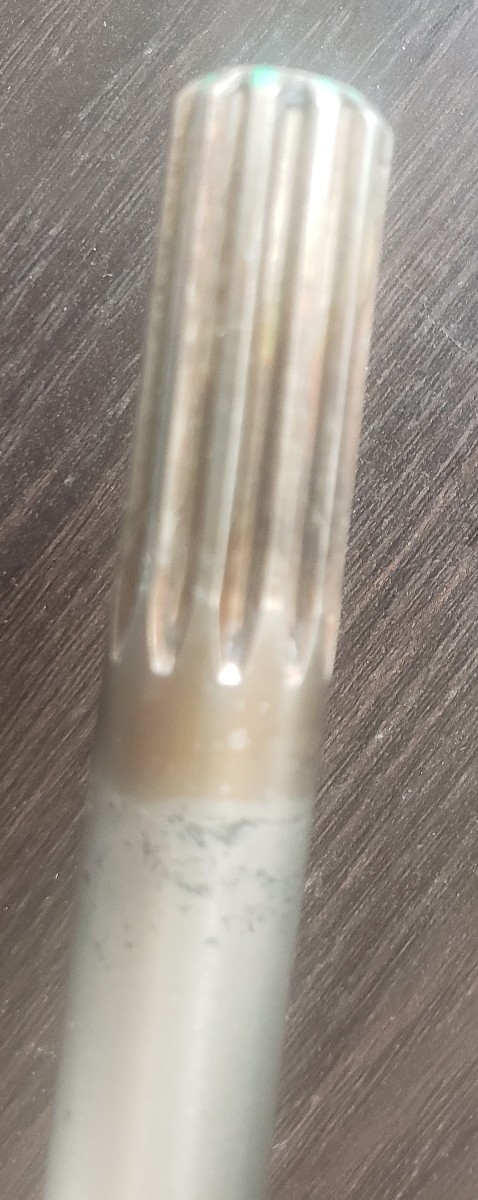

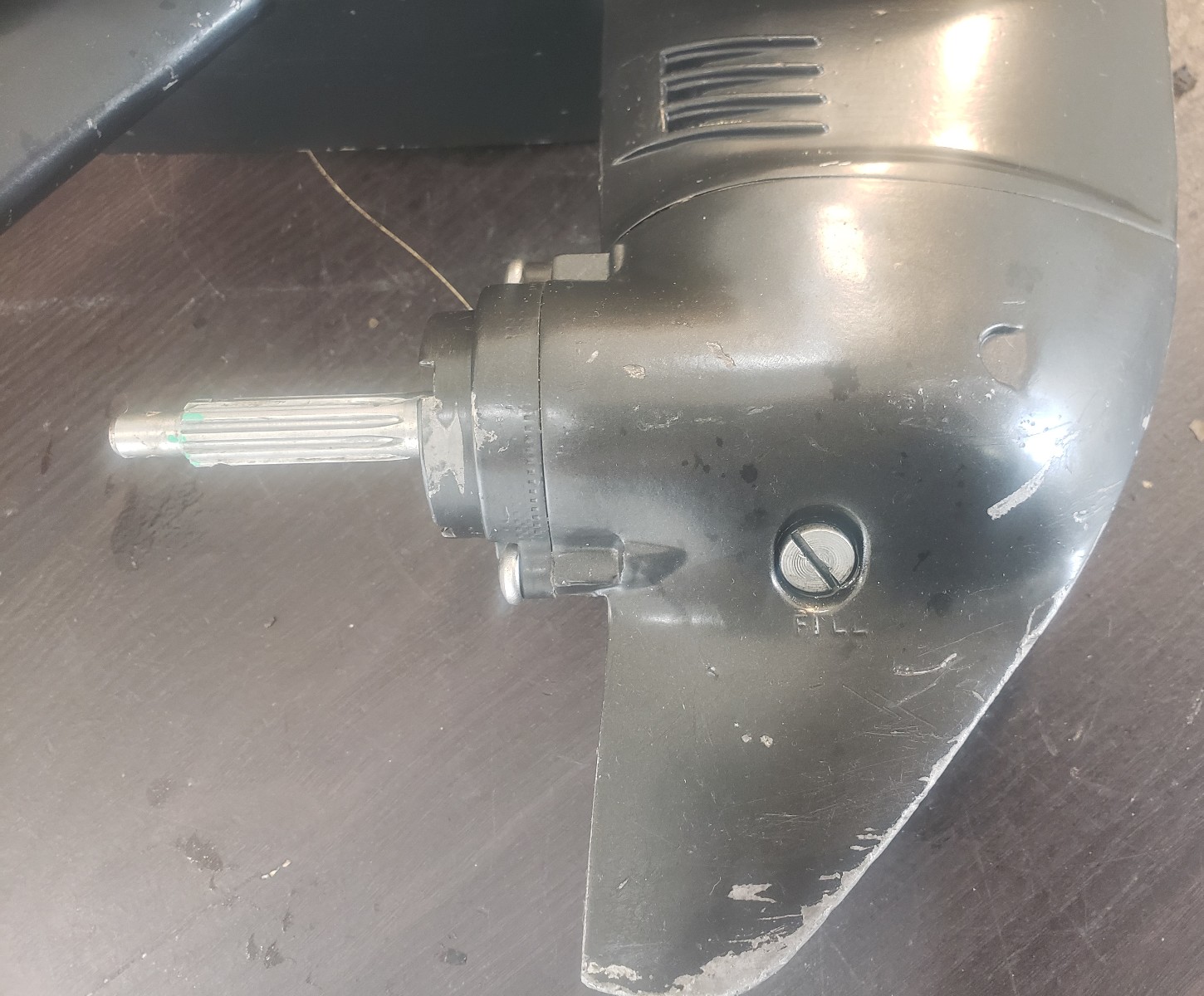

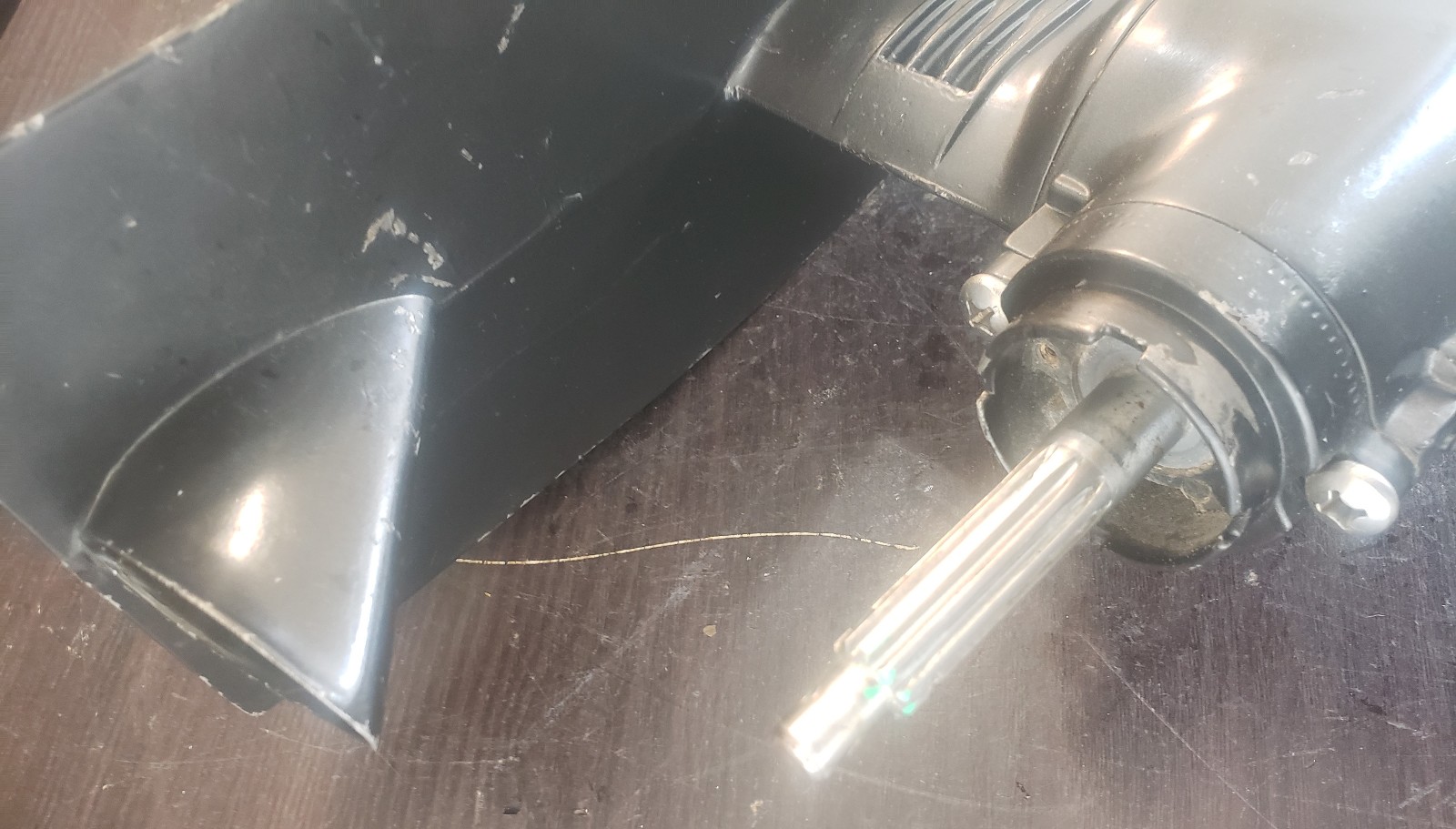

From the top of the water pump to the tip of the driveshaft, the shaft measures approximately 11-7/8" long and has 11 splines. The propeller shaft 10 splines.

Because have this listed for parts or repair, we virtually cannot accept returns on this unit. Please confirm that this is exact match to your current lower unit prior to purchasing.
Fits: Chrysler - 1976-1984 – 9.9 12 15 HP
Sears – 1988-1997-1/2 – 7.5 9.9 15 HP
Force – 1984-1997 – 9.9 15 HP

**Please note that this is for splitcase models only.
