$425.00
- Brand: Mercury
- Size: 75 90 100 115 125 HP
- Style: 2 Wire Single Ram
- Condition: Used
- SKU: 26-46110 PTP-C
- Manufacturer Part Number: 826802A12 828151A1
- Country of Manufacture: United States
- Motor & Engine Type: Mercury
- Part Type: Motors, Engines & Components
- Other Part Number: C# 882751
- Surface Finish: Painted, Black
- Warranty: 1 Year
- Inventory Number: 26-46110 PTP-C
- Website Category: Midsection
- Website Sub Category: Power Trim and Lift Assist
- UPC: N/A
- Shipping: $25.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

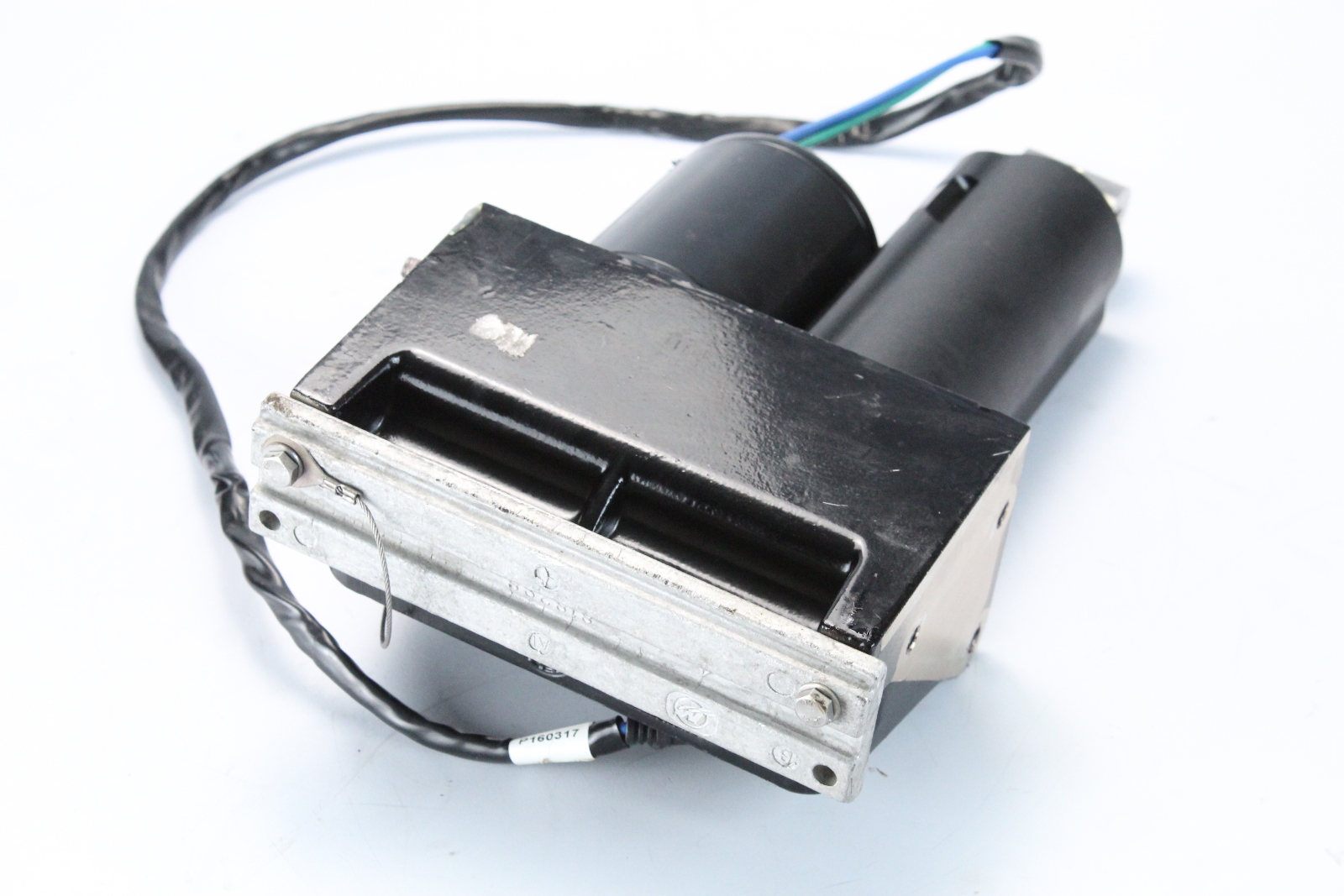

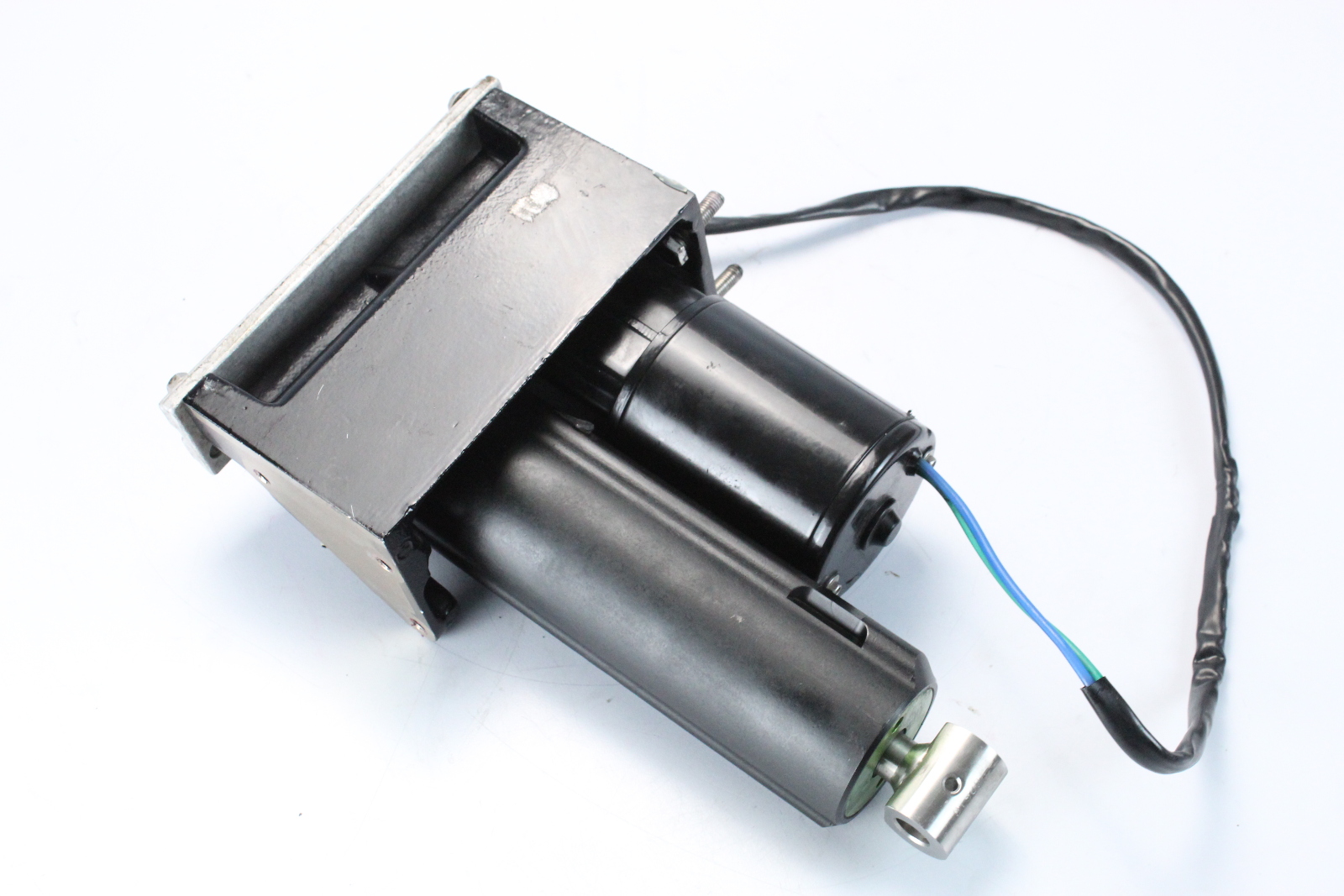

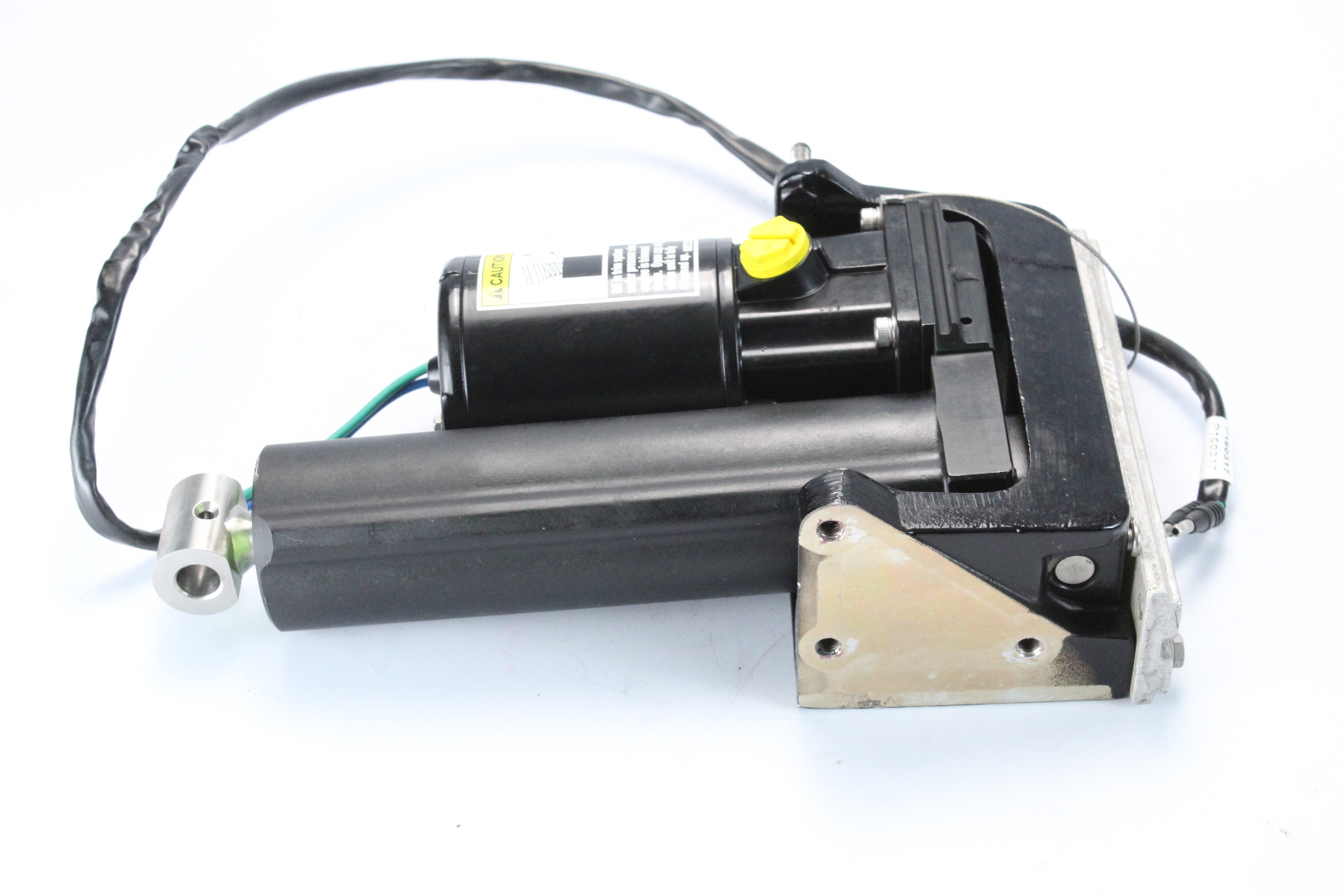

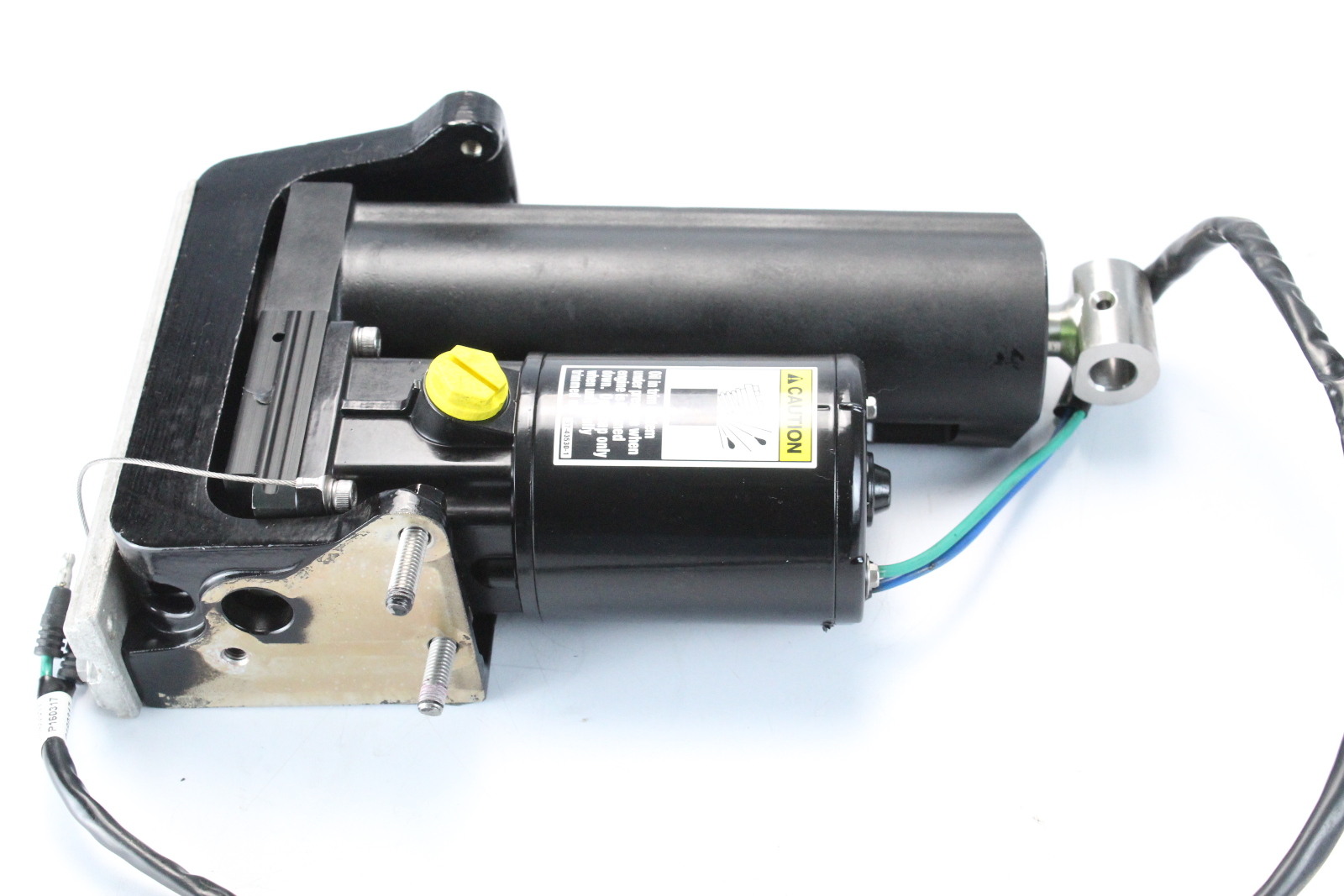

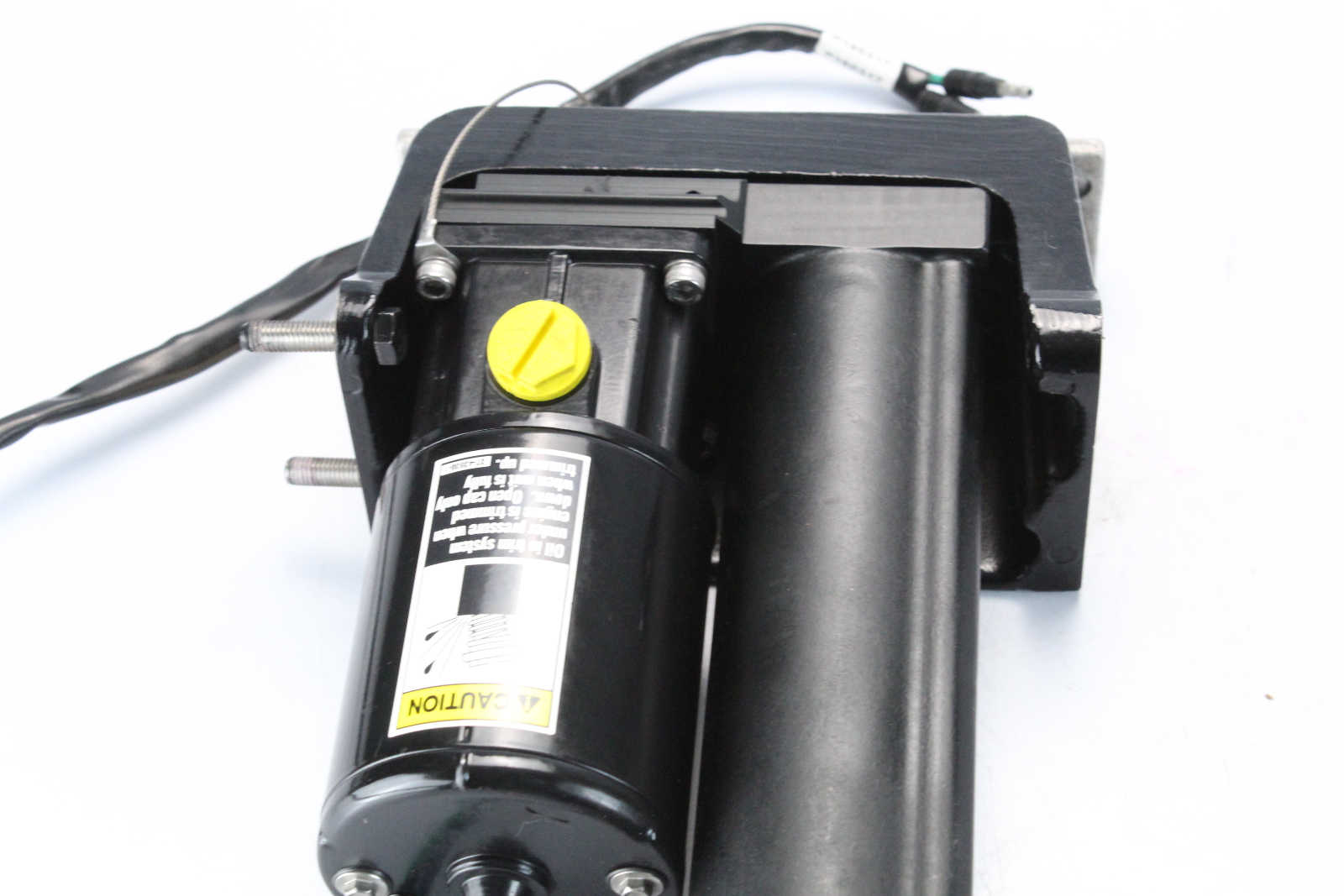

Mercury 2-Wire Power Trim with Relays
◆ 1 YEAR WARRANTY◆ LOAD TESTED◆ RELAYS INCLUDED
Part Numbers
◆ Trim Assembly: 8M0171818
◆ Also Replaces: 830250T08 ◆ 8M0090335 ◆ 8M0055014 ◆ 898447T01 ◆ 830250T5 ◆ 830250T3 ◆ 830250A3 ◆ 830250A1 ◆ 818903A1
◆ Trim Harness: 826802A12
◆ Relay: 828151A1 (C# 882751)
Condition
◆ Tested good under load — extends, retracts and holds with no leaks
◆ Rams straight, no bend
◆ Trim harness and relay included
◆ One broken mounting bolt on the left side of the unit
◆ Some coating missing on the green wire — the wire itself is not damaged
◆ Freshwater engine takeoff
Fitment
Years: 1988-2014
Models: Mercury and Mariner 75 80 90 100 115 125 HP — inline 3 and 4 cylinder, 2-wire single ram
Note: Fits the carbureted, OptiMax and 4-stroke (carb and EFI) engines of this family. This is the yellow-fill-plug unit, which uses relays. The earlier black-fill-plug unit used solenoids and carries the same cross-reference; a black-plug motor can run this unit by adding the relay set.
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer’s responsibility — match the part number to your motor before purchasing and contact us if you need help.
30 DAY FREE RETURNS IF LISTED INCORRECTLY | 60 DAYS TO RETURN AT YOUR COST — ANY REASON | 365 DAY WORKING WARRANTY VALIDATED BY YOUR CORE |
One year working warranty, validated by your core — we send a prepaid label for the swap. No core? Add the full warranty for 10% of the purchase price. Otherwise the unit carries 30/60 coverage only.
✦✦✦✦
The real sale is the responsibility we have to each customer to list, clean, sell, and ship a part correctly. If we miss that mark, please tell us and we will make it right.
— The SCO Team
