- Brand: Yamaha
- Size: N/A
- Color: Black
- Style: Digital
- Condition: Used
- Notes: Freshwater
- SKU: 26-54082 BXP
- Manufacturer Part Number: L6R
- Country of Manufacture: Japan
- Motor & Engine Type: Yamaha
- Part Type: Motors, Engines & Components
- Other Part Number: N/A
- Surface Finish: N/A
- Inventory Number: 26-54082 BXP
- Website Category: General
- Website Sub Category: Gauges and Dash Parts
- UPC: N/A
Part Numbers
Yamaha 6E5 Style Oil Level Gauge
Connector markings: N12 N24 N14
Description

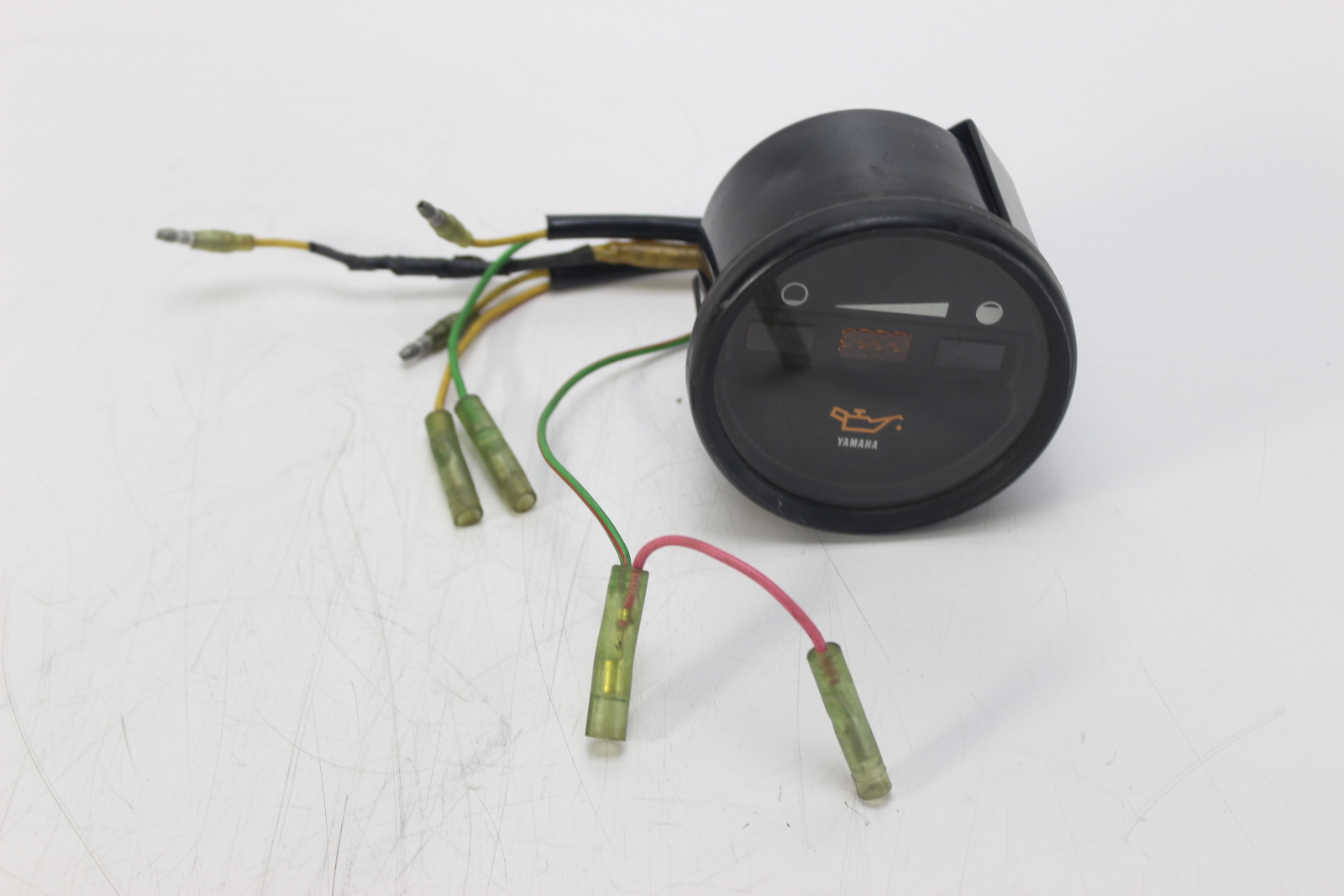

Yamaha dash-mounted oil level warning gauge.
This gauge is used on Yamaha 2-stroke oil-injection systems and monitors the oil tank level. The gauge features three indicator lights that alert the operator to the current oil level condition.

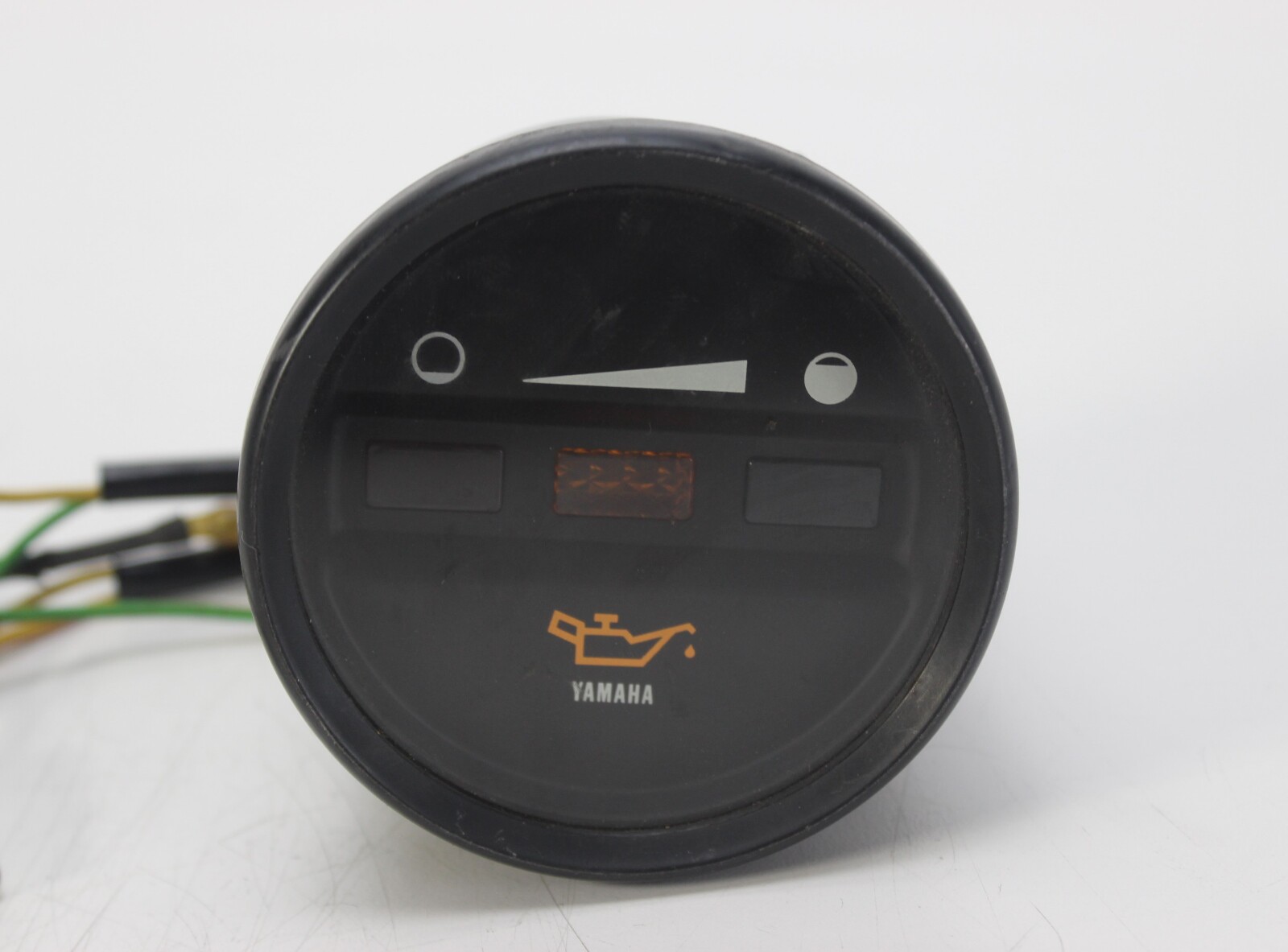

The face of the gauge includes an oil can icon and an oil level graphic above the lights to indicate normal, low, and critical oil levels.
This style gauge was commonly used with Yamaha Autolube / Precision Blend oil injection systems.
Gauge diameter is approximately 3-1/4".
Condition
- Used dash gauge
- Black bezel
- Three rectangular lights in center (green, amber, red)
- Oil can icon on gauge face
- Oil level graphic above lights

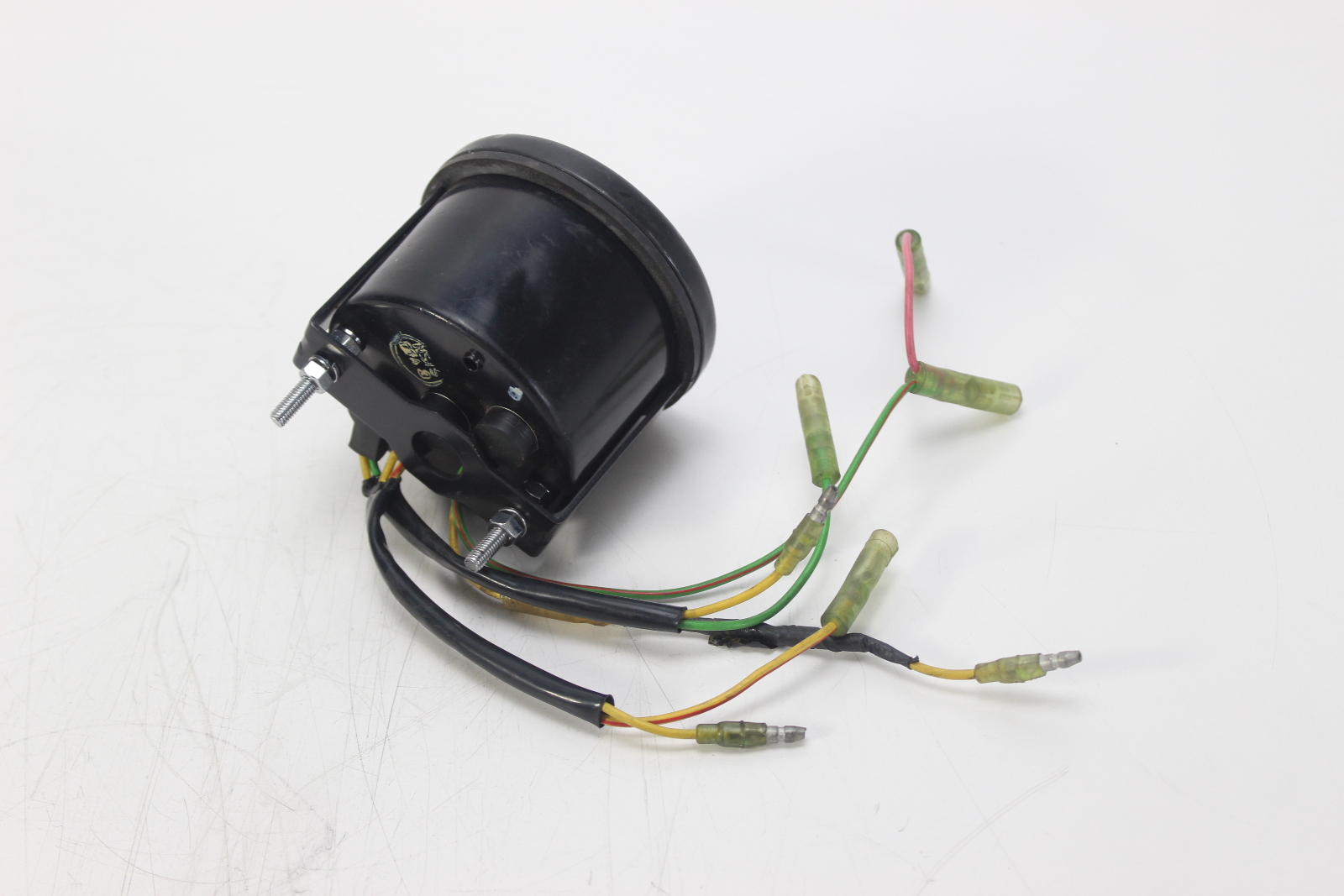

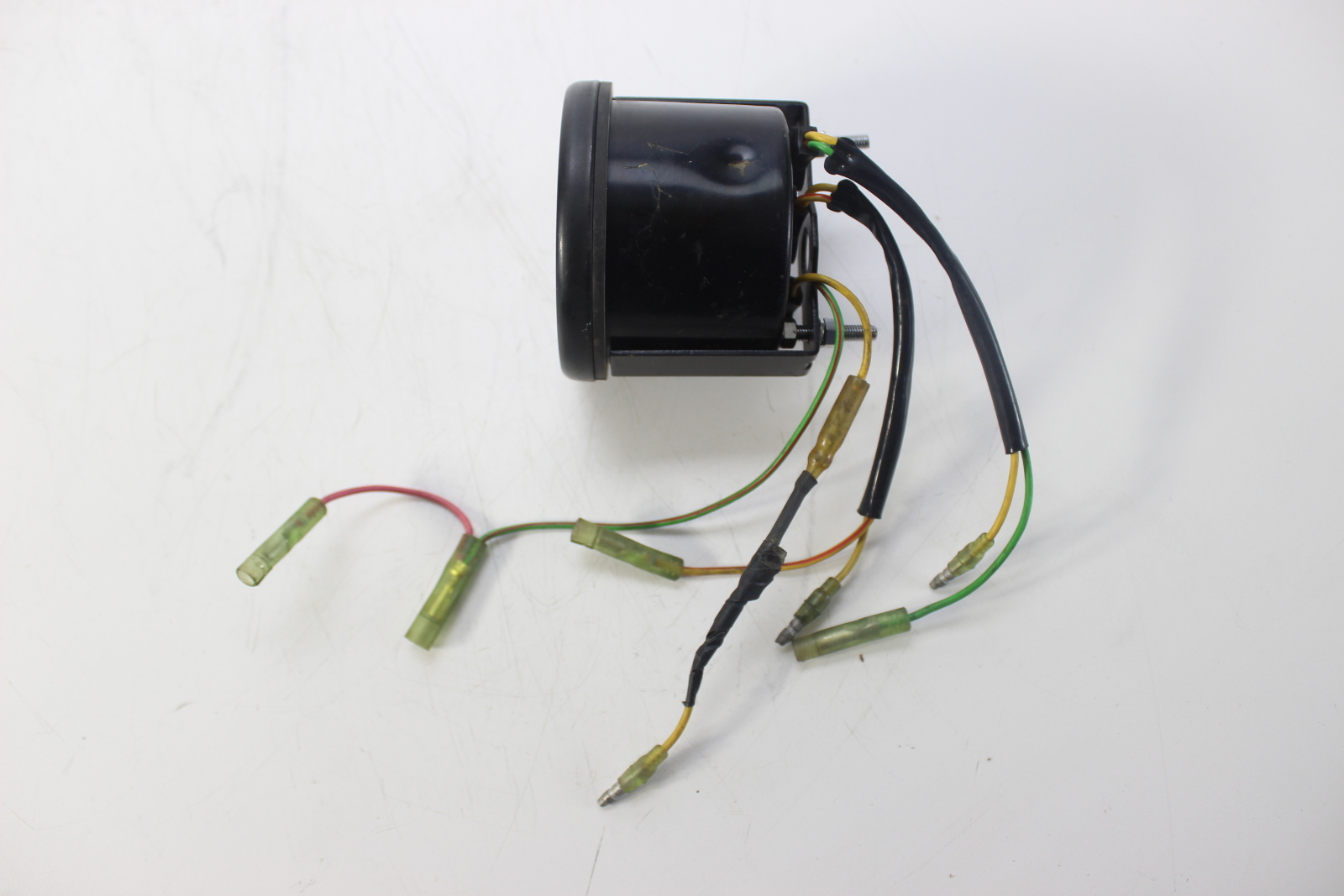

- Wiring harness includes bullet connectors

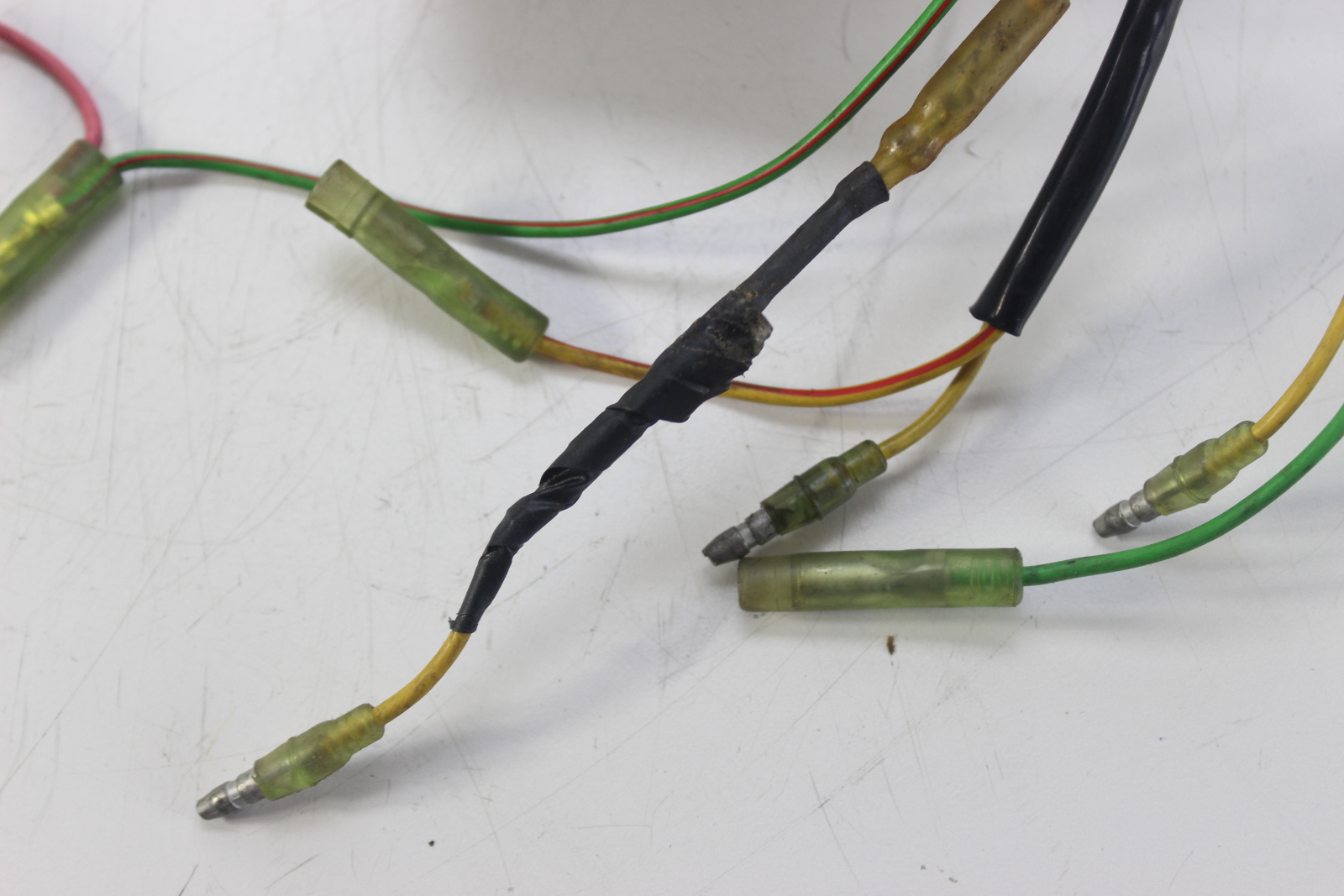

- Wire colors include:
- (2) Yellow
- Green with red tracer
- Green
- Yellow with red tracer
- Pink wire from pigtail

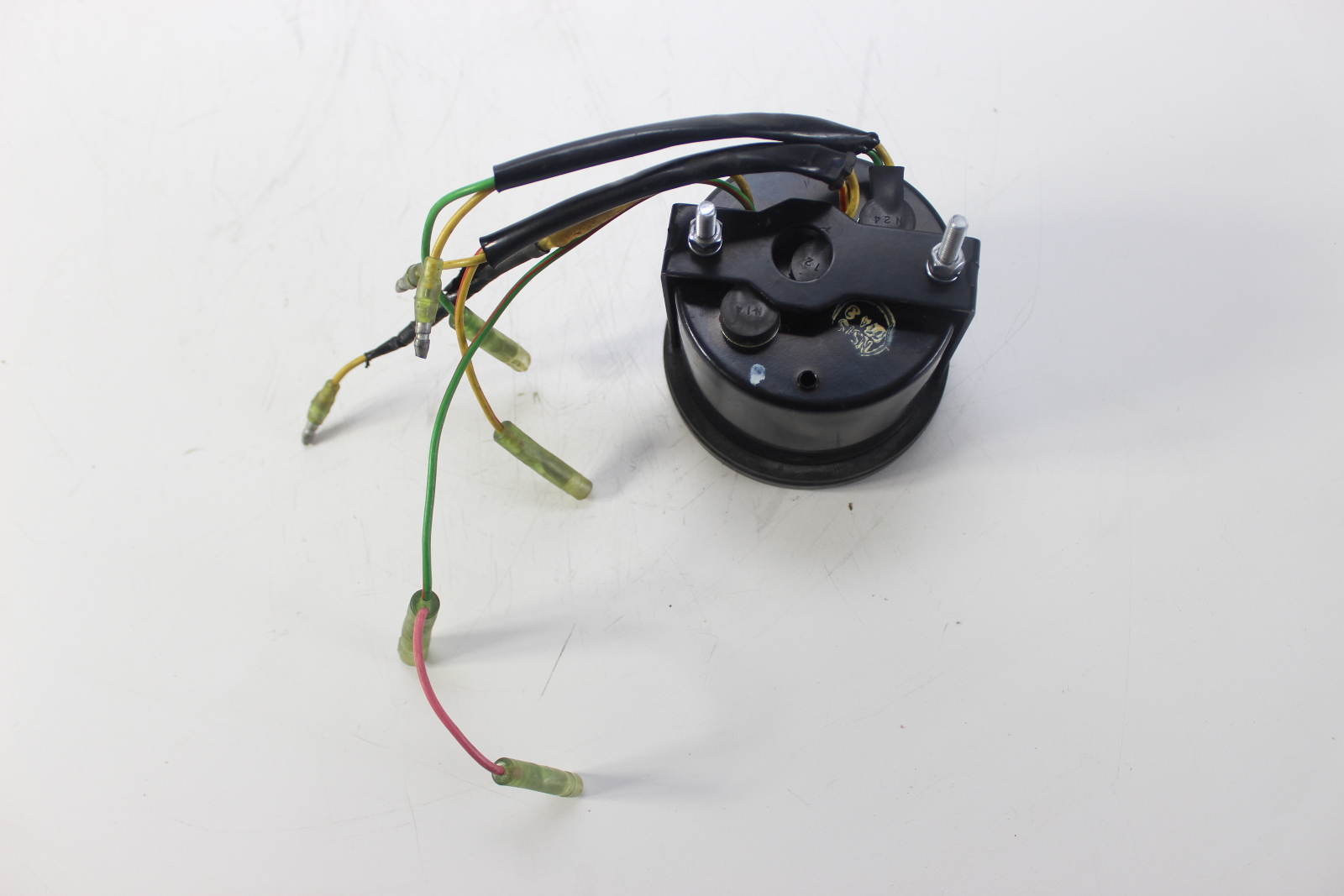

- Rear connectors stamped N12, N24, and N14
- Normal cosmetic wear from use and storage
- Untested but guaranteed
- Comes exactly as pictured
Fitment
This gauge was used on various Yamaha oil-injected 2-stroke outboards.
Because Yamaha produced several versions of these gauges, this item is being sold by visual match and wiring configuration only. Please compare the photos, connector style, and wiring colors with your existing gauge before purchasing.
Warranty
This item is sold with a 1 year working warranty provided by Southcentral Outboards. If the gauge does not work or stops working within 1 year of purchase, we will replace it. If a replacement is not available, we will issue a refund.
