$300.00
Details
- Brand: Mercruiser
- Size: 120 140 165 225 233 260 470 485 898 HP
- Style: N/A
- Condition: Used
- SKU: 26-36192 GMB
- Manufacturer Part Number: 88302A1 77124A2 65534A2 65534
- Country of Manufacture: United States
- Motor & Engine Type: Mercruiser
- Part Type: Motors, Engines & Components
- Inventory Number: 26-36192 GMB
- Website Category: Sterndrive and Jetdrive Parts
- Website Sub Category: Sterndrive Gimbal and Transom Assy
- UPC: N/A
DESCRIPTION:

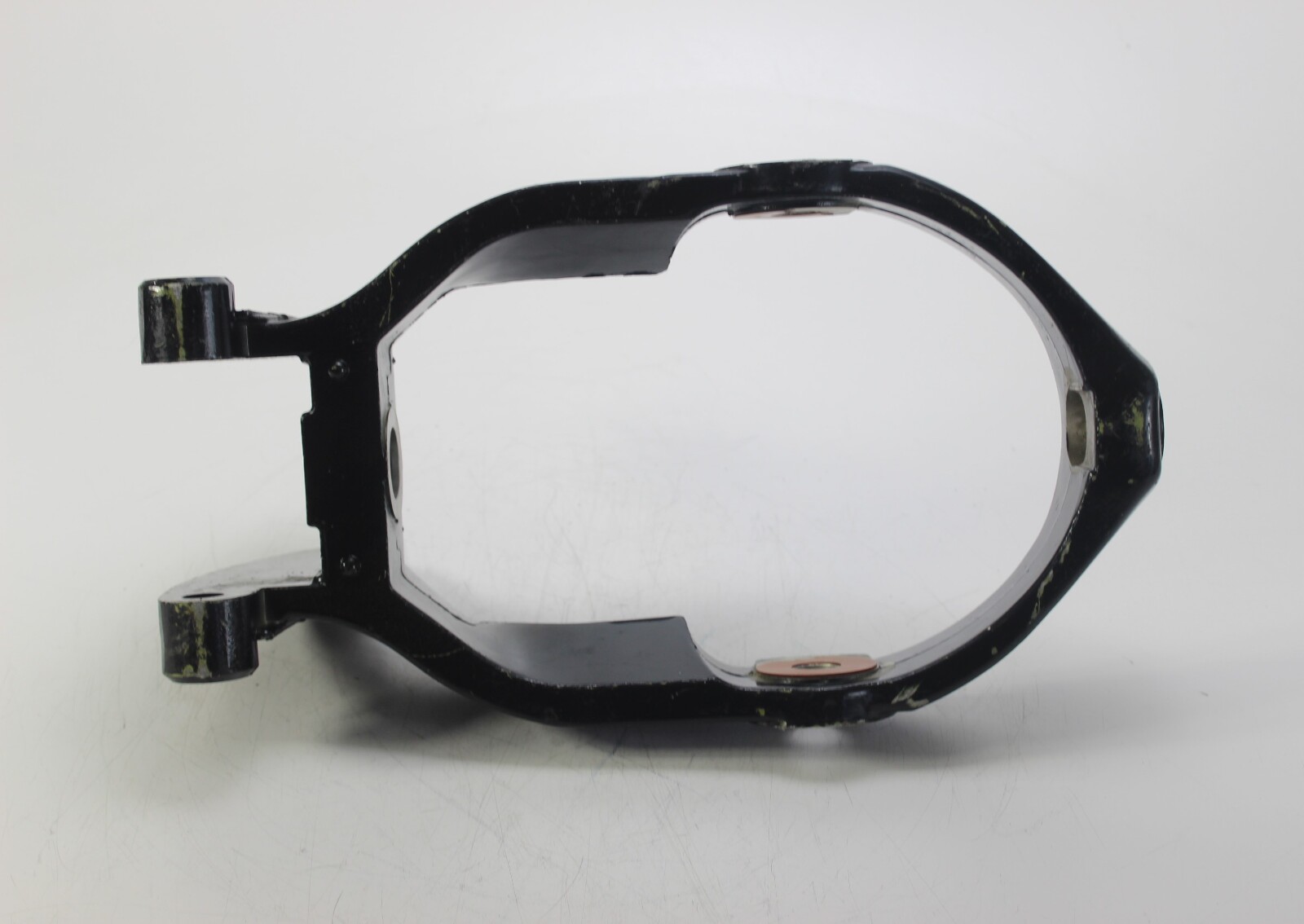

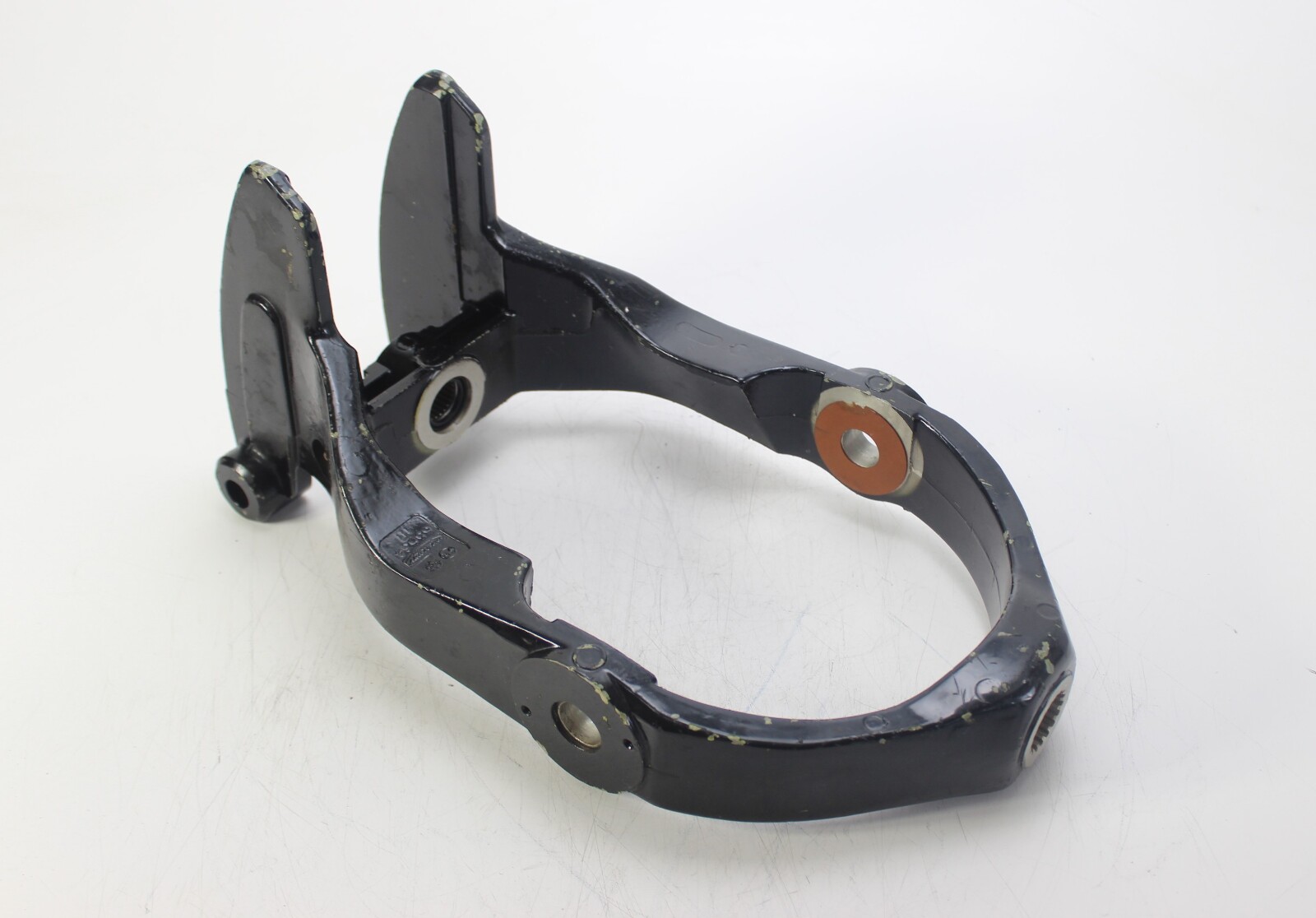

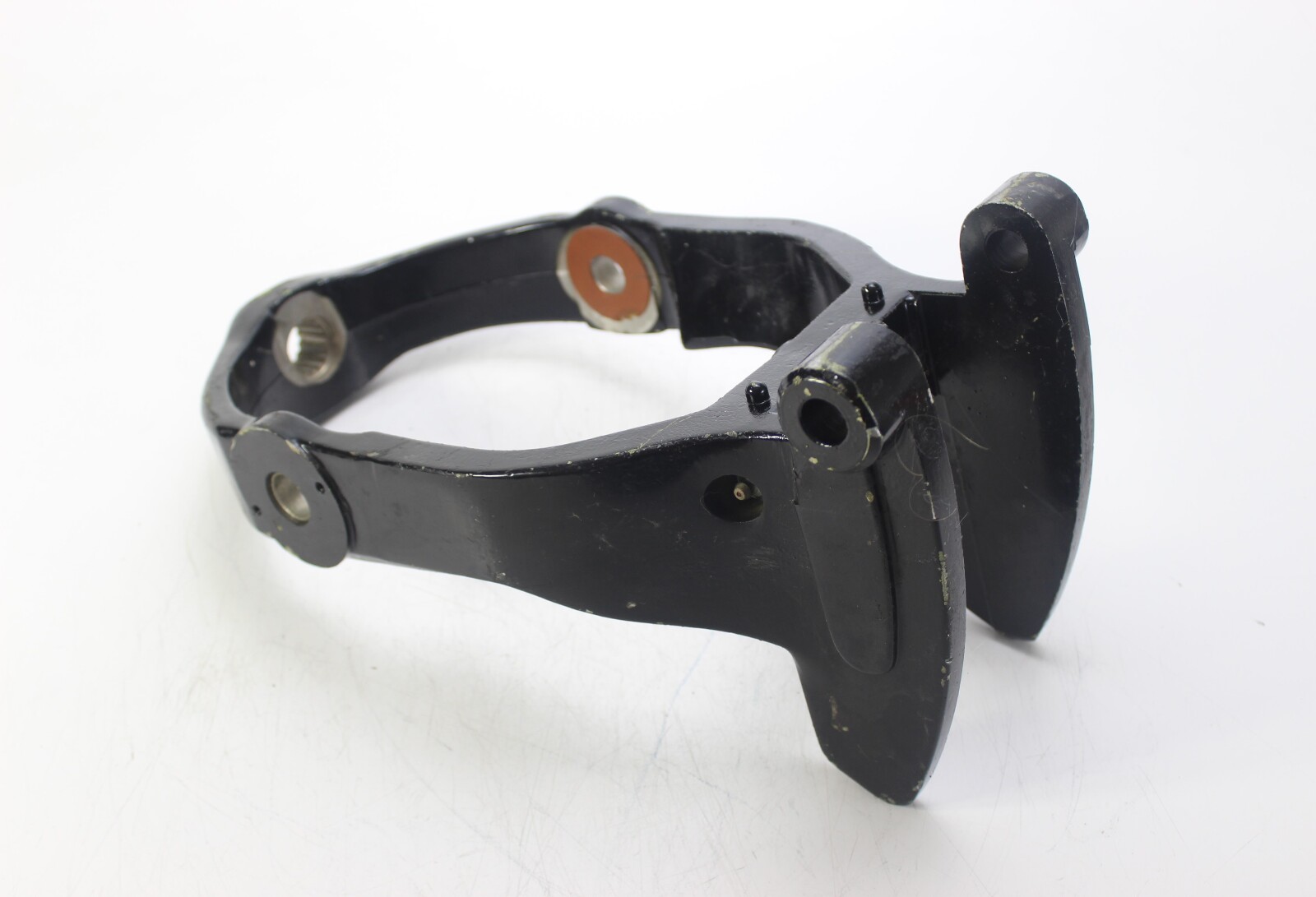

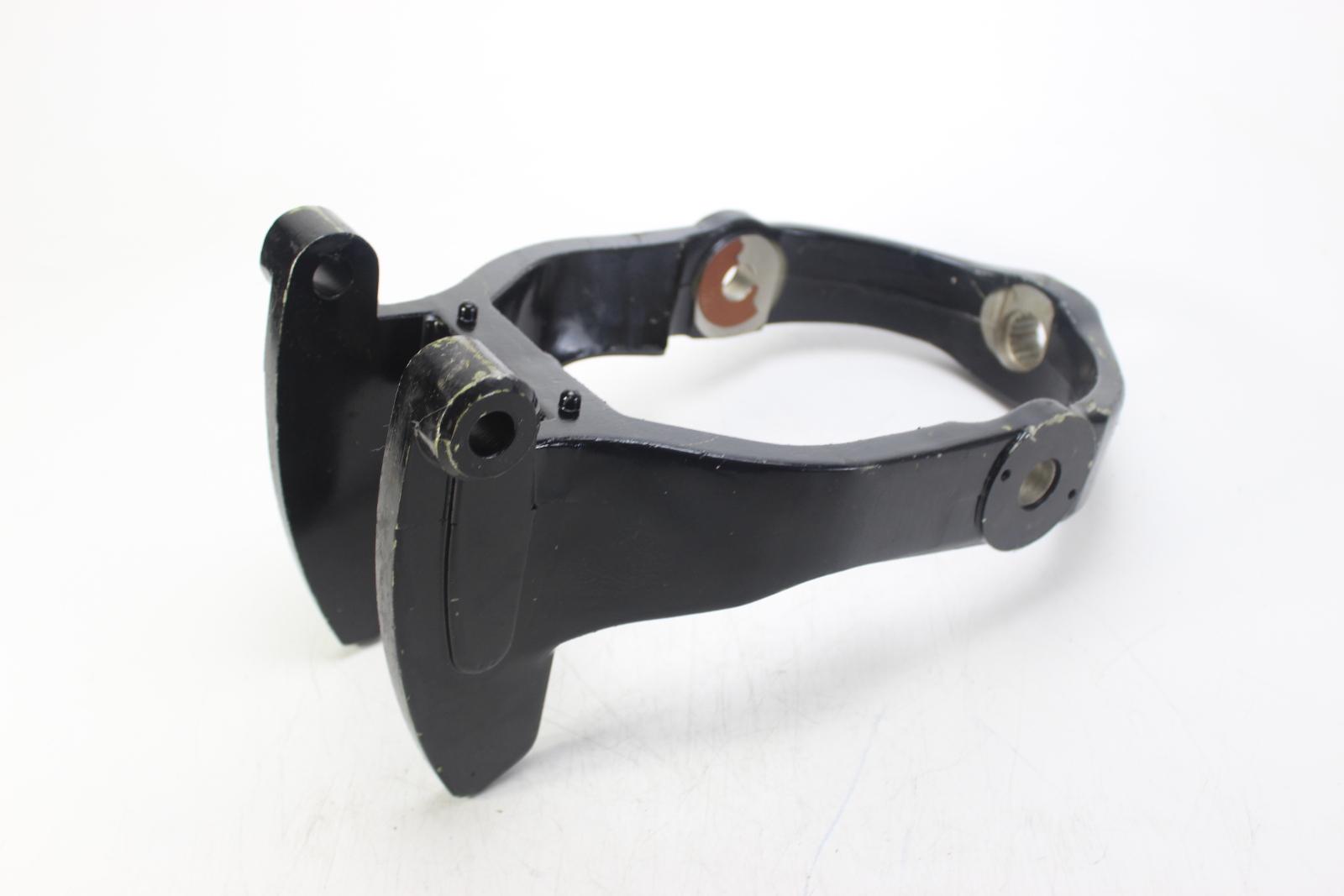

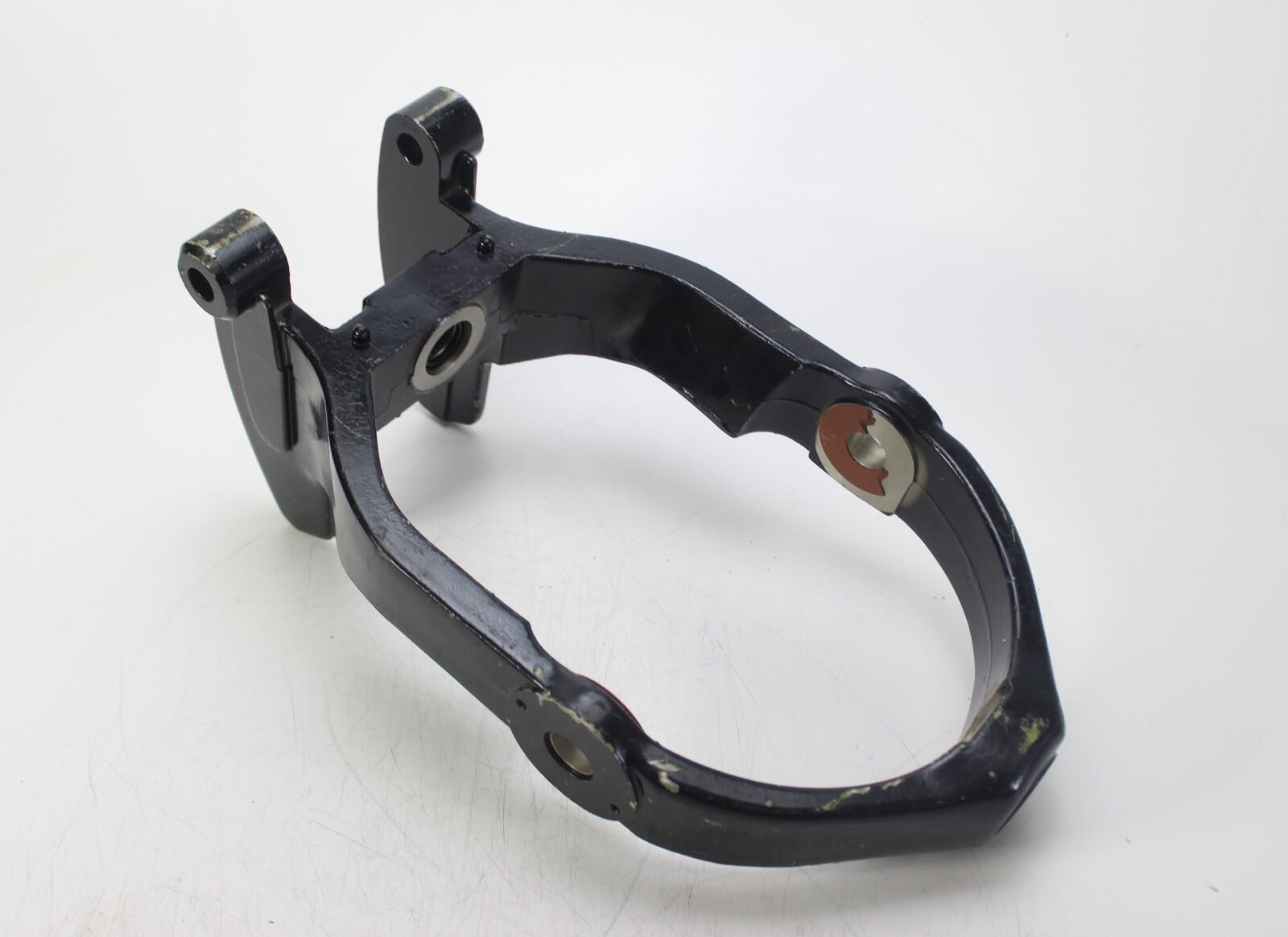

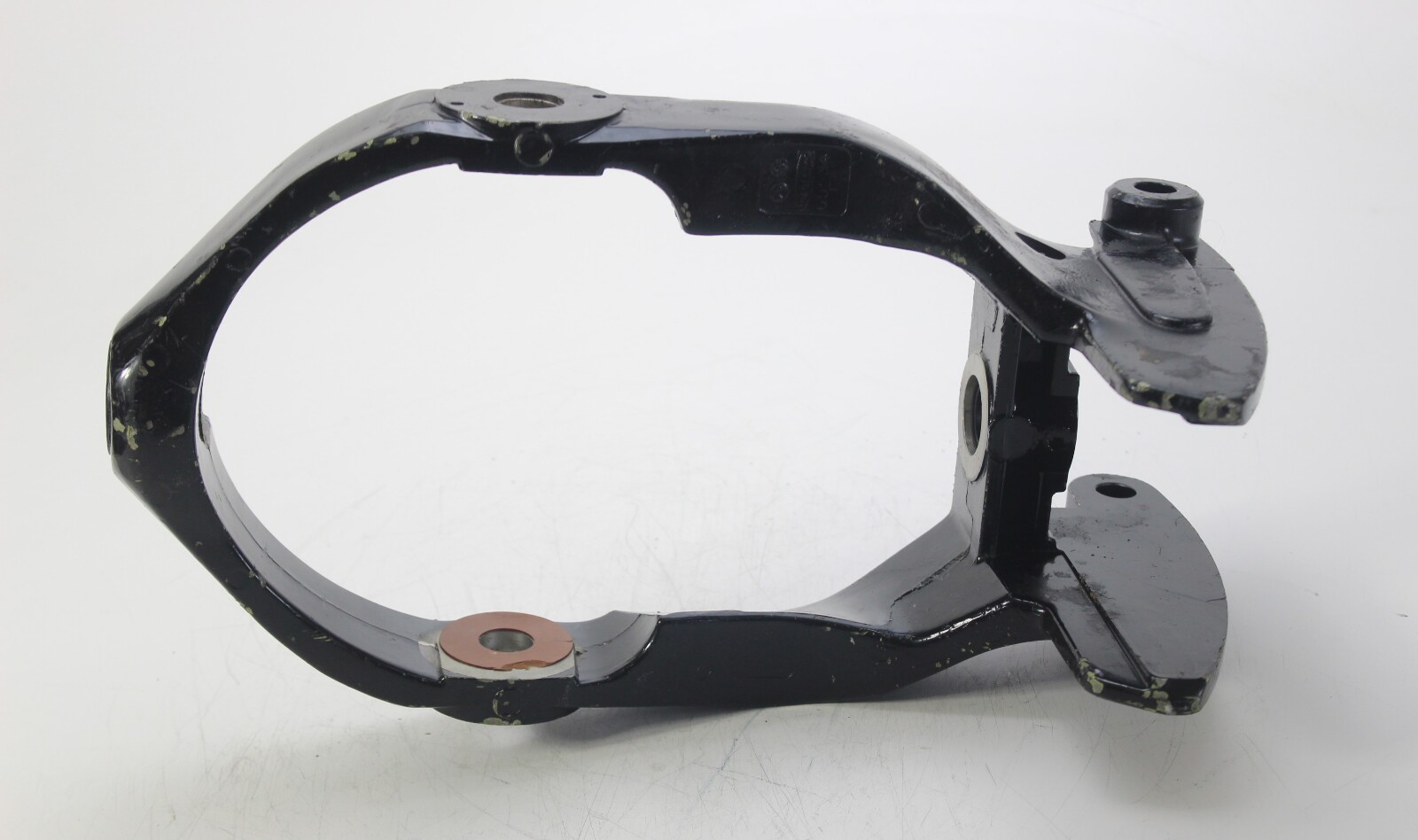

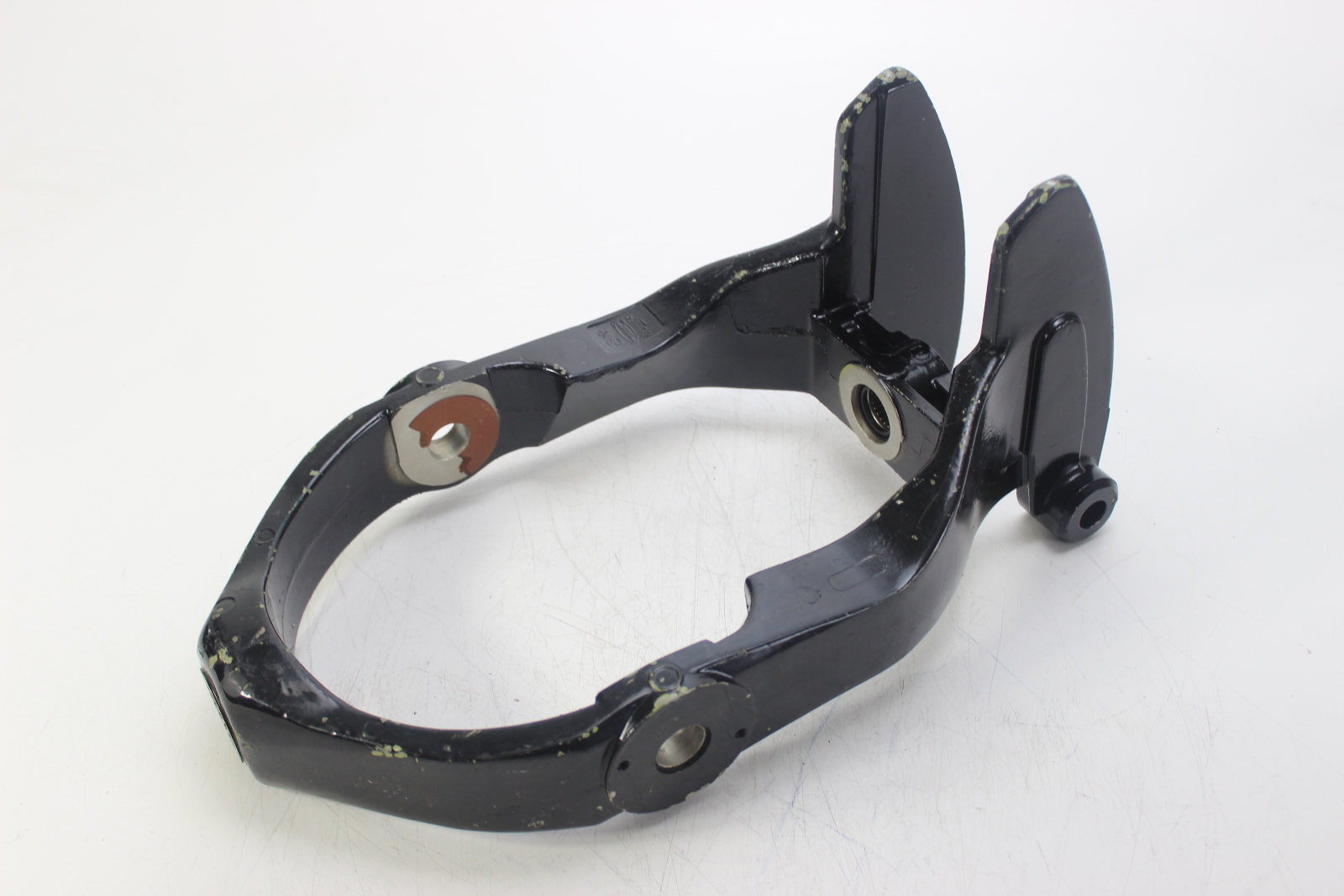

MerCruiser splined gimbal ring for R, MR and early splined Alpha One sterndrives. Professionally inspected, excellent working condition.
________________________________________________________________________________________________________________________
PART NUMBERS:
- Current OEM Kit: 88302A1 (supersedes both below)
- Superseded: 77124A2
- Original: 65534A2

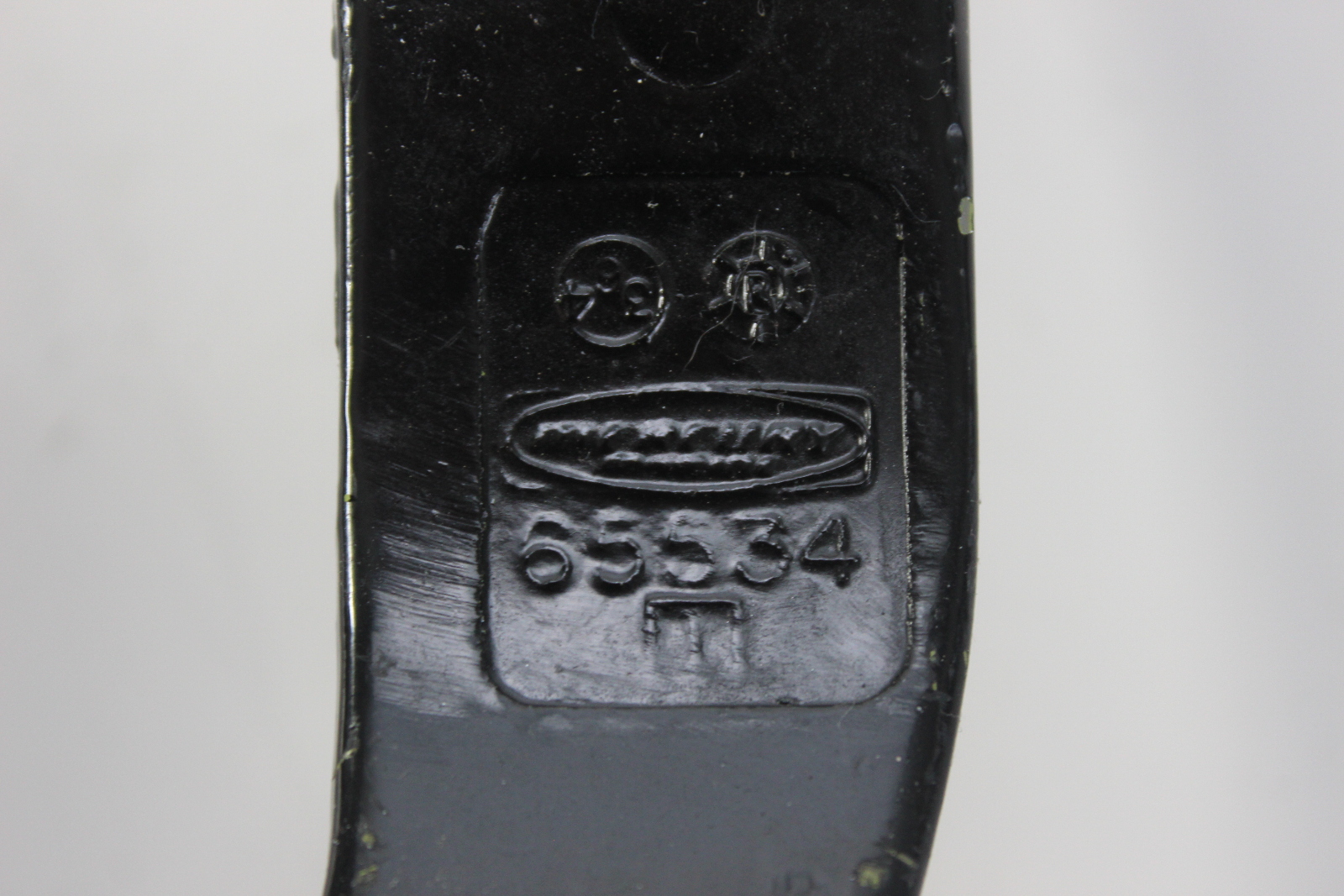

The casting number on this is 65534
________________________________________________________________________________________________________________________
CONDITION:

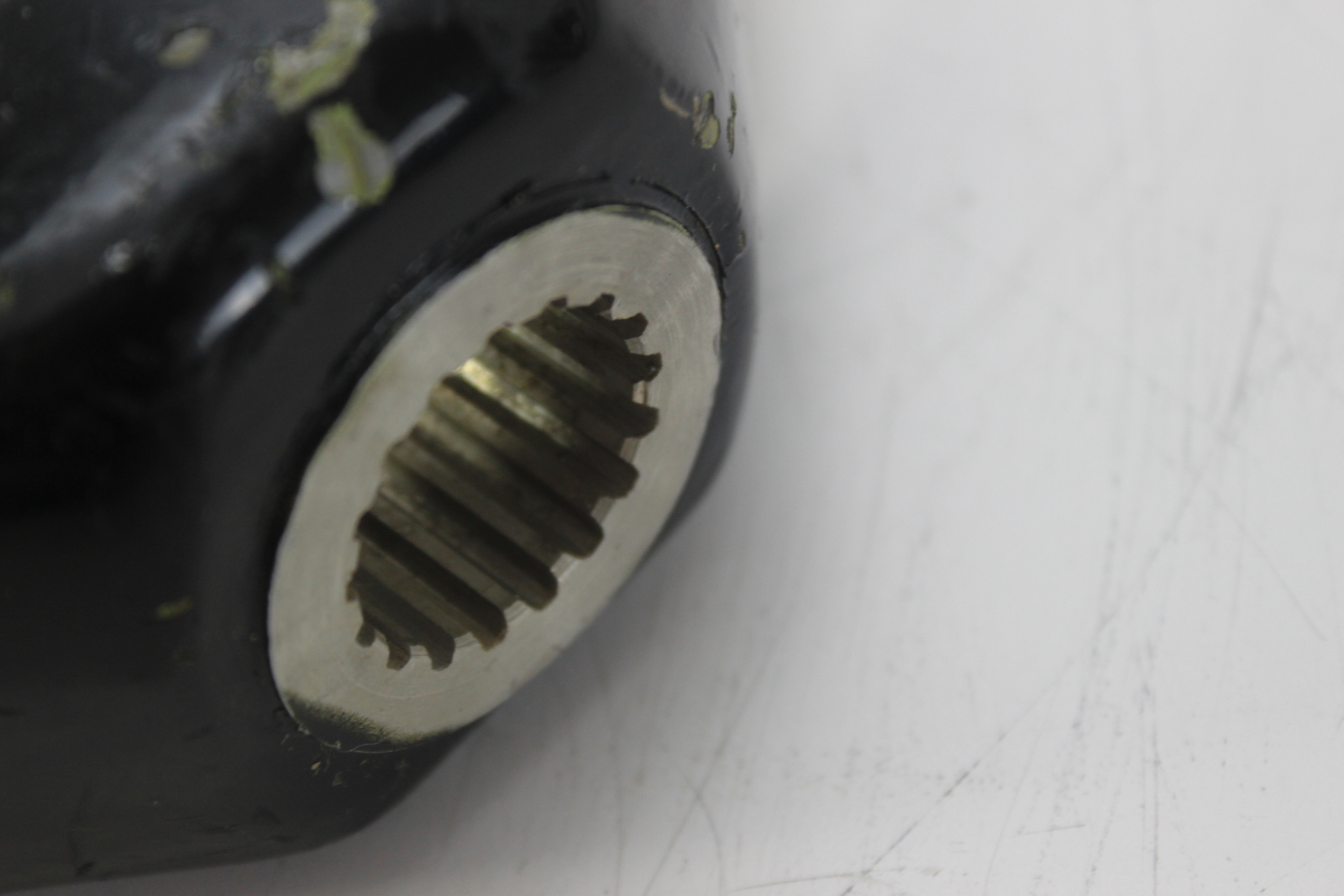

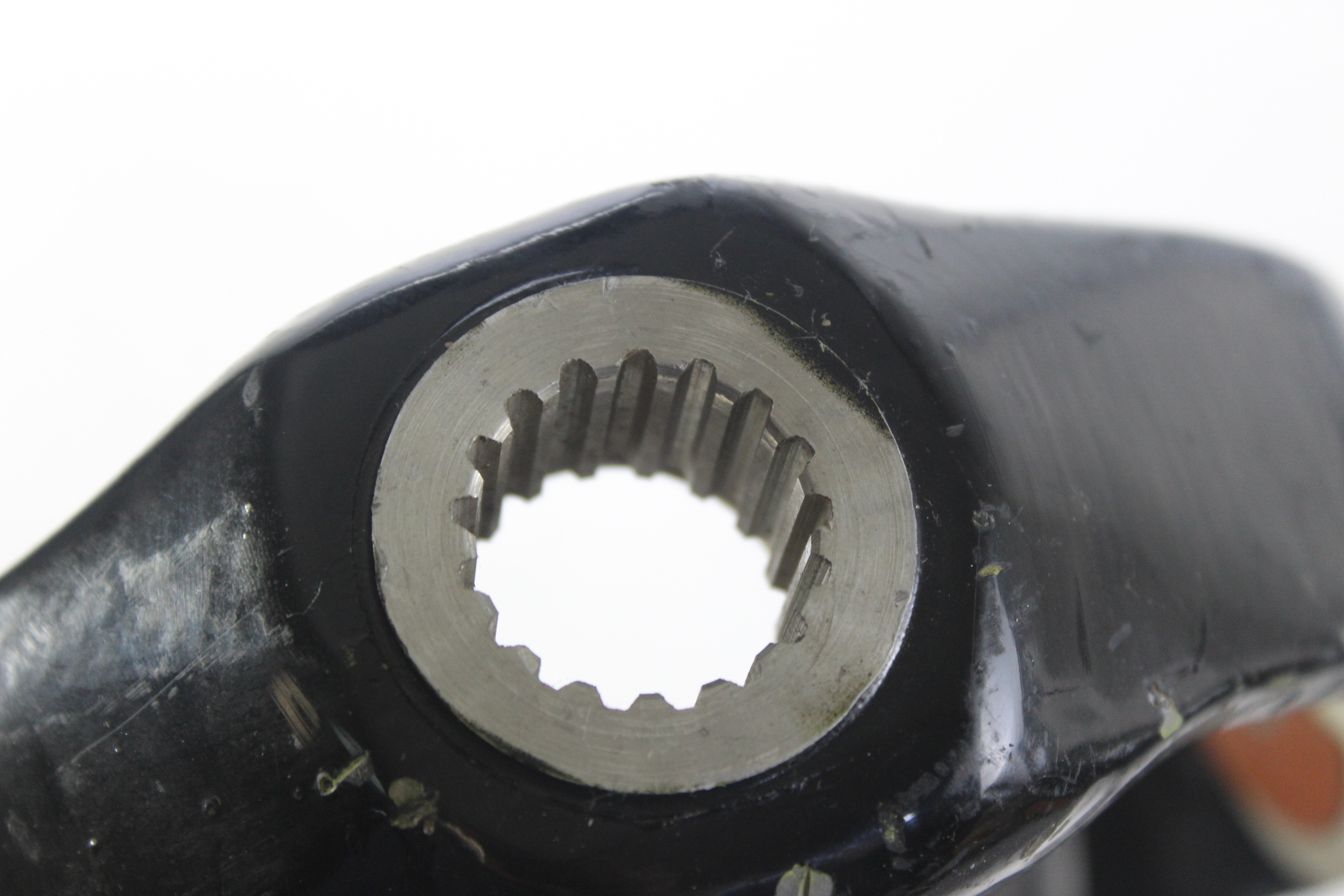

- Splined upper steering shaft hole — confirmed splined, not square
- Professionally inspected, no cracks, no visible damage
- Scuffs and minor wear consistent with a used piece, no impact on function
- Splines are clean and tight. They are undamaged.

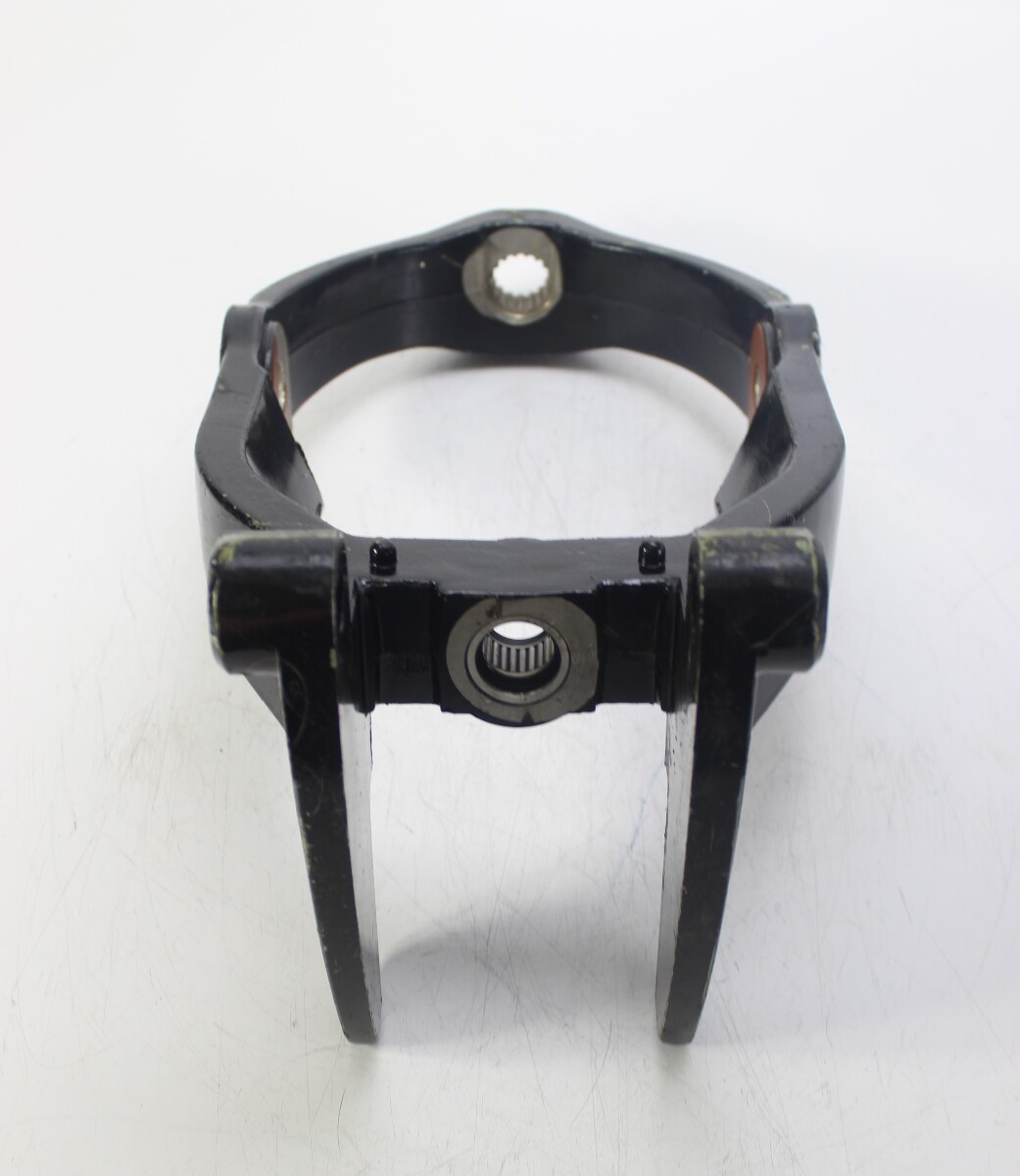

- Bearing inside is good.
________________________________________________________________________________________________________________________
FITMENT:
- 1974-1991 MerCruiser Pre-Alpha R, MR, and early Alpha One Gen 1 sterndrives
- 120, 140, 165, 225, 233, 260, 470, 485, 898 HP engines
- SPLINED ONLY — will NOT fit square-hole upper steering shaft units. MerCruiser transitioned from splined to square starting at I-Drive serial 5490562 and V8 I-Drive serial 5472161. Some units continued to use splined past that point. Confirm your existing gimbal ring has a splined hole before ordering.
- Does NOT fit Alpha One Gen II (1992 and newer) — different design, parts not interchangeable.
________________________________________________________________________________________________________________________
RETURNS:
No returns on this item for incorrect order or change of mind. Guaranteed to arrive in working condition — contact us if there are any issues. Please be absolutely sure this is correct for your drive before purchasing.
________________________________________________________________________________________________________________________
DISCLAIMER:
We are using various web resources to cross-reference and describe our parts. These are not always 100% accurate but accurate to the best of our knowledge. Please verify by model or serial number before purchasing. If you are unsure, please contact us and we will be happy to help.
