NEW OEM Yamaha 2004-2022 20" Lower Unit 150 175 200 HP 1 YEAR WARRANTY

$2,200.00

DetailsShipping

Brand: Yamaha
Size: 150 175 200 HP

Color: Gray
Style: 20" Driveshaft - 4 stroke - 14/13 splines
Condition: New Other
Notes: New Take Off

SKU: 52614 LRU
Manufacturer Part Number: 63P-45300-01-8D 63P-45300-07-8D 63P-45300-06-8D
Country of Manufacture: Japan
Motor & Engine Type: Yamaha
Part Type: Motors, Engines & Components
Other Part Number: 63P-45300-05-8D 63P-45300-04-8D 63P-45300-03-8D
Surface Finish: Painted, Gray
Inventory Number: 52614 LRU
Website Category: Lower Units
Website Sub Category: Complete Lower Units
UPC: N/A

Shipping: $75.00

Part Number

63P-45300-01-8D

Additional Info

New take off, unit was replaced with a jet drive unit
Unit has been drained and pressure checked
Driveshaft measures 20-1/2" from key way to end of shaft

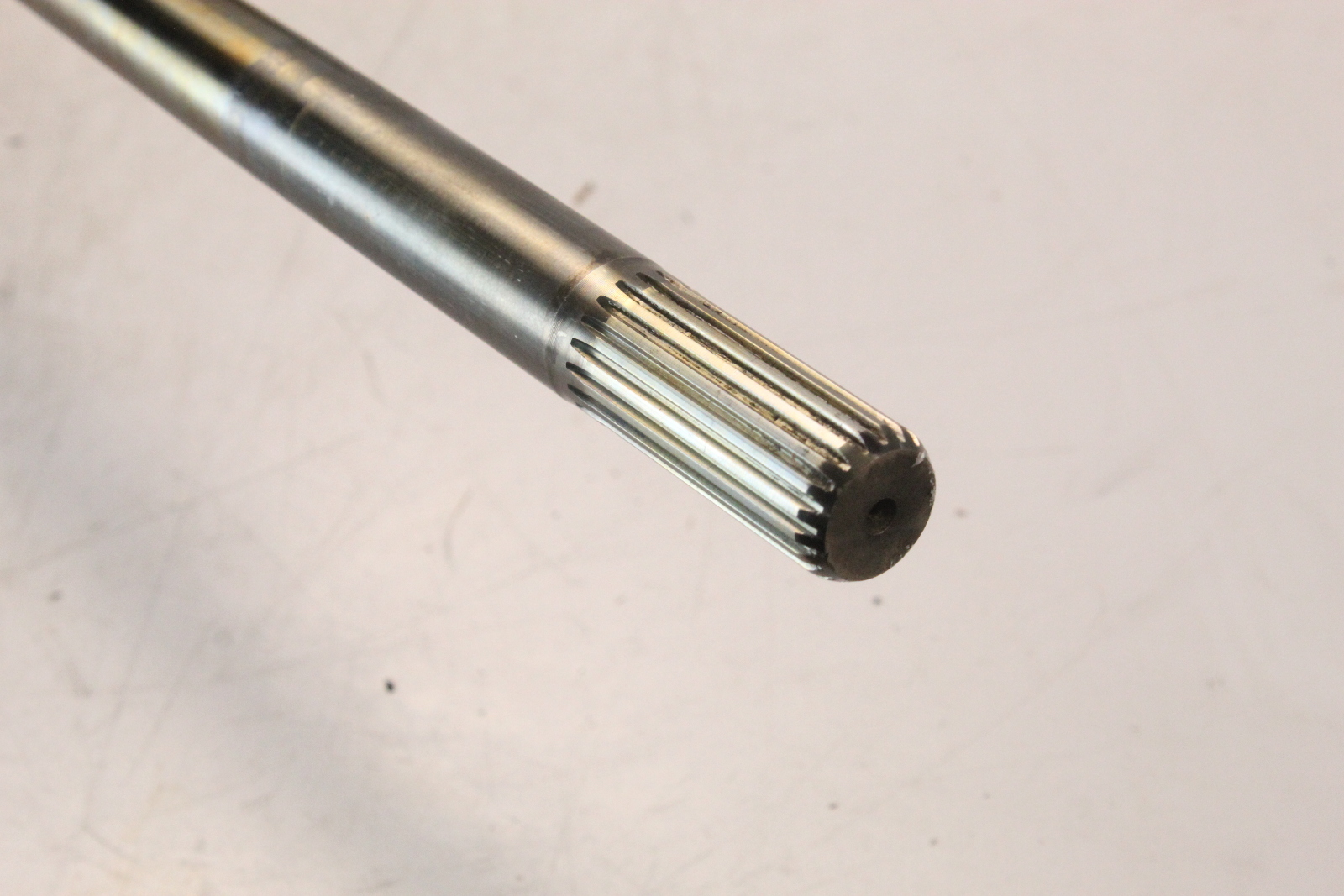

20 Splines on driveshaft

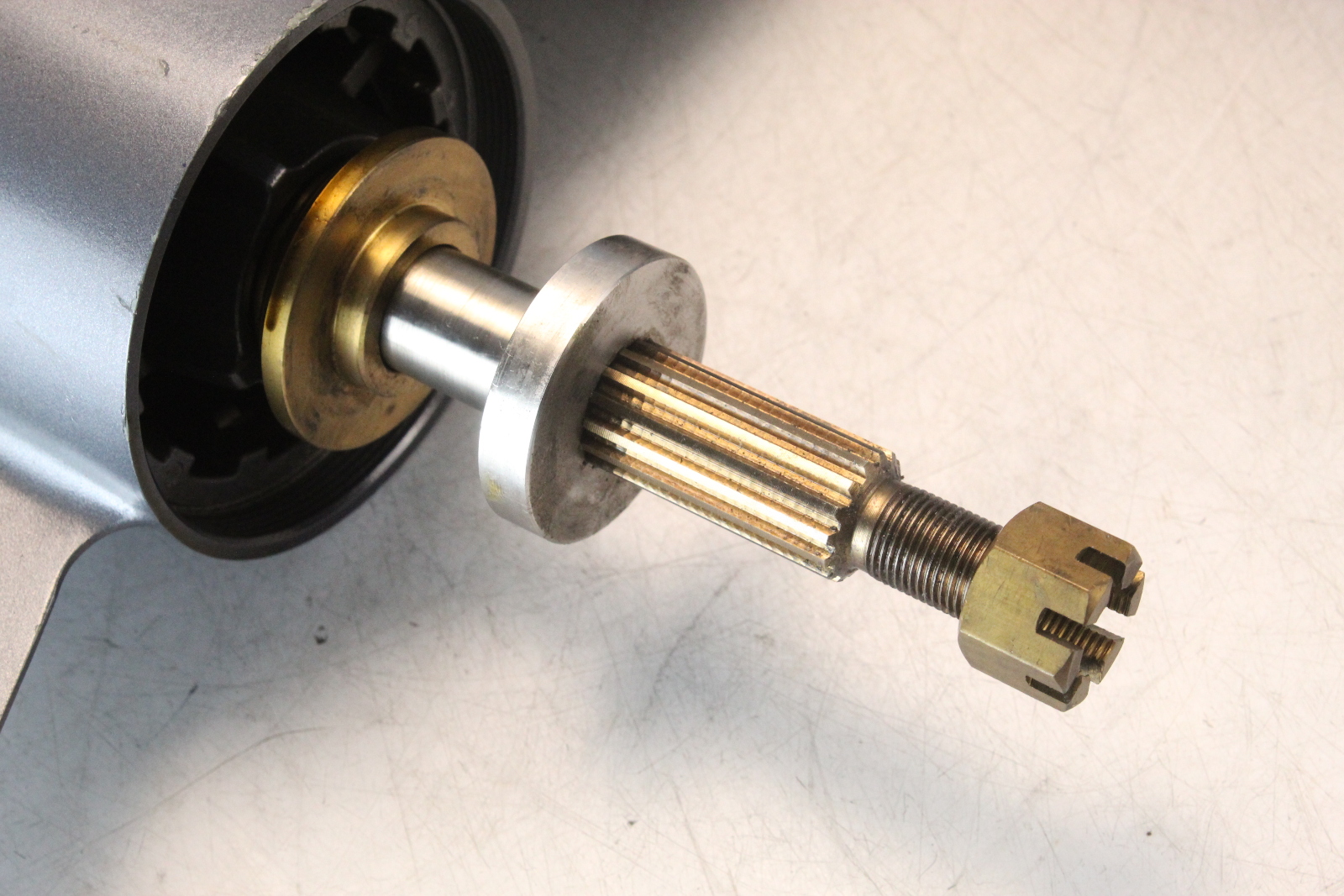

15 splines on prop shaft
Waterpump is missing and will need replaced
Unit shifts and spins with no binding
Paint has light scratches from storage

Please note that we have to drain this unit of all oil prior to shipping and you will need to add oil prior to use. We do not accept returns for lower units that did not have oil added prior to use.

General Information

New Takeoff
Driveshaft measures 20-1/2" from keyway to top of the driveshaft
Pressure checked to 12 PSI minimum
Shafts checked for straightness
1 year mechanical warranty (warranty work will be provided by Southcentral Outboards).

This lower unit qualifies for a 1 year warranty. The warranty is validated by your core. In order to qualify for this, you must send in that core. Both shafts must spin and it must be complete. We will send a label for you to return your core in our box after receipt of the unit you’ve purchased. If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price. If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

Fits:

2004-2022 - 150 175 200 HP 4 Stroke

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
