$185.00
- Brand: Johnson Evinrude
- Size: 88 90 100 115 120 125 130 140 185 200 225 250 300 HP
- Style: 20" - V4 V6
- Condition: Used
- SKU: 26-61249 SWB
- Manufacturer Part Number: 434691 434164 5009615 336505 336506 351921
- Country of Manufacture: United States
- Motor & Engine Type: Johnson Evinrude
- Part Type: Motors, Engines & Components
- Other Part Number: 351922 339305 340006 327051 C# 337583
- Warranty: 1 Year
- Inventory Number: 26-61249 SWB
- Website Category: Midsection
- Website Sub Category: Swivel Brackets
- Shipping: $40.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

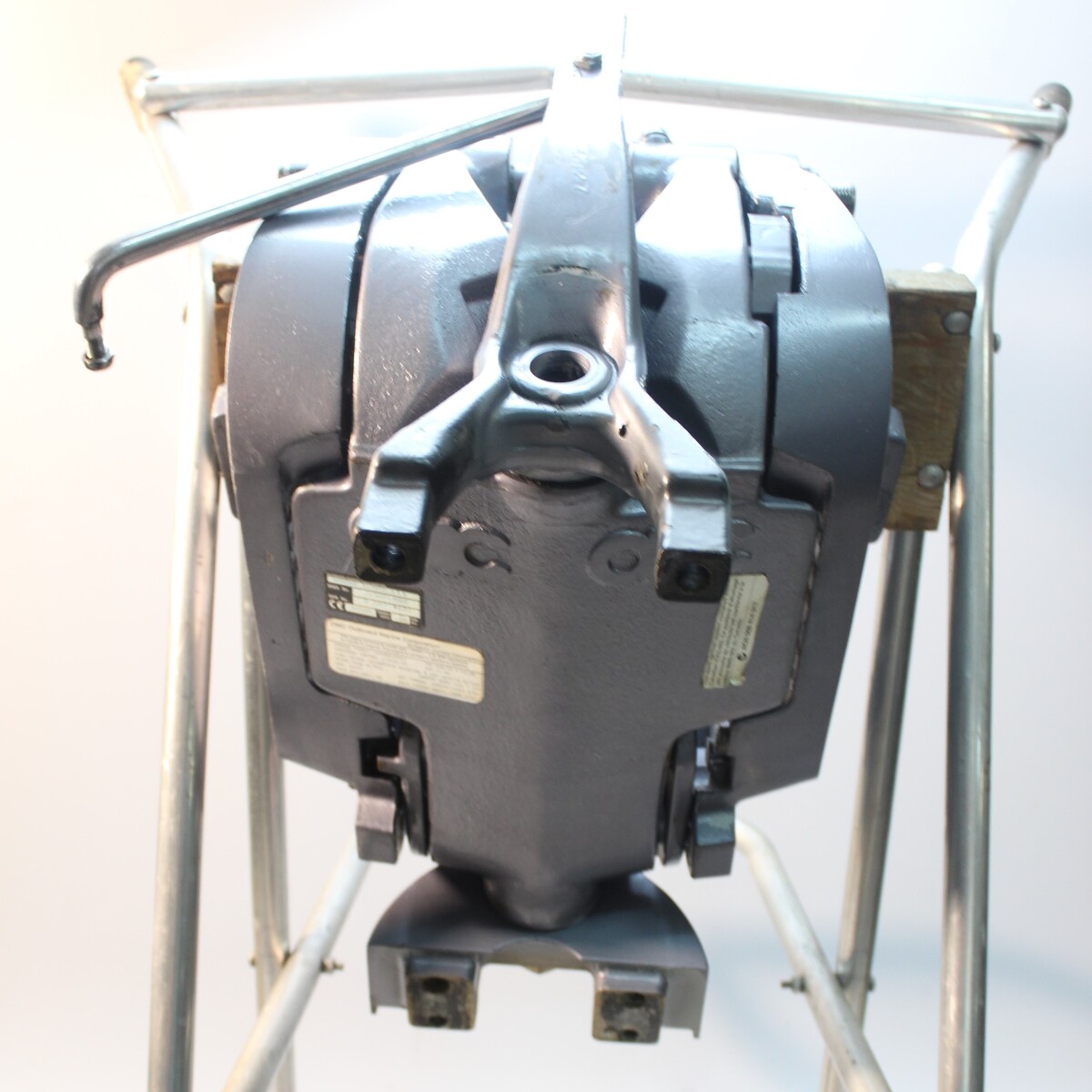

Johnson Evinrude Complete Swivel Assembly
Part Numbers
◆ Swivel Bracket: 434691
◆ Steering Arm: 434164 ◆ 5009615
◆ Stern Bracket STBD: 336505 ◆ 351921
◆ Stern Bracket Port: 336506 ◆ 351922

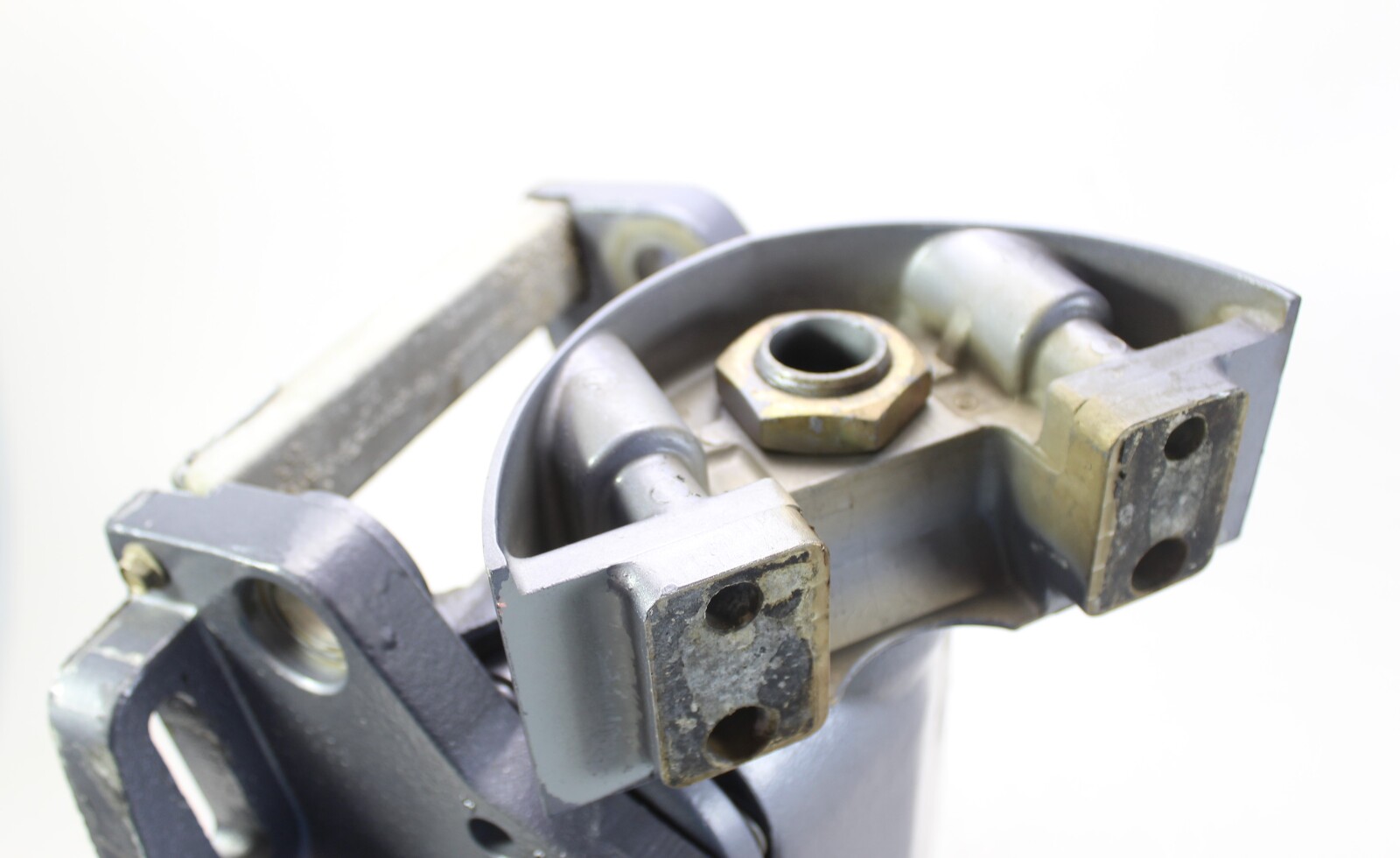

◆ Mount Bracket: 339305 ◆ 340006 ◆ 327051

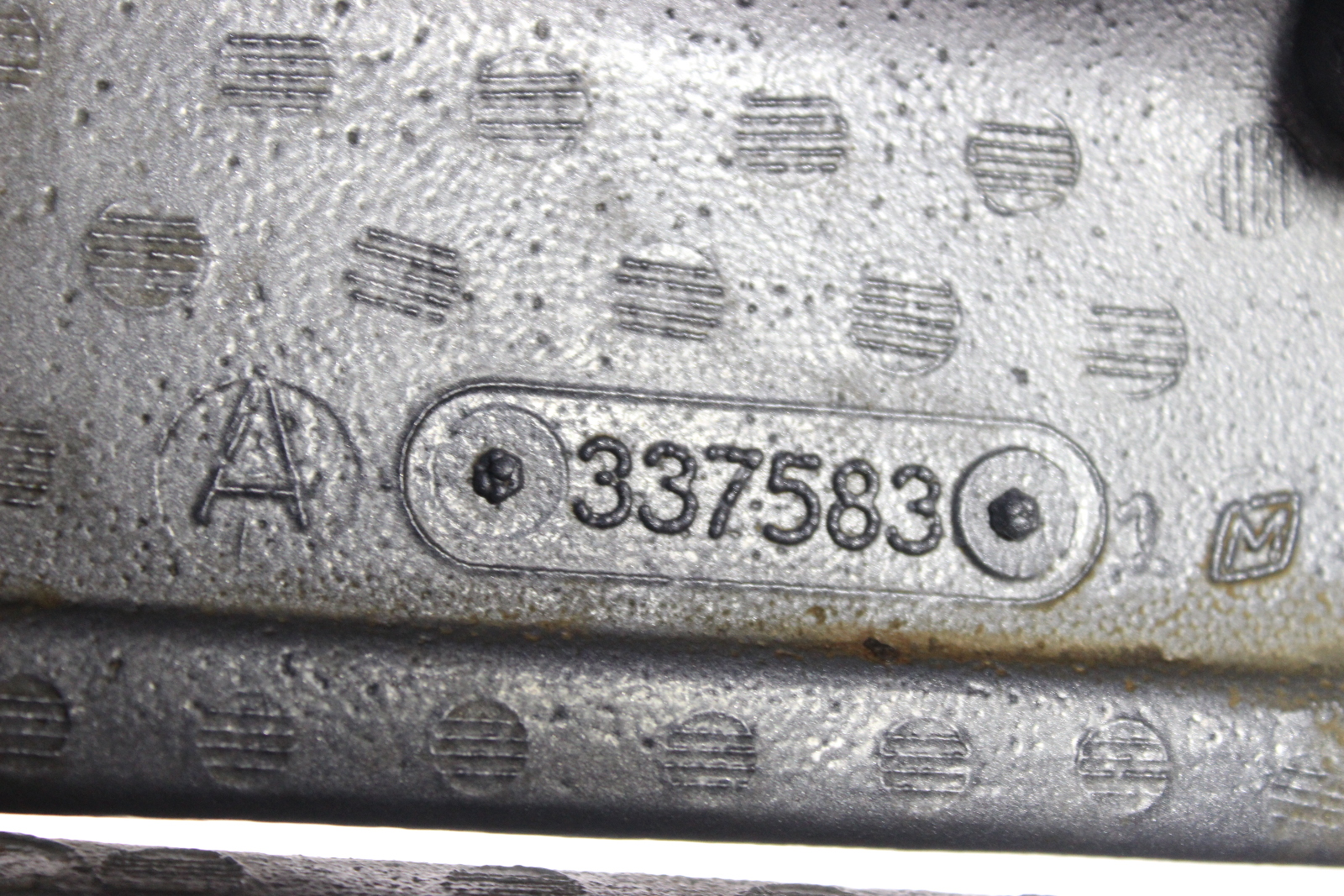

◆ Casting: C# 337583
What’s Included

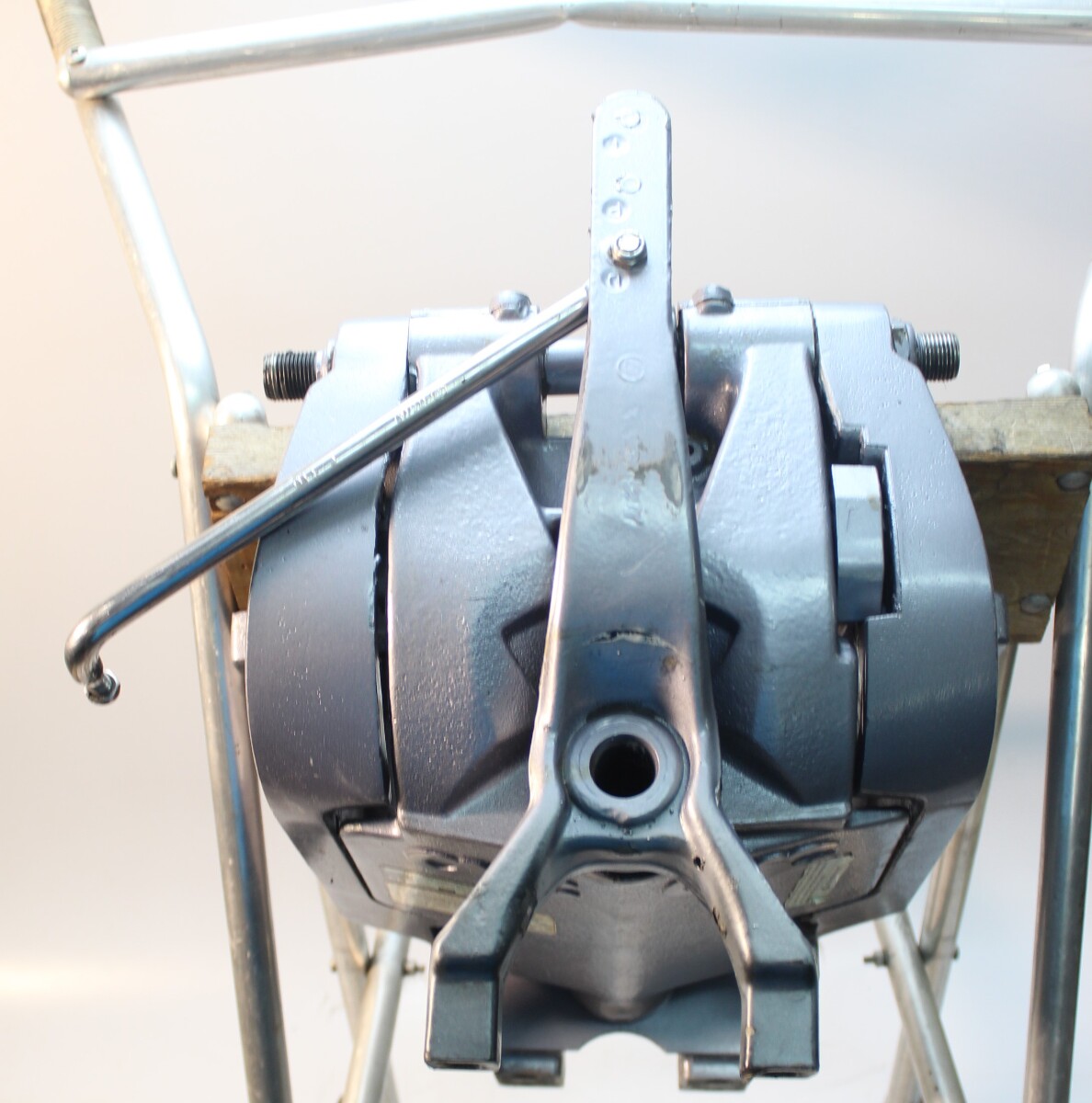

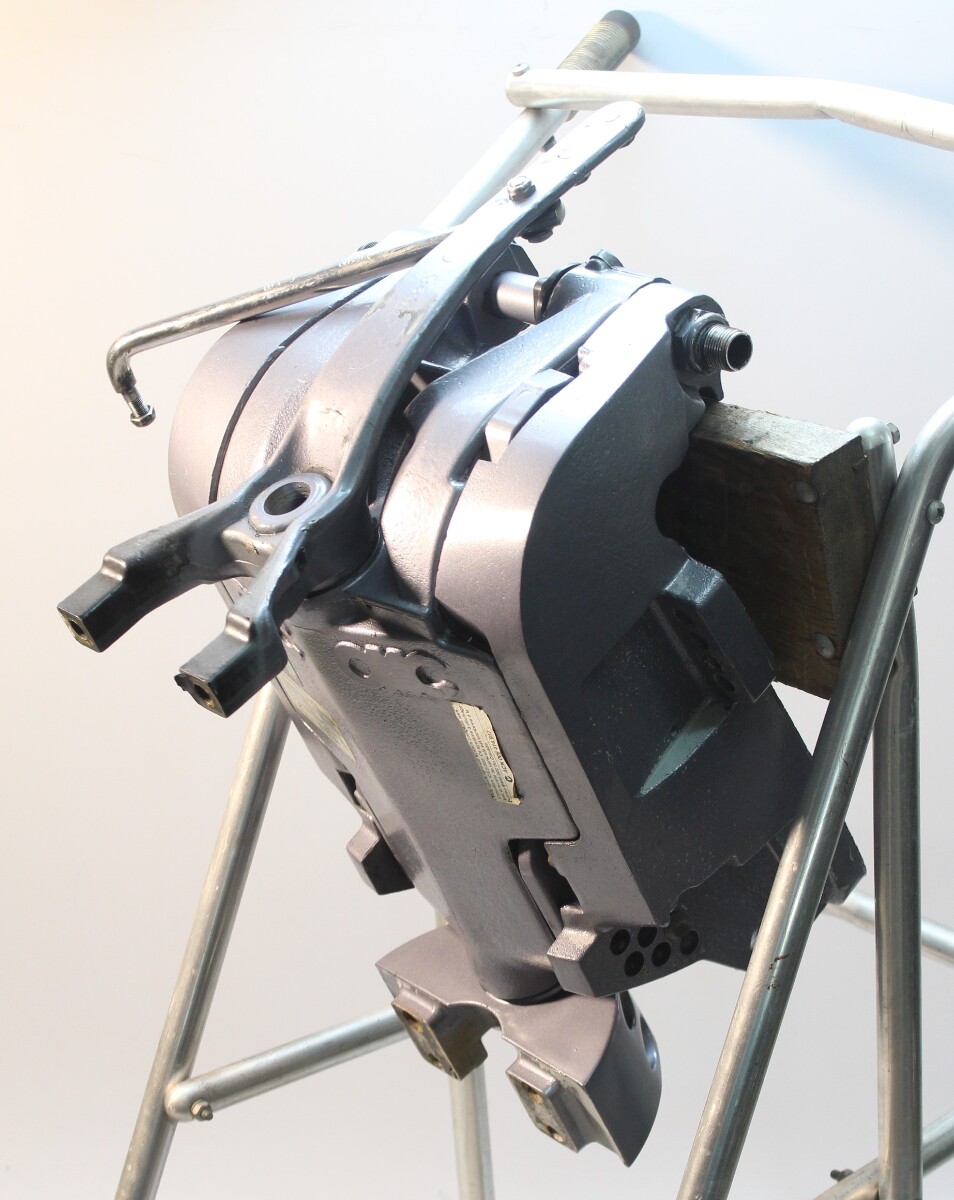

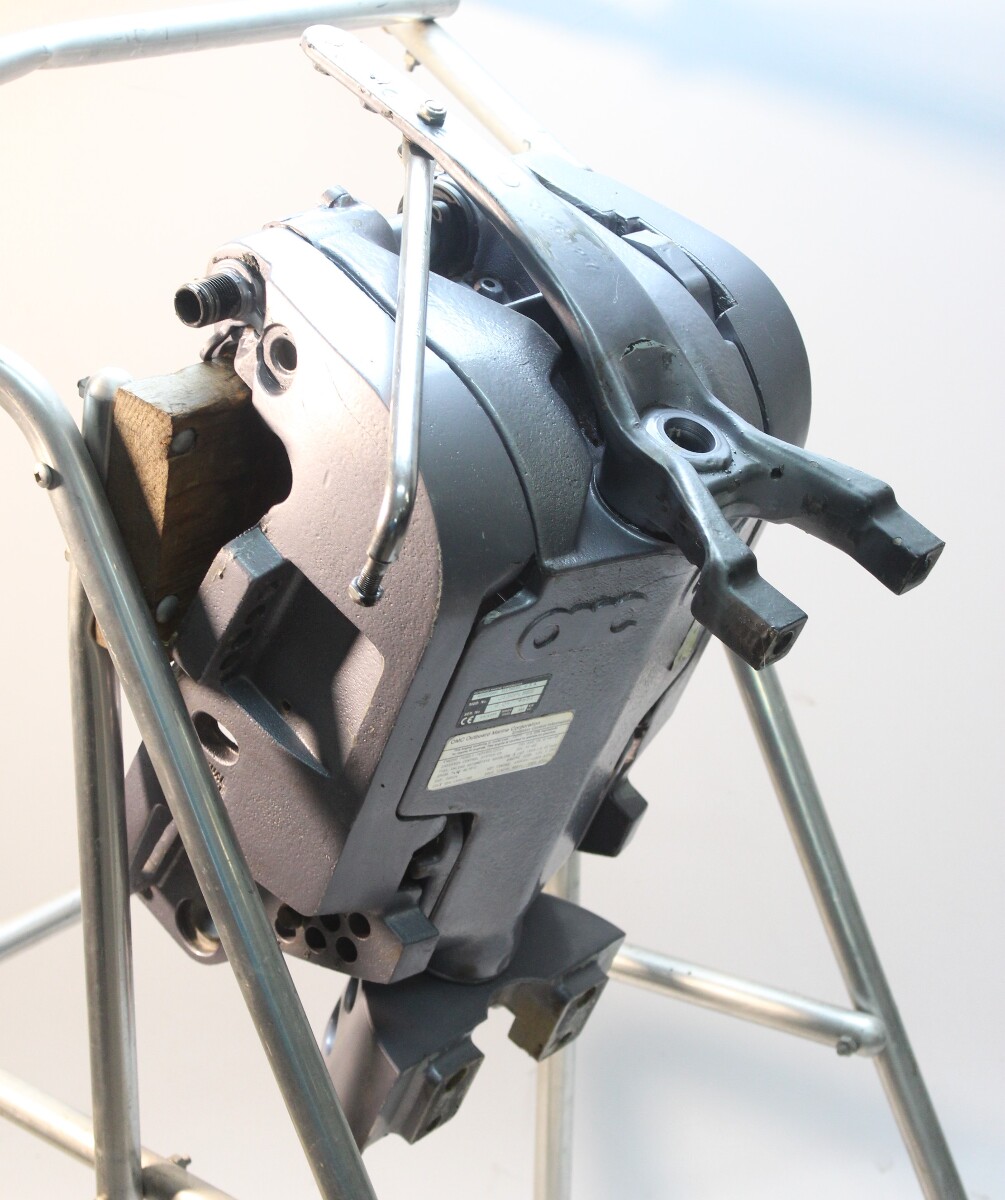

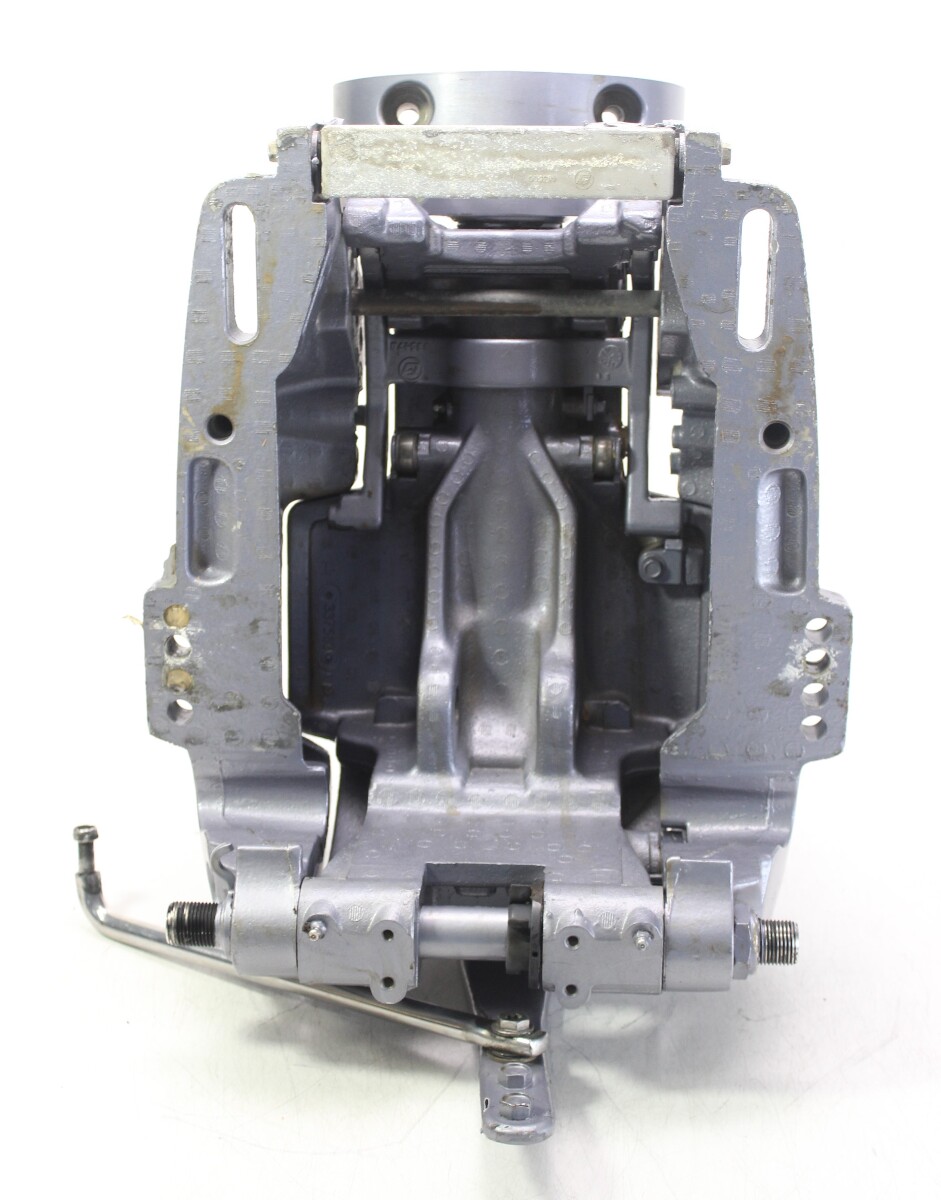

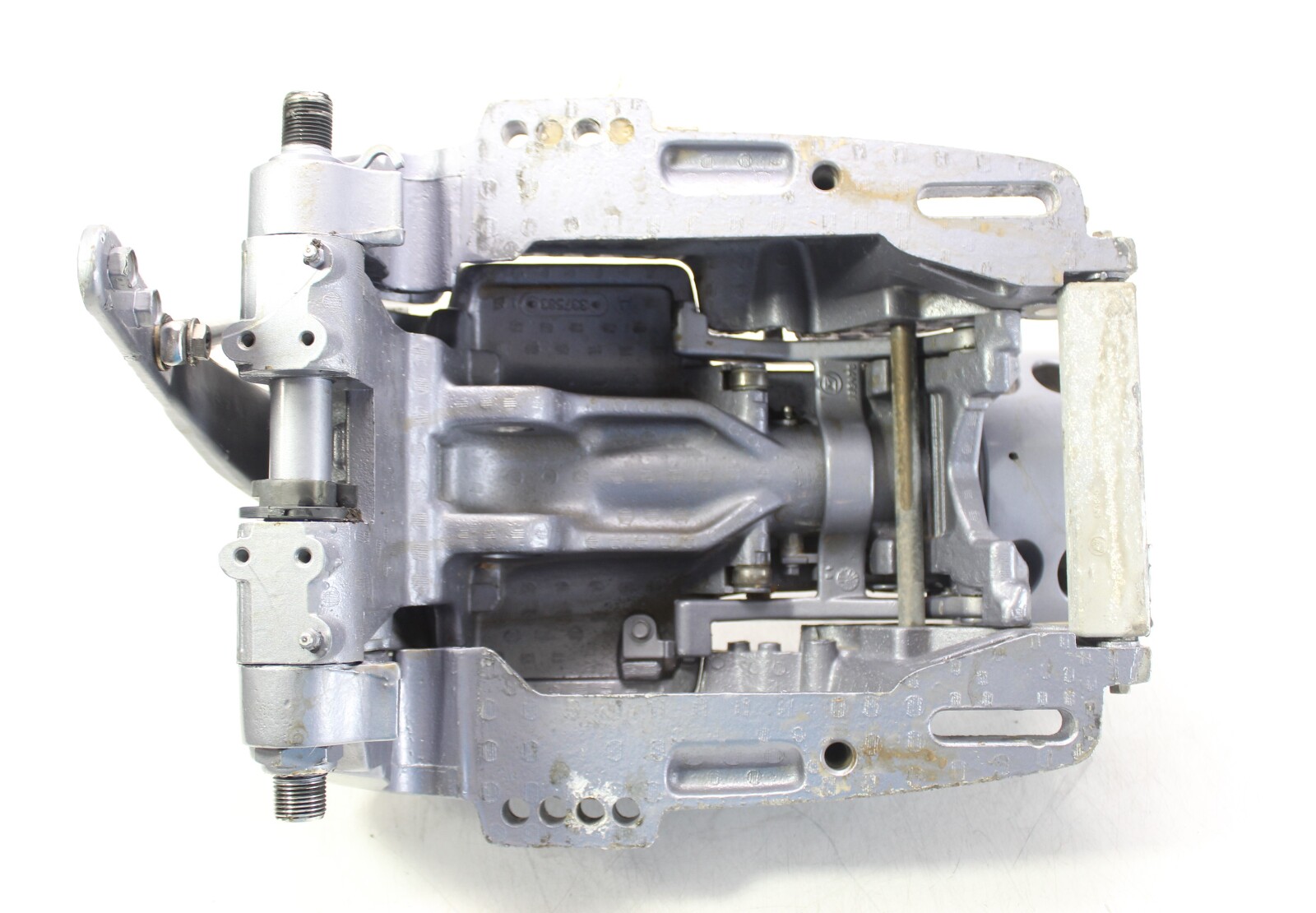

◆ Complete swivel bracket with steering arm, both stern/transom brackets, and the mount bracket — all shown
Condition
◆ Full range of motion, no hesitation

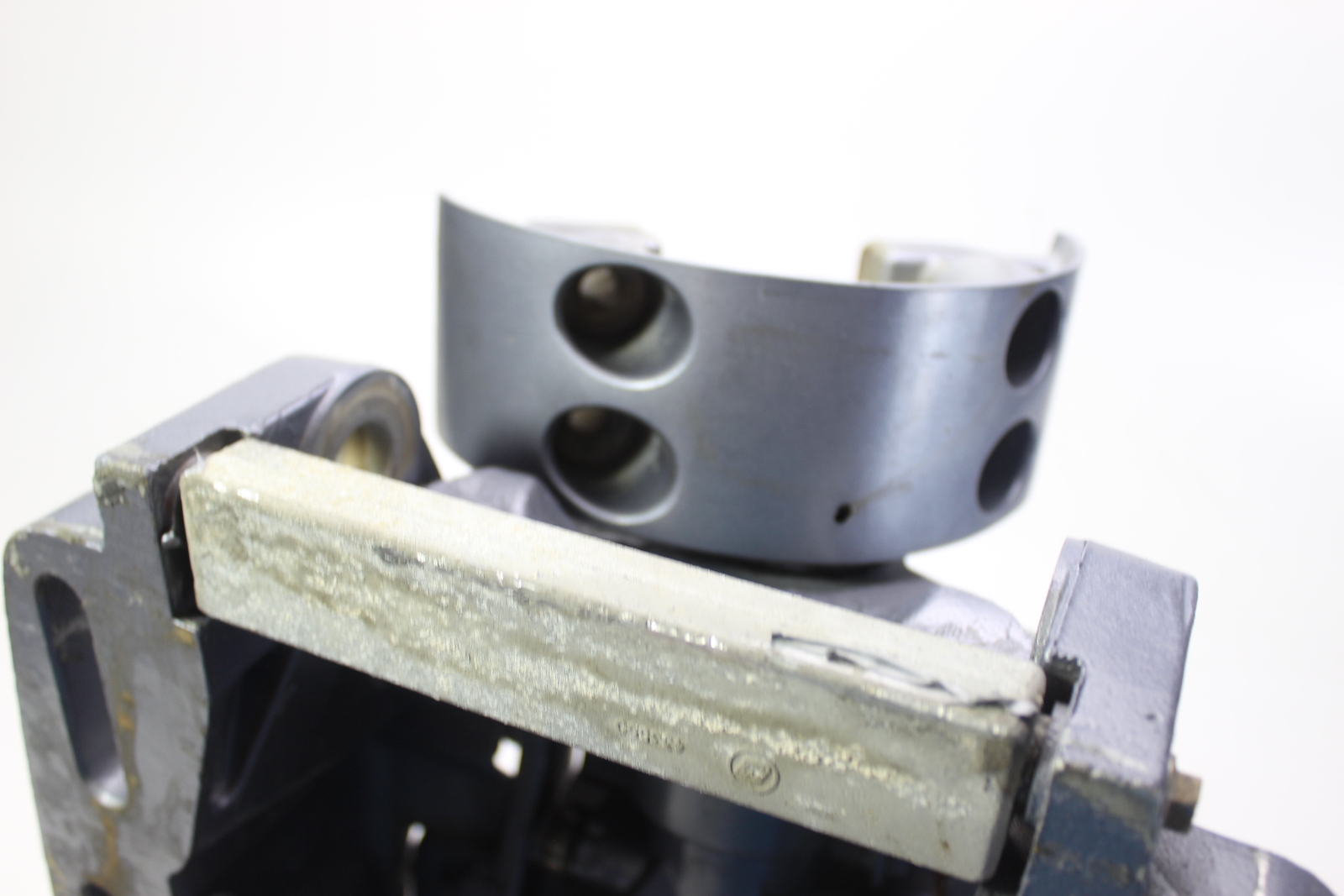

◆ Tilt tube good — pins and bushings present, wear OK
◆ Brackets straight — hardware present
◆ Will come as pictured
Fitment
Years: 1991-2012
Models: 1991-2000 Johnson Evinrude 120 125 130 140 HP — 90° V4, 20" transom
Models: 1991-2012 Johnson Evinrude 185 200 225 250 300 HP — 90° V6, 20" transom
Models: 1991-1996 Johnson Evinrude 88 90 100 115 HP — crossflow V4, 20" transom (some of these still used the older arm 392518 — match your arm number)
Will not fit: 60° V4 90 115 HP or 60° V6 150 175 HP — those use steering arm 433282 or 436982
Note: This is the carbon-steel arm. Evinrude Ficht 20" models from 2000-2003 and later saltwater-edition models came with stainless arm 439471 — this arm fits in its place, but it is steel, not stainless

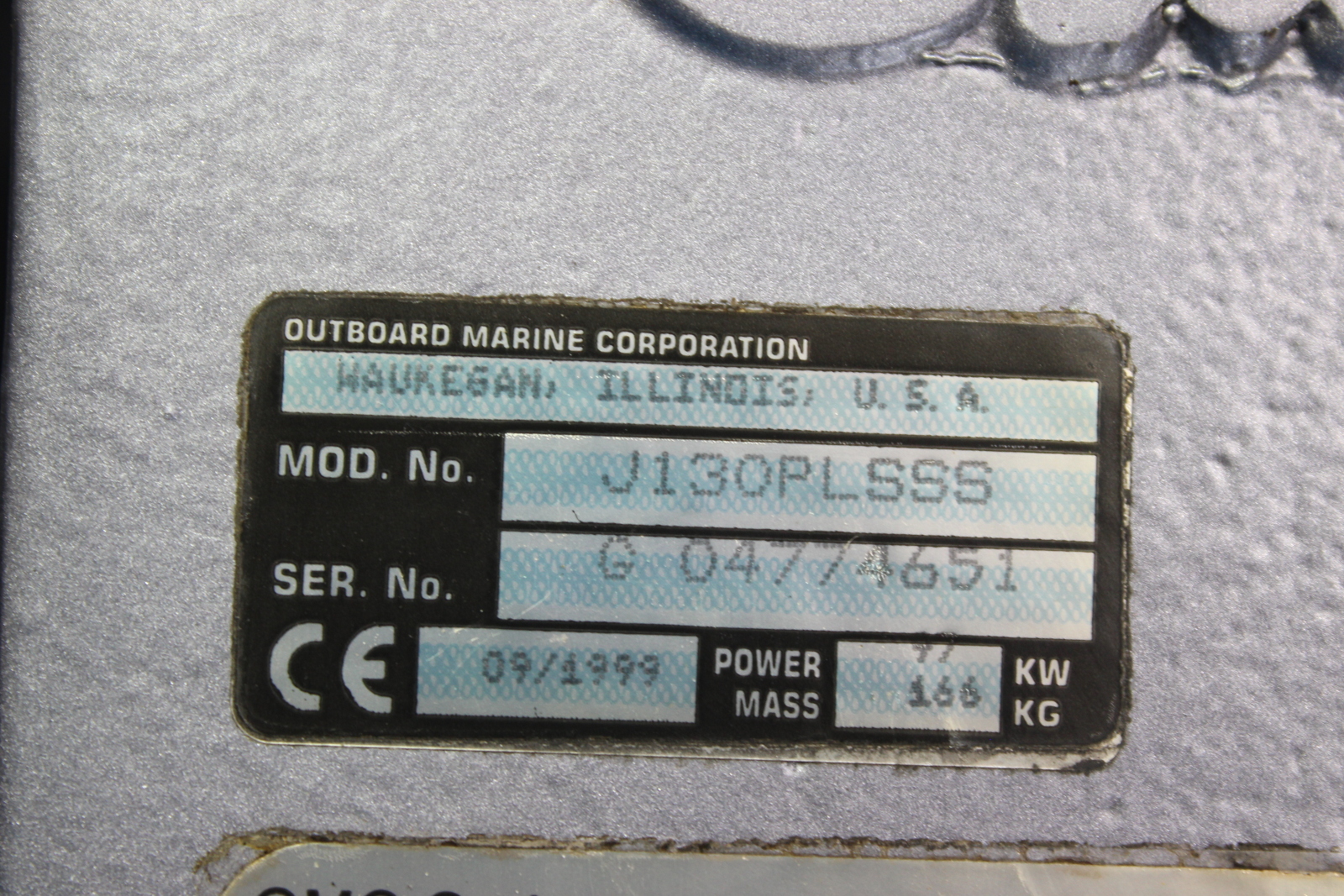

Donor: 2000 Johnson Evinrude 130 HP (J130PLSSS)
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer’s responsibility — match the part number to your motor before purchasing and contact us if you need help.
|
