- Brand: Yamaha
- Size: 200 225 250 HP
- Color: Gray
- Style: 20" - 4 stroke - V6 - Bolt in Style Carrier
- Condition: Used
- Notes: 20 inch - Fully Resealed & New Impeller - 1 Year Warranty
- SKU: 52854 LRU
- Manufacturer Part Number: 61A
- Country of Manufacture: Japan
- Motor & Engine Type: Yamaha
- Part Type: Motors, Engines & Components
- Other Part Number: N/A
- Surface Finish: Painted, Gray
- Inventory Number: 52854 LRU
- Website Category: Lower Units
- Website Sub Category: Complete Lower Units
- UPC: N/A
- Shipping: $75.00

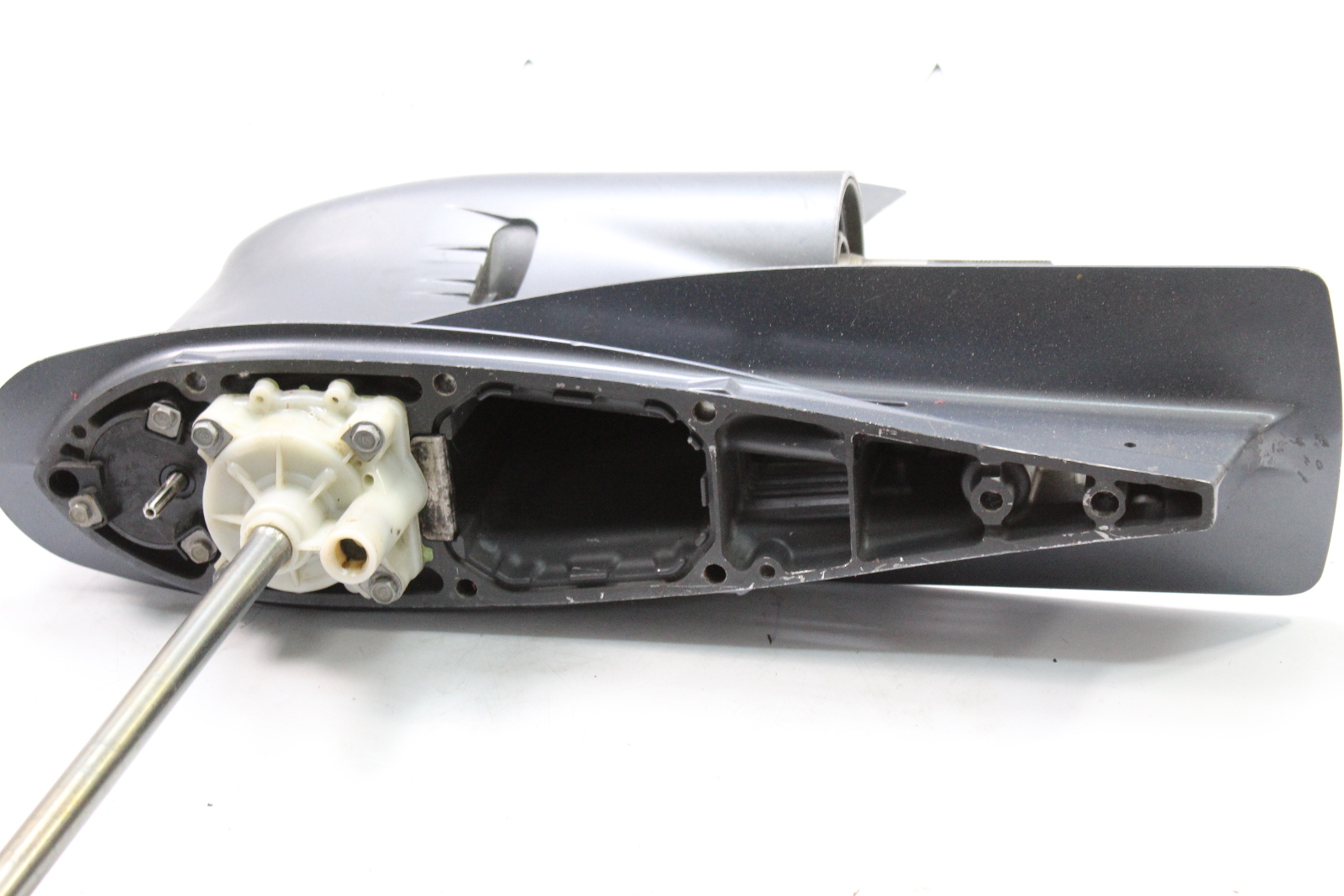

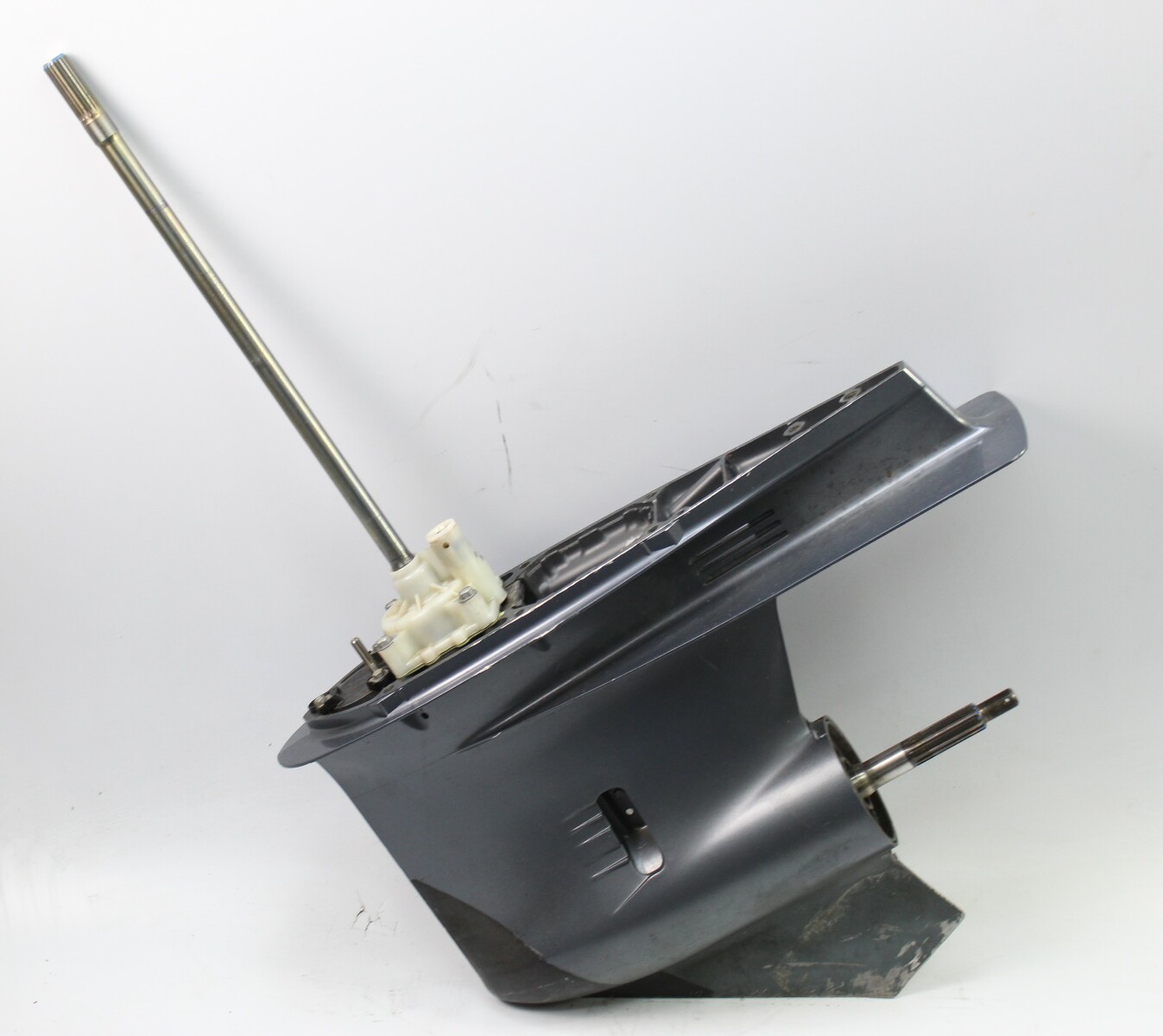

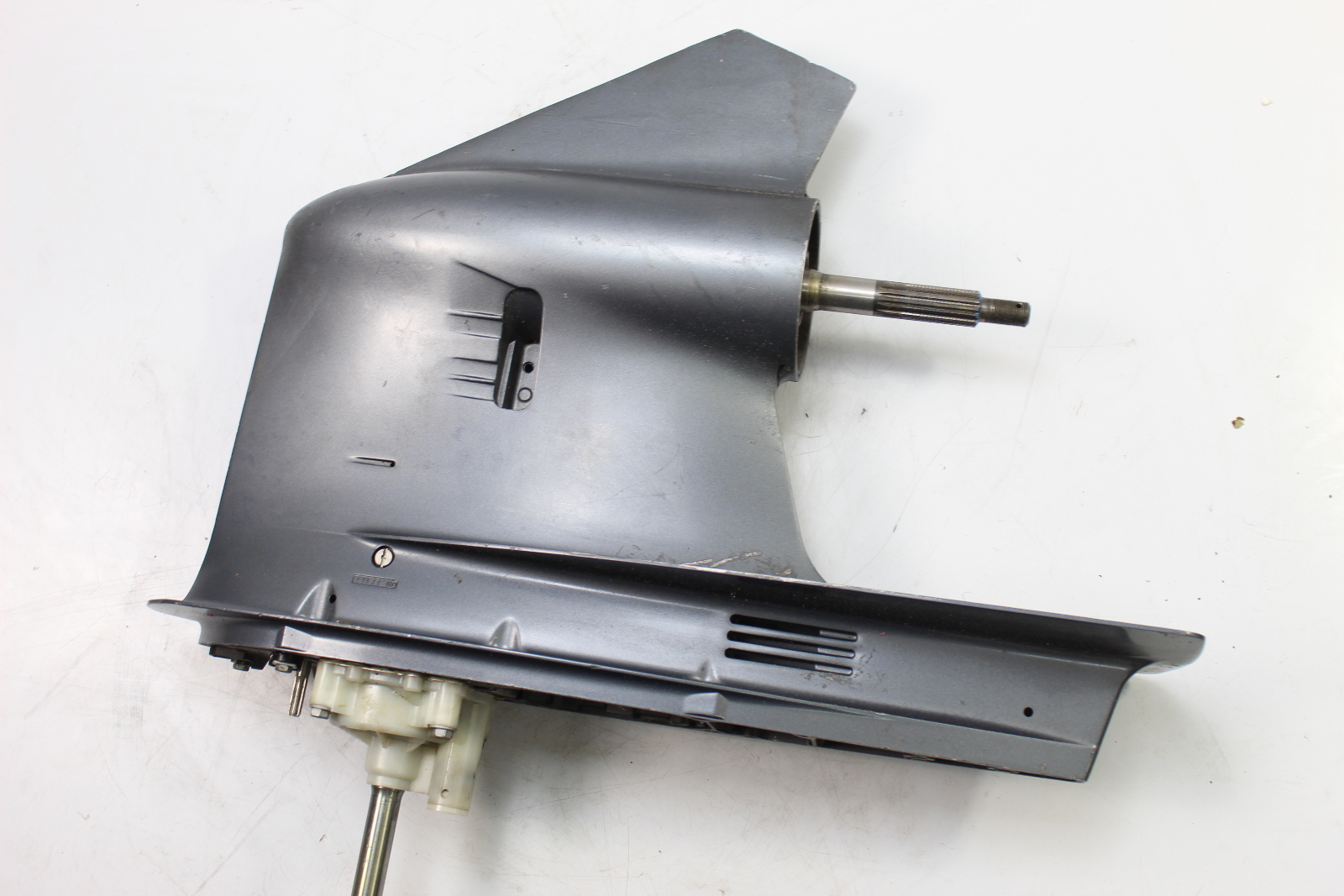

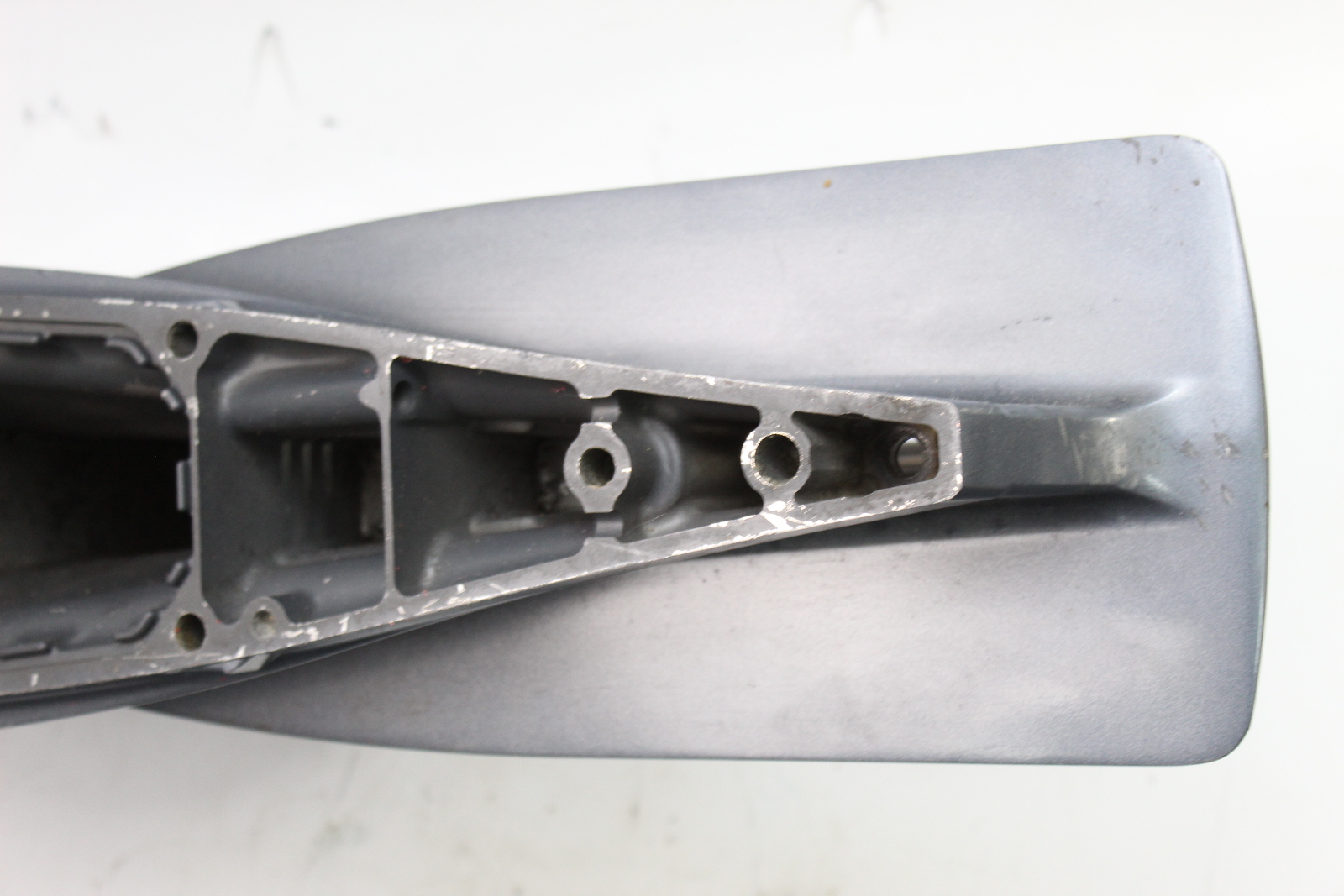

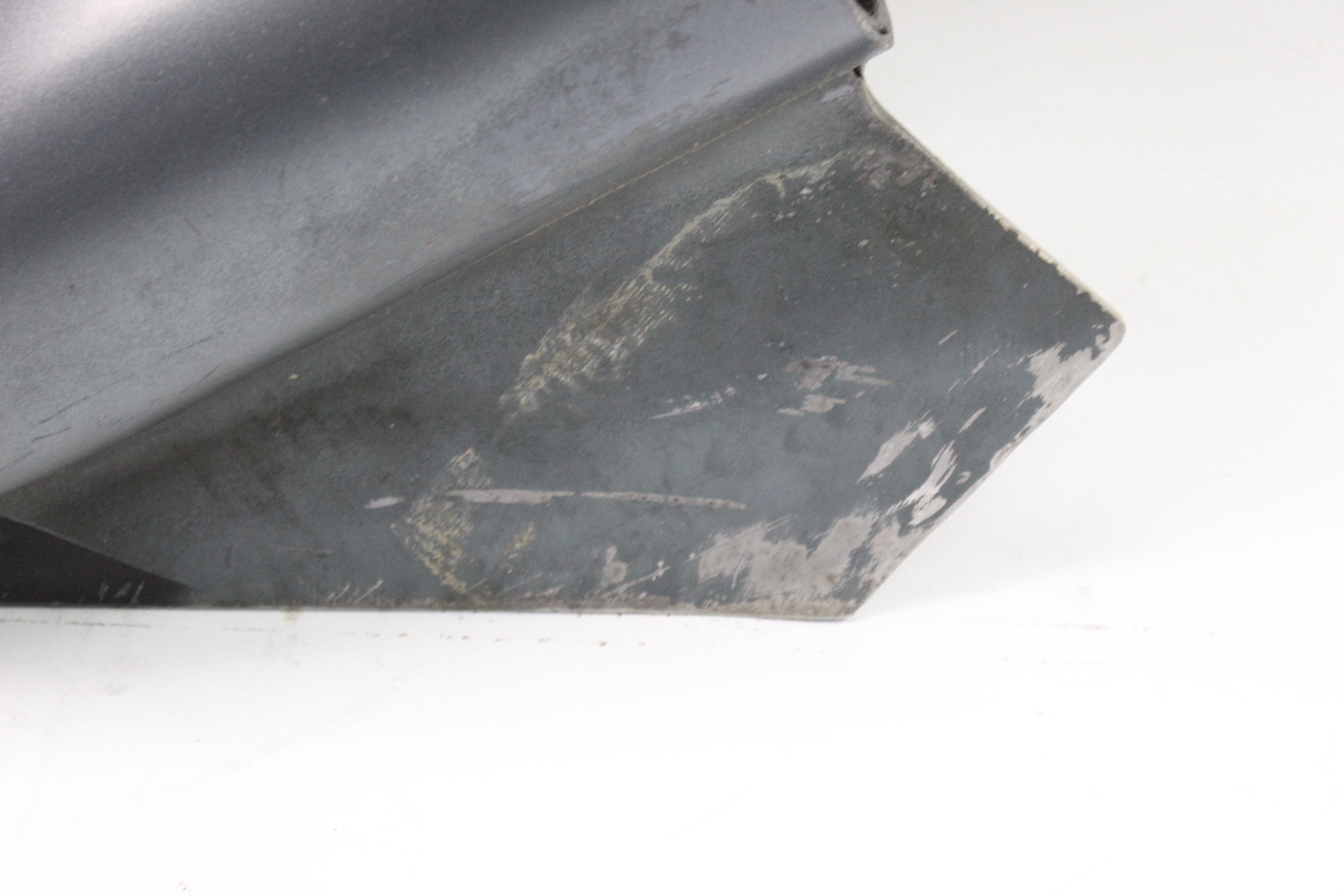

Yamaha 20" Lower Unit 4 Stroke
Yamaha 20" 4 Stroke lower unit for 1990–2009 outboards, 200 225 250 HP. Inspected, serviced, and tested for proper function. Gears are replaced only if bad — good OEM gears are retained.
SPECS
| Driveshaft length: 19-1/2″ | |

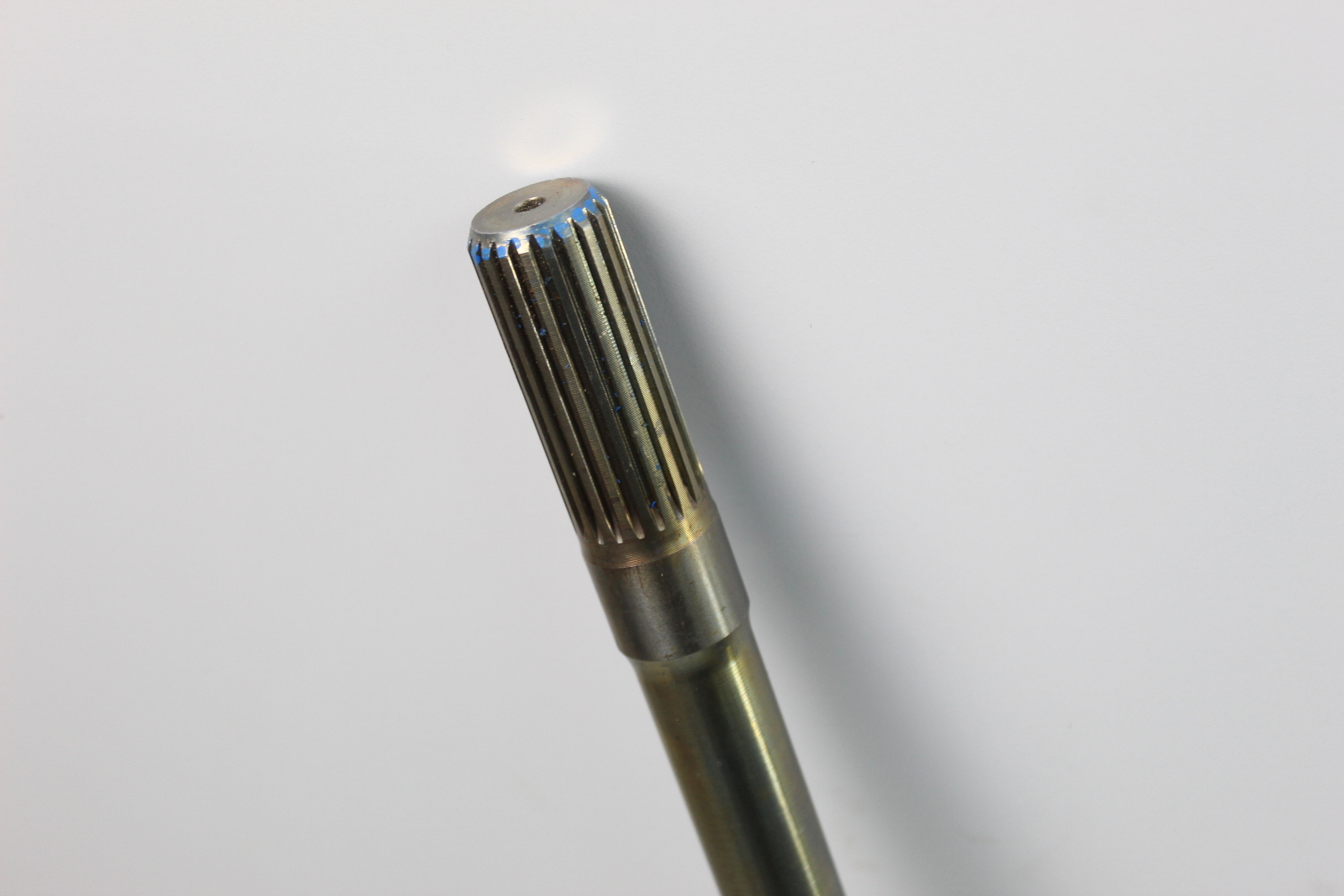

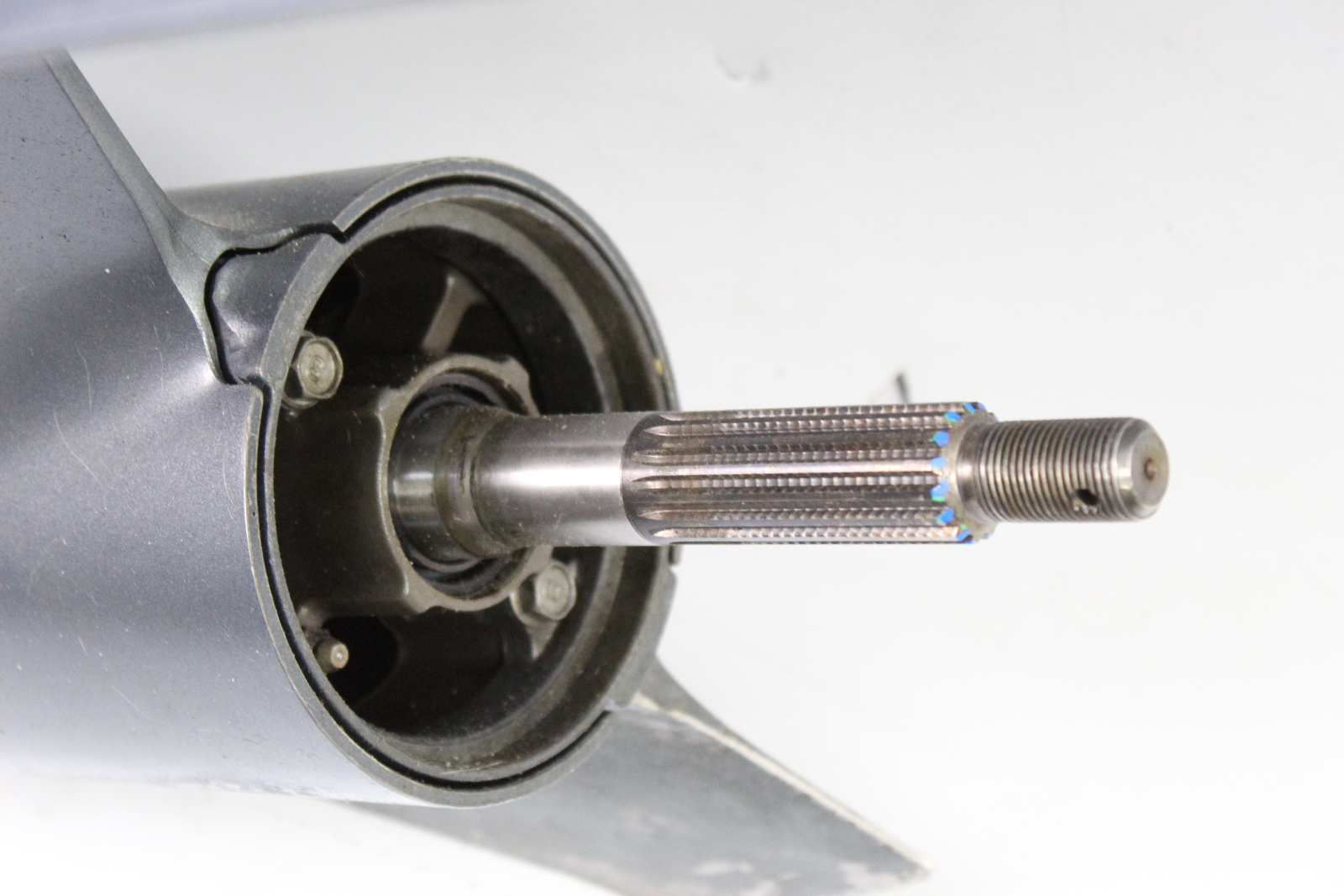

| Driveshaft splines: 20 | Prop shaft splines: 15 |
Driveshaft length measured from the top of the water pump.
WHAT WE DID

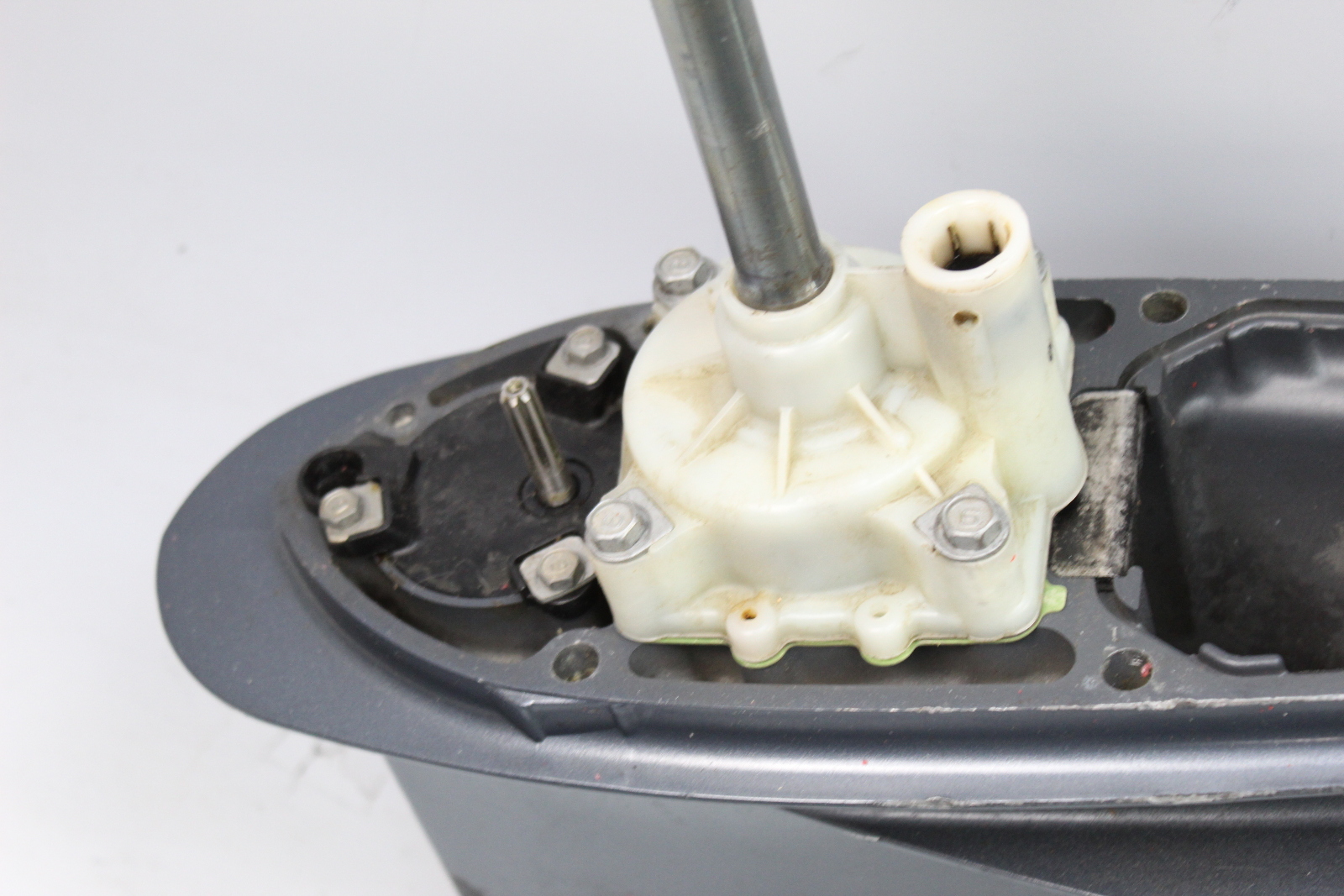

| ❖ Fully resealed ❖ Pressure checked to 12 PSI ❖ New water pump impeller installed | ❖ Driveshaft and prop shaft checked straight ❖ Shifts smoothly through gears |
FITMENT
Yamaha 20"
| Years | 1990–2009 |
| Shaft | 20" |
| Horsepower | 200 225 250 HP |
Verify by model and serial number before purchase to confirm this is the correct unit for your application.
Backed by Southcentral Outboards. Warranty validated by core return — we provide the shipping label. Failures during normal use within the warranty period will be repaired or replaced.
DISCLAIMER
Listing info accurate to the best of our knowledge but not guaranteed. Fitment is the buyer’s responsibility — verify by model and serial before purchase.
