$1,325.00
- Brand: Mercury
- Size: 75 80 85 90 HP
- Style: L3 - 13/15 splines - 2.33:1 - 2 Stroke - 6 Jaw
- Condition: Re-manufactured
- Notes: Fully Resealed & Pressure Checked With New Impeller!
- SKU: 26-71328 LRU
- Manufacturer Part Number: 1667-9011J15 9011G1 9011G57 9011J18
- Inventory Number: 26-71328 LRU
- Shipping: $75.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

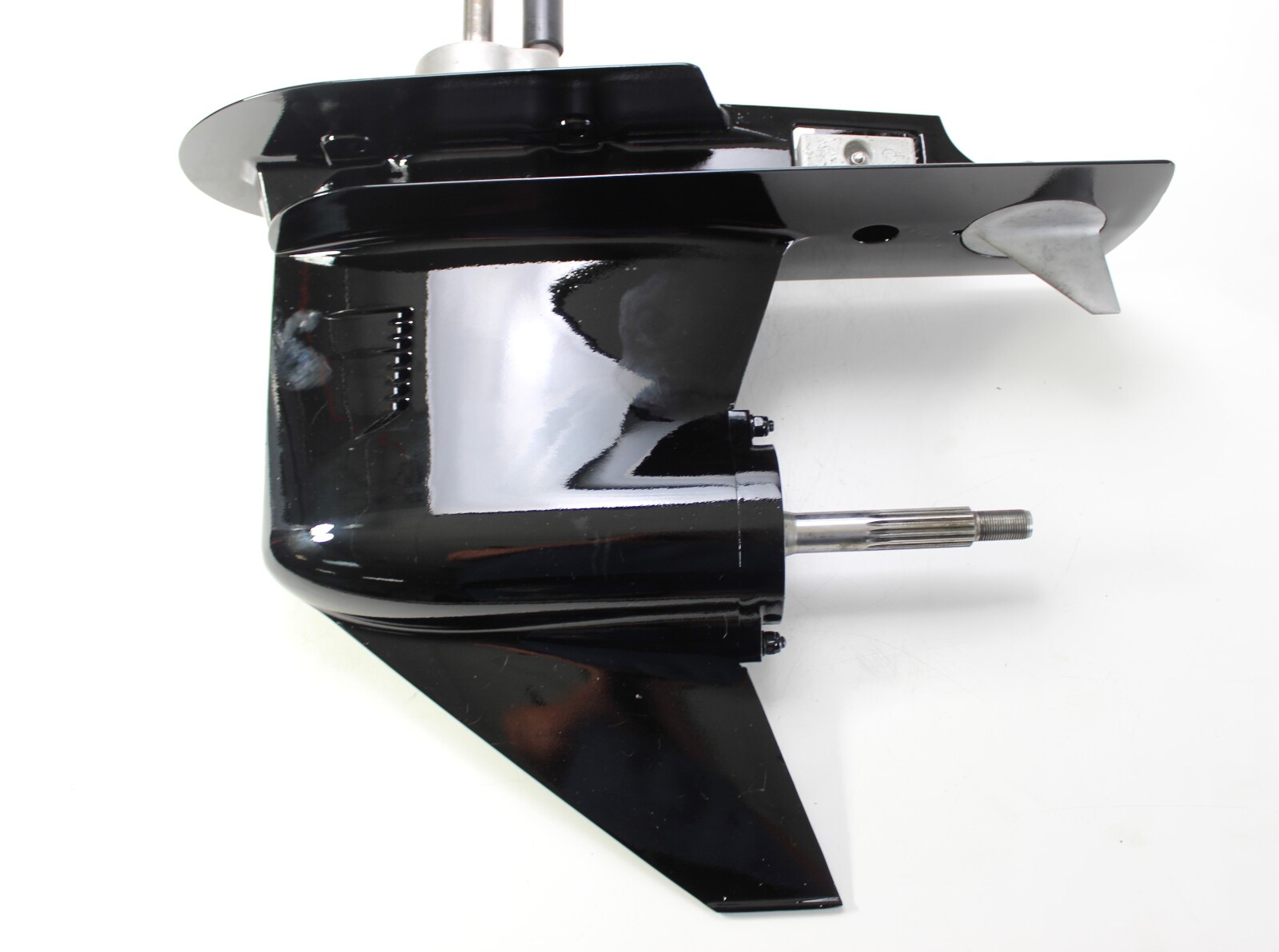

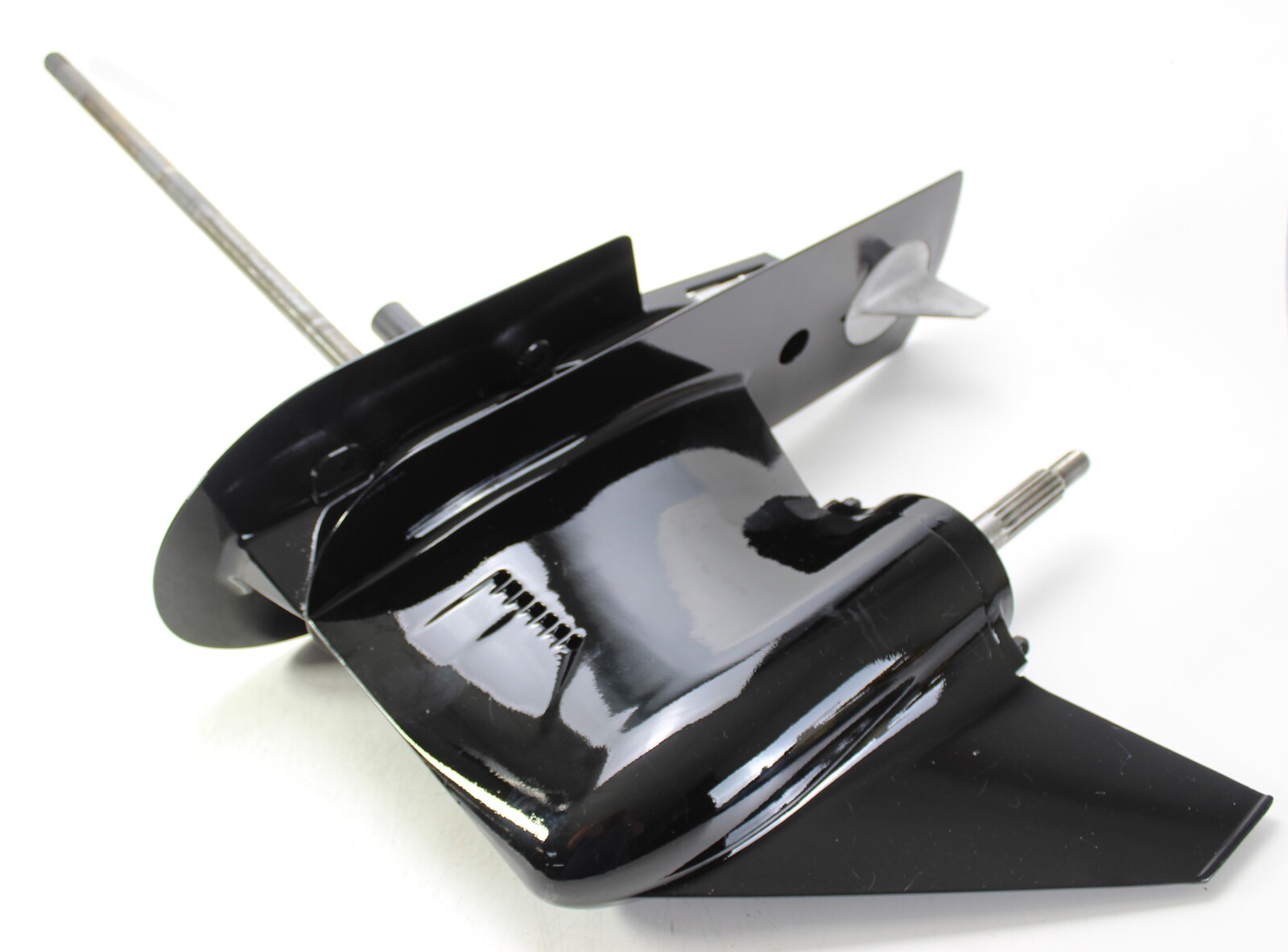

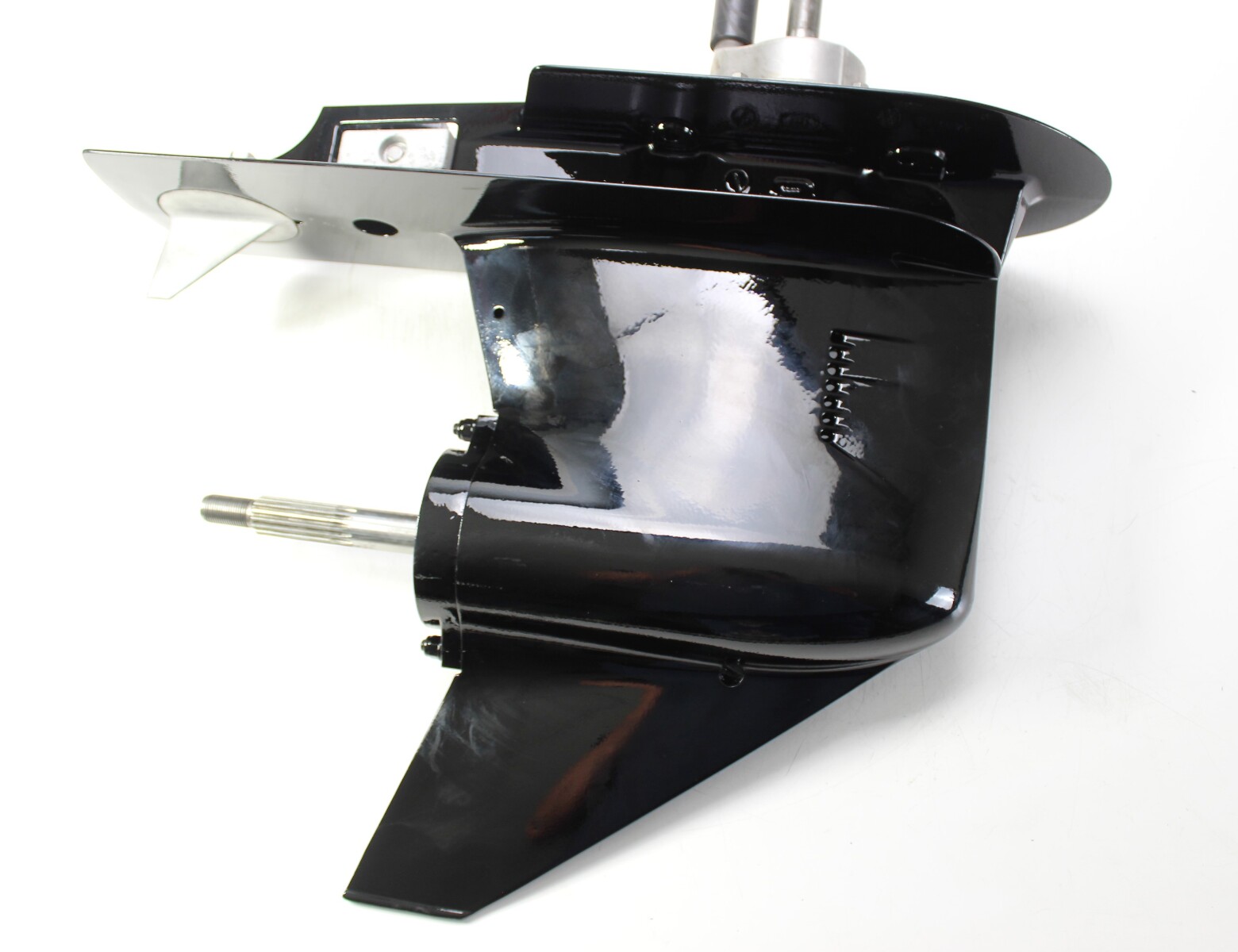

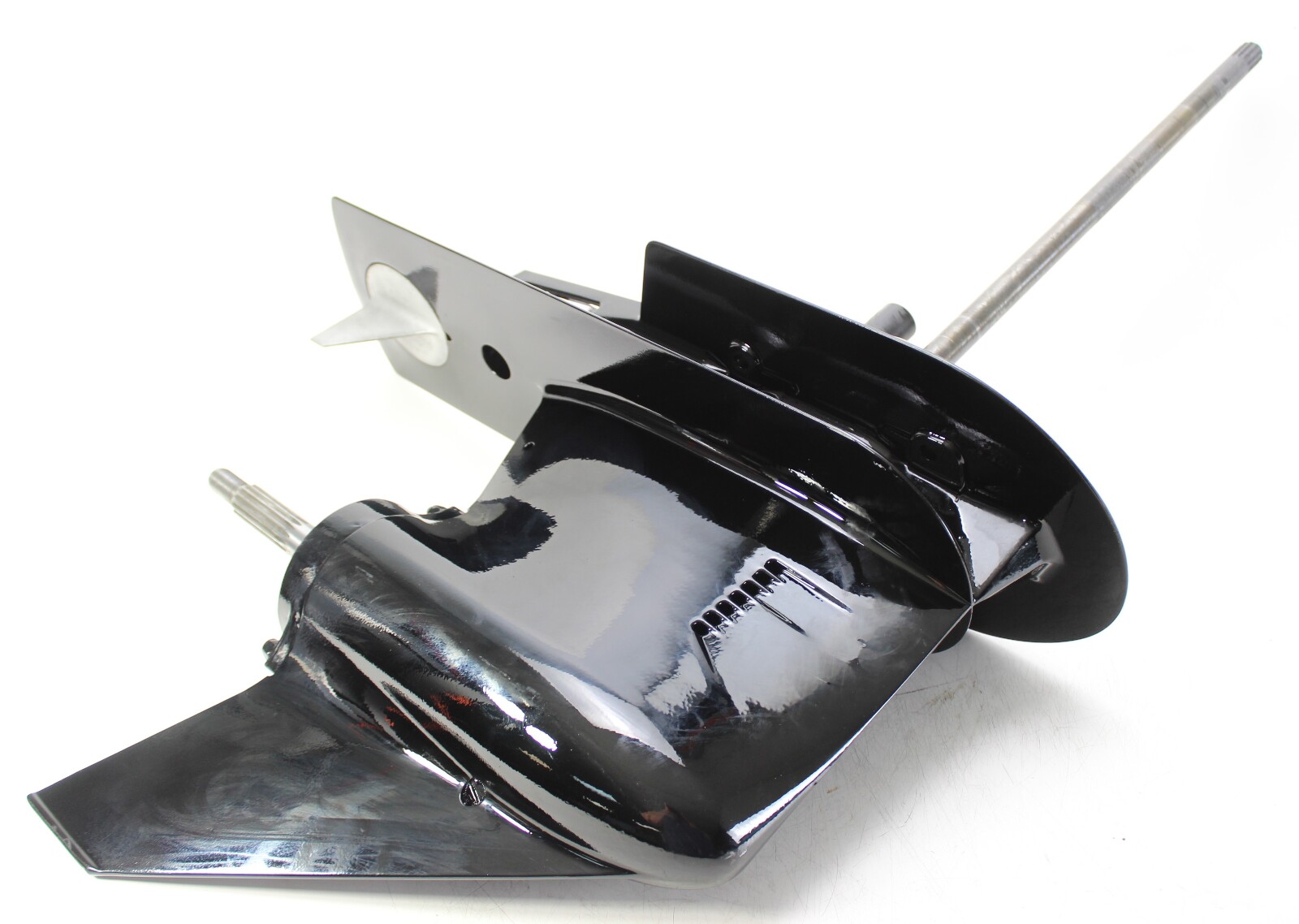

Mercury Resealed Lower Unit
◆ 1 YEAR WARRANTY◆ RESEALED & PRESSURE TESTED◆ NEW IMPELLER
Fully resealed and pressure tested lower unit for the 1998 and up Mercury L3 75, 80, 85 & 90 HP family. Gears are replaced only if found to be bad — good OEM gears are retained.
Specifications
◆ Gear Ratio: 2.33:1
◆ Driveshaft Length: 20-1/4″

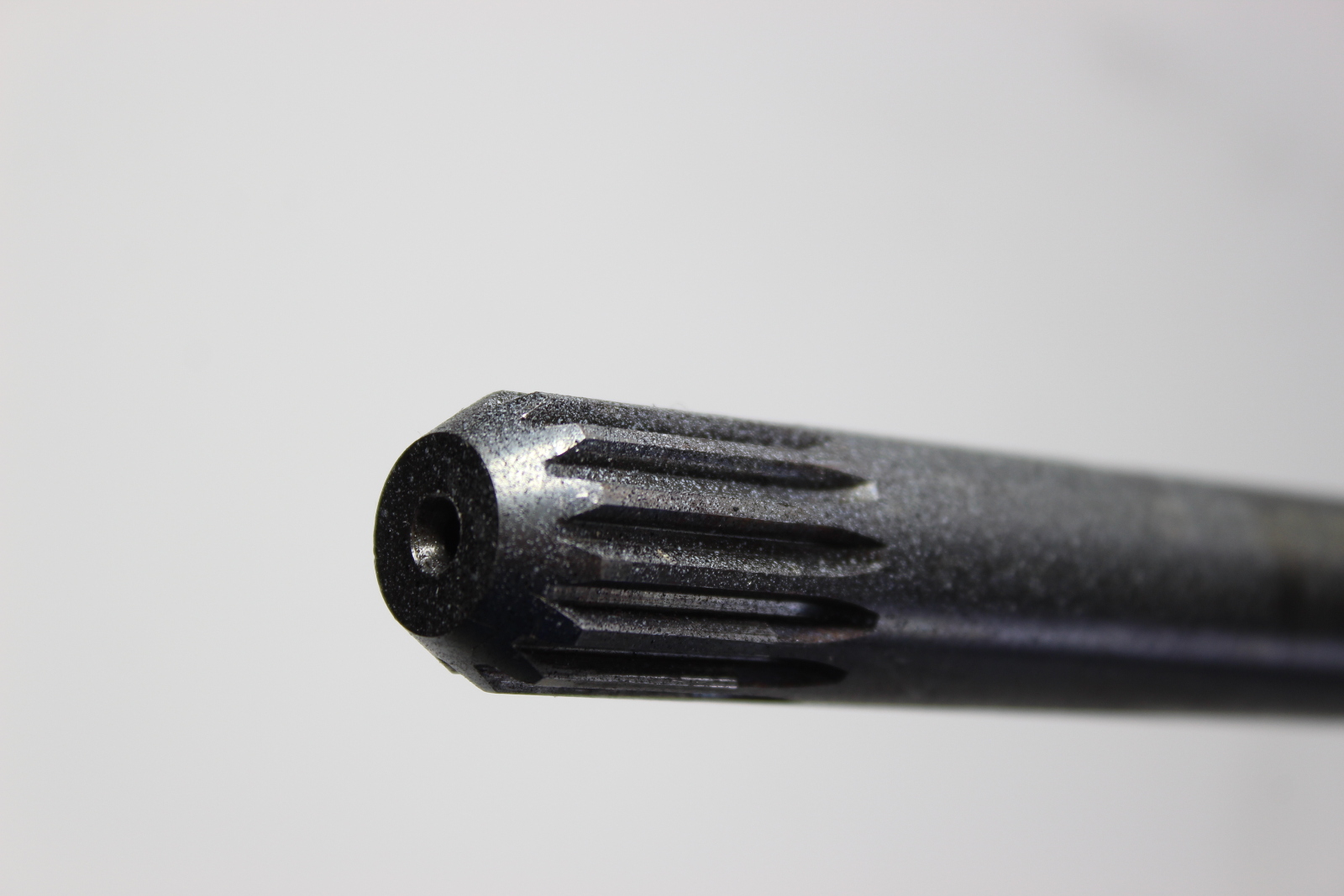

◆ Driveshaft Splines: 13

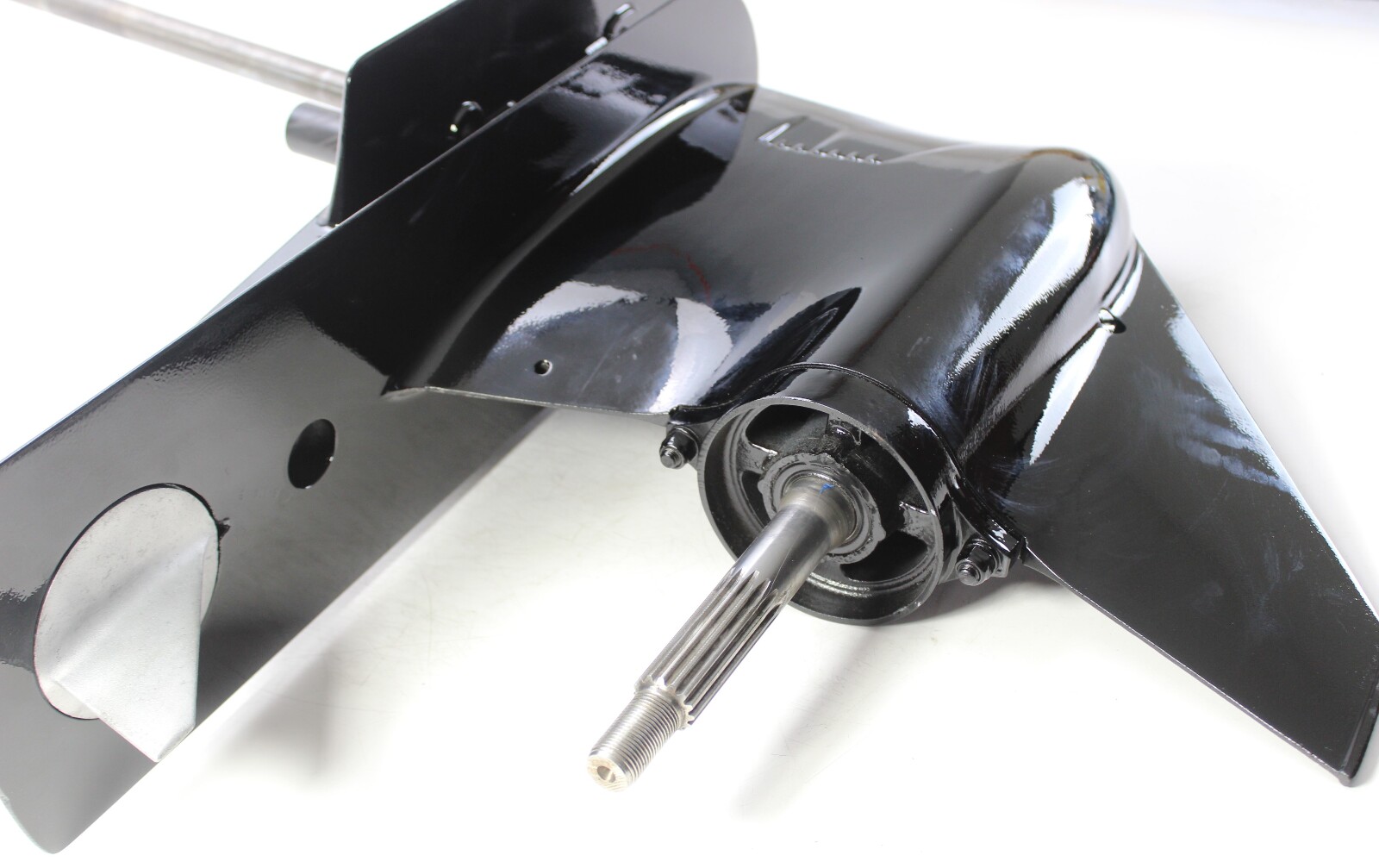

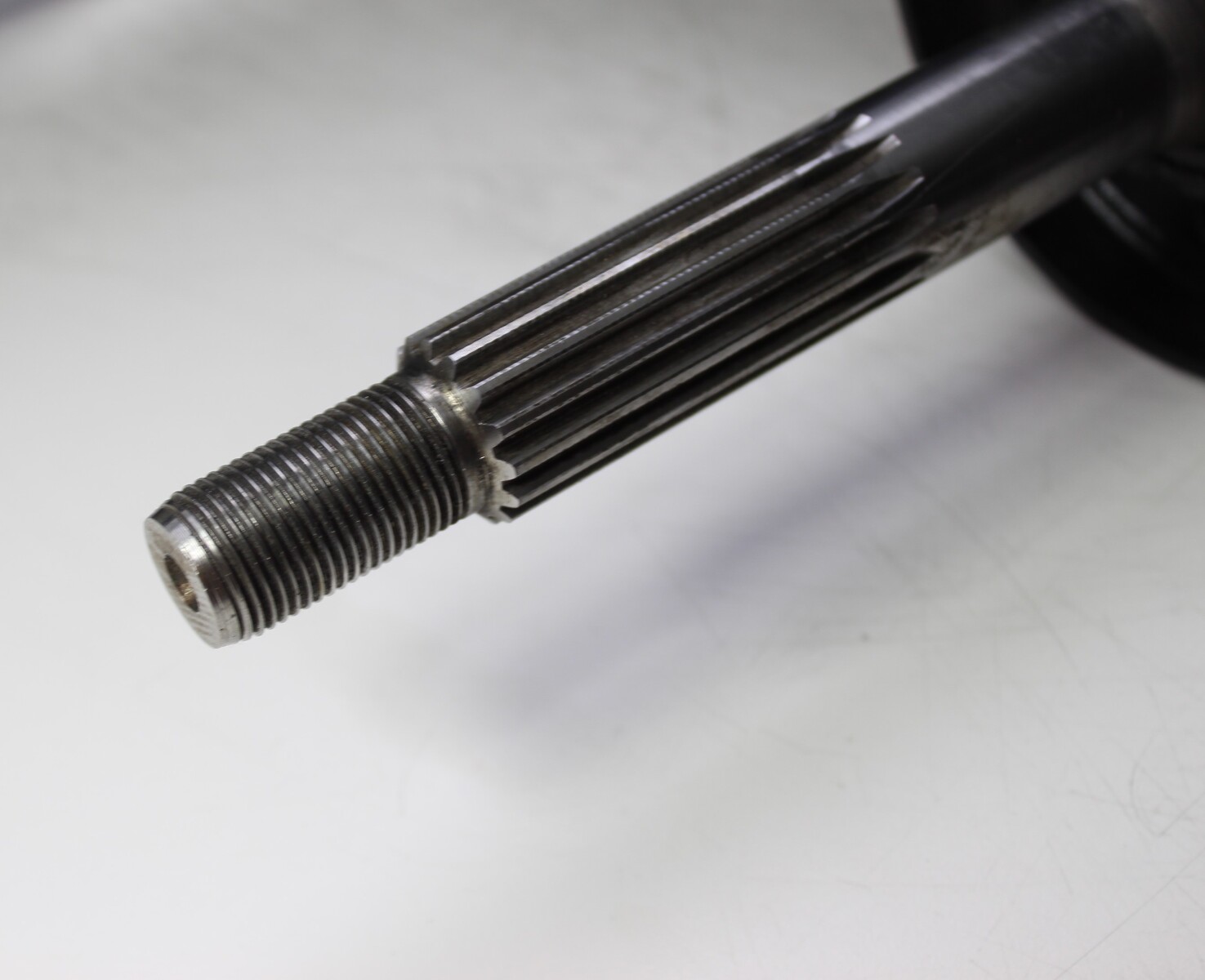

◆ Prop Shaft Splines: 15
◆ Rotation: Right-hand
◆ Trim Tab: Included
Driveshaft length measured from the top of the water pump to the top of the driveshaft.
What We Did

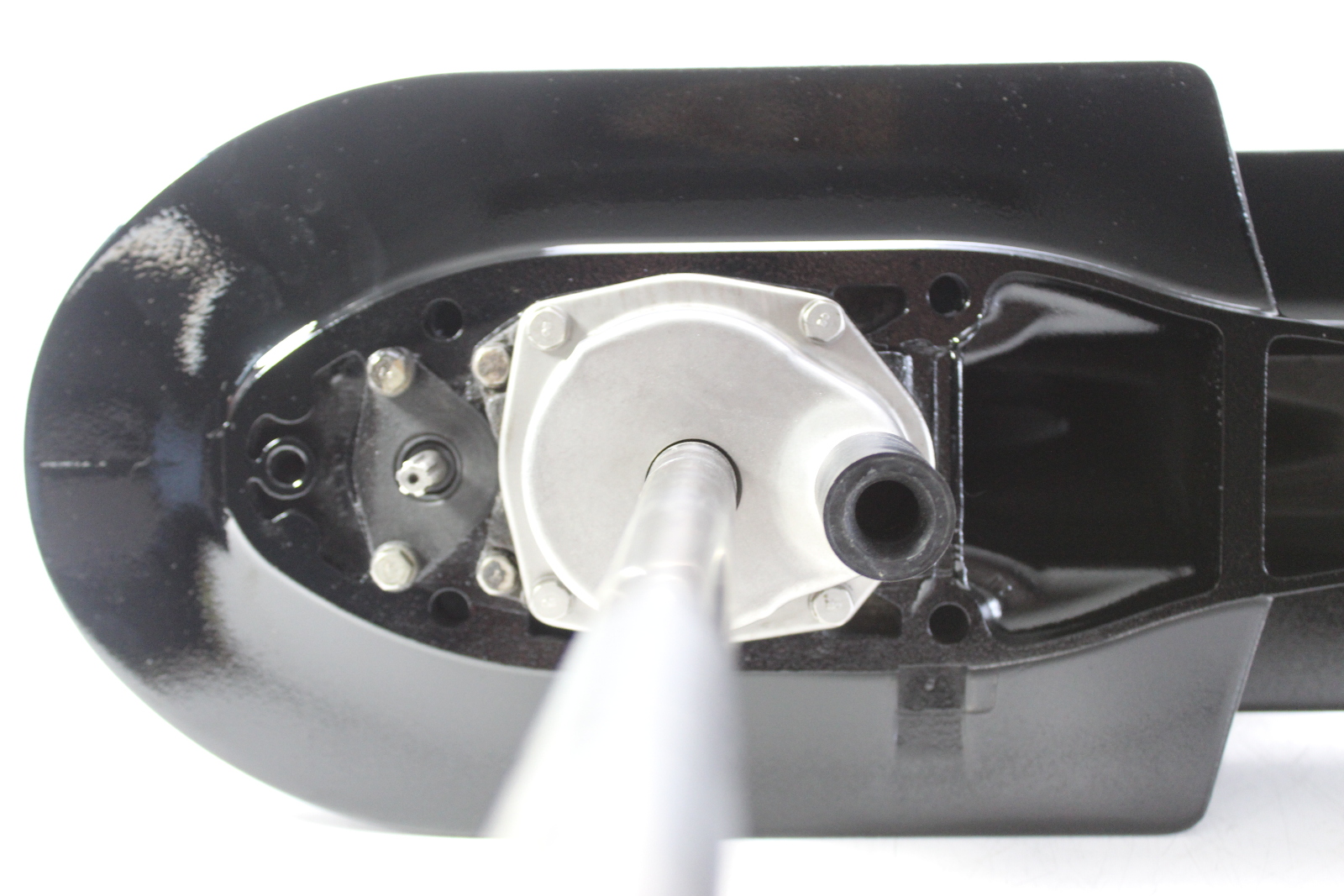

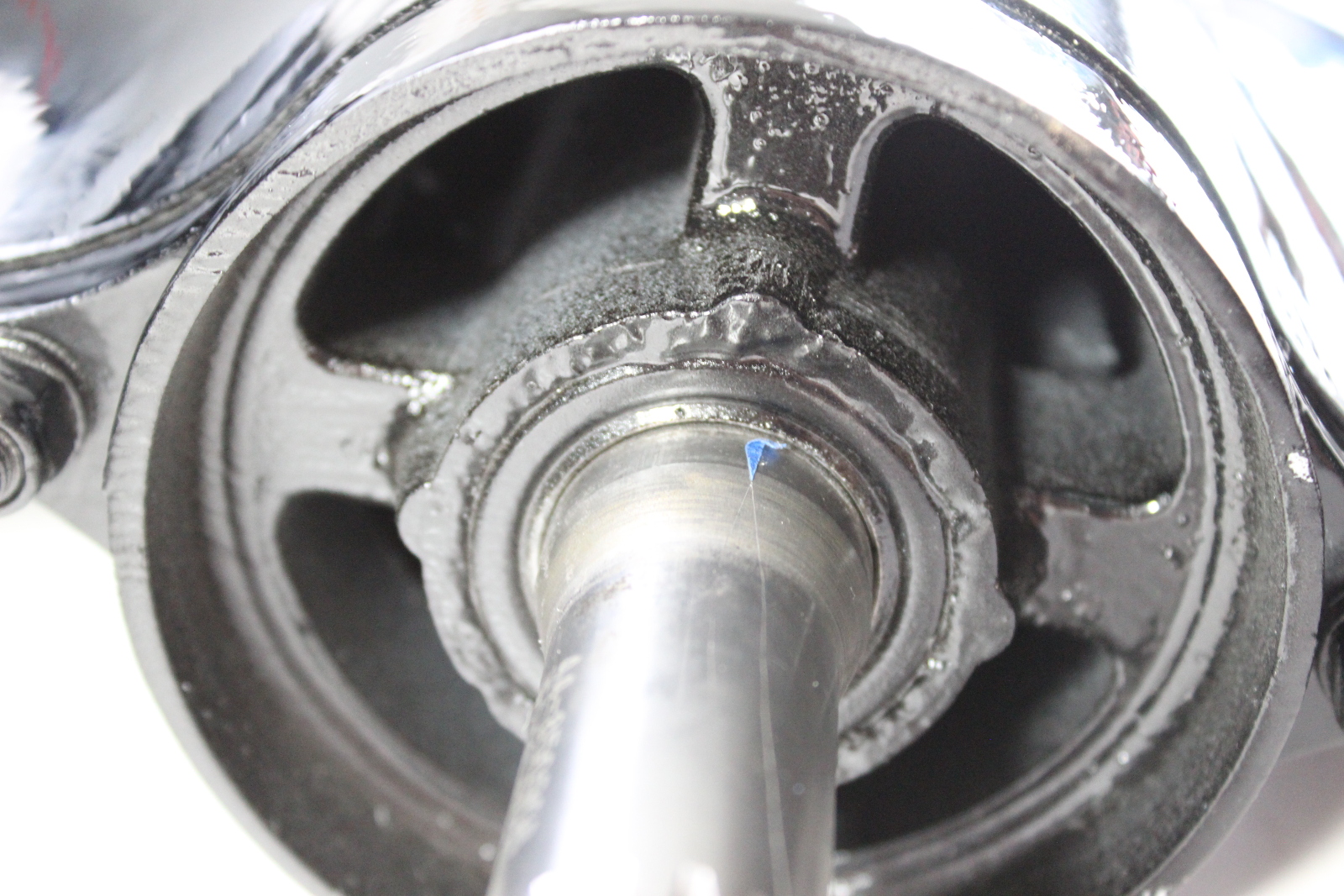

◆ Resealed — new seals and new water pump impeller installed
◆ Pressure tested — held steady for a full 10 minutes with no leaks
◆ Fully disassembled and inspected under magnification — all wear surfaces good
◆ Gear teeth inspected — good; gears replaced only if found to be bad, good OEM gears are retained
◆ Shift operation tested and verified
◆ Driveshaft and prop shaft checked for straightness — both straight
◆ Holes in the cavitation plate were filled during the paint process
◆ Stripped, primed, and professionally painted
Gear oil is NOT included — oil must be added prior to use.
Fitment
Years: 1998 and up
Models: Mercury 75 80 85 90 HP L3 (3 Cylinder)
Note: 1998 and up models use the 6-jaw clutch design — this unit will not directly interchange with 1987-1997 3-jaw models without a shift shaft change
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer's responsibility — verify by model and serial number before purchasing and contact us if you need help.
CORE RETURN — REQUIRED
How it works
◆ Your warranty is validated by returning your old core — we provide a prepaid shipping label. Just box it up and send it back.
◆ No core to return? The warranty can be purchased separately instead — message us and we will set it up.
◆ If a core is neither returned nor a warranty purchased, coverage is limited to the 30/60 day return windows below — the 1 year warranty will not apply.
What counts as a valid core
◆ It must turn — the driveshaft and prop shaft must rotate. Locked-up or seized units do not qualify.
◆ The case must be intact — no holes blown through the side of the housing. A gear coming through the case usually means everything inside is destroyed.
◆ Normal wear, scrapes, worn paint, and skeg damage are all perfectly fine.
1 YEAR
WORKING WARRANTY
Backed by Southcentral Outboards. Warranty validated by core return — we provide the shipping label. Failures during normal use within the warranty period will be repaired or replaced.
✶✶✶✶
| Our Guarantee |
The real sale is the responsibility we have to each customer to list, clean, sell, and ship a part correctly. If we miss that mark, please tell us and we will make it right.
— The SCO Team
