1994 & UP Mercury Force Long 20" Lower Unit 30 40 50 HP 1.83:1 1 YEAR WTY

$1,099.00

DetailsShipping

Brand: Mercury
Size: 30 40 50 HP

Color: Black
Style: 2 Cylinder
Condition: Used
Notes: Fully Resealed & New Impeller

SKU: 49940 LRU
Manufacturer Part Number: N/A
Country of Manufacture: United States
Motor & Engine Type: Mercury
Part Type: Motors, Engines & Components
Other Part Number: N/A
Surface Finish: N/A
Inventory Number: 49940 LRU
Website Category: Lower Units
Website Sub Category: Complete Lower Units
UPC: N/A

Shipping: $75.00

KEY POINTS:

1 YEAR WARRANTY in exchange for your spinning core
NEW IMPELLER & Fully resealed
Ready to install after oil is installed!

Additional Info

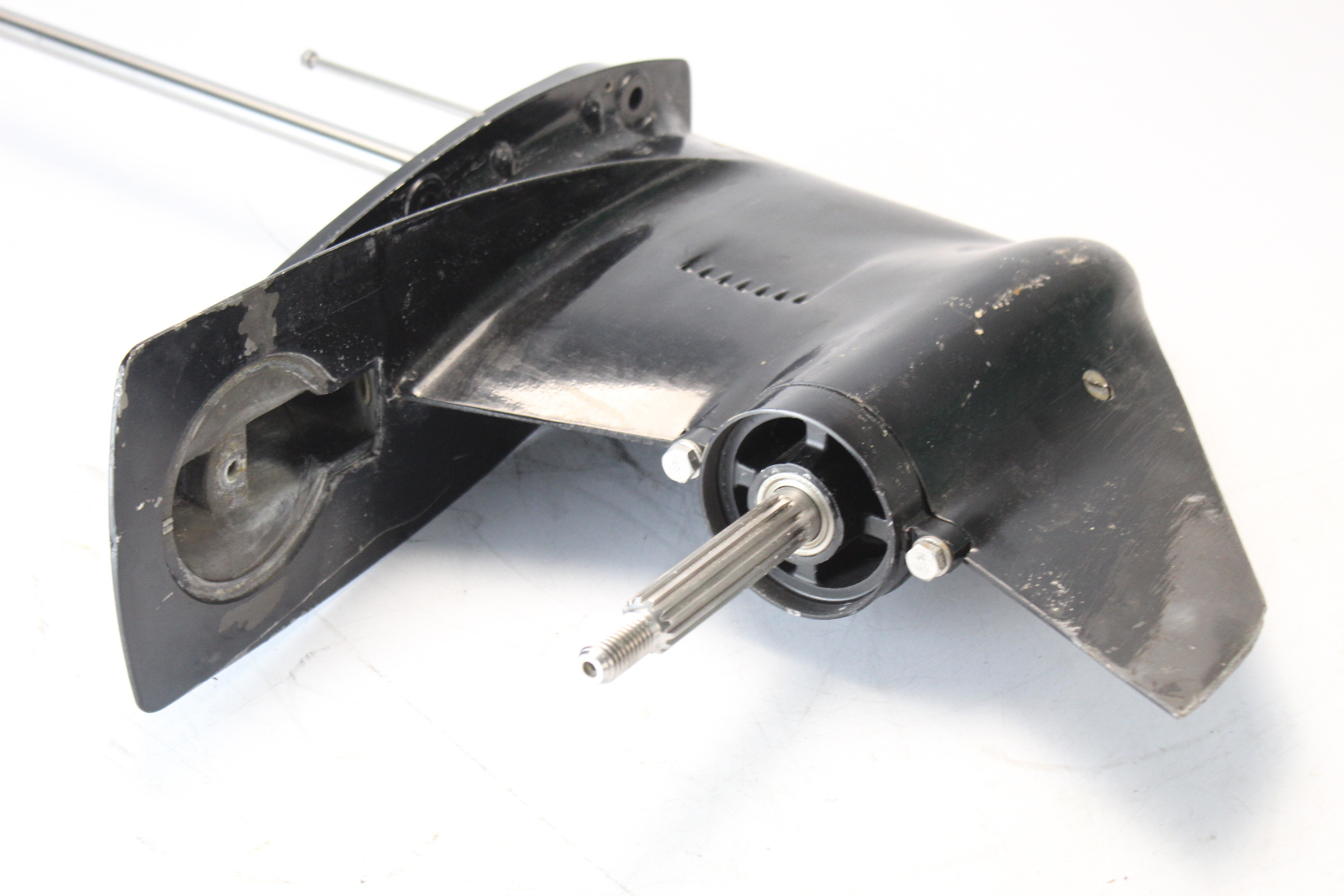

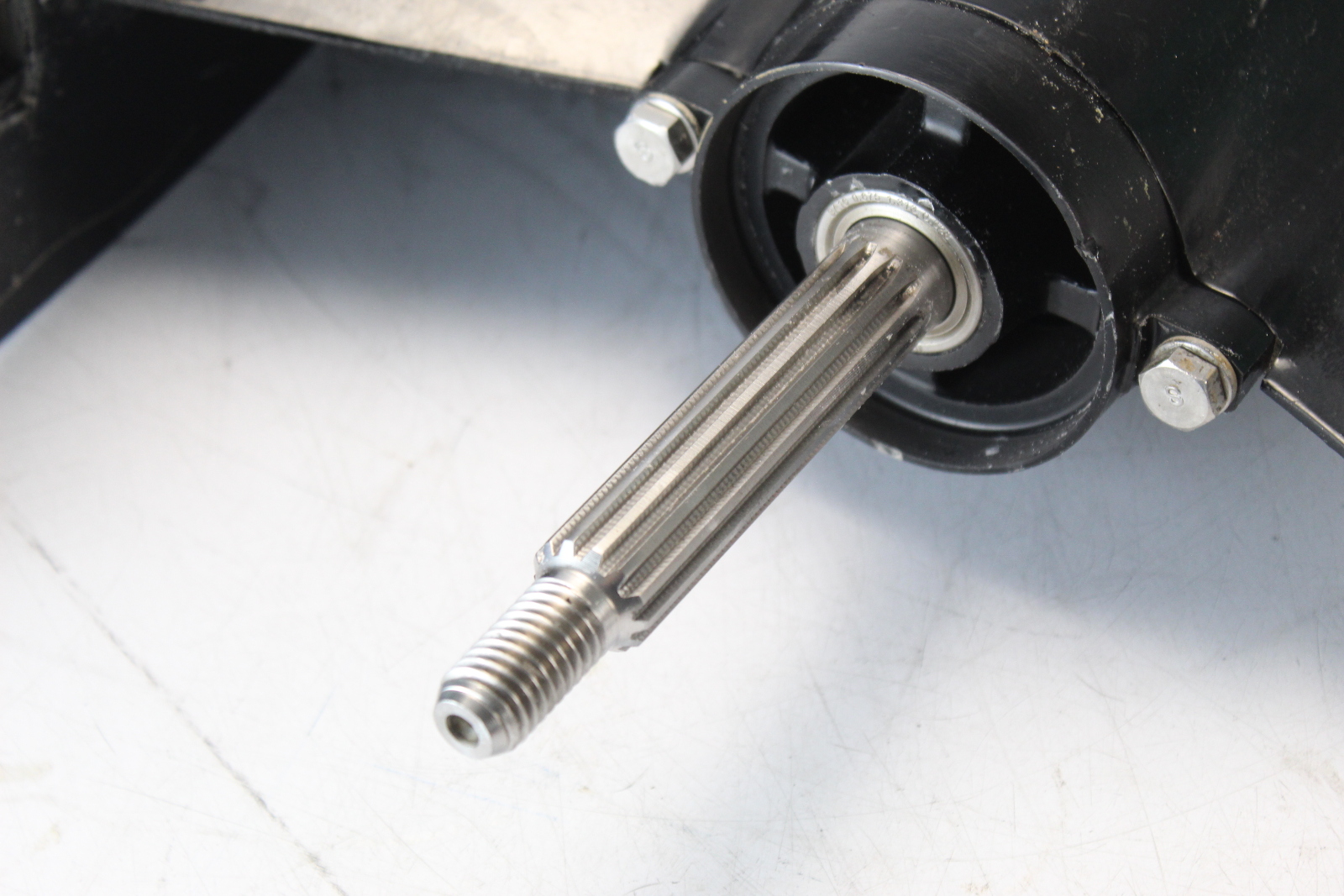

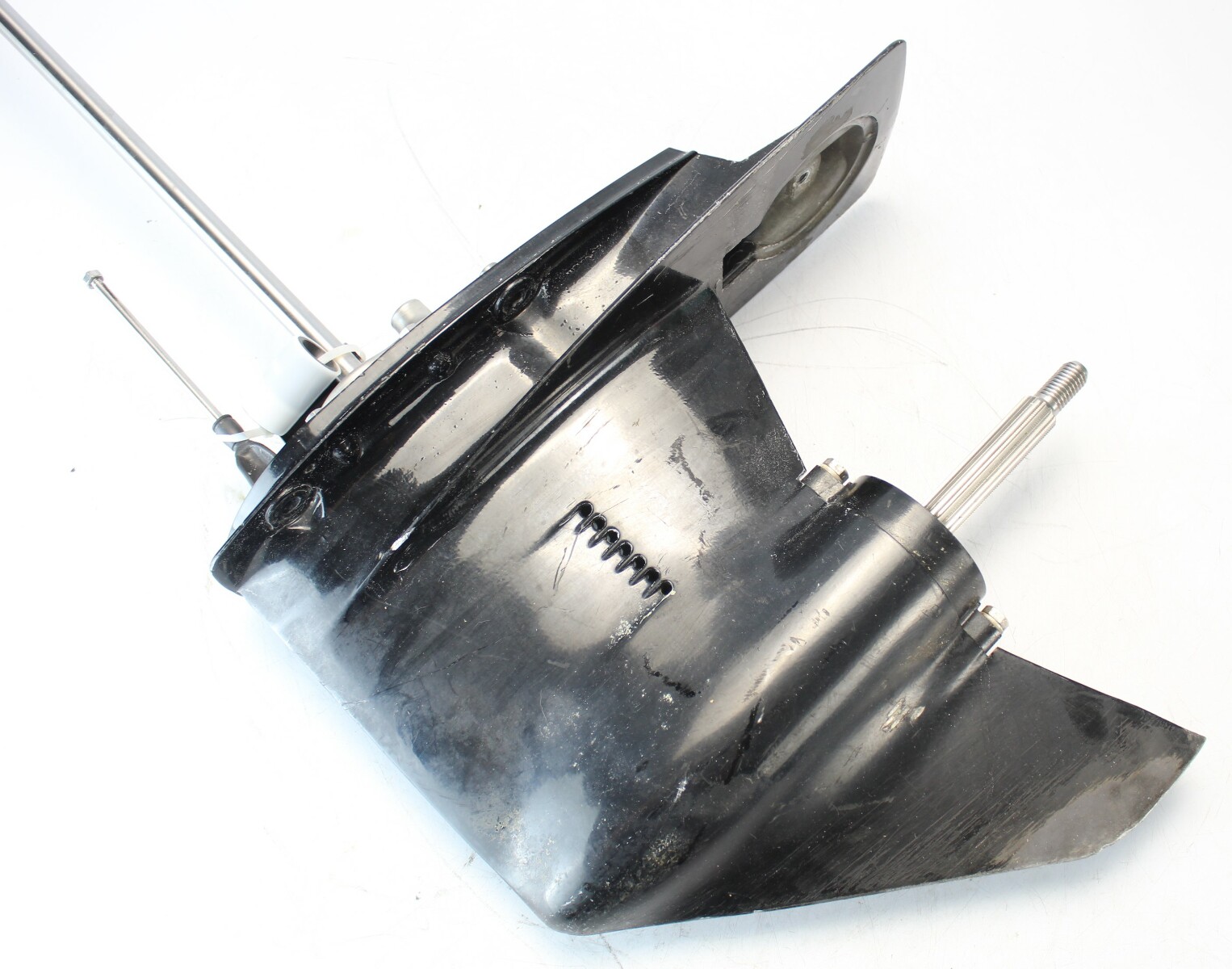

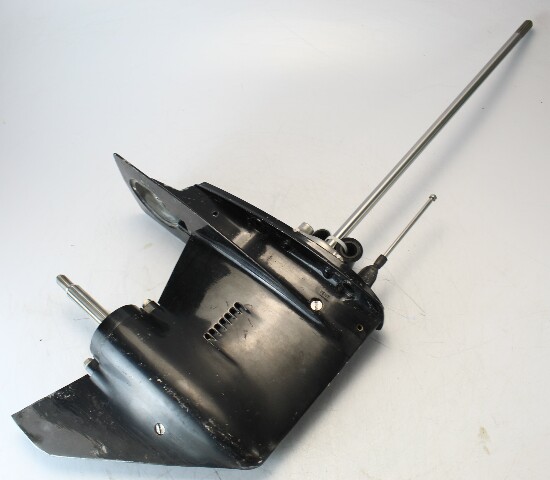

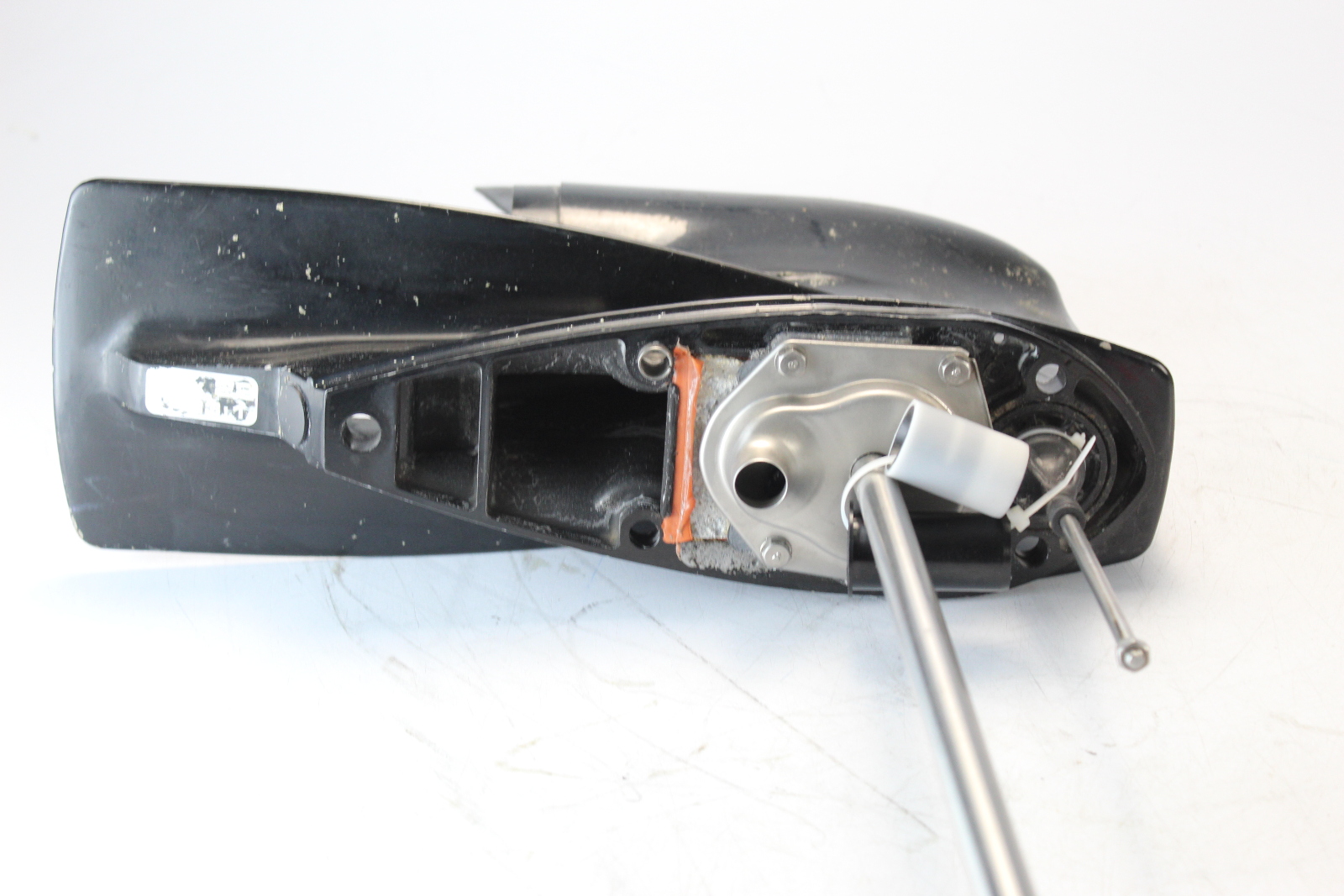

This lower unit has a 1.83 to 1 ratio. As seen in the pictures, this lower unit does not come with the trim tab. The paint only has minor scuffing and some light scratches, but this is entirely cosmetic. This unit shifts and spins smoothly without binding and the propeller shaft is straight. The driveshaft splines are showing little to no wear. The gears and clutch are in good condition with minimal wear. Oil was clean and free of any heavy metal and water. The unit has some corrosion and has a small ding in the bearing carrier. The unit was fully resealed, pressure checked, and a new impeller installed. This comes with a one year warranty in exchange for your spinning core!

Please note that we do not ship our lower units with oil. Upon receipt of the unit, this will have to be added before use. Purchase with confidence!

Driveshaft measures - 21-5/8" - from the top of the waterpump housing
Driveshaft spline count - 14
Propshaft spline count - 13

General Information

Opened & Inspected
Professionally Cleaned
Pressure checked to 12 PSI minimum
Fully Resealed
New Impeller
Shafts checked for straightness
1 year mechanical warranty
To obtain the 1 year warranty, you MUST send in your core lower unit. We will even pay to have your core shipped to us! Below is the criteria required to validate the warranty:
- Core must be of rebuildable quality
- Cannot be locked up - driveshaft must spin
- Up to 30 days from the date of purchase to send in your core
- Covers mechanical aspects ONLY
- Warranty begins from date of purchase
- Core must be complete and cannot be missing parts
You will receive two copies of the terms and conditions for the lower unit 1 year warranty. One copy MUST be signed and returned with your core. Without a returned signed copy, the one year warranty will not be valid.

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 1 year warranty. We reserve the right to accept or reject any core at our discretion.

We offer a 30 day return policy so you can purchase them with confidence. If you have any issues with the product, please reach out to us and we would be happy to help resolve any issue that may occur. Please be absolutely sure this is the correct one for your motor prior to purchasing.

Location: Southcentral Outboards, Altamont, Illinois

Fits:

Force:
-1994-1999 40 50 HP 2 Cylinder

Mercury:
-1994 & Later 30 40 2 Cylinder

-1998 & UP 30 40 50 3 Cylinder

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
