$1,025.00
- Brand: Johnson Evinrude
- Size: 88 90 110 115 140 HP
- Style: V4 - 20"
- Condition: Re-manufactured
- Notes: Fully Resealed & Pressure Checked With New Impeller!
- SKU: 26-71407 LRU

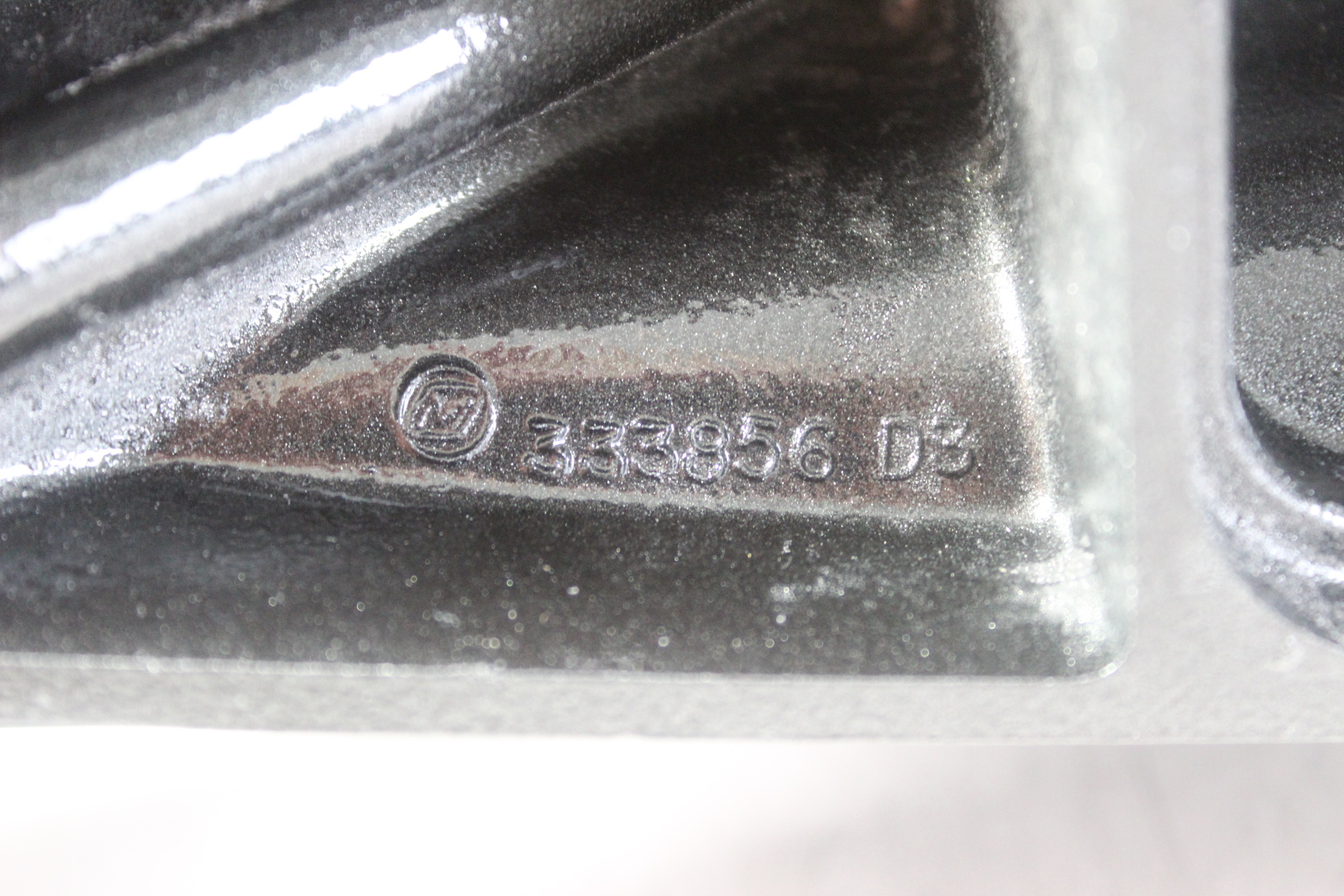

- Manufacturer Part Number: 5006312 5004767 437140 437141 0437140 0137141
- Country of Manufacture: United States
- Motor & Engine Type: Johnson Evinrude
- Part Type: Motors, Engines & Components
- Inventory Number: 26-71407 LRU
- Website Category: Lower Units
- Website Sub Category: Complete Lower Units
- UPC: N/A
- Shipping: $75.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

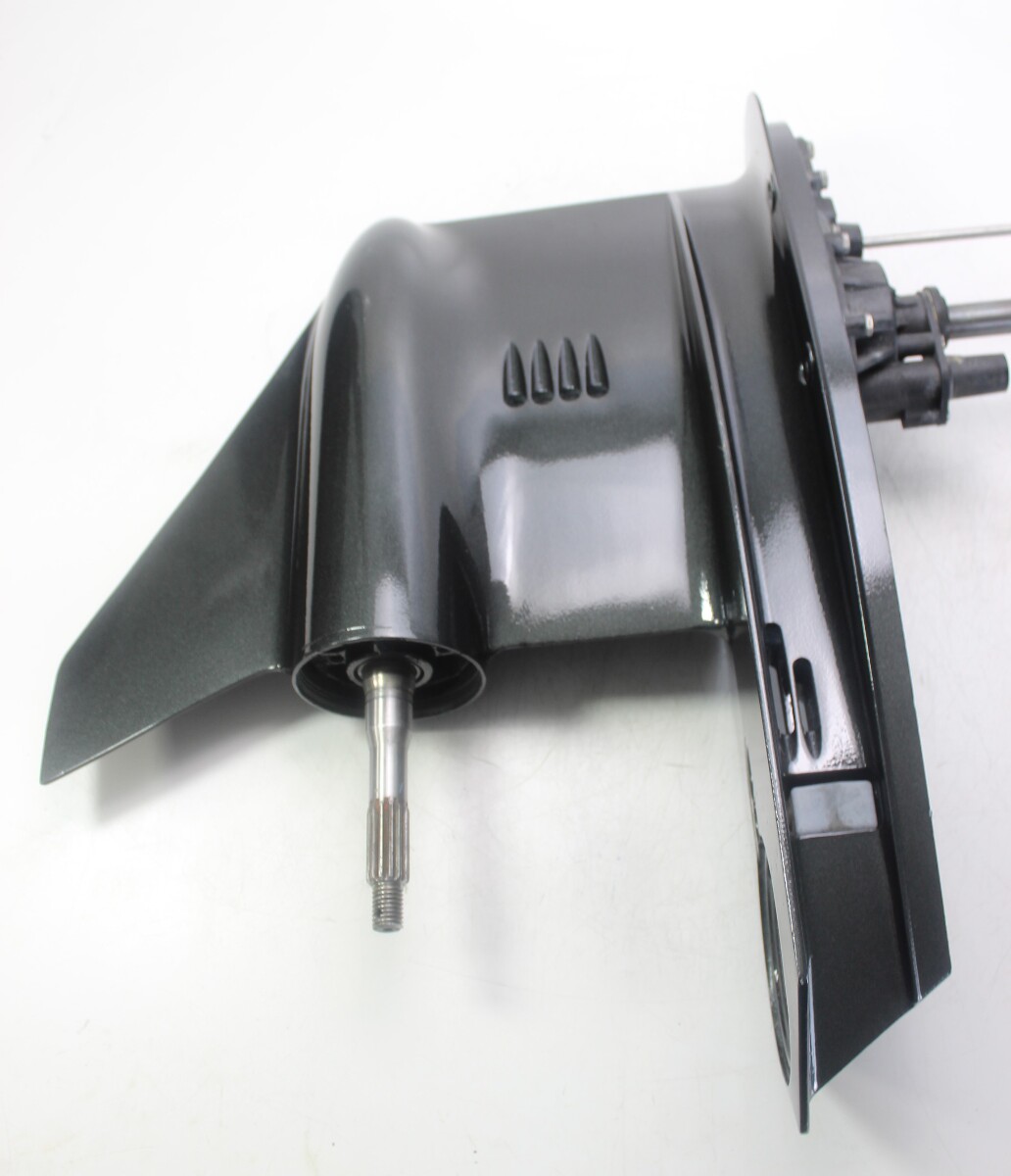

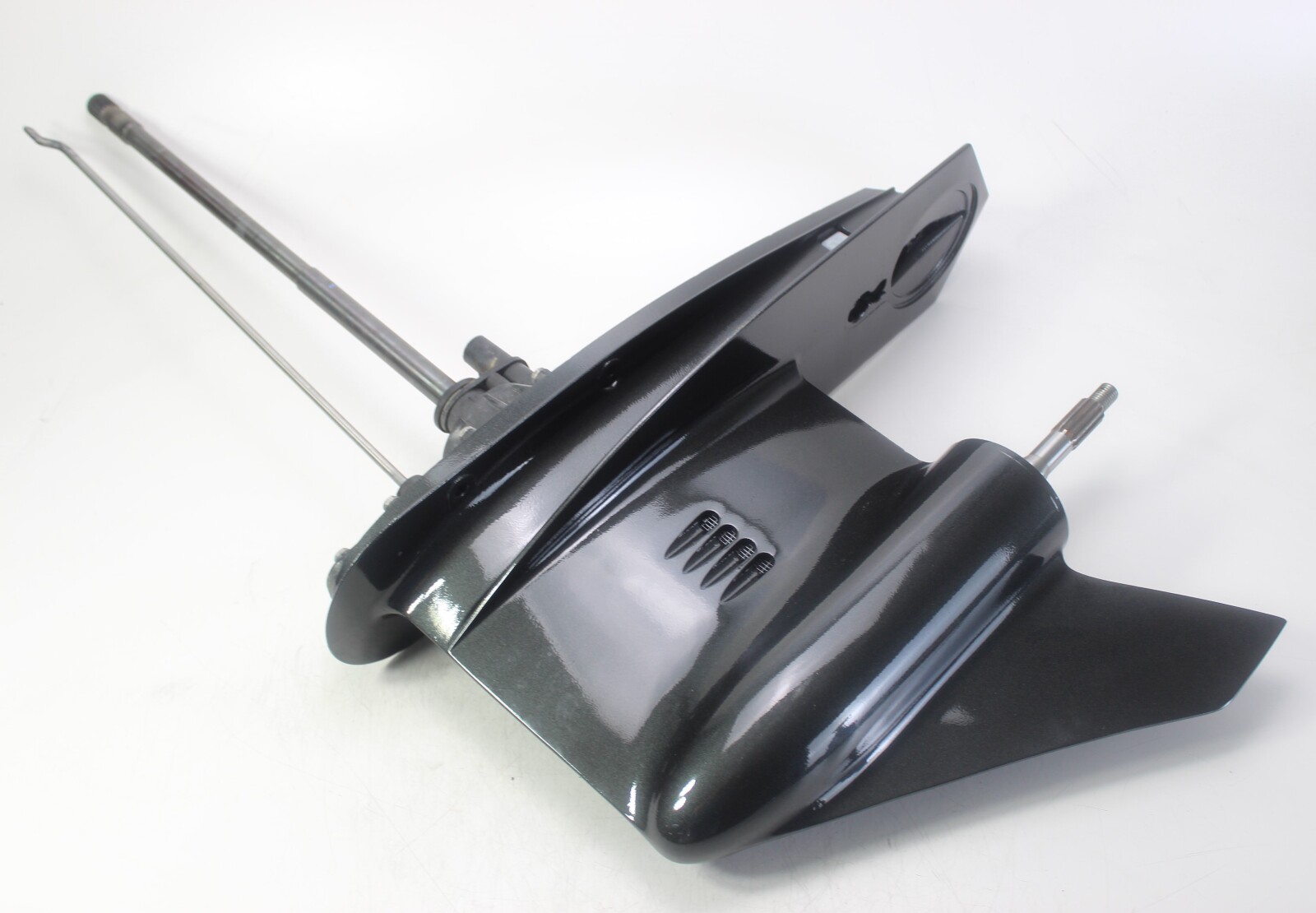

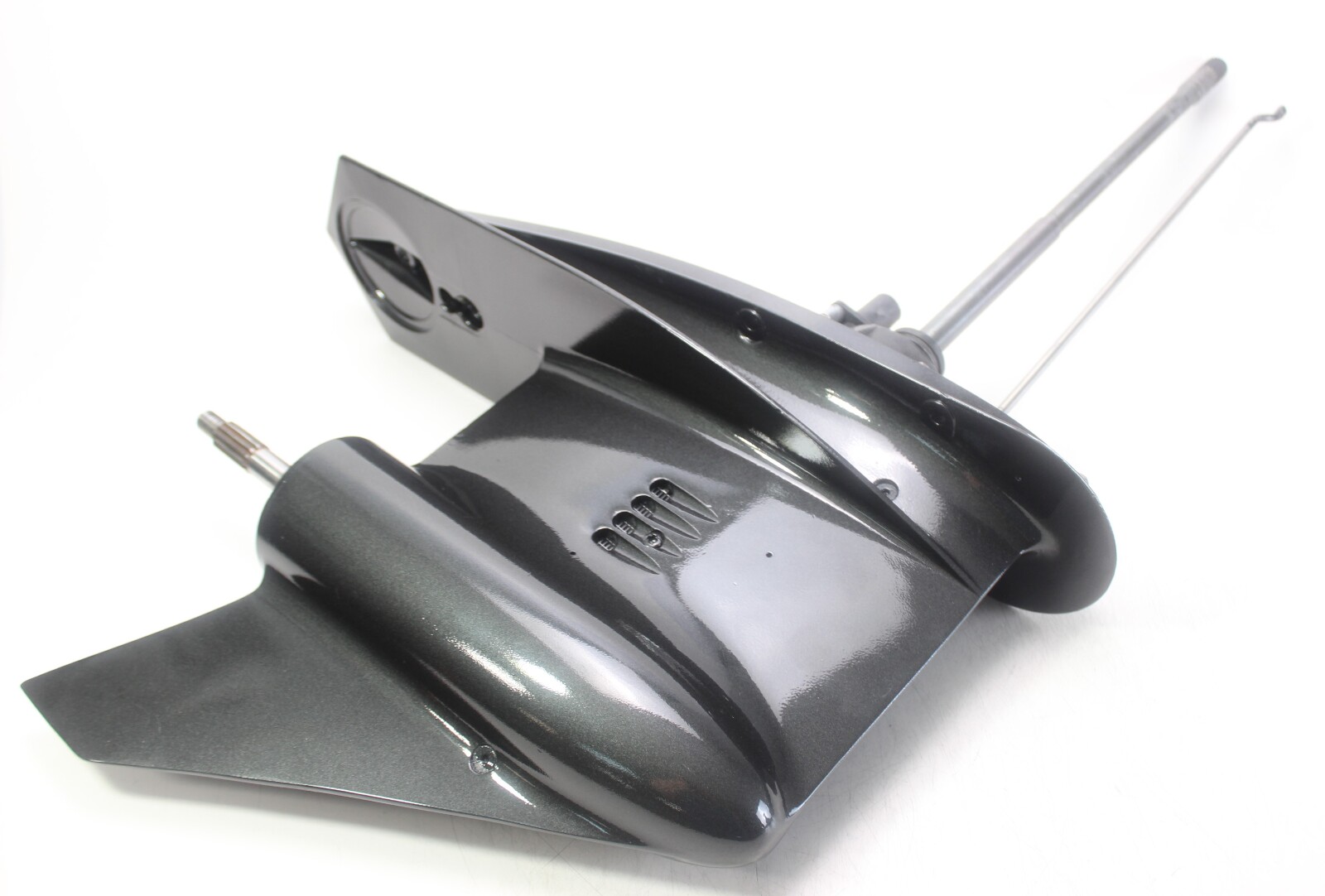

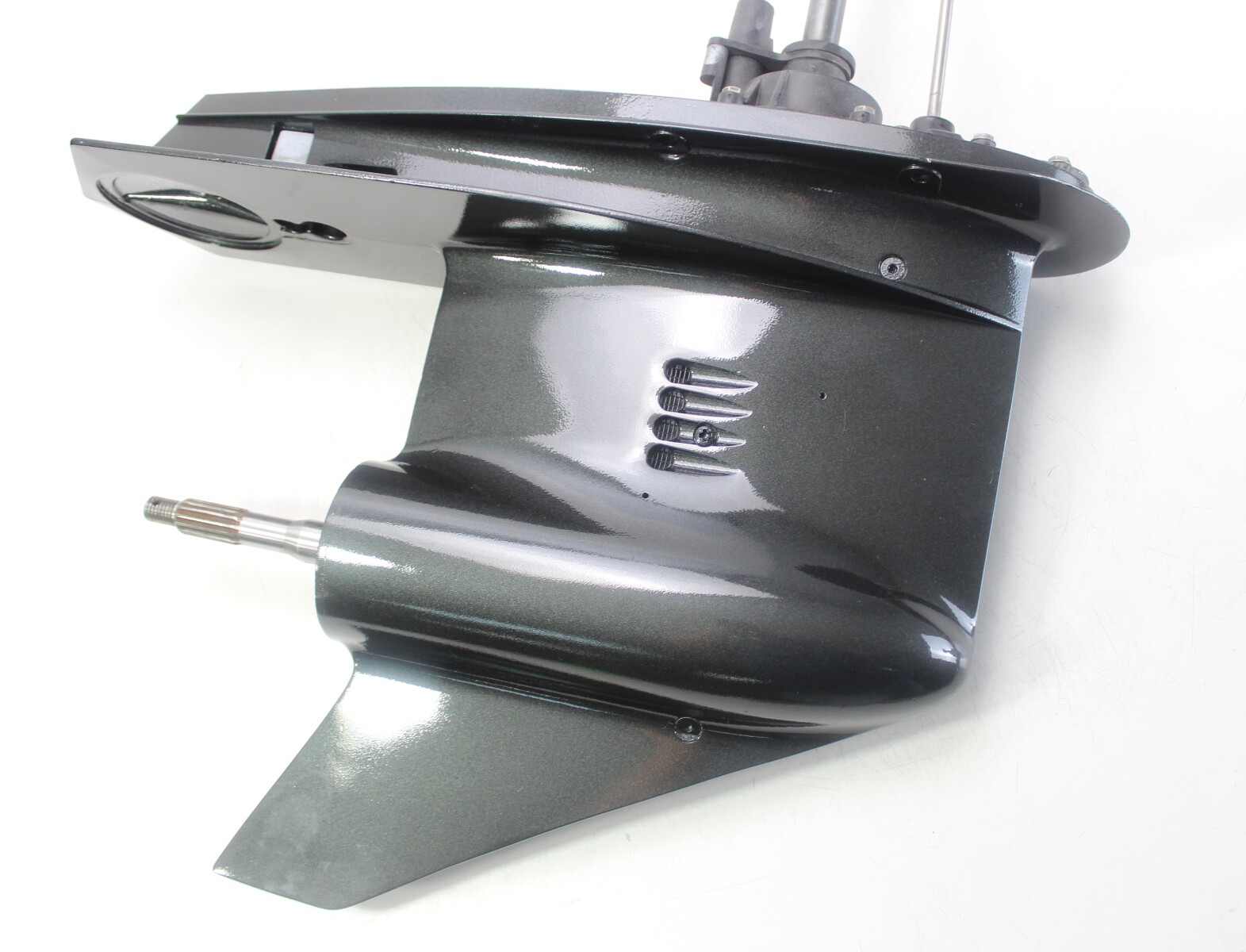

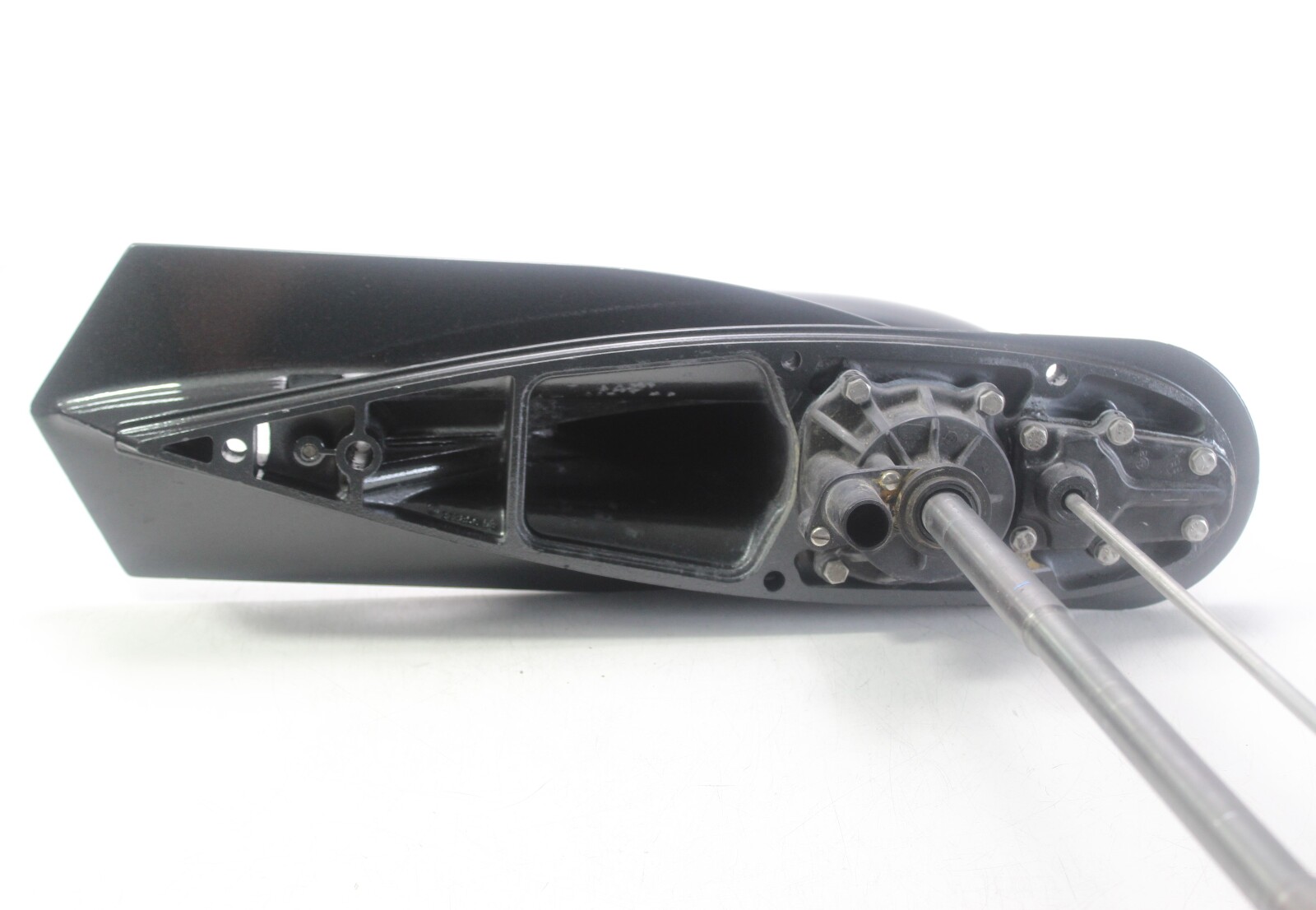

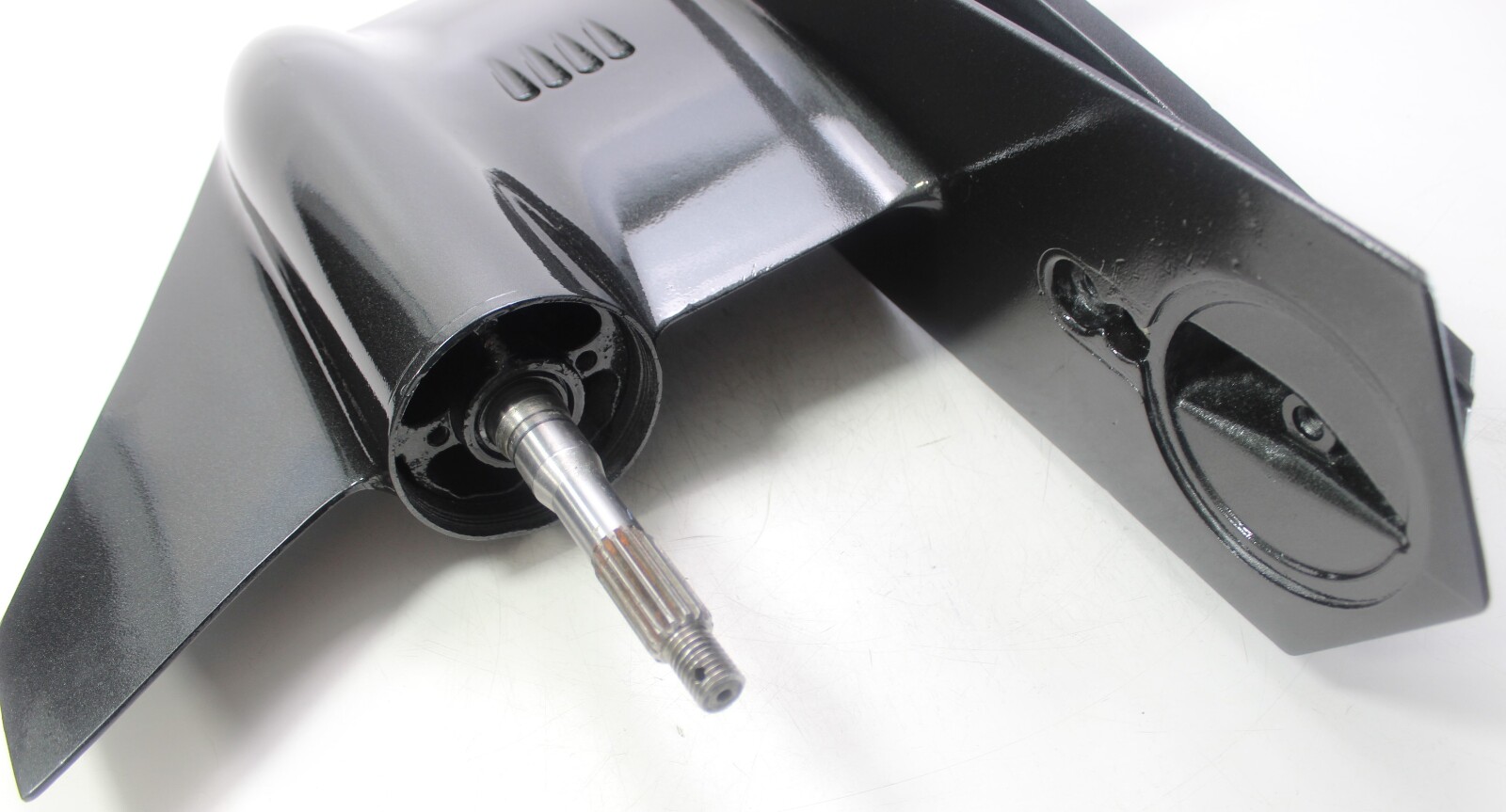

Johnson/Evinrude Resealed Lower Unit
◆ 1 YEAR WARRANTY◆ RESEALED & PRESSURE TESTED◆ NEW IMPELLER
This Johnson/Evinrude V4 lower unit has been fully resealed, pressure tested, and fitted with a new water pump impeller. Gears are replaced only if found to be bad — good OEM gears are retained — so you get a serviceable, ready-to-run gearcase. Gear oil must be added prior to use.
Specifications
◆ Gear Ratio: 2:1
◆ Driveshaft Length: 20-1/2″ — 20″ long shaft

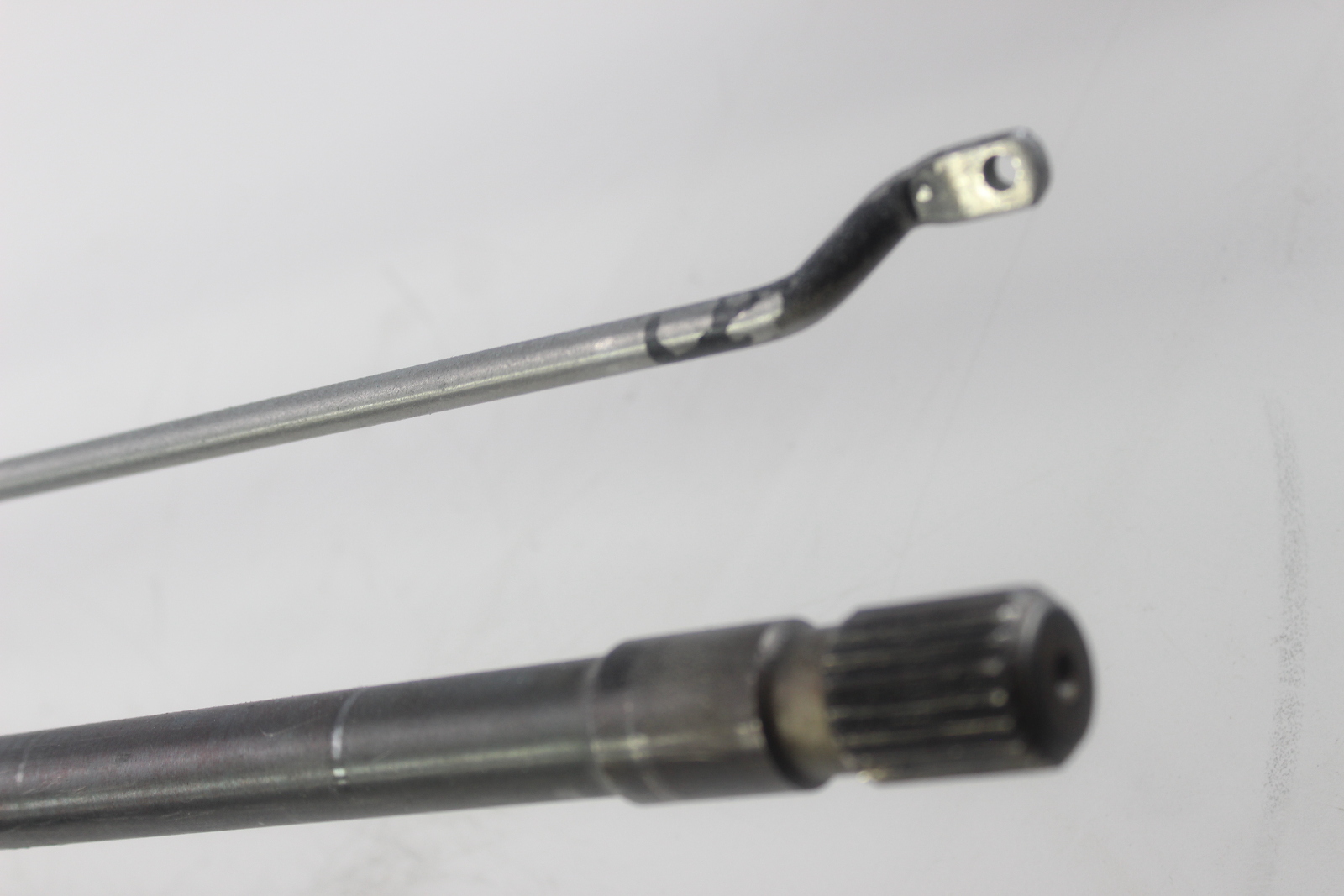

◆ Driveshaft Splines: 20

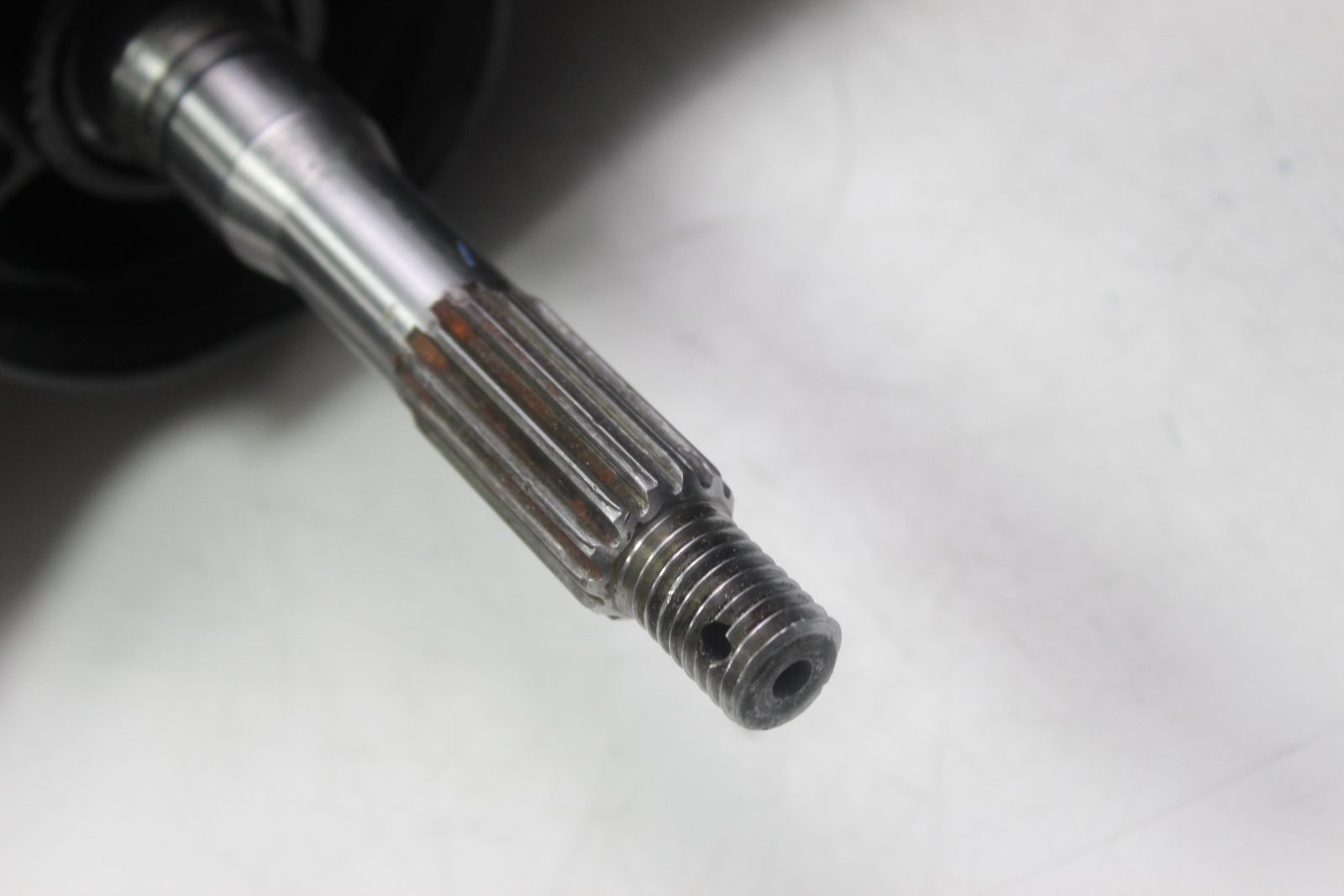

◆ Prop Shaft Splines: 13
◆ Rotation: Right-hand
Driveshaft length measured from the top of the water pump to the top of the driveshaft.
What We Did
◆ Resealed and pressure checked to 12 PSI

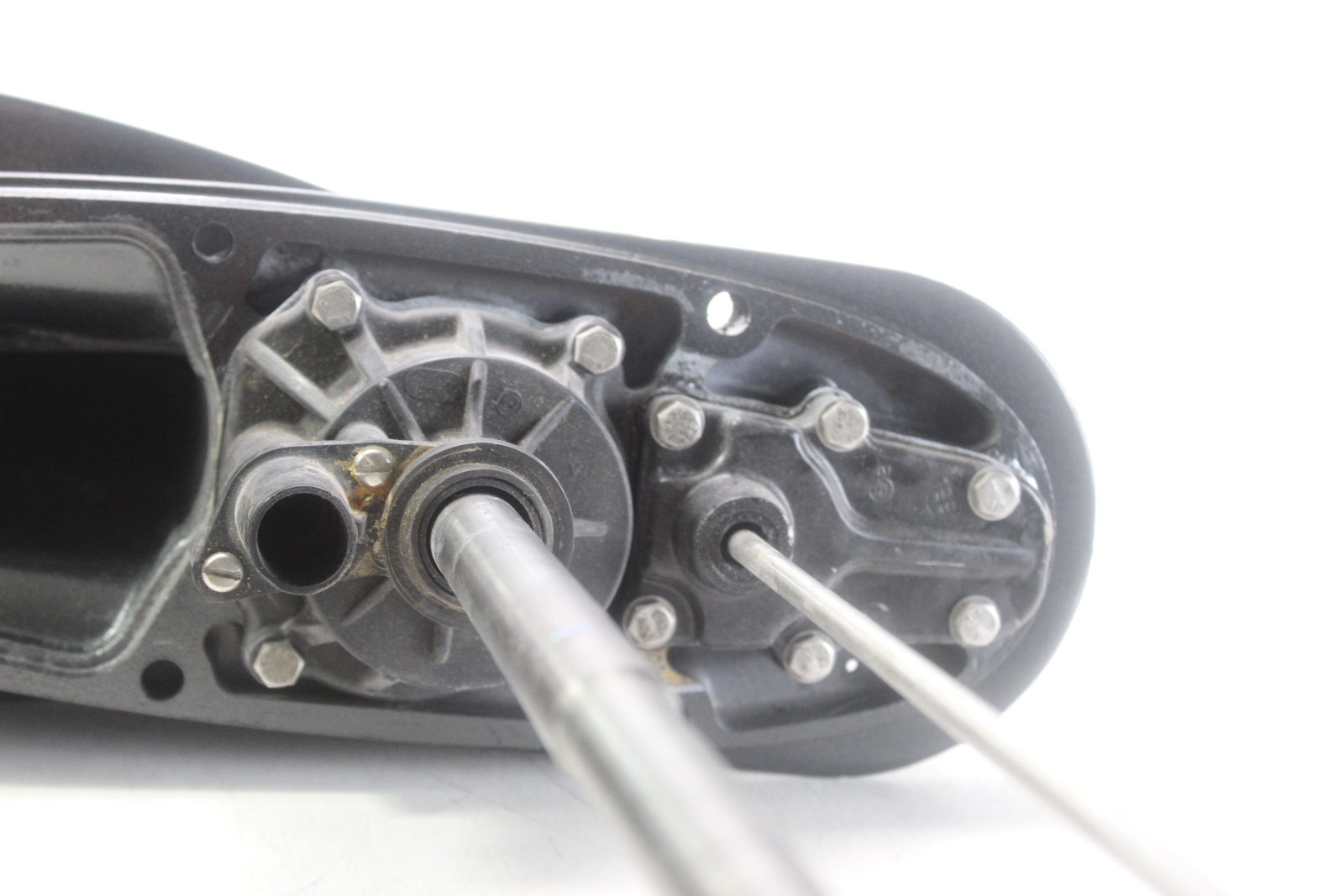

◆ New water pump impeller installed
◆ Shift operation tested and verified
◆ Driveshaft and prop shaft checked for straightness
◆ Inspected under magnification — all wear surfaces good
◆ Gears replaced only if found to be bad — good OEM gears are retained
◆ Stripped and primed — not repainted
Gear oil is NOT included — oil must be added prior to use.
Fitment
Years: 1992-1998
Models: Johnson/Evinrude 88 90 110 115 140 HP V4
Note: Verify gear ratio, shaft length, and model by serial number before purchasing — these V4 gearcases share a case but differ by application.
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer's responsibility — verify by model and serial number before purchasing and contact us if you need help.
CORE RETURN — REQUIRED
How it works
◆ Your warranty is validated by returning your old core — we provide a prepaid shipping label. Just box it up and send it back.
◆ No core to return? The warranty can be purchased separately instead — message us and we will set it up.
◆ If a core is neither returned nor a warranty purchased, coverage is limited to the 30/60 day return windows below — the 1 year warranty will not apply.
What counts as a valid core
◆ It must turn — the driveshaft and prop shaft must rotate. Locked-up or seized units do not qualify.
◆ The case must be intact — no holes blown through the side of the housing. A gear coming through the case usually means everything inside is destroyed.
◆ Normal wear, scrapes, worn paint, and skeg damage are all perfectly fine.
1 YEAR
WORKING WARRANTY
Backed by Southcentral Outboards. Warranty validated by core return — we provide the shipping label. Failures during normal use within the warranty period will be repaired or replaced.
✦✦✦✦
| Our Guarantee |
The real sale is the responsibility we have to each customer to list, clean, sell, and ship a part correctly. If we miss that mark, please tell us and we will make it right.
— The SCO Team
