1986 1987 1988 - 1997 Suzuki 20" Lower Unit DT 150 175 200 HP 6 MONTH WARRANTY


$915.00
International Shipping Quote
  • Brand: Suzuki
  • Size: 150 175 HP
  • Color: Orange
  • Style: 2-Stroke - DT - 22/15 splines - L
  • Condition: Used
  • Notes: 6 Month warranty
  • SKU: 55159 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: Japan
  • Motor & Engine Type: Suzuki
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Orange
  • Inventory Number: 55159 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00
What's Important:
  • 20 Inch Driveshaft
  • Unit pressured and new impeller installed
  • Extended Warranty with exchange of a spinning core (see below for more info)
Additional Info
  • Shifts and spins smoothly without binding
  • Shafts checked for straightness
  • Driveshaft splines show light wear
  • Freshwater Condition
  • New Impeller
  • Pressure checked to 12 PSI

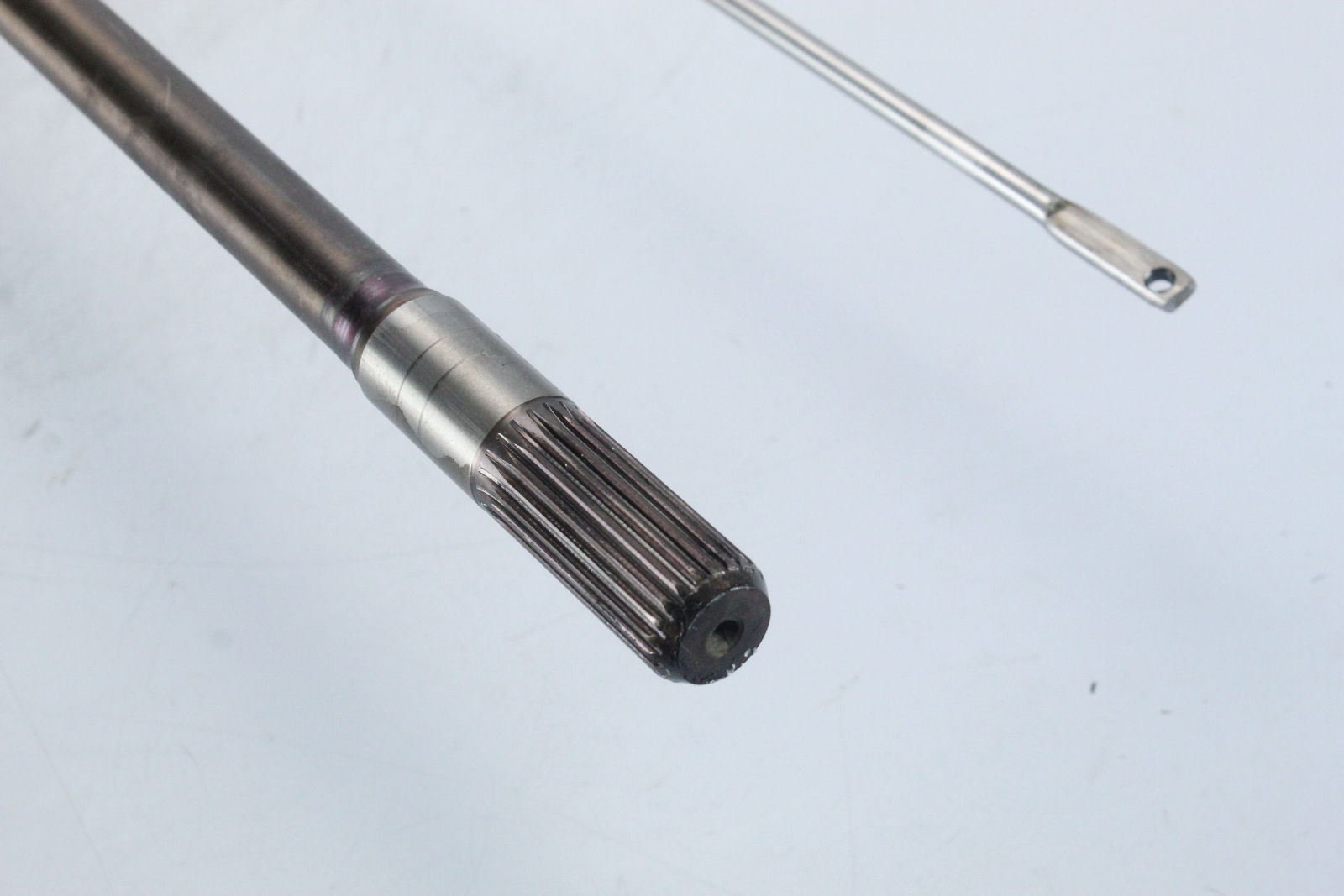

Driveshaft splines: 22

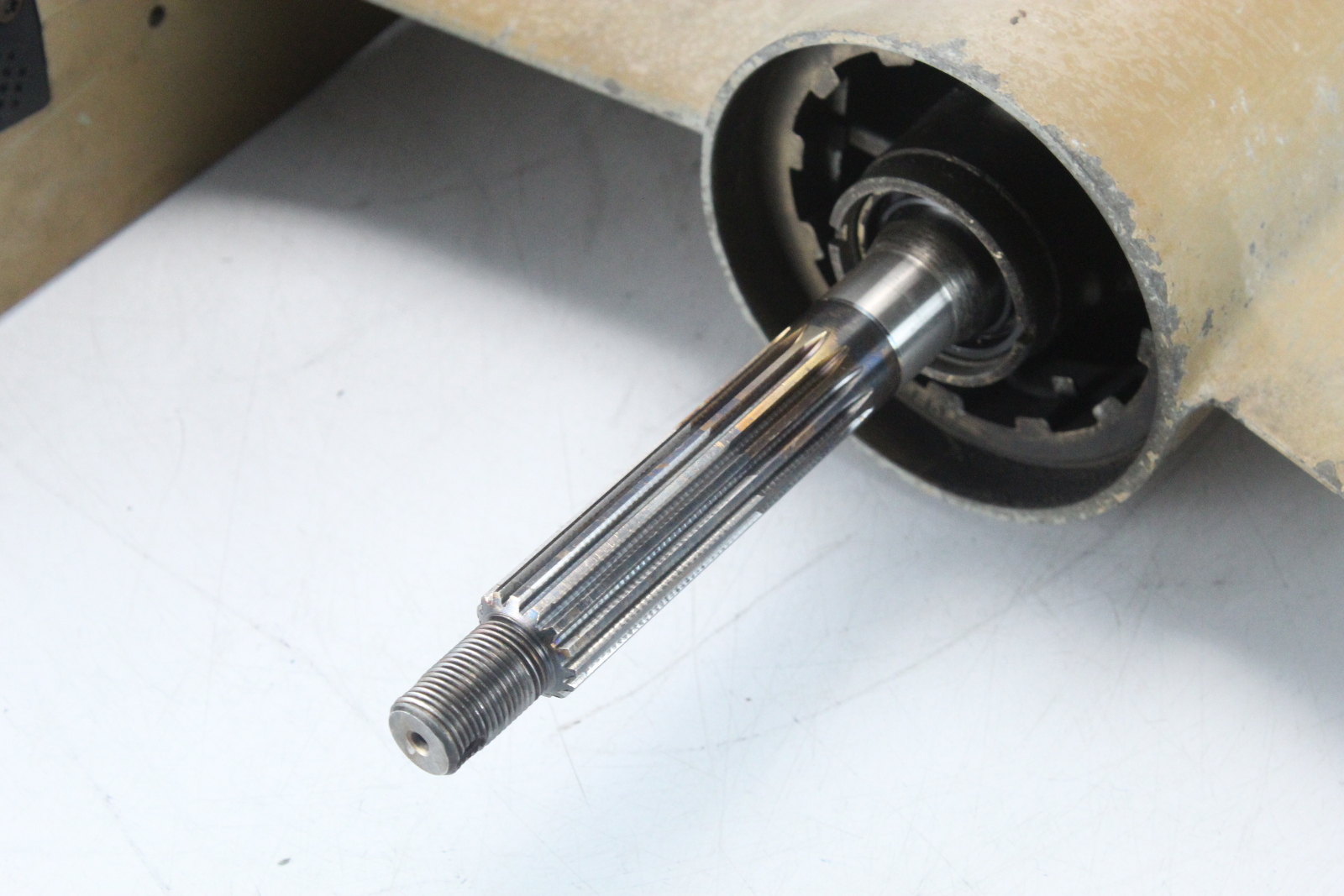

Propeller shaft splines: 15

Driveshaft length from the top of the water pump to top of the shaft: 19-5/8"

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 6 month warranty. This unit is being sold with a 6 month working warranty that covers the gears, bearings, and shafts.  This does NOT cover seals.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 6 month warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois


Fits: 1986-1997 - DT 150 175 HP - 2 STROKE

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!



1986 1987 1988 - 1997 Suzuki 20" Lower Unit DT 150 175 200 HP 6 MONTH WARRANTY
