1986-1997 Suzuki 25" Lower Unit DT 150 175 200 HP


$980.00
International Shipping Quote
  • Brand: Suzuki
  • Size: 150 175 HP
  • Color: White
  • Style: 2-Stroke - DT - 22/15 splines - XL
  • Condition: Used
  • Notes: 10 hours on the Motor!
  • SKU: 51683 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: Japan
  • Motor & Engine Type: Suzuki
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, White
  • Warranty: 30 days
  • Inventory Number: 51683 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00

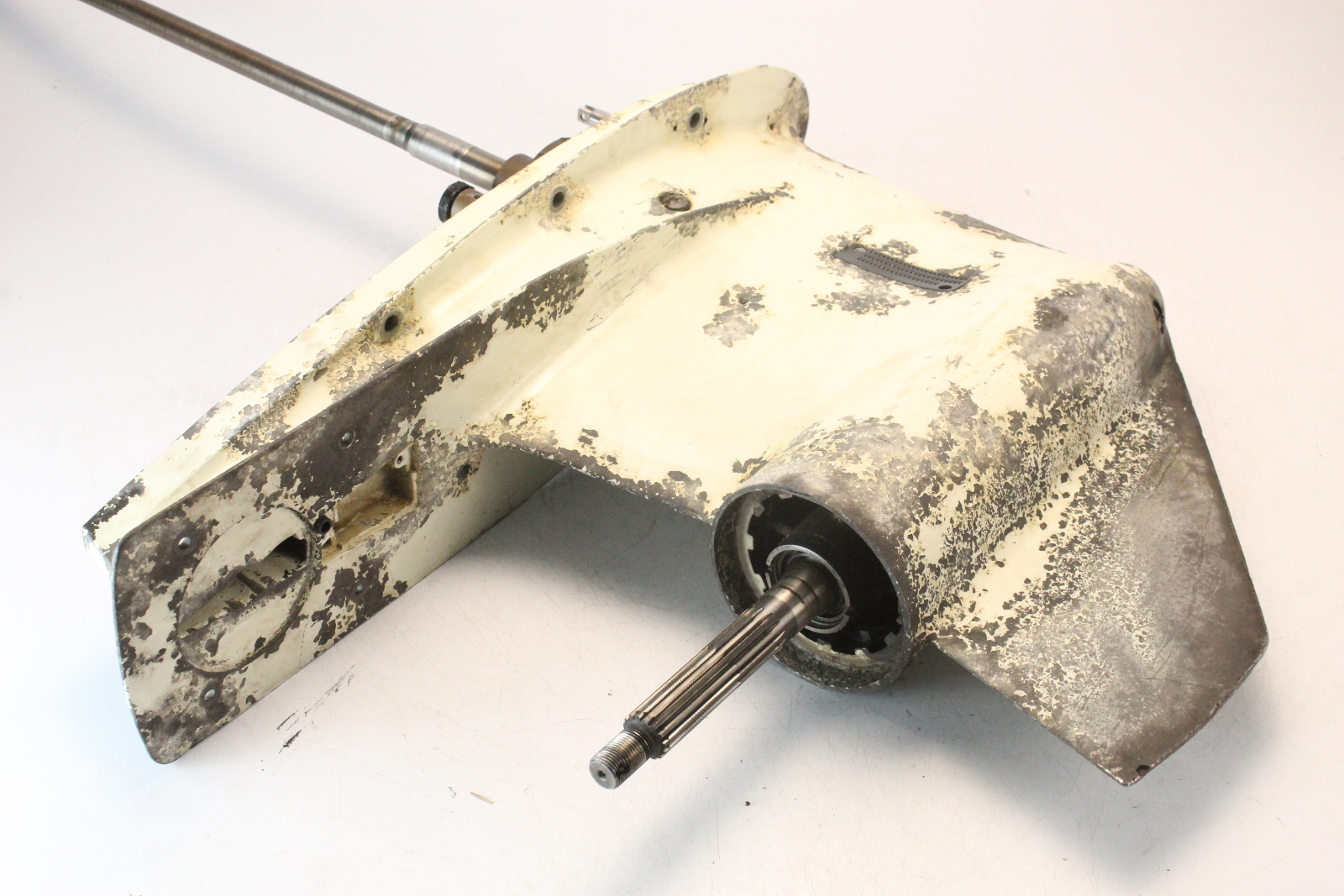

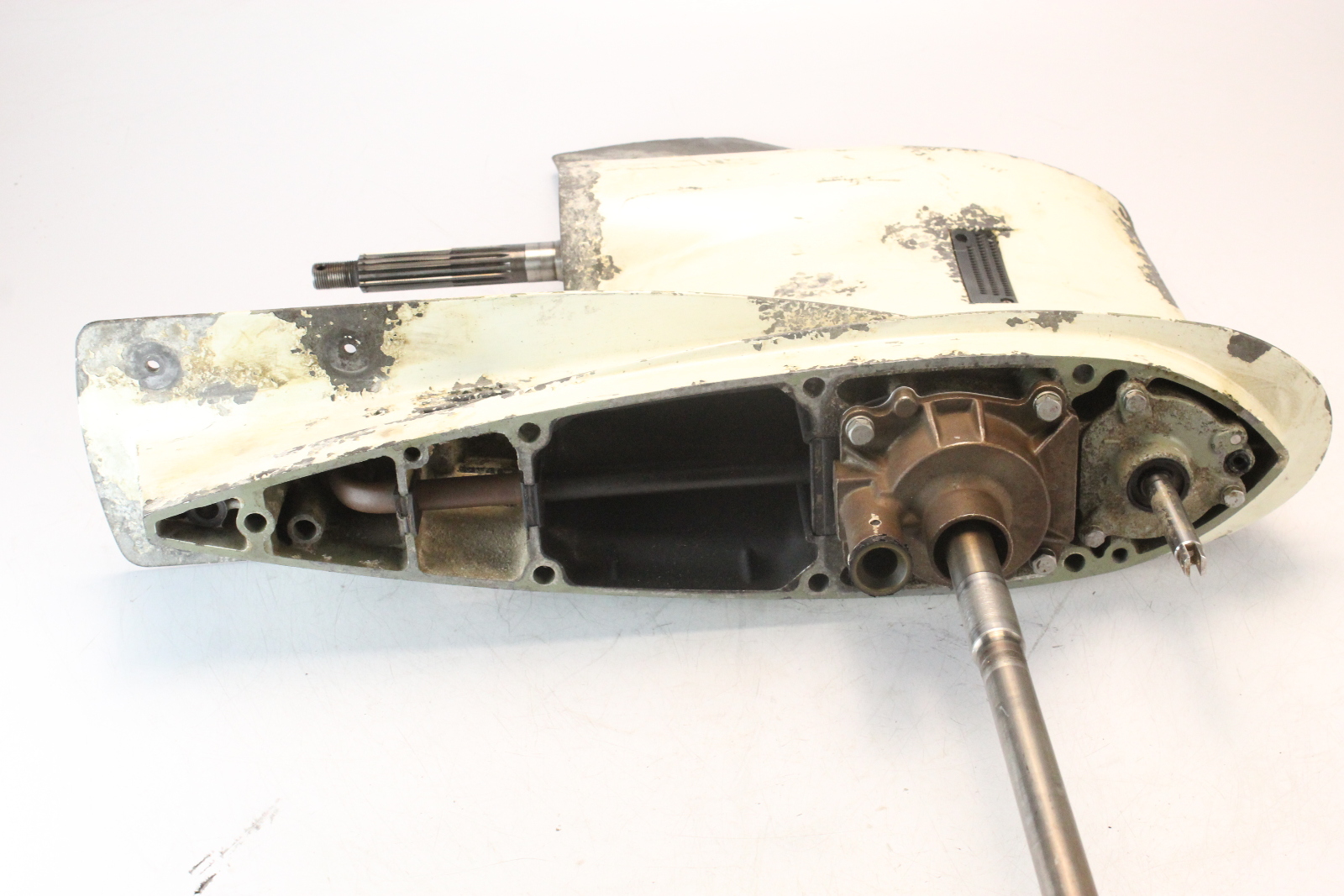

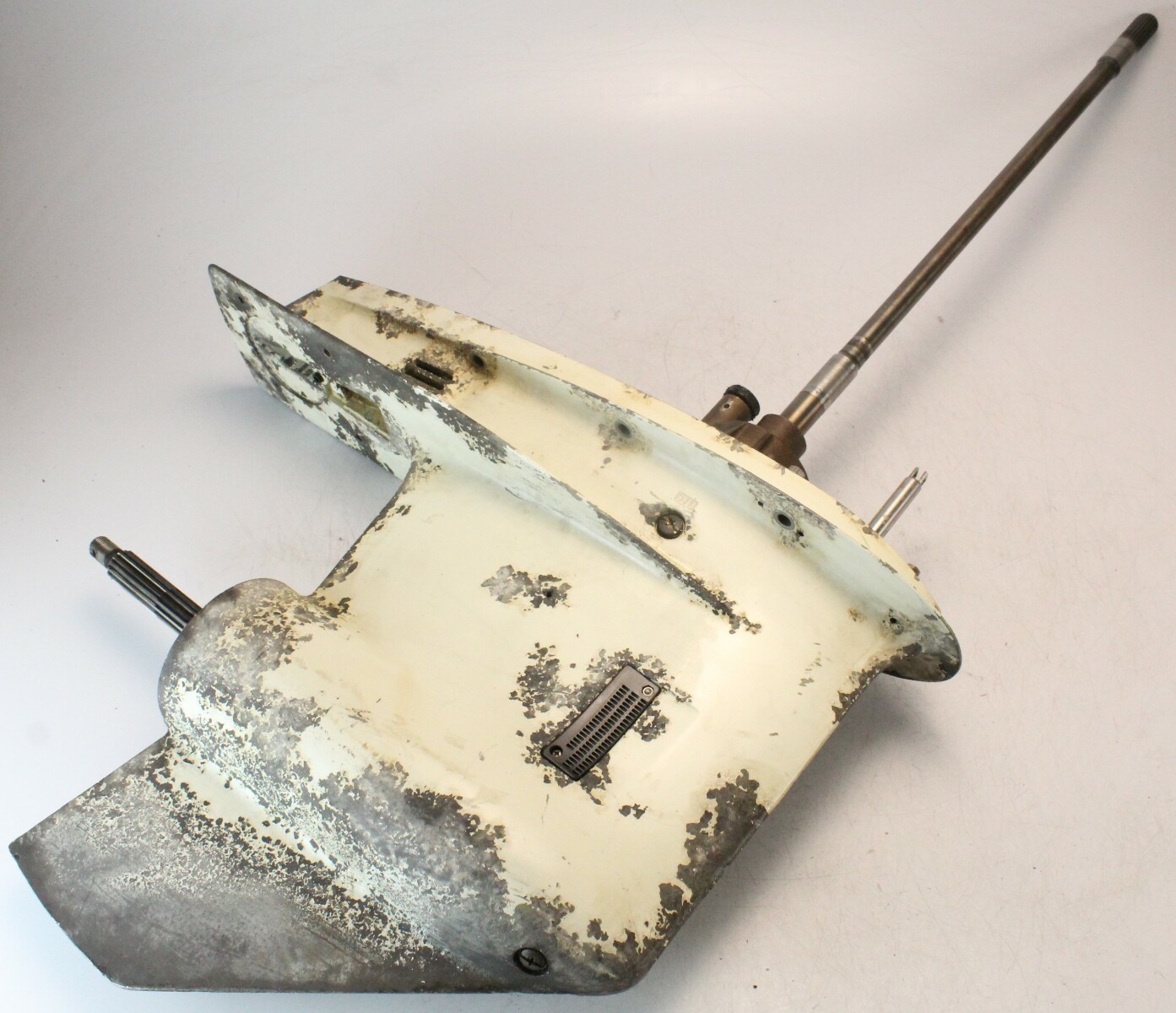

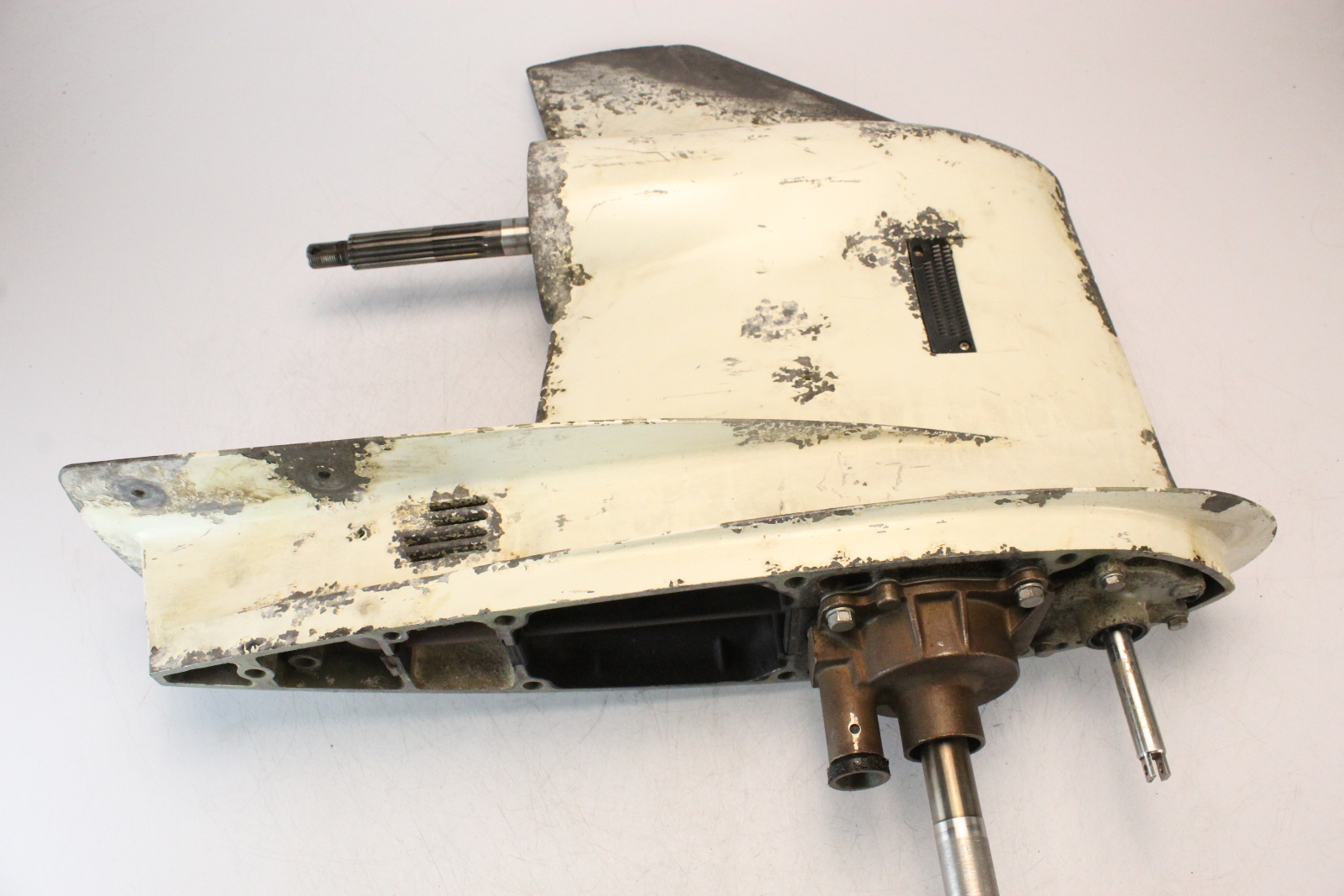

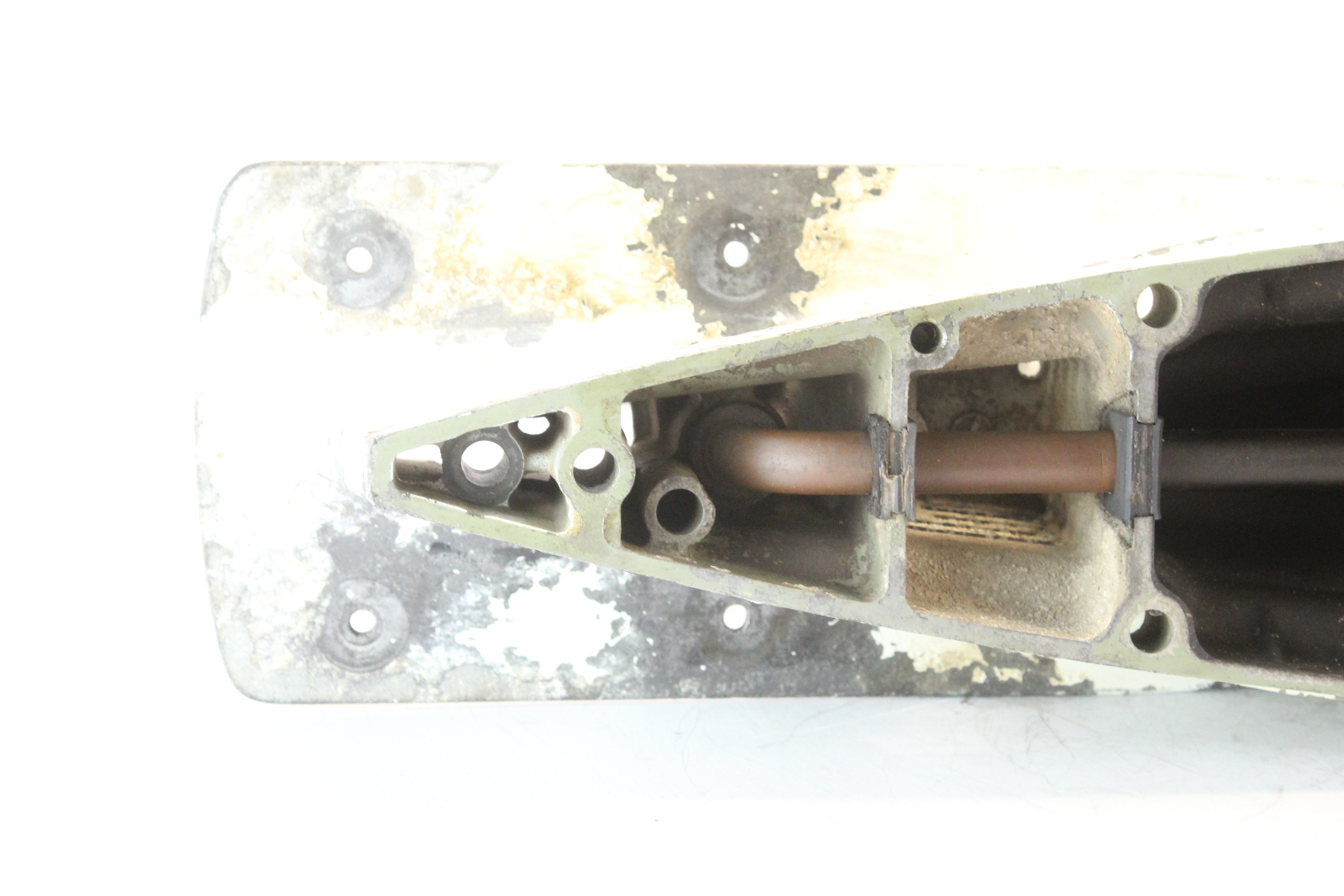

Item Description Suzuki XL Lower Unit
What's Important:
  • Spedo nipple is broken off
  • Will need new seals
  • Comes as is.
Additional Info

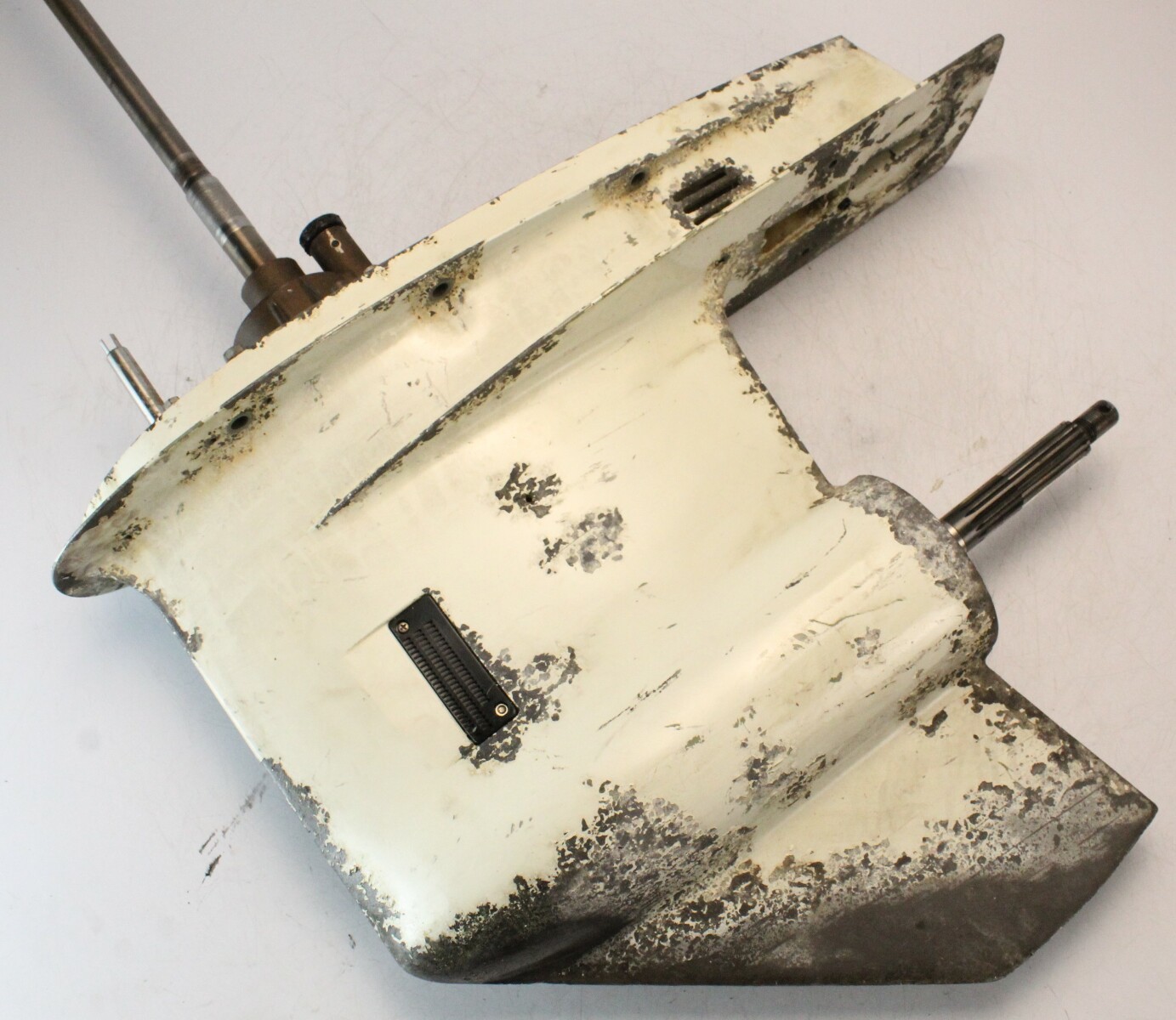

  • Paint is missing, please see pictures
  • There are holes in the cavitation plate for a planning fin
  • The unit shifts and spins without binding
  • Oil was dirty but does not show signs of heavy metal or water

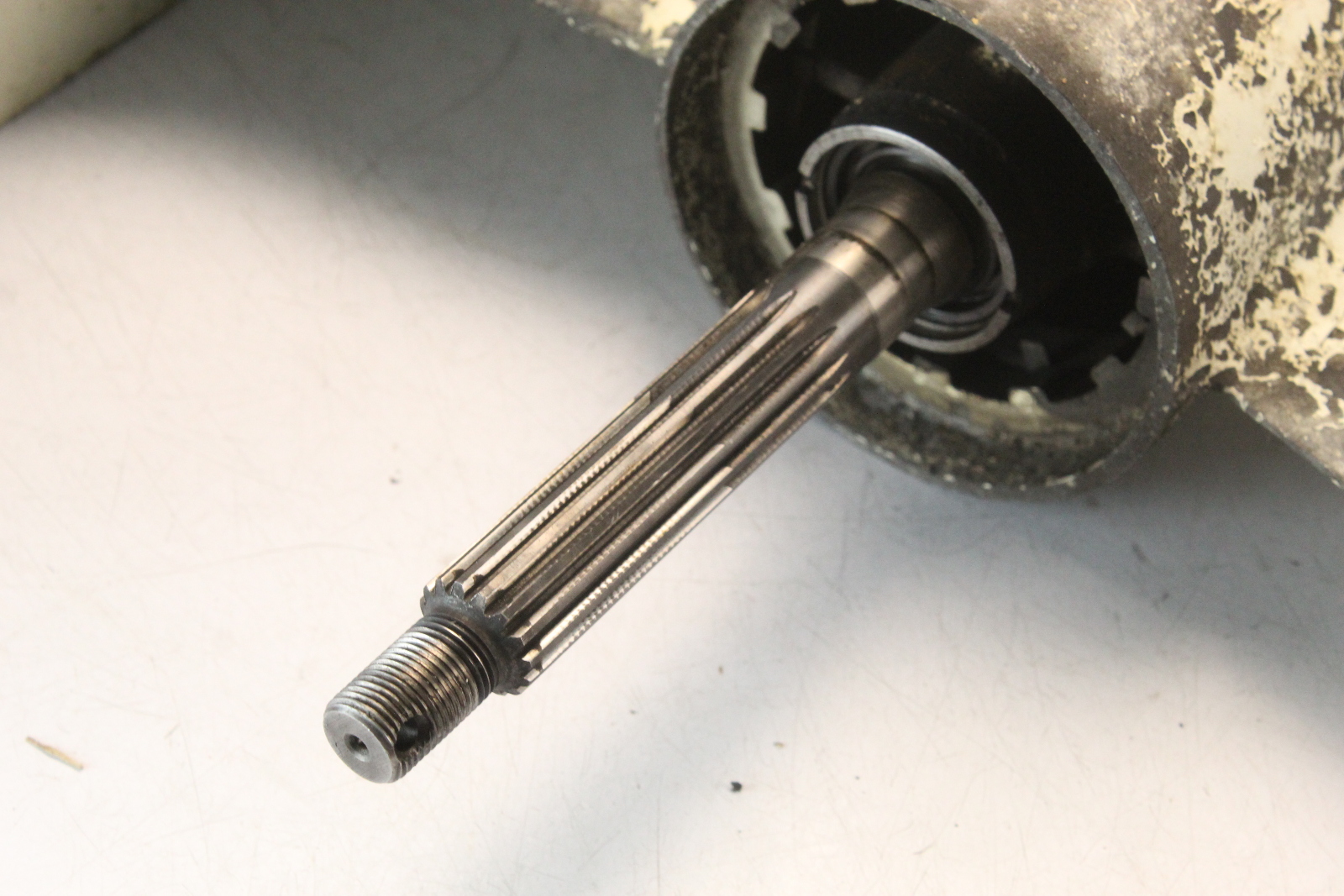

  • The propeller shaft is straight

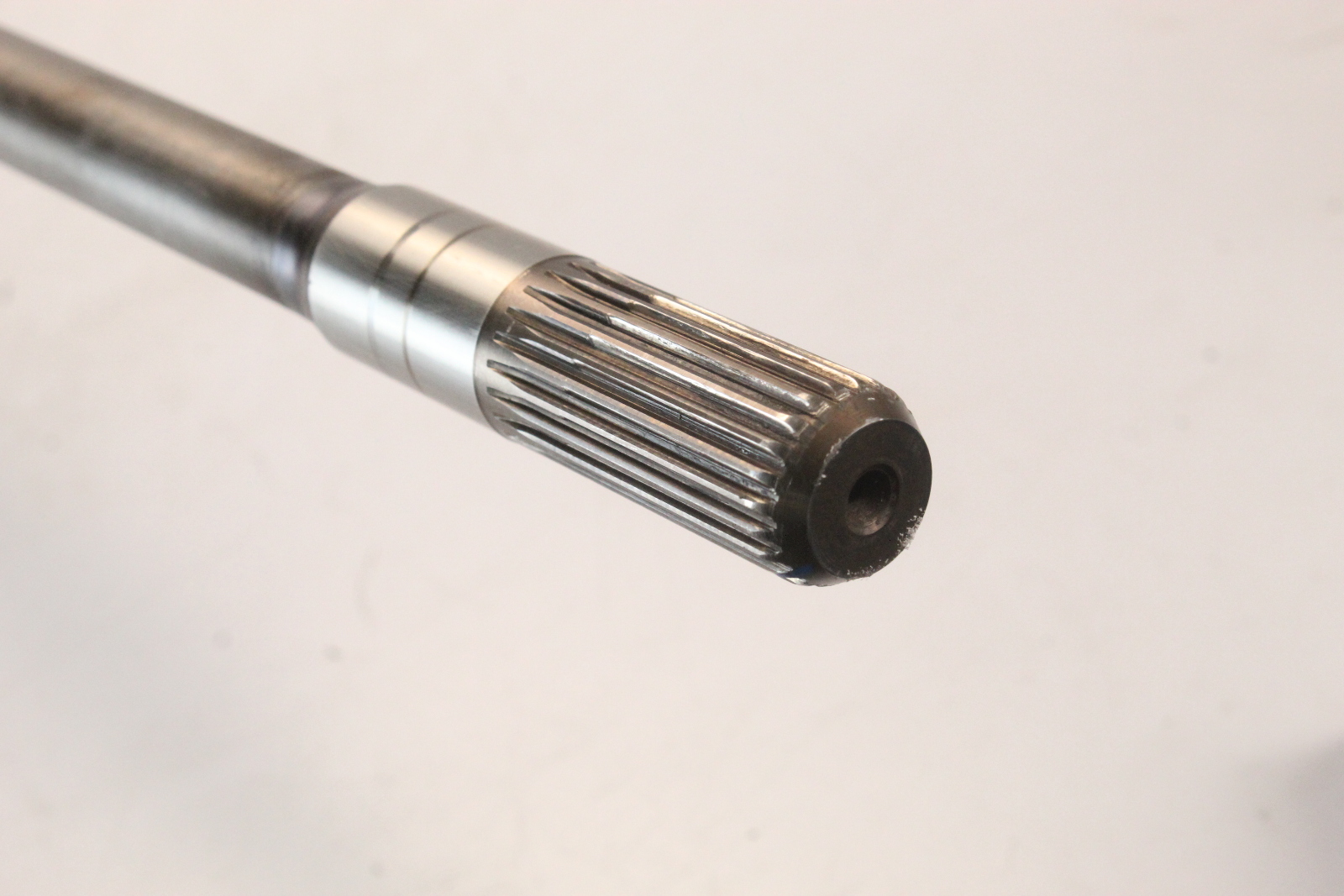

  • Driveshaft shows slight wear
  • Unit did not pressure check and is leaking from the propeller shaft seal
  • Spedo nipple is broken off
Driveshaft length from top of the water pump to top of shaft: 25"
Driveshaft splines: 22
Propeller shaft splines: 15

Please note that we will not accept returns for this item if ordered incorrectly or because you changed your mind. Please be absolutely sure this is the correct one for your motor prior to purchasing.

Location: Southcentral Outboards, Altamont, Illinois
Fits: 1986-1997 - DT 150 175 HP - 2 STROKE

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
