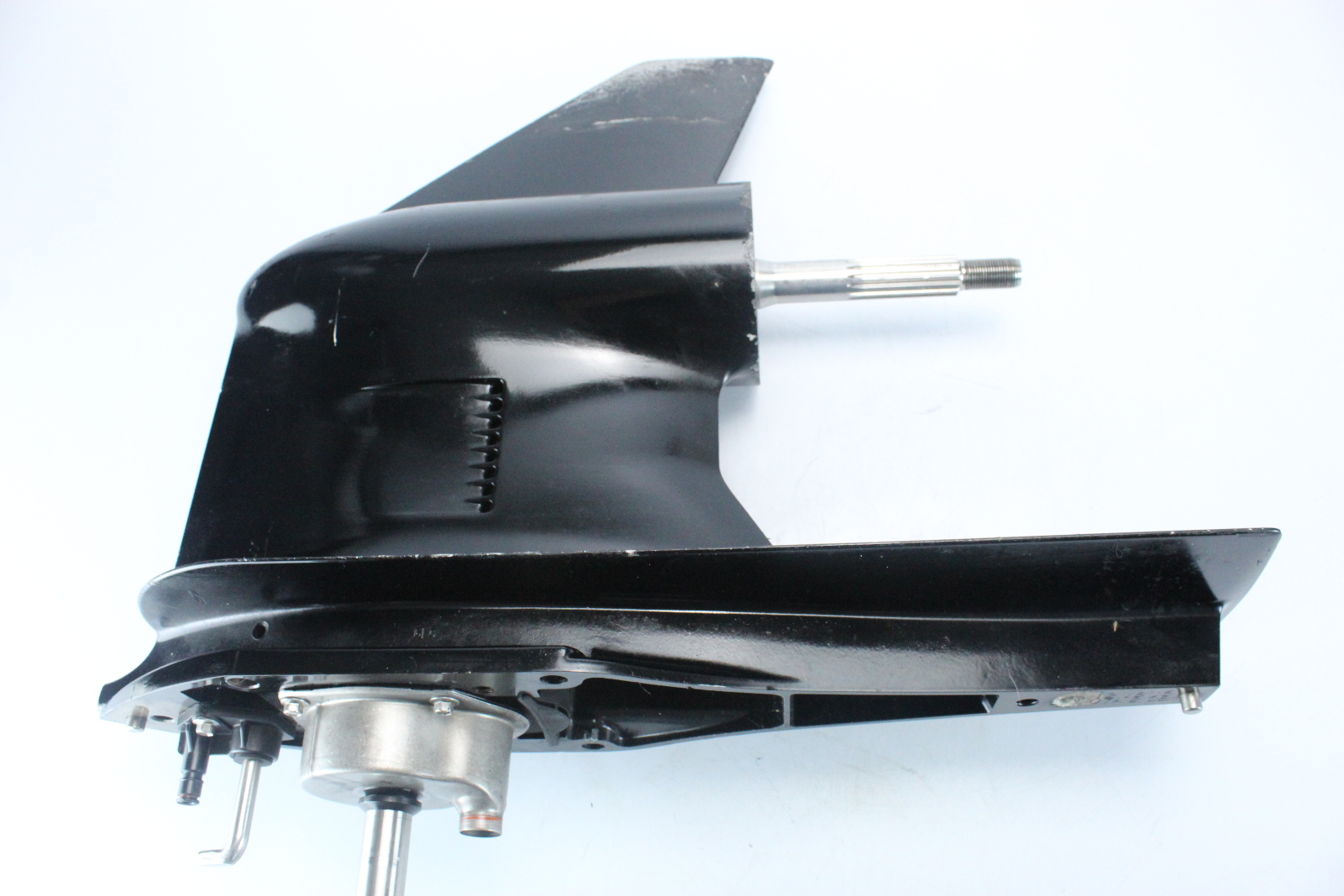

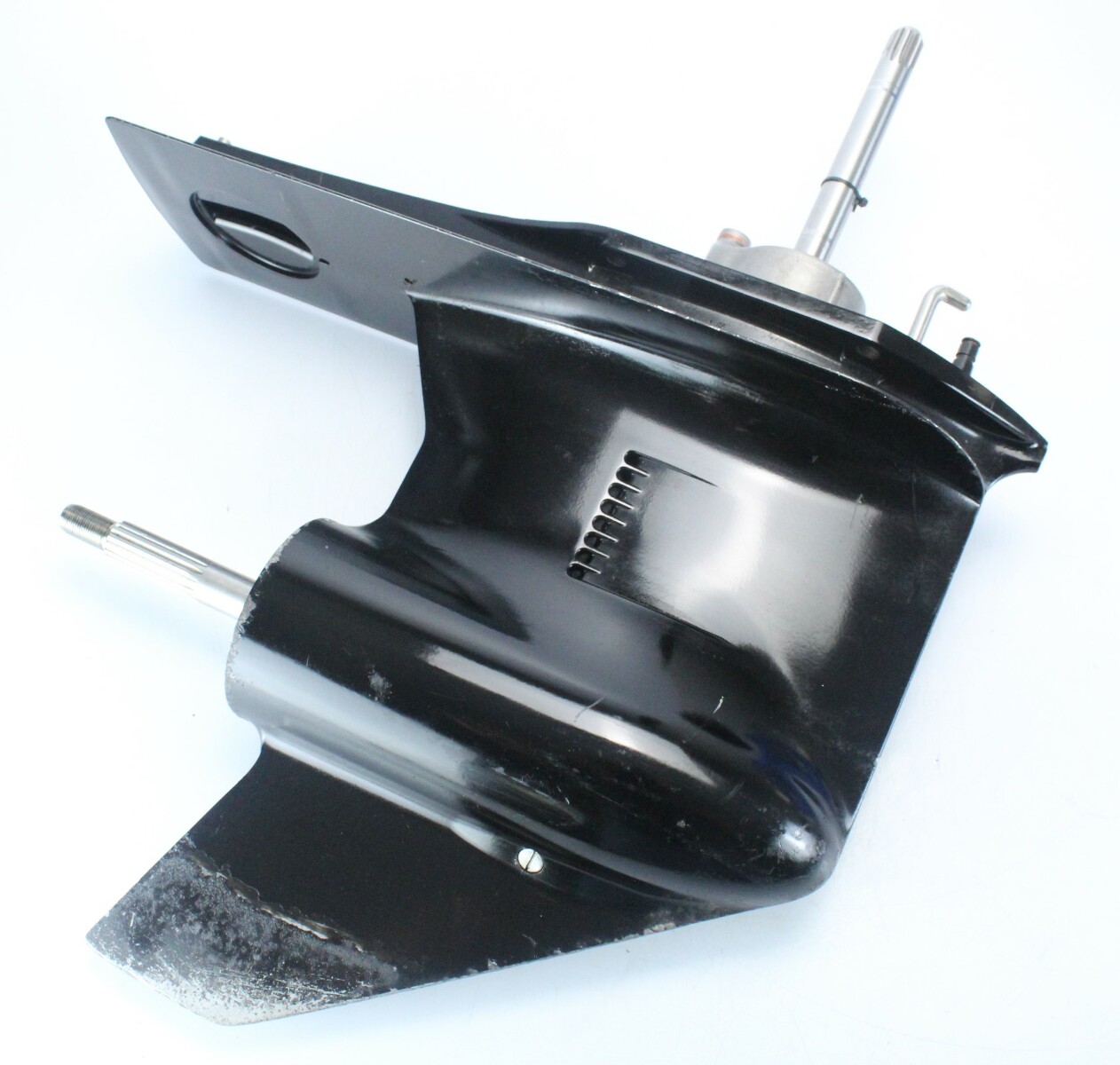

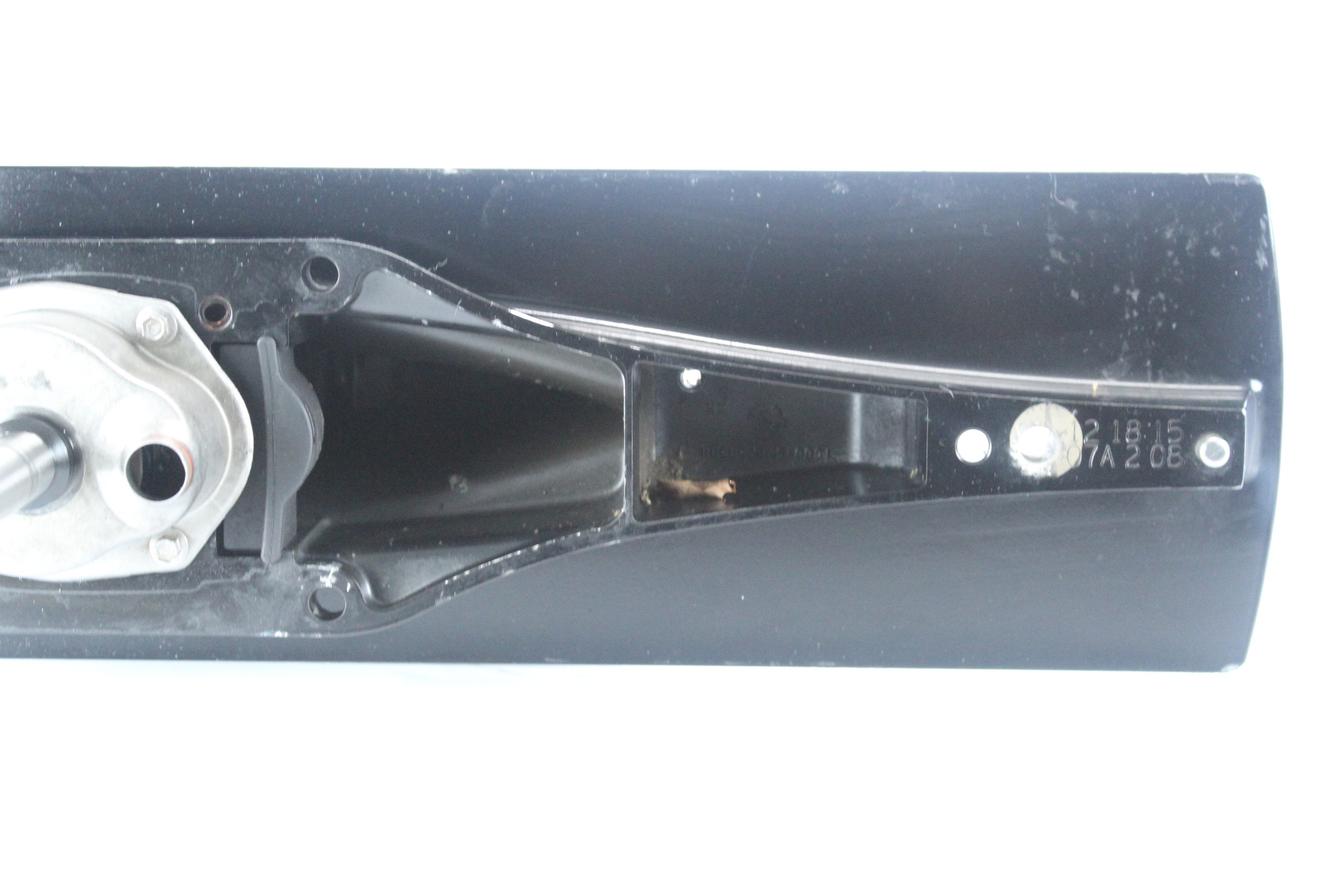

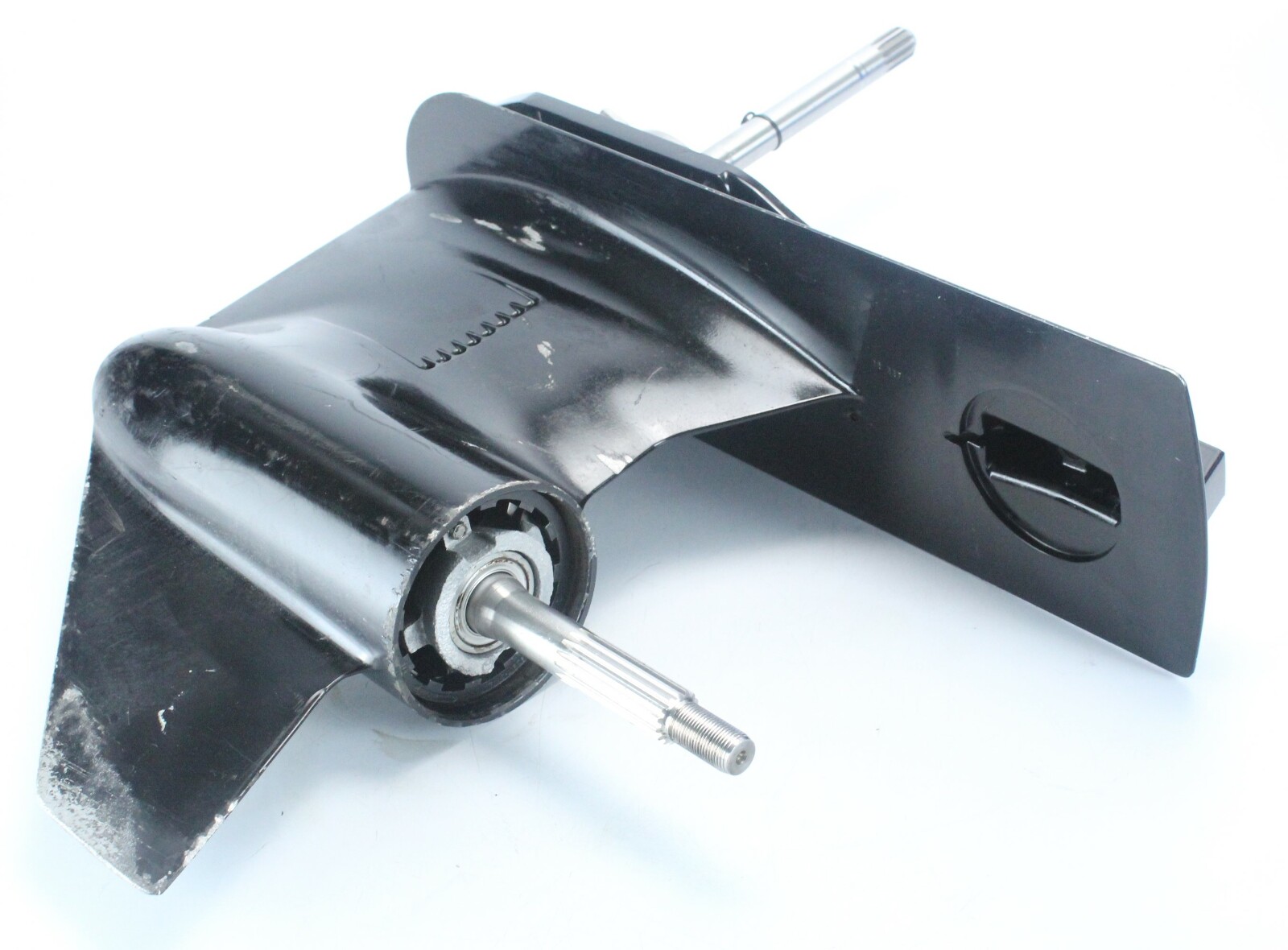

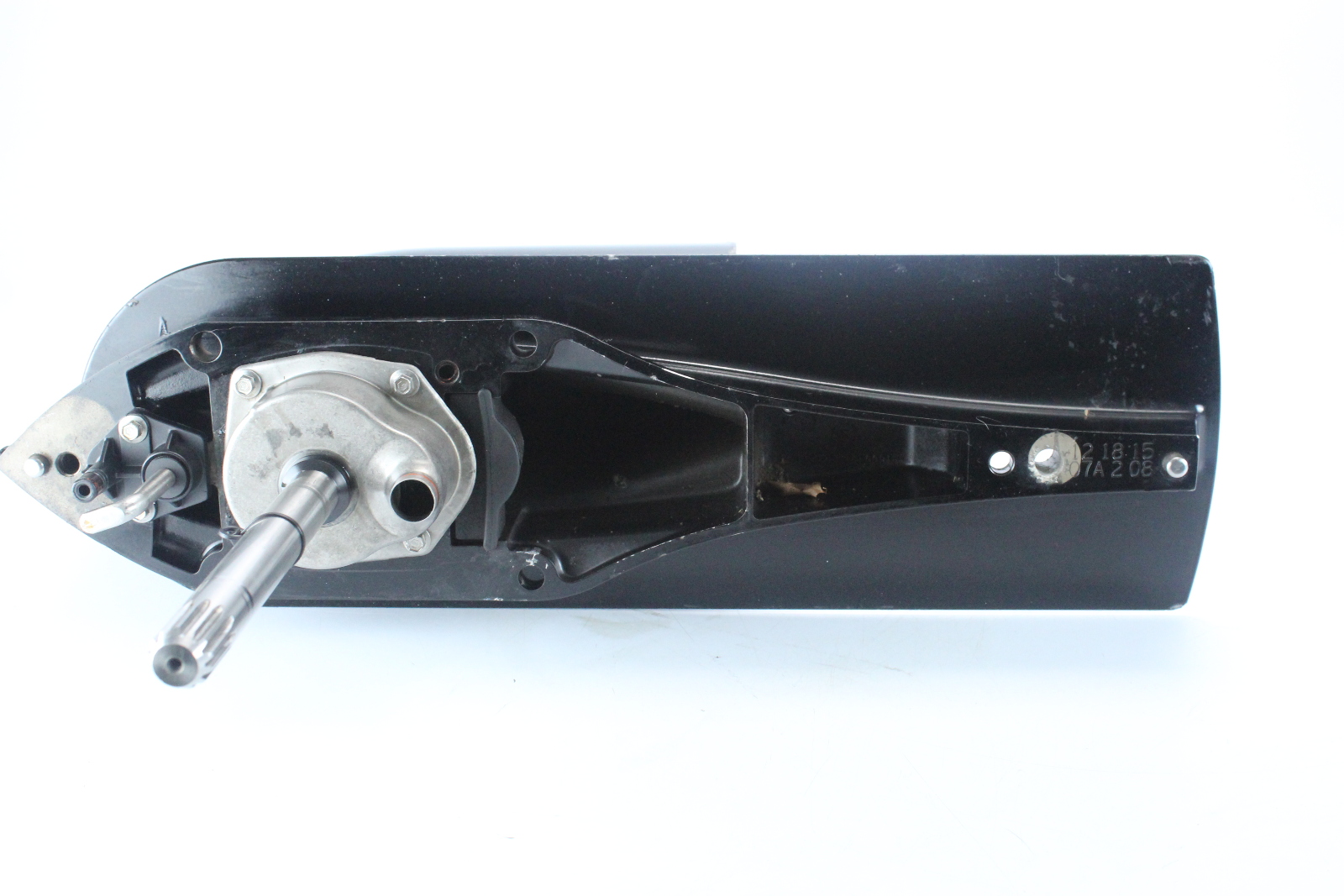

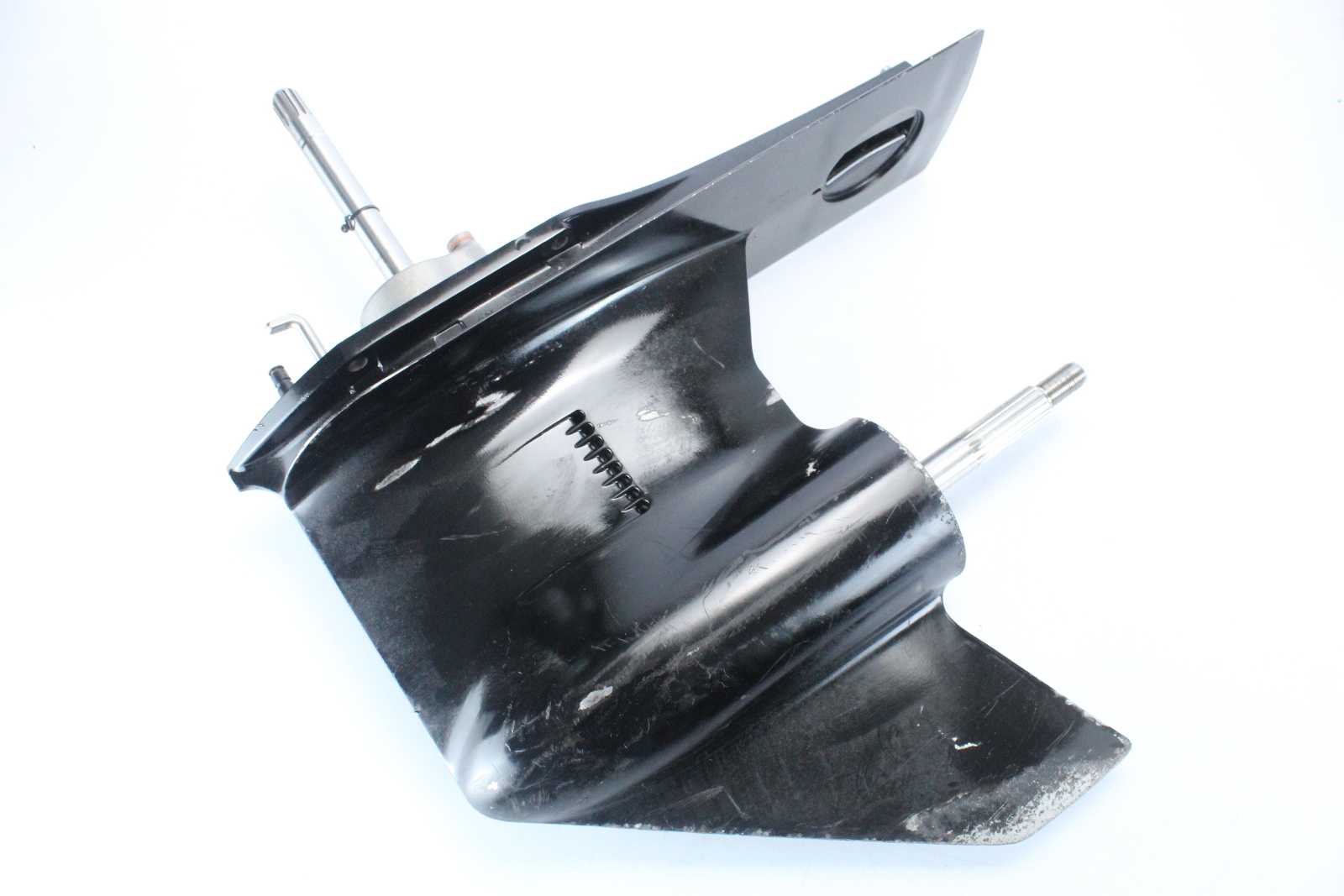

1991 - 2015 Mercruiser Alpha I Gen II 1.62:1 Outdrive Lower Unit 1 YEAR WARRANTY

• Pressure checked and resealed with new impeller installed
• Warranty with exchange of a spinning core

• Shifts and spins smoothly without binding
• Shafts checked for straightness
• Driveshaft splines show light wear
• Gears & clutch are in good contition with light wear on clutch surfaces
• Freshwater Condition
• New Impeller installed
• Fully Resealed & Pressure checked to 12 PSI
• Freshly Painted

Gear Ratio: 1.62:1

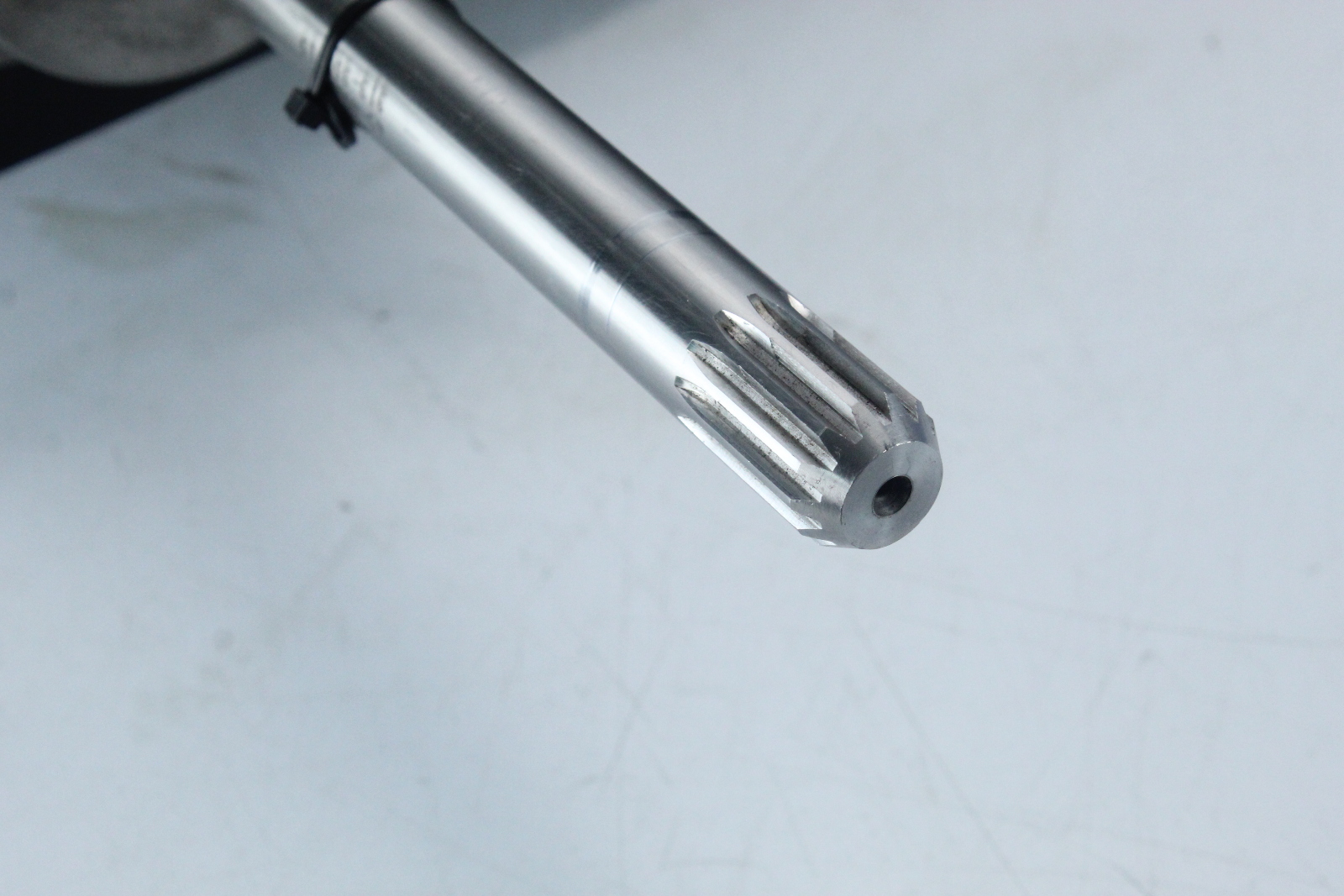

Driveshaft splines: 13

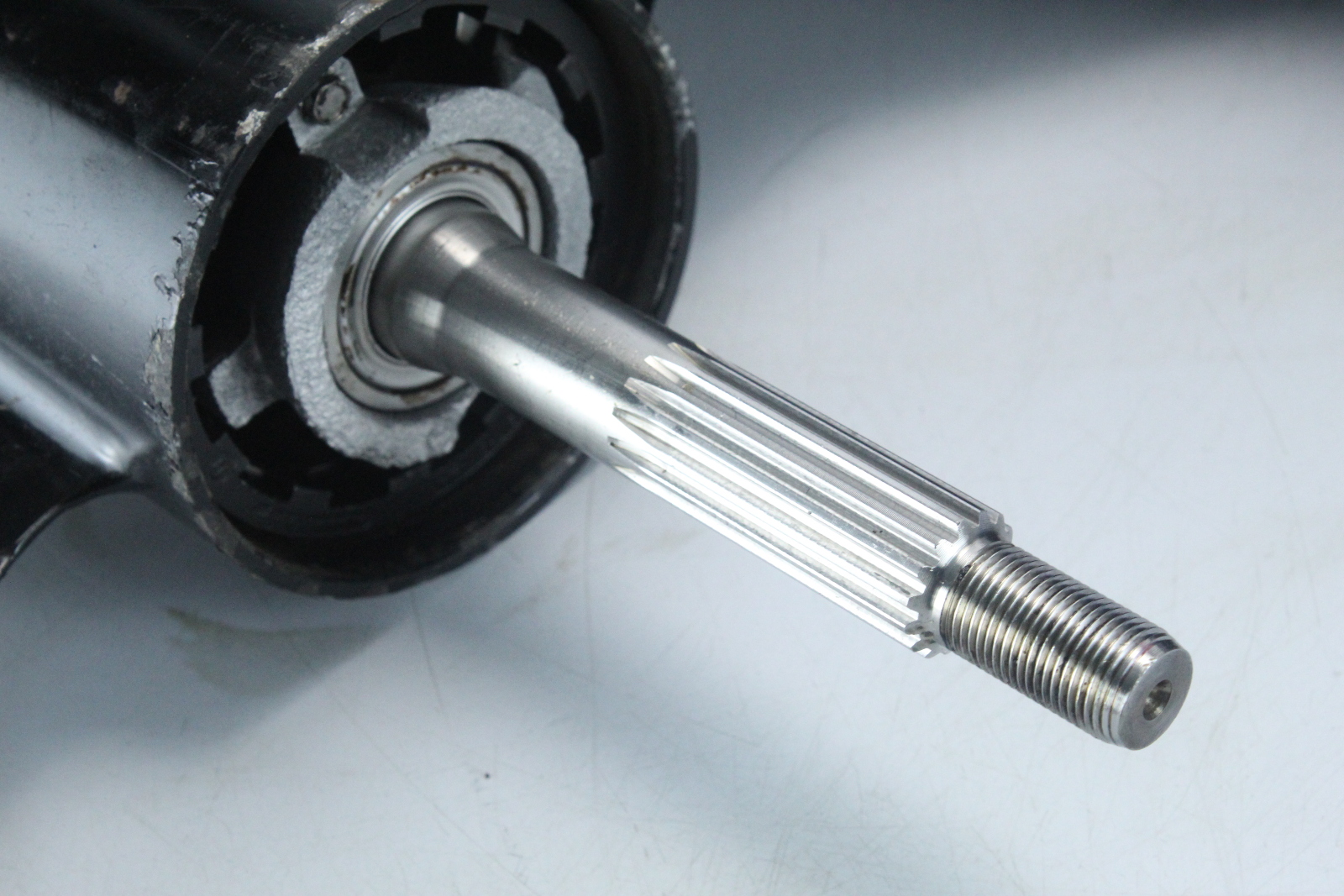

Propeller shaft splines:15

Driveshaft length from the top of the water pump to top of the shaft: 7-1/2"

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 1 year warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 1 year warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
