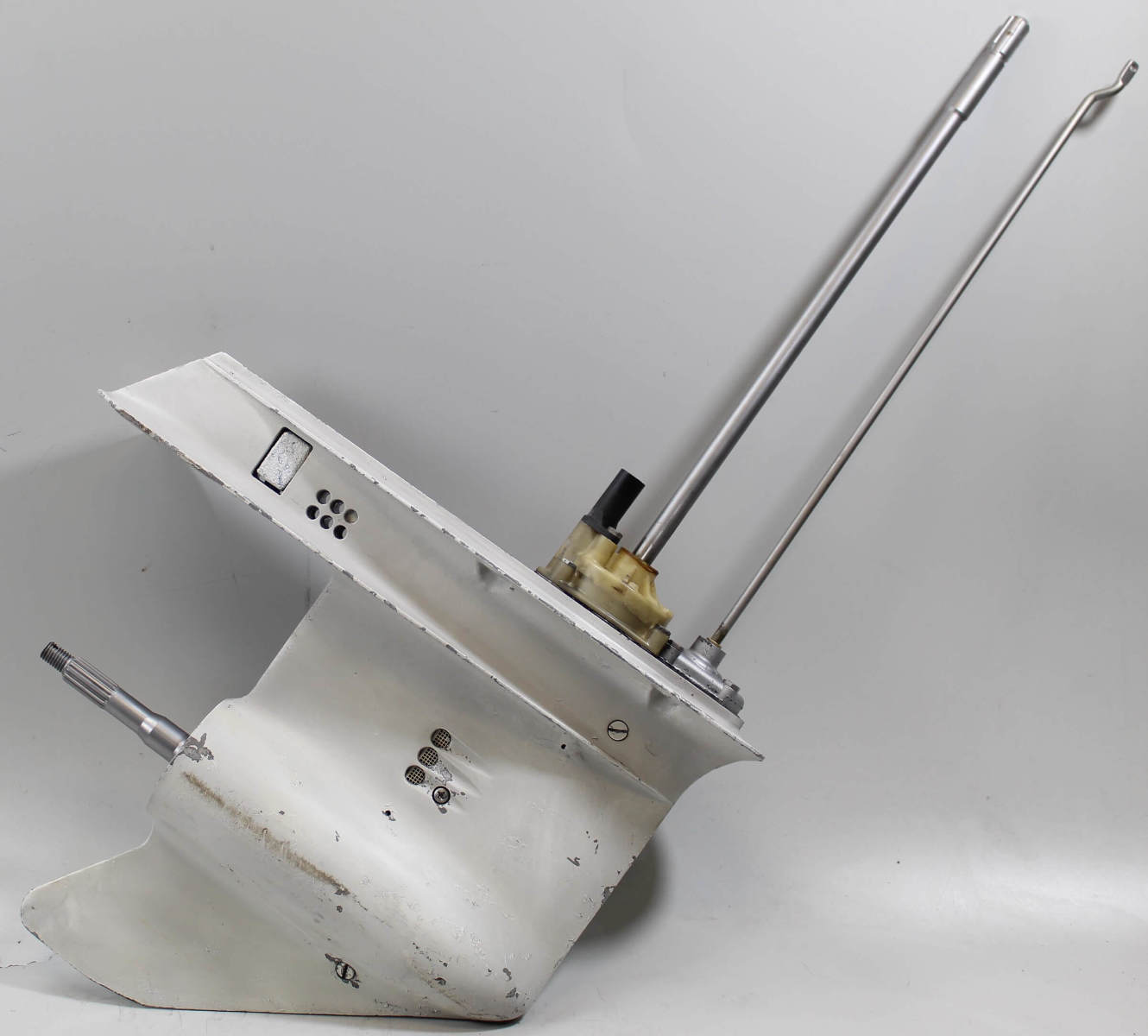

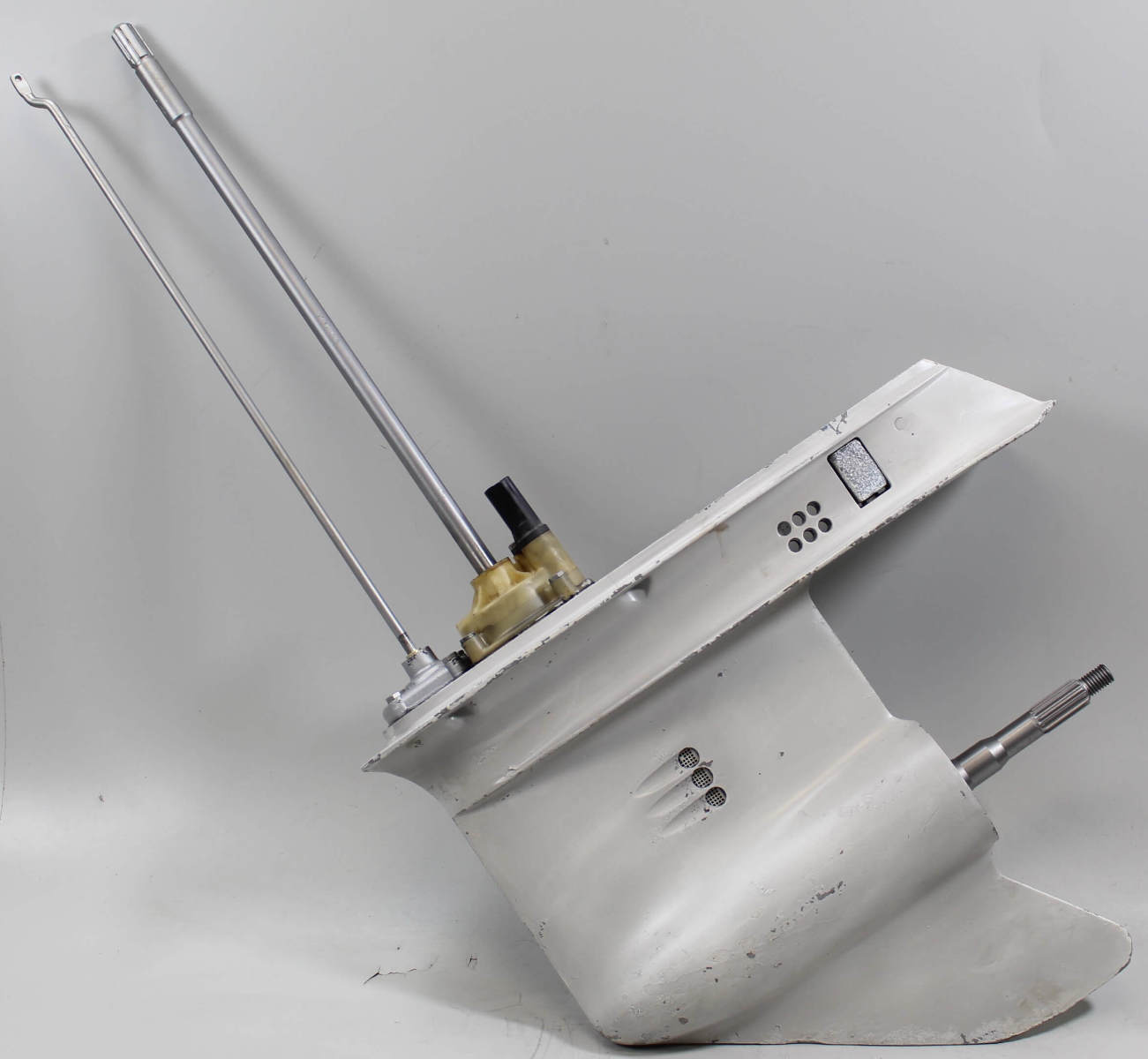

1979-88 Johnson Evinrude 20" Lower Unit 60 65 70 75 HP 3 Cyl 1 YEAR WTY!

N/A

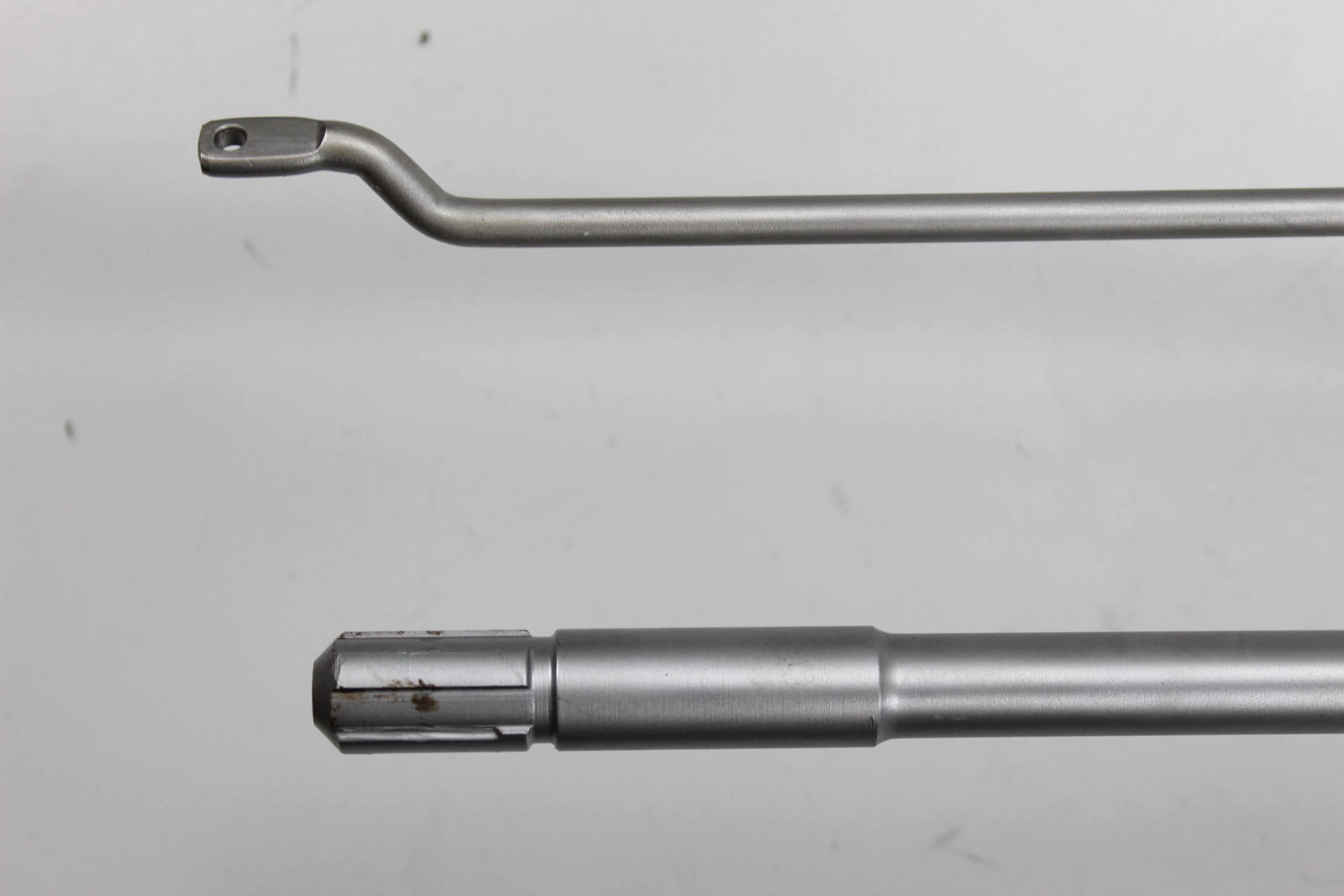

Driveshaft measures approximately 19-1/2" from the top of the water pump to the end of the driveshaft
Driveshaft spline count - 4

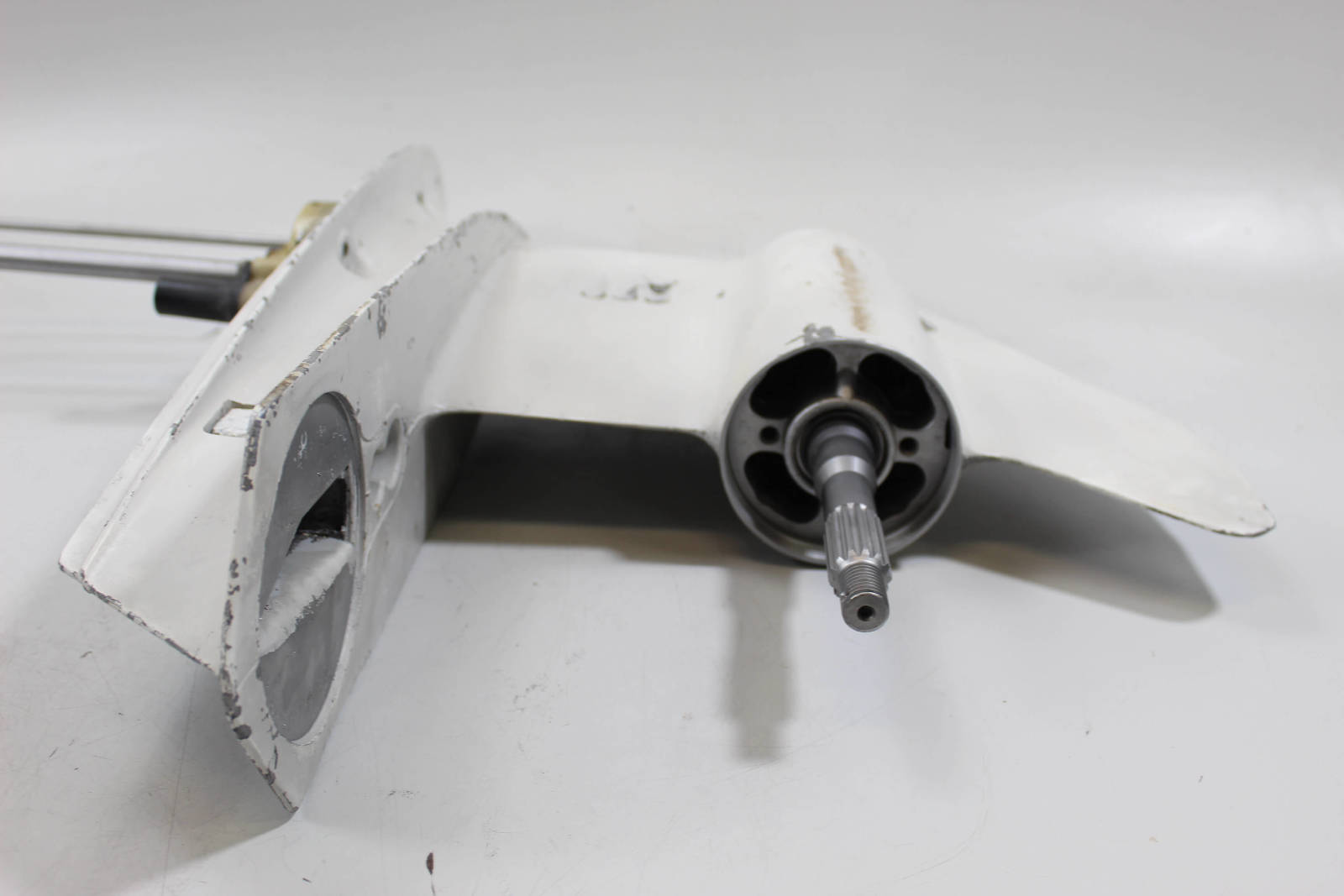

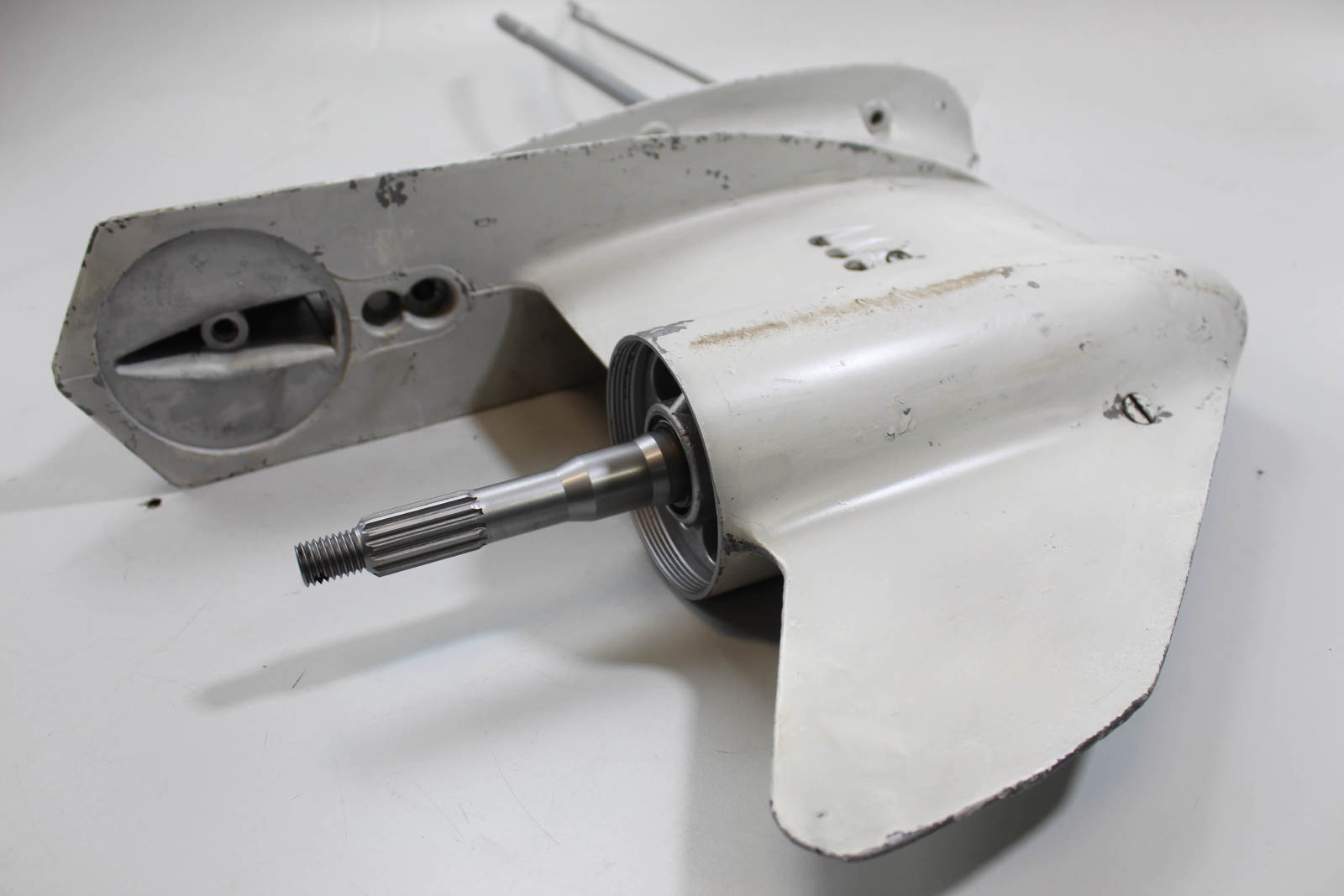

Prop shaft spline count - 13

General Information

Freshwater condition
Opened & Inspected
Professionally Cleaned
New Impeller
Pressure checked to 12 PSI minimum
Fully Resealed
Shafts checked for straightness

Criteria to validate your 1 year warranty:

Core must be of equal or greater value
Cannot be locked up - driveshaft must spin
Up to 30 days from the date of purchase to send in your core
Covers mechanical aspects ONLY
Warranty begins from date of purchase

You will receive two copies of the terms and conditions for the lower unit one year warranty. One copy MUST be signed and returned with your core. Without a returned signed copy, the one year warranty will not be valid.

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 1 year warranty. We reserve the right to accept or reject any core at our discretion. If you have any questions or concerns, please do not hesitate to contact us at 618-487-9499 and we would be happy to help!

1979-1988 -  60 65 70 75 HP 3 Cylinder

Identical to earlier 1973-75 lower unit, but up is forward on this
model and it’s opposite on earlier model.Also, the driveshaft is shorter than the earlier models. Approximately ½”, measuring 19-1/4”
