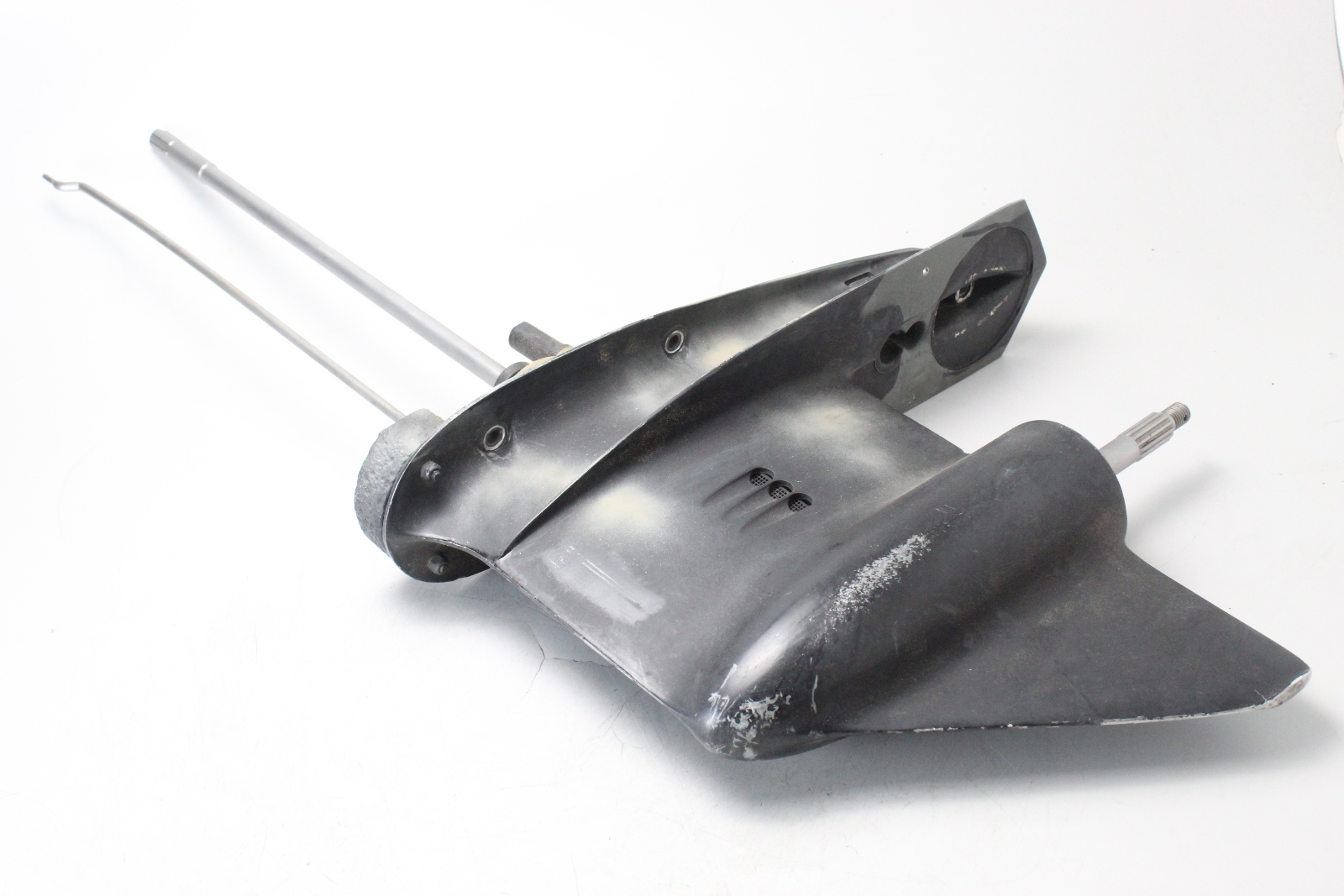

1975-88 Johnson Evinrude 20" Lower Unit 60 65 70 75 HP 3 Cyl 1 YEAR WARRANTY

N/A

• Removed from a freshwater engine
• Professionally inspected
• 2 Holes drilled in the cavitation plate from prior planing fin use
• Intake screens intact
• Skeg intact
• Does come with the anode
• Does not come with trim tab, propeller, or propeller hardware
• Comes exactly as pictured

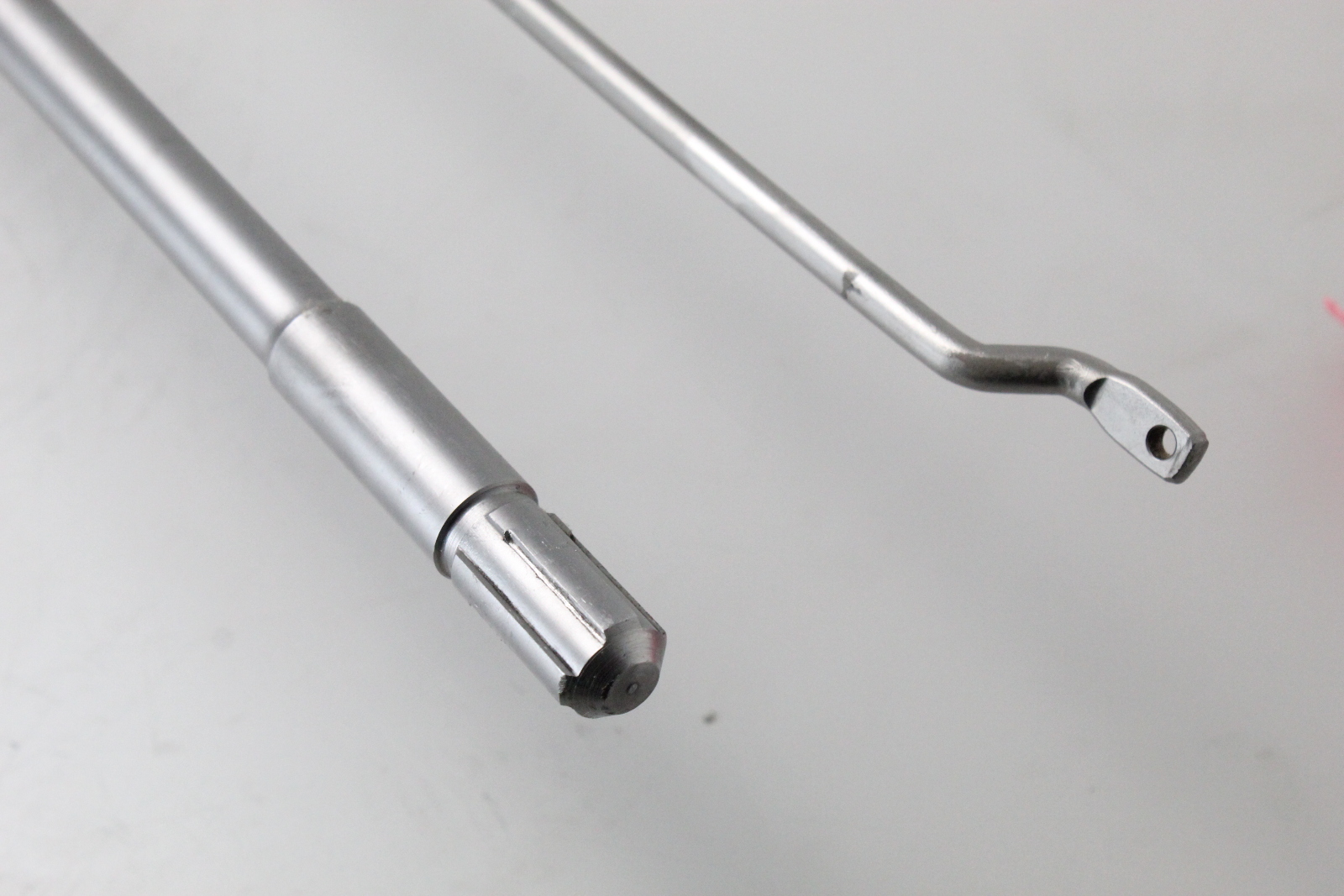

Driveshaft measures approximately 19-1/2" from the top of the water pump to the end of the driveshaft
Driveshaft spline count - 4

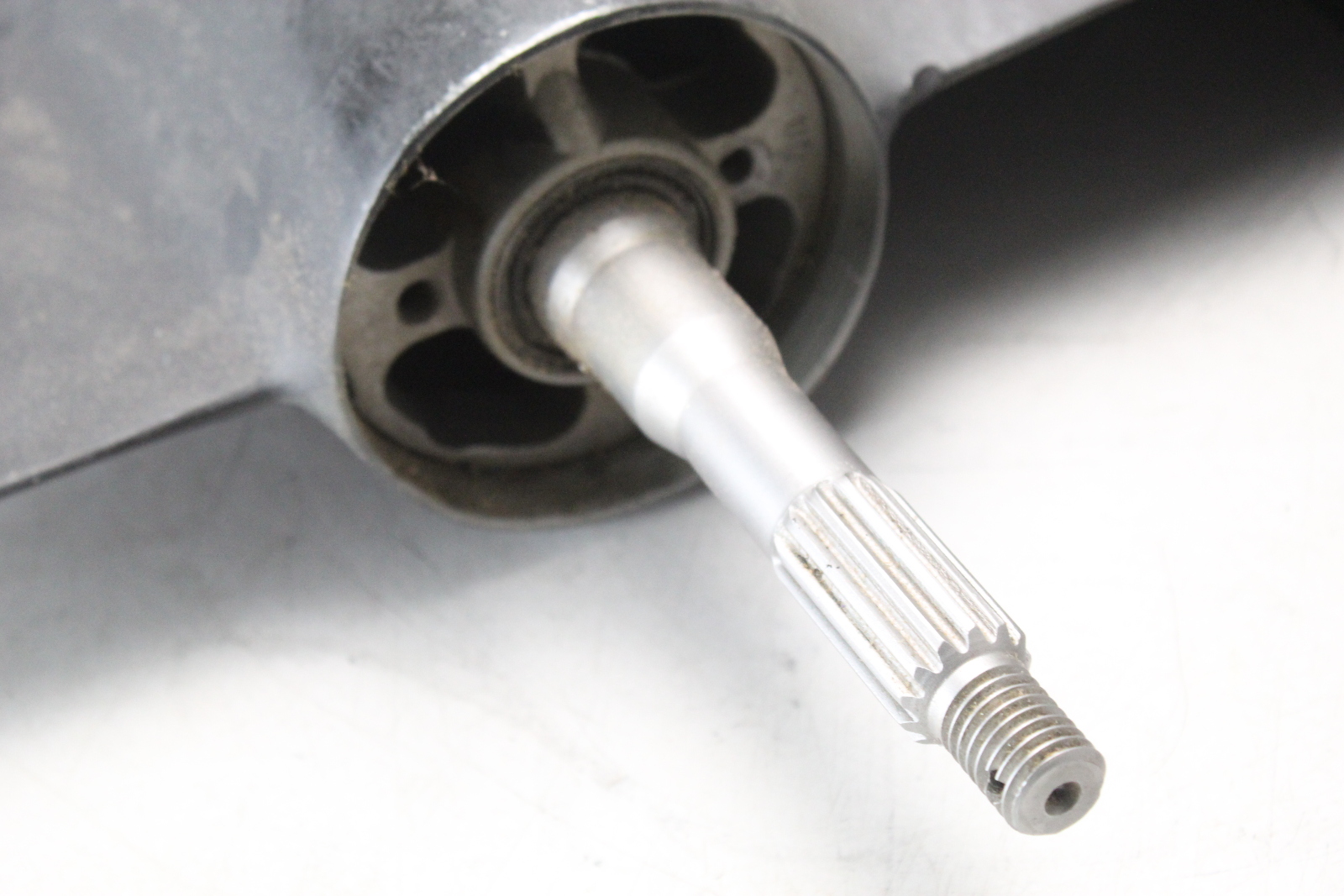

Prop shaft spline count - 13

General Information

Criteria to validate your 1 year warranty:

Core must be of equal or greater value
Cannot be locked up - driveshaft must spin
Up to 30 days from the date of purchase to send in your core
Covers mechanical aspects ONLY
Warranty begins from date of purchase

You will receive two copies of the terms and conditions for the lower unit one year warranty. One copy MUST be signed and returned with your core. Without a returned signed copy, the one year warranty will not be valid.

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 1 year warranty. We reserve the right to accept or reject any core at our discretion. If you have any questions or concerns, please do not hesitate to contact us and we would be happy to help!

We offer a 30 day return policy on this product so you can purchase it with confidence. If you have any issues with the product, please reach out to us and we would be happy to help resolve any issue that may occur. Please be absolutely sure this is the correct one for your motor prior to purchasing.

1975-1988 -  60 65 70 75 HP 3 Cylinder

Identical to earlier 1973-75 lower unit, but up is forward on this
model and it’s opposite on earlier model. Also, the driveshaft is shorter than the earlier models. Approximately ½”, measuring 19”

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
