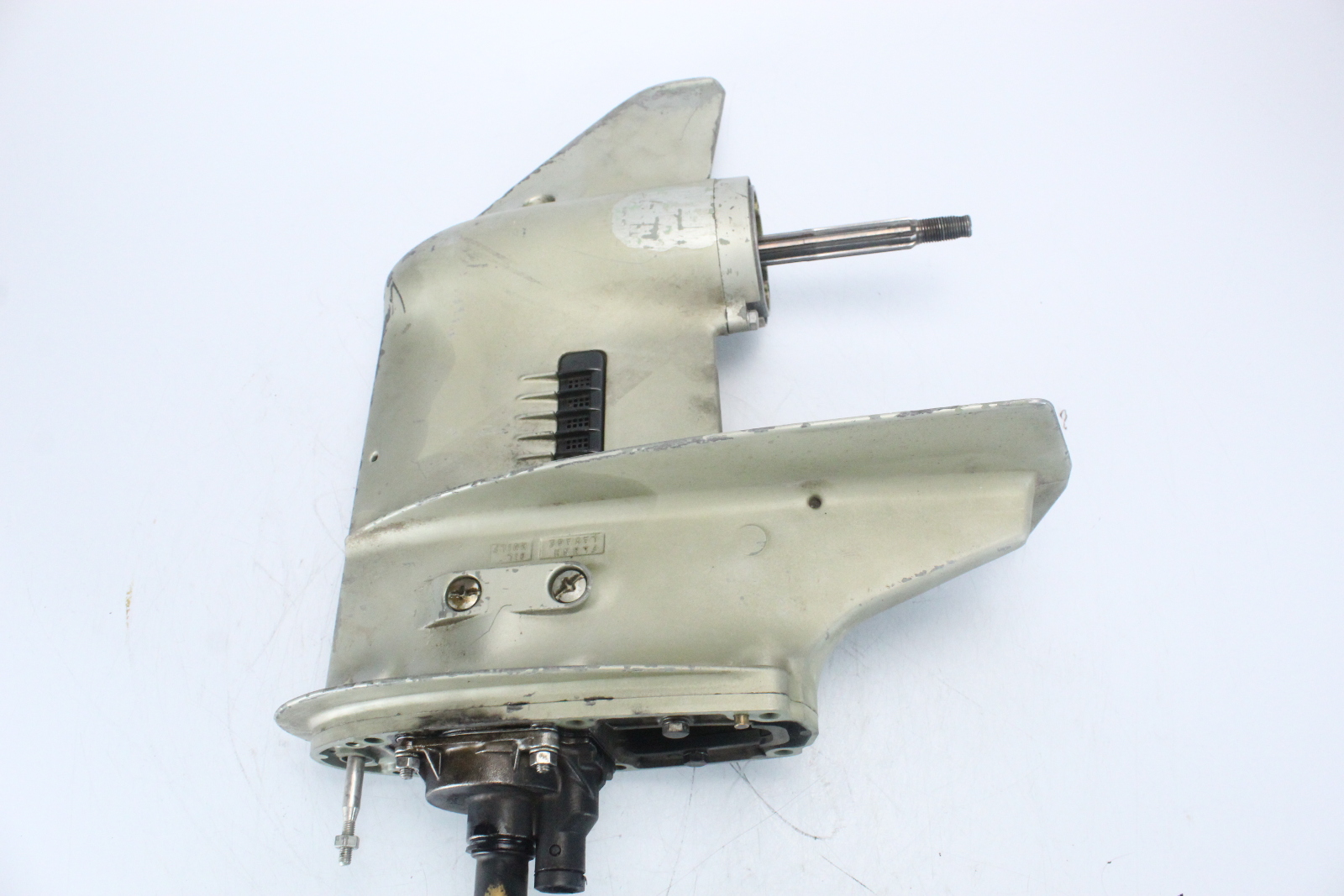

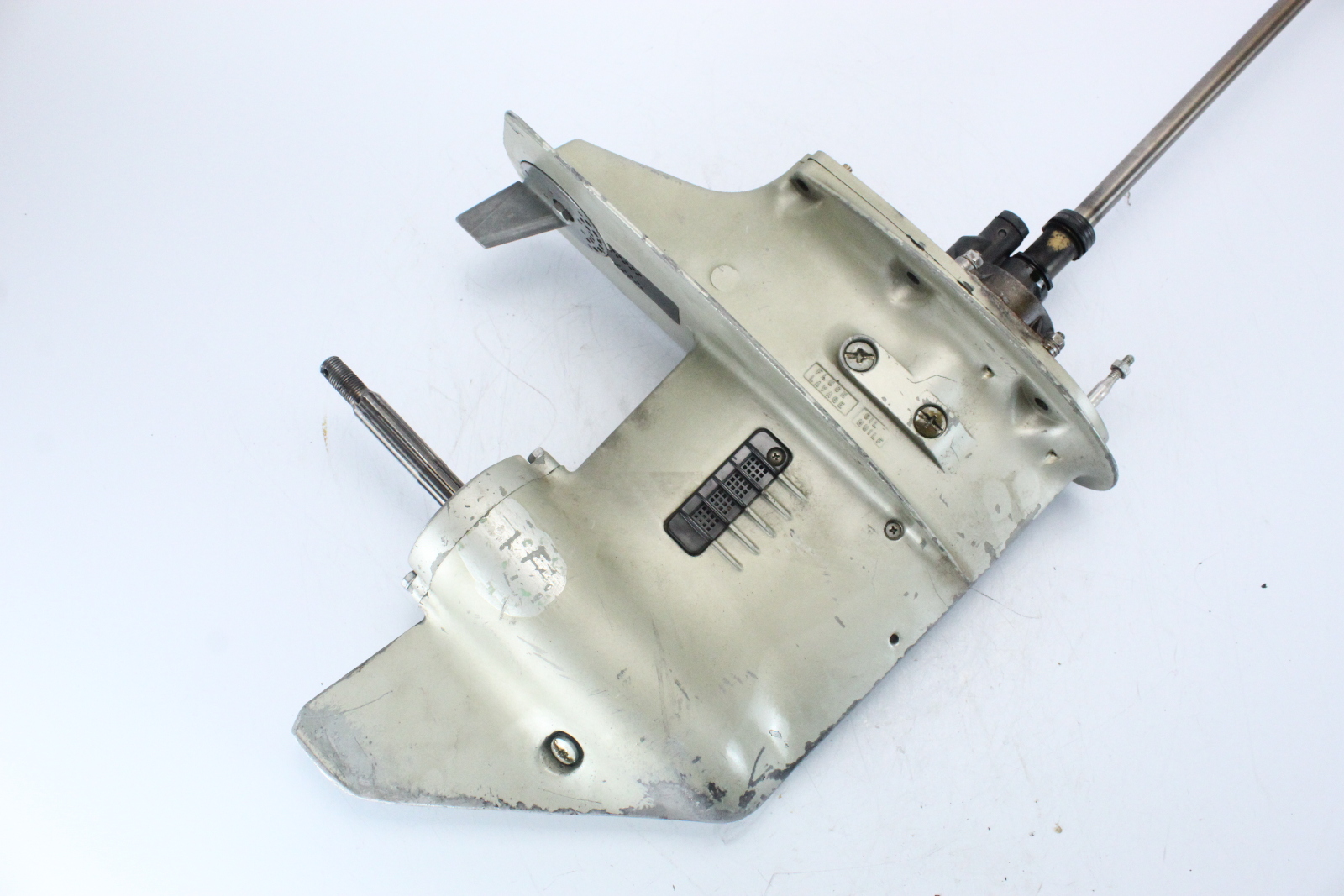

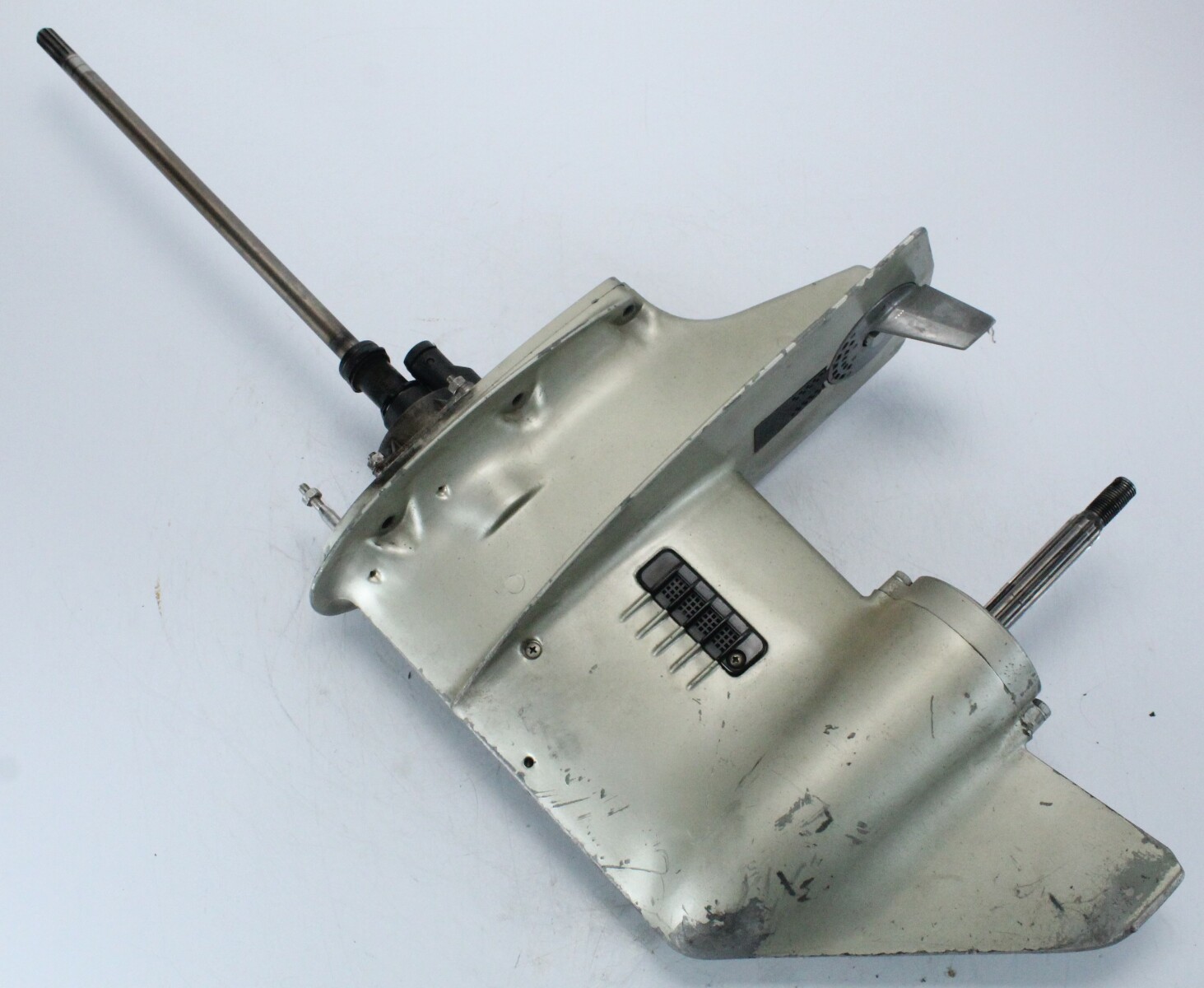

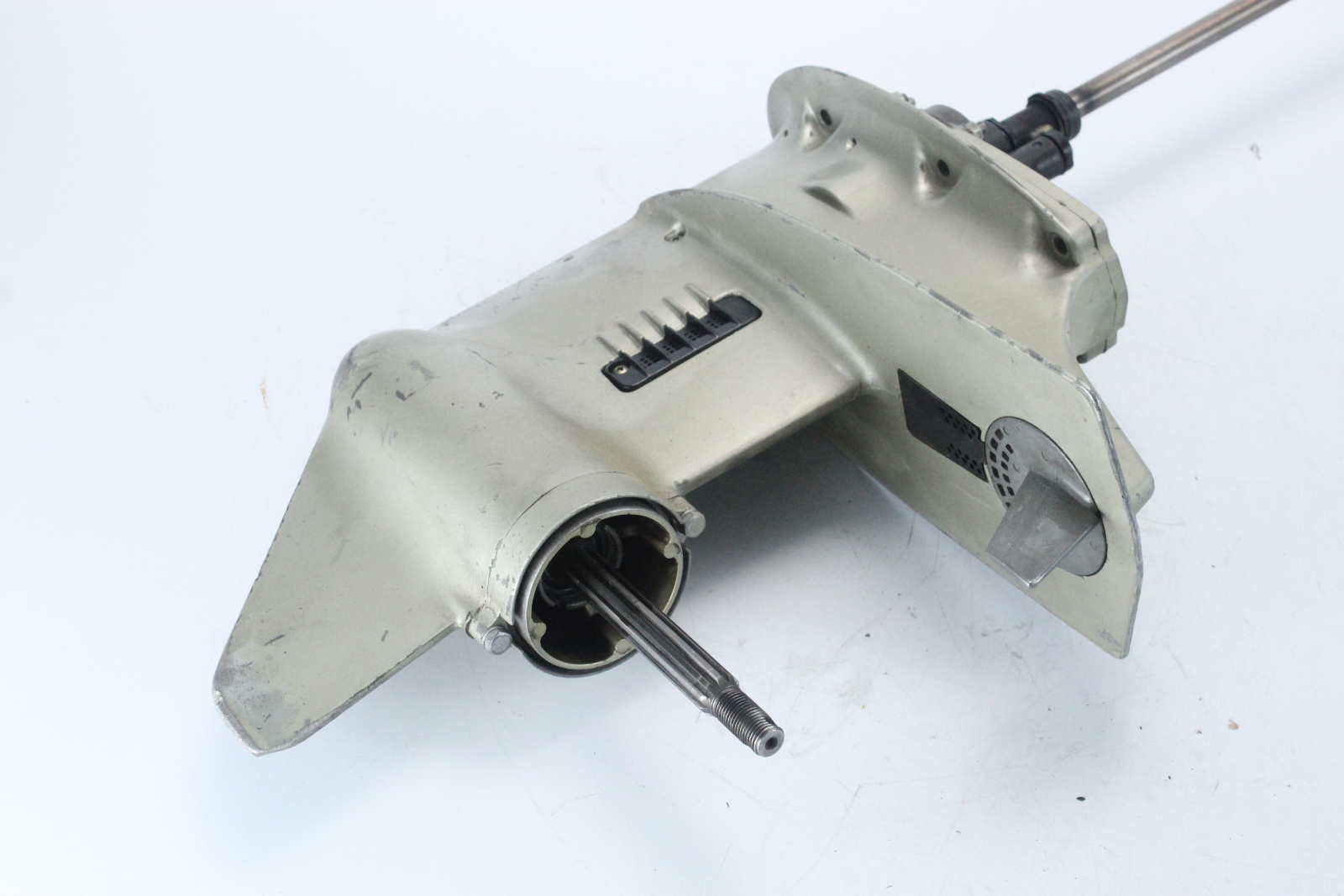

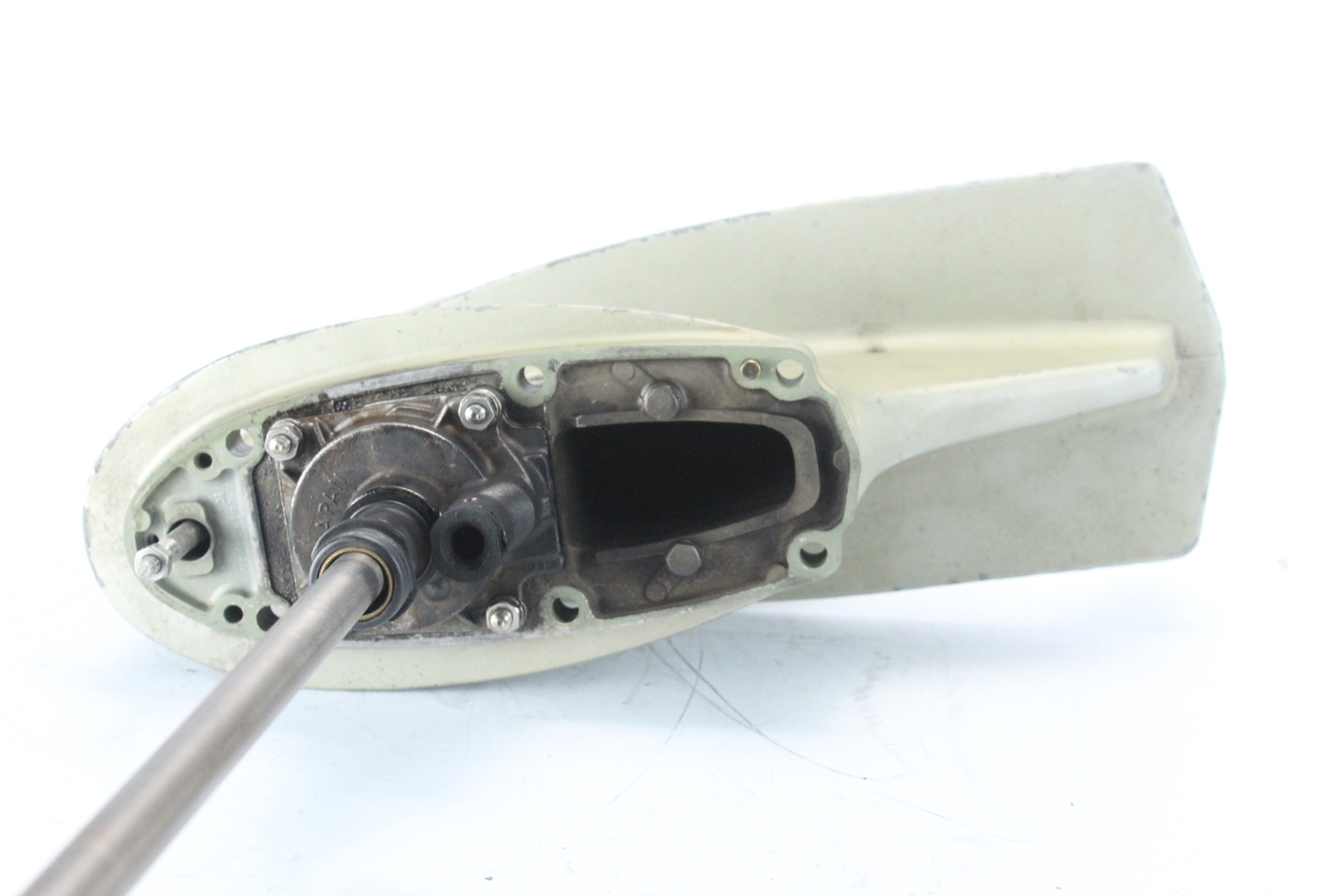

1986 1987 1988 Suzuki Short Shaft 15" Lower Unit DT 20 25 HP 2 Stroke


$325.00
International Shipping Quote
  • Brand: Suzuki
  • Size: 20 25 HP
  • Color: Gray
  • Style: Two Stroke
  • Condition: For Parts or Not Working
  • Notes: Freshwater
  • SKU: 54882 LRU
  • Manufacturer Part Number: 50001-96817-02M 50010-96828-0EP
  • Country of Manufacture: Japan
  • Motor & Engine Type: Suzuki
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Gray
  • Inventory Number: 54882 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $50.00

Part Number:

 50001-96817-02M supersedes to 50010-96828-0EP

Key Information
  • Shifts and spins smoothly
  • As is
  • Straight shafts

Additional Info
  • Shifts and spins smoothly without binding
  • Shafts checked for straightness
  • Driveshaft splines show light wear
  • Freshwater Condition
  • Did not pressure check, leaking from multiple places

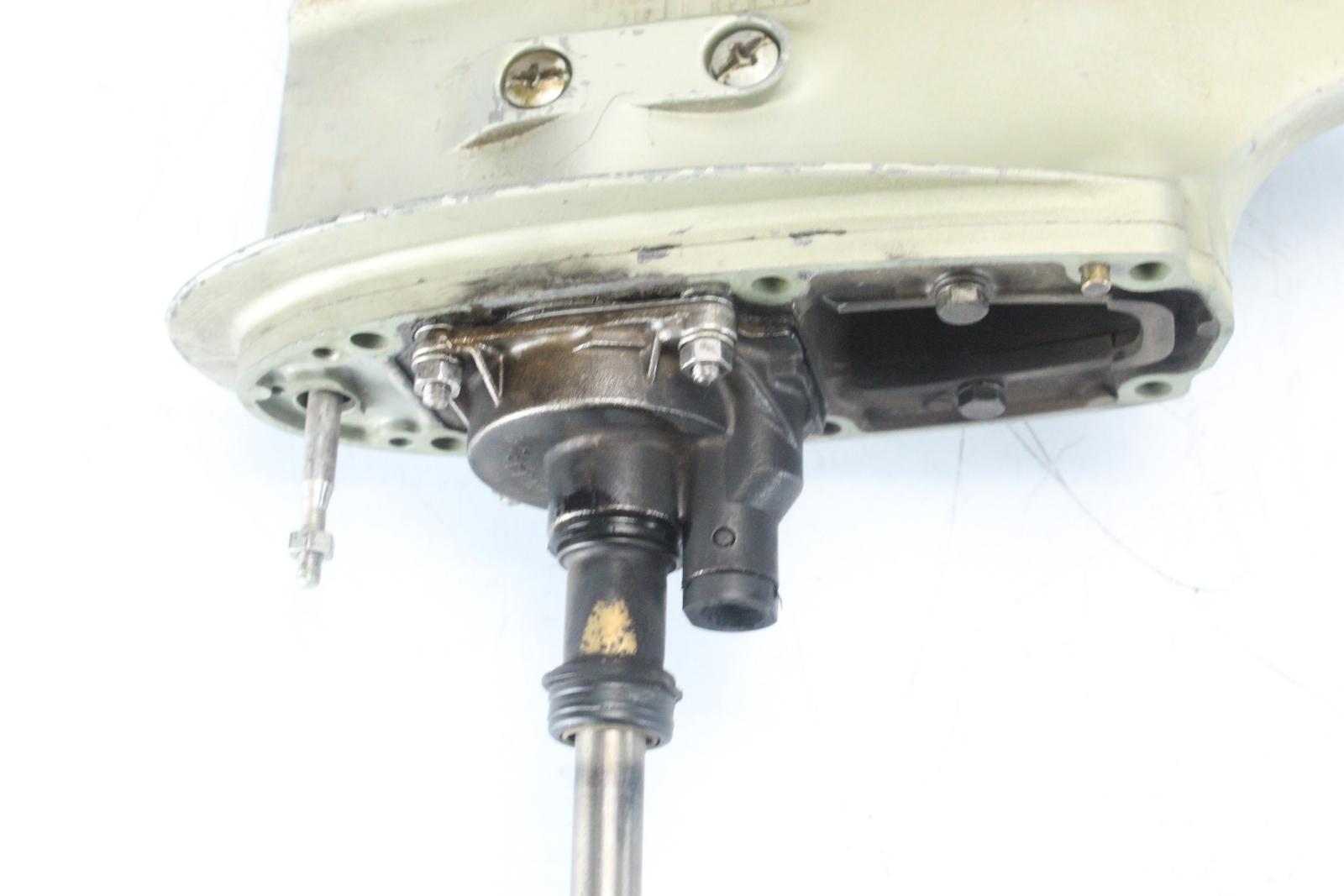

  • Will need fully resealed and a new impeller installed

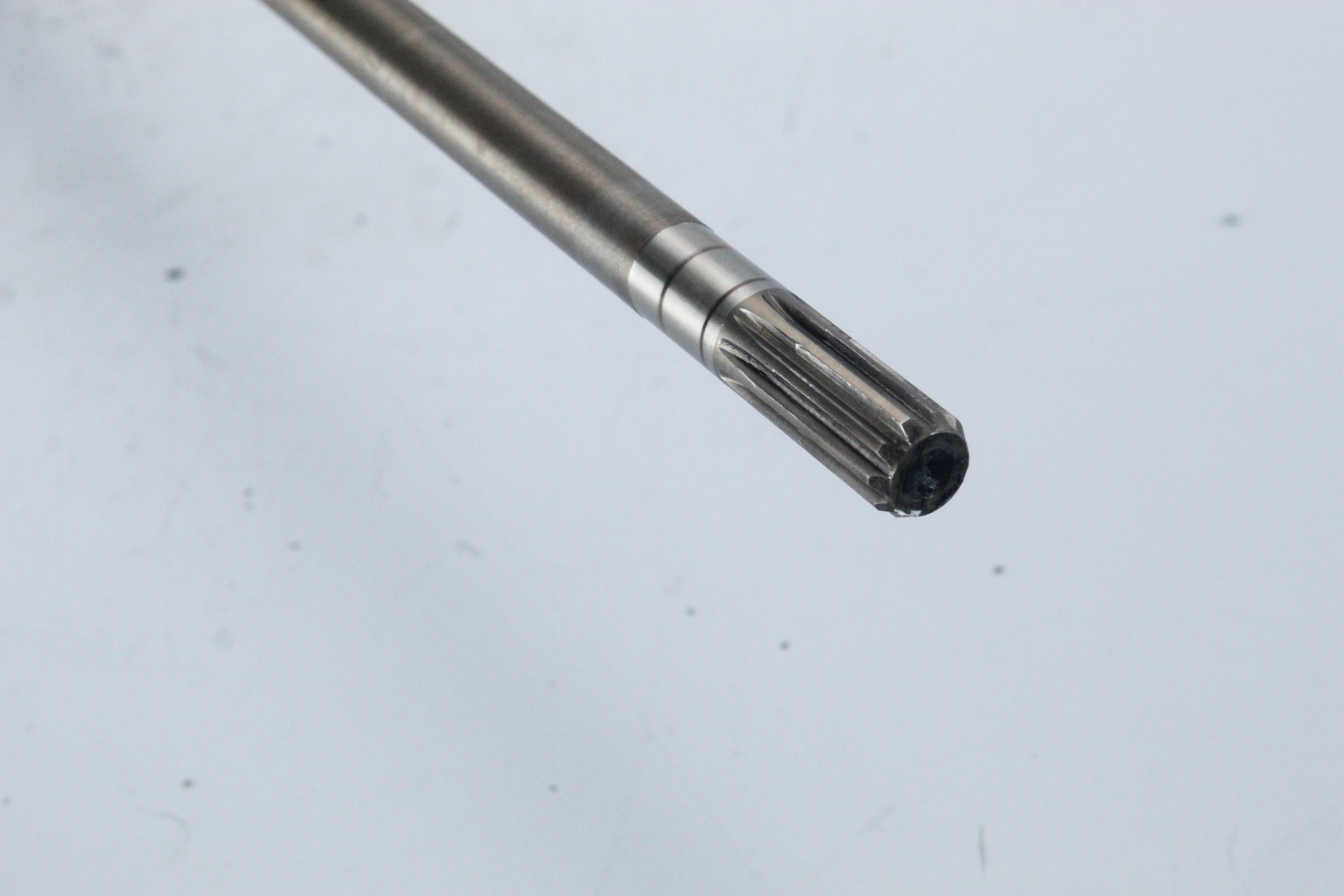

Driveshaft splines:10

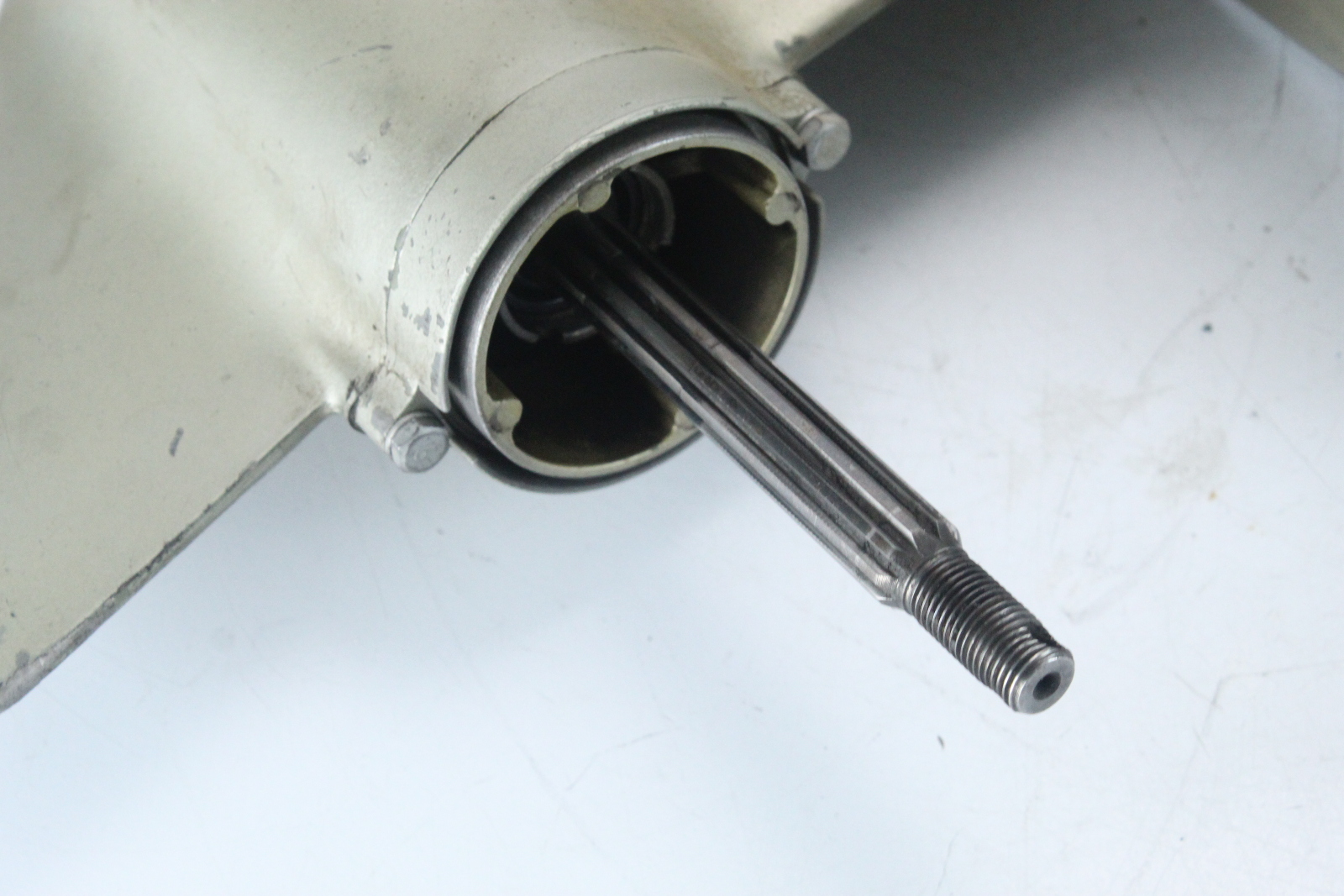

Propeller shaft splines:10

Driveshaft length from the top of the water pump to top of the shaft: 15-1/2"

This is listed for repair.  We will NOT accept returns on this item for any reason. Please read the description carefully to see the issues this part has.

Location: Southcentral Outboards, Altamont, Illinois



Fits:

1978  - 20 25 HP 2 Stroke

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
