1978-91 Johnson Evinrude 20" Lower Unit 85 88 90 100 110 115 140 HP 6 MONTH WTY


$700.00
International Shipping Quote
  • Brand: Johnson Evinrude
  • Size: 85 88 90 100 110 115 140 HP
  • Color: Silver
  • Style: V4- Long - 13/20 splines
  • Condition: Used
  • Notes: Freshwater - Good Condition!
  • SKU: 41153 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: United States
  • Motor & Engine Type: Johnson Evinrude
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Silver
  • Warranty: 6 Month
  • Inventory Number: 41153 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $75.00
Part Number N/A
Additional Info

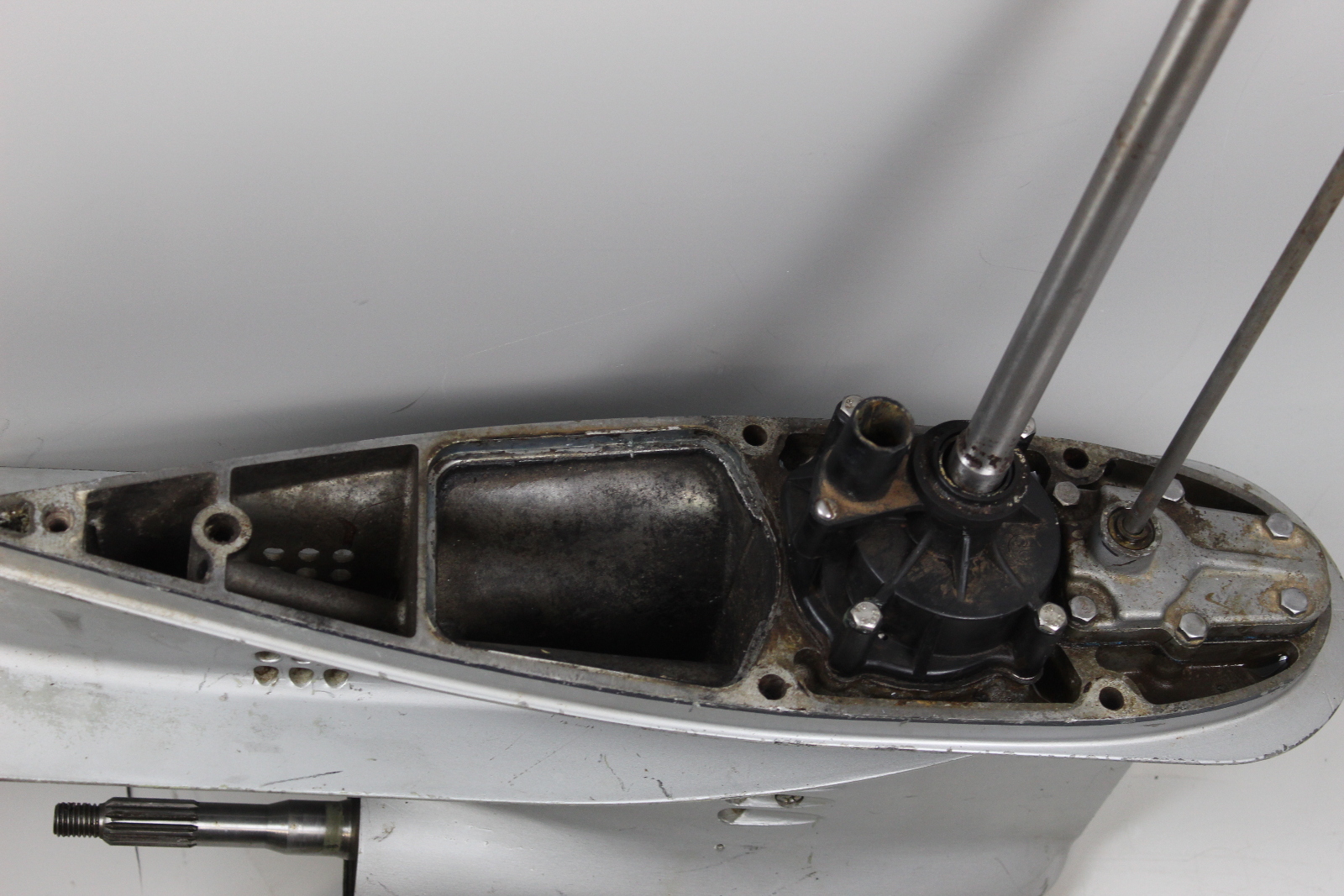

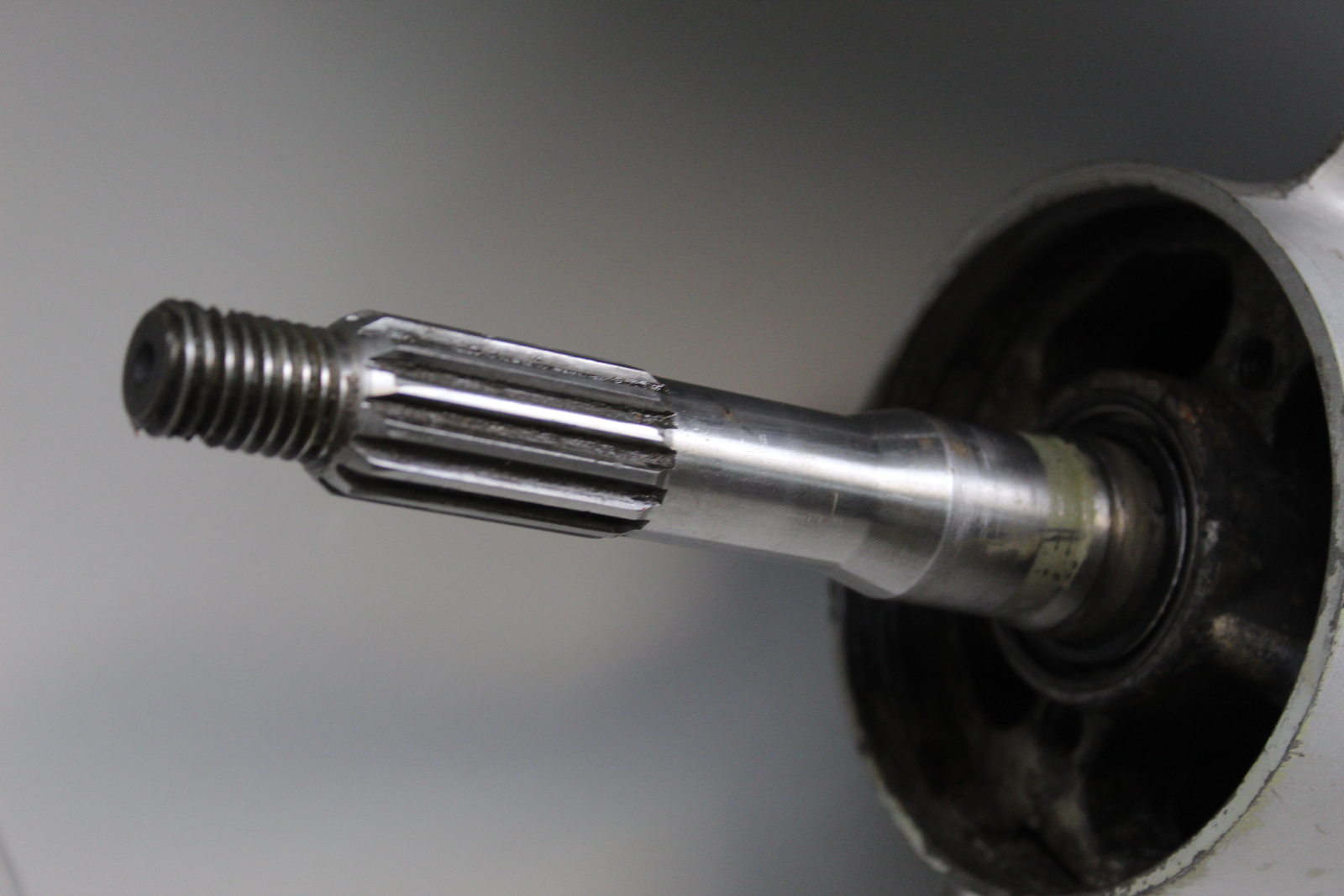

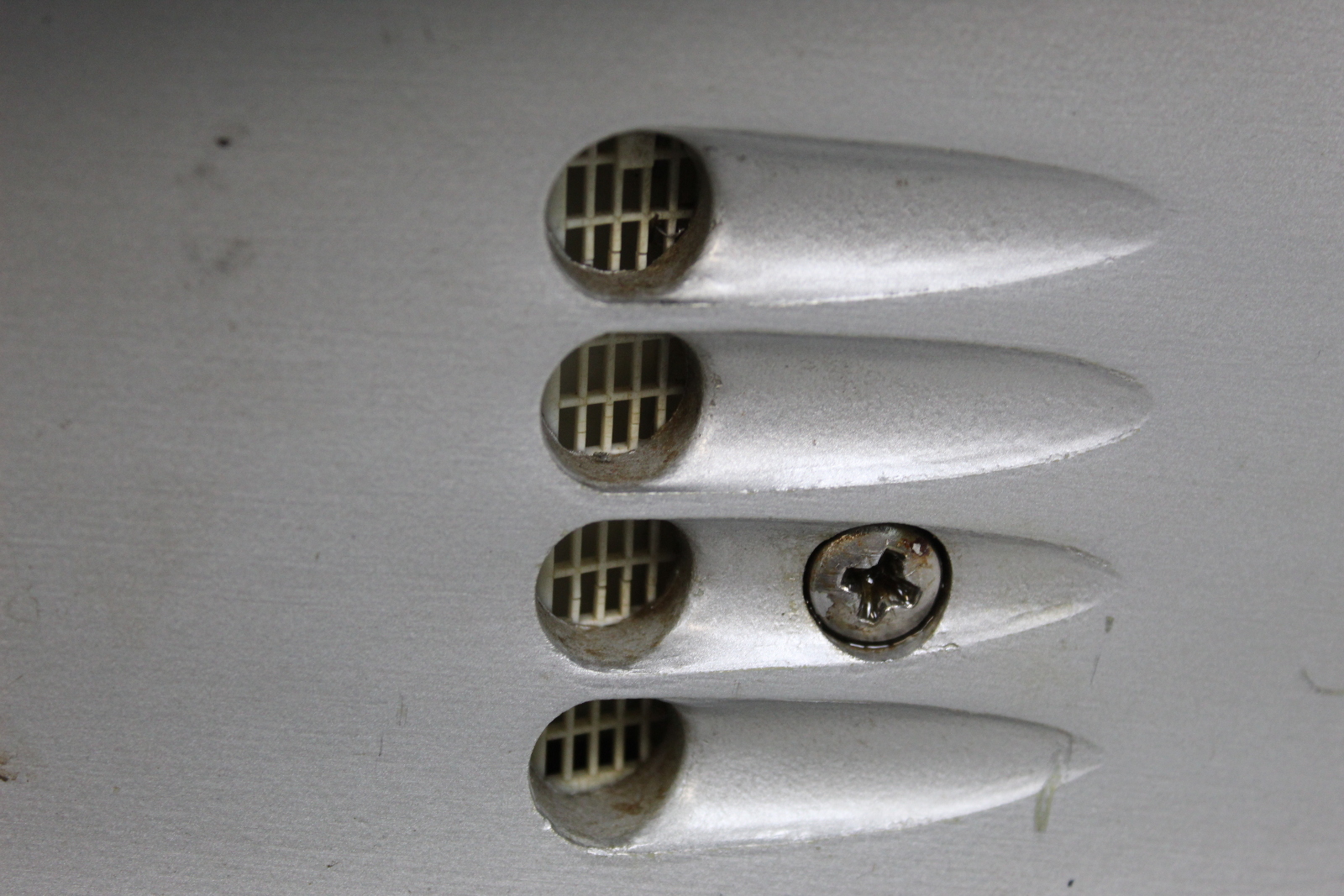

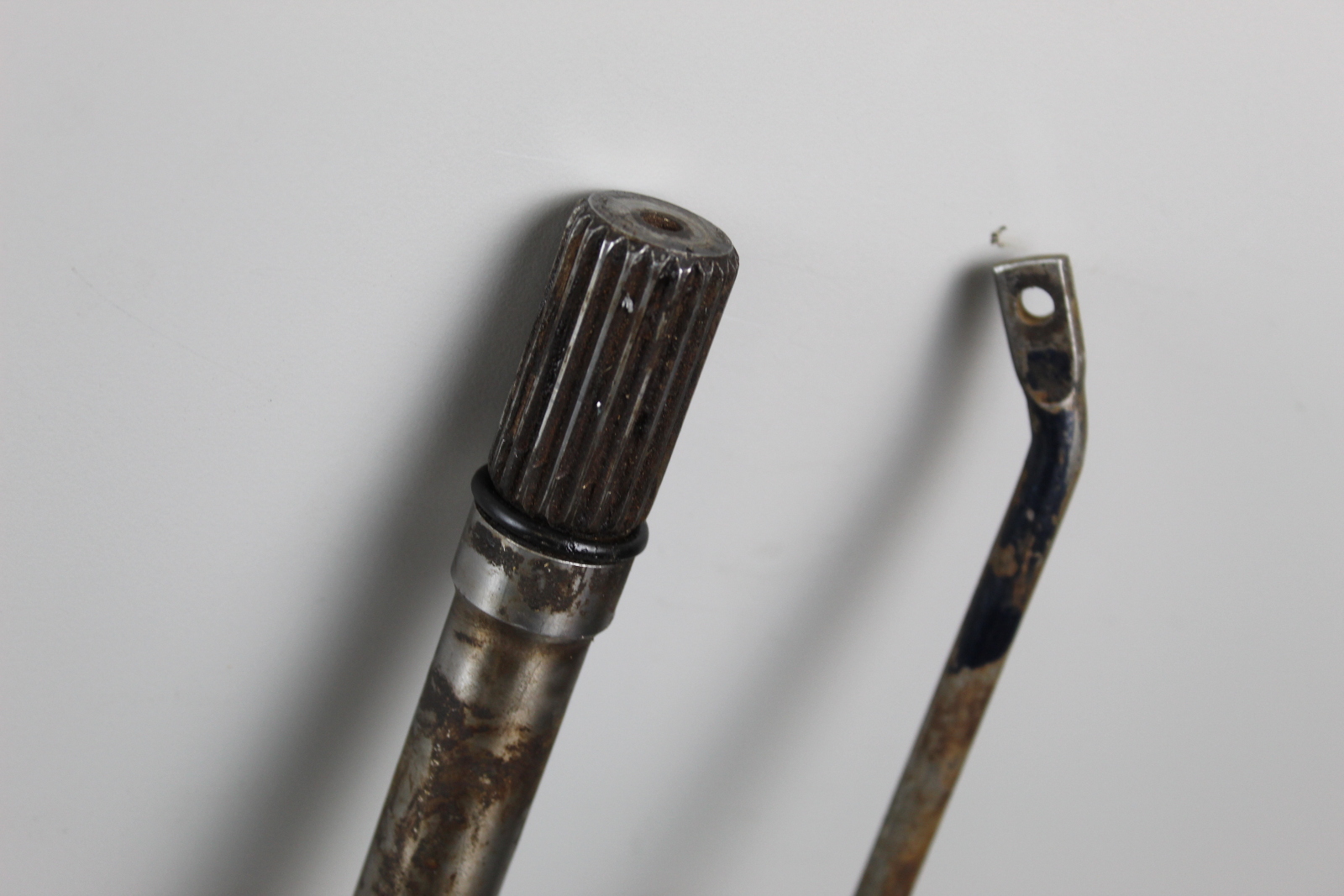

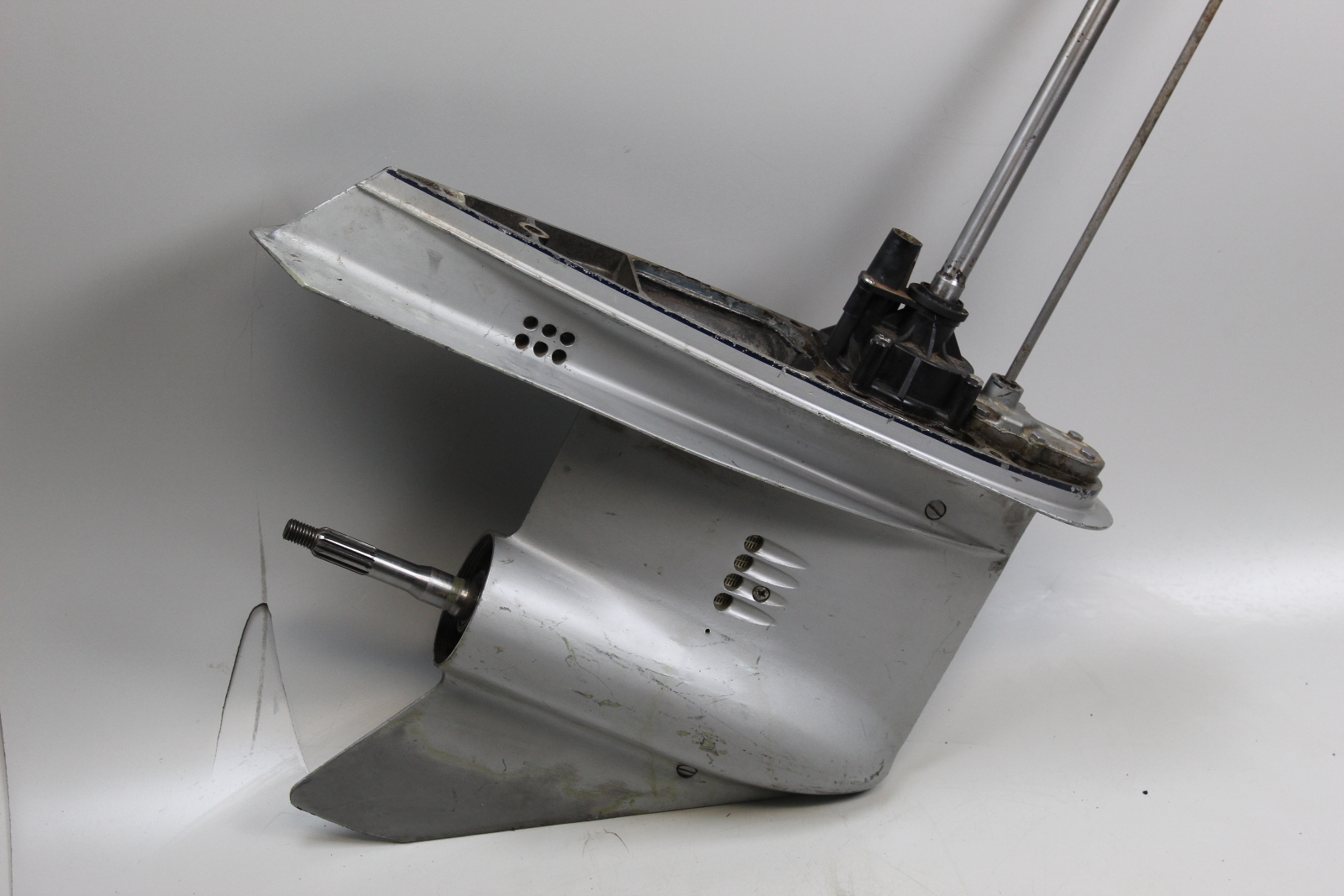

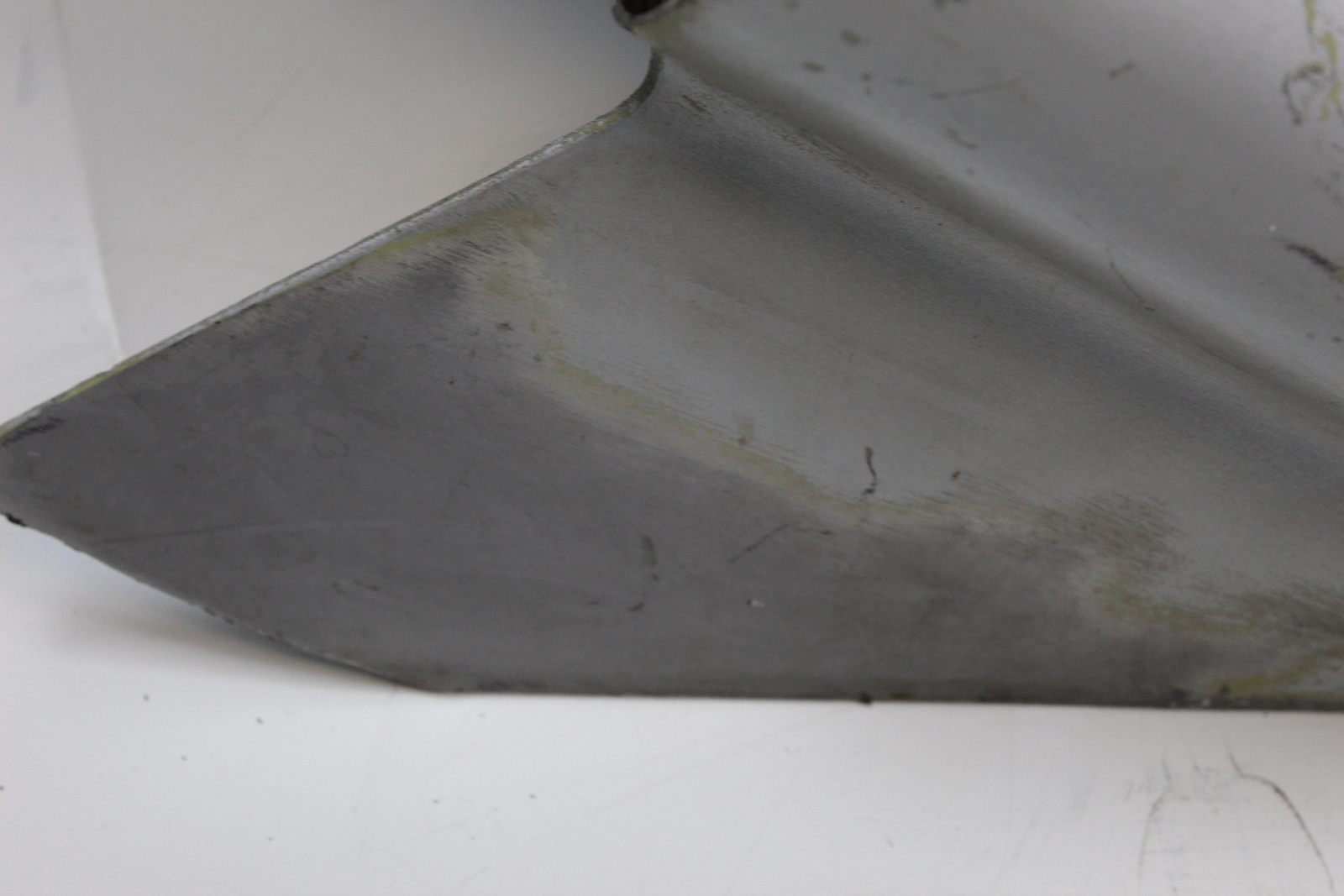

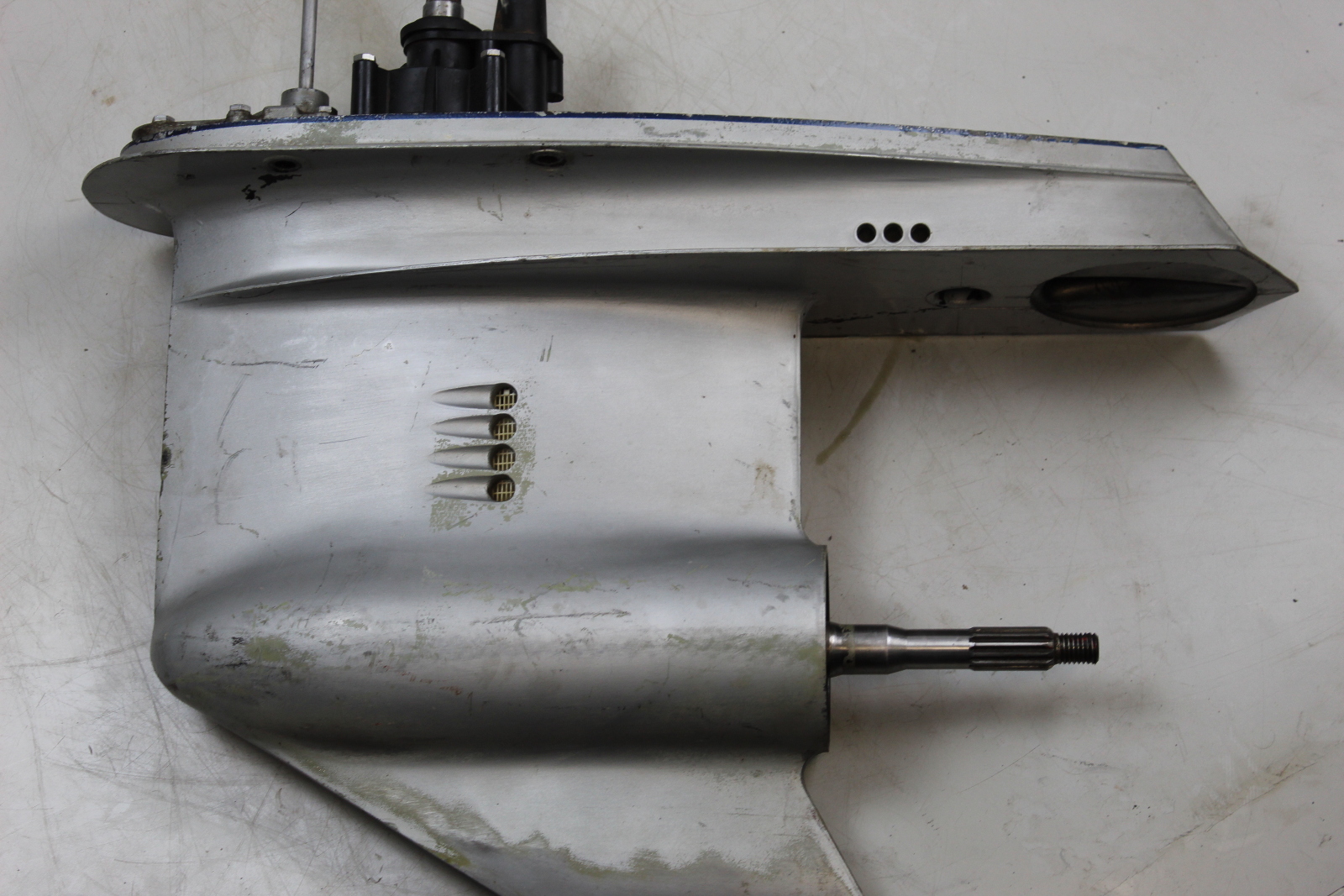

This specific lower unit is in great condition and is ready for installation. From the top of the water pump housing, the driveshaft measures approximately 19" long and has 20 splines. The propeller shaft has 13 splines. All of the splines are in great condition and are not chipped or cracked. This does not come with the trim tab, propeller, or the propeller hardware. The intake screens are in excellent condition with no signs of cracking and a new impeller has been installed.  The paint is worn in some areas, but is entirely cosmetic. All you have to do is add oil and go boating! We are giving this a 6 month warranty so purchase with confidence!

General Information

  • Freshwater condition
  • New Impeller
  • Pressure checked to 12 PSI minimum
  • Shafts checked for straightness
  • Shifts and spins smoothly

To obtain the 6 month warranty, you MUST send in your core lower unit. We will even pay to have your core shipped to us! Below is the criteria required to validate the warranty:

  • Core must be of rebuildable quality
  • Cannot be locked up - driveshaft must spin
  • Up to 30 days from the date of purchase to send in your core
  • Covers mechanical aspects ONLY
  • Warranty begins from date of purchase
  • Core must be complete and cannot be missing parts

You will receive two copies of the terms and conditions for the lower unit 6 month warranty. One copy MUST be signed and returned with your core. Without a returned signed copy, the 6 month warranty will not be valid.

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 6 month warranty. We reserve the right to accept or reject any core at our discretion.
Fits:

1978-1991 85 88 90 100 110 115 140 HP

Please note that from 1985-1991, Johnson and Evinrude made 2 different styles of V4.  The 60 degree, or crossflow engine ran through all of these years.  Starting in 1985, they also made a 90 degree Looper engine, which had a bigger gearcase.  The units will interchange, but you'd need a different prop in order to run this on your larger 90 degree engine.  This will, however, be an exact interchange for all of the 1978-1991 60 degree crossflow engines.

This unit does have a single-piece driveshaft.
