$1,125.00
- Brand: Johnson Evinrude
- Size: 85 88 90 100 110 115 140 HP
- Style: V4 - 20" Long
- Condition: Re-manufactured
- Notes: Fully Resealed & Pressure Checked With New Impeller!
- SKU: 26-71329 LRU
- Manufacturer Part Number: 398182 397085 398189 394617 391559 389819
- Other Part Number: 389076 391366
- Inventory Number: 26-71329 LRU
- Shipping: $175.00
SOUTHCENTRAL OUTBOARDS
ALTAMONT · ILLINOIS

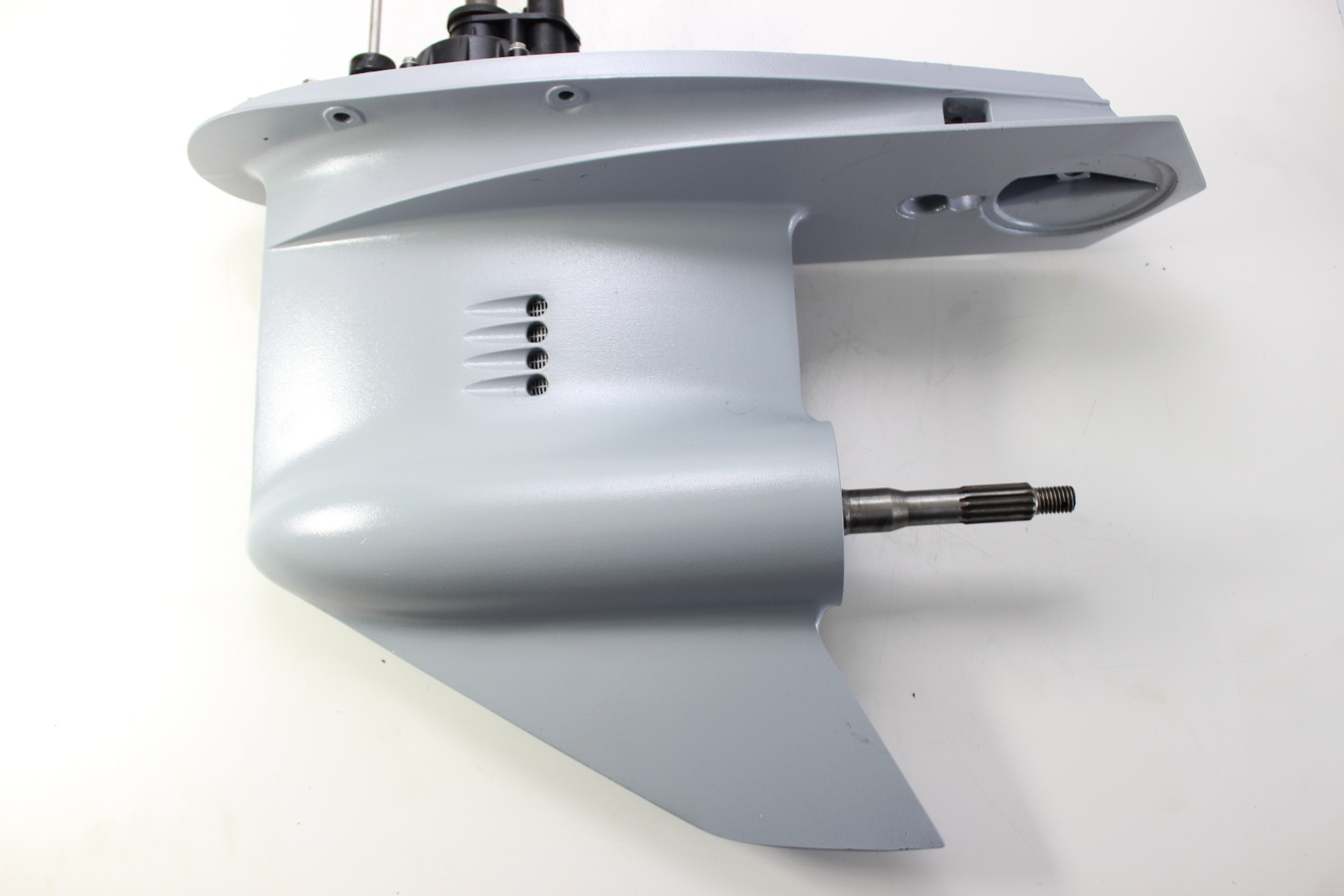

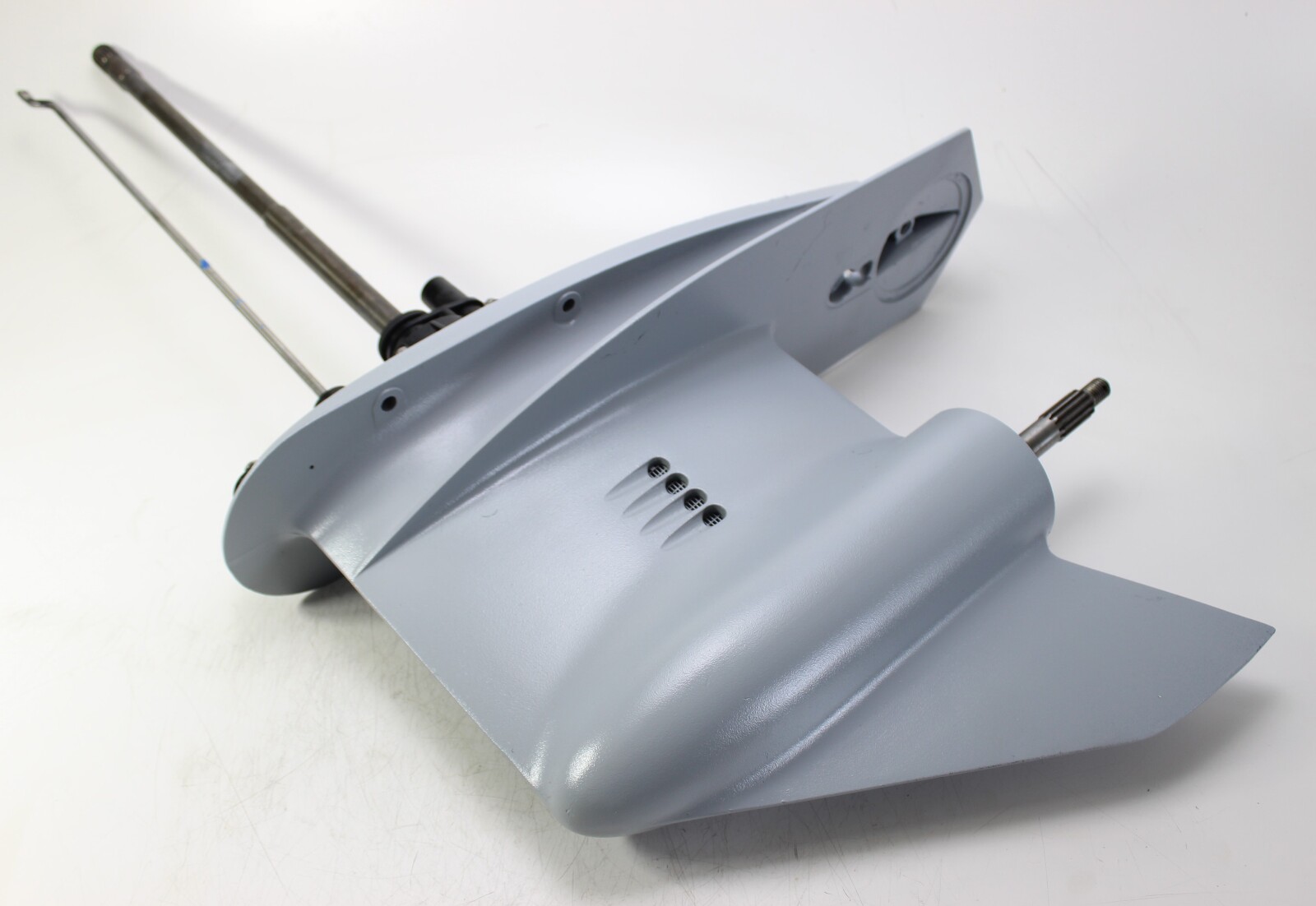

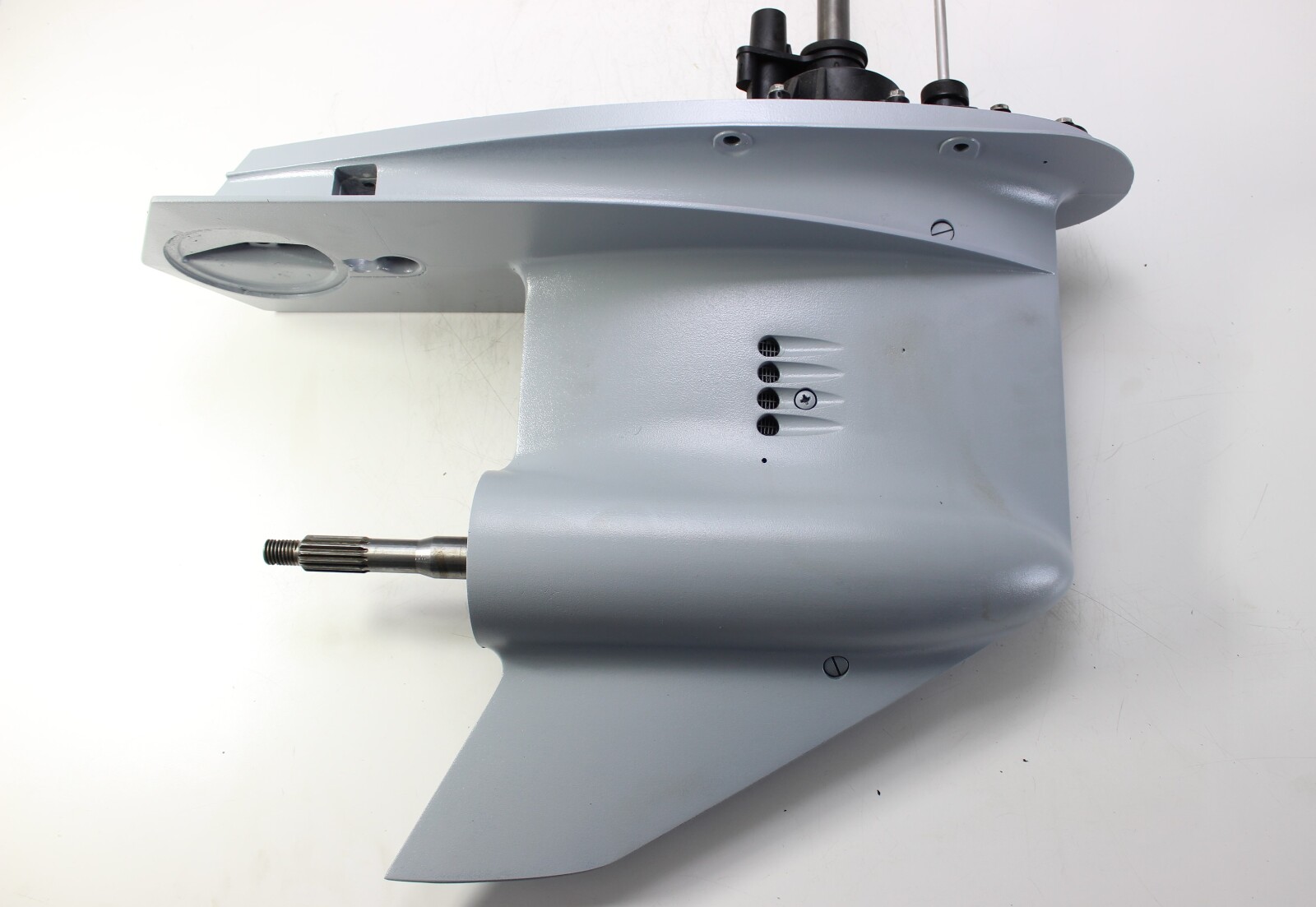

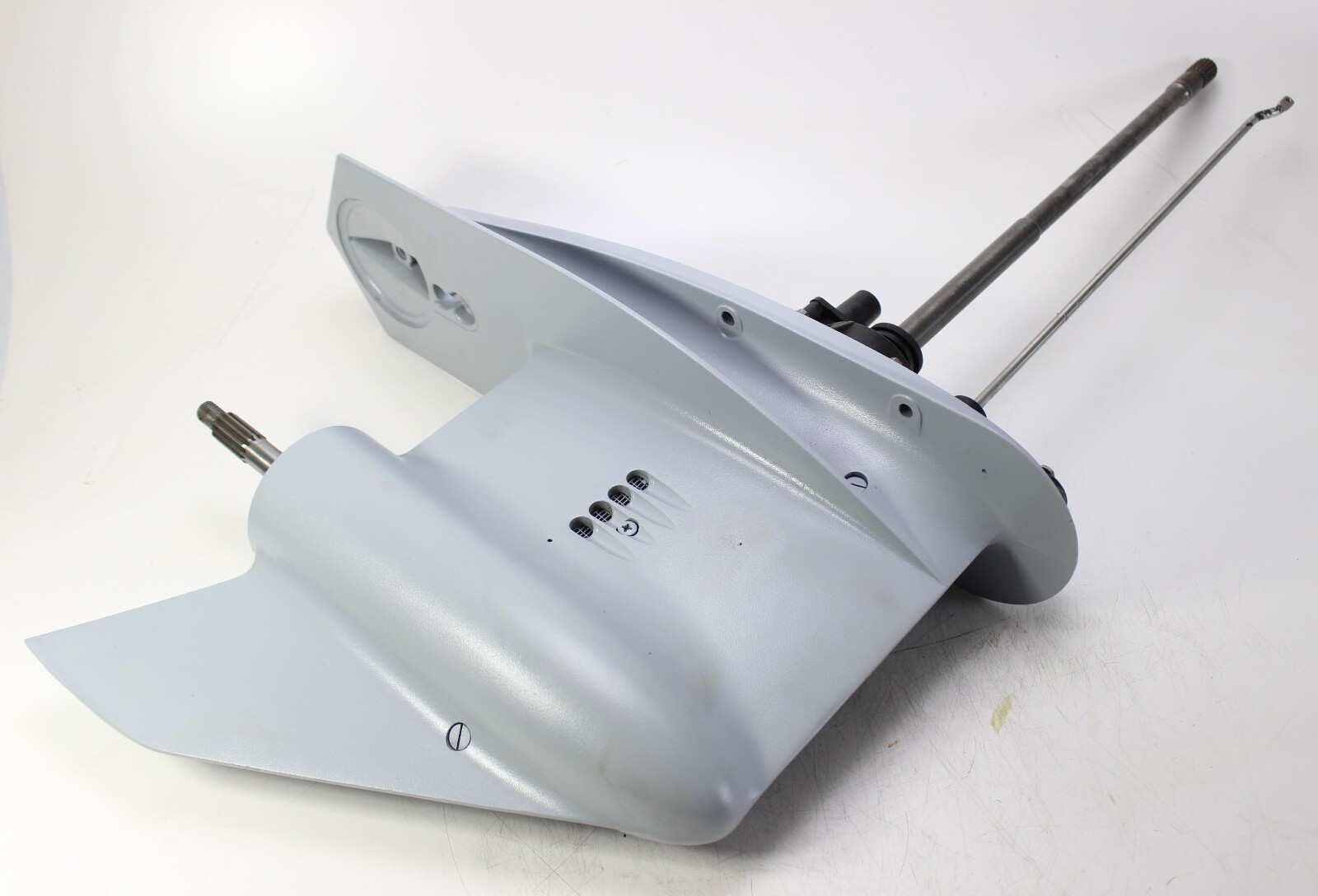

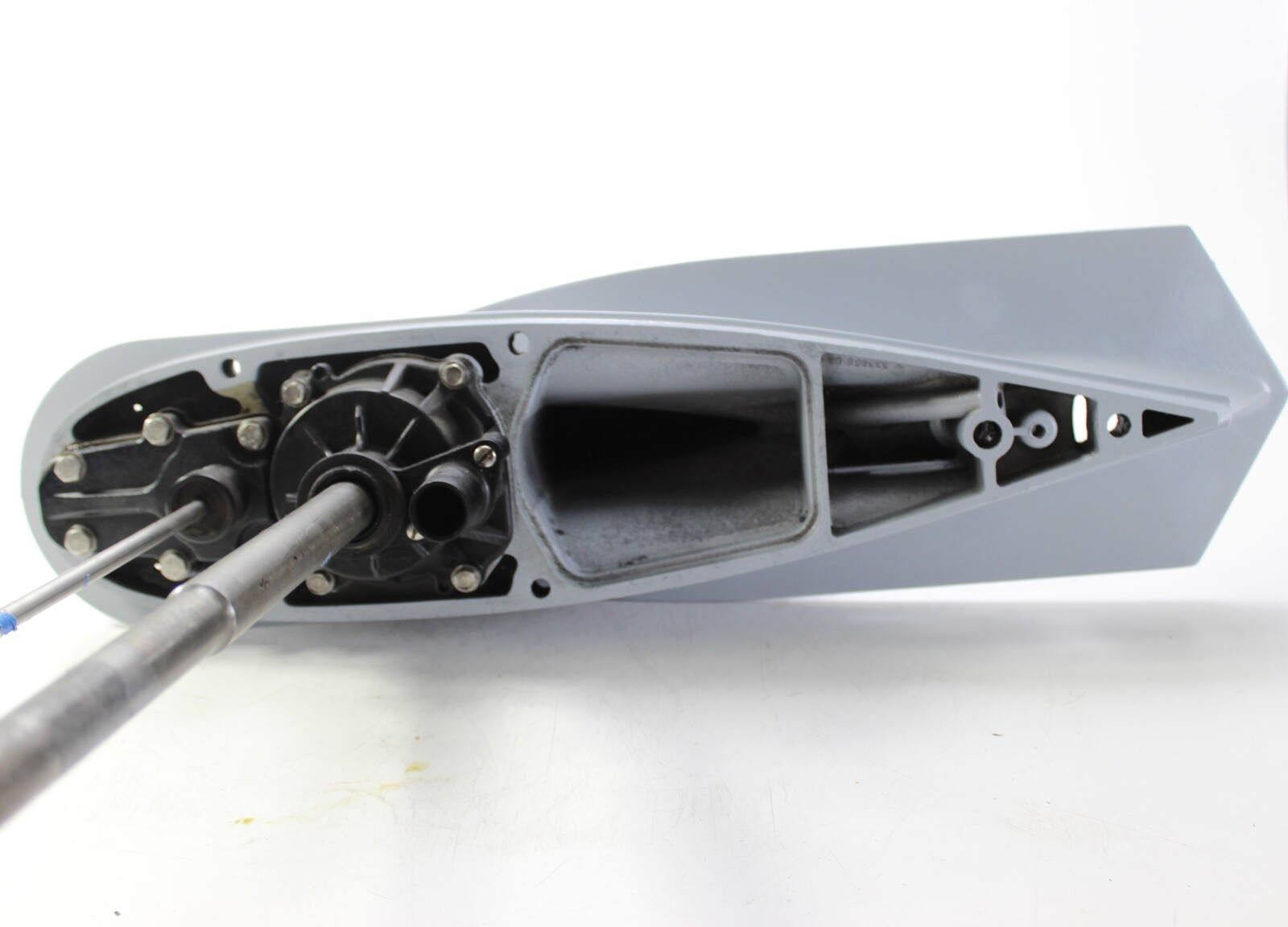

Johnson / Evinrude Rebuilt Lower Unit
◆ 1 YEAR WARRANTY◆ COMPLETELY REBUILT◆ PRESSURE TESTED
Completely rebuilt lower unit for the 1992-1998 Johnson / Evinrude V4 family. Our policy is to replace gears only when needed — this unit needed them, and received a full rebuild with all internal parts replaced.
Specifications
◆ Gear Ratio: 2:1

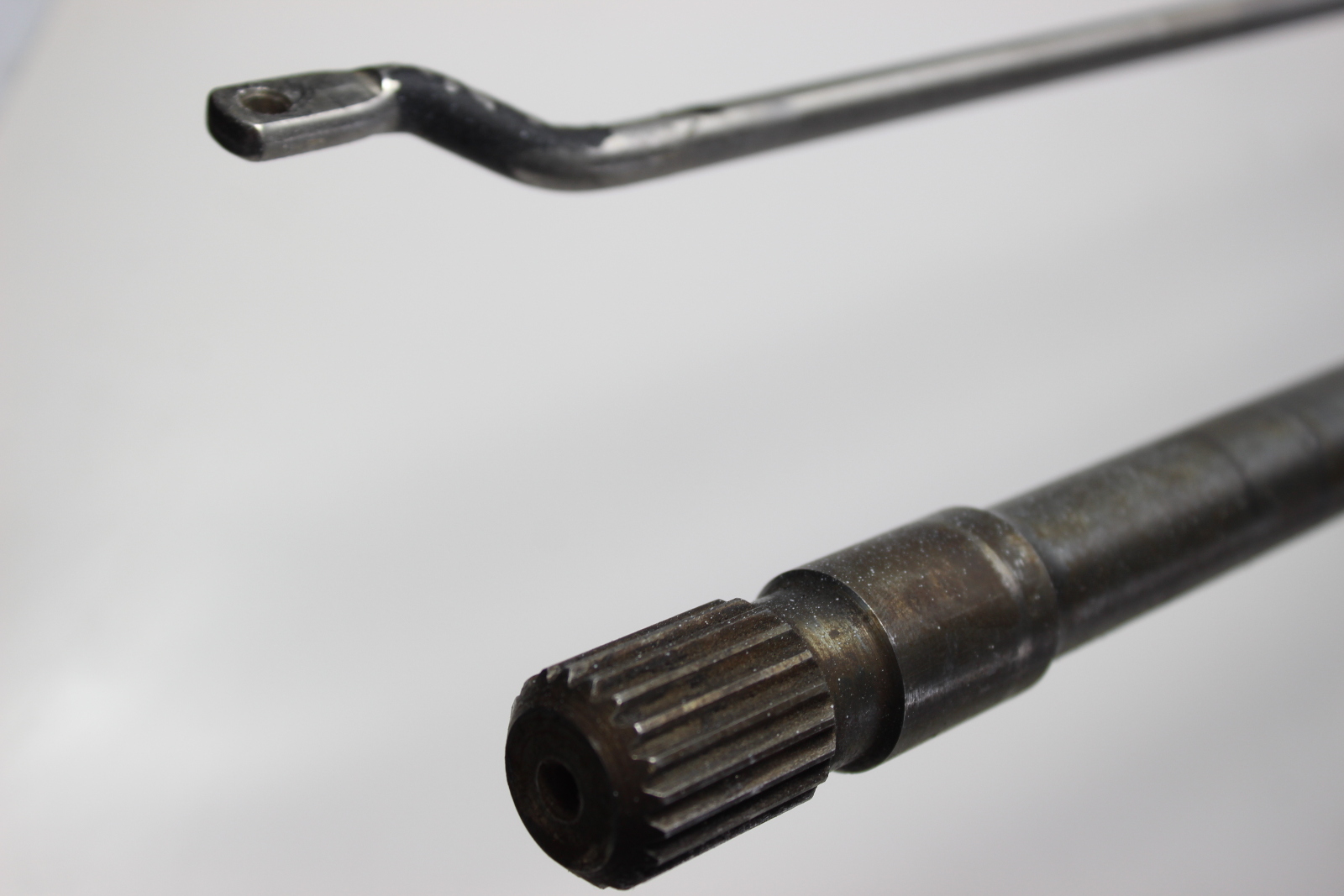

◆ Driveshaft Length: 19-1/2″
◆ Driveshaft Splines: 20

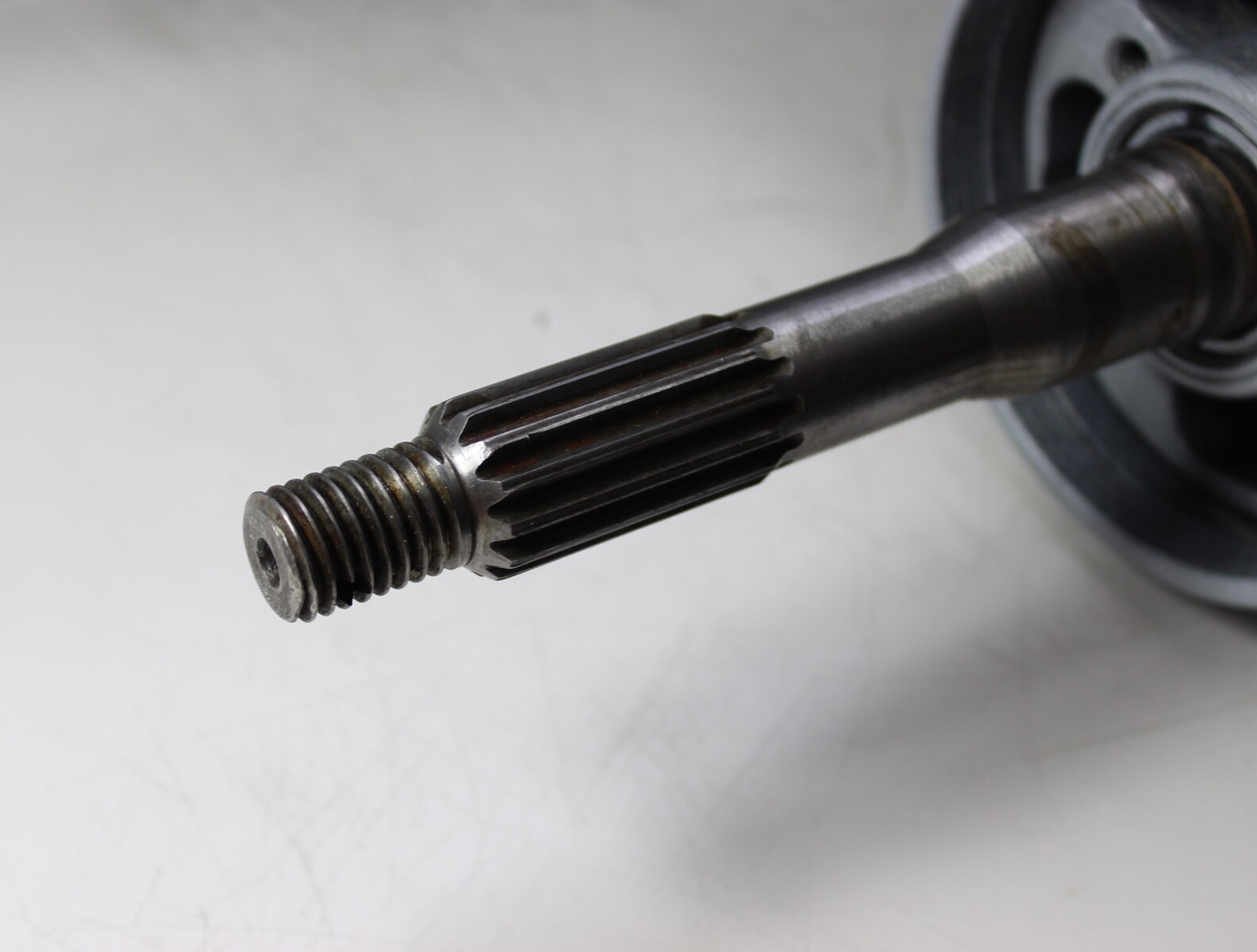

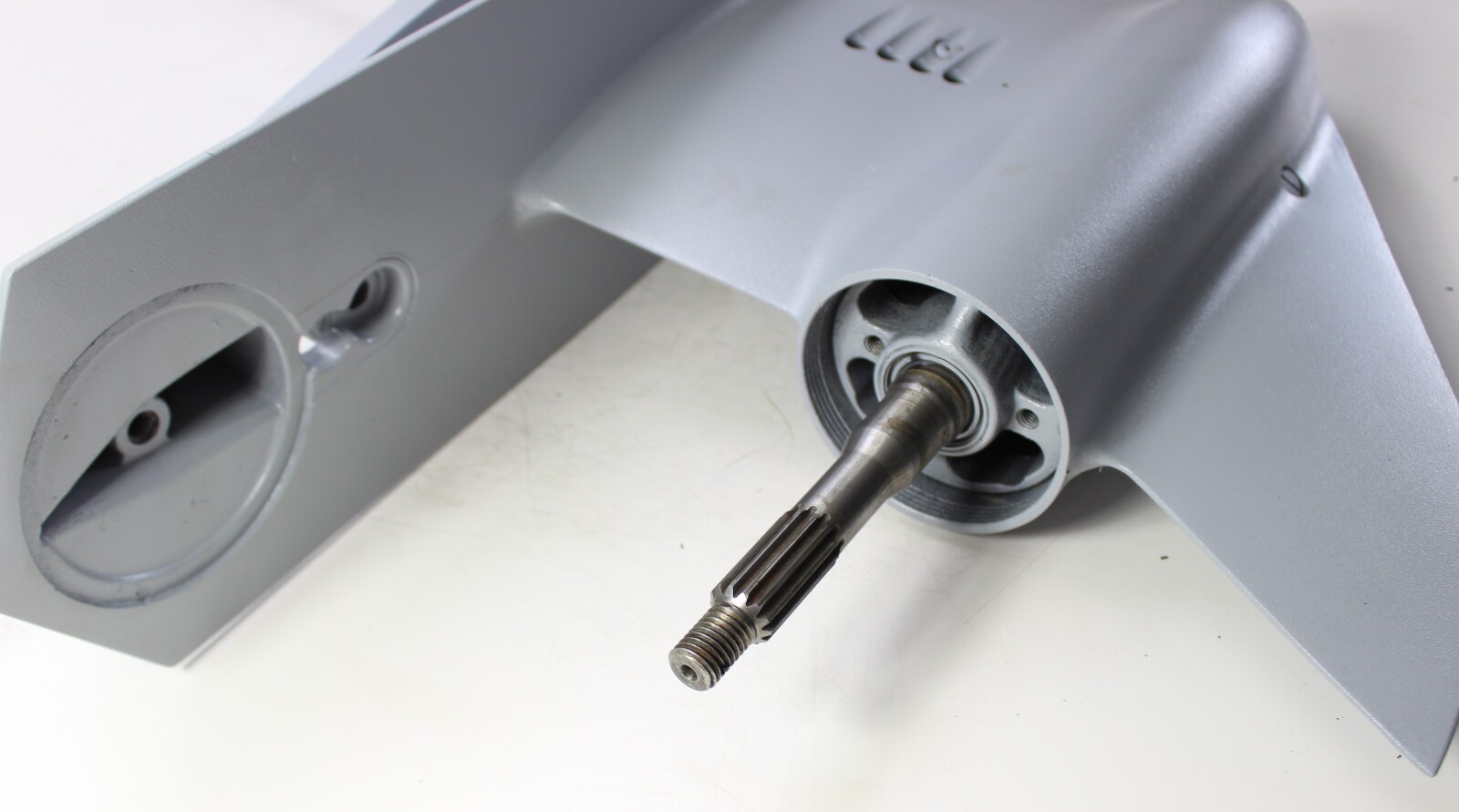

◆ Prop Shaft Splines: 13
◆ Rotation: Right-hand
◆ Trim Tab: Not included
Driveshaft length measured from the top of the water pump to the top of the driveshaft.
What We Did
◆ Completely rebuilt — all internal parts replaced, including new gears, seals, and water pump impeller
◆ Pressure tested — held steady for a full 15 minutes with no leaks
◆ Fully disassembled and inspected under magnification — all wear surfaces good
◆ Shift operation tested and verified
◆ Driveshaft and prop shaft checked for straightness — both straight
◆ Stripped and primed
Condition Notes
◆ Freshwater unit
◆ Finish is stripped and primed — ready for your final color coat

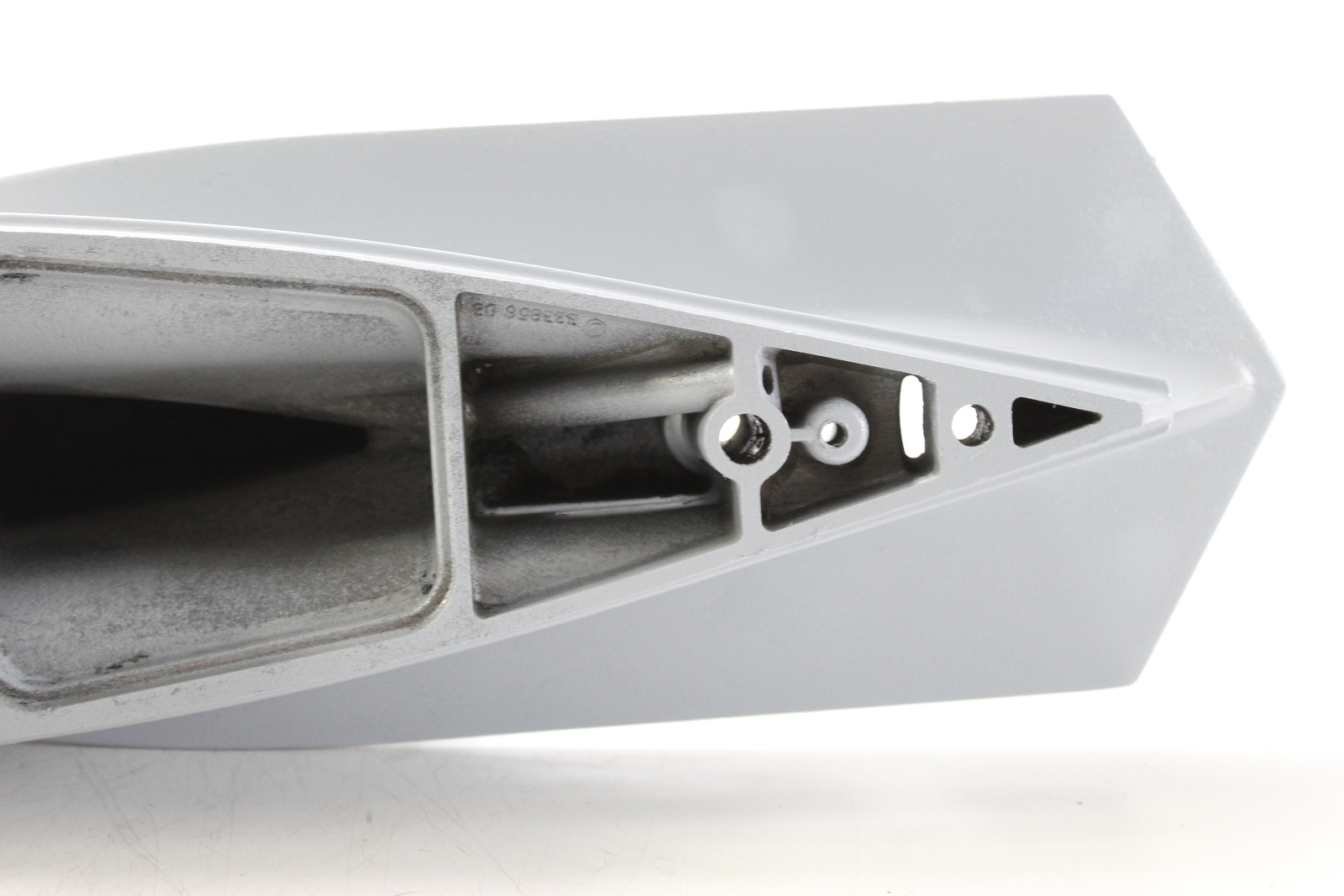

◆ Trim tab is NOT included
◆ Sold exactly as pictured — please review all photos before purchase
Gear oil is NOT included — oil must be added prior to use.
Fitment
Years: 1992-1998
Models: Johnson & Evinrude V4 88 90 110 115 140 HP
This cross-reference is provided with the resources we have available and may not cover every model within the years and horsepowers listed. Fitment is the buyer's responsibility — verify by model and serial number before purchasing and contact us if you need help.
CORE RETURN — REQUIRED
How it works
◆ Your warranty is validated by returning your old core — we provide a prepaid shipping label. Just box it up and send it back.
◆ No core to return? The warranty can be purchased separately instead — message us and we will set it up.
◆ If a core is neither returned nor a warranty purchased, coverage is limited to the 30/60 day return windows below — the 1 year warranty will not apply.
What counts as a valid core
◆ It must turn — the driveshaft and prop shaft must rotate. Locked-up or seized units do not qualify.
◆ The case must be intact — no holes blown through the side of the housing. A gear coming through the case usually means everything inside is destroyed.
◆ Normal wear, scrapes, worn paint, and skeg damage are all perfectly fine.
1 YEAR
WORKING WARRANTY
Backed by Southcentral Outboards. Warranty validated by core return — we provide the shipping label. Failures during normal use within the warranty period will be repaired or replaced.
✶✶✶✶
| Our Guarantee |
The real sale is the responsibility we have to each customer to list, clean, sell, and ship a part correctly. If we miss that mark, please tell us and we will make it right.
— The SCO Team
