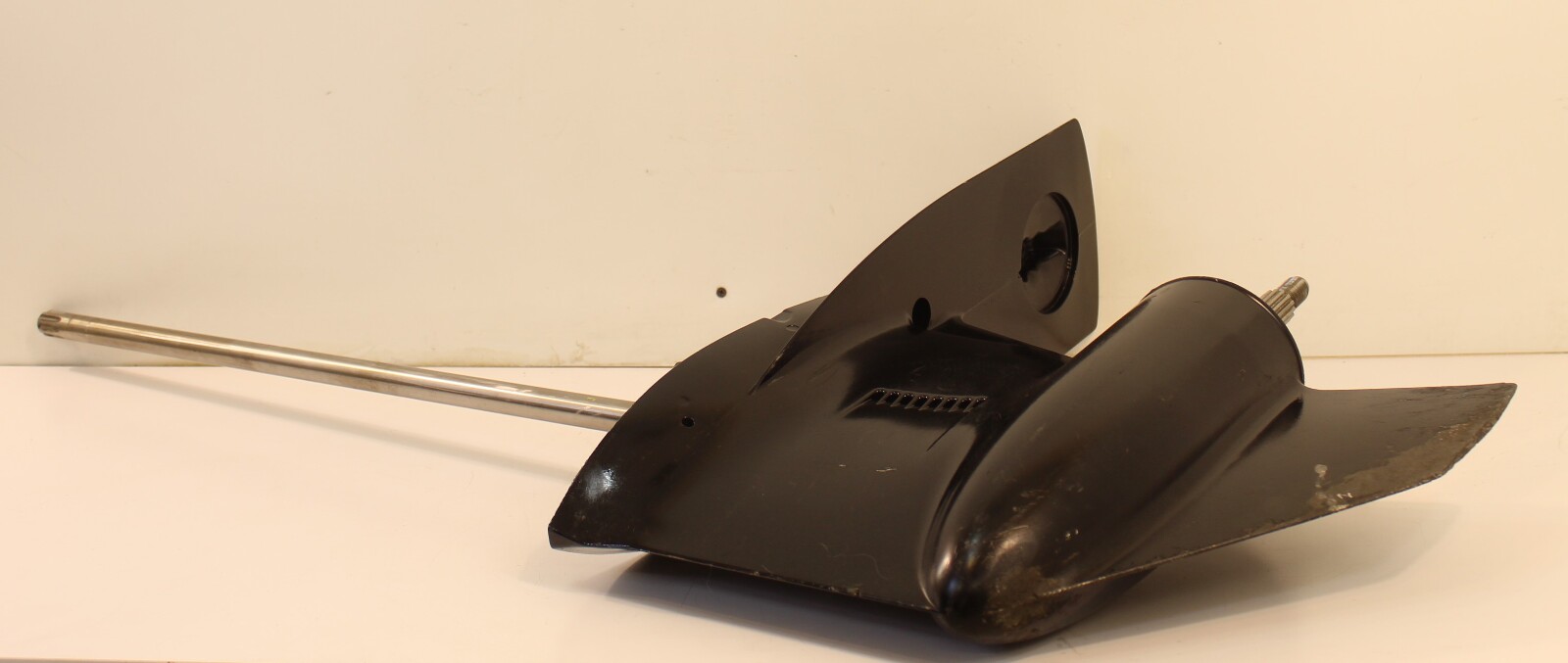

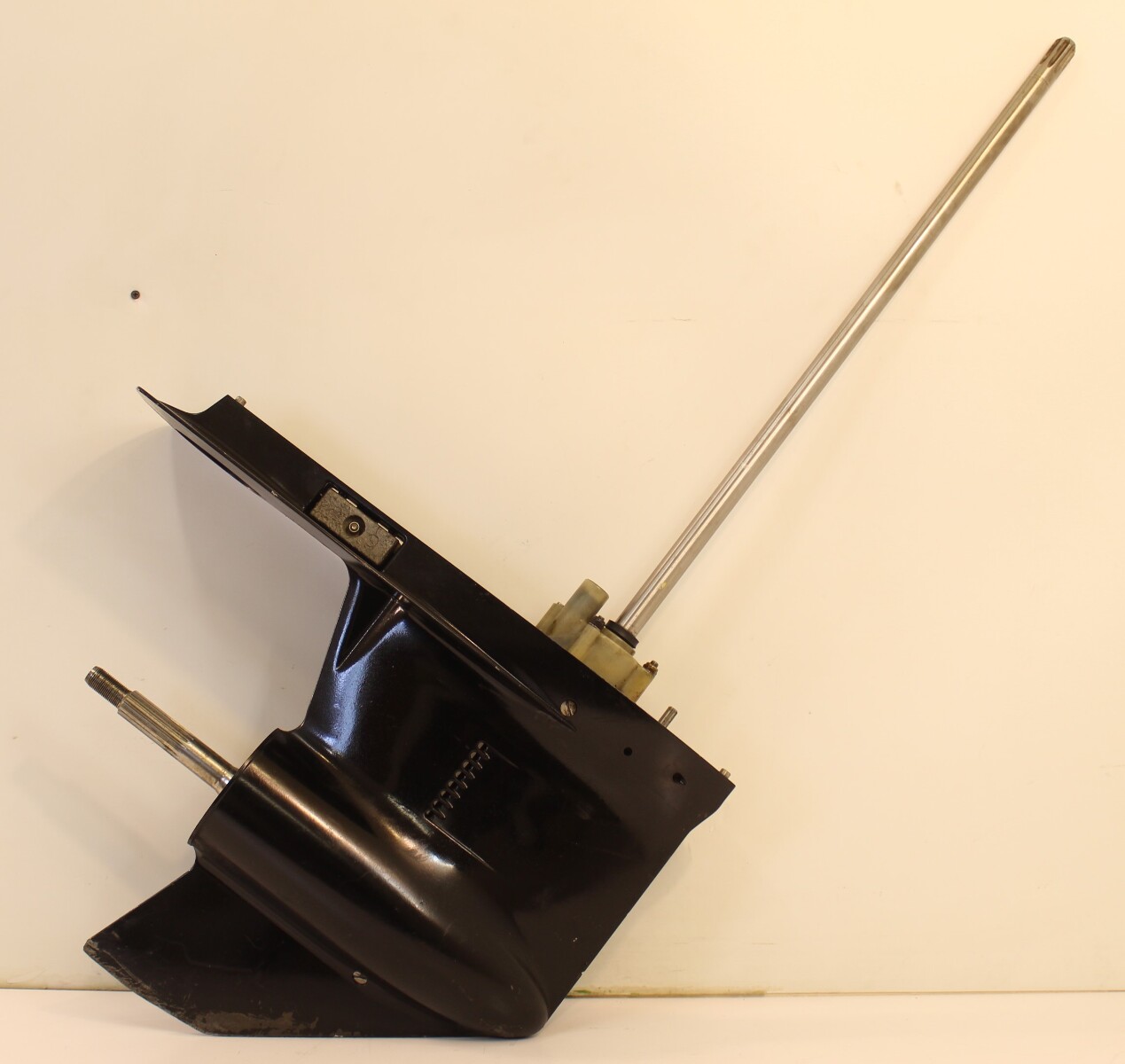

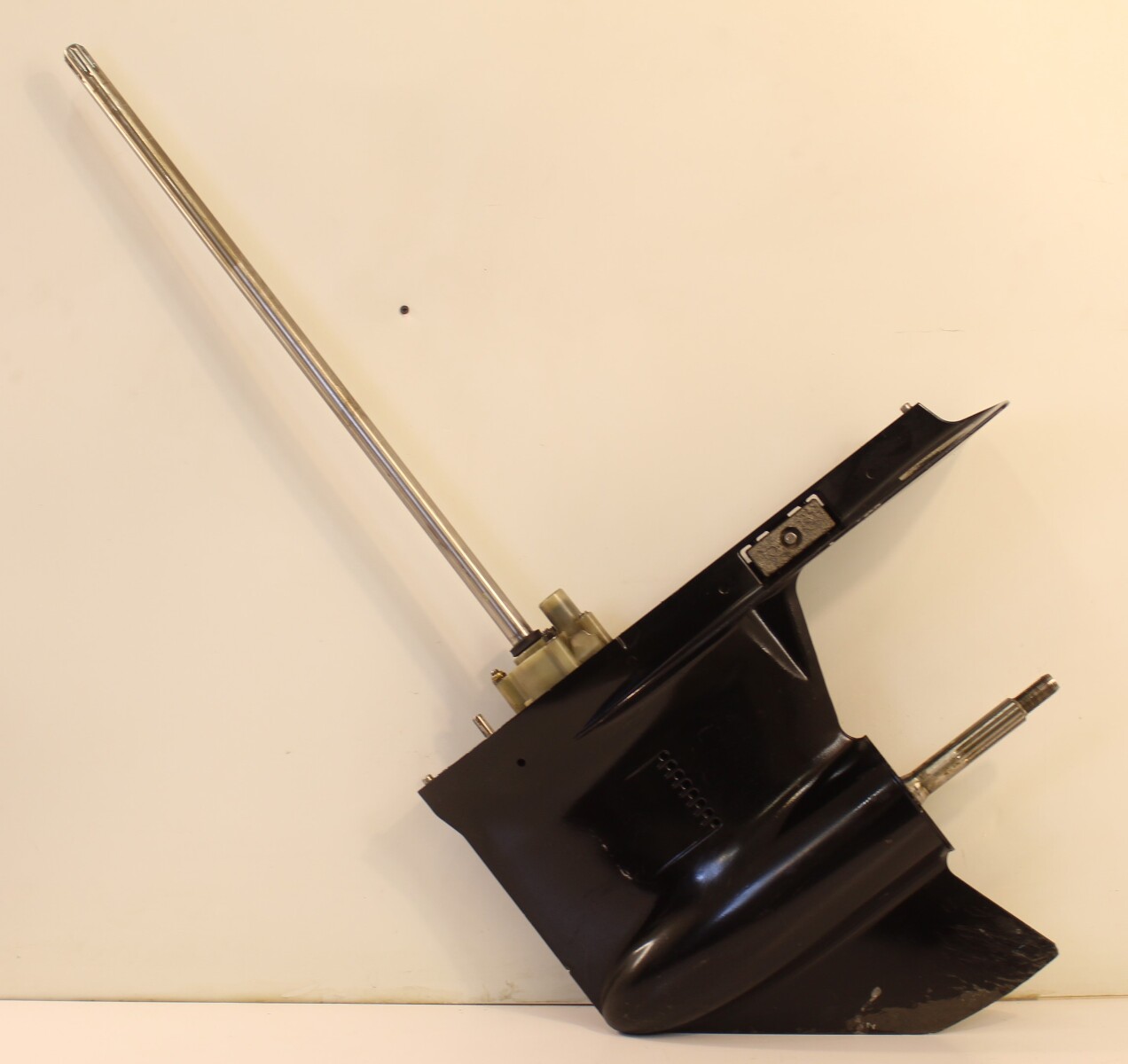

1976 - 2015 Mercury 25" XL Lower Unit 135 150 175 200 HP 1.87:1 6 MONTH WARRANTY


$800.00
International Shipping Quote
  • Brand: Mercury
  • Size: 2.0, 2.4, and 2.5 L
  • Style: 2.0, 2.4, 2.5L V6 1976 & Newer 1.87 Ratio
  • Condition: Seller Refurbished
  • Notes: Pressure Checked With New Impeller!
  • SKU: 70627 LRU
  • Manufacturer Part Number: 9148T85 9148A85 9148A72 7350A27
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Inventory Number: 70627 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $175.00
Part Number
This part is 9148T85.  This part number will also replace all of the following:
9148A85
9148A72
9148A9
8688A2
7350A27
7350A6

Additional Info
  • 25 Inch Driveshaft , measures 26-1/4" Driveshaft length from the top of the water pump to top of the shaft
  • Pressure checked

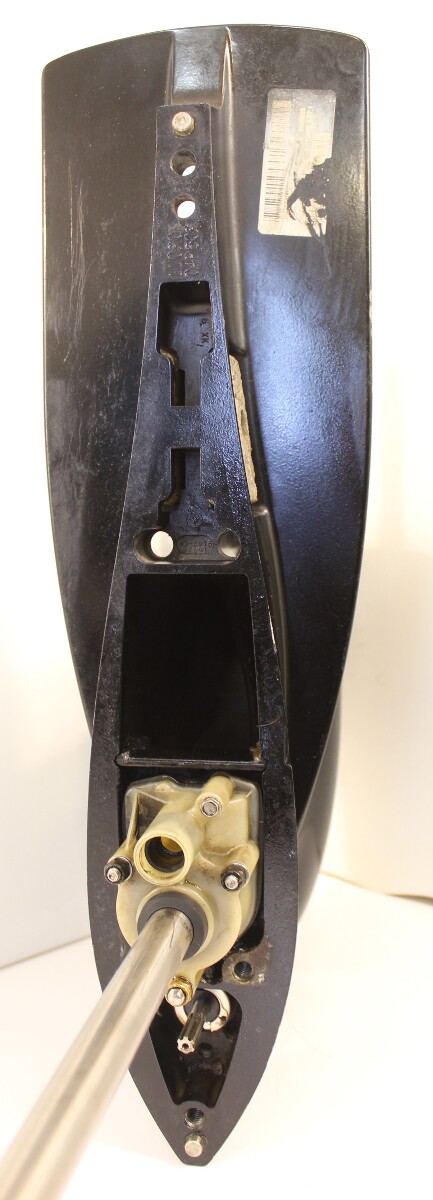

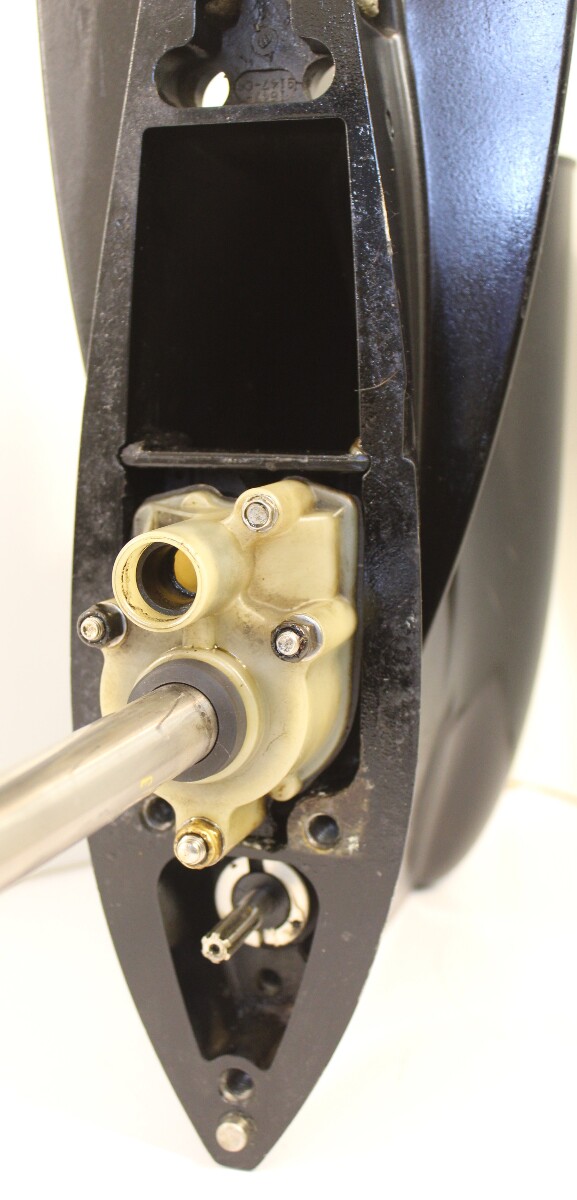

  • New impeller
  • Extended Warranty
  • Driveshaft splines show light wear
  • Open and inspected under magnification - All worn parts have been replaced
  • DOES NOT INCLUDE MOUNTING STUDS

Gear Ratio: 1.87:1

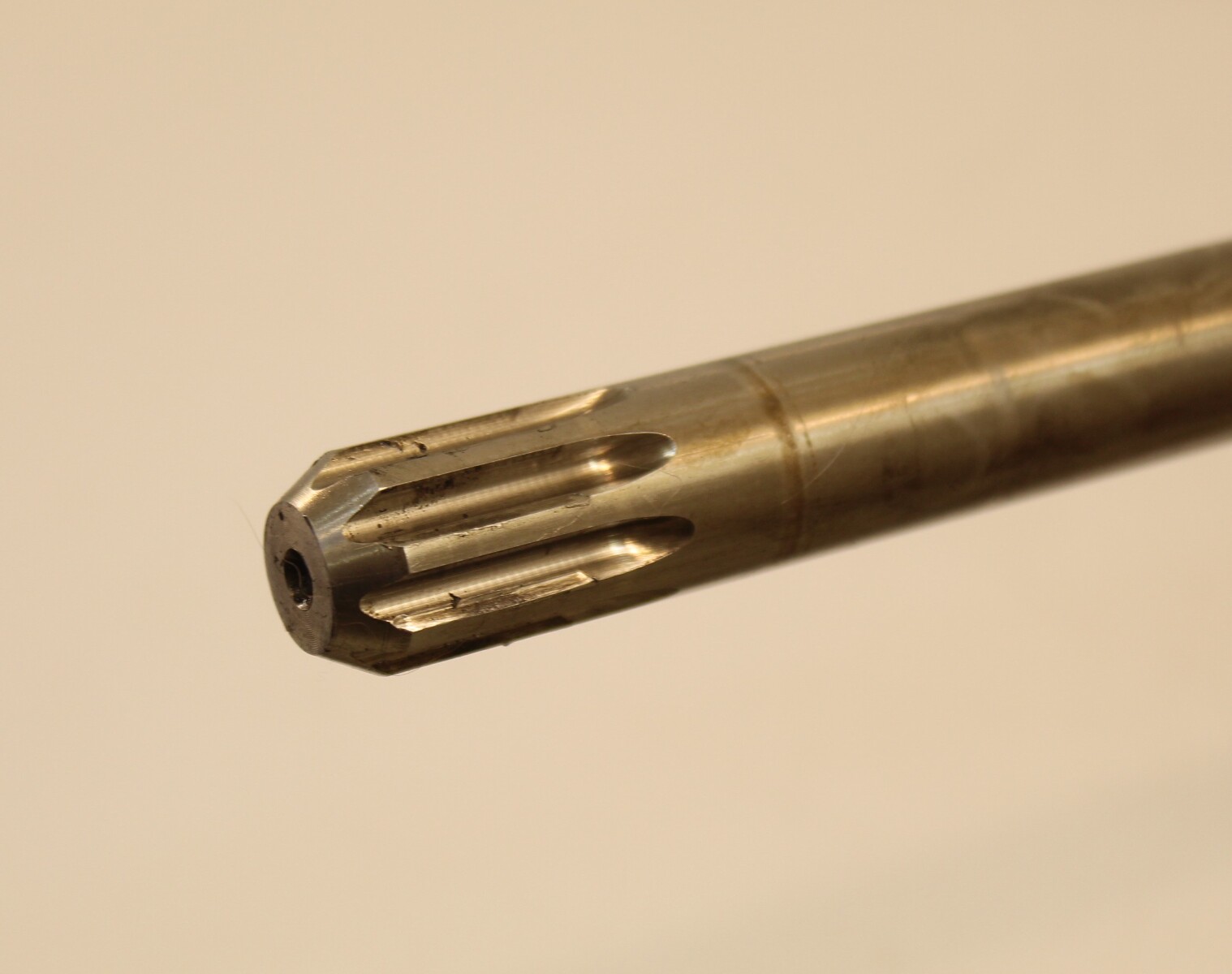

Driveshaft splines: 8

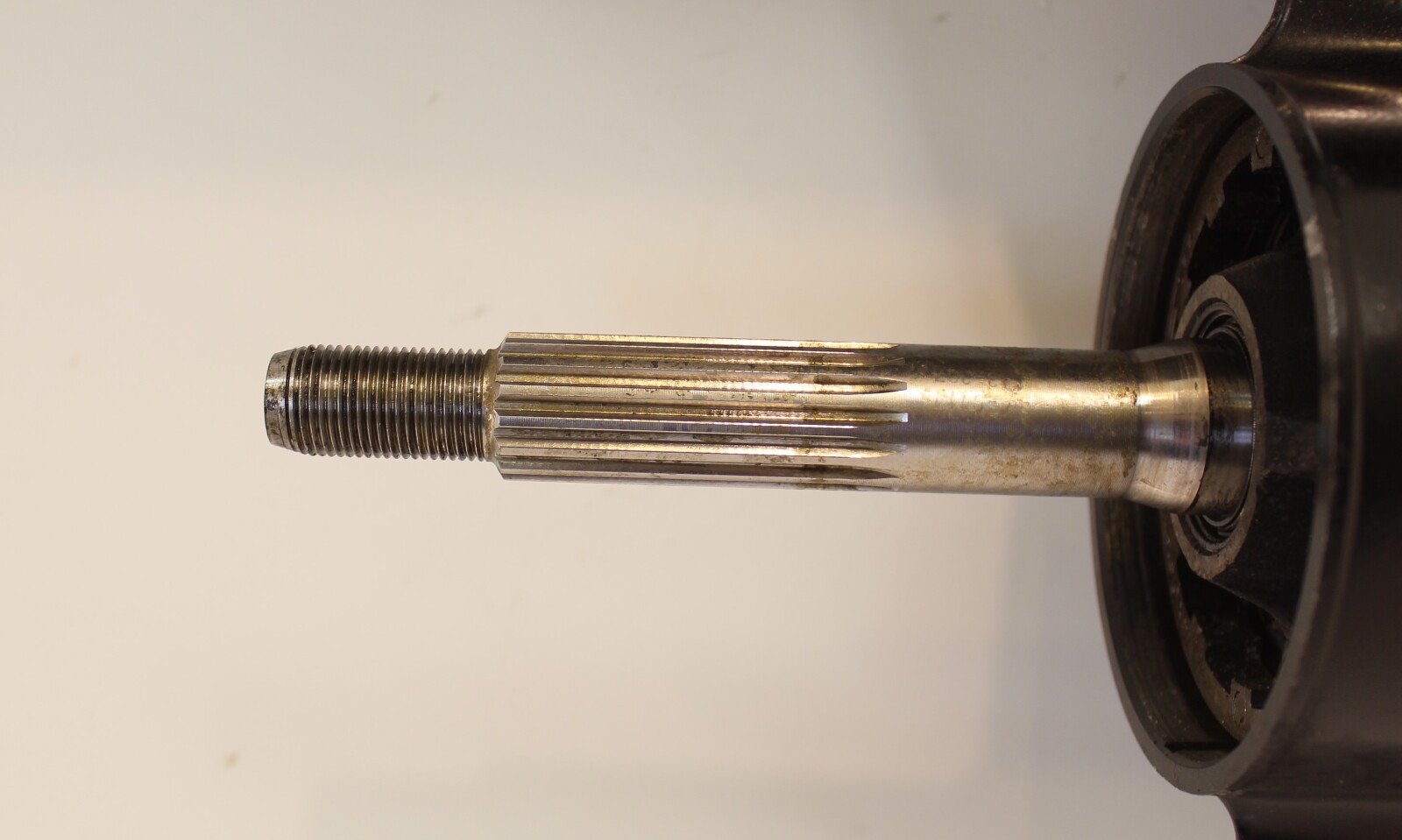

Propeller shaft splines: 15

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 6 month warranty. This unit is being sold with a 6 month working warranty that covers the gears, bearings, and shafts.  This does NOT cover seals. This warranty is upheld by Southcentral Outboards. If you need to use, or have any questions regarding this warranty, you must contact us directly.

Location: Southcentral Outboards, Altamont, Illinois

Fits:
25" - 1976-2015 - 2.0 L -1.87:1 gear ratio

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
