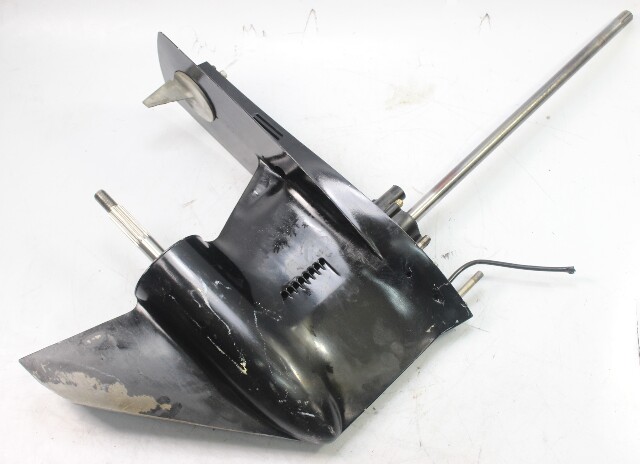

1976 - 2015 Mercury 20" Lower Unit 135 150 175 200 HP 2:1Ratio 6 MONTH WARRANTY


$900.00
International Shipping Quote
  • Brand: Mercury
  • Size: 135 150 175 200 HP
  • Style: 20" - LONG - 2:1 - V6
  • Condition: Seller Refurbished
  • Notes: Pressure Checked With New Impeller!
  • SKU: 59508 LRU
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Inventory Number: 59508 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
  • Shipping: $175.00
Additional Info
  • 20 Inch Driveshaft , measures 21-1/4" Driveshaft length from the top of the water pump to top of the shaft
  • Pressure checked with new Impeller
  • Extended Warranty with exchange of a spinning core
  • Driveshaft splines show light wear
  • Open and inspected under magnification - All worn parts have been replaced

Gear Ratio: 2:1

Driveshaft splines: 8

Propeller shaft splines: 15

Please add oil before use. This unit is shipped empty.

This lower unit qualifies for a 6 Month warranty.  The warranty is validated by your core.  In order to qualify for this, you must send in that core.  Both shafts must spin and it must be complete.  We will send a label for you to return your core in our box after receipt of the unit you’ve purchased.  If you do not have a spinning core, you may call in after your purchase and buy the 6 Month warranty for 10% of the purchase price.  If you do not return a core or purchase a warranty, this unit will be sold with a 45 day warranty and nothing more or less.

Location: Southcentral Outboards, Altamont, Illinois


Fits:
1976-2015 - 135 150 175 200 HP

This will also fit 175 and 250 HP, however this will change the gear ratio and will require a propeller change.

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
