1976-1988 Mercury 20" Lower Unit 135 150 175 200 HP 1.87:1 Ratio V6 6 MONTH WTY

$700.00

DetailsShipping

Brand: Mercury
Size: 135 150 175 200 HP

Color: Black
Style: 1.87: 1 Ratio - 8/15 splines - V6
Condition: Used
Notes: Opened, Inspected & Tested!

SKU: 40092 LRU
Manufacturer Part Number: N/A
Country of Manufacture: United States
Motor & Engine Type: Mercury
Part Type: Motors, Engines & Components
Other Part Number: N/A
Surface Finish: Painted, Black
Warranty: 30 days
Inventory Number: 40092 LRU
Website Category: Lower Units
Website Sub Category: Complete Lower Units
UPC: N/A

Shipping: $75.00

Part Number

N/A

Additional Info

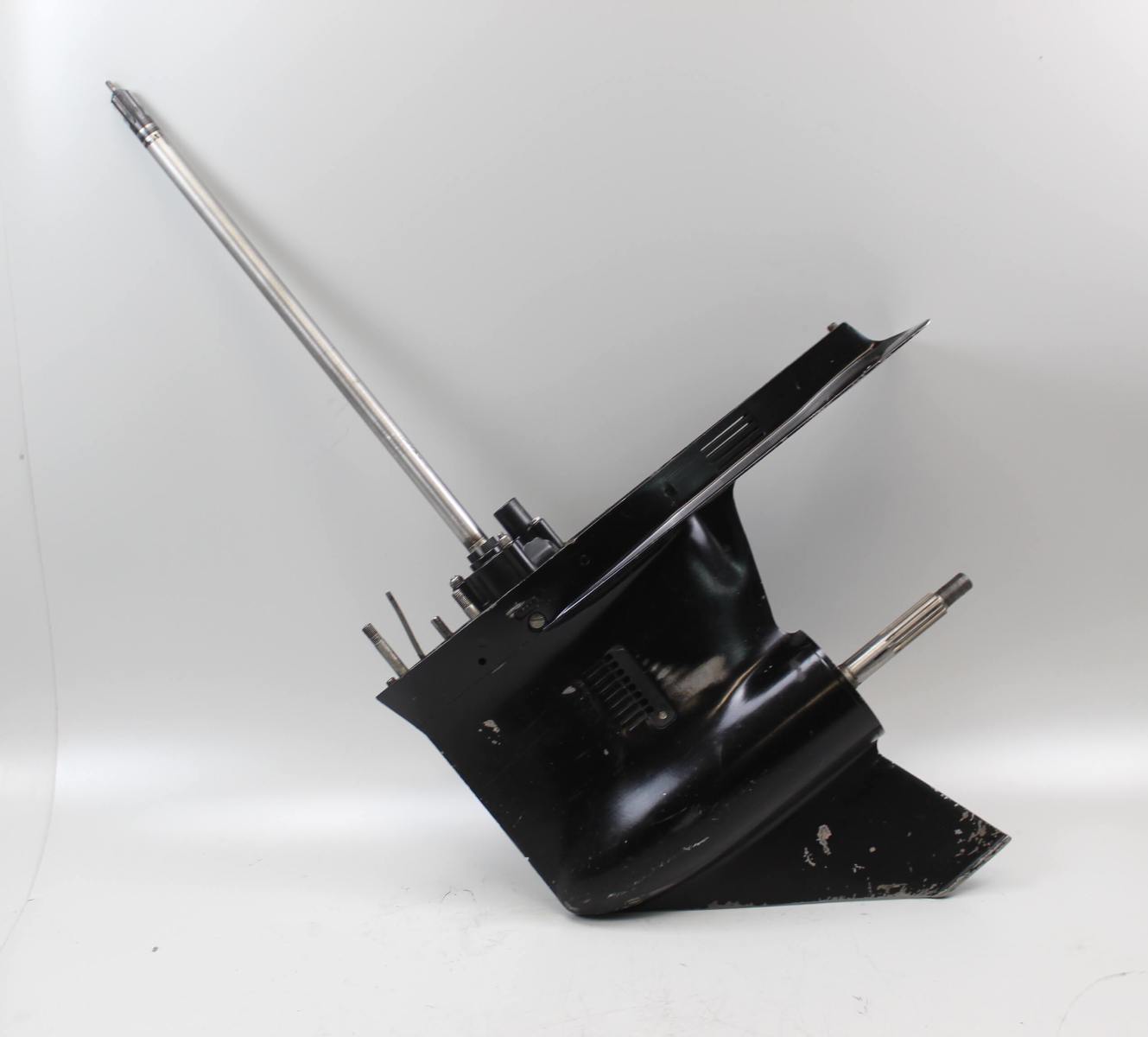

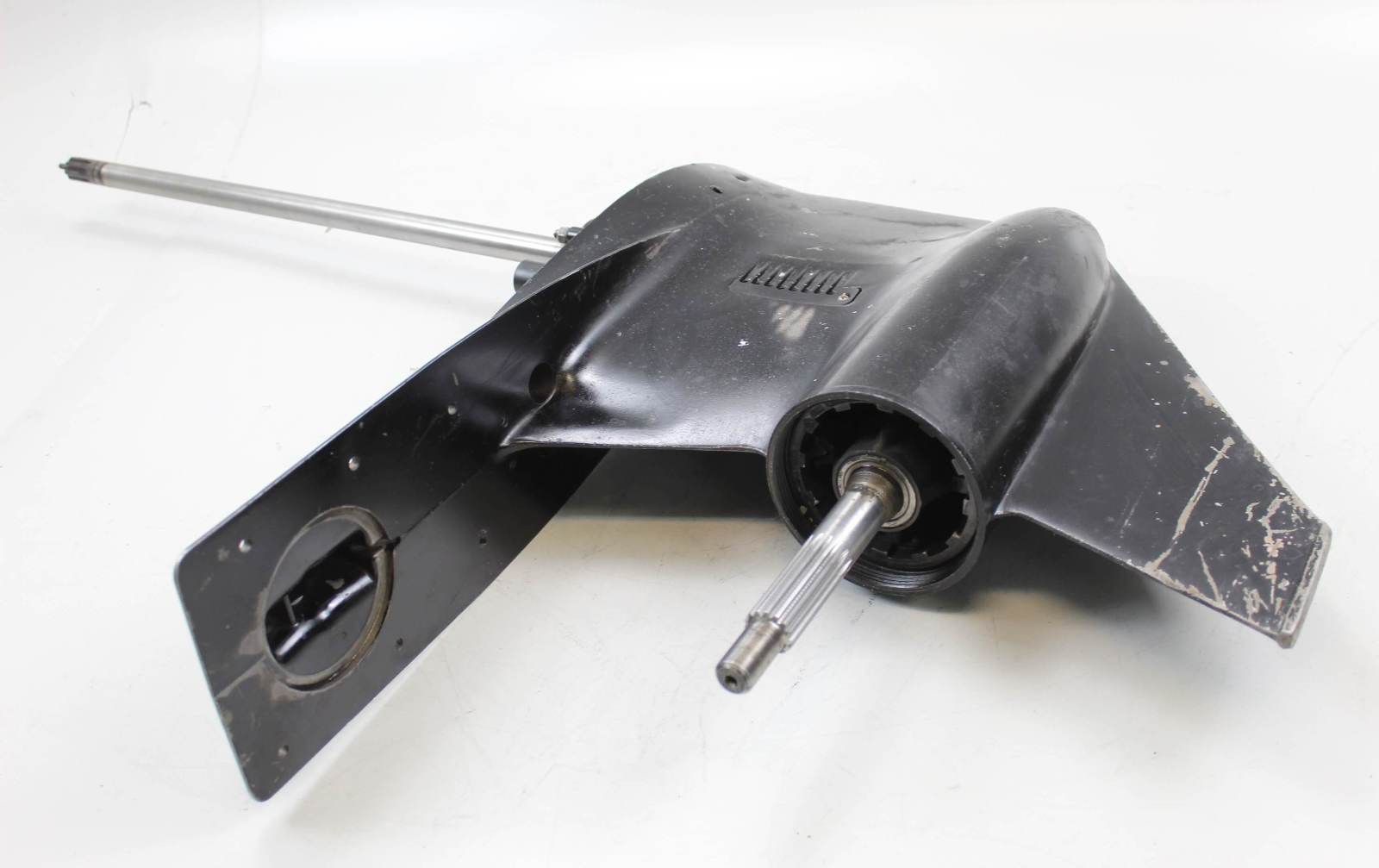

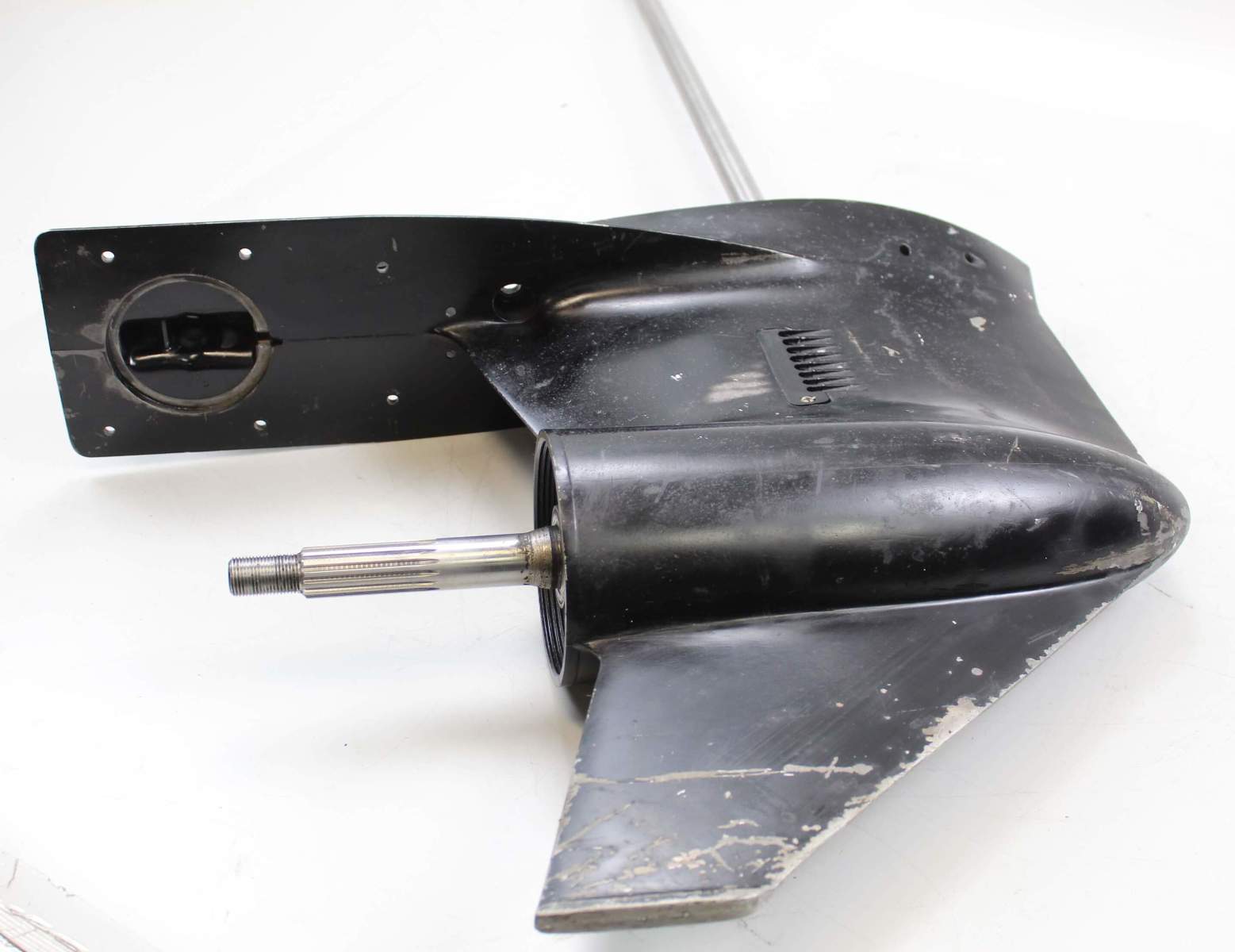

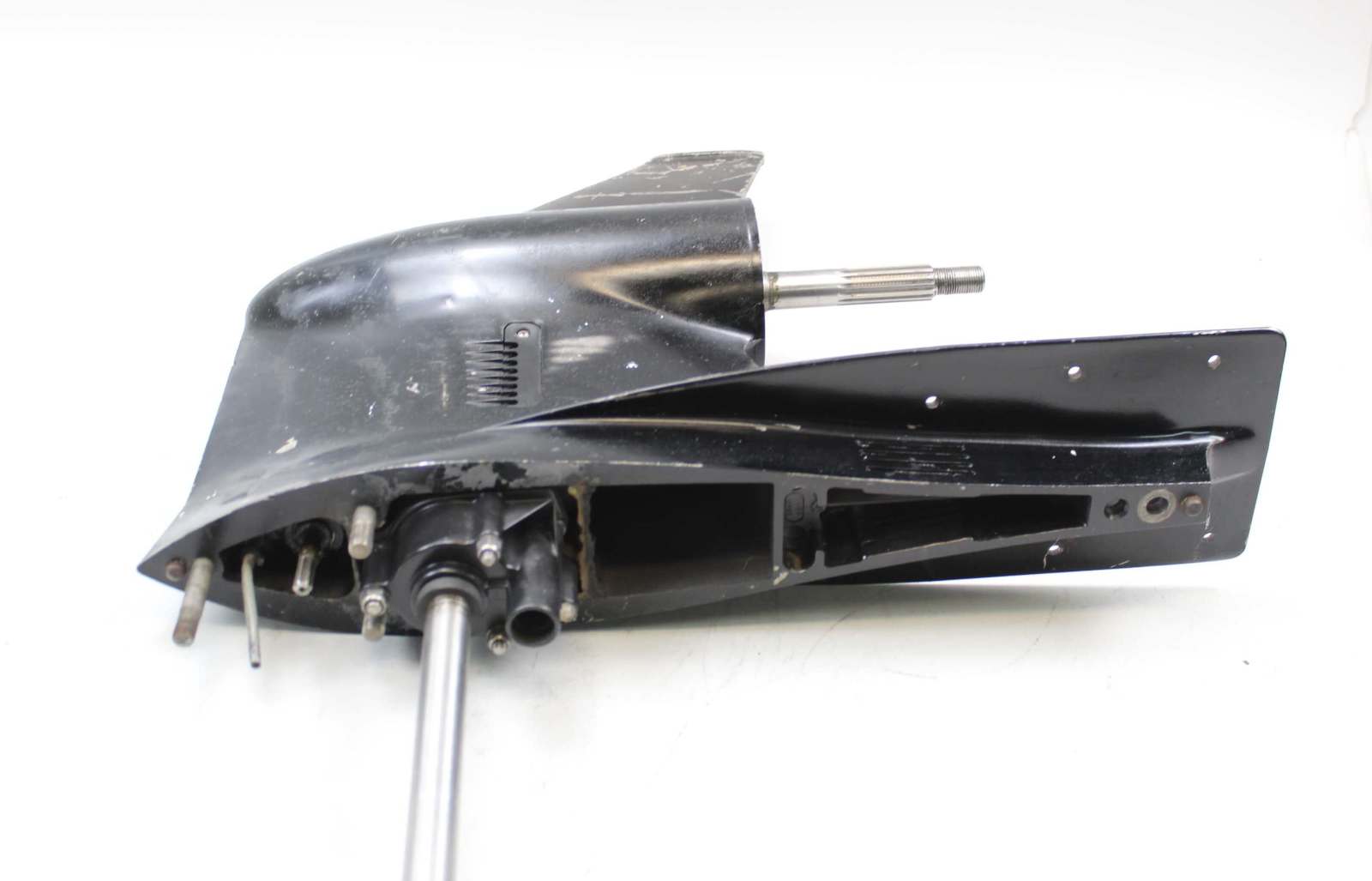

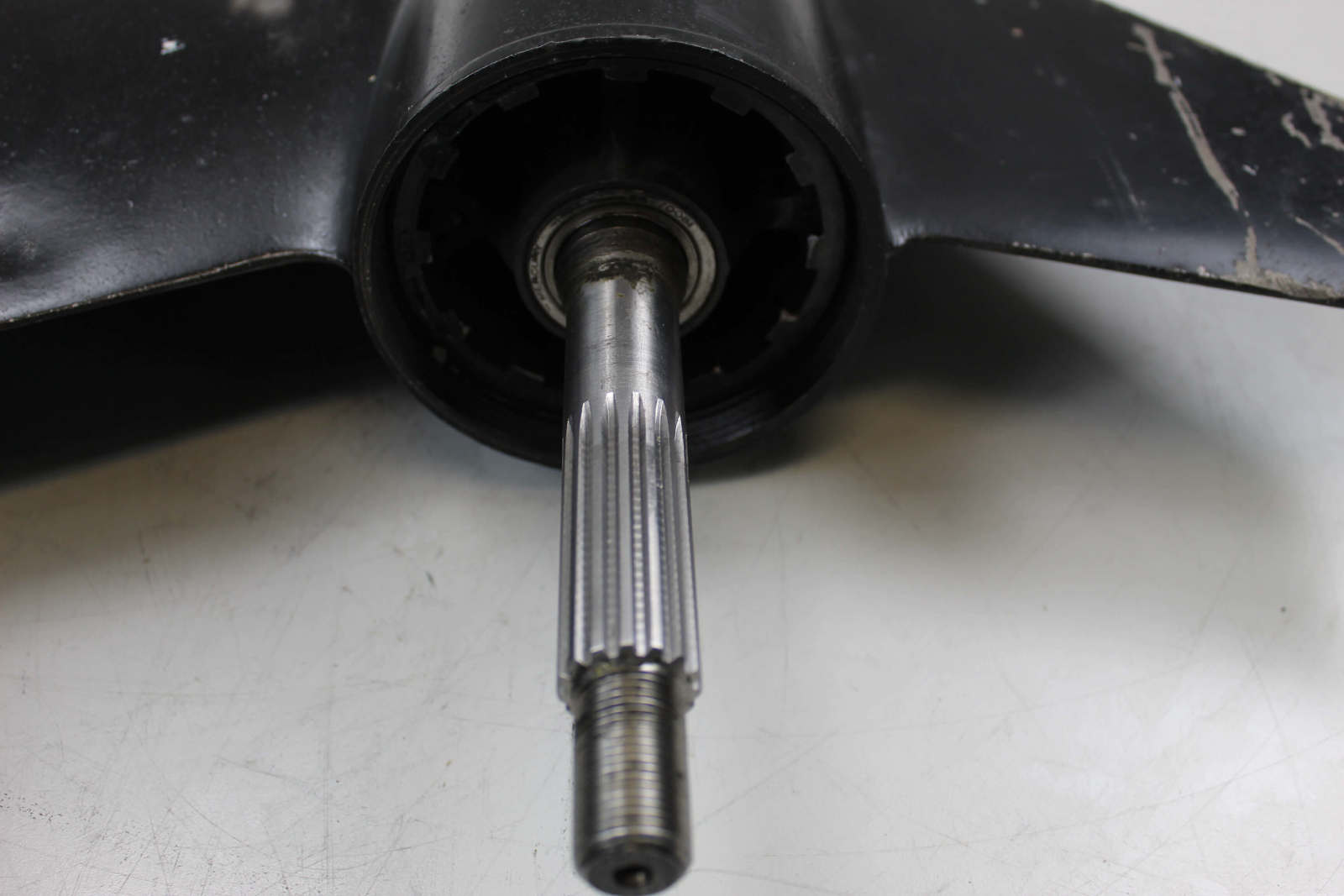

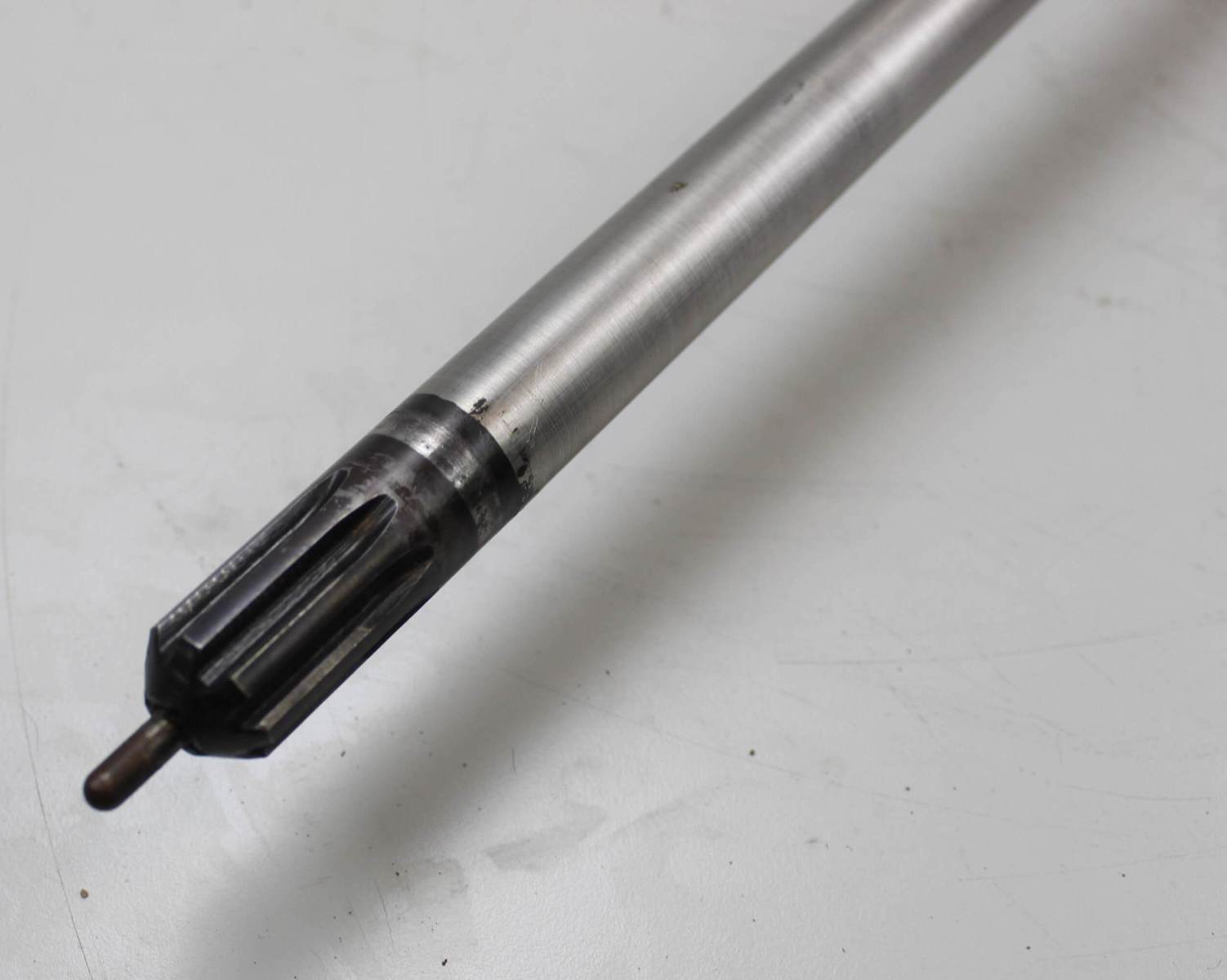

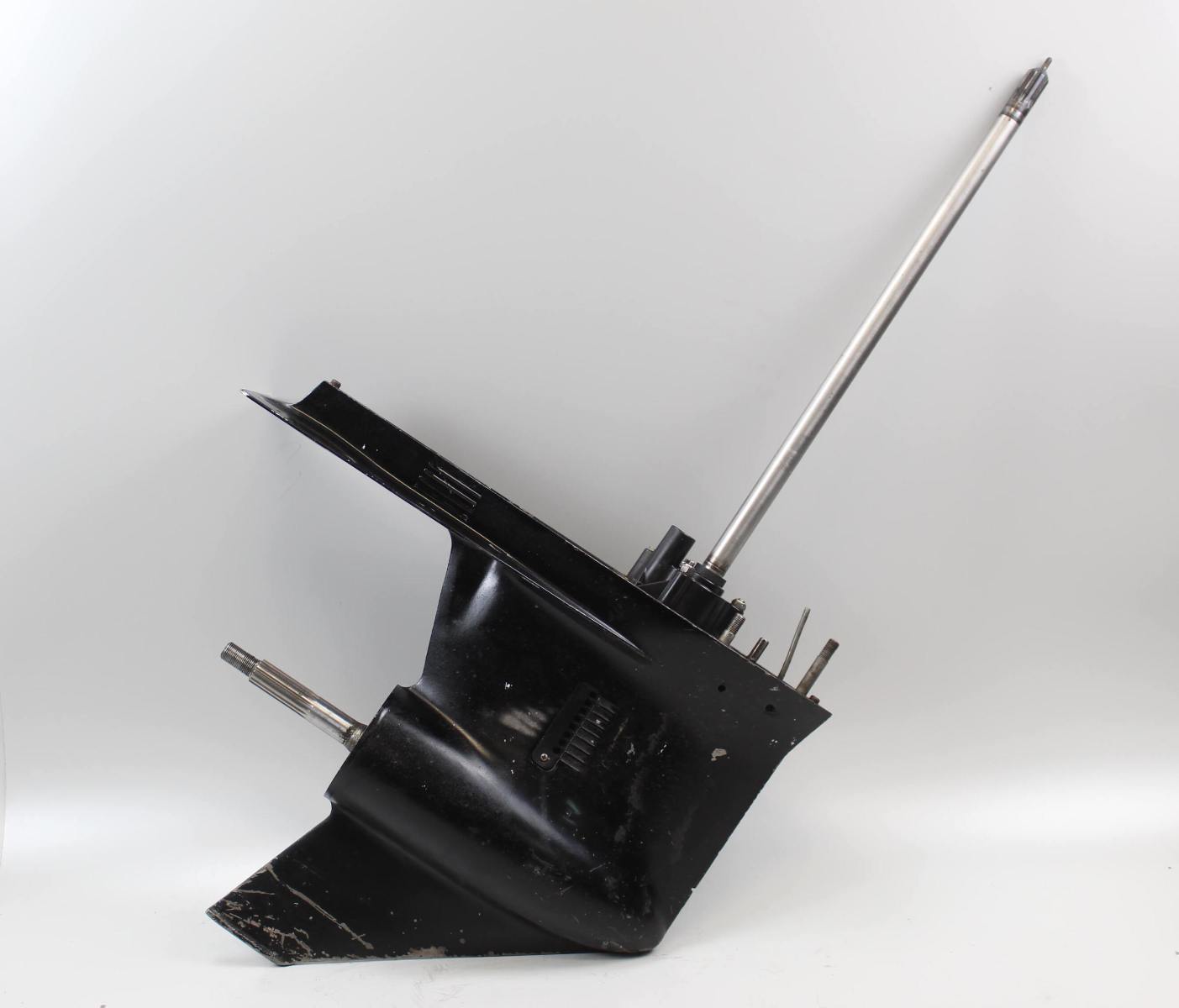

This lower unit is in excellent condition and is ready for your engine. There are not any cracks or breaks in the housing whatsoever. The skeg is fully intact. This does not come with the trim tab. From the top of the water pump, the driveshaft measures approximately 21-1/4" long and has 8 splines. The propeller shaft has 15 splines. The splines are not cracked or chipped. We cannot ship lower units with oil in them so this must be done prior to installation. Purchase with confidence!

General Information

Freshwater condition
Shifts and spins smoothly
There was no metal or water in the oil when it was drained
Needs a new shift rod seal
Pre-drilled holes in the cavitation plate for a planing fin
Shafts checked for straightness
6 month mechanical warranty

To obtain the 6 month mechanical warranty, you MUST send in your core lower unit. We will even pay to have your core shipped to us! Below is the criteria required to validate the warranty:

Core must be of rebuildable quality
Cannot be locked up - driveshaft must spin
Up to 30 days from the date of purchase to send in your core
Covers mechanical aspects ONLY
Warranty begins from date of purchase
Core must be complete and cannot be missing parts

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 6 month warranty. We reserve the right to accept or reject any core at our discretion. If you have any questions or concerns, please do not hesitate to contact us.

Fits:

1976-1988 - 175 200 HP - 1.87:1 Gear Ratio
- 135 150 HP - 2.0:1 Gear ratio - therefore you will need to change your propeller

Mercury V6’s originally used a preload pin from 1976-1988. Aftermarket replacements and 1989 & up V6 lower units did not. Therefore, if you have a V6 lower unit with a preload pin, it could only be used only from 1976-1988. If you have a lower unit that does not have a preload pin, it can be used from 1976-2005. Also, please note that this is the bigger bullet style housing with a 4.75" diameter.
