1 YEAR WARRANTY 1995 & UP Yamaha 20" Lower Unit Assembly 40 50 HP 2 stroke 2 cyl


$850.00
International Shipping Quote
Details
  • Brand: Yamaha
  • Size: 40 50 HP
  • Color: Gray
  • Style: 2 cylinder - 2 stroke - 14/13 splines
  • Condition: Seller Refurbished
  • Notes: Fully Resealed & Inspected!
  • SKU: 31229 LRU
  • Manufacturer Part Number: N/A
  • Country of Manufacture: Japan
  • Motor & Engine Type: Yamaha
  • Part Type: Motors, Engines & Components
  • Other Part Number: N/A
  • Surface Finish: Painted, Gray
  • Warranty: 30 days
  • Inventory Number: 31229 LRU
  • Website Category: Lower Units
  • Website Sub Category: Complete Lower Units
  • UPC: N/A
Part Number N/A

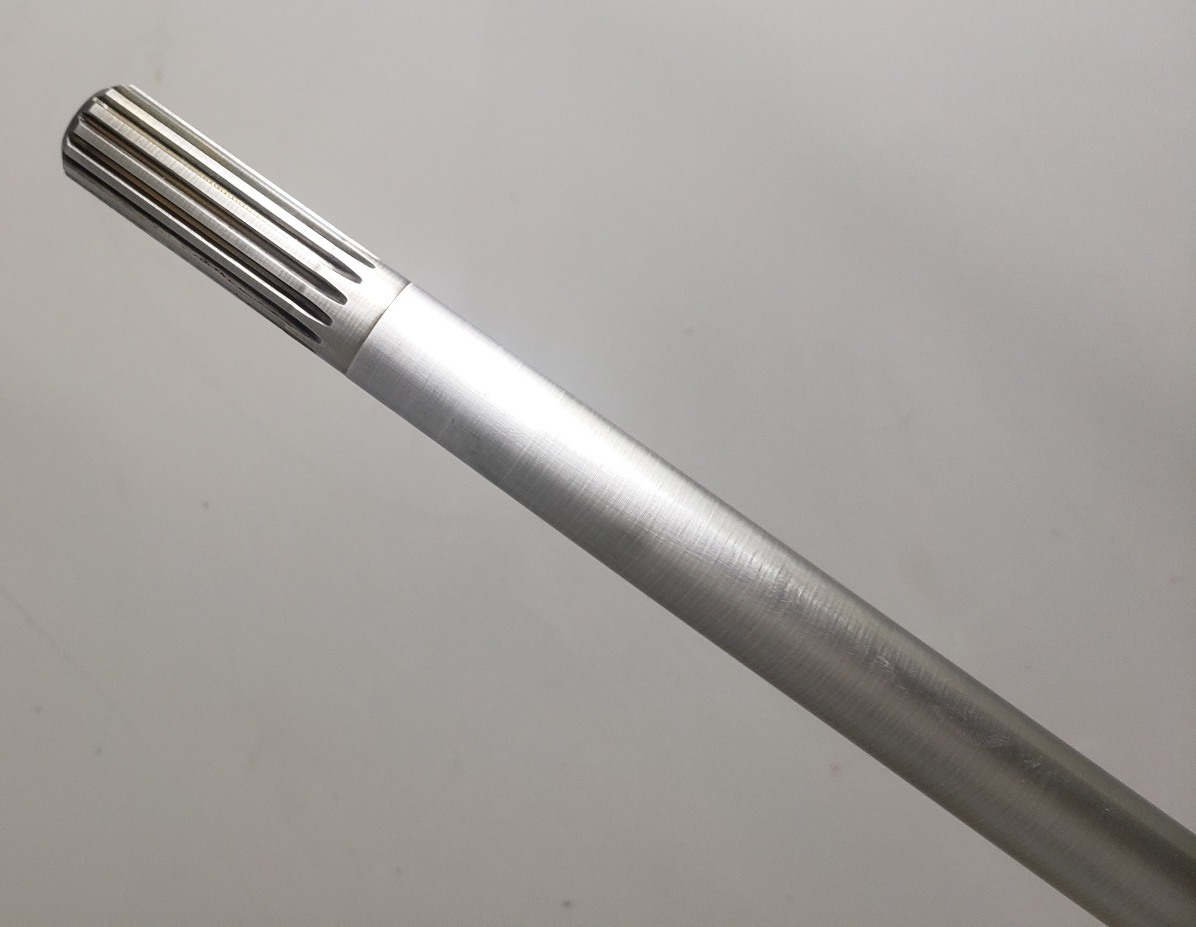

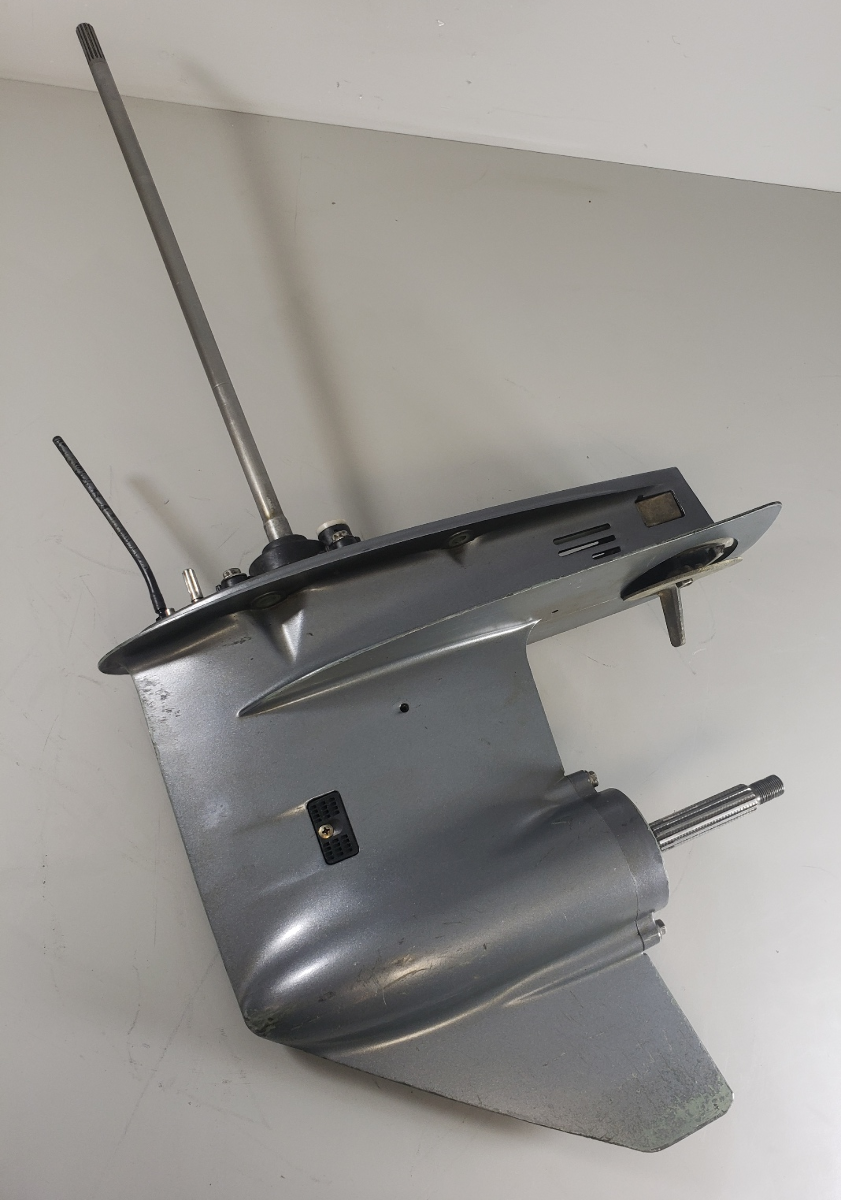

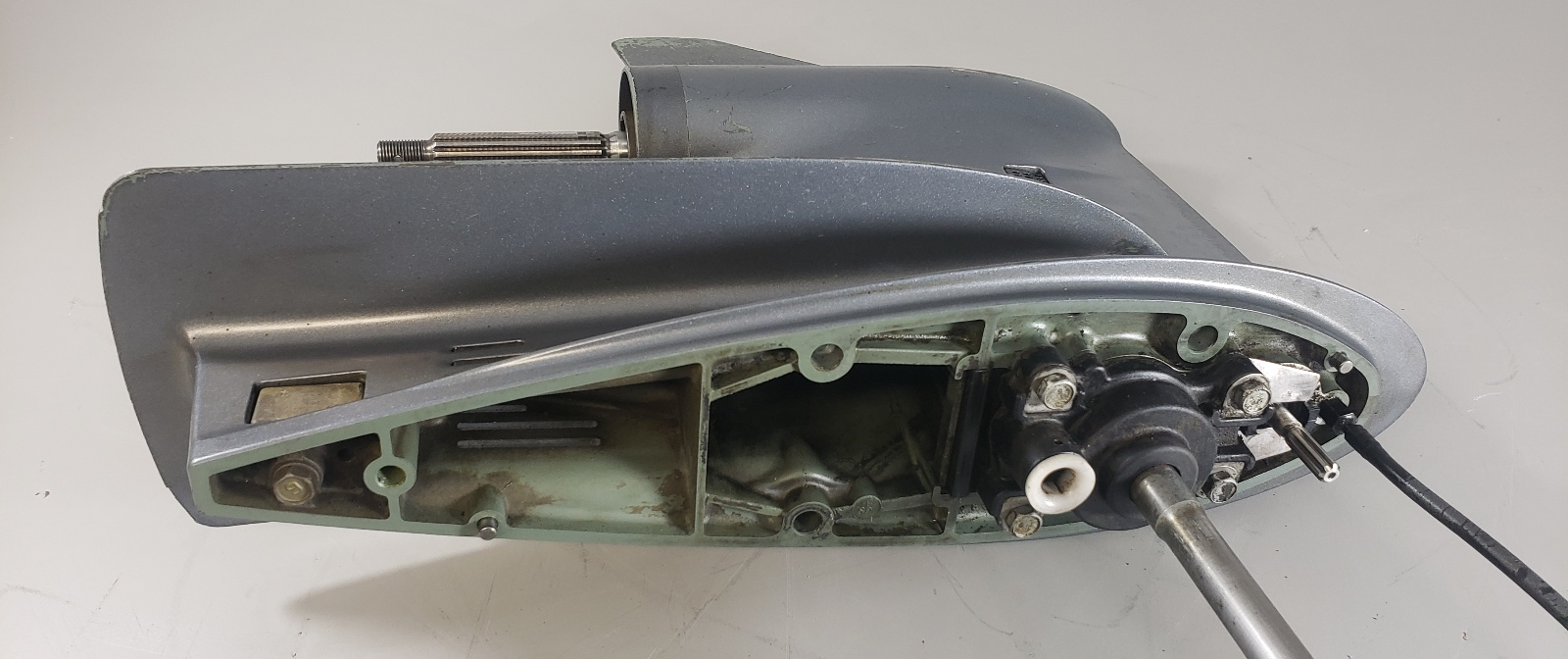

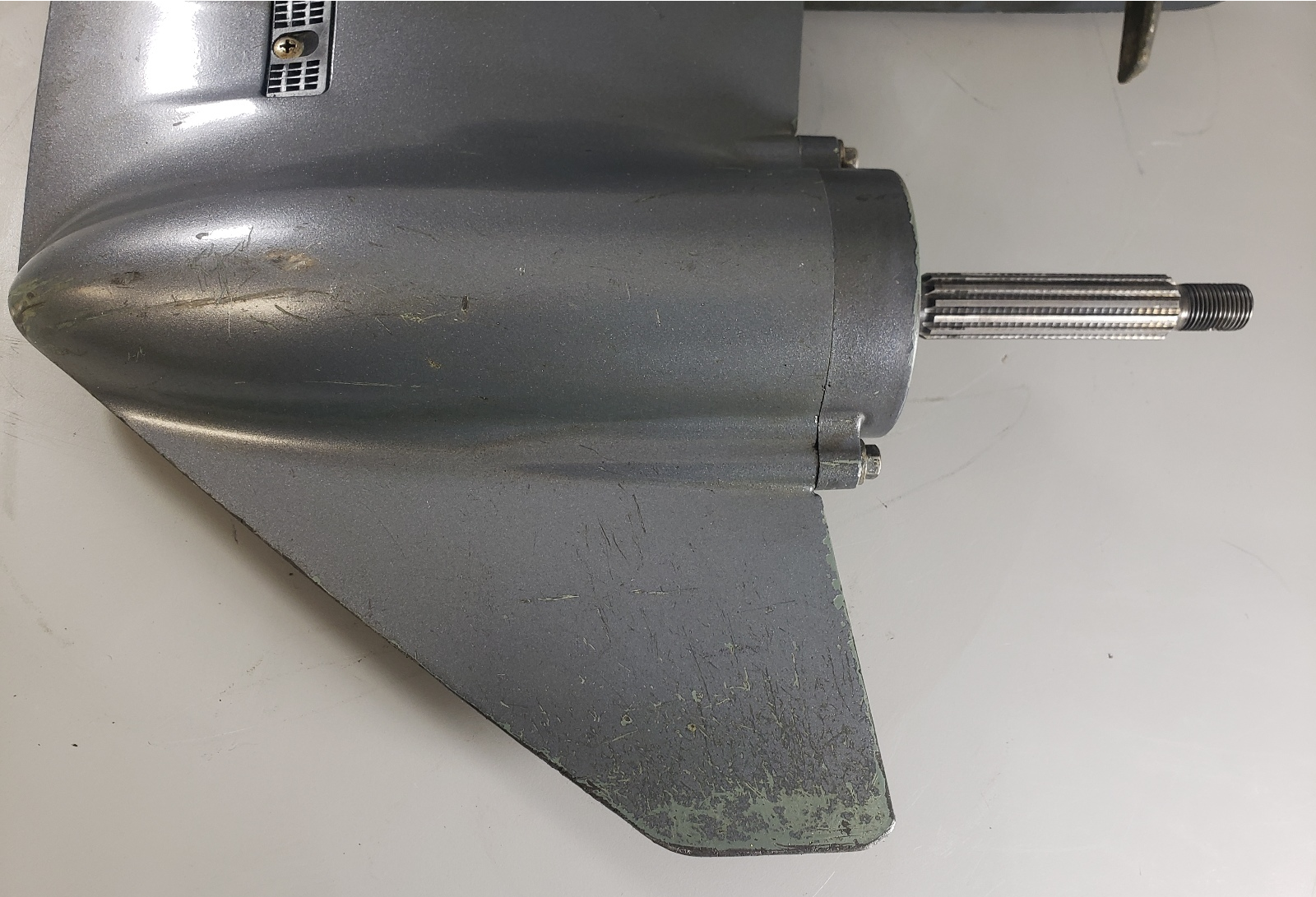

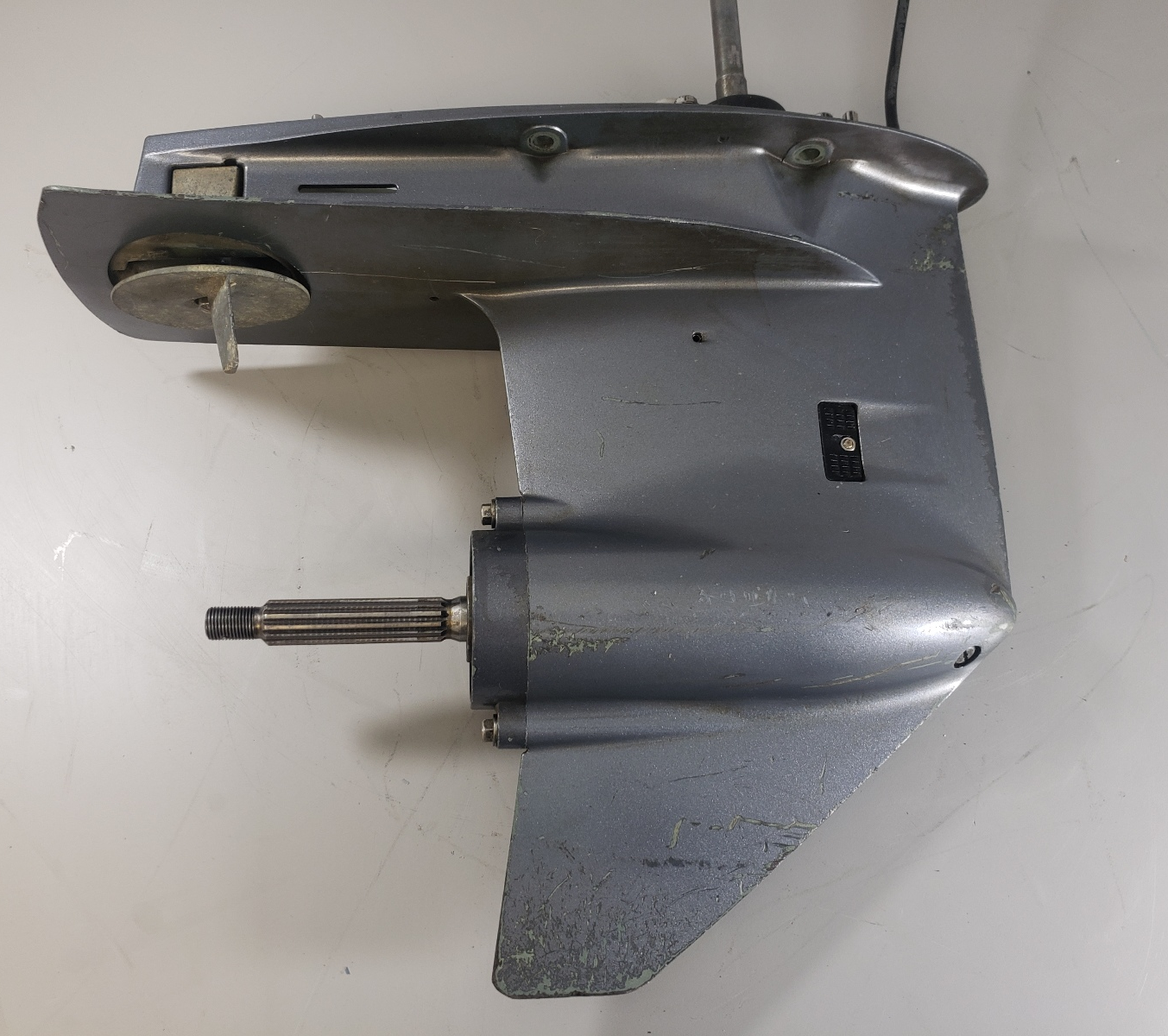

Additional Info This lower unit was removed from a freshwater engine and is in good condition. As seen in the pictures, this does come with the trim tab. The intake screens are in great condition. The driveshaft has 14 splines and the propeller shaft has 13 splines.  From the top of the water pump to the end of the driveshaft, it measures approximately 20-3/4" long. The paint is in good shape with only minor blemishes and scratches. The reverse gear bearing in the lower unit has been replaced with a new one. Please note that the unit has been drained of oil and this will need to be added prior to installation.

General Information

  • Freshwater condition
  • Opened & Inspected
  • Professionally Cleaned
  • New Impeller
  • Pressure checked to 12 PSI minimum
  • Fully Resealed
  • Shafts checked for straightness
  • 1 year mechanical warranty

To obtain the 1 year warranty, you MUST send in your core lower unit. We will even pay to have your core shipped to us! Below is the criteria required to validate the warranty:

  • Core must be of rebuildable quality
  • Cannot be locked up - driveshaft must spin
  • Up to 30 days from the date of purchase to send in your core
  • Covers mechanical aspects ONLY
  • Warranty begins from date of purchase
  • Core must be complete and cannot be missing parts

Upon receipt of your core, we will inspect the unit to determine if it meets the criteria to validate the 1 year warranty.The unit must be complete and cannot be locked up. It must spin. We reserve the right to accept or reject any core at our discretion. If you have any questions or concerns, please do not hesitate to contact us at 618-487-9499 and we would be happy to help!

Fits:
1995 & UP - 40 50 HP
