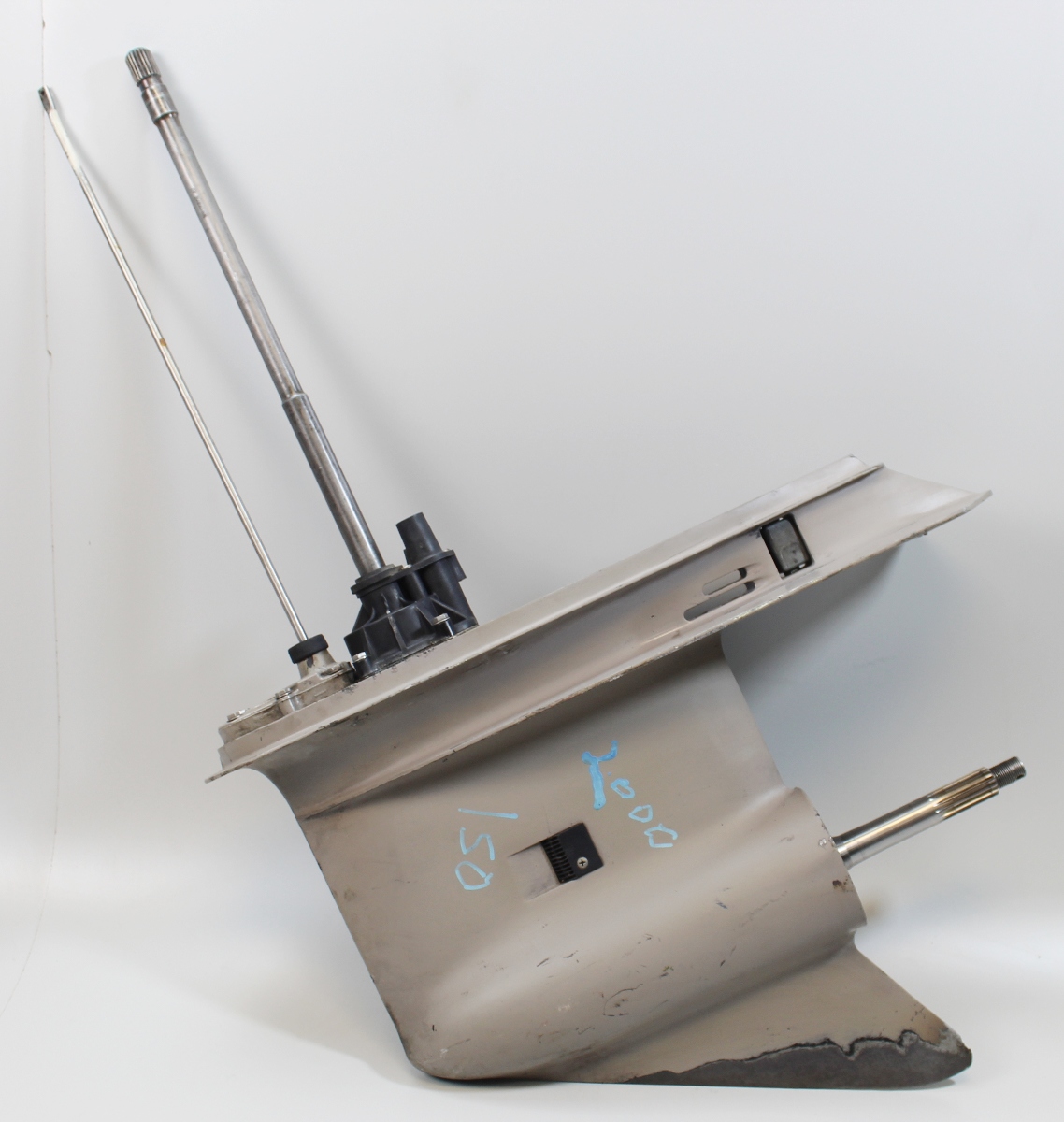

1992 & UP Johnson Evinrude 20" Lower Unit 150 175 HP V6 1 YEAR WARRANTY

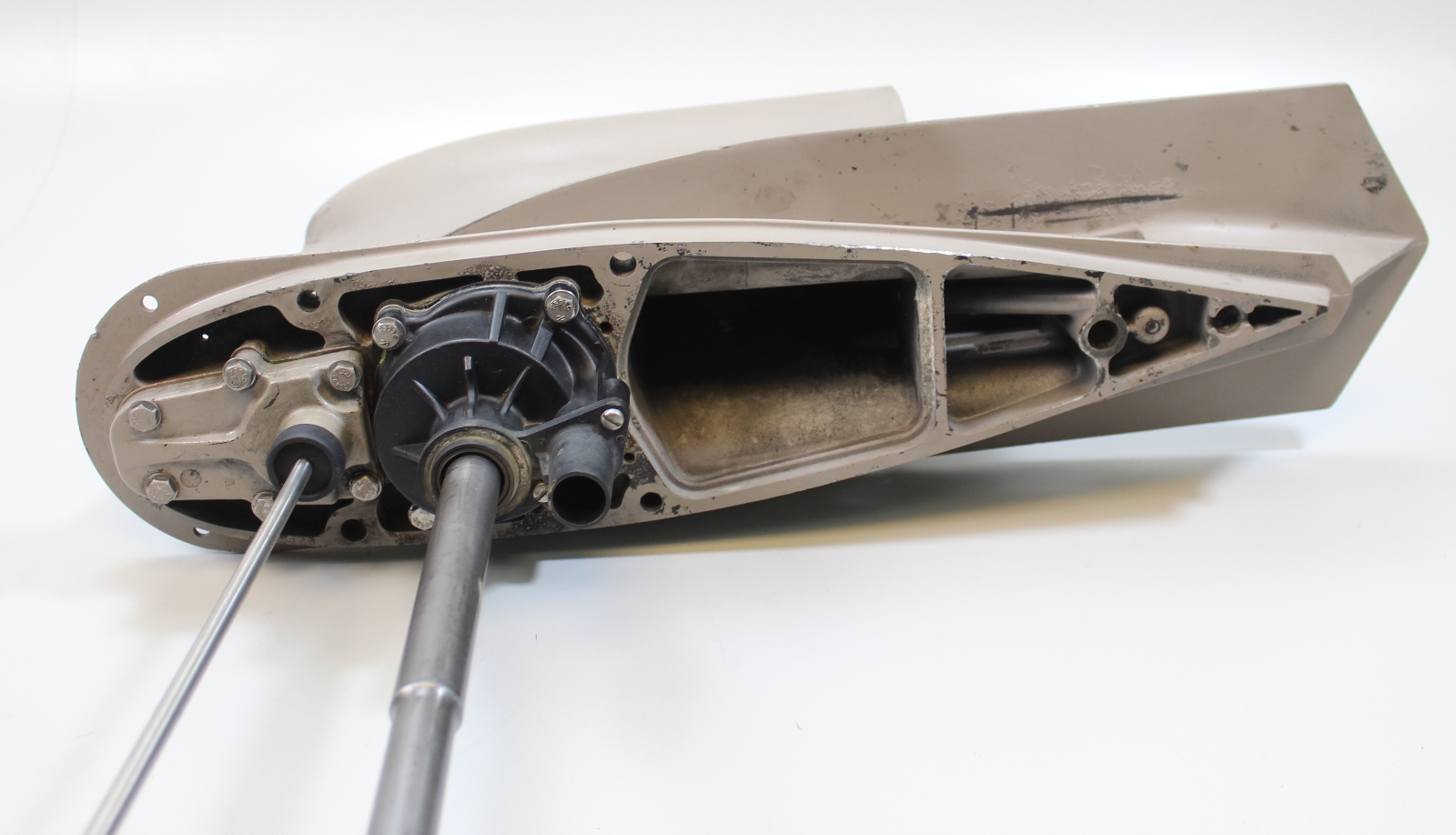

This specific lower unit is in good condition. There are some scuffs and scratches in the paint, but this is purely cosmetic. Please note that this does not come with the trim tab but does have the zinc anode. From our inscection, the intake screens are intact, but are a little warped. From the top of the water pump, the driveshaft measures approximately 18-1/2" long and has 20 splines. The propeller shaft has 13 splines. The splines on both shafts are in great shape. Given our unprecedented 1 year warranty on every lower unit, you will never find a better deal on an OEM lower unit. Please remember to add oil before use! Purchase with confidence!

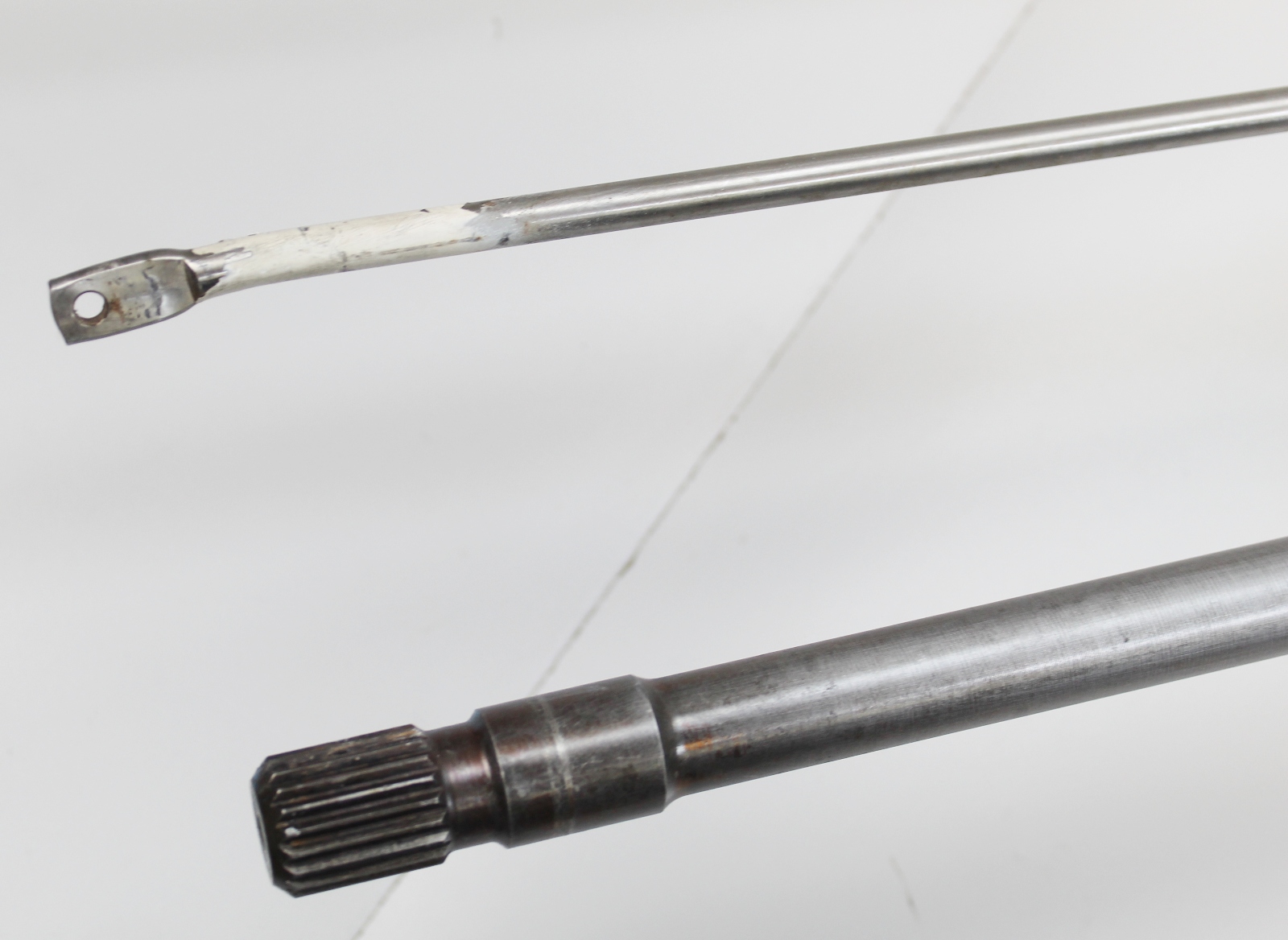

Driveshaft measures - 18-1/2" from top of water pump housing to top of driveshaft.
Driveshaft spline count - 20

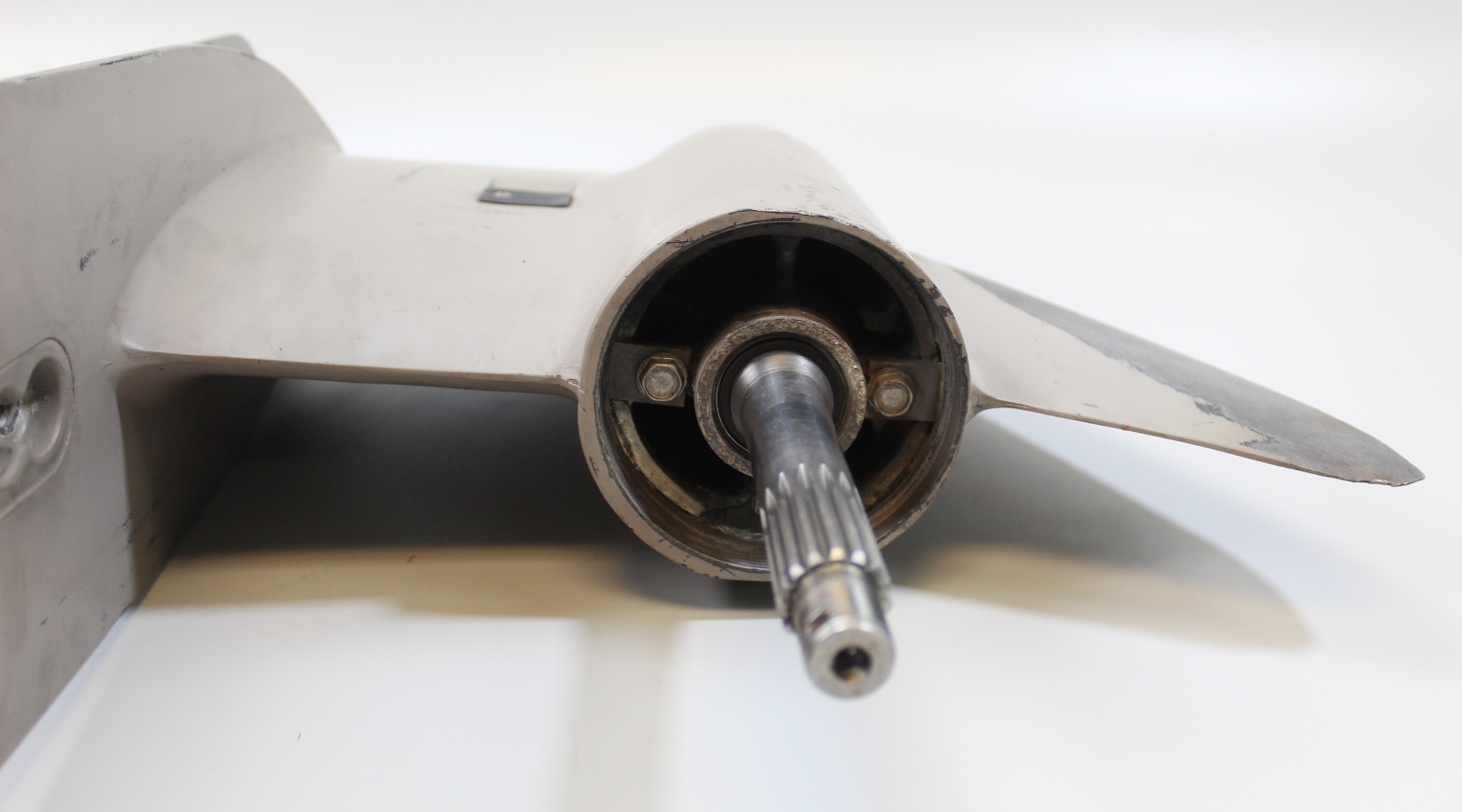

Prop shaft spline count - 15

General Information

• • Freshwater condition
  • Professionally Cleaned
  • New Impeller
  • Pressure checked to 12 PSI minimum
  • Shafts checked for straightness
  • 1 year mechanical warranty

Criteria to validate your 1 year warranty:

• Core must be of equal or greater value
• Cannot be locked up - driveshaft must spin
• Up to 30 days from the date of purchase to send in your core
• Covers mechanical aspects ONLY
• Warranty begins from date of purchase

We have provided this cross-reference with the resources we have available in regards to fitment. This most likely will not fit every model for the years and horsepowers we have listed. We urge you to make sure this is the exact item you need by matching the part number to what is required for your motor. If you need help doing so, please contact us prior to purchasing and we would be happy to help!
