2015 Mercury XL 25" Driveshaft 8M0063505 45-8M0063505 150 HP 4 stroke Inline 4


$200.00
Details
  • Brand: Mercury
  • Size: 150 HP
  • Color: Silver!
  • Style: 4 stroke - Inline 4 - 20/13 Splines
  • Condition: Used
  • Notes: Freshwater - Good Condition!
  • SKU: 12134 DRS
  • Manufacturer Part Number: 8M0063505
  • Country of Manufacture: United States
  • Motor & Engine Type: Mercury
  • Part Type: Motors, Engines & Components
  • Other Part Number: 45-8M0063505
  • Surface Finish: Polished
  • Warranty: 30 days
  • Inventory Number: 12134 DRS
  • Website Category: Lower Units
  • Website Sub Category: Drive shafts
  • UPC: 745061897991

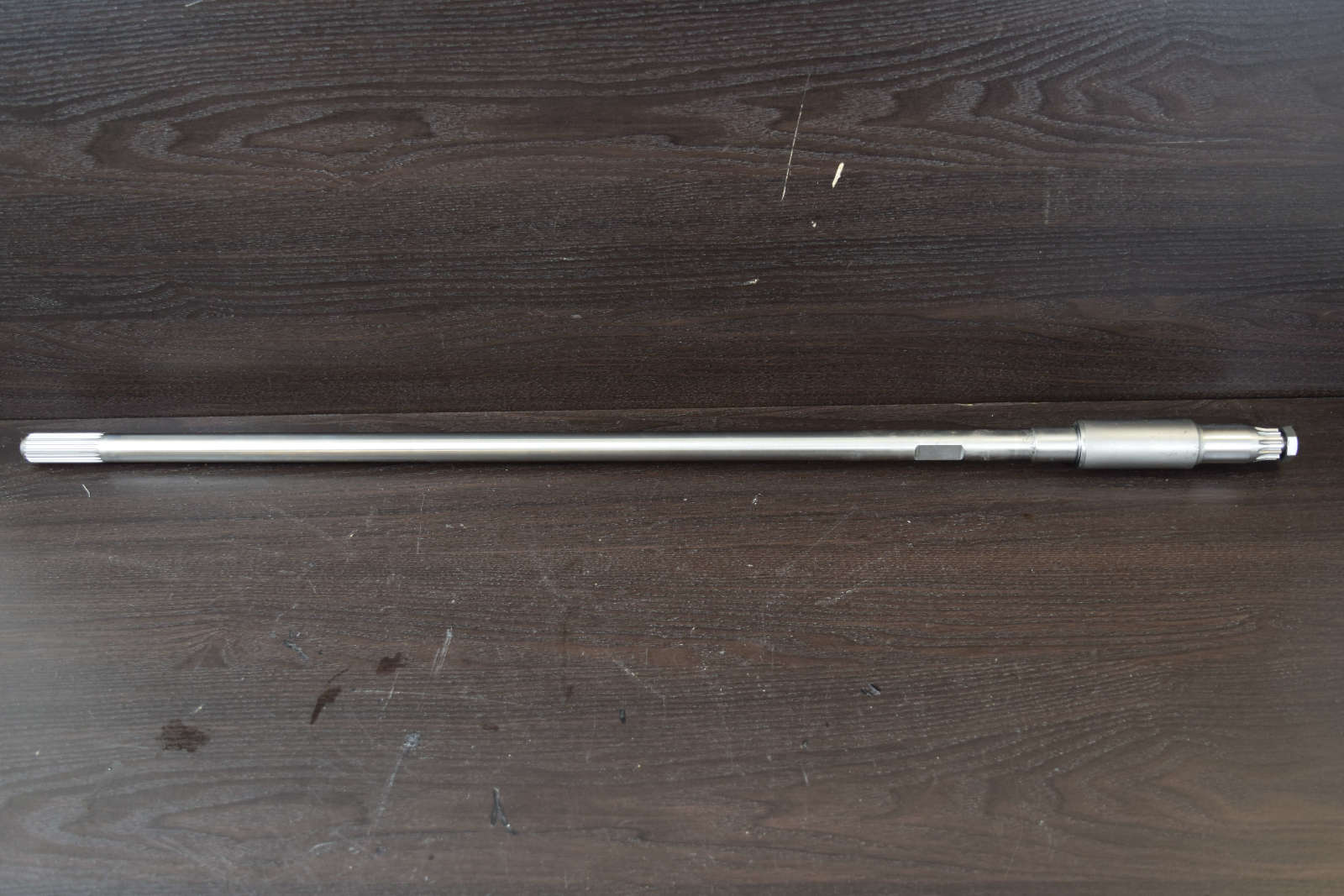

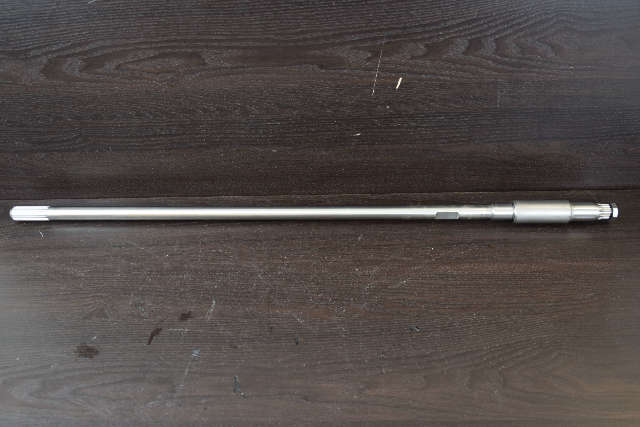

Item Description Mercury XL 25" Driveshaft
Part Number

8M0063505

Condition Used, good condition.
Additional Info

This Mercury driveshaft was removed from a freshwater, running engine and is in good condition. We have professionally cleaned, inspected, and polished this driveshaft to guarantee it to be a great, working part. Upon inspection, we did notice some water intrusion spots below the keyway of the driveshaft, but still is fully function. There are some minor markings on the bearing surface as well. We have this listed as a "B" condition part, but is still in good, usable condition. All of the splines are in excellent shape and are not chipped or cracked in any way. Purchase with confidence!

Full length - 36-3/8"
Length from top of keyway: 25-7/8"

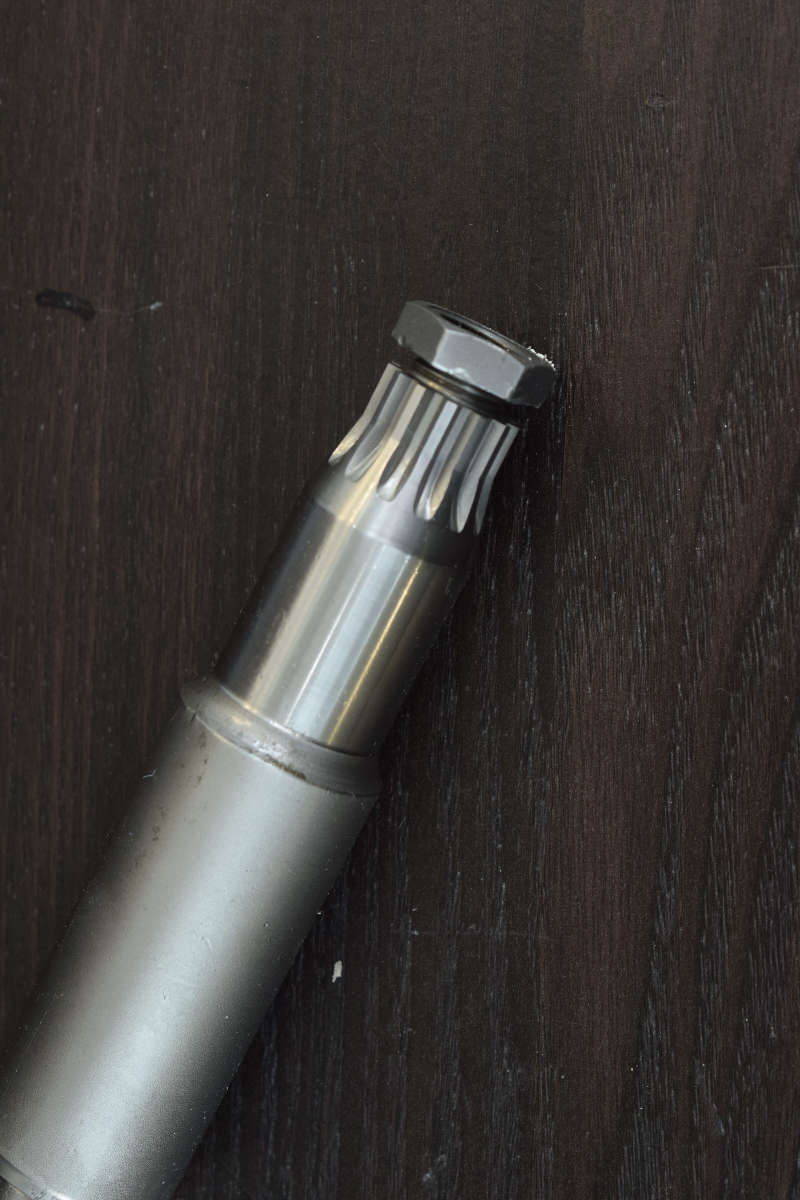

Splines -20/13

Fits: 2015 - 150 HP - 4 stroke Inline 4

Because of how new this driveshaft is, we are unable to cross reference all the years and horsepowers that it will fit. If you need help identifying if this is the correct one for your motor, please contact us prior to purchasing with your serial number and we would be happy to help!
